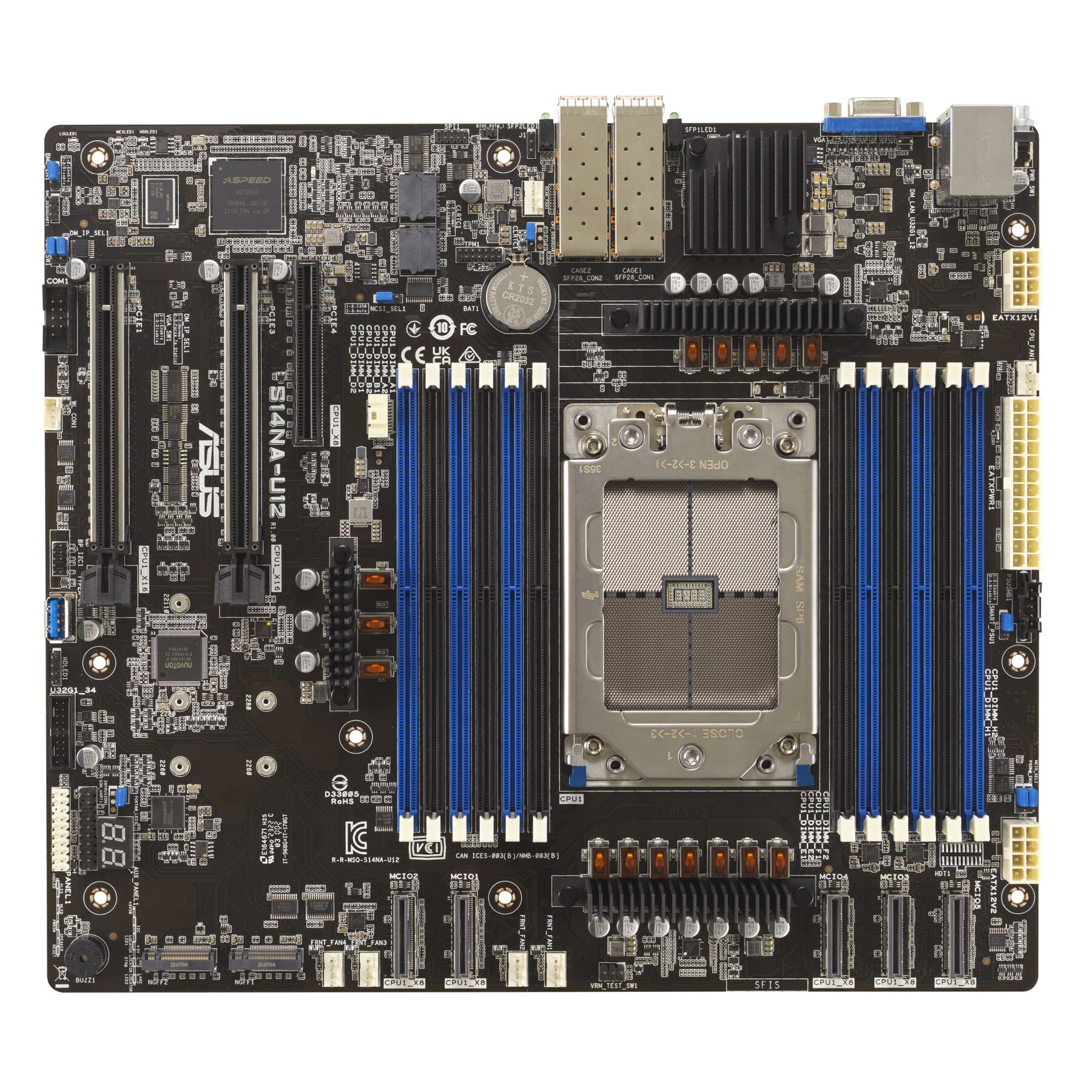

ASUS S14NA-U12 ASMB11 - E-ATX Server Motherboard LGA4677, Intel C741, DDR5 up to 2.05TB, 16 DIMM, 10Gb LAN (Black)
Enterprise E-ATX server motherboard for Intel Xeon (LGA4677). Intel C741, DDR5 up to 2.05TB across 16 DIMMs, dual PCIe 4.0, 10Gb LAN, 10x SATA3, 2x M.2, USB-C header.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
| Motherboards - Form Factor | E-ATX |
|---|---|
| Motherboards - Memory Type | DDR5 |
| Motherboards - PCIe Version (primary GPU) | PCIe 4.0 |
| Motherboards - M.2 Slots | 2 |
| Motherboards - SATA Ports | 10+ |
| Motherboards - USB-C | Front Panel Type-C header |
ASUS S14NA-U12. Processor manufacturer: AMD. Processor socket: Socket SP6. Supported processor sockets: SP6. Supported memory types: DDR5-SDRAM. Maximum internal memory: 1.15 TB. Memory slots type: DIMM. Supported storage drive interfaces: PCI Express 5.0. Supported storage drive types: HDD & SSD. Ethernet interface type: 25 Gigabit Ethernet. Gigabit Ethernet. Component for: Server. Motherboard chipset family: AMD. Product colour: Black
| Processor manufacturer | AMD |
| Processor socket | Socket SP6 |
| Supported processor sockets | SP6 |
| Supported memory types | DDR5-SDRAM |
| Number of memory slots | 12 |
| Memory slots type | DIMM |
| Memory channels | Hexa-channel |
| Supported memory clock speeds | 3600.4000.4800 MHz |
| Supported memory clock speed (max) | 4800 MHz |
| Maximum internal memory | 1.15 TB |
| Maximum RDIMM memory | 96 GB |
| Supported storage drive types | HDD & SSD |
| Supported storage drive interfaces | PCI Express 5.0 |
| Number of HDDs supported | 8 |
| Number of storage drives supported | 7 |
| Parallel processing technology support | Not supported |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 2 |
| Number of chassis fan connectors | 6 |
| Feature | Ethernet LAN |
| Serial port headers | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| Ethernet LAN (RJ-45) ports | 1 |
| VGA (D-Sub) ports quantity | 1 |
| Ethernet interface type | 25 Gigabit Ethernet. Gigabit Ethernet |
| Product colour | Black |
| Component for | Server |
| Motherboard chipset family | AMD |
| Cooling type | Passive |
| PCI Express x8 (Gen 5.x) slots | 1 |
| PCI Express x16 (Gen 5.x) slots | 2 |
| Number of M.2 (M) slots | 2 |
| 1st M.2 largest key size | 22110 |
| 1st M.2 highest PCI Express generation | 5.0 |
| 2nd M.2 largest key size | 2280 |
| 2nd M.2 highest PCI Express generation | 5.0 |
| Package width | 425 mm |
| Package depth | 395 mm |
| Package height | 81 mm |
| Package weight | 2.2 kg |
| Width | 304.8 mm |
| Depth | 266.7 mm |
| Weight | 1.4 kg |
