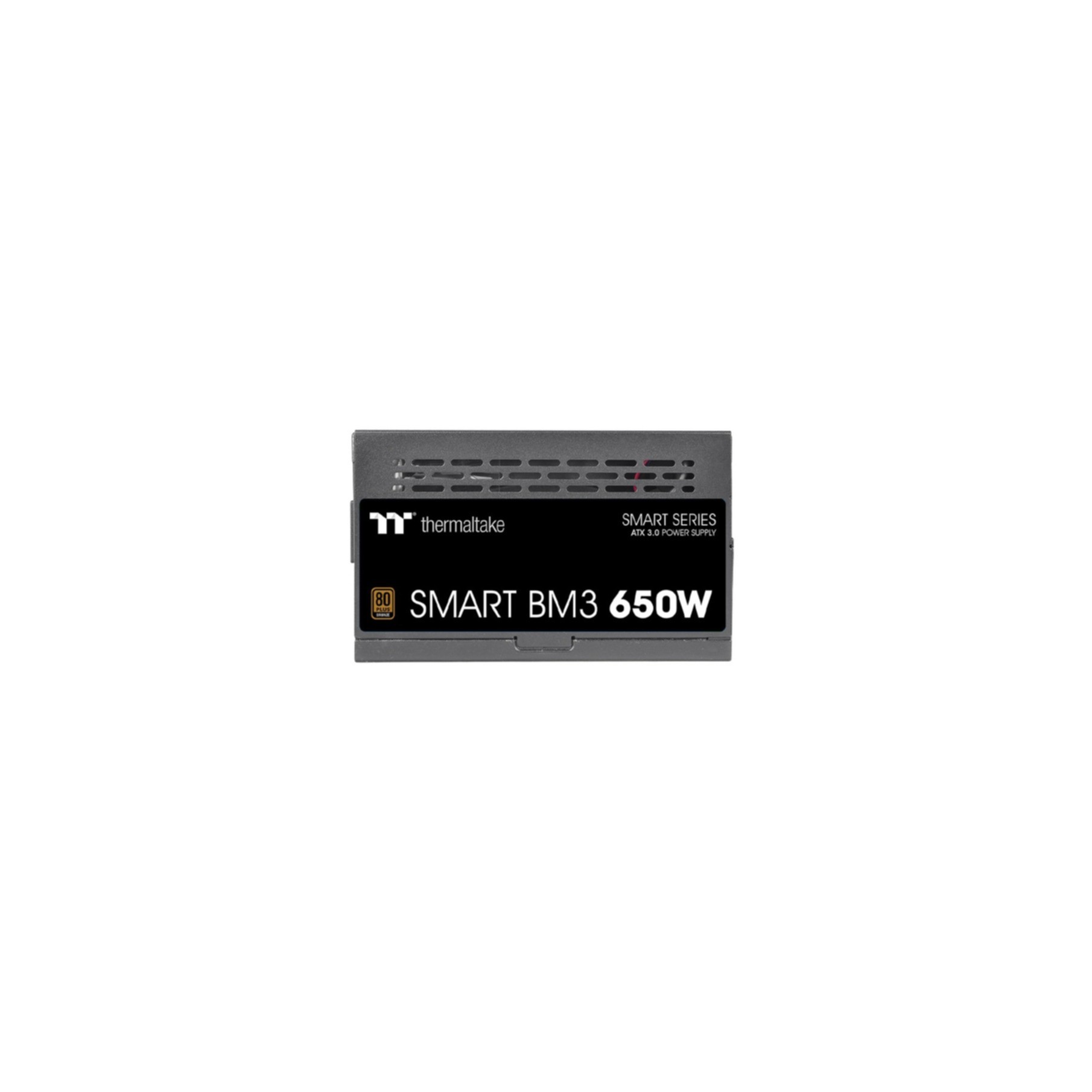

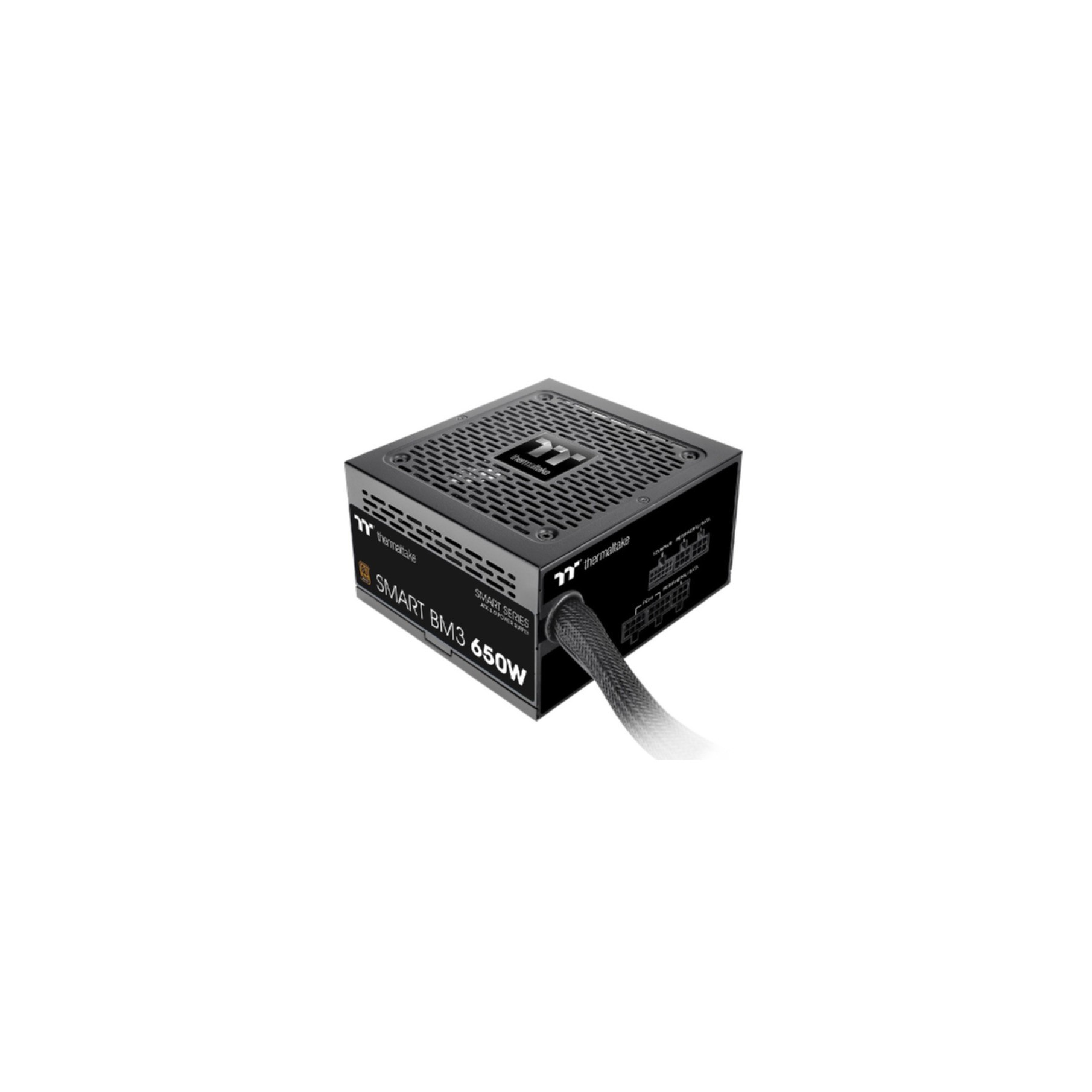

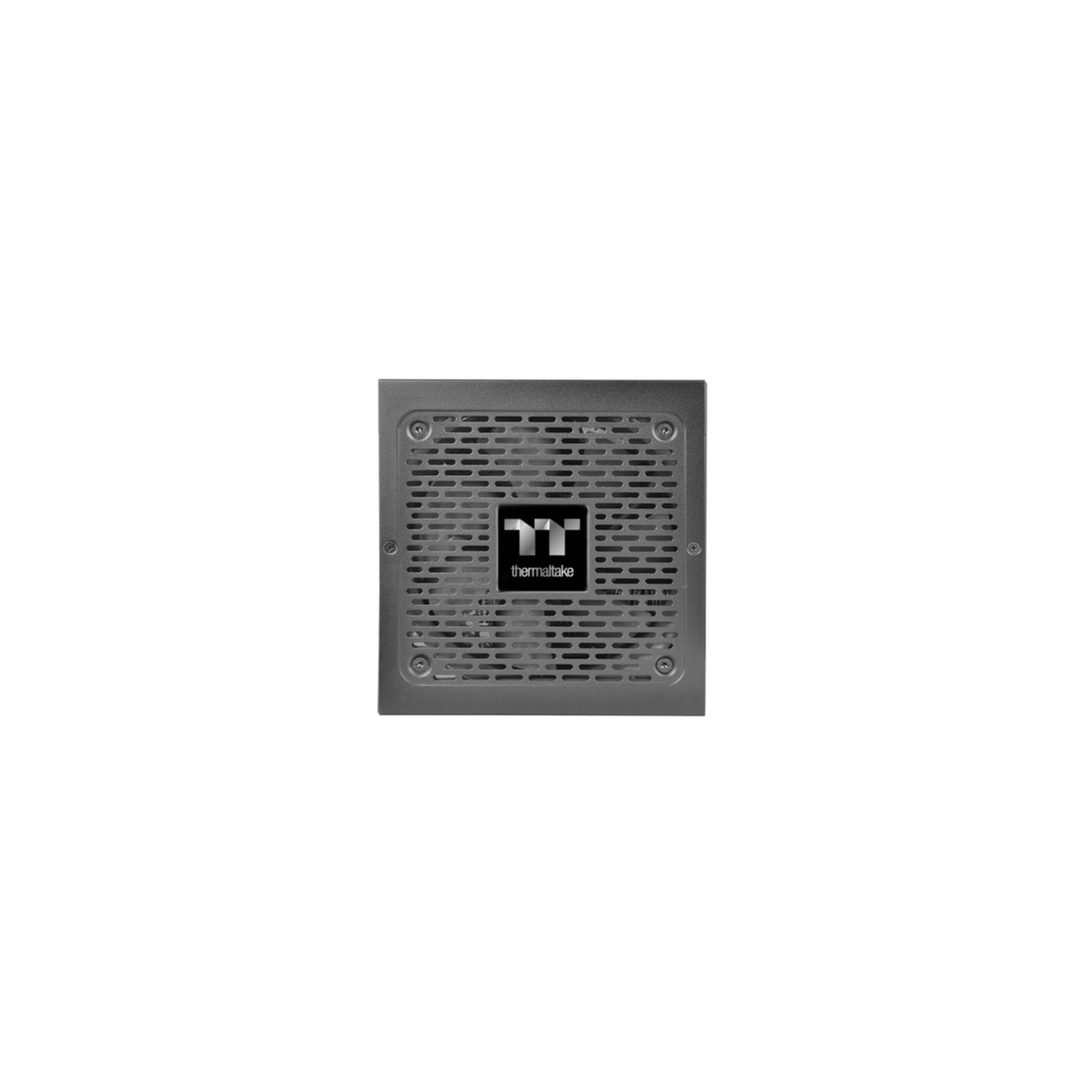

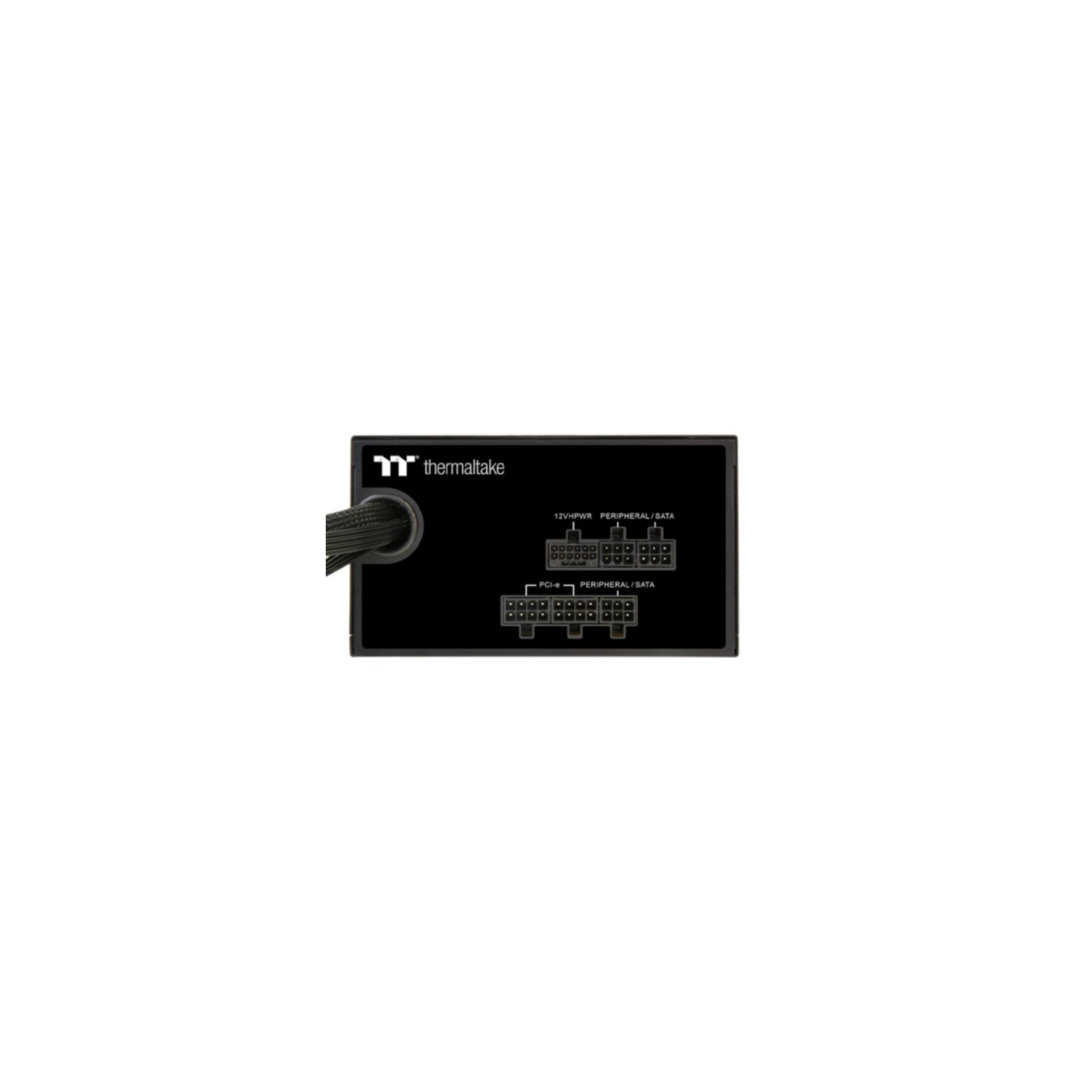

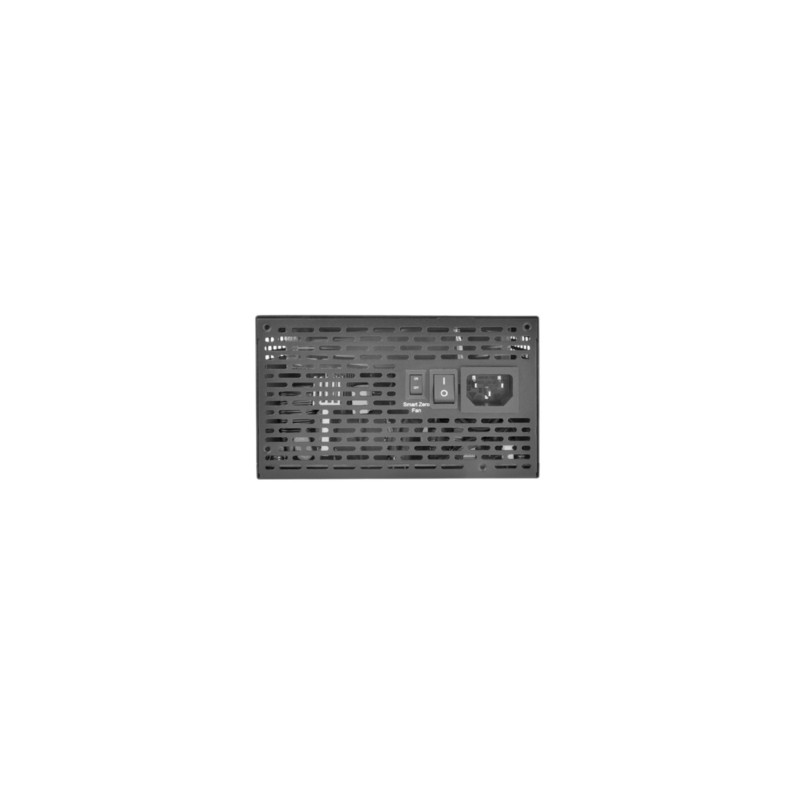

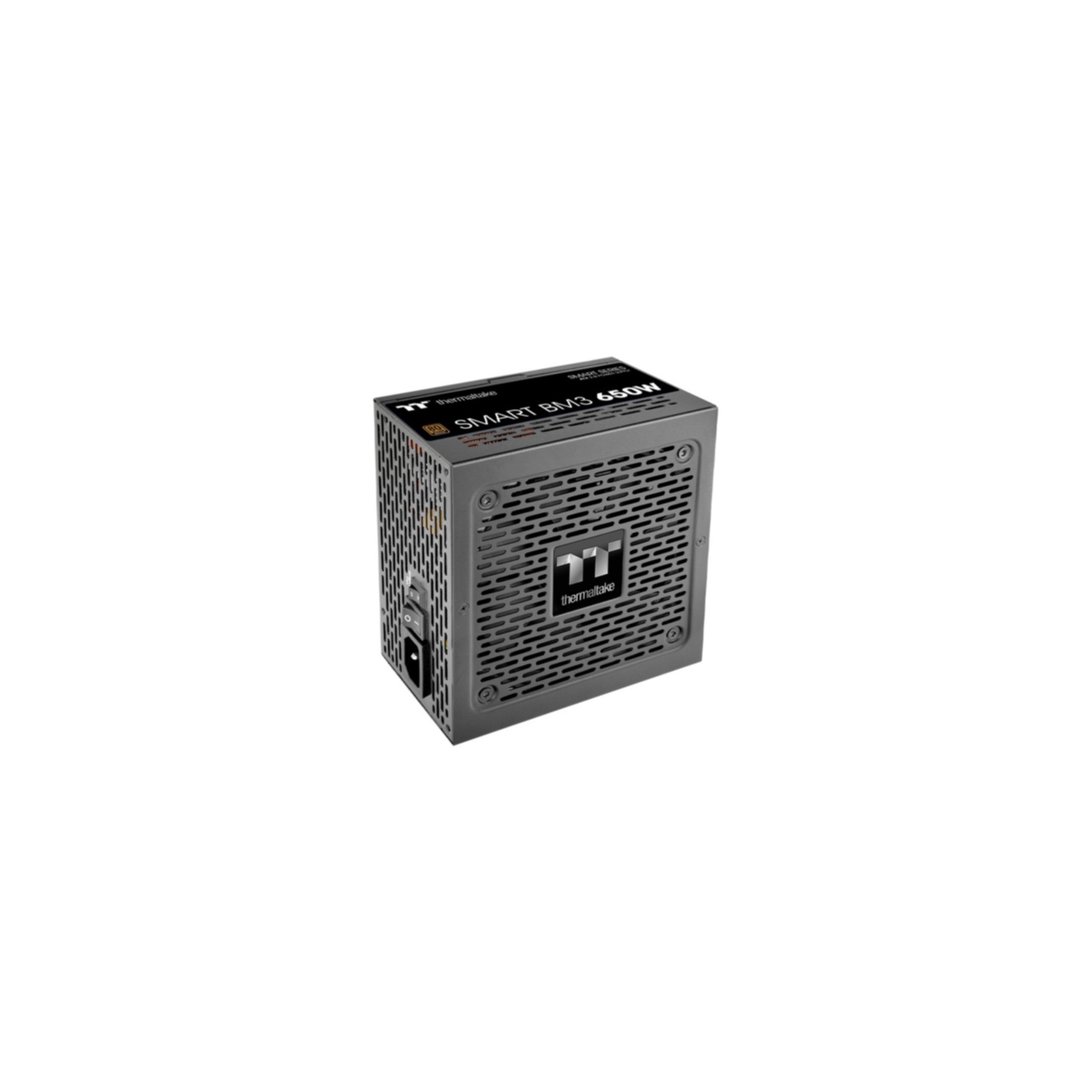

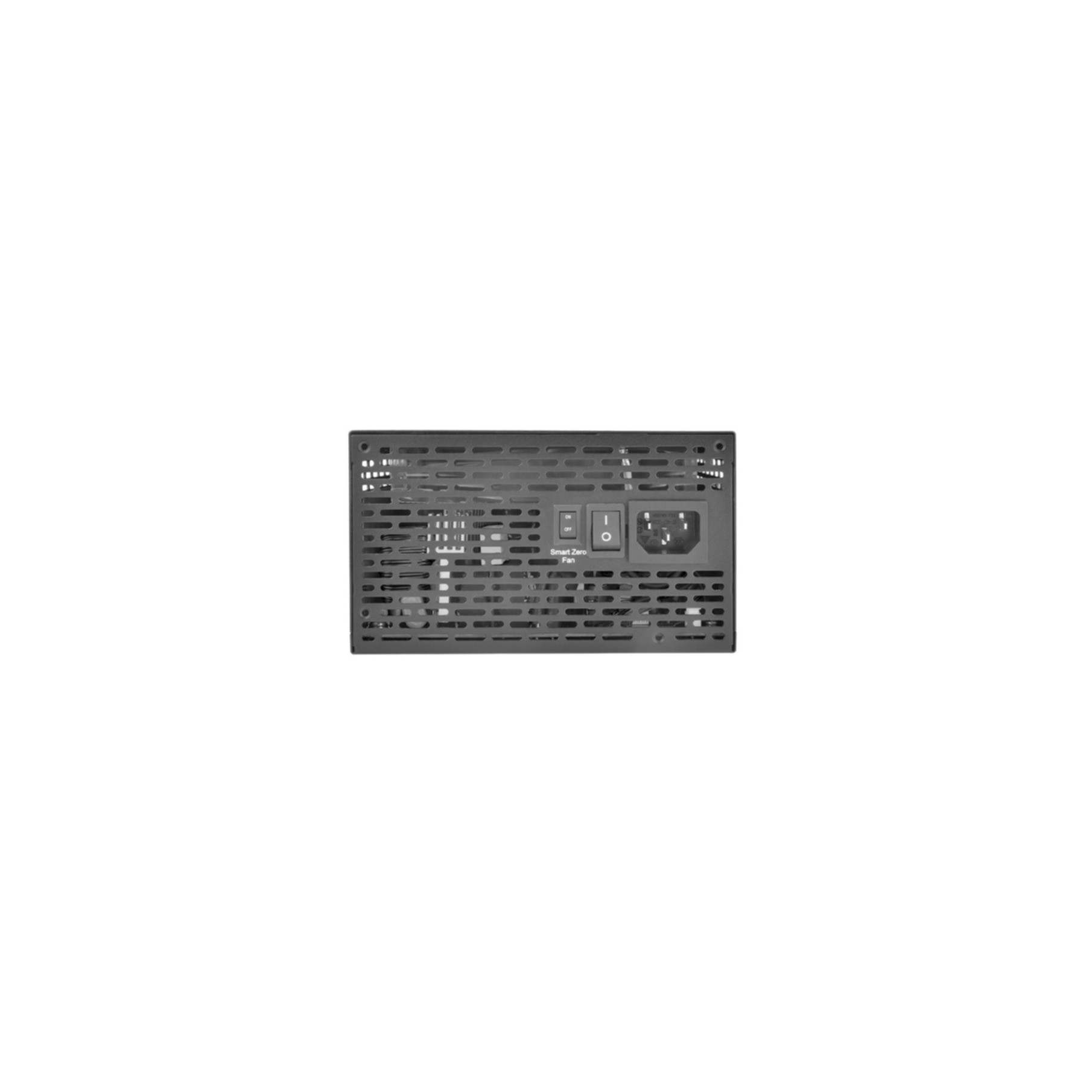

Thermaltake SMART BM3 650W - PS-SPD-0650MNFABE-3 - ATX 3.0, 80+ Bronze, Semi-Modular, Black
650W Thermaltake SMART BM3 ATX 3.0 PSU, 80+ Bronze efficiency, semi-modular cabling, 120mm fan, 4x6+2 PCIe + 1x12VHPWR, comprehensive protection suite.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| PSU (Power Supplies) - Wattage | 650 W |
|---|---|
| PSU (Power Supplies) - Efficiency Rating | 80+ Bronze |
| PSU (Power Supplies) - ATX Standard | ATX 3.0 |
| PSU (Power Supplies) - Modularity | Semi-modular |
| PSU (Power Supplies) - PCIe GPU Connectors | 12VHPWR (16-pin) |
| PSU (Power Supplies) - Fan Size | 120 mm |
| PSU (Power Supplies) - Length | less than or equal to140 mm |
Thermaltake Smart BM3. Total power: 650 W. AC input voltage: 100 - 240 V. AC input frequency: 50/60 Hz. Motherboard power connector: 24-pin ATX. Motherboard power cable length: 60 cm. SATA power cable length: 150.500 mm. Purpose: PC. Power supply unit (PSU) form factor: ATX. 80 PLUS certification: 80 PLUS Bronze. Product colour: Black. Cooling type: Active. Fan diameter: 12 cm. Safety: CE/UKCA/LVD/UKCA/FCC/ICES/TUV/CB/cTUVus/BSMI/CCC
| Total power | 650 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Input current | 15 A |
| Power Factor Correction (PFC) type | Active |
| Combined power (+3.3V) | 110 W |
| Combined power (+12V) | 650 W |
| Combined power (+5V) | 110 W |
| Combined power (-12V) | 3.6 W |
| Combined power (+5Vsb) | 15 W |
| Max output current (+3.3V) | 18 A |
| Max output current (+12V) | 54.2 A |
| Max output current (+5V) | 18 A |
| Max output current (-12V) | 0.3 A |
| Max output current (+5Vsb) | 3 A |
| Hold time | 17 ms |
| Power protection features | Over current. Over power. Over voltage. Overheating. Short circuit. Under voltage |
| Motherboard power connector | 24-pin ATX |
| Motherboard power cable length | 60 cm |
| Number of SATA power connectors | 3 |
| SATA power cable length | 150.500 mm |
| Peripheral (Molex) power connectors (4-pin) | 7 |
| Peripheral (Molex) power cable length | 150.500 mm |
| PCI Express power connectors (6+2 pin) | 4 |
| PCI Express power connectors (12+4 pin) | 1 |
| PCI Express power connectors (12+4 pin) cable length | 600 mm |
| Feature | On/off switch |
| Cabling type | Semi-Modular |
| 80 PLUS certification | 80 PLUS Bronze |
| Purpose | PC |
| Power supply unit (PSU) form factor | ATX |
| ATX version | 3.0 |
| Mean time between failures (MTBF) | 100000 h |
| Product colour | Black |
| Cooling type | Active |
| Fan diameter | 12 cm |
| Number of fans | 1 fan(s) |
| Operating temperature (T-T) | 5 - 45 °C |
| Storage temperature (T-T) | -40 - 55 °C |
| Operating relative humidity (H-H) | 20 - 85% |
| Storage relative humidity (H-H) | 10 - 95% |
| Safety | CE/UKCA/LVD/UKCA/FCC/ICES/TUV/CB/cTUVus/BSMI/CCC |
| Width | 150 mm |
| Depth | 140 mm |
| Height | 86 mm |
