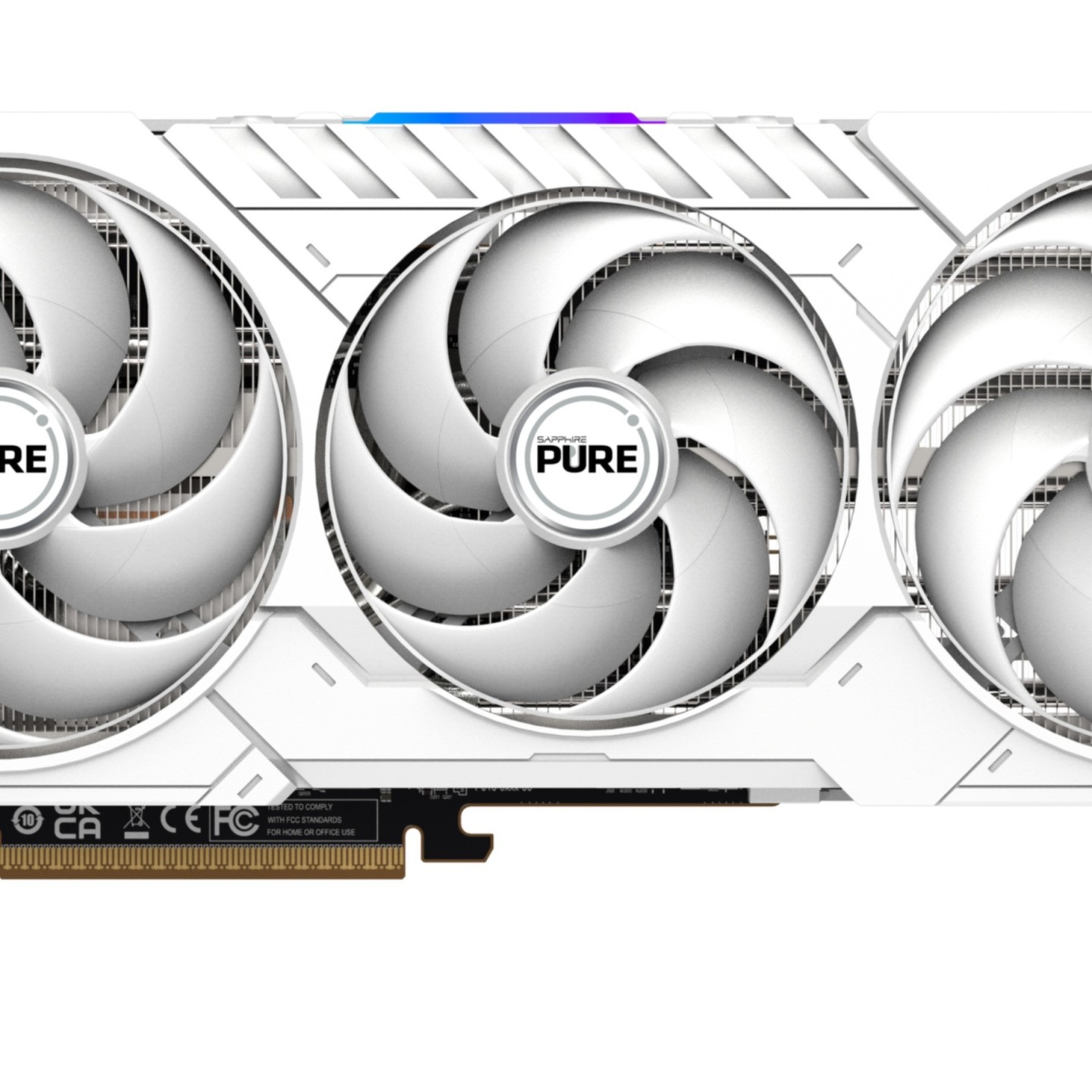

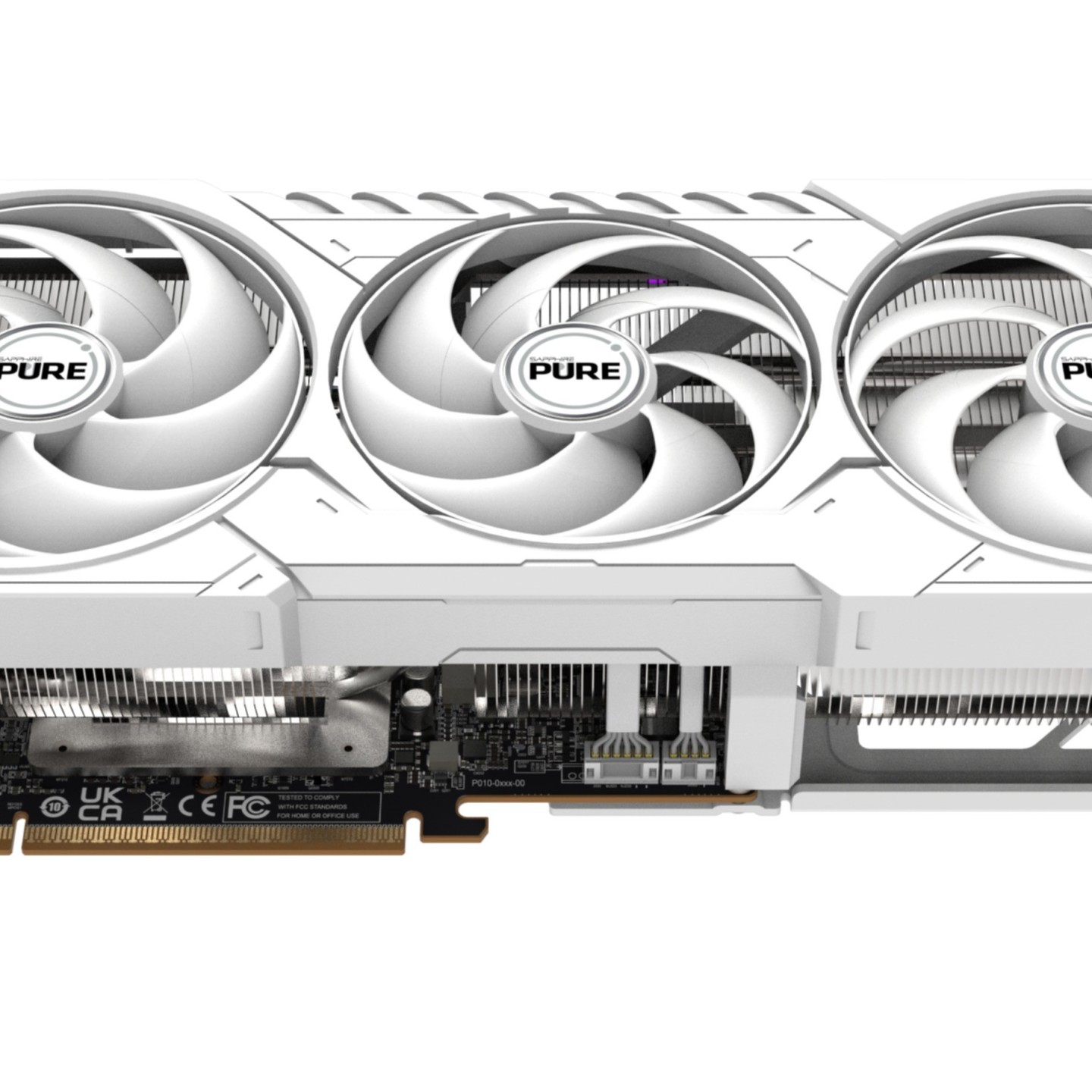

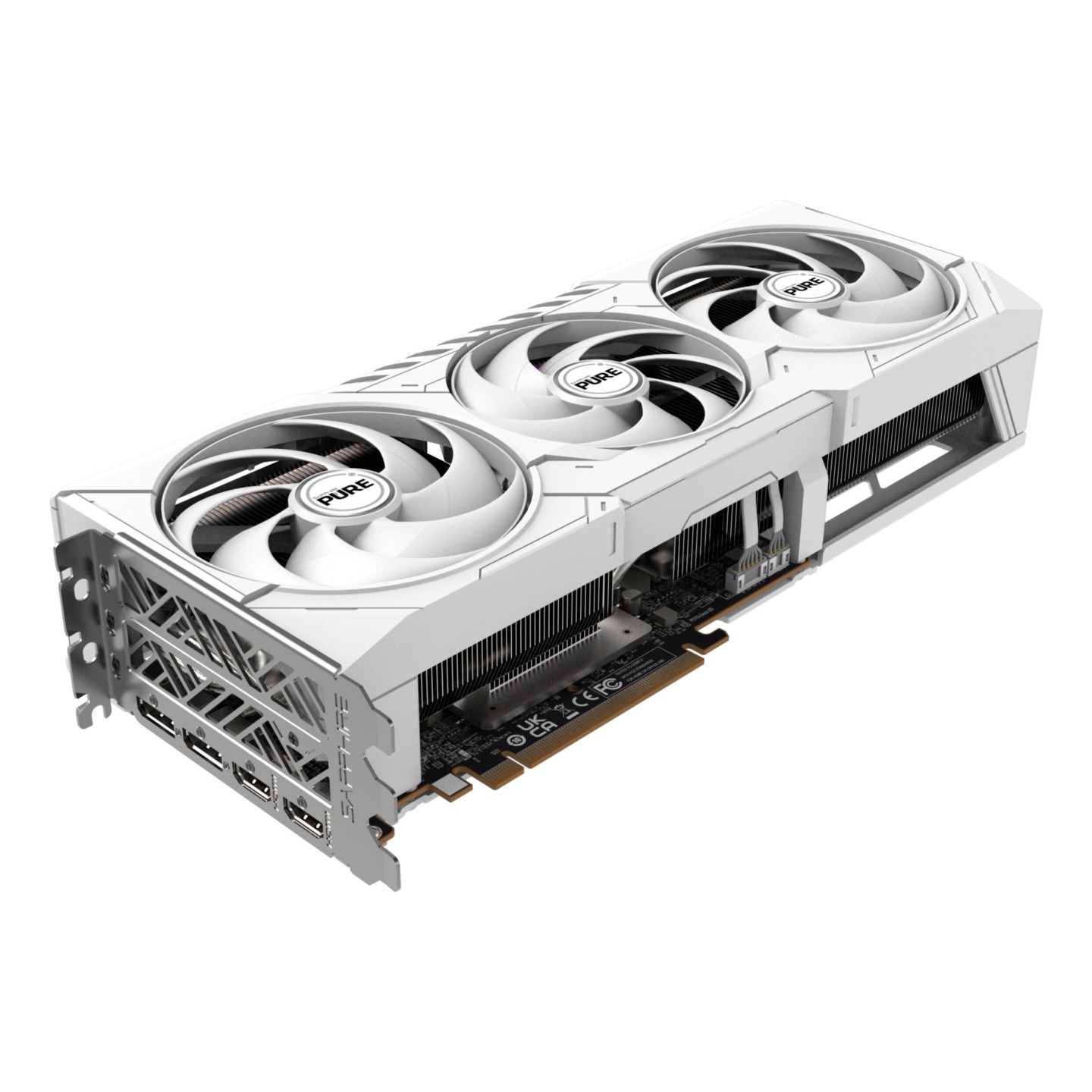

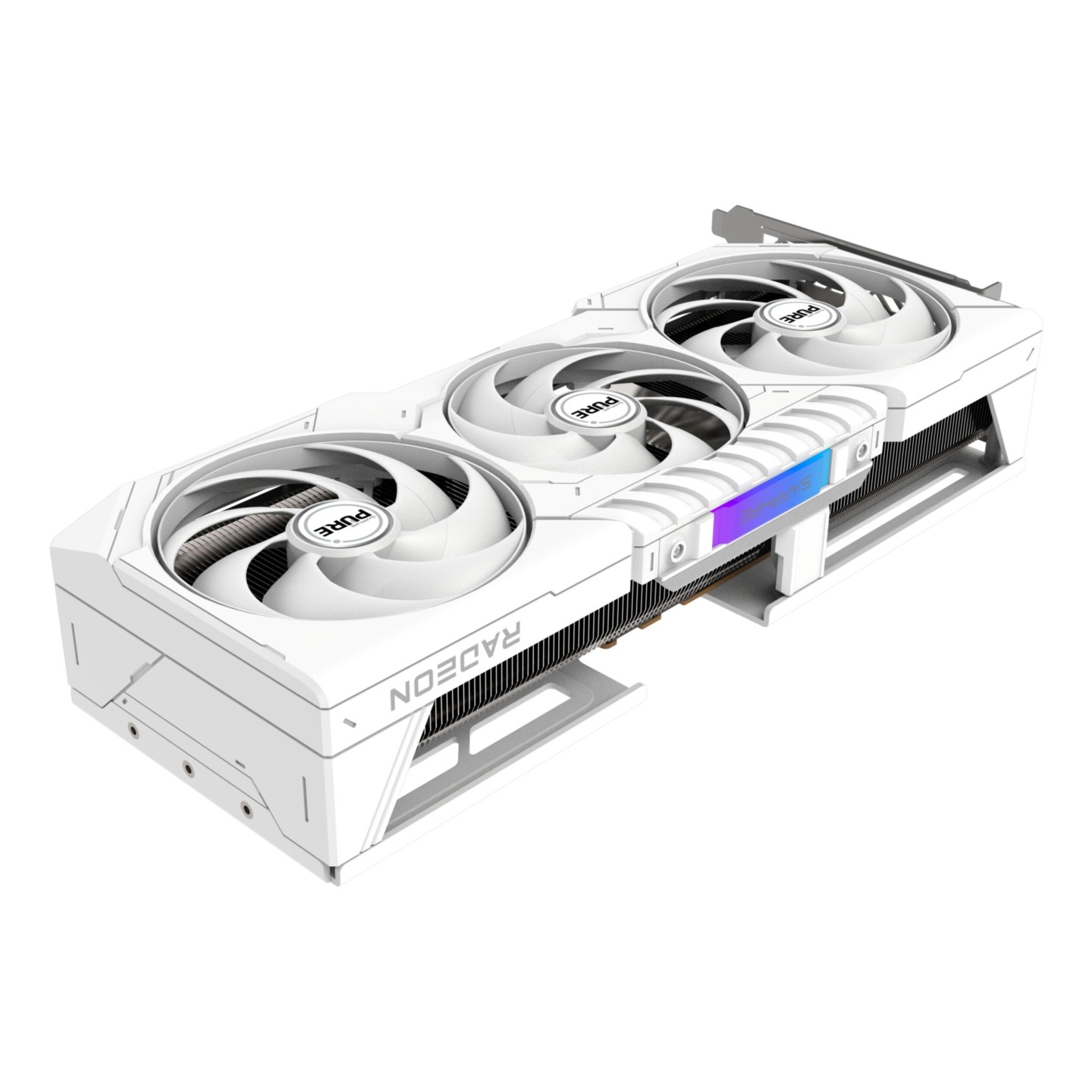

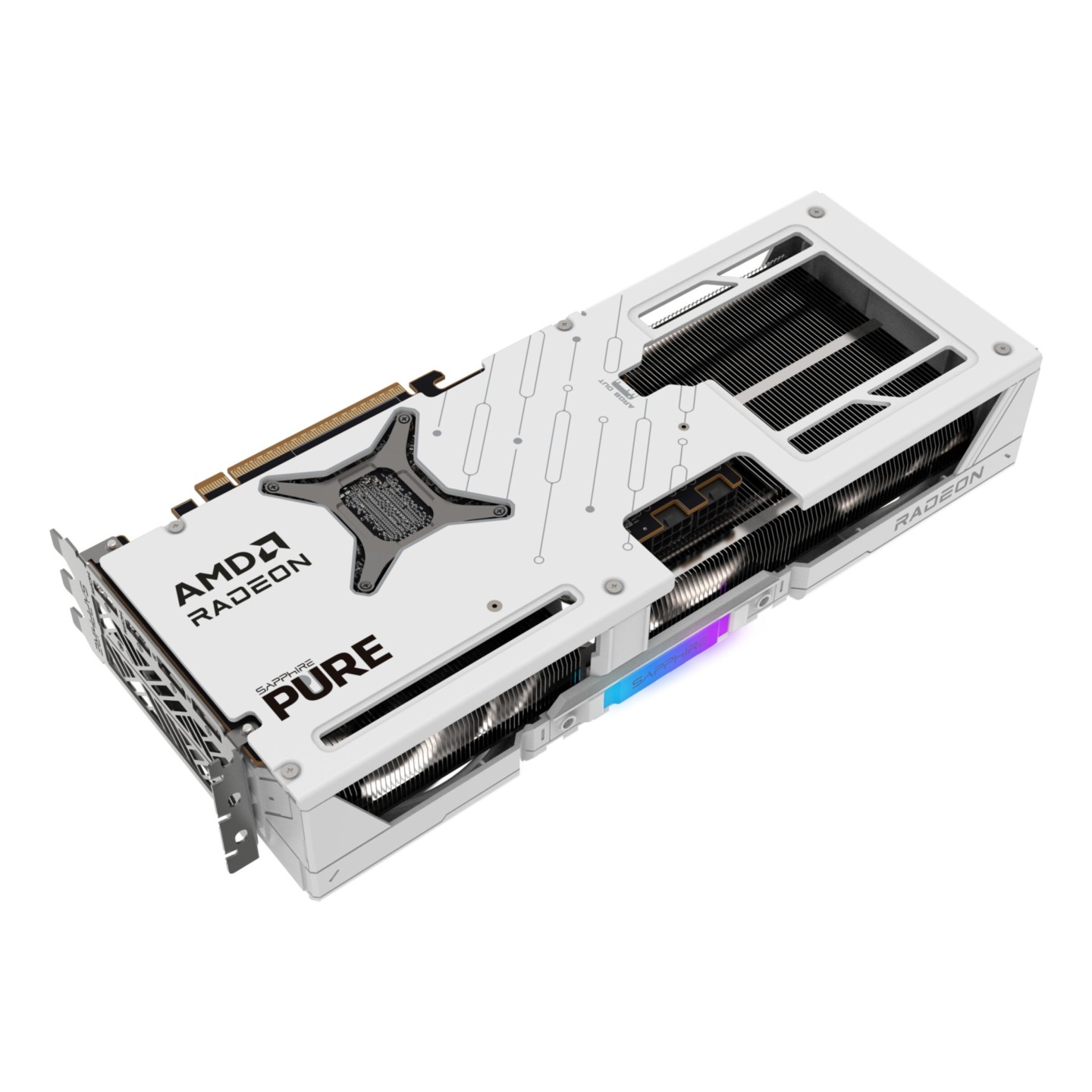

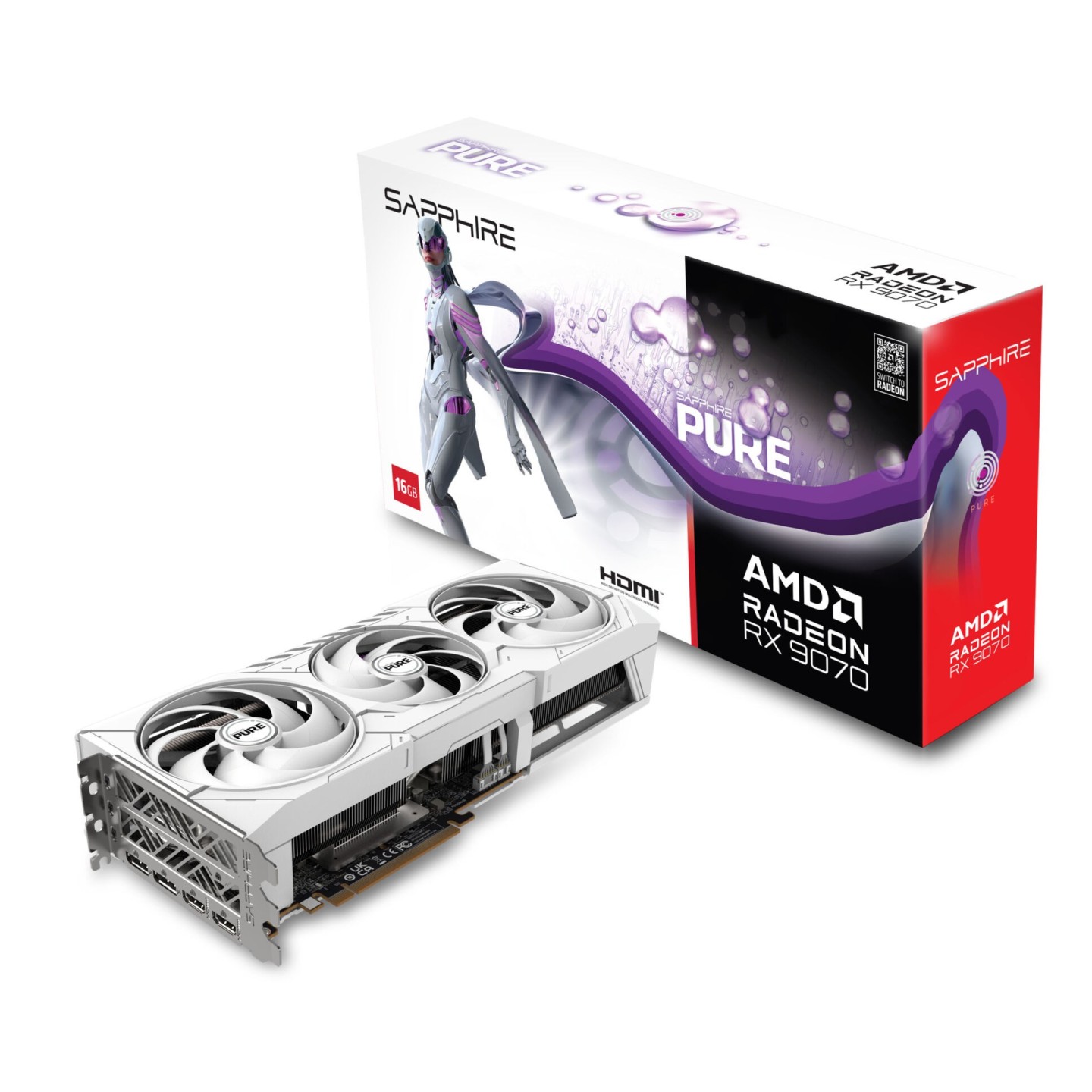

SAPPHIRE PURE Radeon RX 9070 16GB Gaming OC White 2700MHz (Boxed)
Radeon RX 9070 GPU with 16GB GDDR6, boost 2700MHz OC, PCIe 5.0 x16. Features 2x HDMI 2.1, 2x DP 2.1a, Tri-X 3-fan white cooling, 245W TDP, 56 CUs, 64MB Infinity Cache for 1440p/4K gaming.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| GPU (Graphics Cards) - Series | AMD Radeon RX |
|---|---|
| GPU (Graphics Cards) - PCIe Interface | PCIe 5.0 x16 |
| GPU (Graphics Cards) - Cooler Type | Triple Fan |
| GPU (Graphics Cards) - Color | White |
| GPU (Graphics Cards) - VRAM Capacity | 16 GB |
| GPU (Graphics Cards) - VRAM Type | GDDR6 |
| GPU (Graphics Cards) - Outputs | DisplayPort 2.1 HDMI 2.1 |
| GPU (Graphics Cards) - Power Connector | 2x8-pin |
| GPU (Graphics Cards) - Card Length | Extended (301-320 mm) |
The Sapphire PURE Radeon RX 9070 16GB Gaming OC (UEFI) - White delivers high-end gaming performance powered by AMD RDNA 4 architecture. Featuring 56 Compute Units, 3584 Stream Processors, 56 Ray Accelerators, and 112 AI Accelerators, it excels in rasterization, ray tracing, and AI workloads. Boost clock reaches 2700 MHz in OC mode with game clock at 2210 MHz, supported by 16GB GDDR6 memory at 20 Gbps over a 256-bit bus and 64MB Infinity Cache for bandwidth efficiency.
Sapphire's Tri-X cooling with three white fans keeps the 245W TDP card cool and quiet under load. Connectivity includes PCIe 5.0 x16 interface, 2x HDMI, 2x DisplayPort 2.1a supporting up to 7680x4320 resolution and 4 displays. Dual 8-pin power connectors require a 650W PSU. The full-height/full-length design measures approx. 320x120x62mm with multi-color RGB illumination.
- AMD Radeon RX 9070 GPU, 16GB GDDR6, 256-bit, 20Gbps
- Boost 2700MHz (OC), Game 2210MHz, 56 CUs, 64MB Infinity Cache
- Tri-X 3-fan active cooling, white shroud, multi RGB
- PCIe 5.0 x16, 2x HDMI + 2x DP 2.1a, DirectX 12 Ultimate
- 245W TDP, 2x 8-pin, min 650W PSU, Windows/Linux supported
| Compute units | 56 |
| Graphics processor family | AMD |
| Graphics processor | Radeon RX 9070 |
| Processor boost clock speed | 2700 MHz |
| Processor boost clock speed (Gaming mode) | 2210 MHz |
| Maximum resolution | 7680 x 4320 pixels |
| Stream processors | 3584 |
| Maximum displays per videocard | 4 |
| Infinity cache | 64 MB |
| Ray accelerators | 56 |
| AI accelerators | 112 |
| Discrete graphics card memory | 16 GB |
| Graphics card memory type | GDDR6 |
| Memory bus | 256 bit |
| Data transfer rate | 20 Gbit/s |
| Interface type | PCI Express x16 5.0 |
| HDMI ports quantity | 2 |
| DisplayPorts quantity | 2 |
| DisplayPort version | 2.1a |
| DirectX version | 12 Ultimate |
| Cooling type | Active |
| Cooling technology | Sapphire Tri-X |
| Number of fans | 3 fan(s) |
| Form factor | Full-Height/Full-Length (FH/FL) |
| Bracket height | Full-Height (FH) |
| Number of slots | 3 |
| Illumination colour | Multi |
| Product colour | White |
| Minimum system power supply | 650 W |
| Supplementary power connectors | 2x 8-pin |
| Thermal Design Power (TDP) | 245 W |
| Windows operating systems supported | Windows 10 x64, Windows 11 x64 |
| Length | 320 mm |
| Depth | 61.6 mm |
| Height | 120.2 mm |
