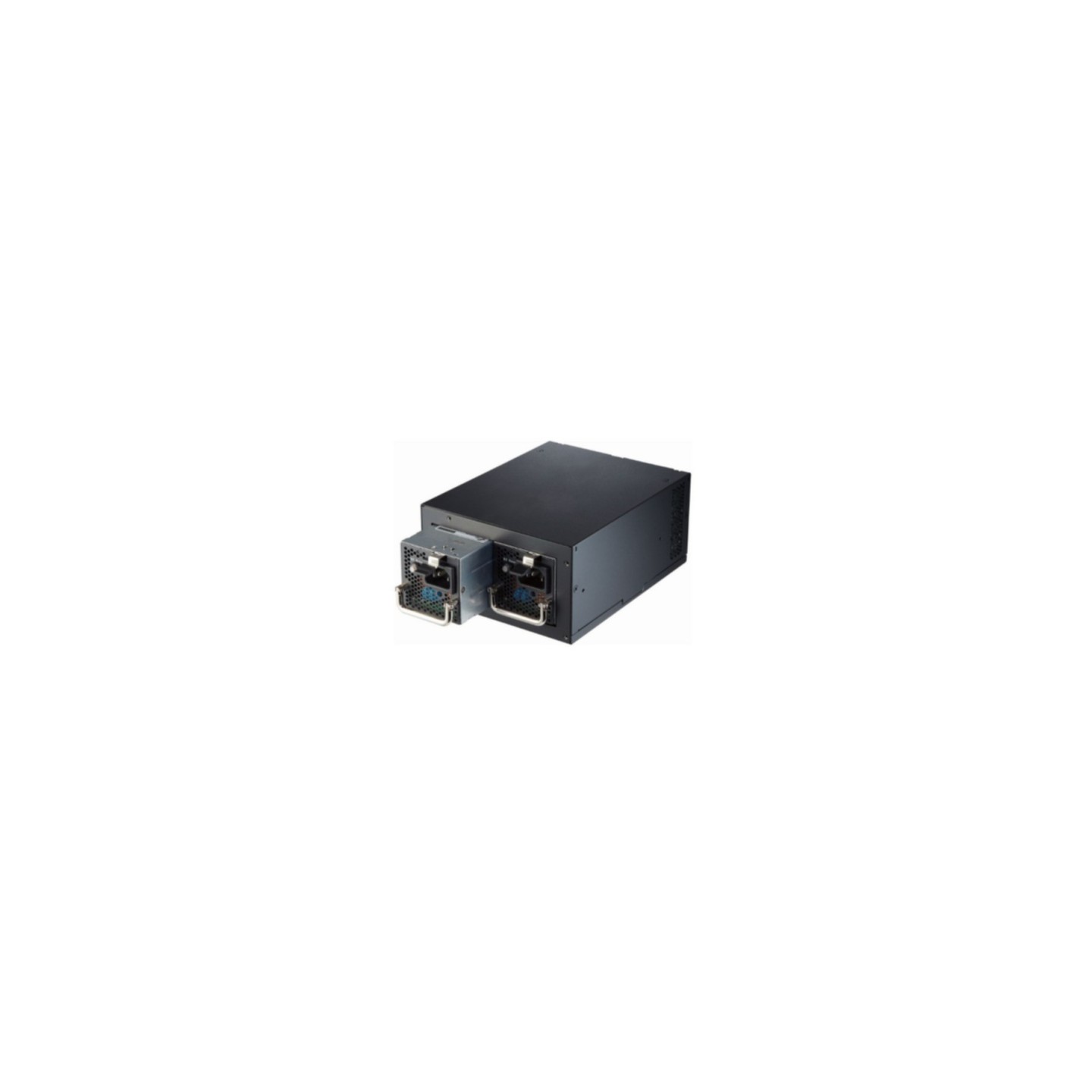

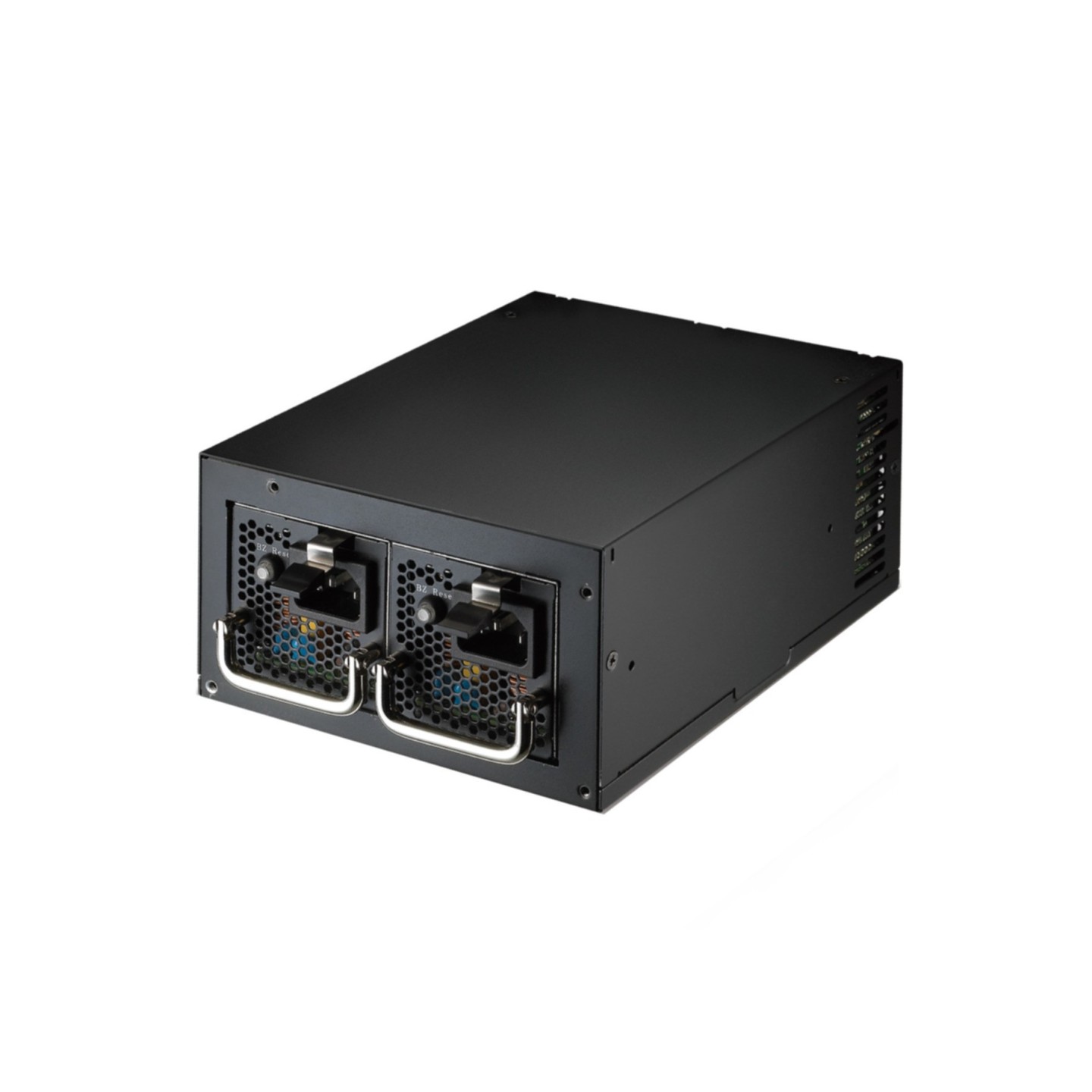

Fortron Twins PRO 900 80+ Gold Redundant PSU Non-Modular Black (Boxed)
900W redundant twin PSU with hot-swappable modules, 80+ Gold efficiency, non-modular black ribbon cables. Fits PS/2 ATX chassis for servers. Features FSP Guardian monitoring, power cord lock, dual 40mm DBB fans for quiet operation.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| PSU (Power Supplies) - Wattage | 900 - 999 W |
|---|---|
| PSU (Power Supplies) - Efficiency Rating | 80 Plus Gold |
| PSU (Power Supplies) - Color | Black |
| PSU (Power Supplies) - Modularity | Non-modular |
| PSU (Power Supplies) - PCIe GPU Connectors | 4x 8/6 pins |
| PSU (Power Supplies) - Length | 141-160 mm |
| PSU (Power Supplies) - EPS CPU Connectors | 2x 4+4pin EPS/ATX12V |

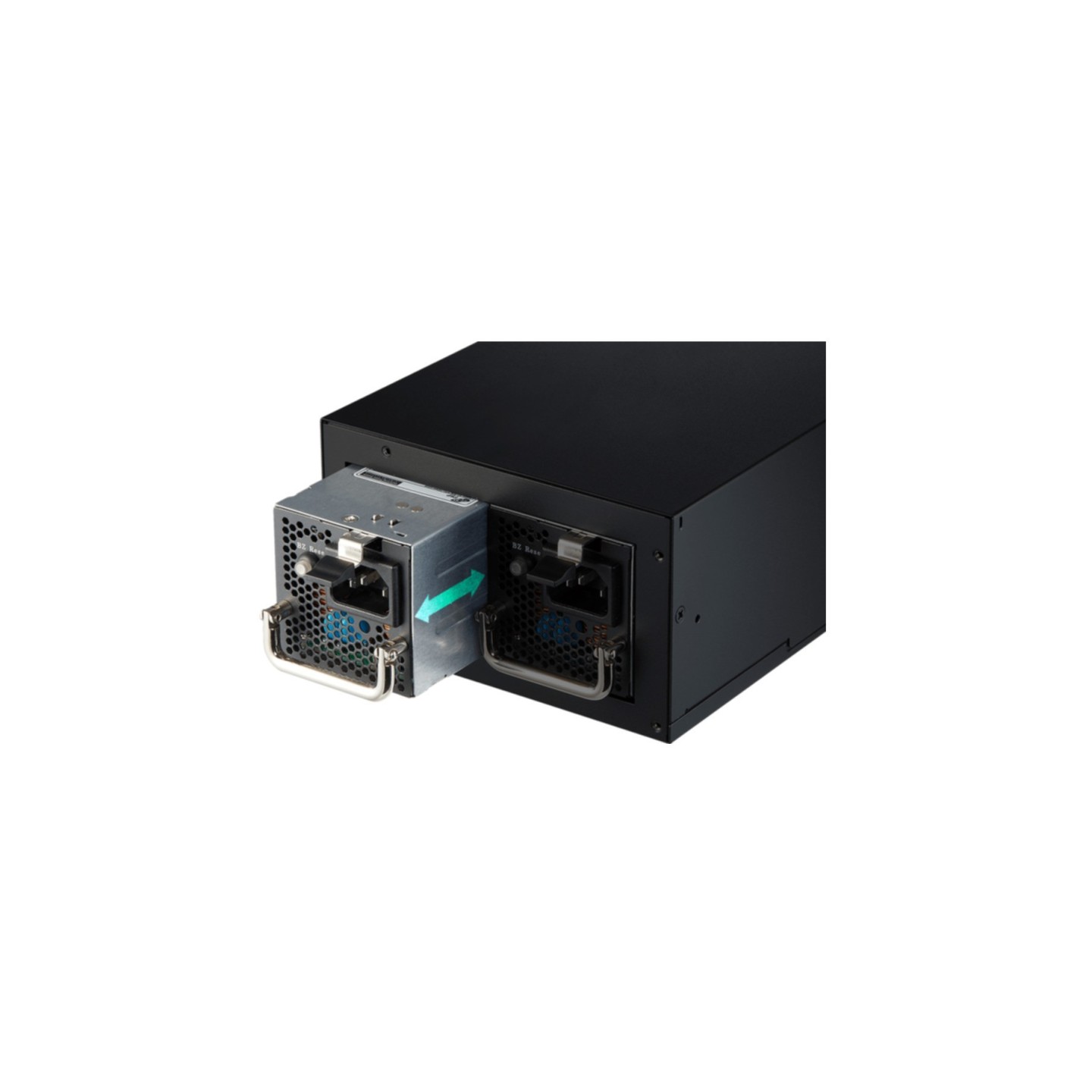

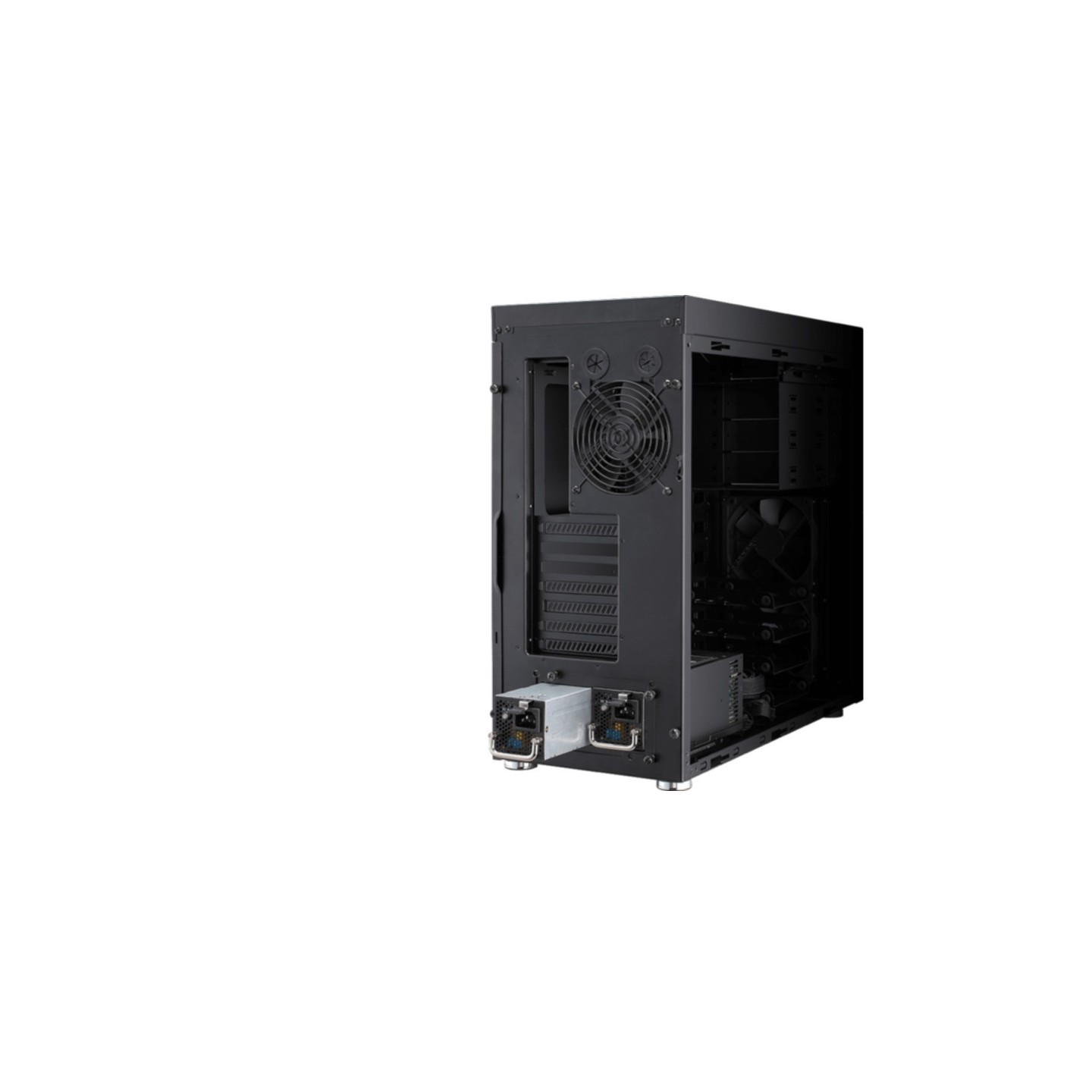

The Fortron Twins PRO 900 is a high-reliability redundant power supply designed for standard ATX or PS/2 chassis without needing a front bracket. Ideal for mail, web, or home servers, it features hot-swappable modules that ensure uninterrupted operation—if one module fails, the other instantly takes over the full load.
Key highlights include black ribbon cables for better heat dissipation, cable management, and aesthetics; a power cord locking device to prevent accidental disconnects; and compatibility with FSP Guardian software via USB for real-time monitoring of power input/output, efficiency, temperatures, and alerts. Dual 40mm ball bearing fans provide quiet, long-lasting cooling in this 1+1 redundant system.
- 80 PLUS Gold certified (≥90% efficiency at typical load)
- Active PFC, full protections: OCP, OVP, SCP, OPP, OTP, UVP
- Cables: 1x 20+4 ATX, 2x 4+4 CPU, 4x 6+2 PCIe, 6x SATA, 2x Molex, 1x Floppy
- Dimensions: 150 x 86 x 190 mm, Model: FSP900-50REB
| Total power | 900 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Input current | 6 - 10 A |
| Power Factor Correction (PFC) type | Active |
| Combined power (+3.3V) | 130 W |
| Max output current (+3.3V) | 20 A |
| Max output current (+5V) | 20 A |
| Max output current (+12V) | 75 A |
| Max output current (-12V) | 0.5 A |
| Max output current (+5Vsb) | 3 A |
| Efficiency | 90% |
| Power protection features | Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage |
| Motherboard power connector | 20+4 pin ATX |
| Number of SATA power connectors | 6 |
| Peripheral (Molex) power connectors (4-pin) | 2 |
| PCI Express power connectors (6+2 pin) | 4 |
| CPU power connector (4+4 pin) | 2 |
| Cabling type | Non-Modular |
| 80 PLUS certification | 80 PLUS Gold |
| Purpose | Server |
| Power supply unit (PSU) form factor | PS/2 |
| Bearing technology | DBB |
| Product colour | Black |
| Fan diameter | 4 cm |
| Number of fans | 2 fan(s) |
| Width | 150 mm |
| Depth | 190 mm |
| Height | 86 mm |
| Model | FSP900-50REB |
| Floppy power connector | 1 |
