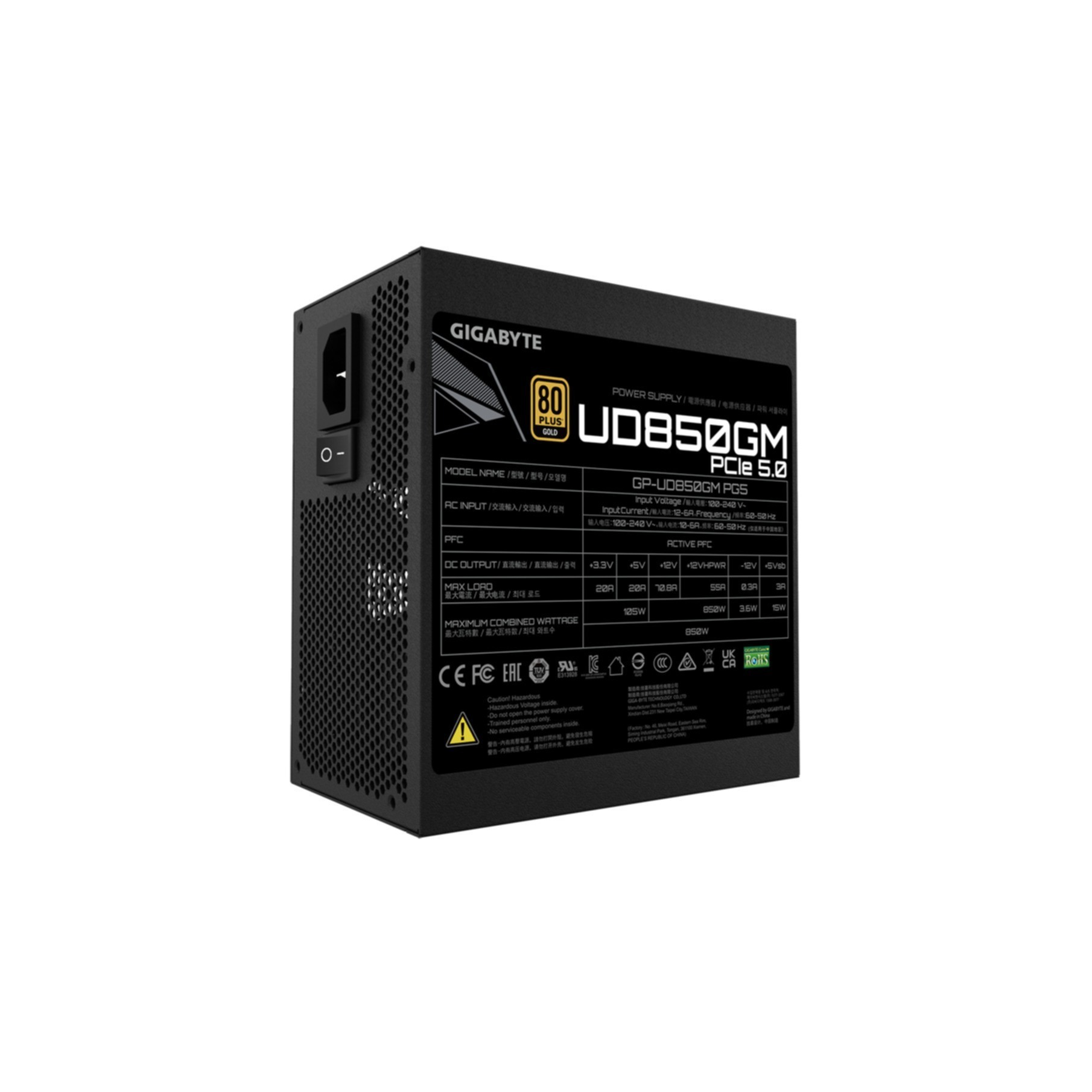

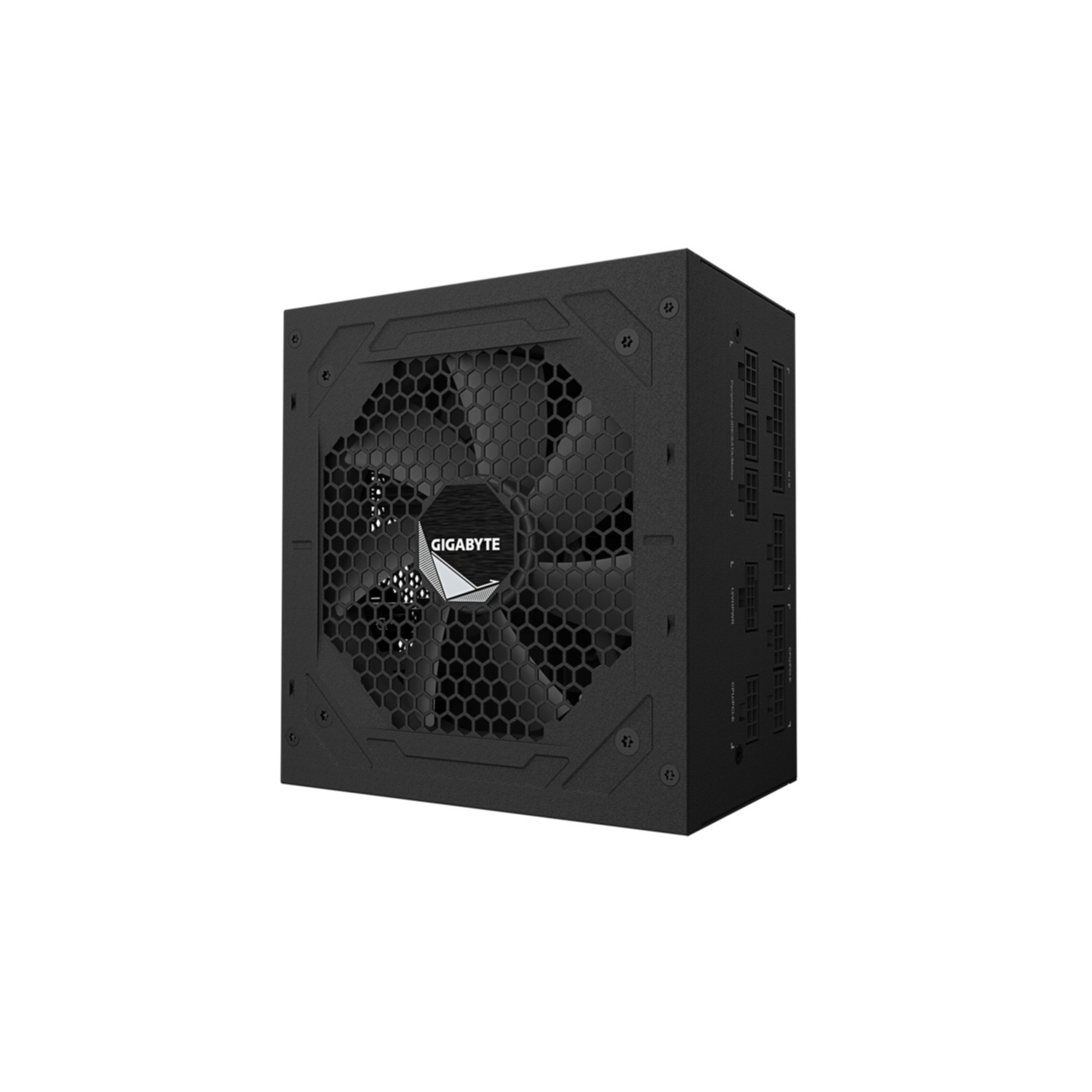

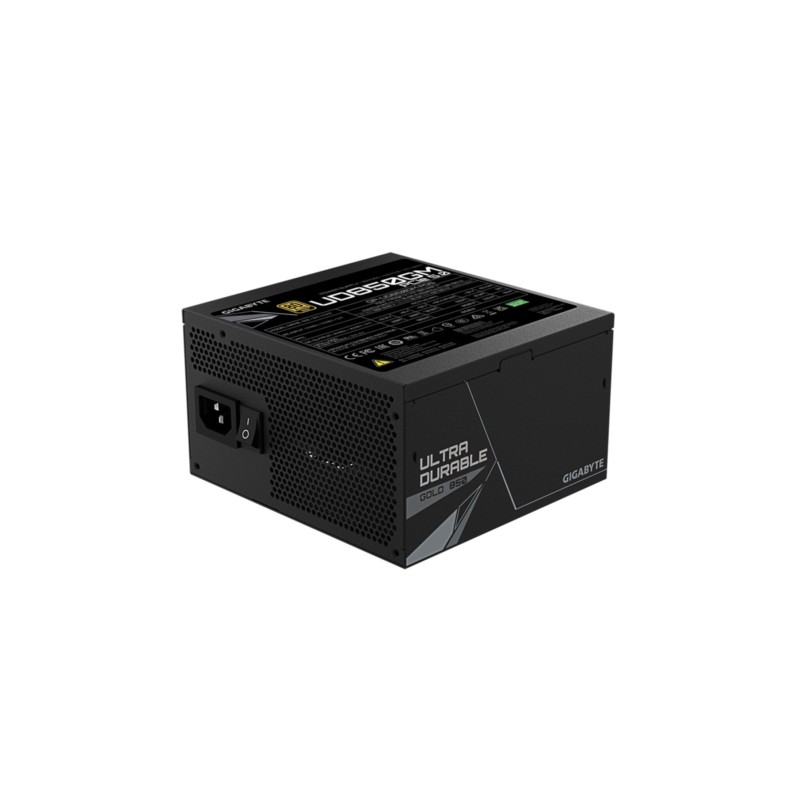

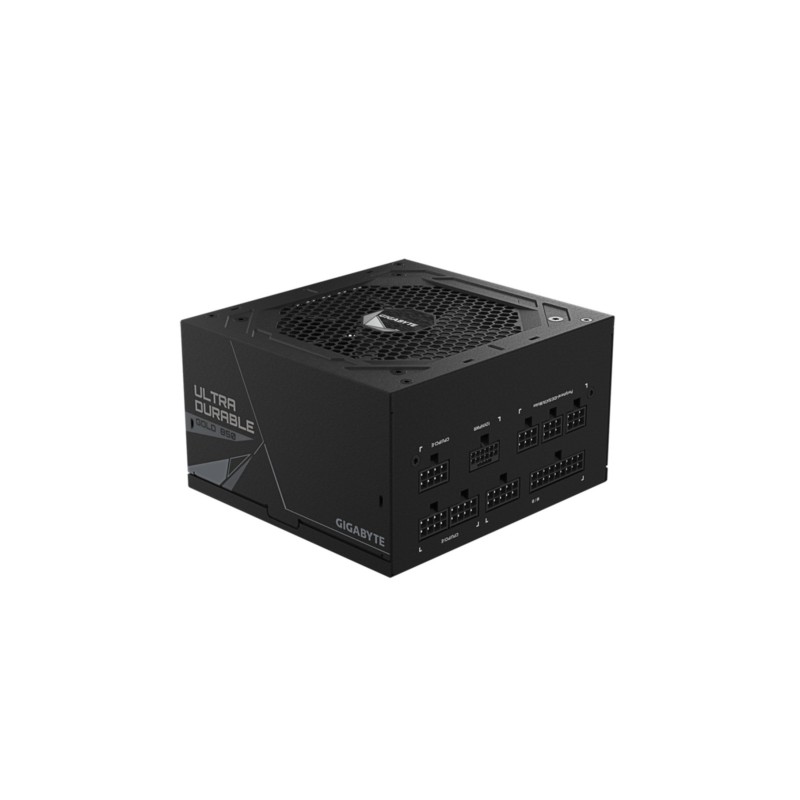

Gigabyte GP-UD850GM PG5 2.0 - 850W 80 PLUS Gold Fully-Modular ATX Power Supply, 120mm Fan, Black
850W continuous power, 80 PLUS Gold efficiency, fully-modular ATX PSU (Gigabyte GP-UD850GM PG5 2.0). 120mm fan, 140mm depth, 2x 4/8-pin CPU EPS, 4 GPU connectors, 8 SATA.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
| PSU (Power Supplies) - Wattage | 850 W |
|---|---|
| PSU (Power Supplies) - Efficiency Rating | 80+ Gold |
| PSU (Power Supplies) - Modularity | Fully modular |
| PSU (Power Supplies) - EPS CPU Connectors | 2x8-pin |
| PSU (Power Supplies) - Fan Size | 120 mm |
| PSU (Power Supplies) - Length | less than or equal to140 mm |
GIGABYTE GP-UD850GM PG5. Total power: 850 W. AC input voltage: 100 - 240 V. AC input frequency: 50 - 60 Hz. Motherboard power connector: 20+4 pin ATX. Motherboard power cable length: 61 cm. SATA power cable length: 150.600 mm. Purpose: PC. Power supply unit (PSU) form factor: ATX. 80 PLUS certification: 80 PLUS Gold. Product colour: Black. Cooling type: Active. Fan diameter: 12 cm. Cables included: CPU. PATA. Peripheral (Molex). SATA
| Total power | 850 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Input current | 12 - 6 A |
| Maximum input current (@110V) | 6 A |
| Maximum input current (@220V) | 12 A |
| Power Factor Correction (PFC) type | Active |
| Combined power (+3.3V) | 105 W |
| Combined power (+12V) | 850 W |
| Combined power (+5V) | 105 W |
| Combined power (-12V) | 3.6 W |
| Combined power (+5Vsb) | 15 W |
| Max output current (+3.3V) | 20 A |
| Max output current (+12V) | 70.8 A |
| Max output current (+5V) | 20 A |
| Max output current (-12V) | 0.3 A |
| Max output current (+5Vsb) | 3 A |
| Hold time | 16 ms |
| Efficiency | 90% |
| Power protection features | Over current. Over power. Over voltage. Overheating. Short circuit. Under voltage |

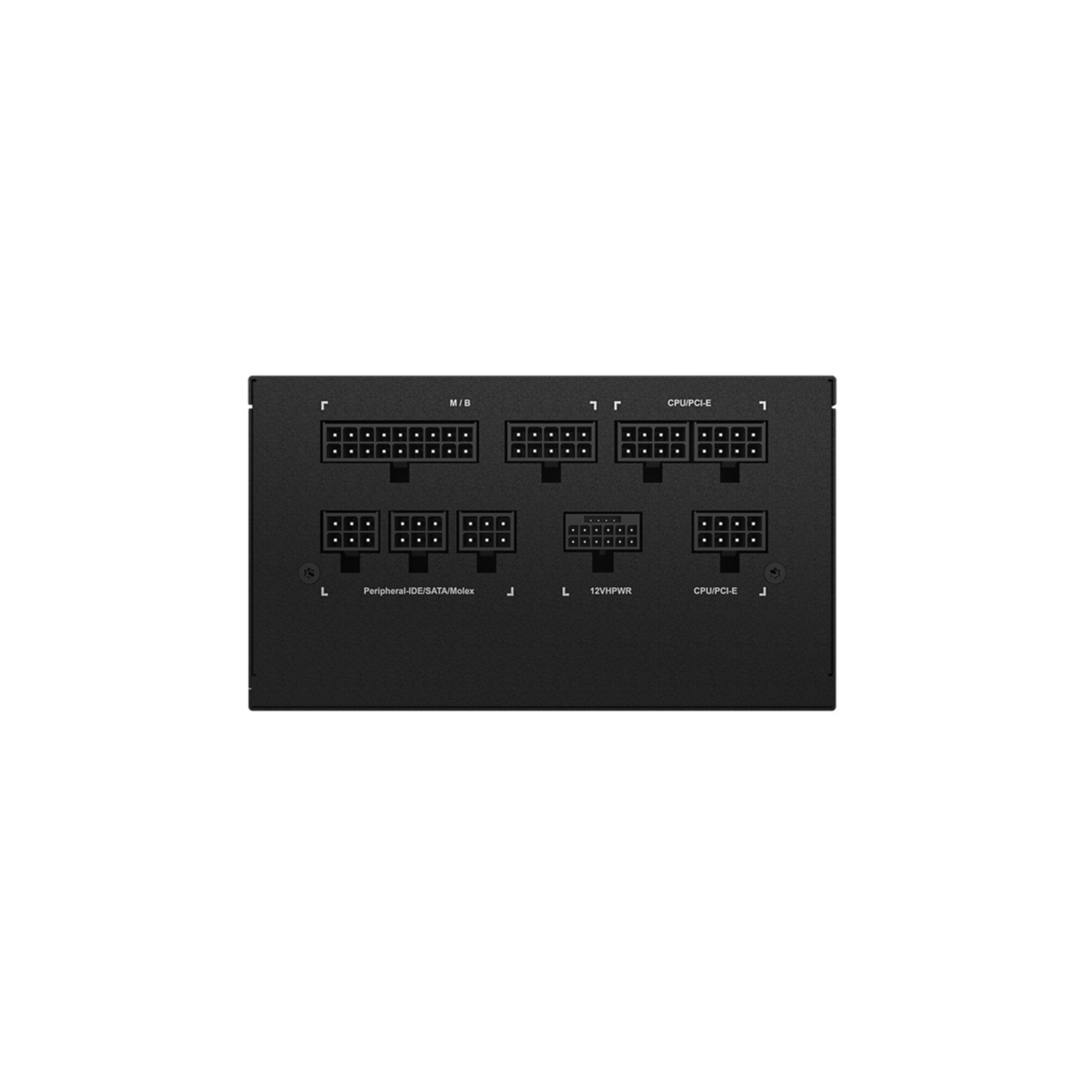

| Motherboard power connector | 20+4 pin ATX |
| Motherboard power cable length | 61 cm |
| Number of SATA power connectors | 8 |
| Number of PATA power connectors | 3 |
| SATA power cable length | 150.600 mm |
| Peripheral (Molex) power connectors (4-pin) | 2 |
| Peripheral (Molex) power cable length | 200.600 mm |
| PCI Express power connectors (6+2 pin) | 4 |
| PCI Express power connectors (16-pin) | 1 |
| PCI Express power cable length | 70 cm |
| Feature | Cable tie(s) included |
| Cabling type | Fully-Modular |
| 80 PLUS certification | 80 PLUS Gold |
| Purpose | PC |
| Power supply unit (PSU) form factor | ATX |
| Noise level | 40 dB |
| Mean time between failures (MTBF) | 100000 h |
| Product colour | Black |
| Cooling type | Active |

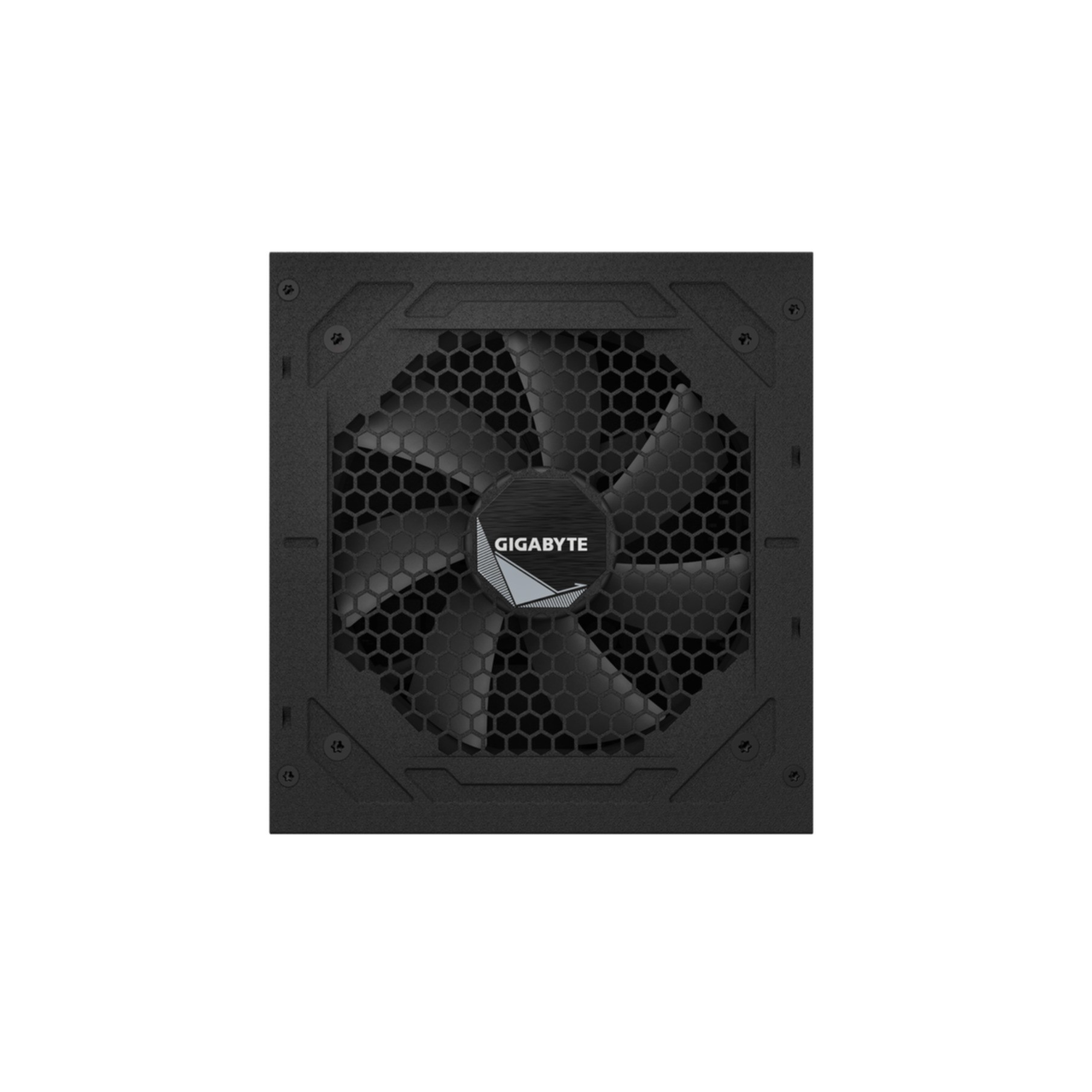

| Fan diameter | 12 cm |
| Number of fans | 1 fan(s) |
| Fan location | Top |
| Cables included | CPU. PATA. Peripheral (Molex). SATA |
| Compliance certificates | CCC. CE. Federal Communications Commission (FCC). RoHS |
| Width | 150 mm |
| Depth | 140 mm |
| Height | 85 mm |

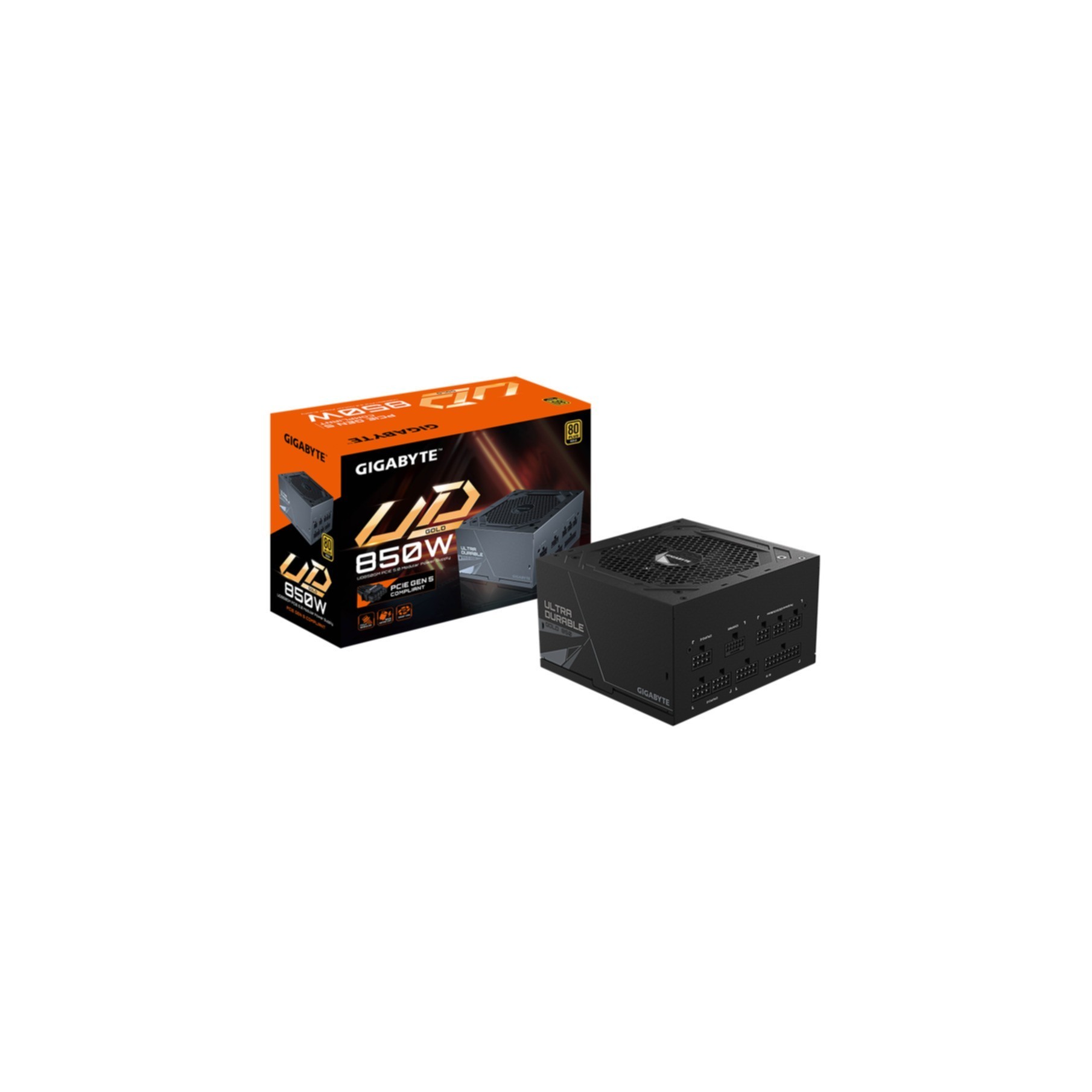

| Package type | Box |
| Warranty period | 5 year(s) |
