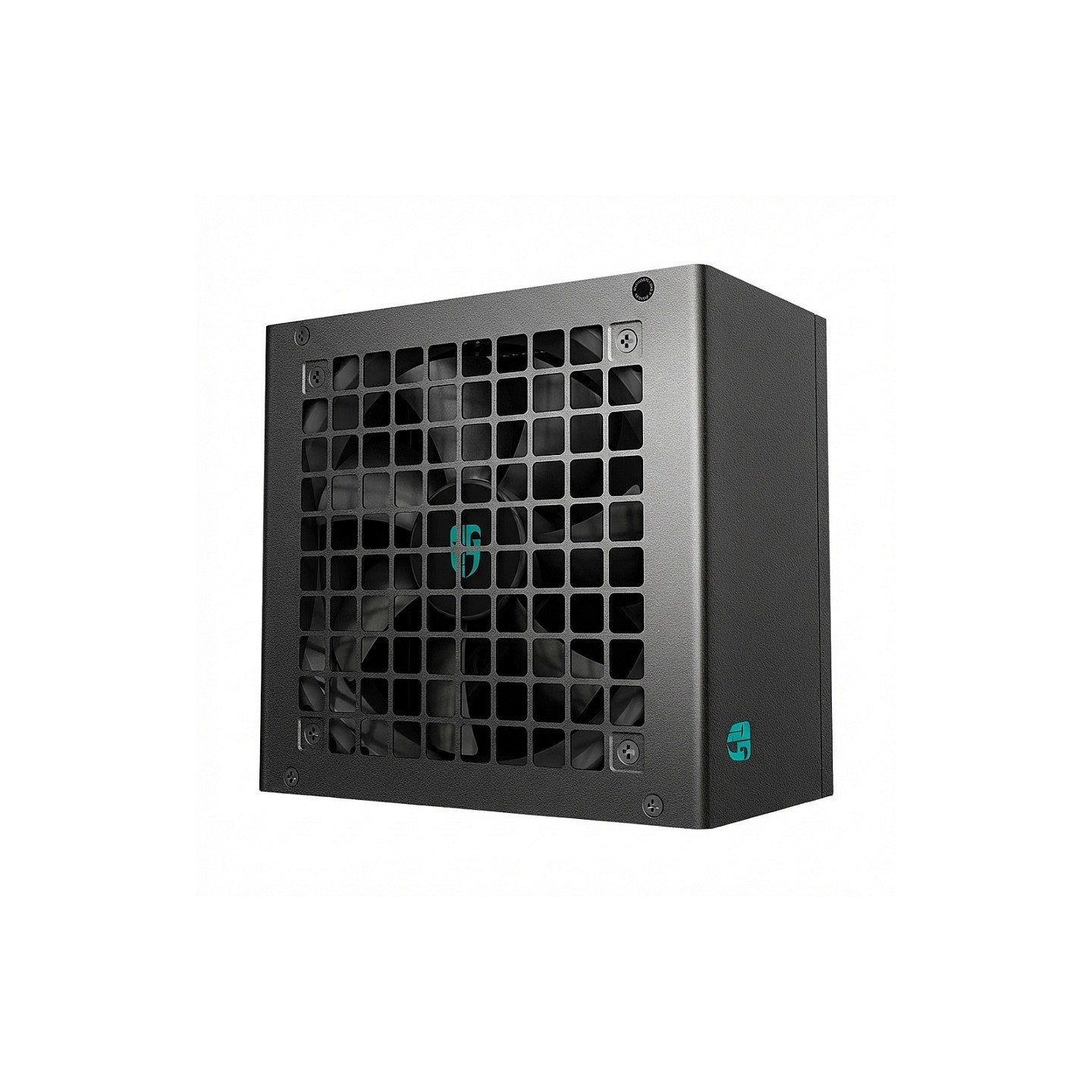

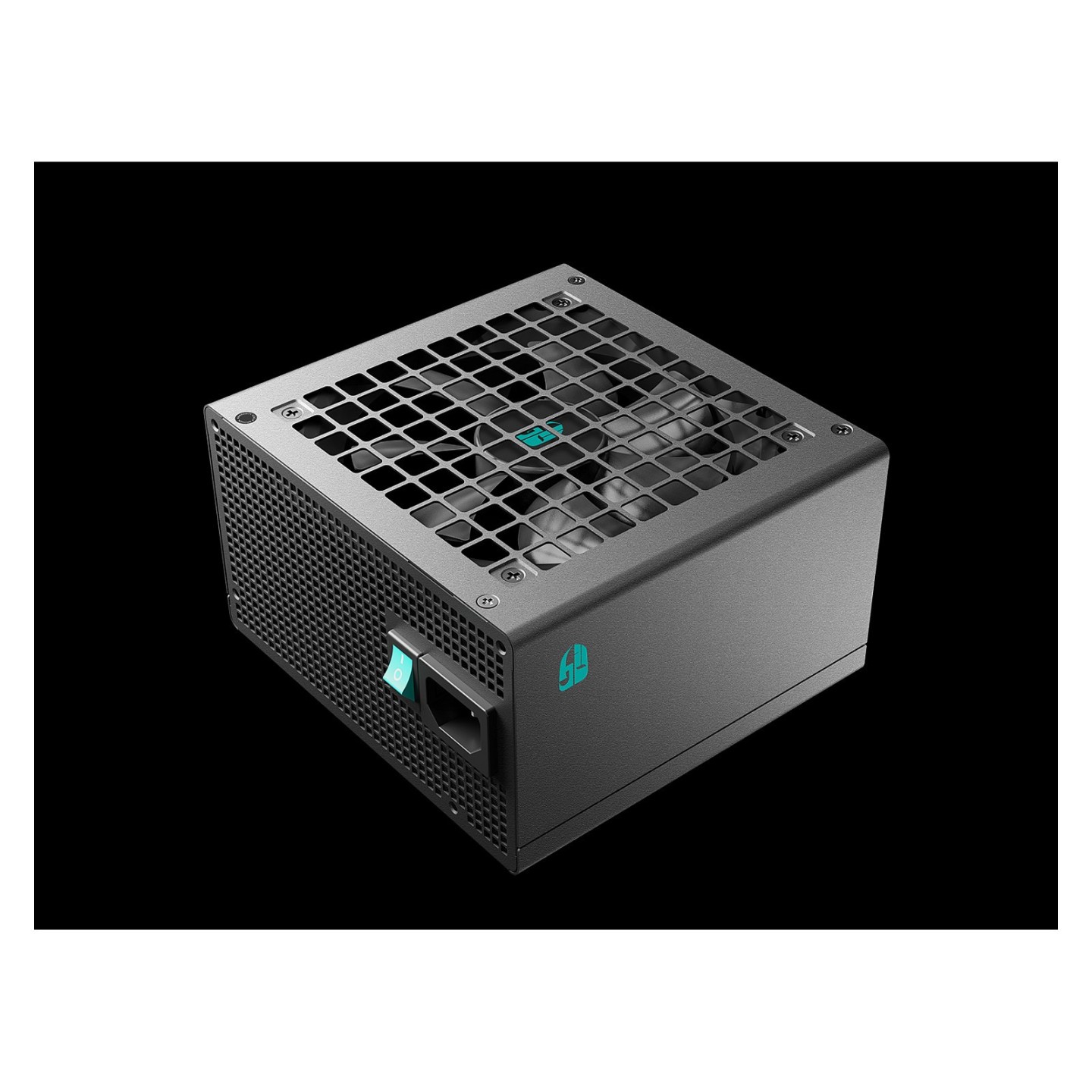

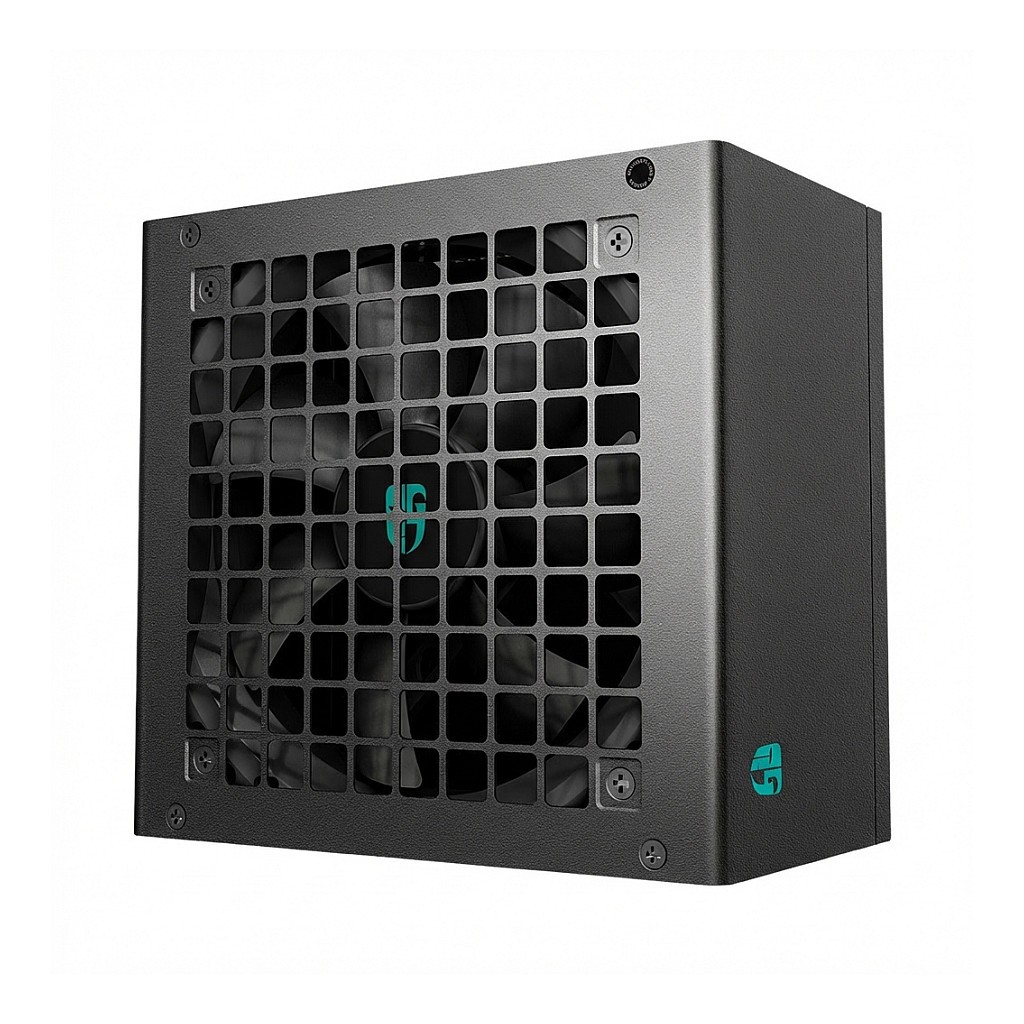

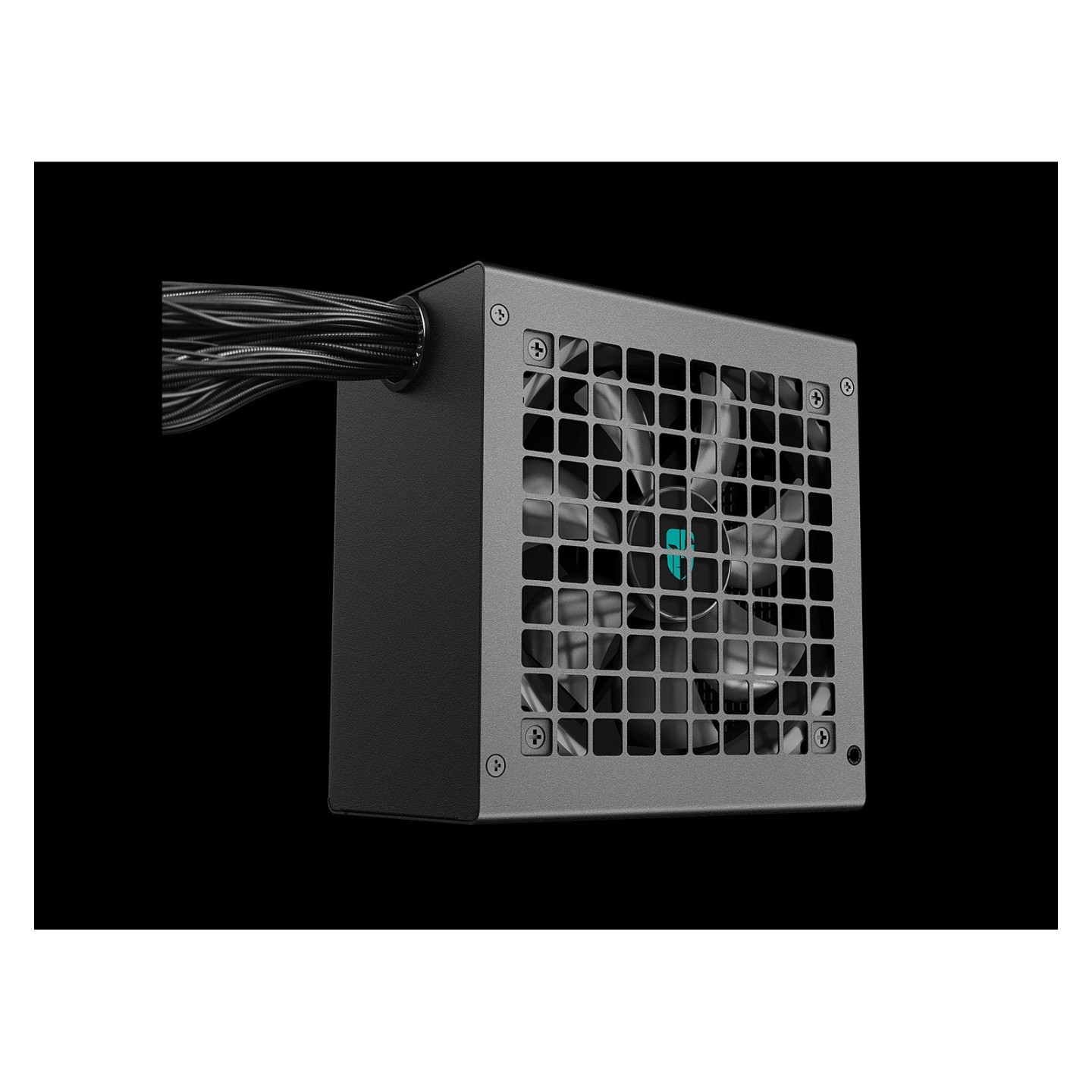

DeepCool PF500X 500W 80+ Bronze ATX PSU (Boxed)
DeepCool PF500X 500W 80 PLUS Bronze ATX PSU with 88% efficiency, active PFC, 120mm HYB fan. Features 2x PCIe 6+2pin, 1x EPS, full protections (OPP/OVP/OCP/SCP/OTP/UVP). Non-modular, black, for 200-240V. MTBF 40,000h.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| PSU (Power Supplies) - Wattage | 500 - 599 W |
|---|---|
| PSU (Power Supplies) - Efficiency Rating | 80 Plus Bronze |
| PSU (Power Supplies) - Color | Black |
| PSU (Power Supplies) - Modularity | Non-modular |
| PSU (Power Supplies) - PCIe GPU Connectors | 2x 8/6 pins |
| PSU (Power Supplies) - Length | 141-160 mm |
| PSU (Power Supplies) - EPS CPU Connectors | 1x 4+4pin EPS/ATX12V |

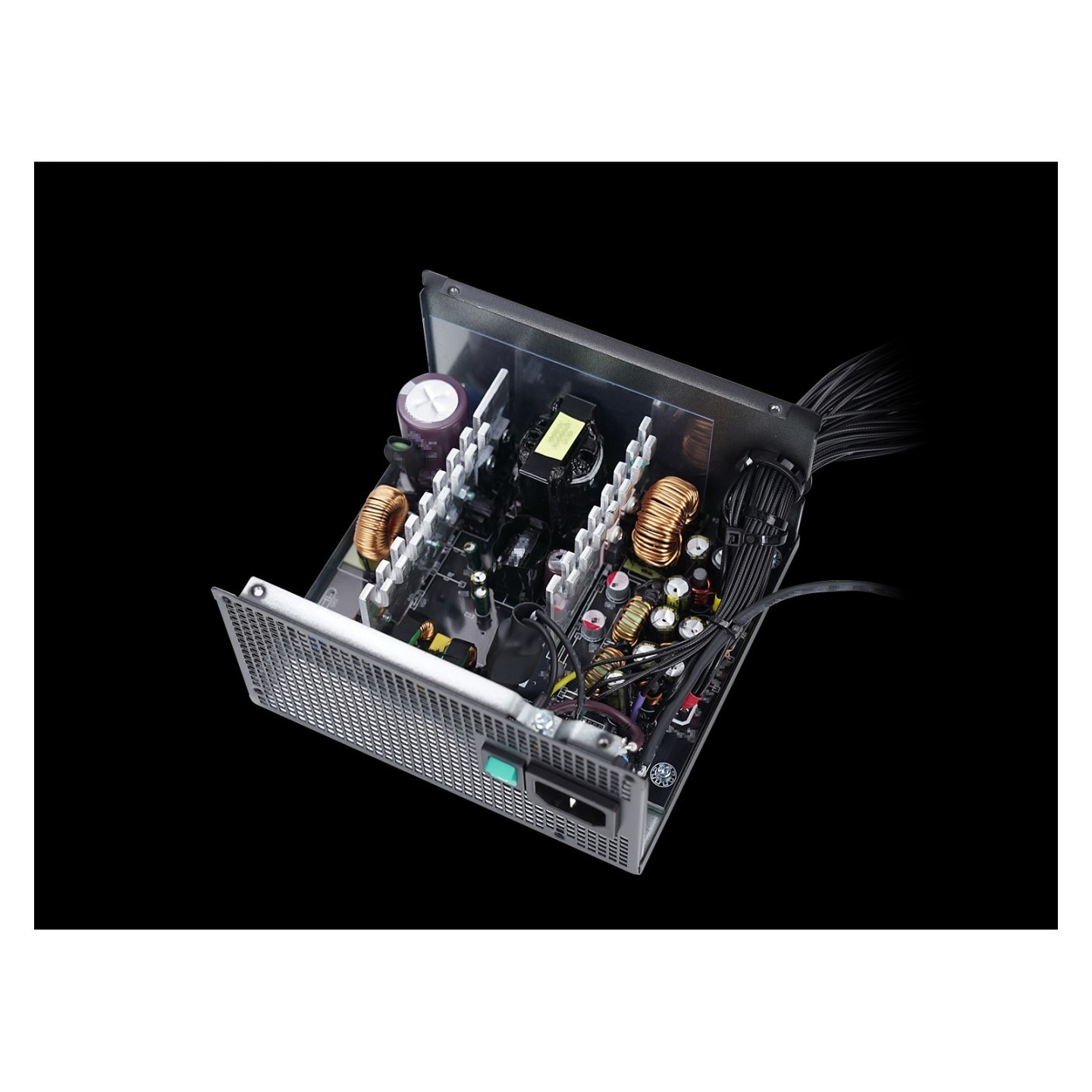

The DeepCool Gamer Storm PF500X is a reliable 500W ATX power supply certified 80 PLUS 230V EU Bronze, Cybenetics Bronze, Cybenetics A 230V, and PPLP 230V Bronze, delivering up to 88% efficiency at typical 50% load. It uses active PFC + DC-to-DC topology with Taiwanese and Japanese electrolytic capacitors for stable performance and longevity (MTBF 40,000 hours). Ideal for budget gaming PCs with GPUs up to ~180W TDP.

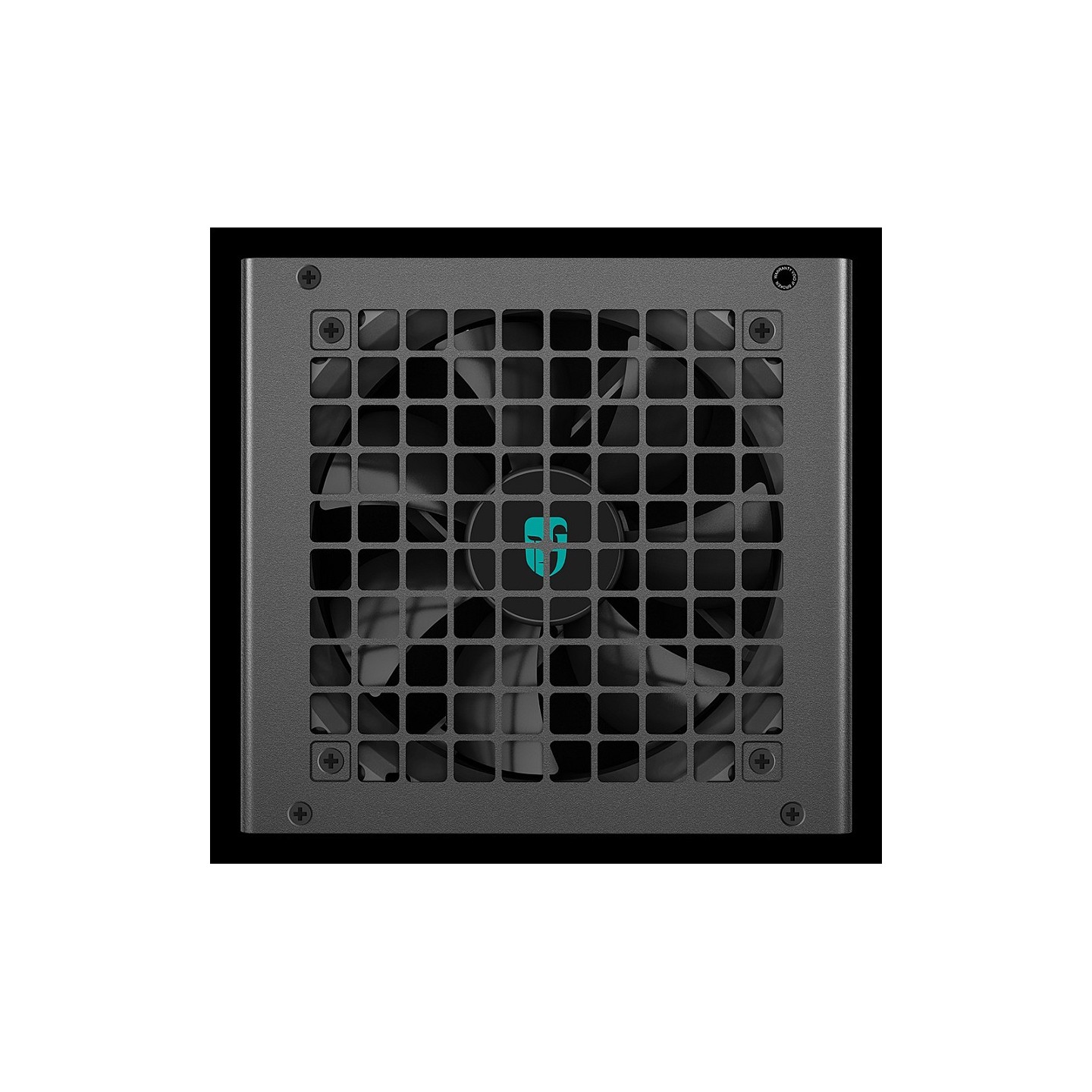

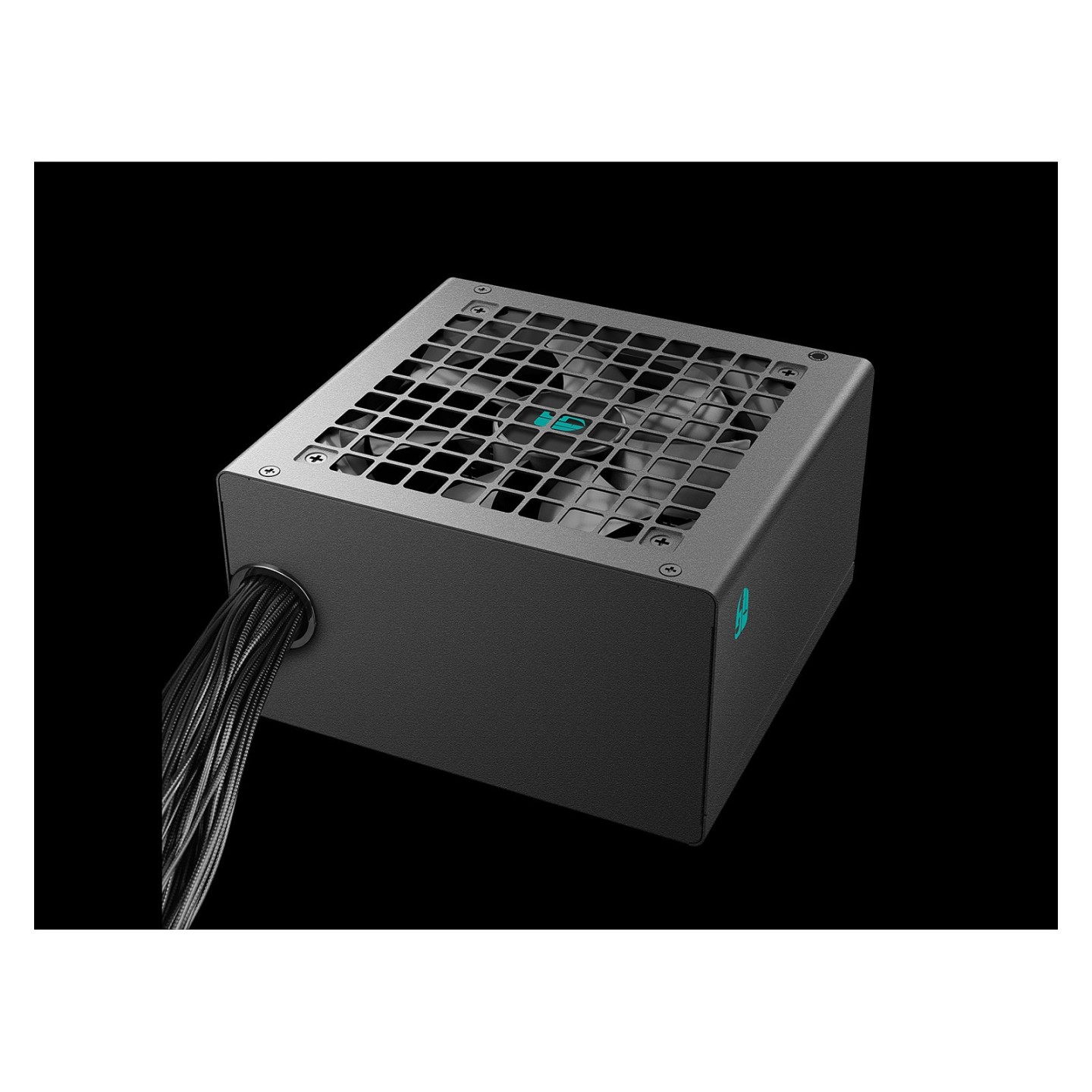

Equipped with a quiet 120mm HYB bearing fan (long-life hybrid), it operates from 0-40°C. Non-modular design includes essential cables: 20+4pin ATX (55cm), 4+4pin EPS CPU (62cm), 2x 6+2pin PCIe (55cm), 3x SATA, 1x Molex. Full protections: OPP, OVP, OCP, SCP, OTP, UVP, SIP, NLO. Input: 200-240V, 5A, 50-60Hz.
- ✅ 500W total power, +12V rail 41.6A (499.2W)
- ✅ Multiple Bronze efficiency certifications
- ✅ 2x PCIe 6+2pin for GPUs, 1x EPS for CPU
- ✅ Hold-up time ≥16ms at 75% load
- ✅ Regulatory: CE/TUV/CCC/RCM/KC, ErP 2014
| Total Power | 500 W |
| AC Input Voltage | 200-240 V |
| AC Input Frequency | 50-60 Hz |
| Input Current | 5 A |
| Power Factor Correction | Active PFC |
| Combined Power (+3.3V) | 100 W |
| Combined Power (+12V) | 499.2 W |
| Max Output Current (+3.3V) | 16 A |
| Max Output Current (+12V) | 41.6 A |
| Max Output Current (+5V) | 16 A |
| Max Output Current (-12V) | 0.3 A |
| Max Output Current (+5Vsb) | 3 A |
| Hold-up Time | ≥16 ms (75% Load) |
| Efficiency | ≥88% (50% Load) |
| Protections | OPP/OVP/OCP/SCP/OTP/UVP/SIP/NLO |
| Motherboard Connector | 20+4 pin ATX (55 cm) |
| CPU EPS Connector | 1x 4+4 pin (62 cm) |
| PCIe Connectors | 2x 6+2 pin (55 cm) |
| SATA Connectors | 3x (450, 600, 750 mm) |
| Molex Connectors | 1x 4-pin (900 mm) |
| Modularity | Non-modular |
| 80 Plus Certification | 80 PLUS 230V EU Bronze / Cybenetics Bronze / Cybenetics A 230V / PPLP 230V Bronze |
| PSU Form Factor | ATX (ATX12V v2.52) |
| Dimensions | 150 x 140 x 86 mm (W x D x H) |
| Fan Diameter | 120 mm |
| Fan Bearing | HYB (Hybrid) |
| Operation Temperature | 0-40 °C |
| MTBF | 40,000 hours |
| Product Color | Black |
