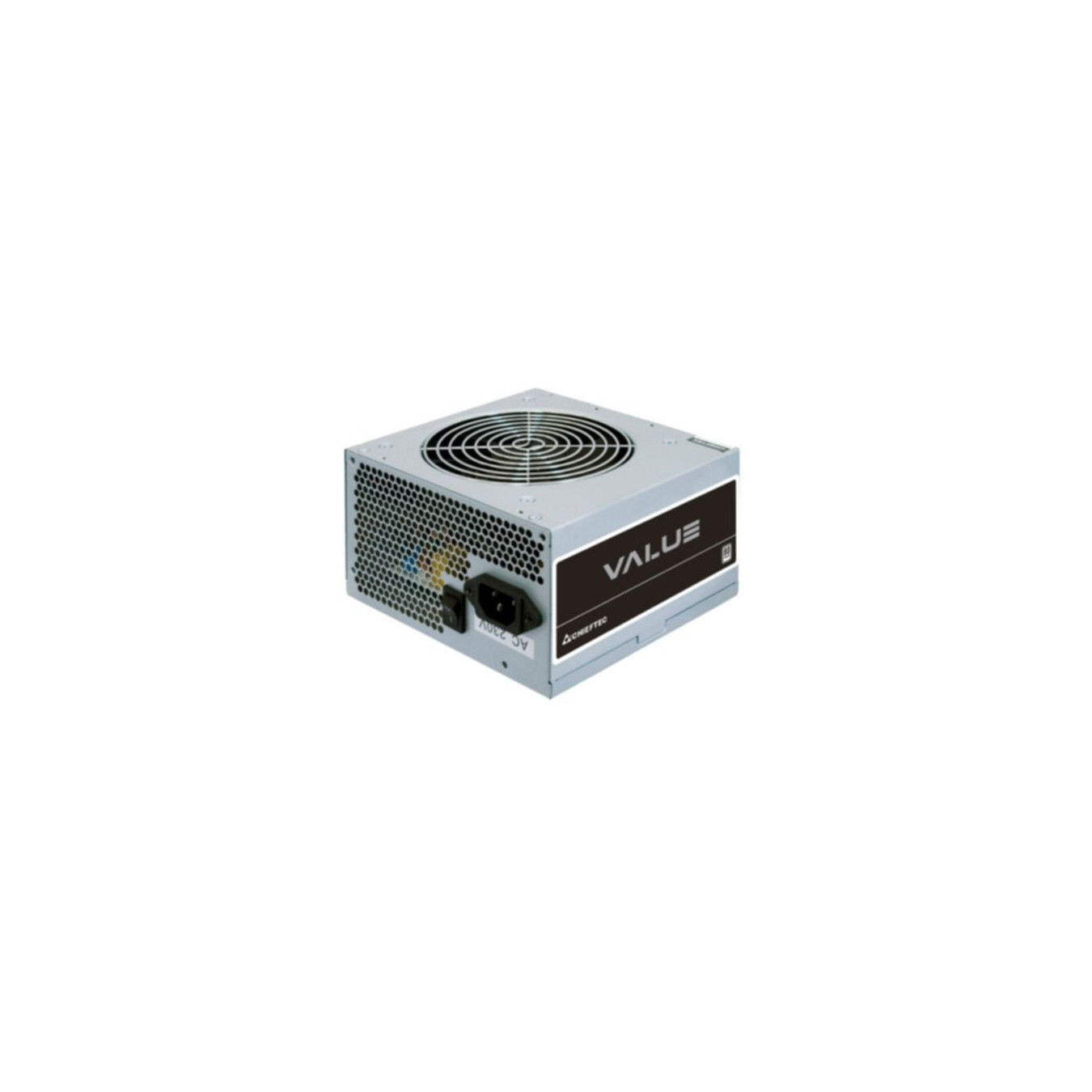

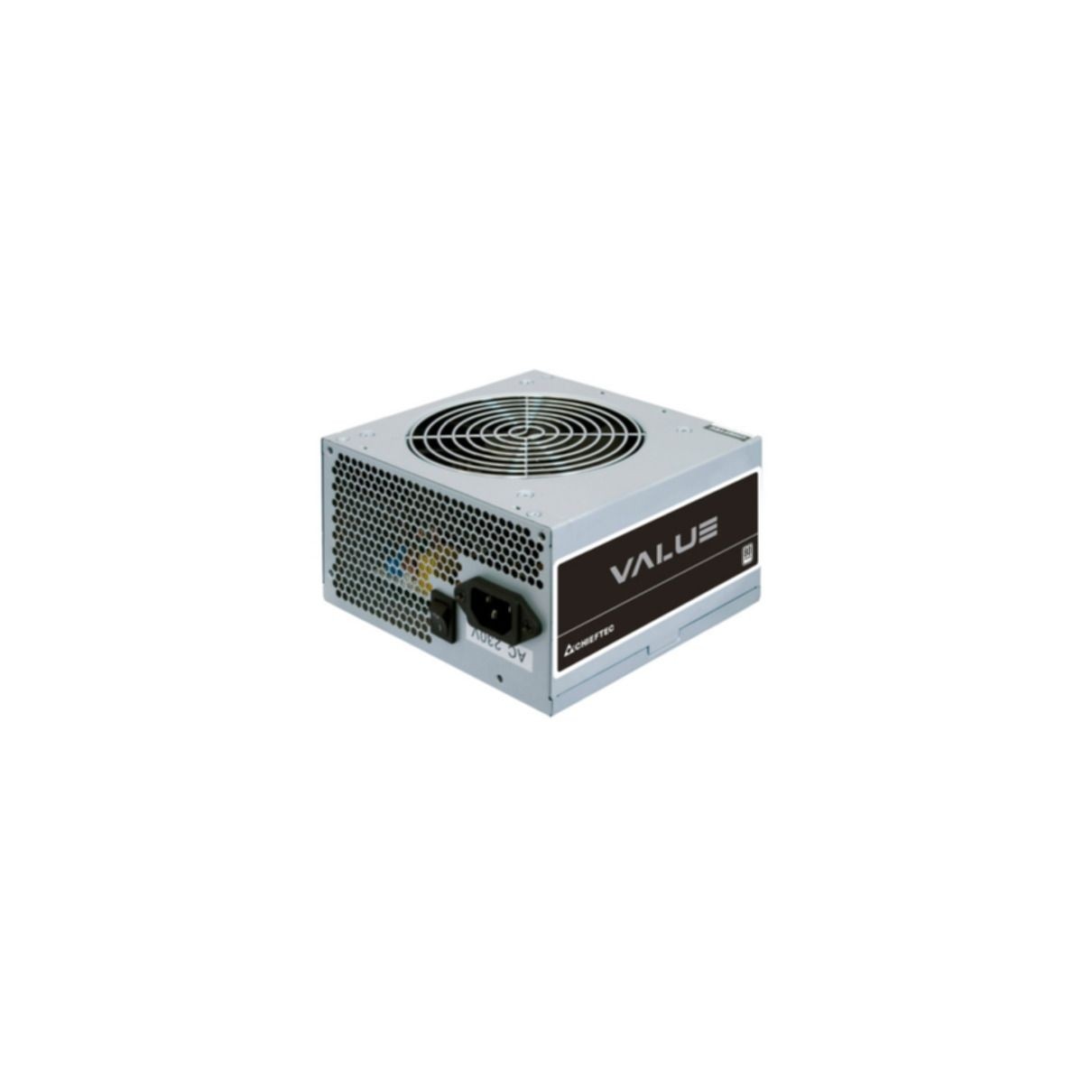

Chieftec VALUE APB-700B8 - 700W Non-Modular ATX PSU - 80 PLUS (230V EU)
700 W ATX power supply, non-modular cables, 80 PLUS 230V EU efficiency, long native cables, quiet fan, multiple SATA and Molex connectors.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| PSU (Power Supplies) - Modularity | Non-modular |
|---|
The new VALUE SERIES offers both quality and 80 PLUS® 230V EU efficiency at a highly competitive pricing. Equipped with a vast amount of required connectors, long native cables and a silent running fan with installed thermal board, the PSU runs quietly on full load and provides REAL POWER, thereby providing all security features. Certified by CE, CB, EAC, TÜV and amongst many others, it’s the VALUE choice!
| Total power | 700 W |
| AC input voltage | 200 - 240 V |
| AC input frequency | 47 - 63 Hz |
| Input current | 5 A |
| Power factor | 0.9 |
| Power Factor Correction (PFC) type | Active |
| Combined power (+3.3V) | 130 W |
| Combined power (+12V) | 648 W |
| Combined power (+5V) | 130 W |
| Max output current (+3.3V) | 22 A |
| Max output current (+12V1) | 54 A |
| Max output current (+5V) | 22 A |
| Power protection features | Over voltage, Overheating, Overload, Short circuit, Under power, Under voltage |
| Motherboard power connector | 20+4 pin ATX |
| Motherboard power cable length | 55 cm |
| Number of SATA power connectors | 4 |
| SATA power cable length | 150, 550 mm |
| Peripheral (Molex) power connectors (4-pin) | 2 |
| Peripheral (Molex) power cable length | 150, 500 mm |
| EPS power connector (4+4 pin) | Yes |
| PCI Express power connectors (6+2 pin) | 2 |
| PCI Express power cable length | 50 cm |
| CPU power connector (4+4 pin) | Yes |
| CPU power cable length | 50 cm |
| Floppy drive power connector | 1 |
| Floppy disk drive connector | Yes |
| Cabling type | Non-Modular |
| 80 PLUS certification | 80 PLUS |
| Purpose | PC/Server |
| Power supply unit (PSU) form factor | ATX |
| ATX version | 2.3 |
| Product colour | Silver |
| Cooling type | Active |
| Fan diameter | 12 cm |
| Number of fans | 1 fan(s) |
| Compliance certificates | CE |
| Certification | CE, CB, EAC, TÜV |
| Width | 150 mm |
| Depth | 140 mm |
| Height | 87 mm |
| Weight | 1.42 kg |
| Package weight | 1.57 kg |
| Sustainability compliance | Yes |
| Harmonized System (HS) code | 84733020 |
