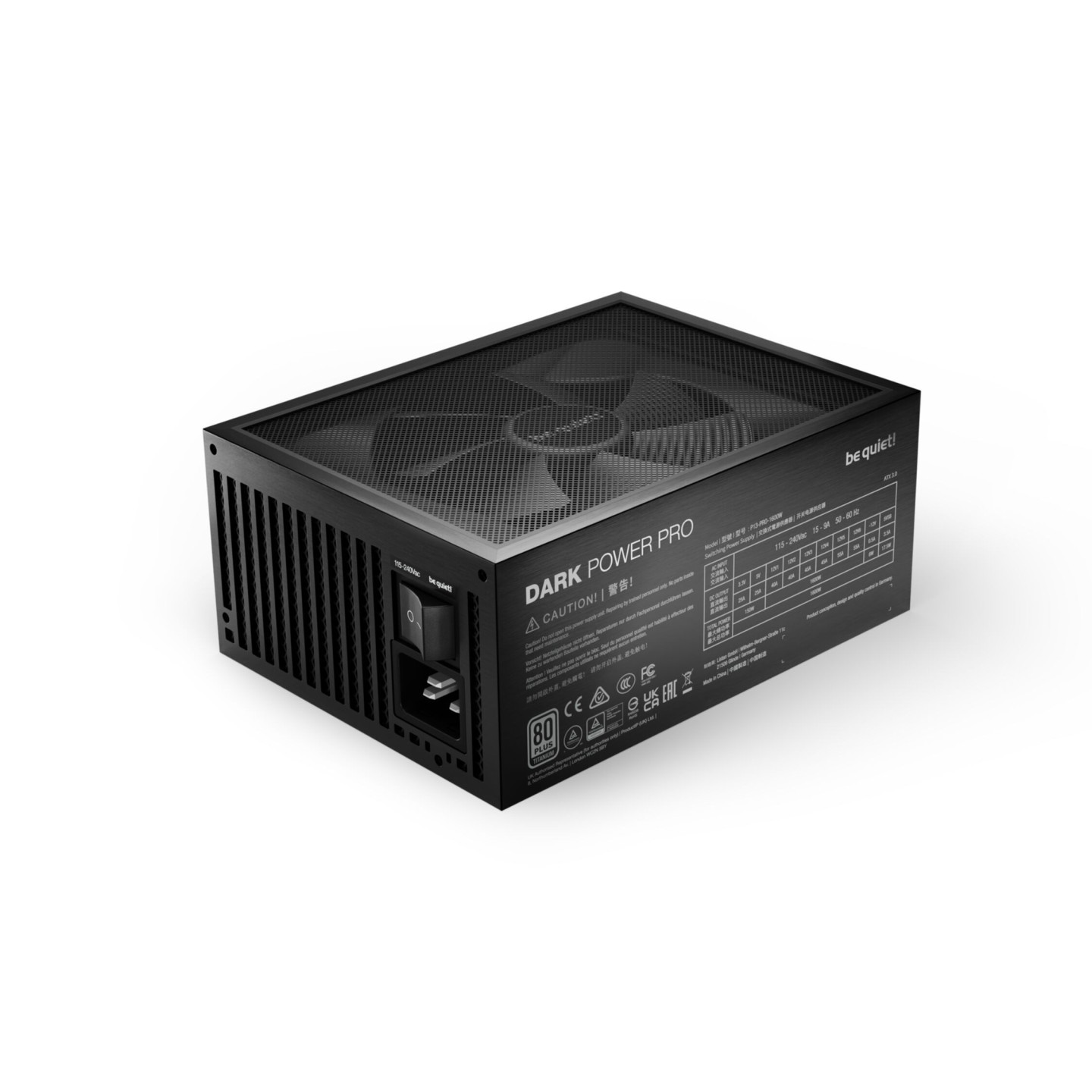

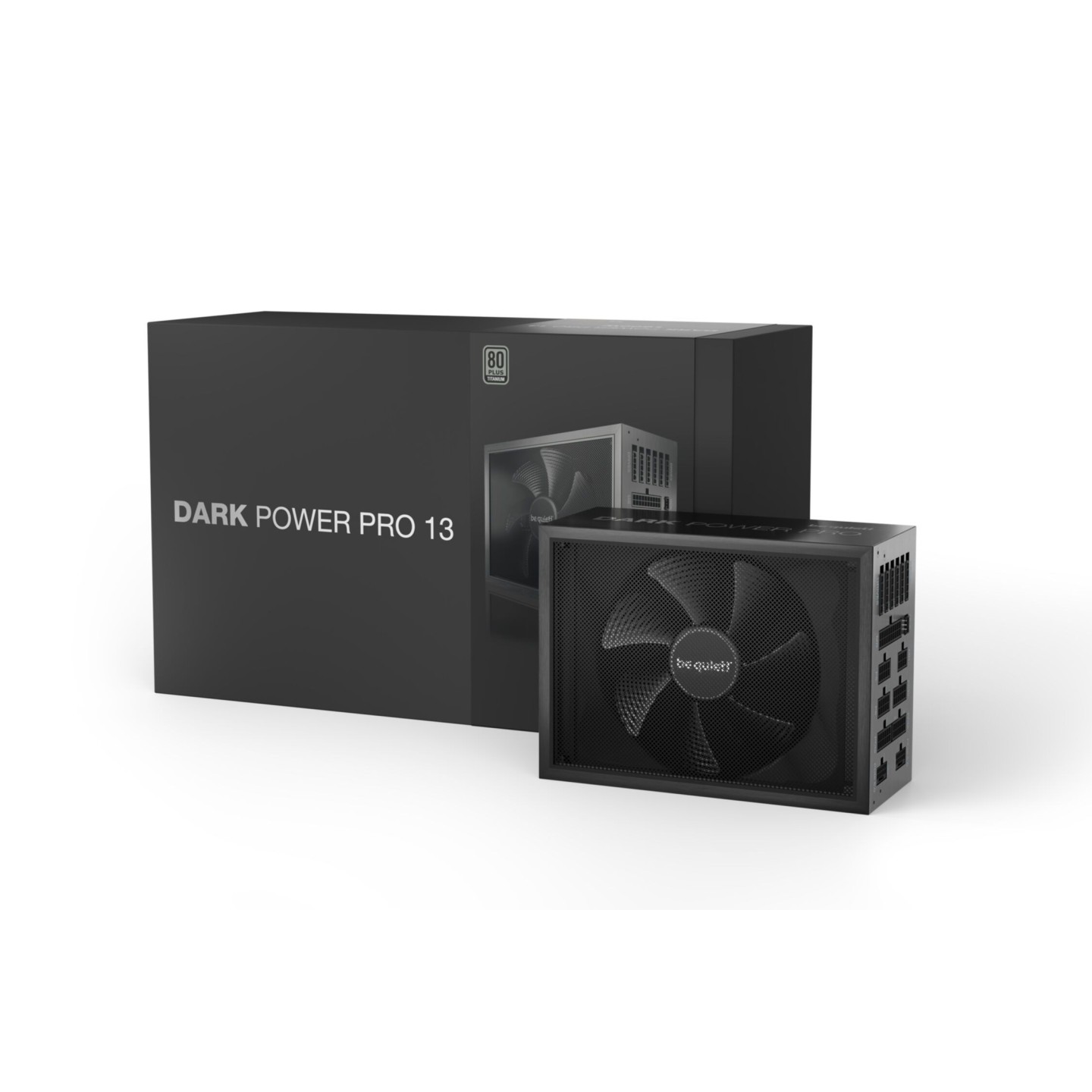

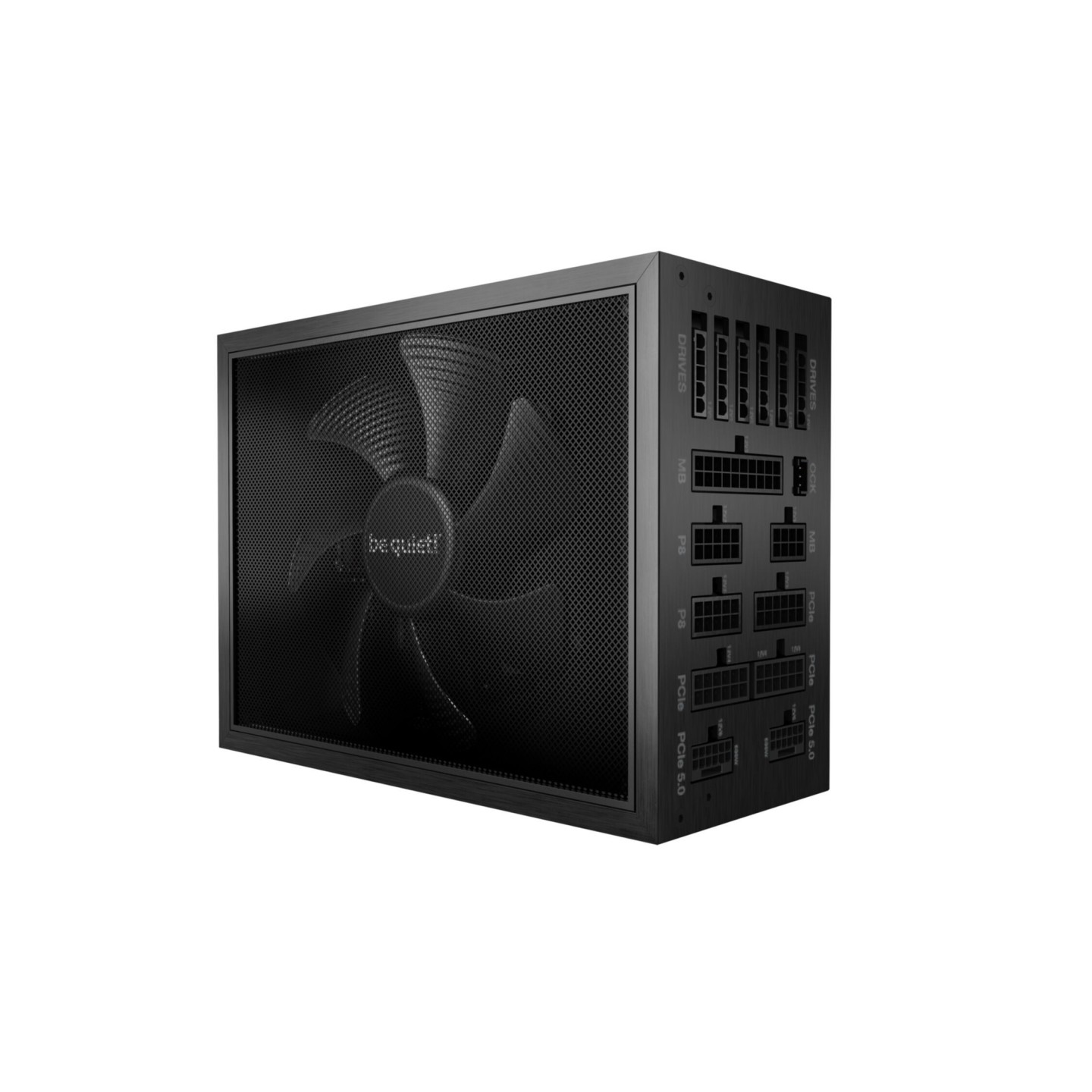

Be Quiet! Dark Power Pro 13 1600W - BN332 - ATX 3.1 80 PLUS Titanium Fully-Modular Black (Boxed)
1600W ATX 3.1 PSU with 80 PLUS Titanium efficiency (94.5%), fully modular cables, 135mm Silent Wings FDB fan, 6x PCIe 6+2-pin, 2x EPS, overclocking key, 10-year warranty. Peak 1700W.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| PSU (Power Supplies) - Wattage | 1500 - 1999 W |
|---|---|
| PSU (Power Supplies) - Efficiency Rating | 80 Plus Titanium |
| PSU (Power Supplies) - Color | Black |
| PSU (Power Supplies) - Modularity | Fully modular |
| PSU (Power Supplies) - PCIe GPU Connectors | 6x 8/6 pins |
| PSU (Power Supplies) - Length | 180+ mm |
| PSU (Power Supplies) - EPS CPU Connectors | 2x 4+4pin EPS/ATX12V |

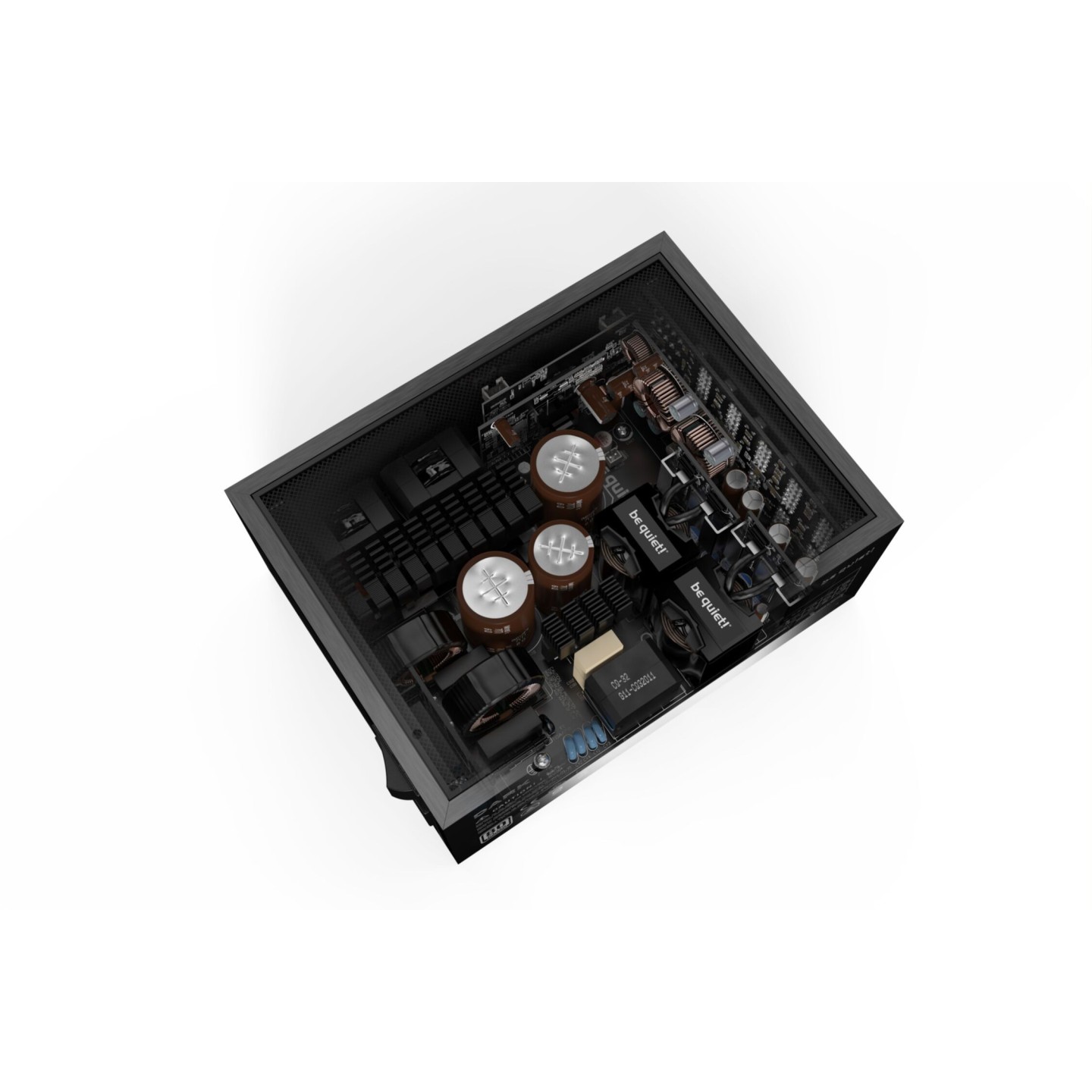

The be quiet! Dark Power Pro 13 1600W is a premium high-end power supply designed for demanding PC builds, offering exceptional 80 PLUS Titanium efficiency up to 94.5% for reduced power consumption and cooler operation. Compliant with ATX 3.1 and EPS 2.92 standards, it provides full support for next-gen GPUs via 6x PCIe 6+2-pin connectors and handles massive power excursions with digitally controlled full-bridge + LLC + SR + DC/DC topology.

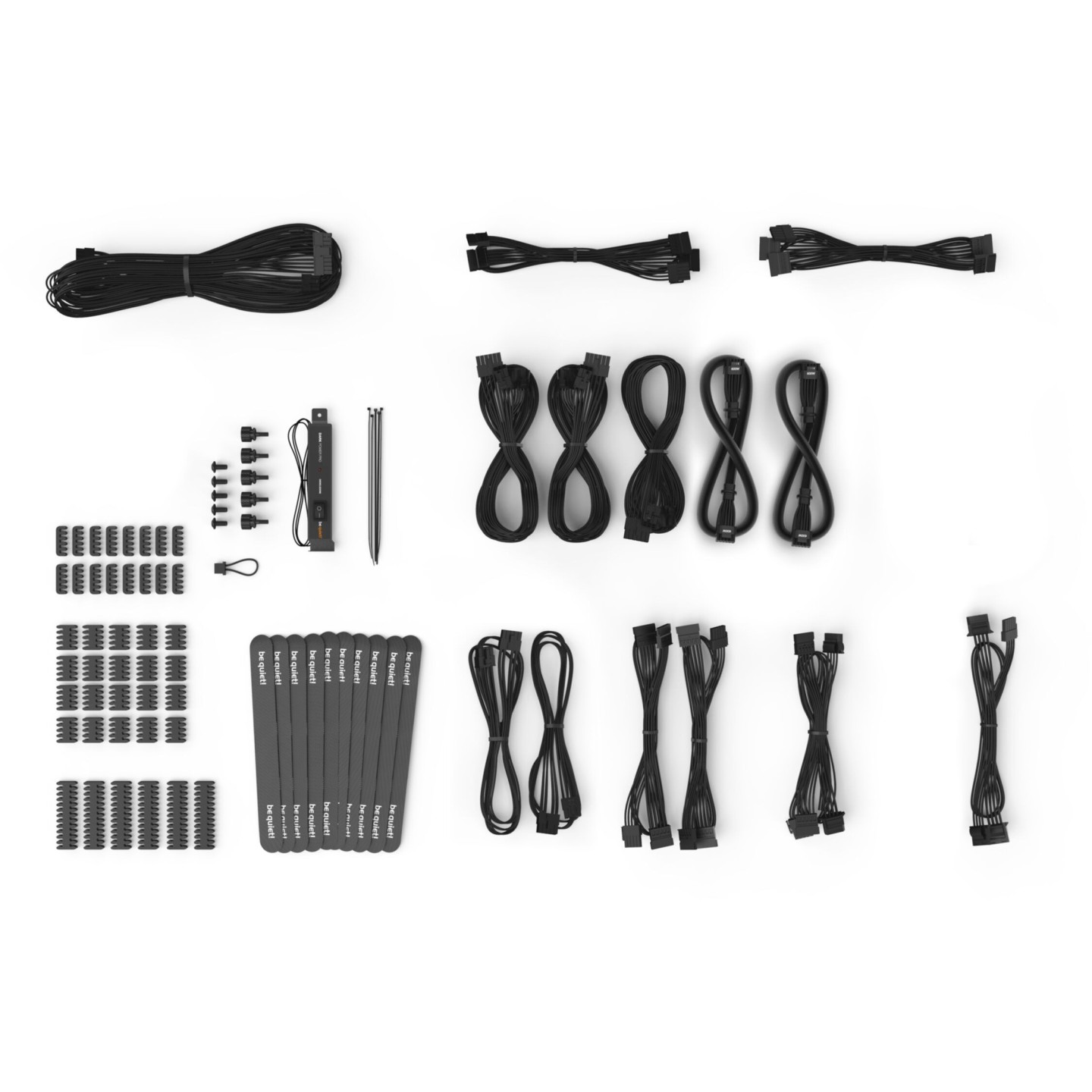

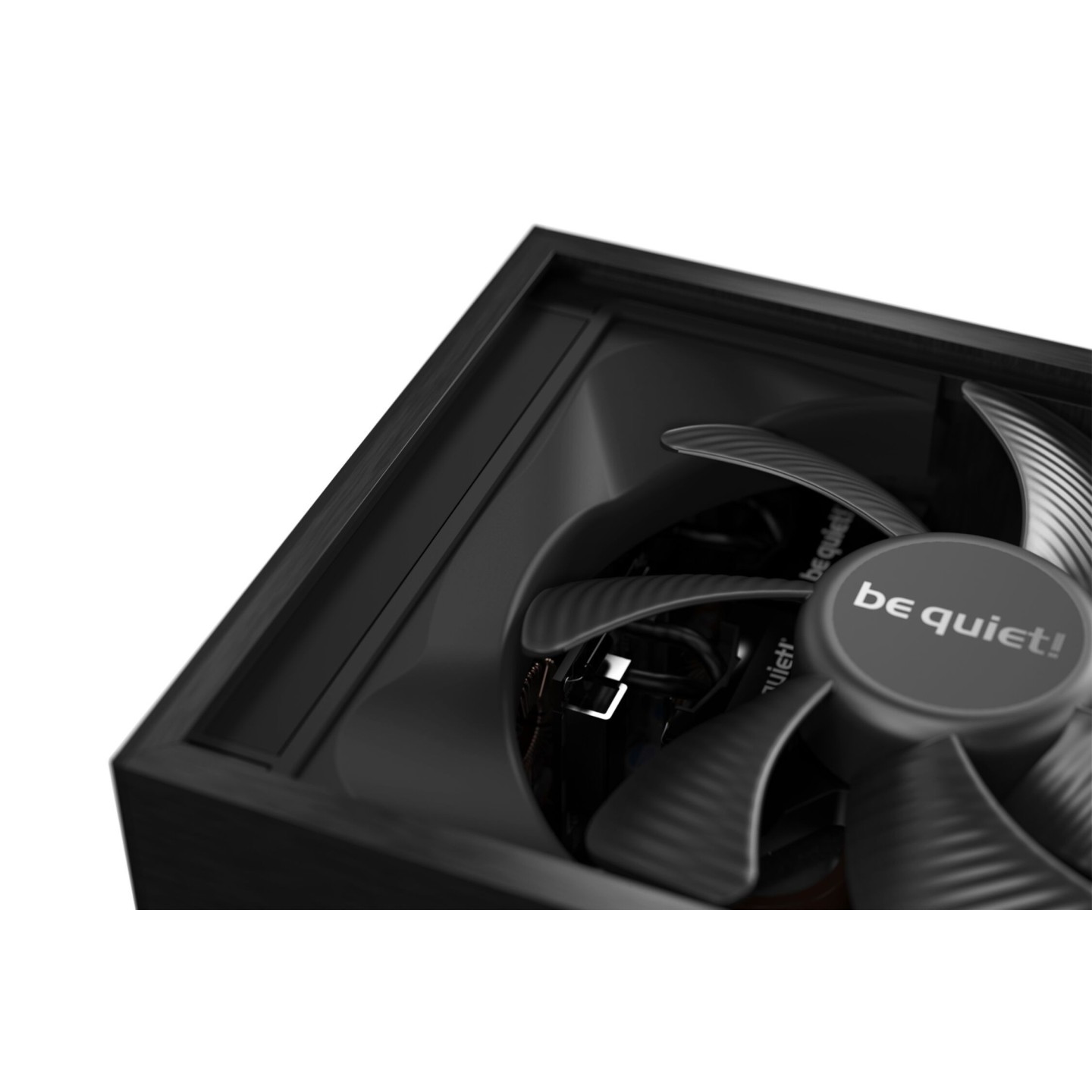

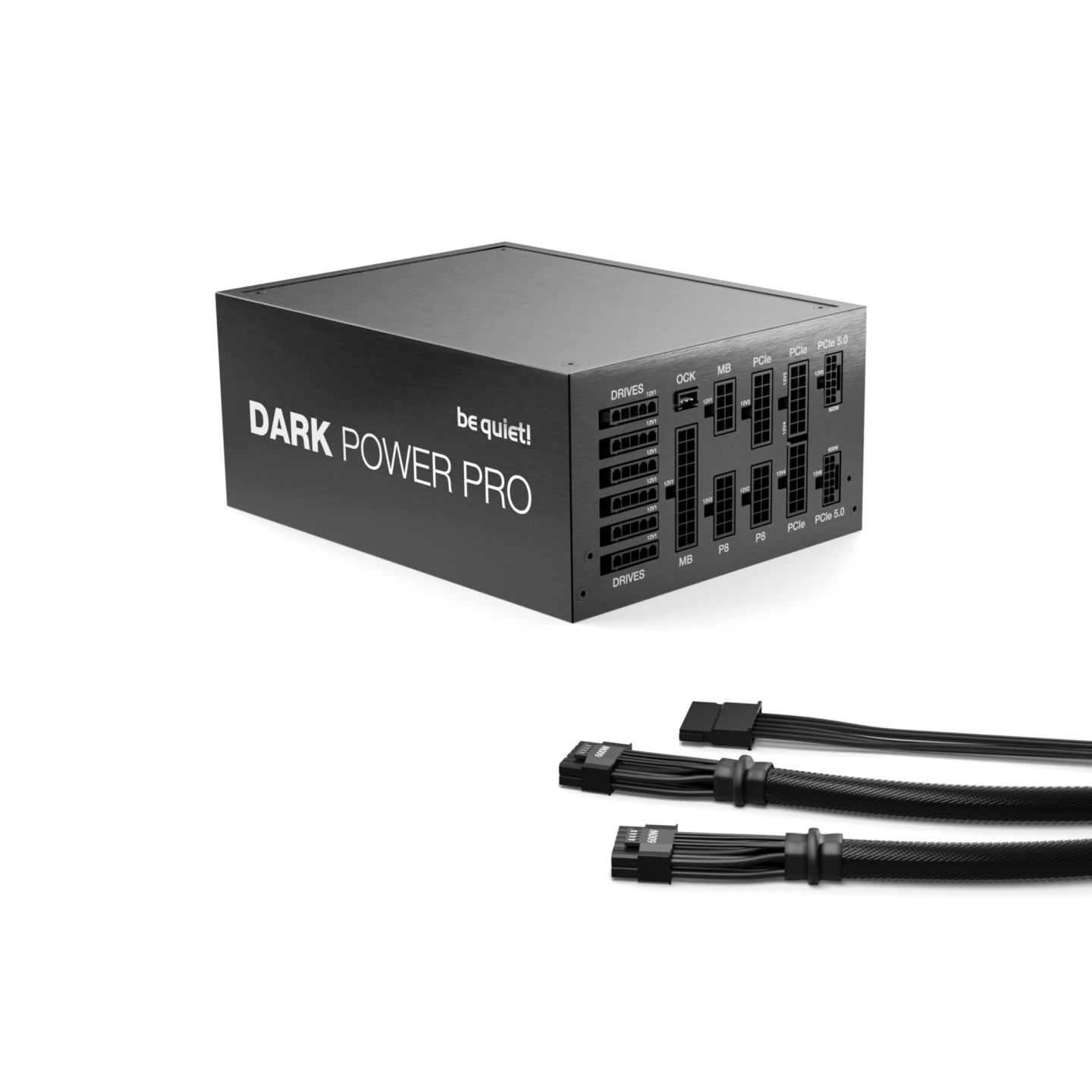

Featuring a patented frameless 135mm Silent Wings FDB fan with 6-pole motor, it ensures virtually silent operation up to 50% load (9.8 dB(A)) and max noise of 31.1 dB(A). The overclocking key allows switching between 6x 12V rails or single massive rail. Fully modular design with individually sleeved cables, aluminum case, and comprehensive protections (OCP, OPP, OVP, SCP, UVP, OTP). Includes 16x SATA, 5x PATA, 2x EPS 4+4 pin.
- ✅ 1600W continuous / 1700W peak power
- ✅ 80 PLUS Titanium certified (94.5% efficiency)
- ✅ ATX 3.1 compliant, fully modular
- ✅ Silent 135mm FDB fan (<31.1 dB(A))
- ✅ 10-year warranty, MTBF 100,000 hours
| Total power | 1600 W |
| Peak power | 1700 W |
| AC input voltage | 115 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Input current | 15 - 9 A |
| Power factor | 0.99 |
| Combined power (+3.3V) | 150 W |
| Combined power (+12V) | 1600 W |
| Combined power (+5V) | 150 W |
| Combined power (-12V) | 6 W |
| Combined power (+5Vsb) | 17.5 W |
| Max output current (+3.3V) | 25 A |
| Max output current (+12V1) | 40 A |
| Max output current (+12V2) | 40 A |
| Max output current (+12V3) | 45 A |
| Max output current (+12V4) | 45 A |
| Max output current (+5V) | 25 A |
| Max output current (-12V) | 0.5 A |
| Max output current (+5Vsb) | 3.5 A |
| Hold time | 18 ms |
| Efficiency | 94.5% |
| Power protection features | Over current. Over power. Over voltage. Overheating. Short circuit. Under voltage |
| Motherboard power connector | 20+4 pin ATX |
| Motherboard power cable length | 60 cm |
| Number of SATA power connectors | 16 |
| Number of PATA power connectors | 5 |
| SATA power cable length | 500.600.750.800.900.950.1050 mm |
| Peripheral (Molex) power cable length | 600.750.900.1050 mm |
| PCI Express power connectors (6+2 pin) | 6 |
| PCI Express power cable length | 60 cm |
| CPU power cable length | 70 cm |
| Cabling type | Fully-Modular |
| 80 PLUS certification | 80 PLUS Titanium |
| Purpose | PC |
| Power supply unit (PSU) form factor | ATX |
| ATX version | 3.1 |
| EPS version | 2.92 |
| Noise level | 31.1 dB |
| Bearing technology | FDB |
| Mean time between failures (MTBF) | 100000 h |
| Product colour | Black |
| Cooling type | Active |
| Fan diameter | 13.5 cm |
| Number of fans | 1 fan(s) |
| Cables included | CPU. PCIe. Peripheral (Molex). SATA |
| Compliance certificates | CCC. CE. Federal Communications Commission (FCC). RoHS. UKCA. WEEE |
| Width | 150 mm |
| Depth | 200 mm |
| Height | 86 mm |
| Weight | 2.44 kg |
| Package width | 253 mm |
| Package depth | 417 mm |
| Package height | 152 mm |
| Package weight | 6.9 kg |
| Warranty period | 10 year(s) |
| Topology | Full bridge + LLC + SR + DC/DC |
| Digitally controlled | Yes |
| Modern standby | Yes |
| Power consumption in standby | <0.06 W |
| Fan model | Silent Wings |
| Max fan speed | 2600 rpm |
| Overclocking key | Yes (6x12V or 1x12V rail) |
| Number of EPS connectors | 2x 4+4 pin |
