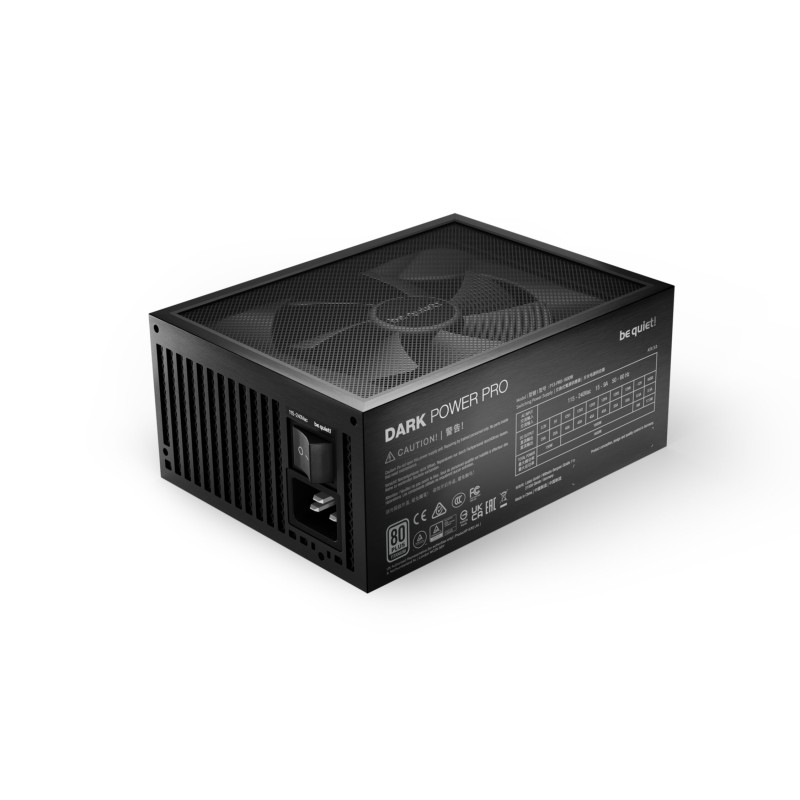

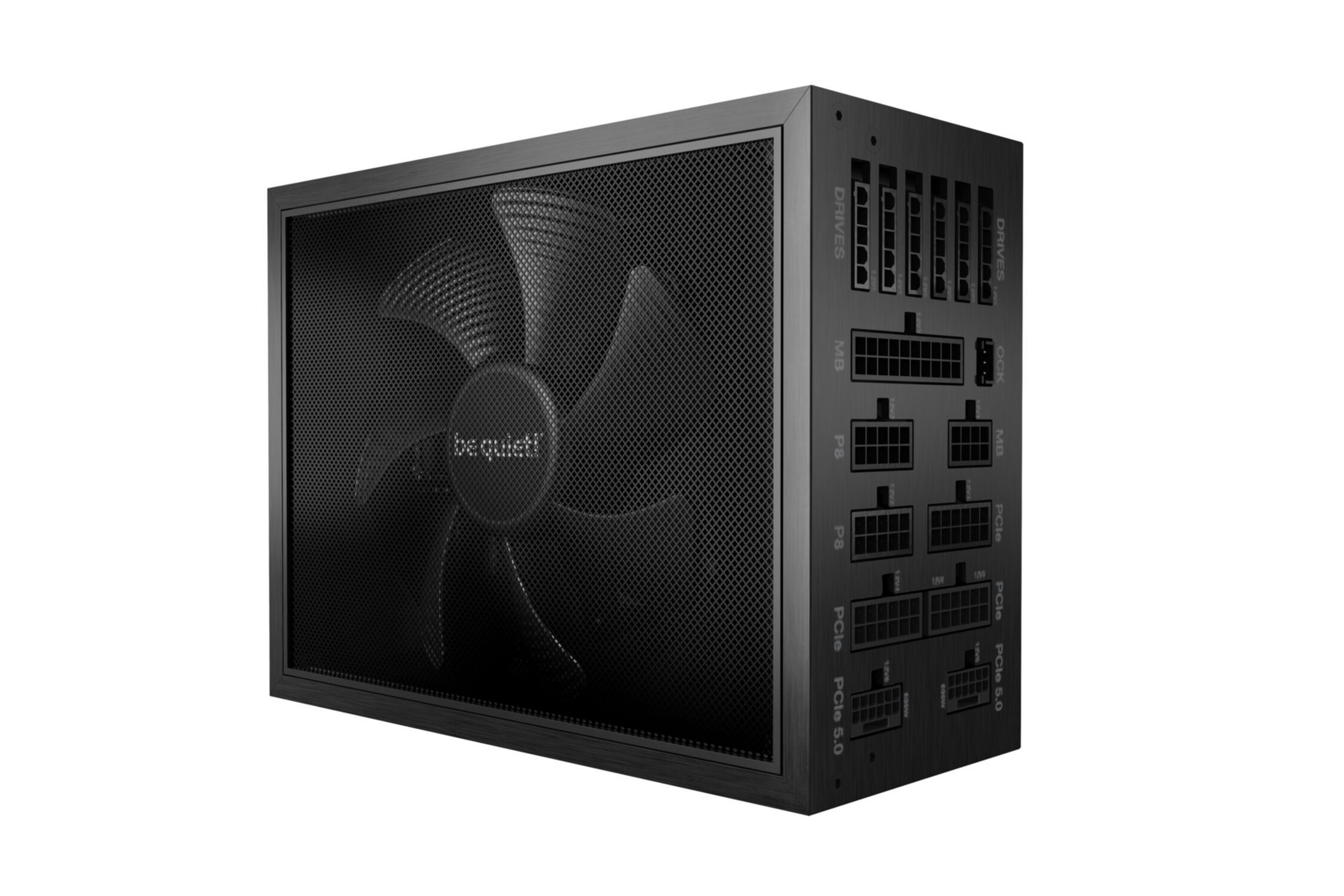

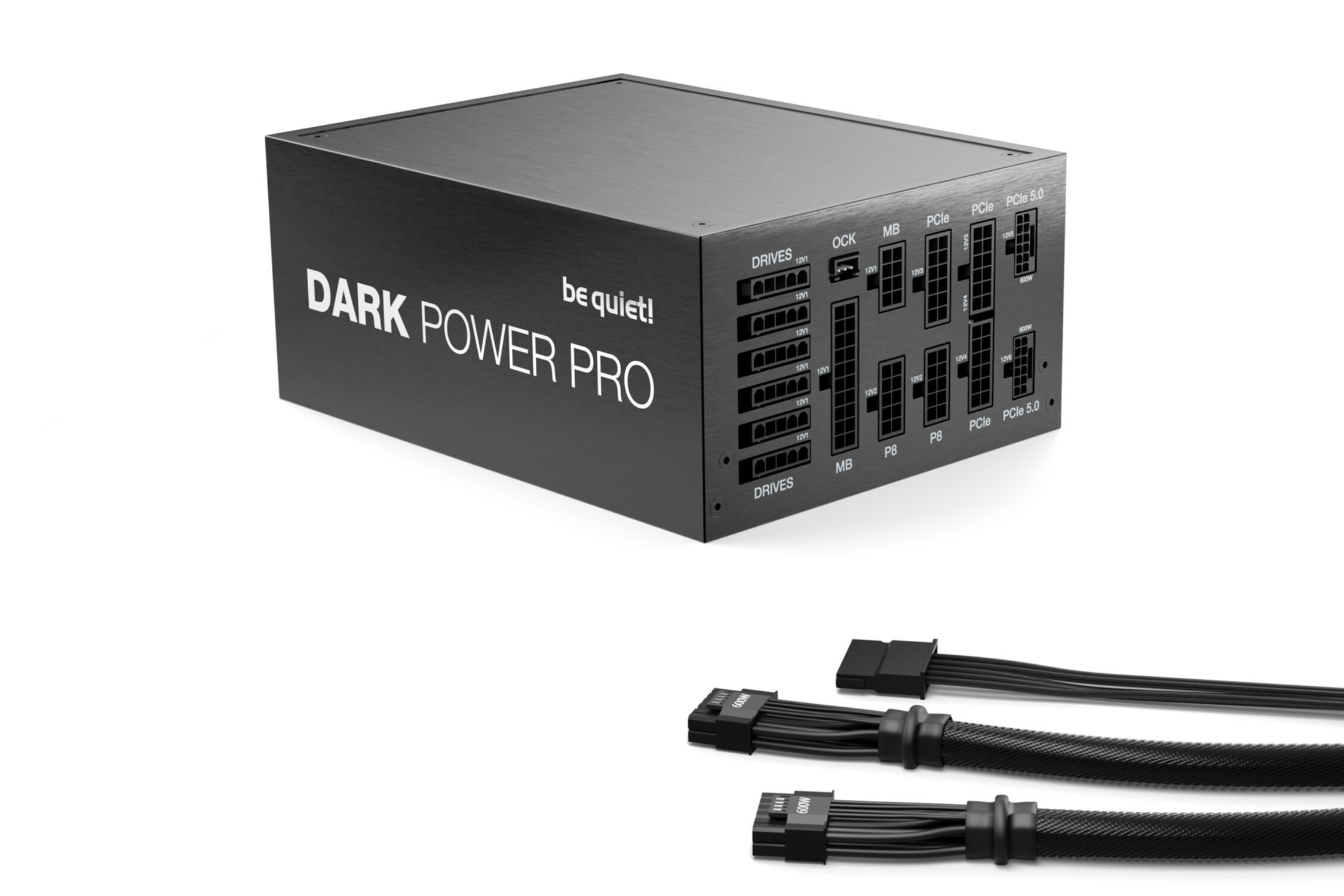

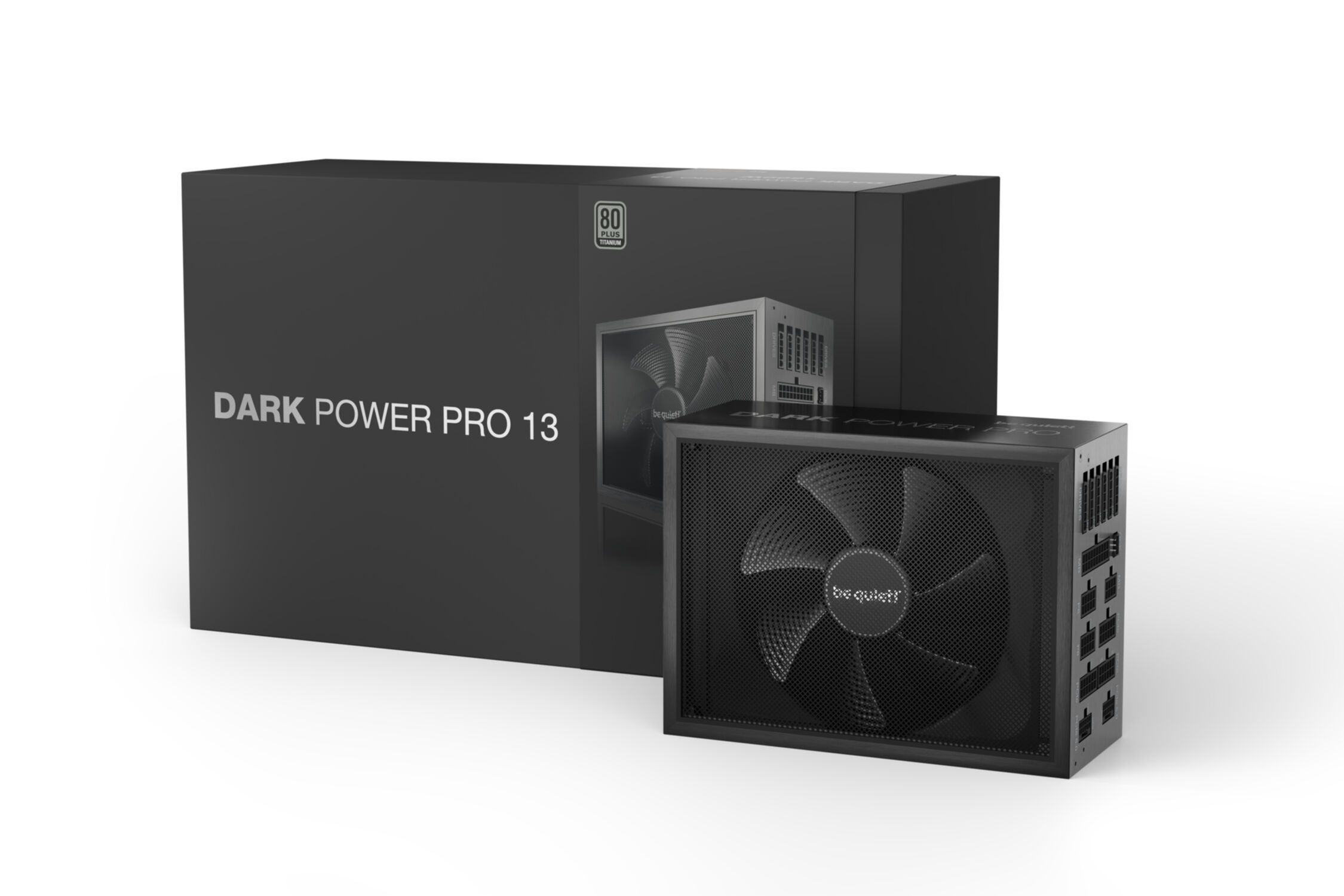

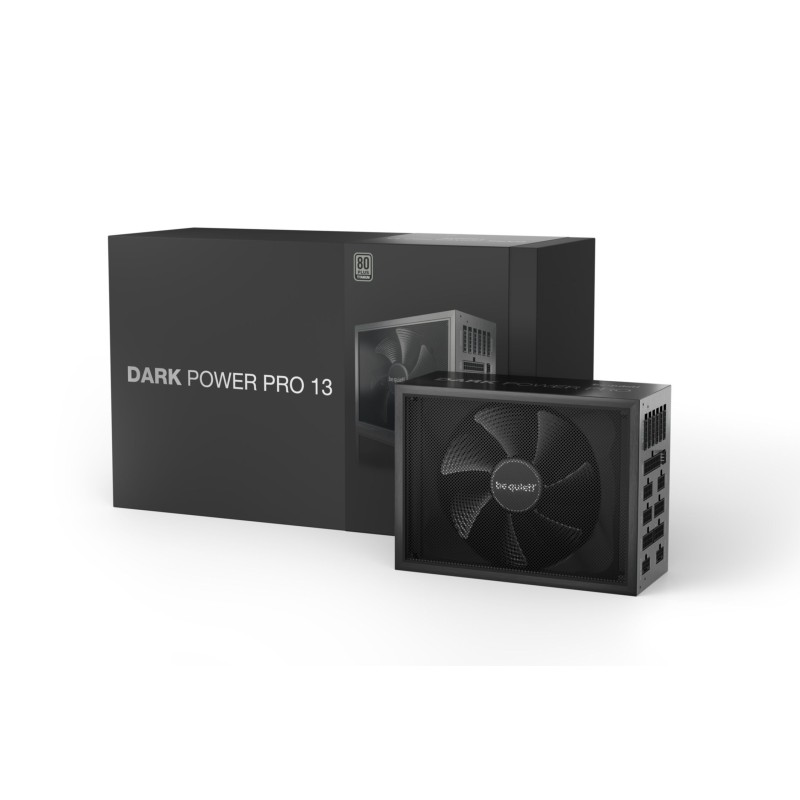

Be Quiet Dark Power Pro 13 - BN332 - 1600W ATX 3.1, 80 PLUS Titanium, Fully-Modular, Black
1600W high-performance ATX 3.1 PSU with 80 PLUS Titanium efficiency, fully-modular cables, 135mm FDB fan, 6x PCIe 6+2-pin, black finish, 10-year warranty.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| PSU (Power Supplies) - Wattage | 1300-1600 W |
|---|---|
| PSU (Power Supplies) - Efficiency Rating | 80+ Titanium |
| PSU (Power Supplies) - ATX Standard | ATX 3.1 |
| PSU (Power Supplies) - Modularity | Fully modular |
| PSU (Power Supplies) - EPS CPU Connectors | 8+4-pin |
| PSU (Power Supplies) - Fan Size | 135 mm |
| PSU (Power Supplies) - Length | greater than180 mm |
be quiet! Dark Power Pro 13 | 1600W. Total power: 1600 W. AC input voltage: 115 - 240 V. Peak power: 1700 W. Motherboard power connector: 20+4 pin ATX. Motherboard power cable length: 60 cm. SATA power cable length: 500.600.750.800.900.950.1050 mm. Purpose: PC. Power supply unit (PSU) form factor: ATX. 80 PLUS certification: 80 PLUS Titanium. Product colour: Black. Cooling type: Active. Fan diameter: 13.5 cm. Cables included: CPU. PCIe. Peripheral (Molex). SATA
| Total power | 1600 W |
| Peak power | 1700 W |
| AC input voltage | 115 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Input current | 15 - 9 A |
| Power factor | 0.99 |
| Combined power (+3.3V) | 150 W |
| Combined power (+12V) | 1600 W |
| Combined power (+5V) | 150 W |
| Combined power (-12V) | 6 W |
| Combined power (+5Vsb) | 17.5 W |
| Max output current (+3.3V) | 25 A |
| Max output current (+12V1) | 40 A |
| Max output current (+12V2) | 40 A |
| Max output current (+12V3) | 45 A |
| Max output current (+12V4) | 45 A |
| Max output current (+5V) | 25 A |
| Max output current (-12V) | 0.5 A |
| Max output current (+5Vsb) | 3.5 A |
| Hold time | 18 ms |
| Efficiency | 94.5% |
| Power protection features | Over current. Over power. Over voltage. Overheating. Short circuit. Under voltage |
| Motherboard power connector | 20+4 pin ATX |
| Motherboard power cable length | 60 cm |
| Number of SATA power connectors | 16 |
| Number of PATA power connectors | 5 |
| SATA power cable length | 500.600.750.800.900.950.1050 mm |
| Peripheral (Molex) power cable length | 600.750.900.1050 mm |
| Feature | Sustainability compliance |
| PCI Express power connectors (6+2 pin) | 6 |
| PCI Express power cable length | 60 cm |
| CPU power cable length | 70 cm |
| Cabling type | Fully-Modular |
| 80 PLUS certification | 80 PLUS Titanium |
| Purpose | PC |
| Power supply unit (PSU) form factor | ATX |
| ATX version | 3.1 |
| EPS version | 2.92 |
| Noise level | 31.1 dB |
| Bearing technology | FDB |
| Mean time between failures (MTBF) | 100000 h |
| Product colour | Black |
| Cooling type | Active |

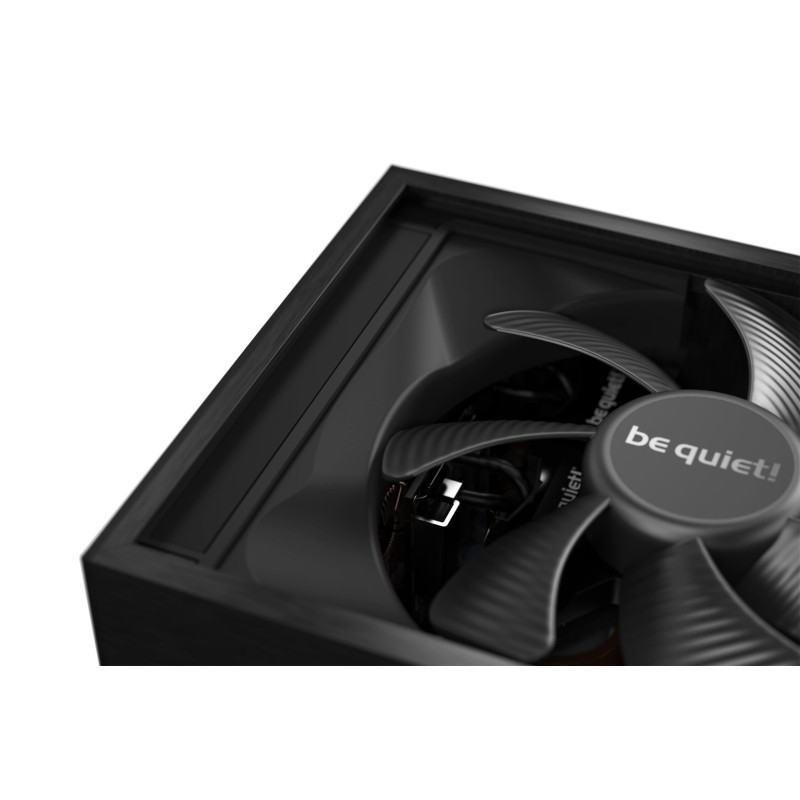

| Fan diameter | 13.5 cm |
| Number of fans | 1 fan(s) |

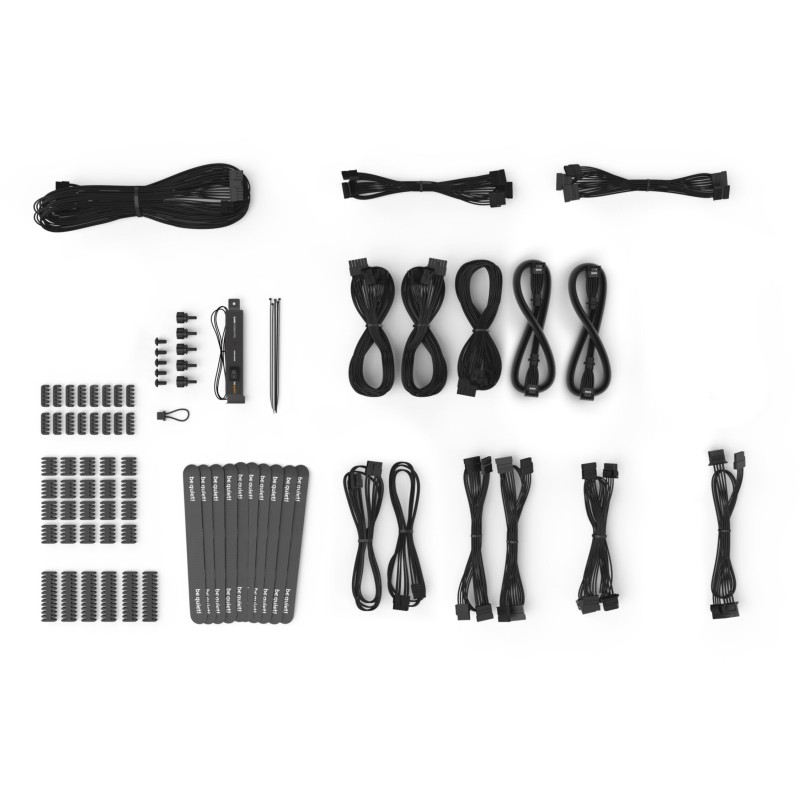

| Cables included | CPU. PCIe. Peripheral (Molex). SATA |
| Compliance certificates | CCC. CE. Federal Communications Commission (FCC). RoHS. UKCA. WEEE |
| Width | 150 mm |
| Depth | 200 mm |
| Height | 86 mm |
| Weight | 2.44 kg |
| Package width | 253 mm |
| Package depth | 417 mm |
| Package height | 152 mm |
| Package weight | 6.9 kg |
| Sustainability certificates | ENERGY STAR. ErP. Triman |
| Shipping (inner) case length | 44 cm |
| Shipping (inner) case width | 32.5 cm |
| Shipping (inner) case height | 28.3 cm |
| Shipping (inner) case net weight | 14.6 kg |
| Products per shipping (inner) case | 2 pc(s) |
| Warranty period | 10 year(s) |
