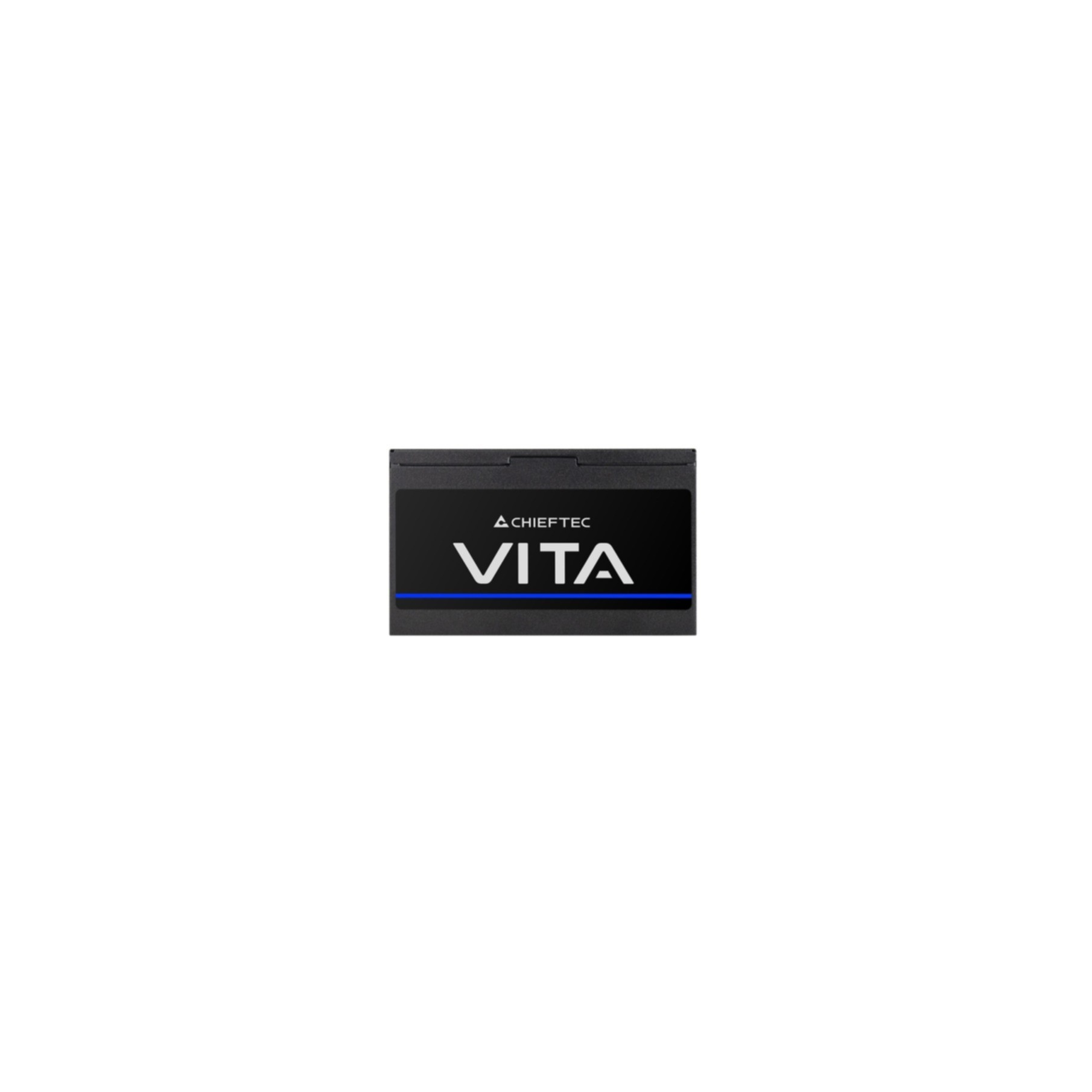

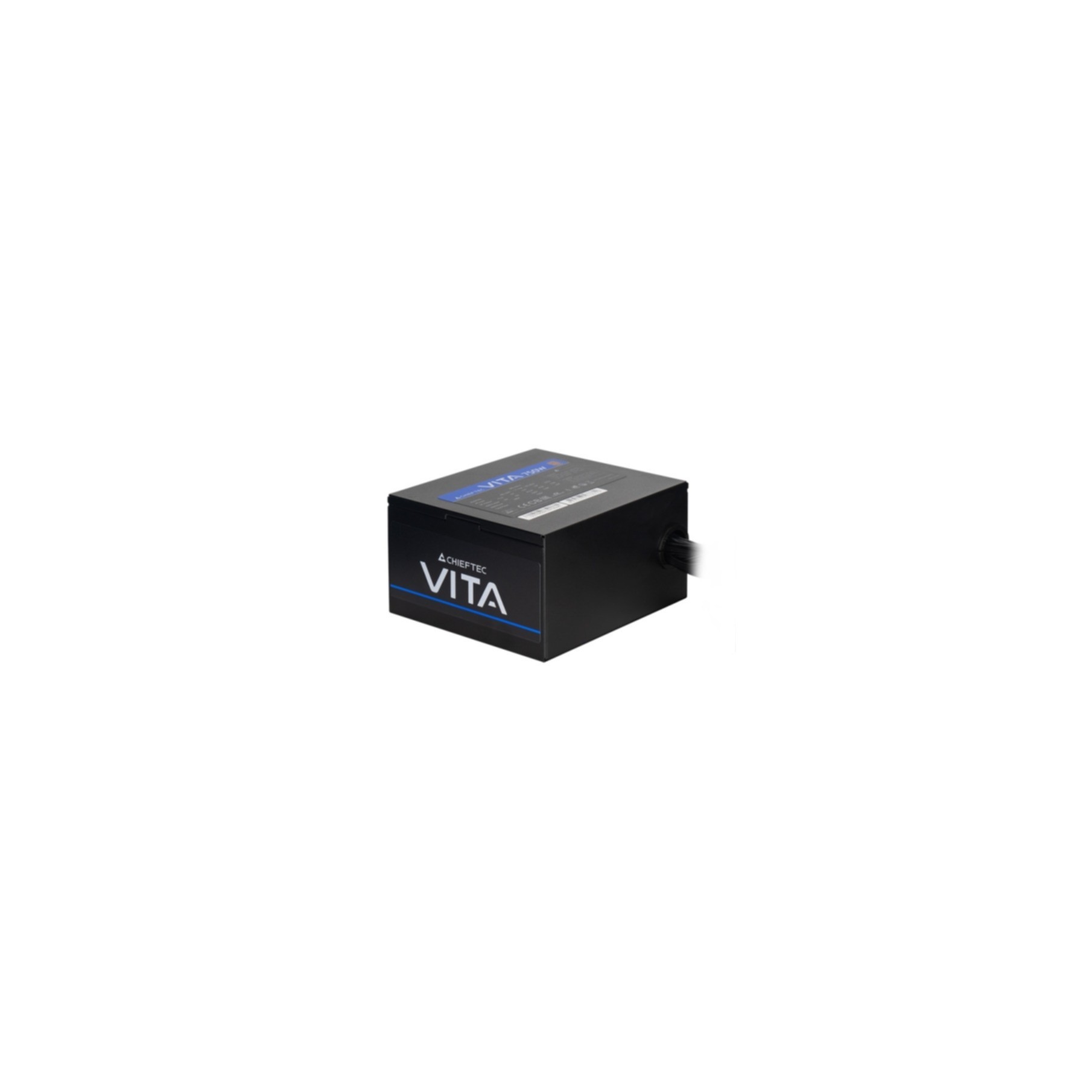

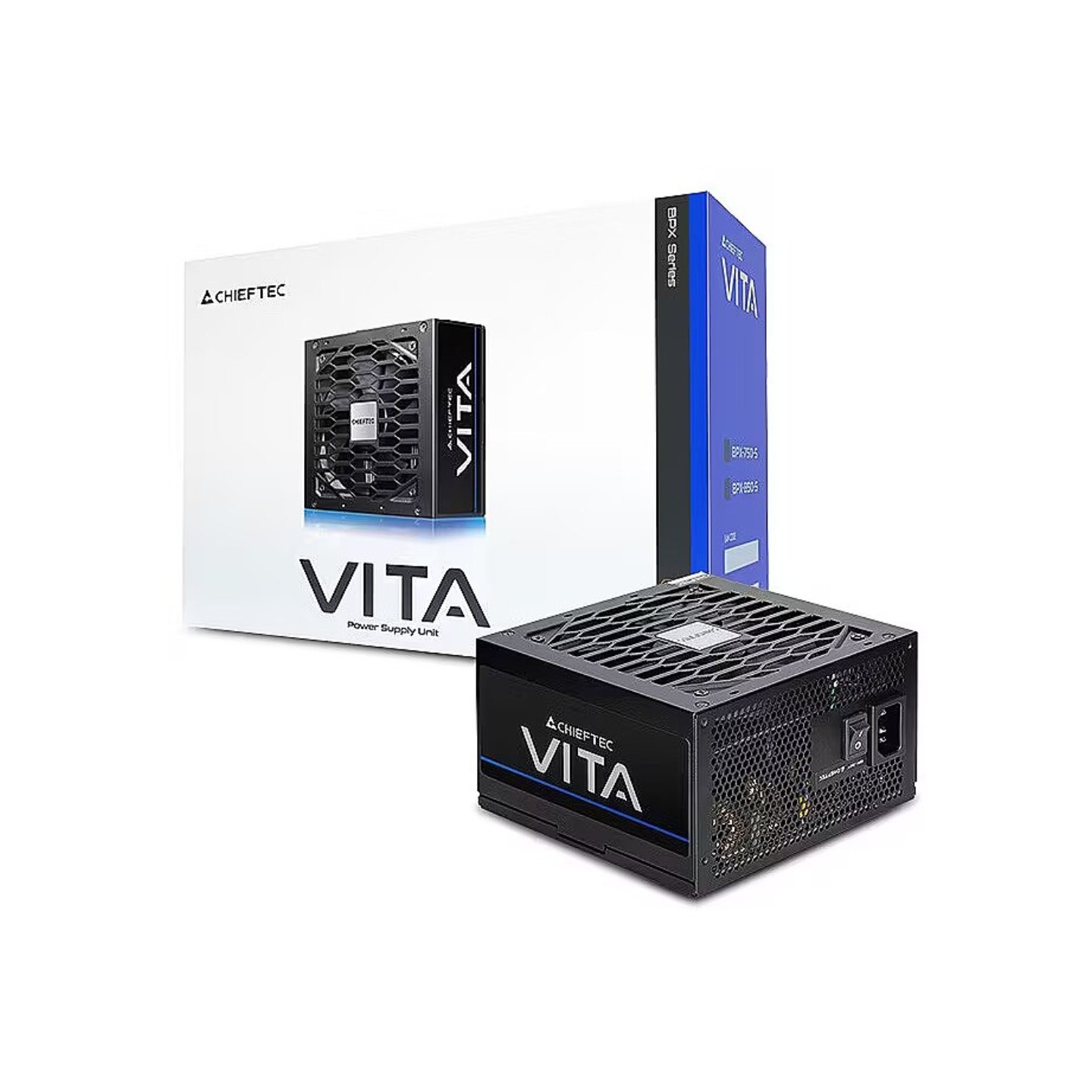

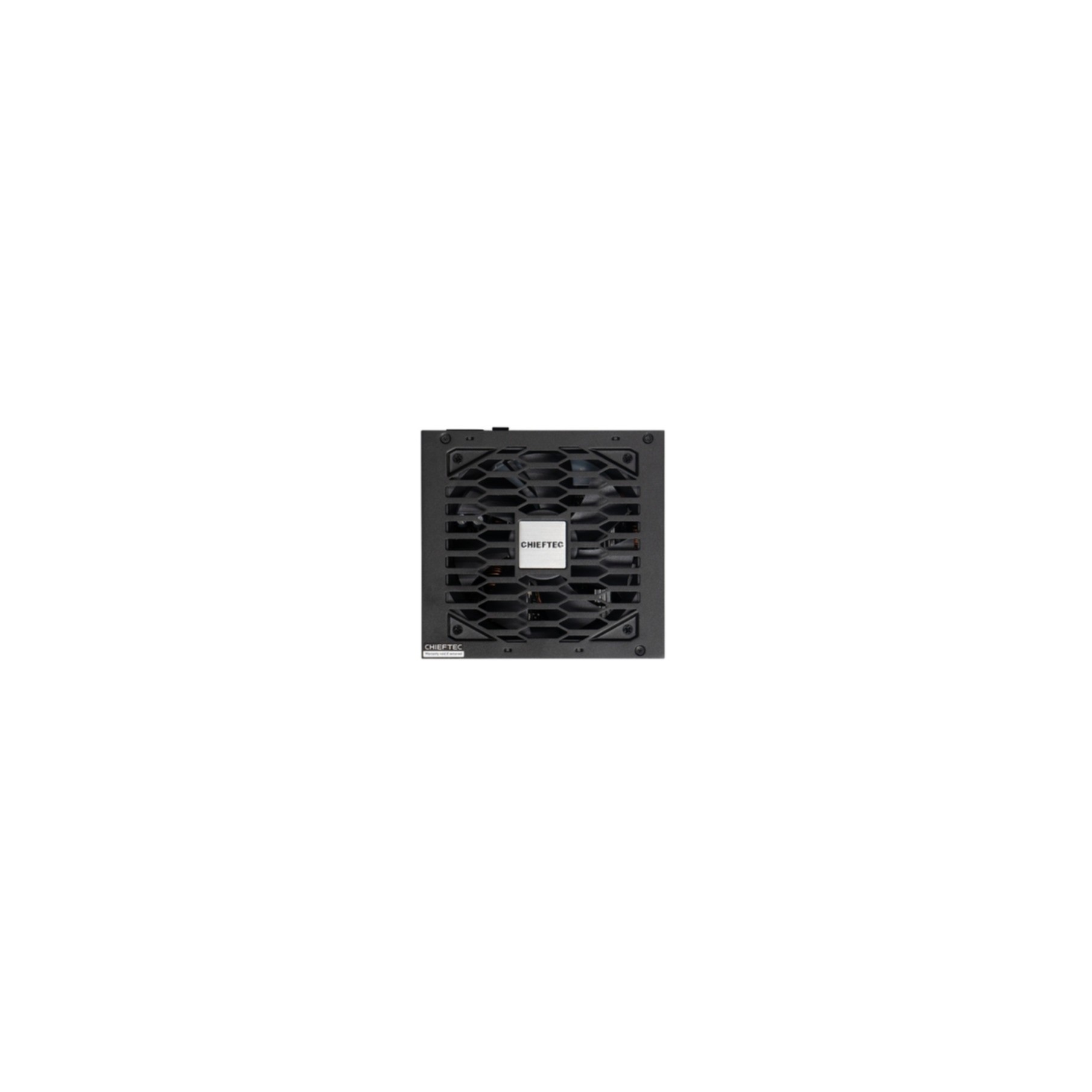

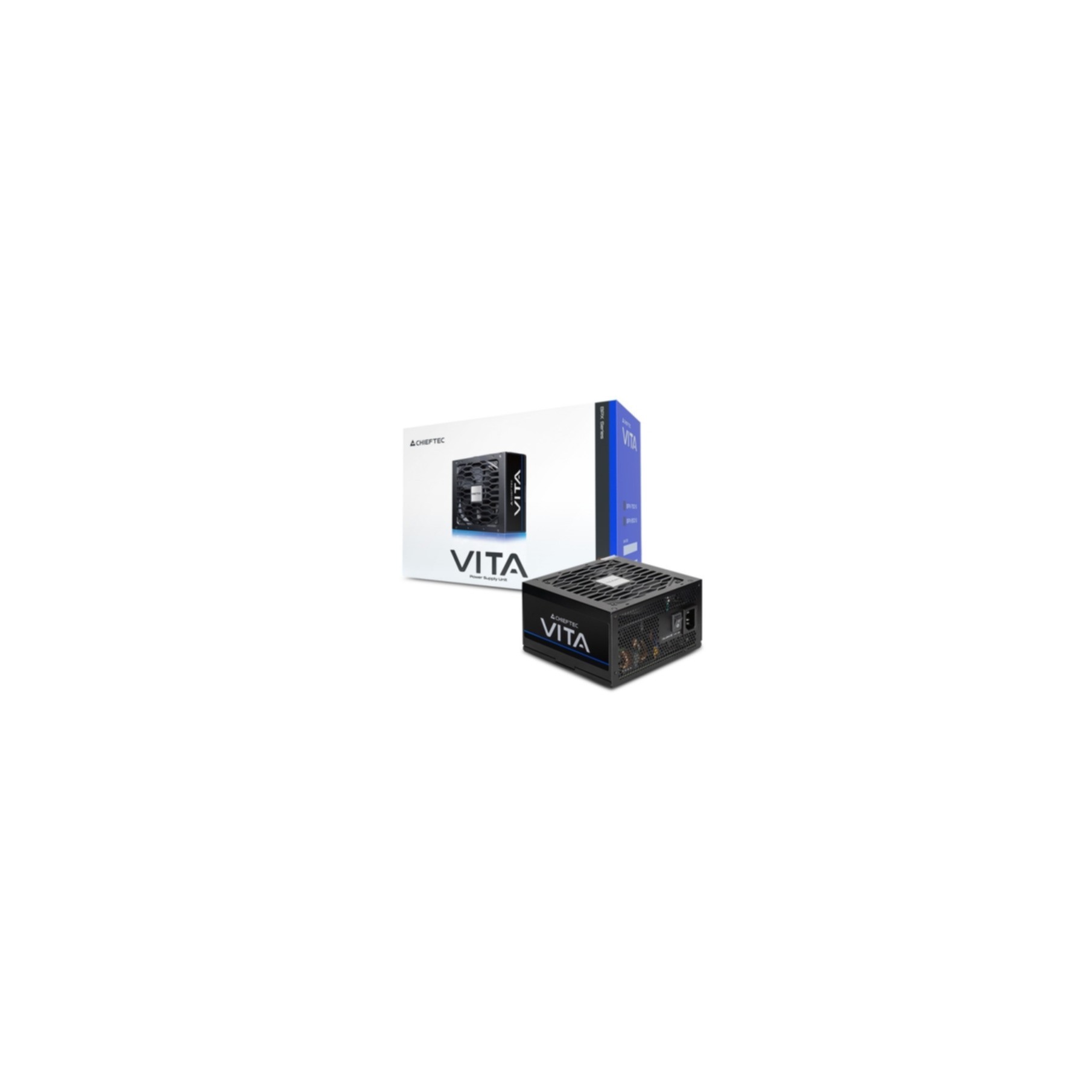

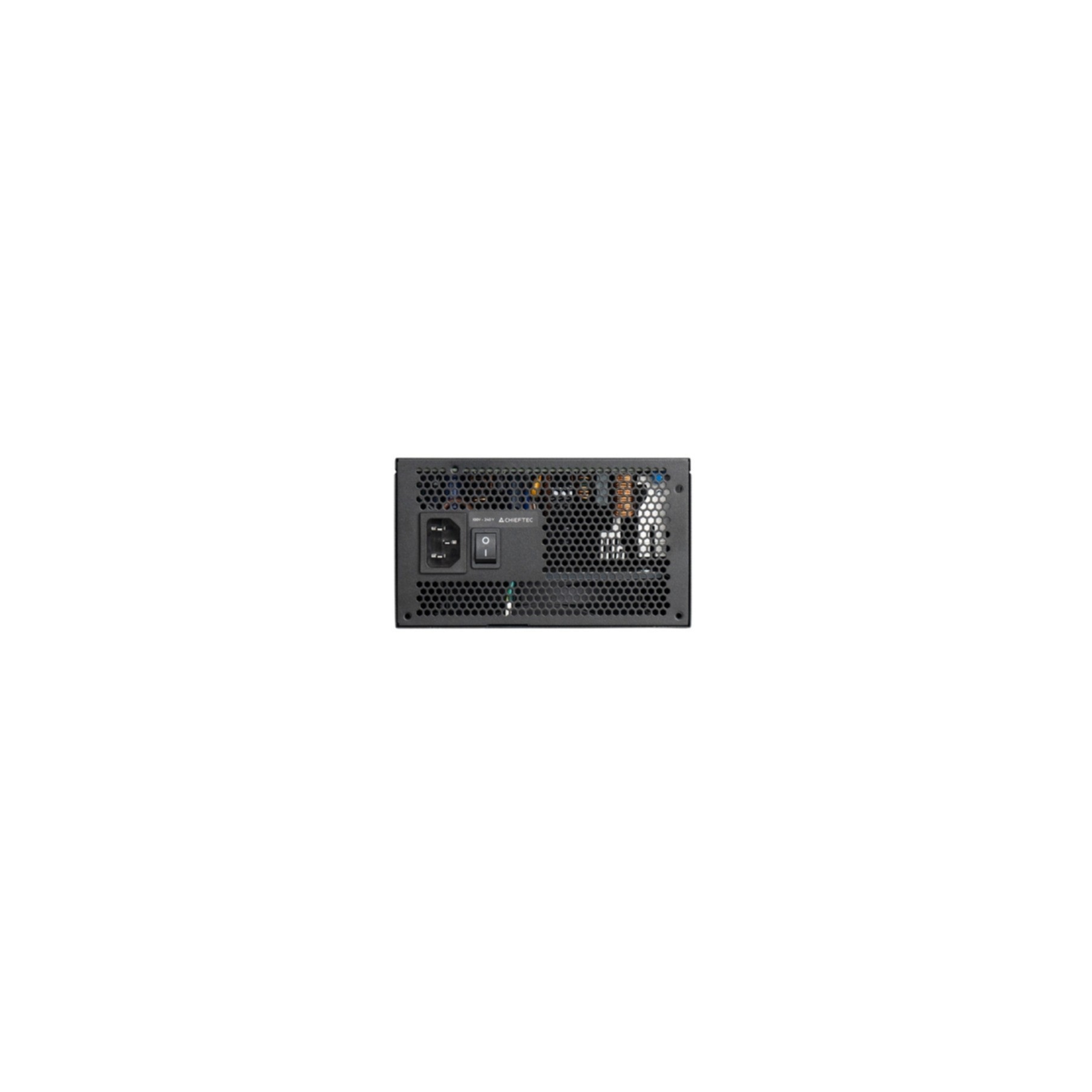

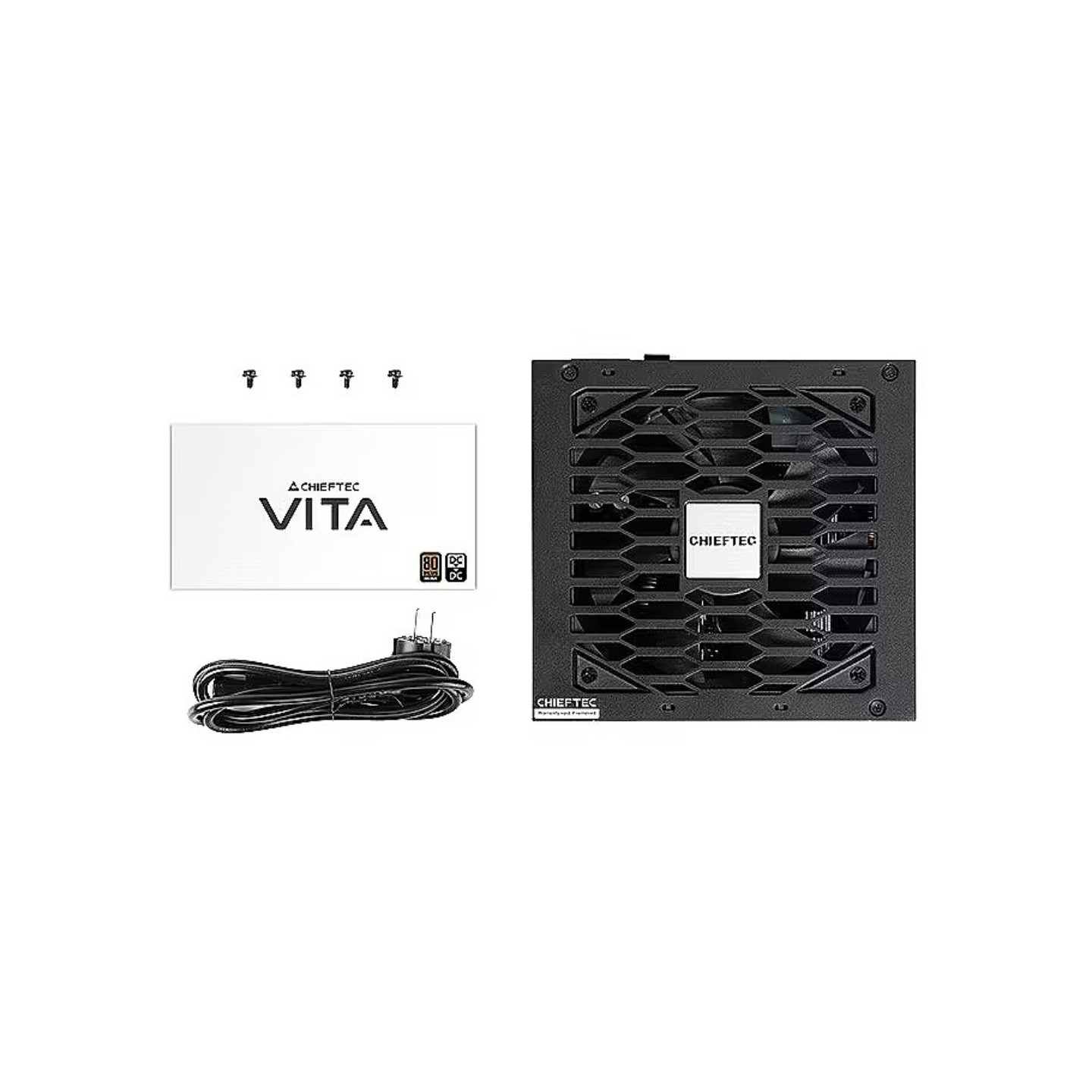

Chieftec Vita BPX-750-S - 750W 80 PLUS Bronze Non-Modular PSU, 120mm Silent Fan (Black)
Chieftec Vita BPX-750-S 750W PSU: 80 PLUS Bronze efficiency, DC-to-DC design, 120mm silent fan. Non-modular with 4x PCIe 6+2-pin, 2x EPS, 6x SATA. Extra-long cables for gaming builds in large cases.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| PSU (Power Supplies) - Wattage | 700 - 799 W |
|---|---|
| PSU (Power Supplies) - Efficiency Rating | 80 Plus Bronze |
| PSU (Power Supplies) - Color | Black |
| PSU (Power Supplies) - Modularity | Non-modular |
| PSU (Power Supplies) - PCIe GPU Connectors | 4x 8/6 pins |
| PSU (Power Supplies) - Length | 161-180 mm |
| PSU (Power Supplies) - EPS CPU Connectors | 2x 4+4pin EPS/ATX12V |
The Chieftec Vita BPX-750-S is a 750W 80 PLUS Bronze certified power supply designed for mainstream gaming PCs and high-performance systems. Featuring modern DC-to-DC conversion technology, it delivers stable power with at least 85% efficiency at typical loads. The non-modular design includes extra-long, flat black cables that reach easily even in larger PC cases, making cable management simpler.
Equipped with a 120mm silent fan and Automatic Fan Speed Control (AFC), it maintains optimal cooling with minimal noise. Comprehensive protection circuitry includes OPP, OTP, OVP, SCP, SIP, UVP, and OCP, ensuring component safety under various conditions. Active PFC (>0.9) supports universal 100-240V input for global compatibility.
- ✅ Main connectors: 1x 20+4-pin ATX, 2x 4+4-pin EPS/ATX12V
- ✅ GPU power: 4x 6+2-pin PCIe (50cm cables)
- ✅ Peripherals: 6x SATA, 2x Molex (4-pin)
- ✅ Protections: Full suite including AFC, OPP, OVP, SCP
- ✅ Warranty: 2 years from Chieftec
| Model | BPX-750-S |
| Total Power | 750W |
| 80 PLUS Certification | Bronze |
| PFC | Active PFC (0.9) |
| Fan | 120mm silent fan with AFC |
| Dimensions (WxHxD) | 140 x 86 x 150 mm |
| Weight (with package) | 2.7 kg |
| ATX 20+4-pin | 1 |
| EPS/ATX12V 4+4-pin | 2 |
| PCIe 6+2-pin | 4 |
| SATA Power | 6 |
| Molex 4-pin | 2 |
| Input Voltage | 100-240V~ / 9-4.5A, 50-60Hz |
| Protections | AFC, OPP, OTP, OVP, SCP, SIP, UVP, OCP |
| Technology | Double forward + DC-to-DC |
| Warranty | 2 Years |
