be quiet! Pure Power 13 M BP024EU 550W Fully-Modular 80+ Gold ATX 3.1 PSU (Boxed)
550W fully modular ATX 3.1 PSU with 80 PLUS Gold efficiency (Cybenetics Platinum), semi-passive 120mm fan, PCIe 5.1 12VHPWR & 6+2 pin cables. Silent operation, 10-year warranty for mid-range gaming PCs.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| PSU (Power Supplies) - Wattage | 500 - 599 W |
|---|---|
| PSU (Power Supplies) - Efficiency Rating | 80 Plus Gold Cybenetics Gold |
| PSU (Power Supplies) - Color | Black |
| PSU (Power Supplies) - Modularity | Fully modular |
| PSU (Power Supplies) - PCIe GPU Connectors | 1x 12VHPWR 16-pin 2x 8/6 pins |
| PSU (Power Supplies) - Length | 161-180 mm |
| PSU (Power Supplies) - EPS CPU Connectors | 1x 4+4pin EPS/ATX12V |

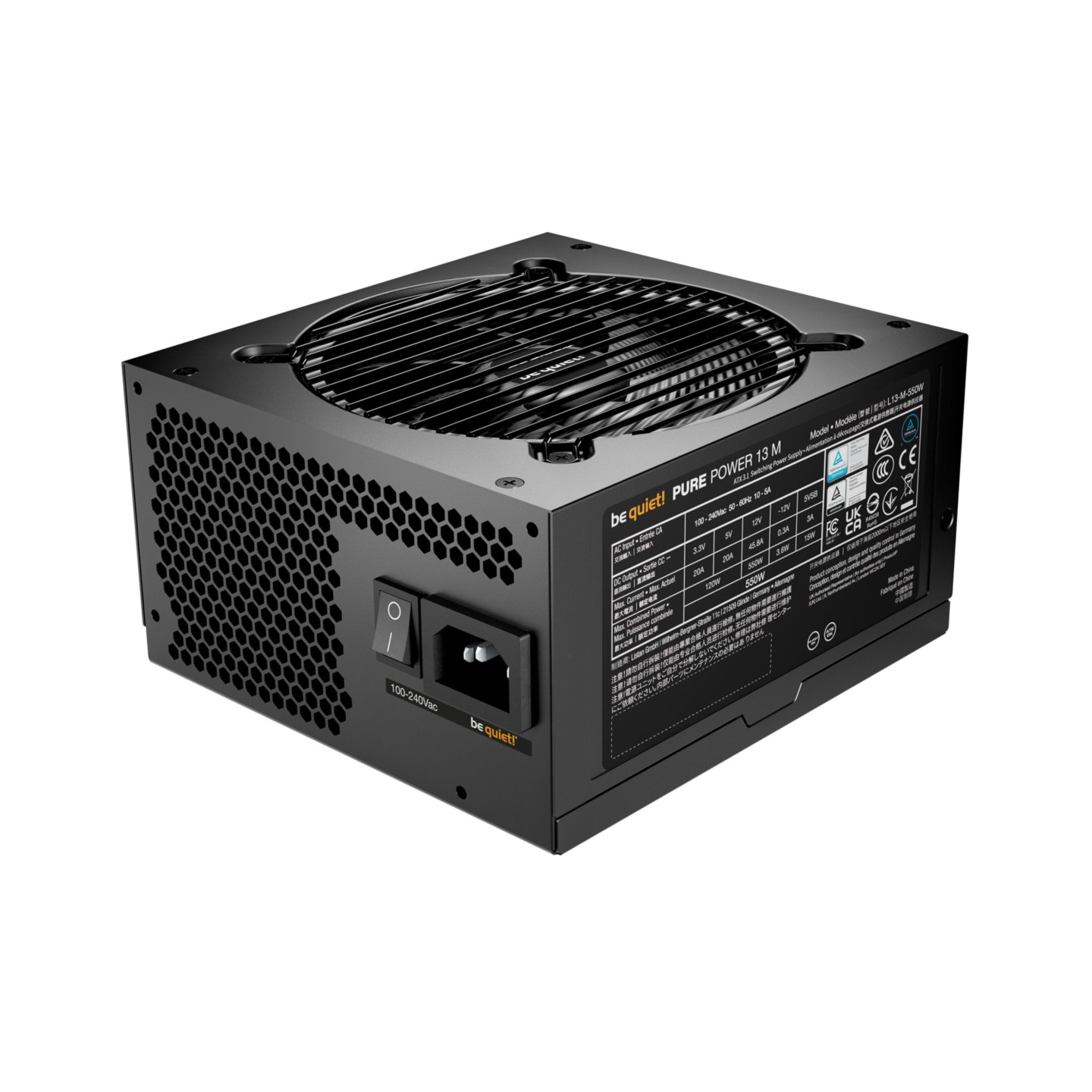

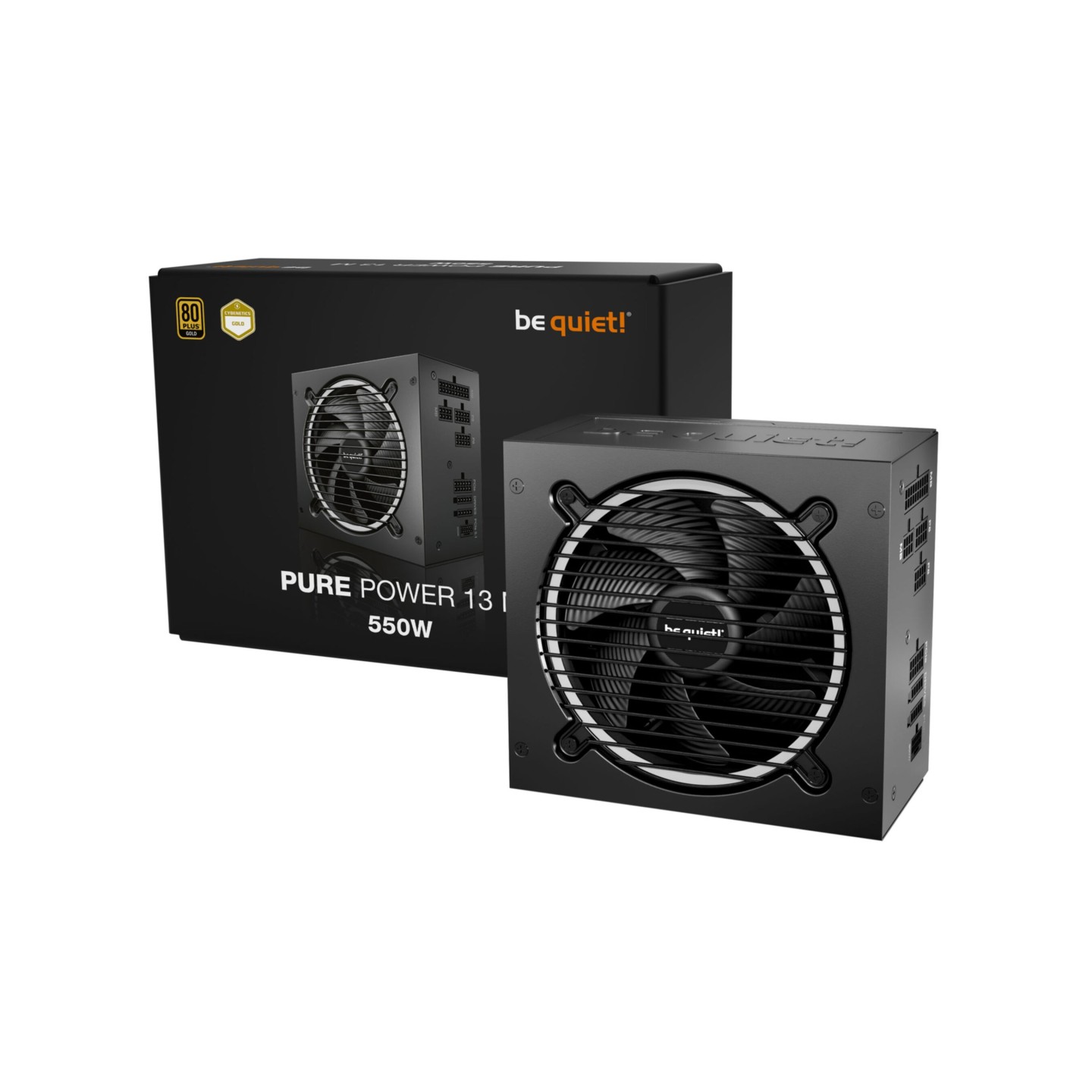

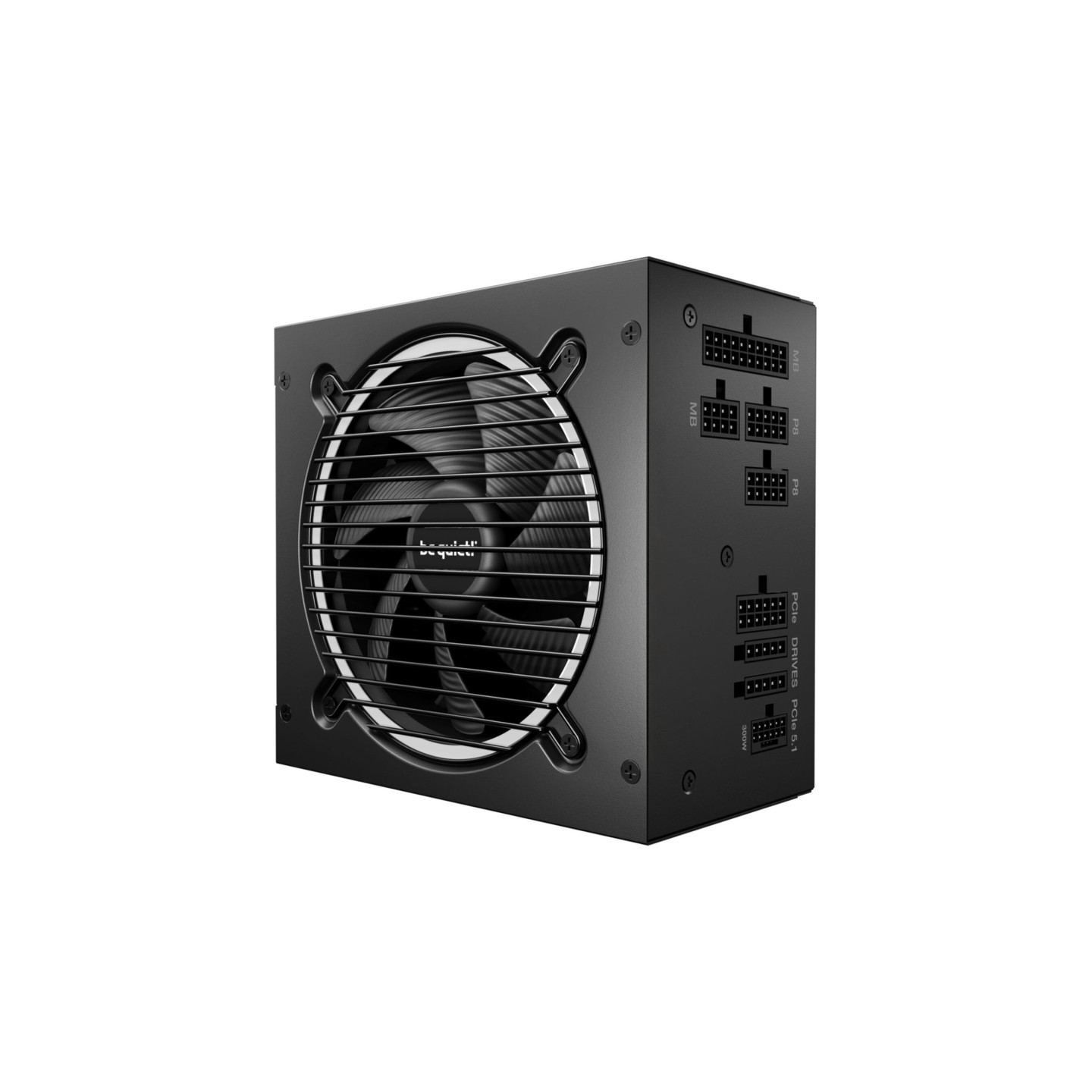

The be quiet! Pure Power 13 M 550W (BP024EU) is a fully modular ATX 3.1 power supply delivering reliable 80 PLUS Gold efficiency (up to 93.8%) and Cybenetics Platinum certification. Featuring a semi-passive 120mm be quiet! fan, it remains silent at low-medium loads, activating only under heavy use for minimal noise even in gaming rigs.
Compliant with latest standards, it supports PCIe 5.1 GPUs via 12VHPWR connector and traditional 6+2 pin PCIe cables, plus 1x 4+4-pin EPS for CPUs. The single +12V rail provides 550W continuous power, handling ATX 3.1 excursions up to 1100W transients. Built on proven FSP platform with Japanese capacitors, it offers excellent voltage regulation, ripple suppression, and 10-year warranty.

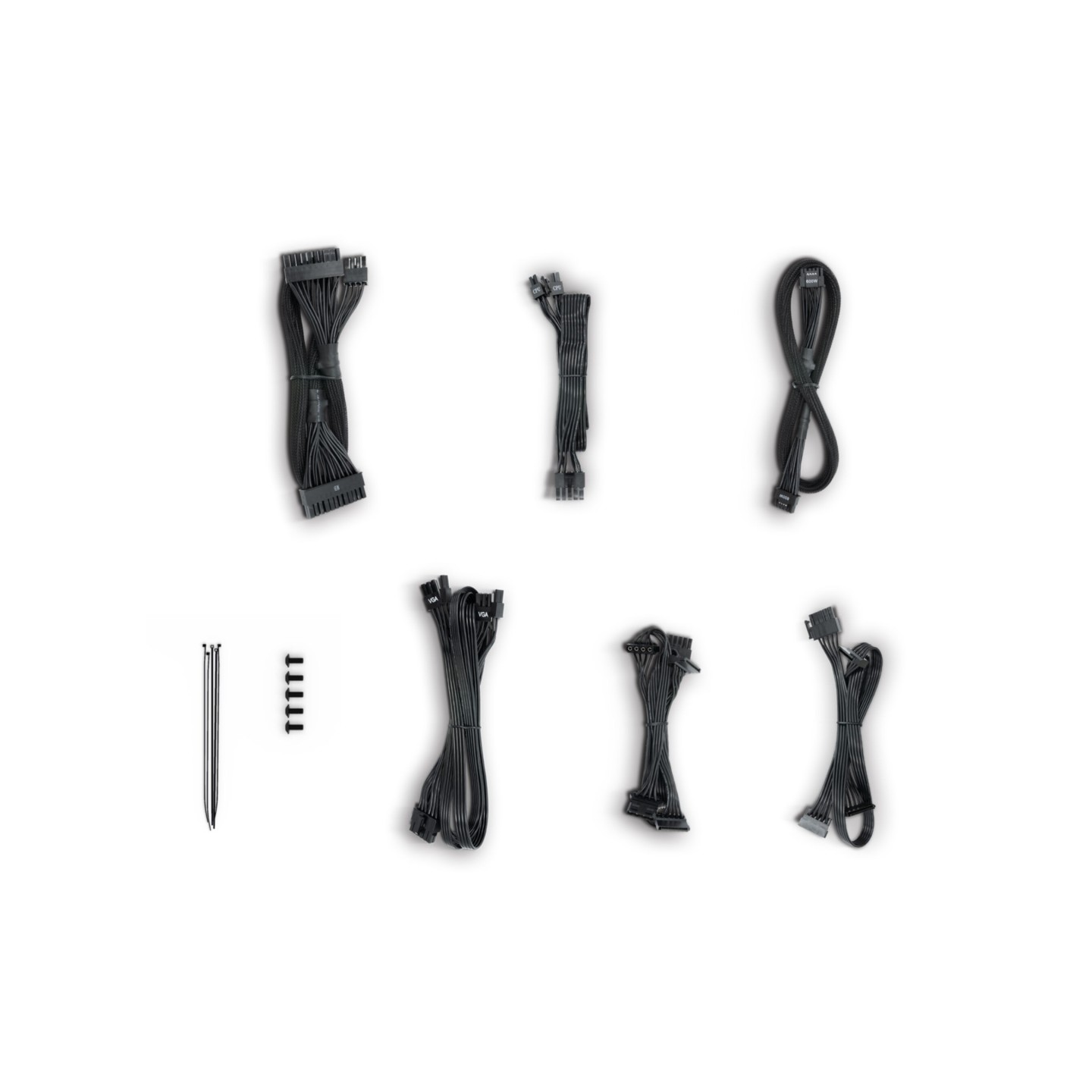

- Fully modular black cables for easy management
- Semi-passive cooling: Silent below ~30% load

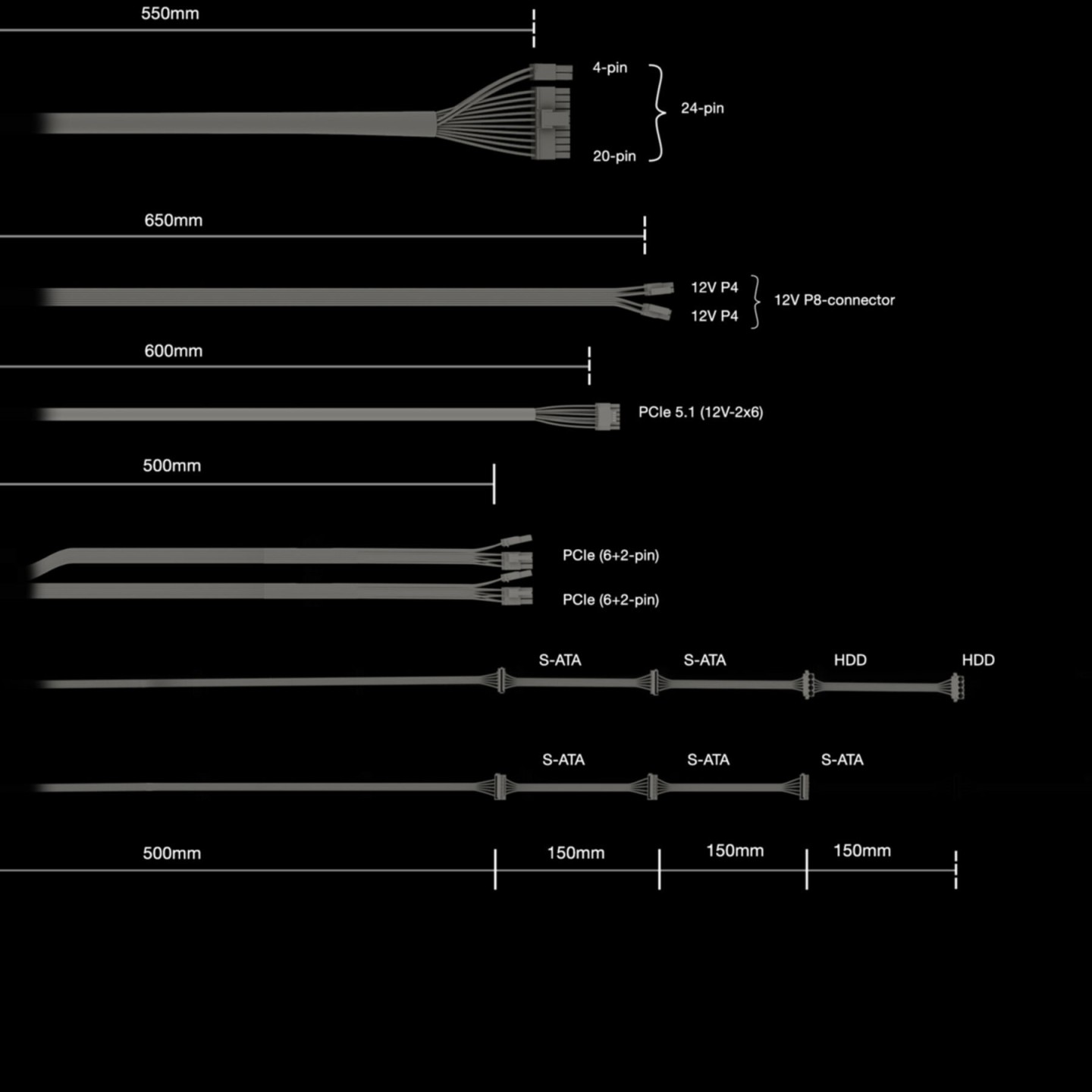

- Connectors: 1x 12VHPWR, 2x PCIe 6+2 pin, 1x EPS 4+4, 6x SATA, 3x Molex
- Efficiency: 80 PLUS Gold / Cybenetics Platinum
- Dimensions: 160 x 150 x 86 mm (unit only)
| Model | BP024EU |
| Power Output | 550 W |
| Form Factor | ATX |
| ATX Version | ATX 3.1 |
| Efficiency 80 PLUS | Gold (up to 93.8%) |
| Cybenetics Efficiency | Platinum (90.6% 115V / 92.5% 230V) |

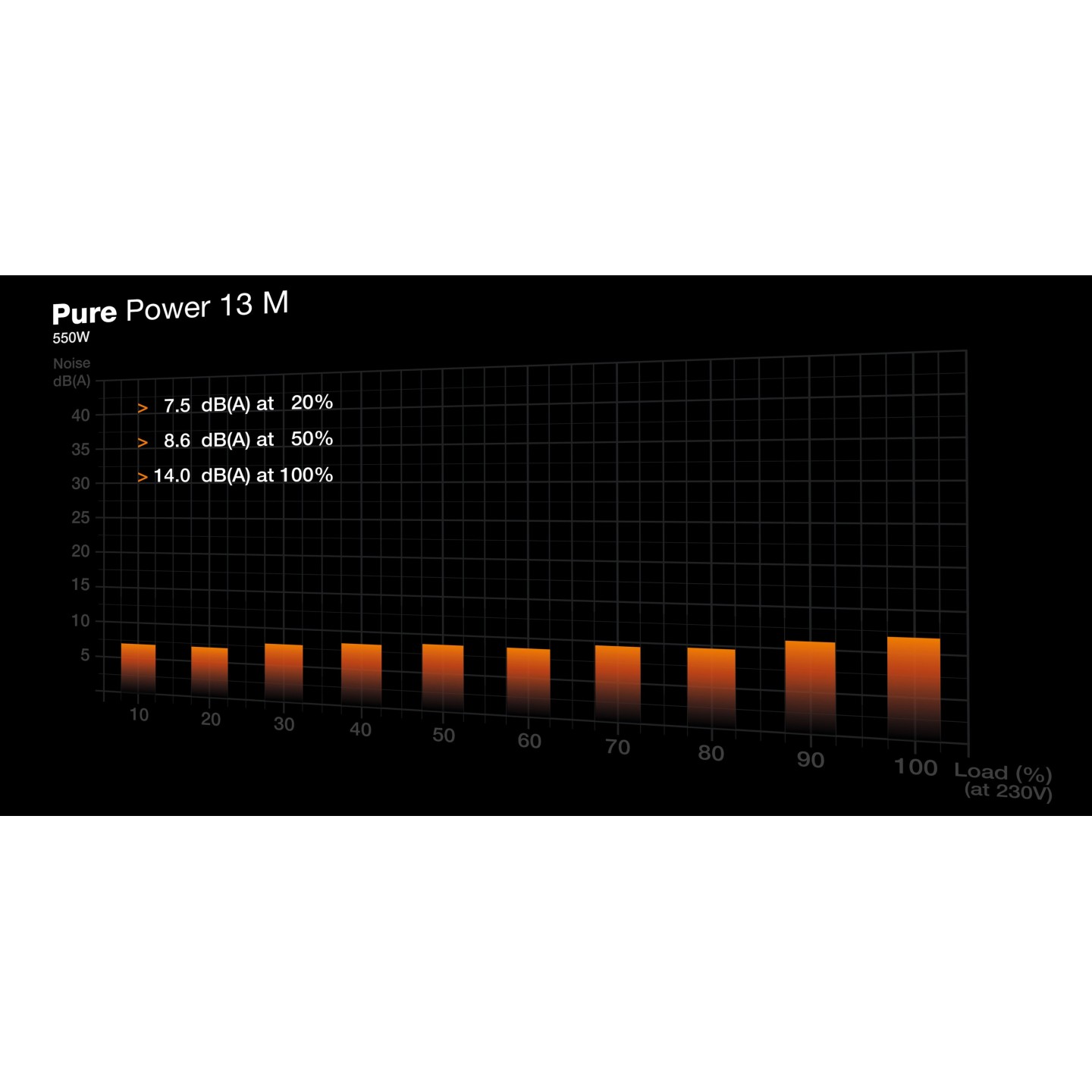

| Cybenetics Noise | A++ (<6 dB[A]) |
| Fan | 120 mm be quiet! semi-passive |
| Modularity | Fully modular |
| Main Rail | +12V single rail 550 W |
| PCIe 5.1 | 1x 12VHPWR (16-pin) |
| PCIe 6+2 pin | 2x |
| EPS/ATX12V | 1x 4+4 pin |
| SATA | 6x |
| Molex | 3x |
| Dimensions (unit) | 160 x 150 x 86 mm |
| Warranty | 10 years |
| OEM | FSP |
| Operating Temperature | 0-50 °C |
