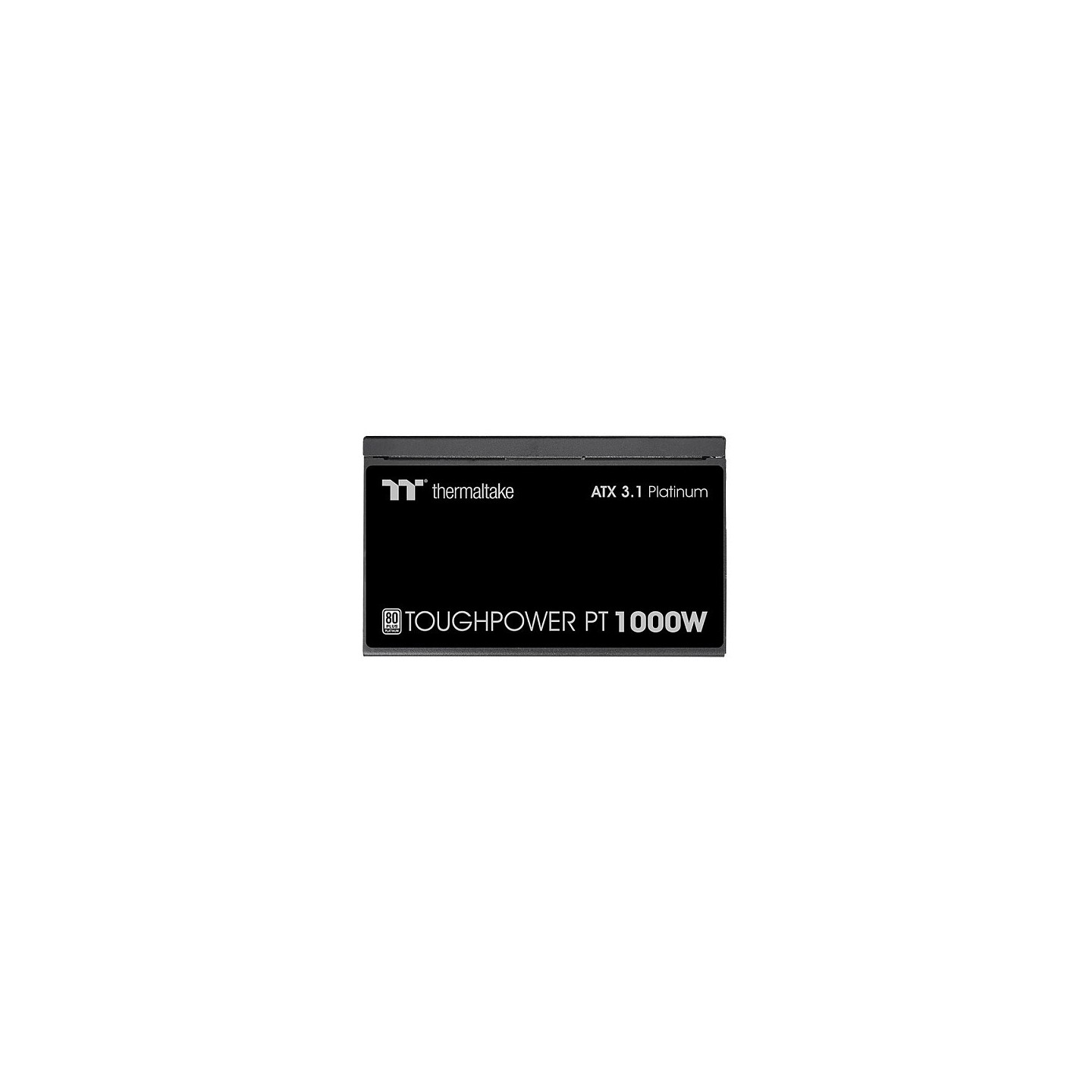

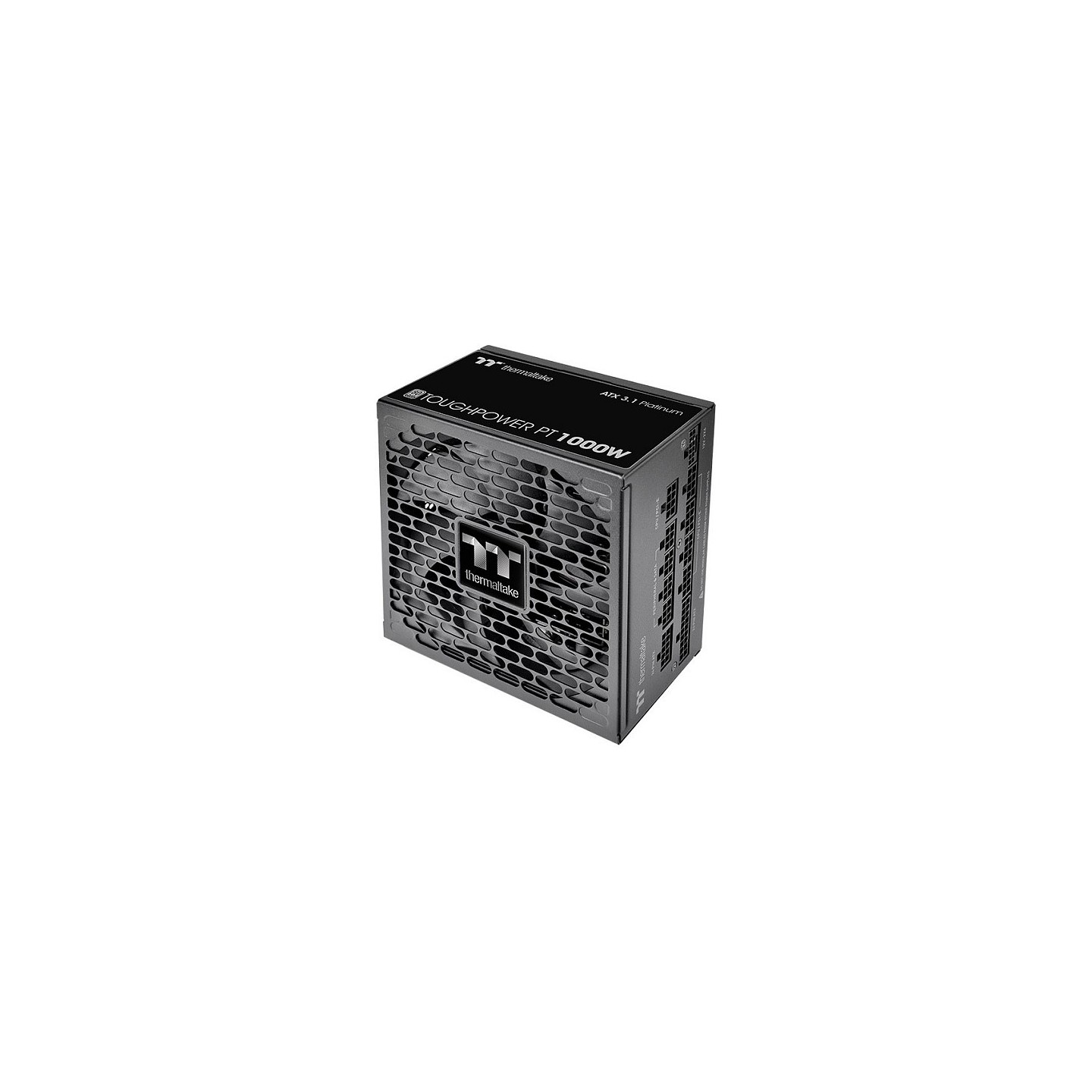

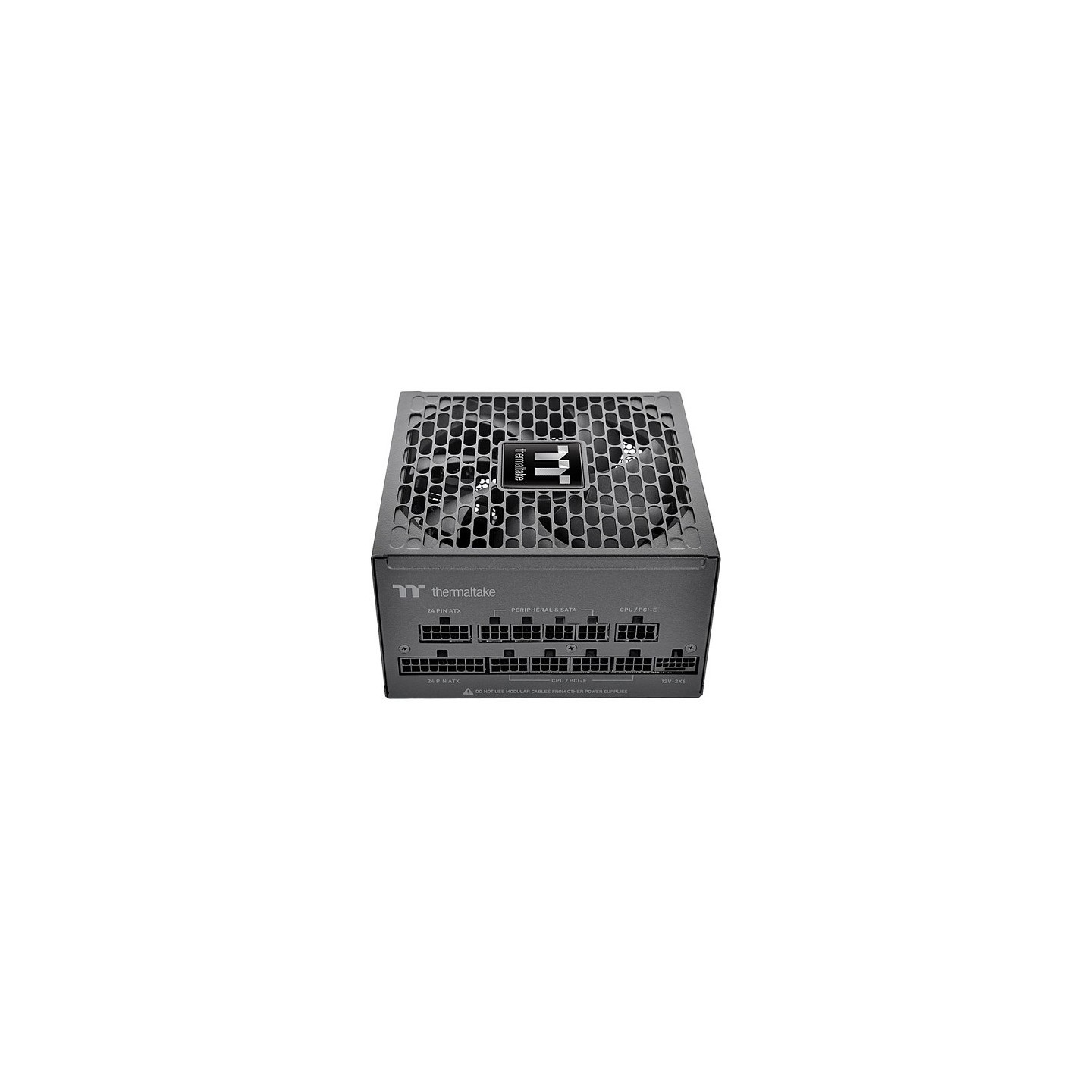

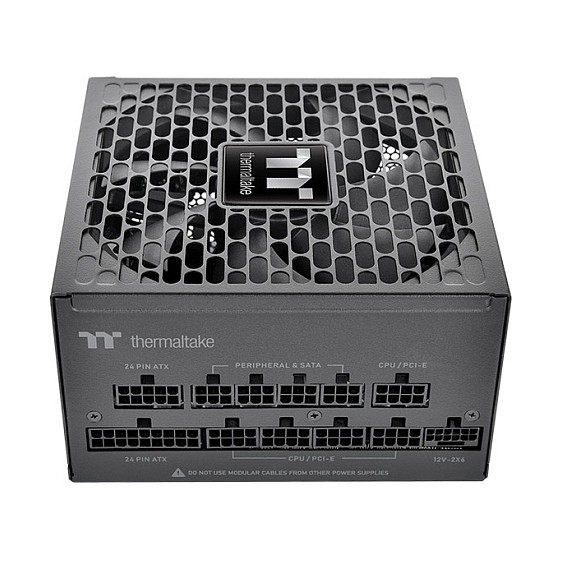

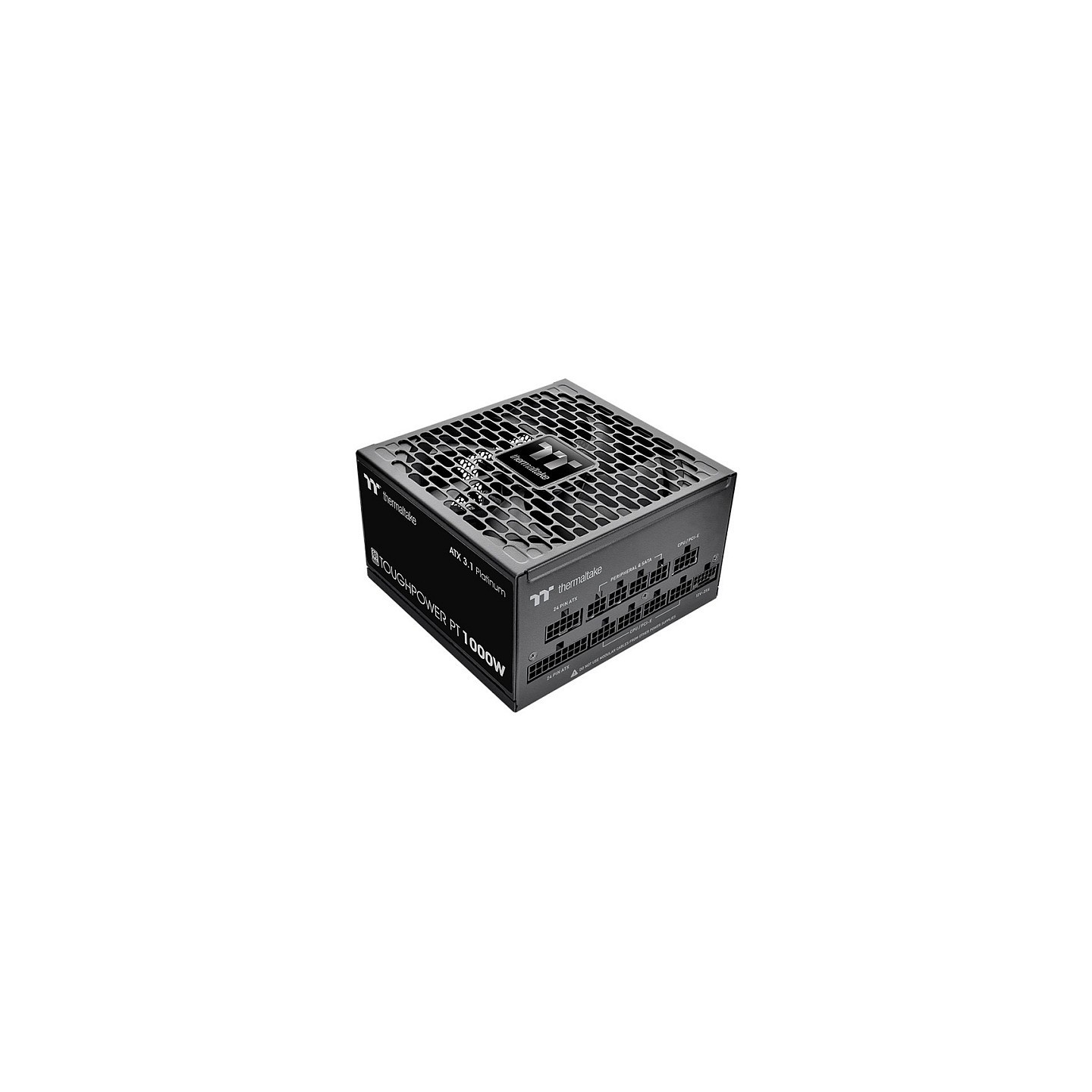

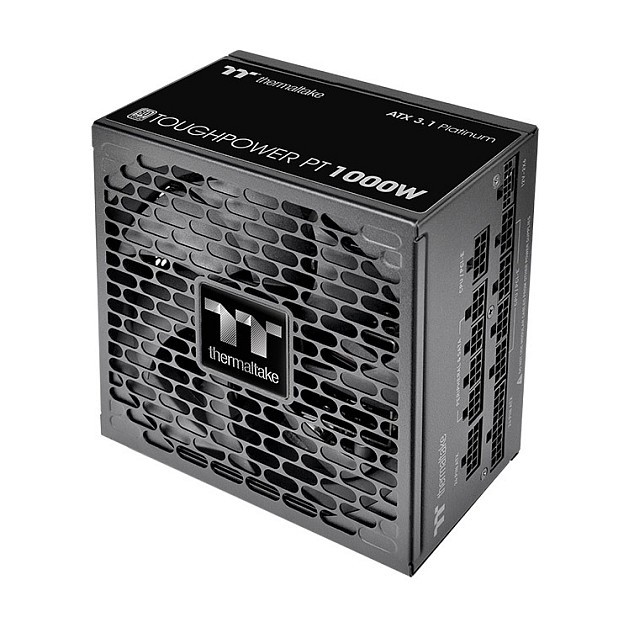

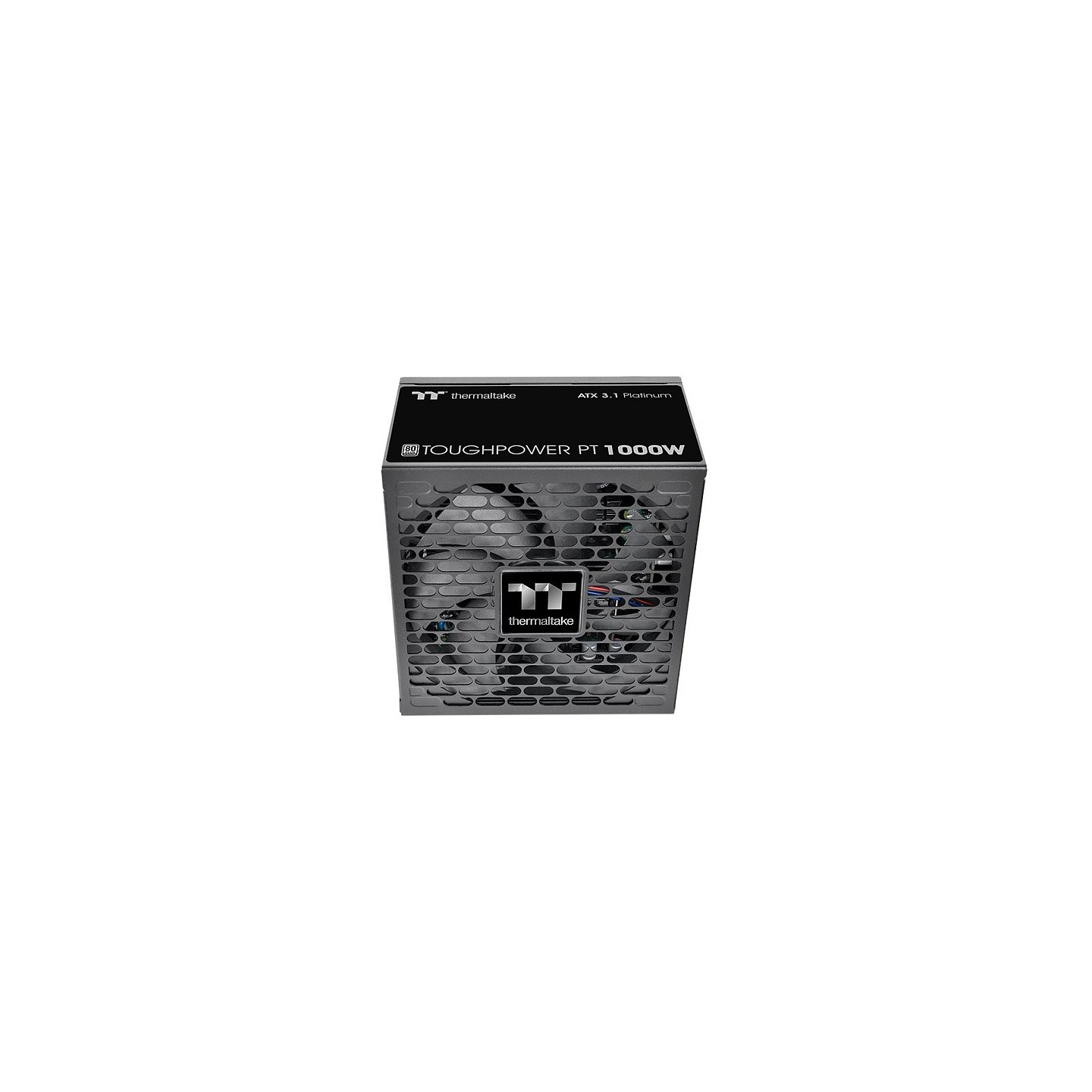

Thermaltake Toughpower PT 1000W 80+ Platinum ATX 3.1 Fully Modular (Boxed)
Thermaltake Toughpower PT 1000W 80 PLUS Platinum certified PSU. ATX 3.1 compliant with native 12V-2x6 (600W) for PCIe 5.1 GPUs. Fully modular etched cables, 135mm FDB fan, 100% Japanese caps, Cybenetics Platinum. Compact 140mm depth.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| PSU (Power Supplies) - Wattage | 1000 - 1199 W |
|---|---|
| PSU (Power Supplies) - Efficiency Rating | 80 Plus Platinum Cybenetics Platinum |
| PSU (Power Supplies) - Color | Black |
| PSU (Power Supplies) - Modularity | Fully modular |

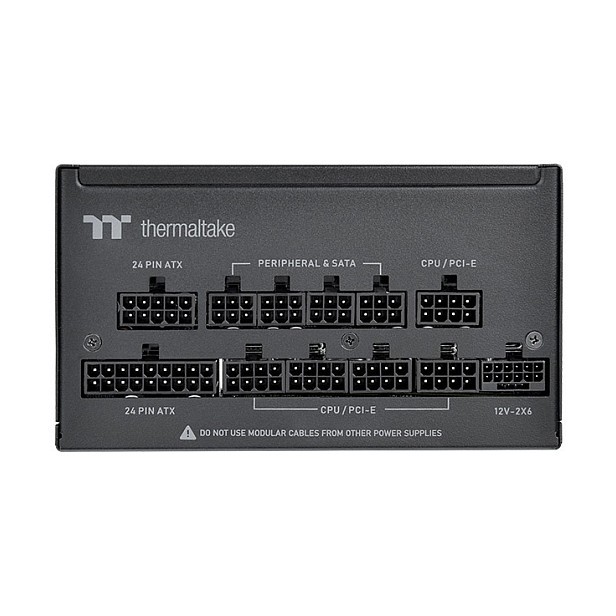

| PSU (Power Supplies) - PCIe GPU Connectors | 1x 12V-2x6 5x 8/6 pins |
| PSU (Power Supplies) - Length | 141-160 mm |
| PSU (Power Supplies) - EPS CPU Connectors | 2x 4+4pin EPS/ATX12V |

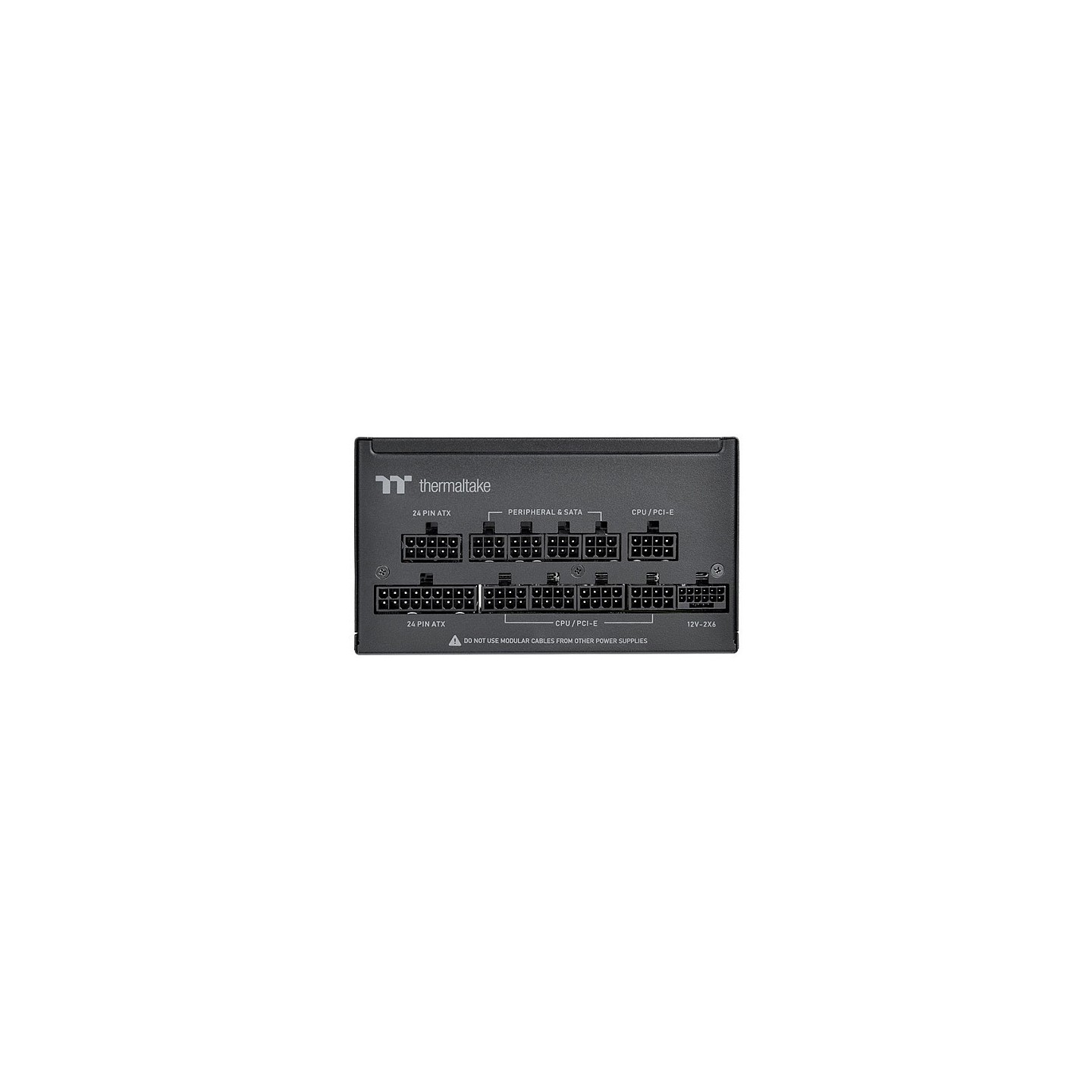

The Thermaltake Toughpower PT 1000W is a high-end ATX 3.1 power supply designed for demanding PC builds, especially those with next-gen GPUs requiring PCIe 5.1 support. It delivers 1000W with 80 PLUS Platinum efficiency (up to 92%) and Cybenetics Platinum certification for superior energy savings and low noise. Featuring a compact 140mm depth, fully modular design with flat etched cables and dual-color H++ connectors for easy building.
Equipped with a premium 135mm Fluid Dynamic Bearing (FDB) fan for quiet operation even under heavy loads, 100% Japanese capacitors (Nippon Chemi-Con, Rubycon, Nichicon), and comprehensive protections (OCP/OPP/OVP/UVP/SCP). Includes native 12V-2x6 (12+4 pin, 600W) for modern GPUs plus multiple 6+2 pin PCIe cables. Backed by 10-year warranty and MTBF of 100,000 hours.
- ✅ 80 PLUS Platinum & Cybenetics Platinum certified
- ✅ ATX 3.1 / PCIe 5.1 ready with 1x 12V-2x6 (600W)
- ✅ 5x 6+2 pin PCIe + 1x 12+4 pin PCIe connectors
- ✅ Fully modular with etched flat cables & cable combs
- ✅ 135mm FDB fan, low noise profile
- ✅ 100% Japanese capacitors, active PFC
- ✅ Compact 150x140x86mm, boxed packaging
| Total Power | 1000 W |
| AC Input Voltage | 100 - 240 V |
| AC Input Frequency | 47 - 63 Hz |
| Input Current | 15 A |
| Power Factor Correction (PFC) | Active |
| Combined Power (+12V) | 999.6 W |
| Max Output Current (+12V) | 83.3 A |
| 80 Plus Certification | 80 PLUS Platinum |
| Efficiency | 92% |
| Modularity | Fully modular |
| PSU Form Factor | ATX |
| ATX Version | 3.1 |
| Fan Diameter | 135 mm |
| Bearing Type | FDB (Fluid Dynamic Bearing) |
| MTBF | 100000 h |
| Color | Black |
| Cooling Type | Active |
| Dimensions (W x D x H) | 150 x 140 x 86 mm |
| PCIe 6+2 pin Connectors | 5 |
| PCIe 12+4 pin (12V-2x6) Connectors | 1 (600W) |
| EPS/ATX12V 4+4 pin | 2 |
| SATA Power Connectors | 6 |
| 4-pin Molex Connectors | 4 |
| Warranty | 10 years |
| Capacitors | 100% Japanese |
| Cybenetics Certification | Platinum (Efficiency & Noise) |
| MPN | PS-TPP-1000FNFAPU-1 |
