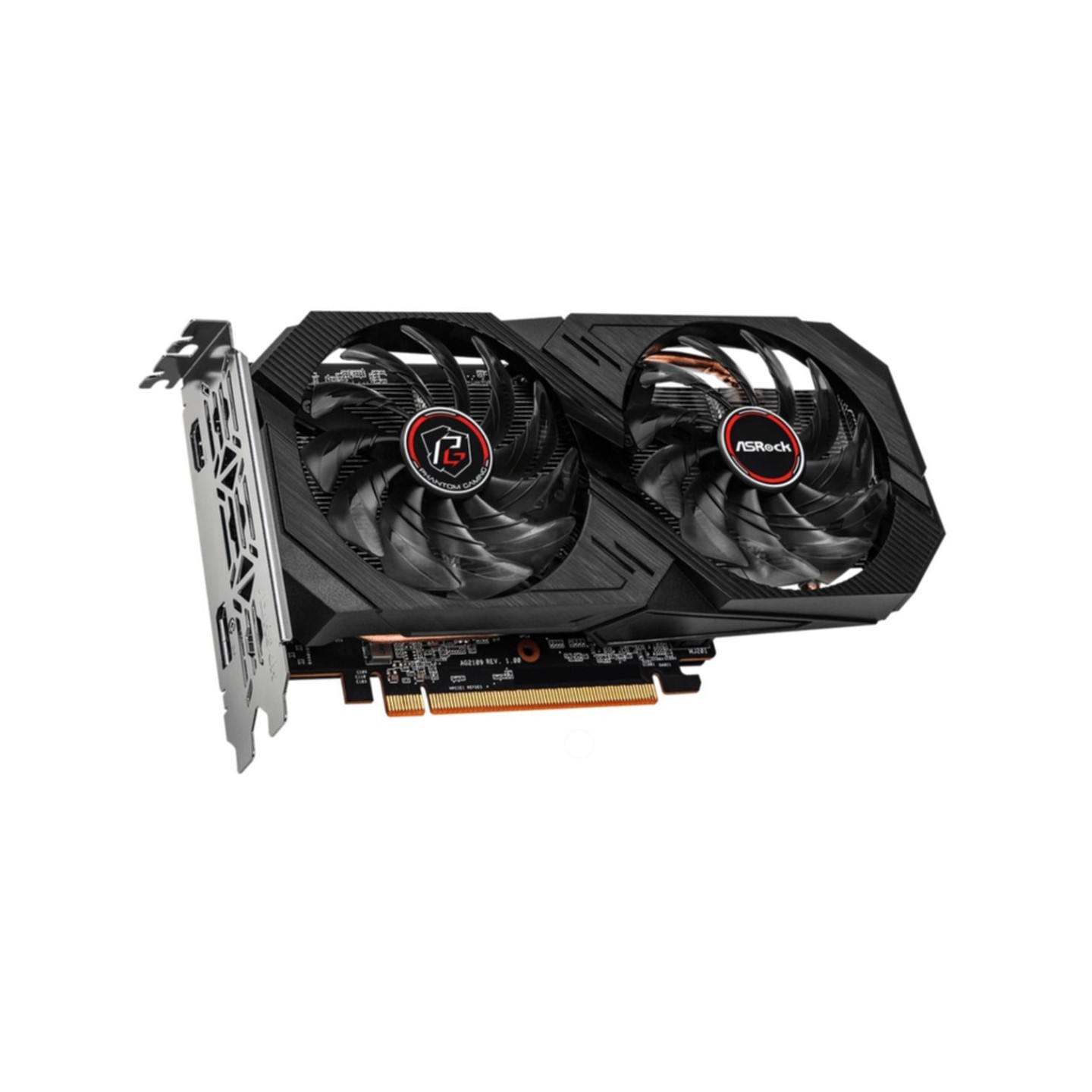

ASRock Phantom Gaming D OC Radeon RX 6500 XT 4GB GDDR6 2820 MHz (Boxed)
ASRock Phantom Gaming D OC Radeon RX 6500 XT with 4GB GDDR6, 2820 MHz boost clock, dual-fan cooling, PCIe 4.0 x16 interface. Supports HDMI 2.1, DP 1.4a up to 7680x4320. Requires 400W PSU and 1x8-pin. Ideal for 1080p gaming. Metal backplate included.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| GPU (Graphics Cards) - Series | AMD Radeon RX |
|---|---|
| GPU (Graphics Cards) - PCIe Interface | PCIe 4.0 x16 |
| GPU (Graphics Cards) - Cooler Type | Dual Fan |
| GPU (Graphics Cards) - Color | Black |
| GPU (Graphics Cards) - Backplate | Yes |
| GPU (Graphics Cards) - VRAM Capacity | 4 GB |
| GPU (Graphics Cards) - VRAM Type | GDDR6 |
| GPU (Graphics Cards) - Outputs | DisplayPort 1.4 HDMI 2.1 |
| GPU (Graphics Cards) - Power Connector | 1x8-pin |
| GPU (Graphics Cards) - Card Length | Standard (221-260 mm) |
The ASRock Phantom Gaming D OC Radeon RX 6500 XT is a compact 4GB GDDR6 graphics card designed for budget 1080p gaming. Featuring AMD's Navi 24 GPU with 1024 stream processors, it delivers a base clock of 2365 MHz and boosts up to 2820 MHz for smooth performance in modern titles at medium-high settings.

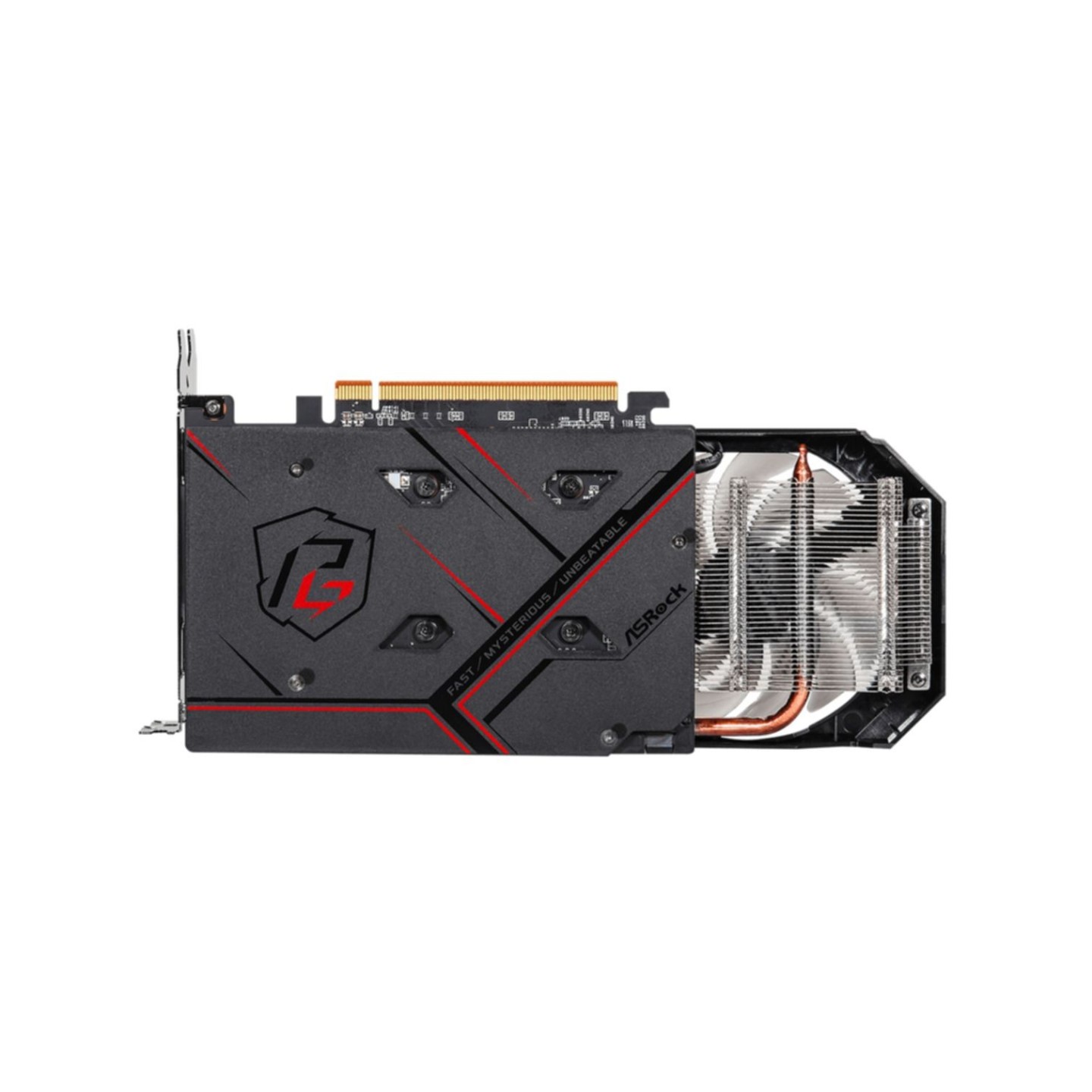

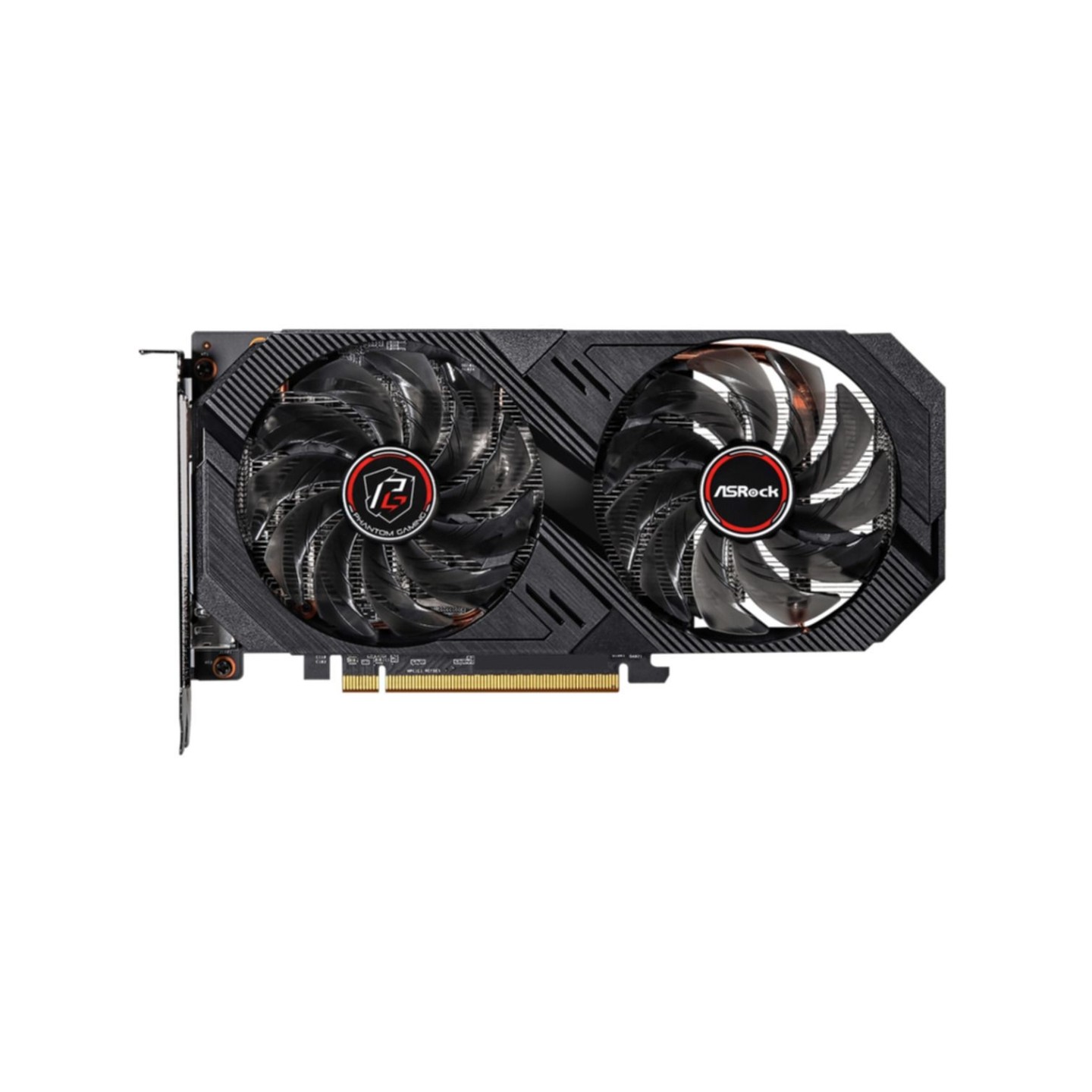

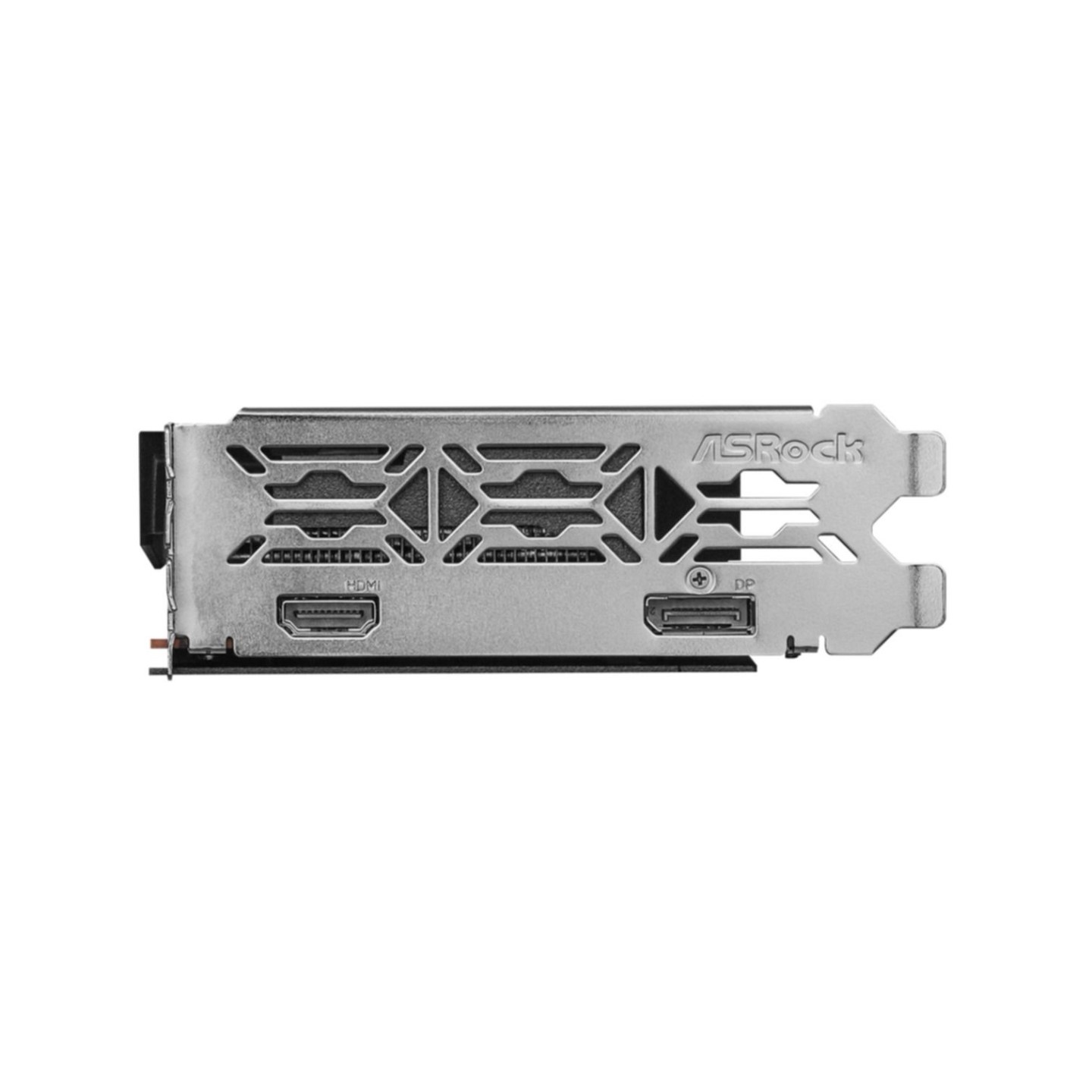

Equipped with a dual-fan open-air cooler and metal backplate, it maintains low temperatures efficiently while supporting up to two displays at 8K resolution via 1x HDMI 2.1 and 1x DisplayPort 1.4a. The 64-bit memory bus provides 144 GB/s bandwidth, though PCIe 4.0 x4 limitation may impact performance on older platforms. Requires a 400W PSU with 1x 8-pin connector.
- AMD Radeon RX 6500 XT GPU, 4GB GDDR6 at 18 Gbps
- Boost clock: 2820 MHz (Gaming: 2650 MHz)
- DirectX 12 Ultimate, OpenGL 4.6 support
- Dimensions: 240 x 129 x 42 mm, 459g card weight
- Active dual-fan cooling with metal backplate
| Graphics processor family | AMD |
| Graphics processor | Radeon RX 6500 XT |
| Processor frequency | 2365 MHz |
| Processor boost clock speed | 2820 MHz |
| Processor boost clock speed (Gaming mode) | 2650 MHz |
| Stream processors | 1024 |
| Maximum resolution | 7680 x 4320 pixels |
| Maximum displays per videocard | 2 |
| Discrete graphics card memory | 4 GB |
| Graphics card memory type | GDDR6 |
| Memory bus | 64 bit |
| Memory clock speed | 18000 MHz |
| Data transfer rate | 18 Gbit/s |
| Memory bandwidth (max) | 144 GB/s |
| Interface type | PCI Express 4.0 |
| HDMI ports quantity | 1 |
| HDMI version | 2.1 |
| DisplayPorts quantity | 1 |
| DisplayPort version | 1.4a |
| DirectX version | 12 Ultimate |
| OpenGL version | 4.6 |
| Cooling type | Active |
| Number of fans | 2 fan(s) |
| Product colour | Black |
| Minimum system power supply | 400 W |
| Supplementary power connectors | 1x 8-pin |
| Weight | 459 g |
| Length | 240 mm |
| Depth | 42 mm |
| Height | 129 mm |
| Package type | Box |
| Harmonized System (HS) code | 84733020 |
| Backplate | Metal |
