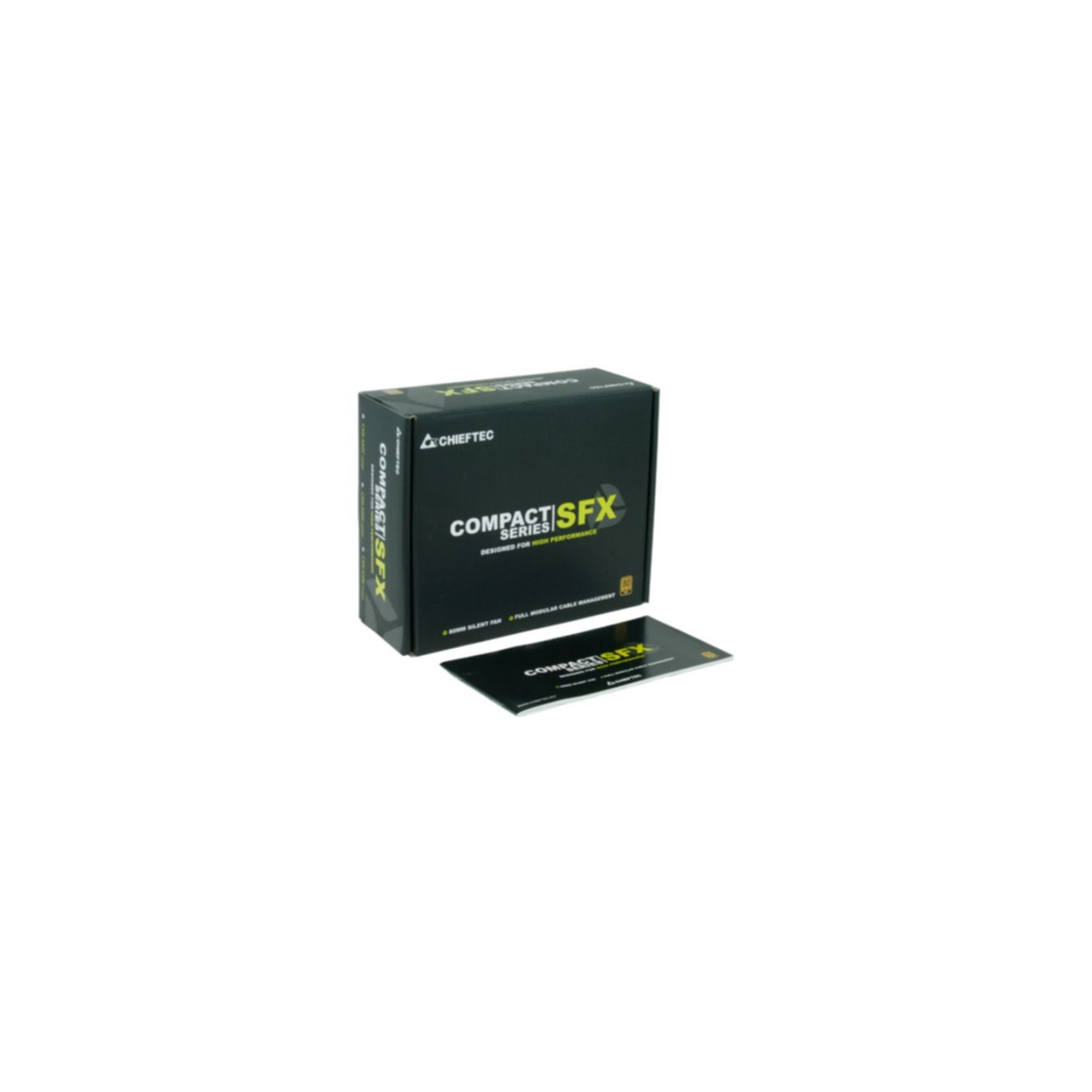

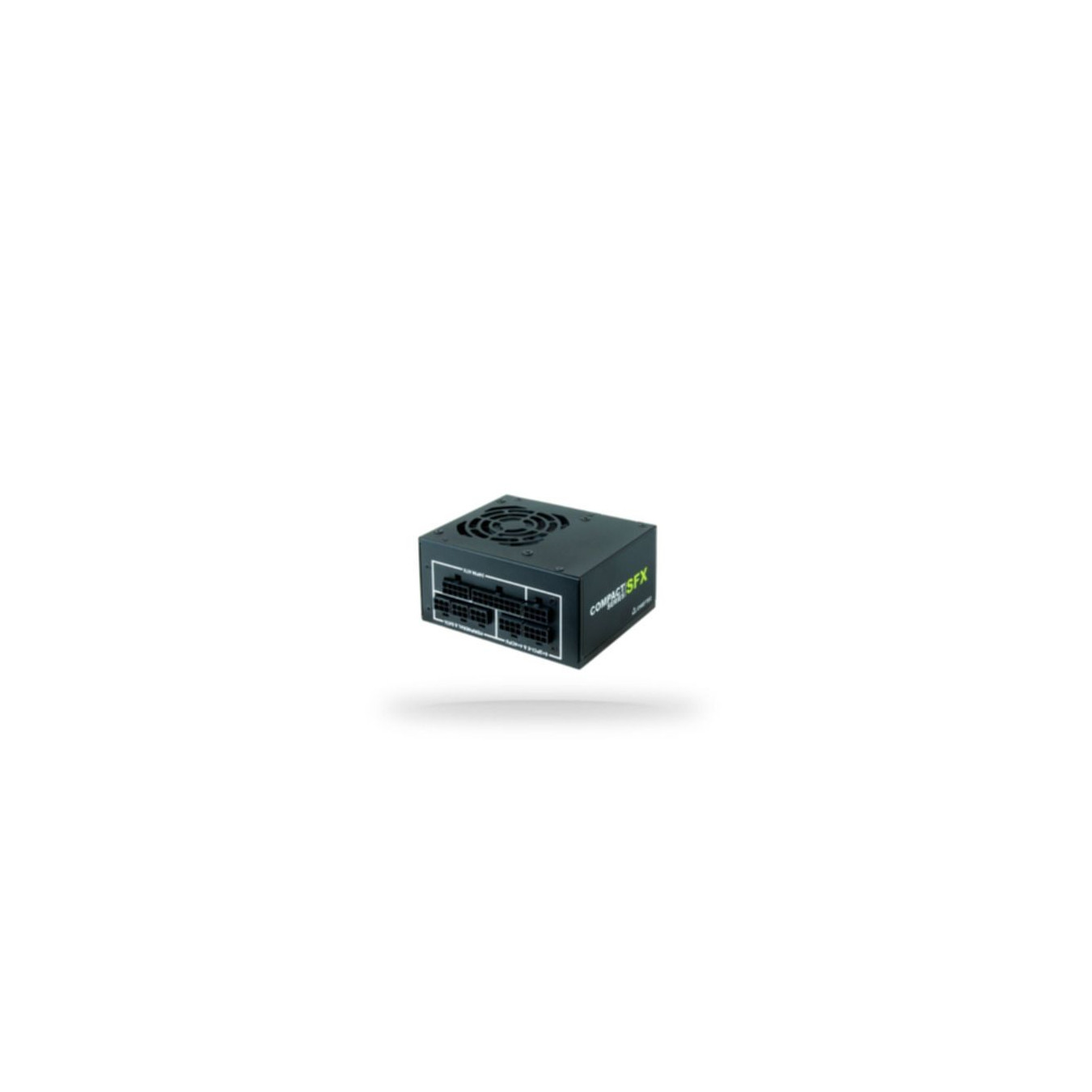

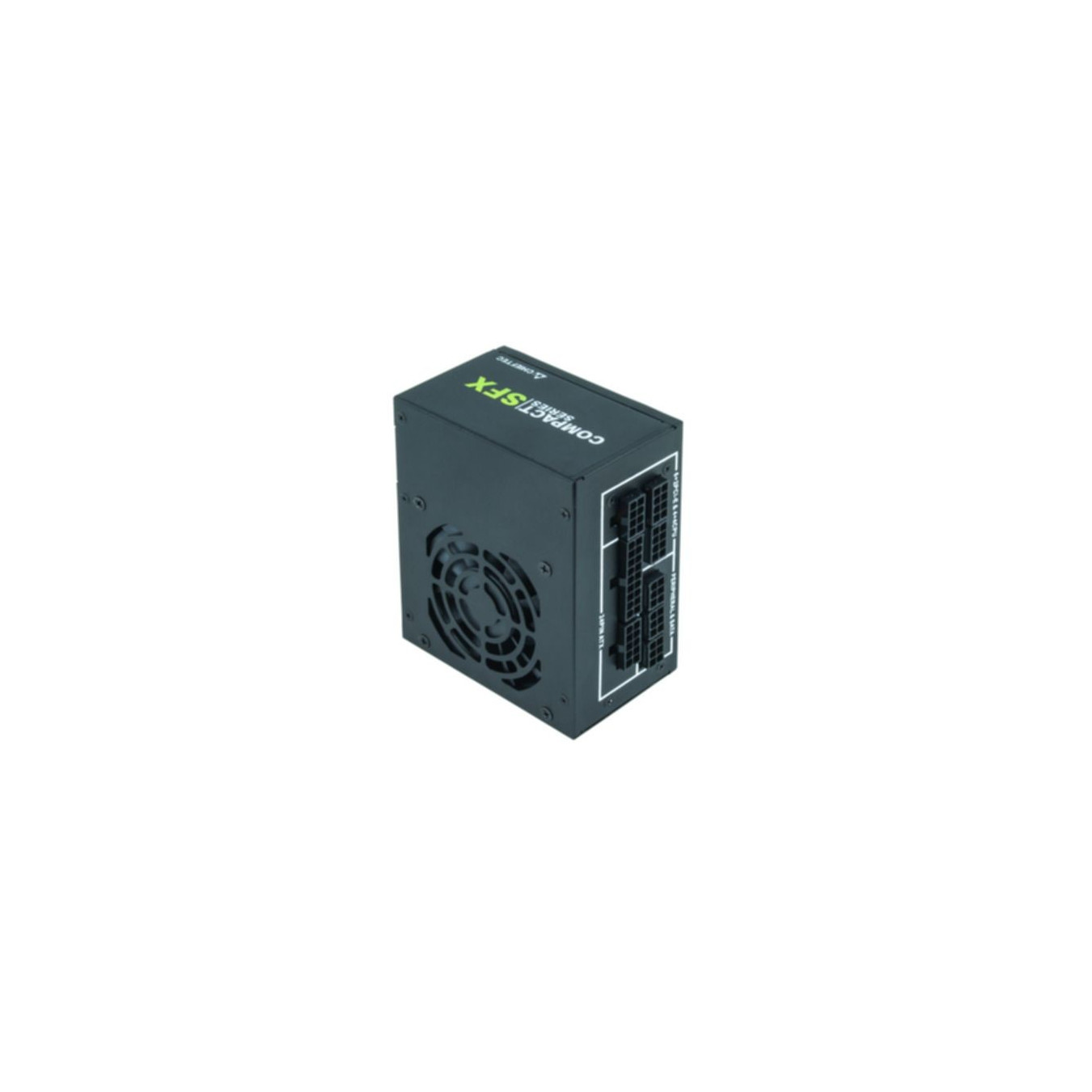

Chieftec CSN-650C SFX 650W Fully-Modular 80 PLUS Gold PSU - Black (Boxed)
650W SFX PSU, fully modular with 80 PLUS Gold efficiency. Features 2x PCIe 6+2-pin, 1x 4+4 EPS, 6x SATA. Compact 100x125x64mm design with 80mm silent fan for SFF builds.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| PSU (Power Supplies) - Wattage | 600 - 699 W |
|---|---|
| PSU (Power Supplies) - Efficiency Rating | 80 Plus Gold |
| PSU (Power Supplies) - Color | Black |
| PSU (Power Supplies) - Modularity | Fully modular |
| PSU (Power Supplies) - PCIe GPU Connectors | 2x 8/6 pins |
| PSU (Power Supplies) - Length | Up to 140 mm |
| PSU (Power Supplies) - EPS CPU Connectors | 1x 4+4pin EPS/ATX12V |
The Chieftec CSN-650C is a high-performance SFX power supply delivering 650W of power in a compact form factor ideal for small form factor (SFF) PC builds. Certified 80 PLUS Gold for up to 90%+ efficiency, it features fully modular cabling for clean builds and optimal airflow. Equipped with an 80mm ultra-silent fan and active PFC (>0.9), it ensures reliable cooling and power delivery.

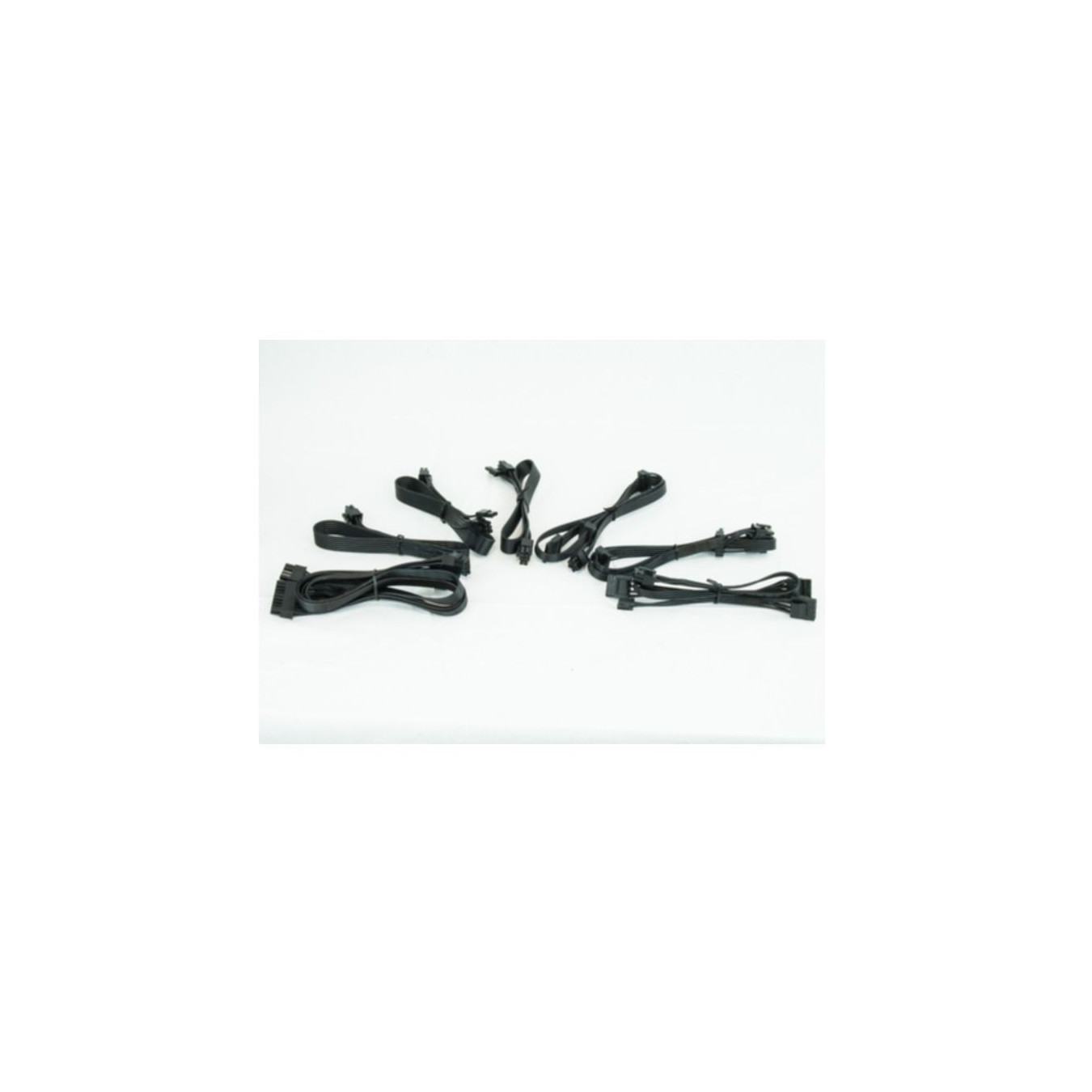

Key connectors include 1x 20+4-pin ATX, 1x 4+4-pin EPS for CPU, 2x 6+2-pin PCIe for GPUs, 6x SATA, and Molex peripherals. Single +12V rail provides 54A (648W) for high-demand components. Comprehensive protections: OVP, UVP, OCP, OPP, OTP, SCP, SIP.
- Form Factor: SFX (100 x 125 x 64 mm)
- Efficiency: 80 PLUS Gold (>90%)
- Fan: 80mm silent with AFC
- Warranty: 24 months
- Weight: 1.6kg (1.98kg boxed)
| Model | CSN-650C |
| Form Factor | SFX |
| Maximum Power | 650W |
| Efficiency | 80 PLUS Gold (>90%) |
| Dimensions (DxWxH) | 100 x 125 x 64 mm |
| Fan | 80mm silent fan with AFC |
| PFC | Active PFC (>0.9) |
| AC Input | 100-240V / 8A, 47-63Hz |
| +3.3V | 18A |
| +5V | 15A |
| +5V & +3.3V combined | 90W |
| +12V1 | 54A (648W) |
| -12V | 0.3A / 3.6W |
| +5VSB | 3A / 15W |
| Main Connector (ATX) | 1x 20+4 pin |
| CPU Connector (EPS) | 1x 4+4 pin (8 pin) |
| PCIe Connectors | 2x 6+2 pin |
| SATA Connectors | 6x |
| Weight (without/with package) | 1.6 kg / 1.98 kg |
| Warranty | 24 Months |
| Protections | OVP, UVP, OCP, OPP, OTP, SCP, SIP, AFC |
