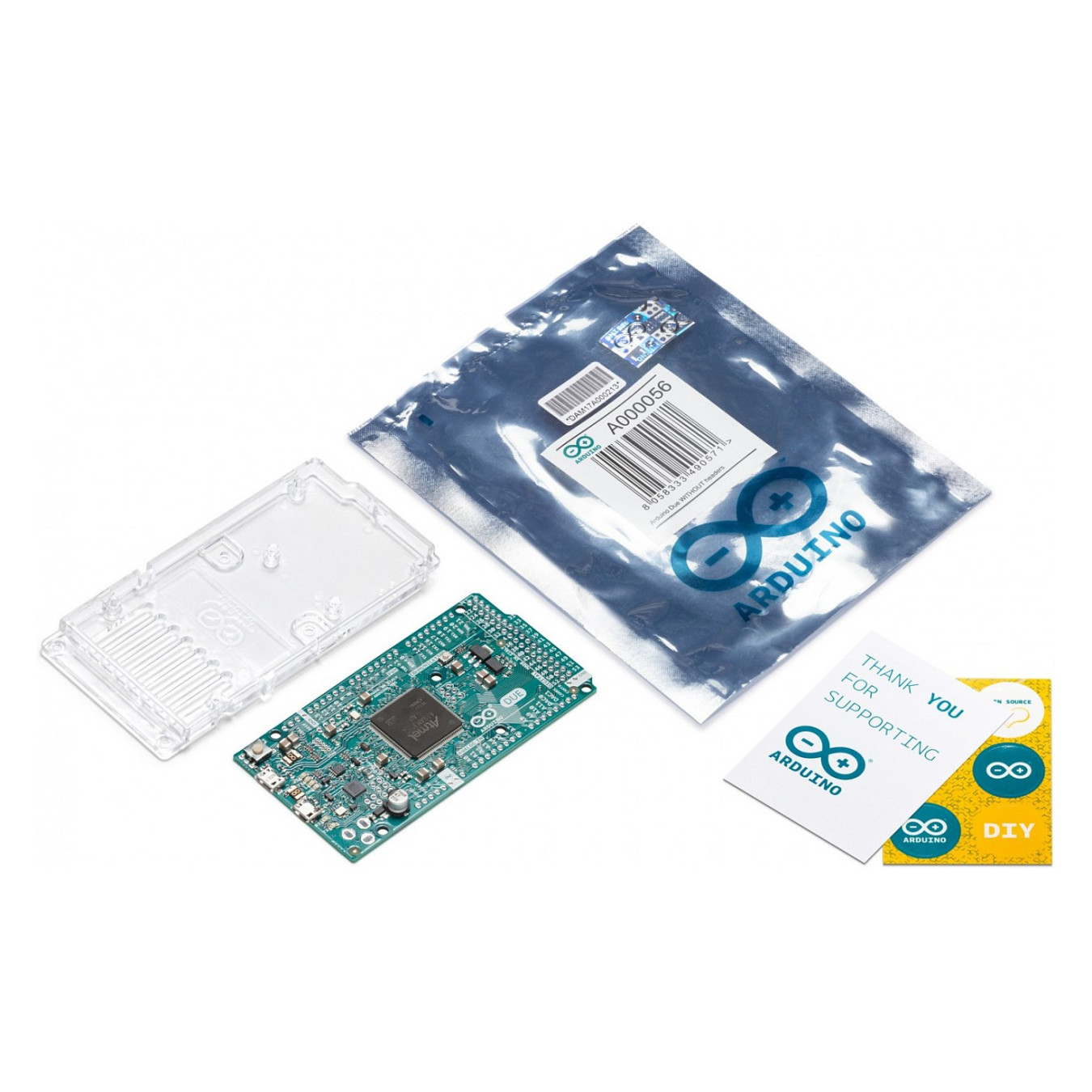

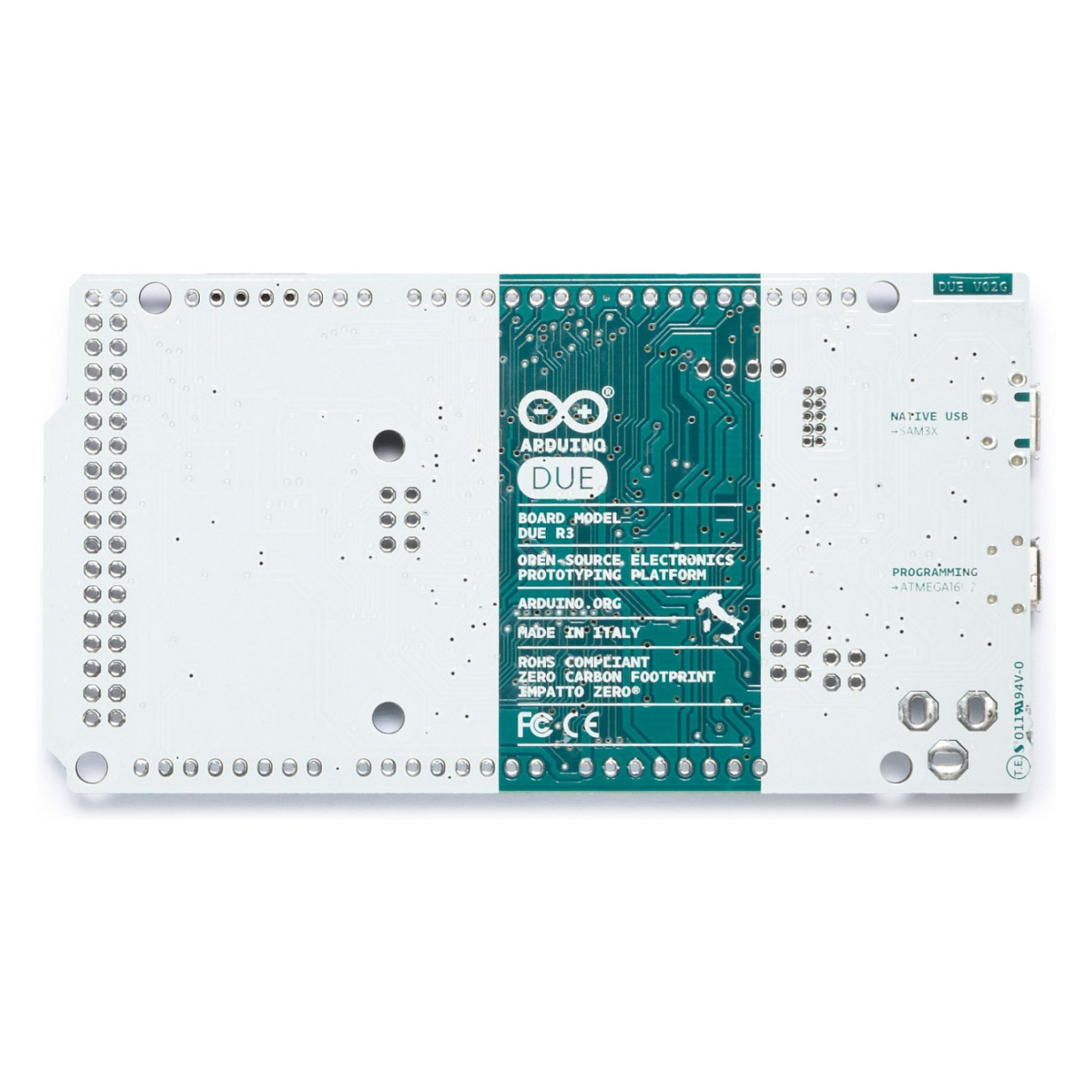

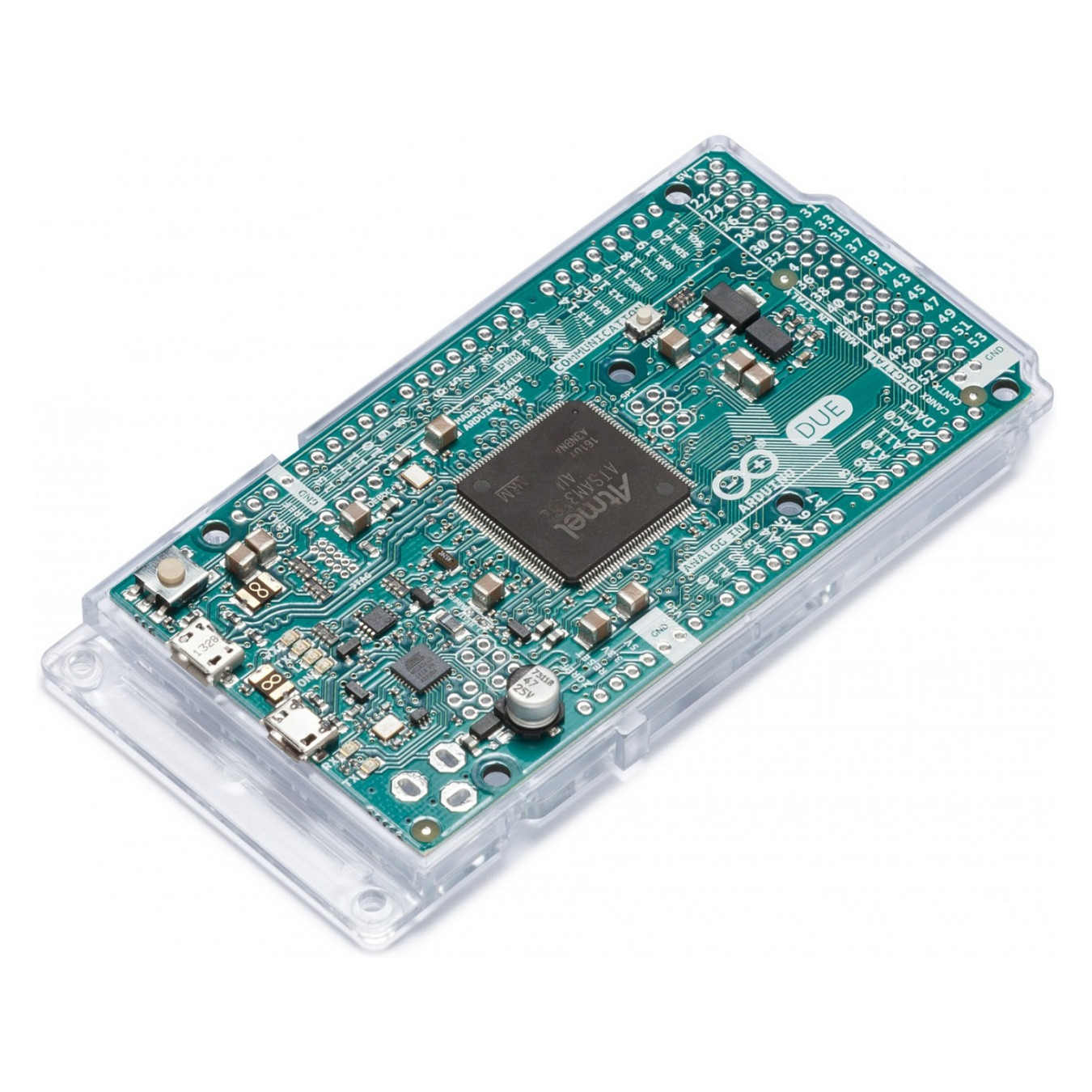

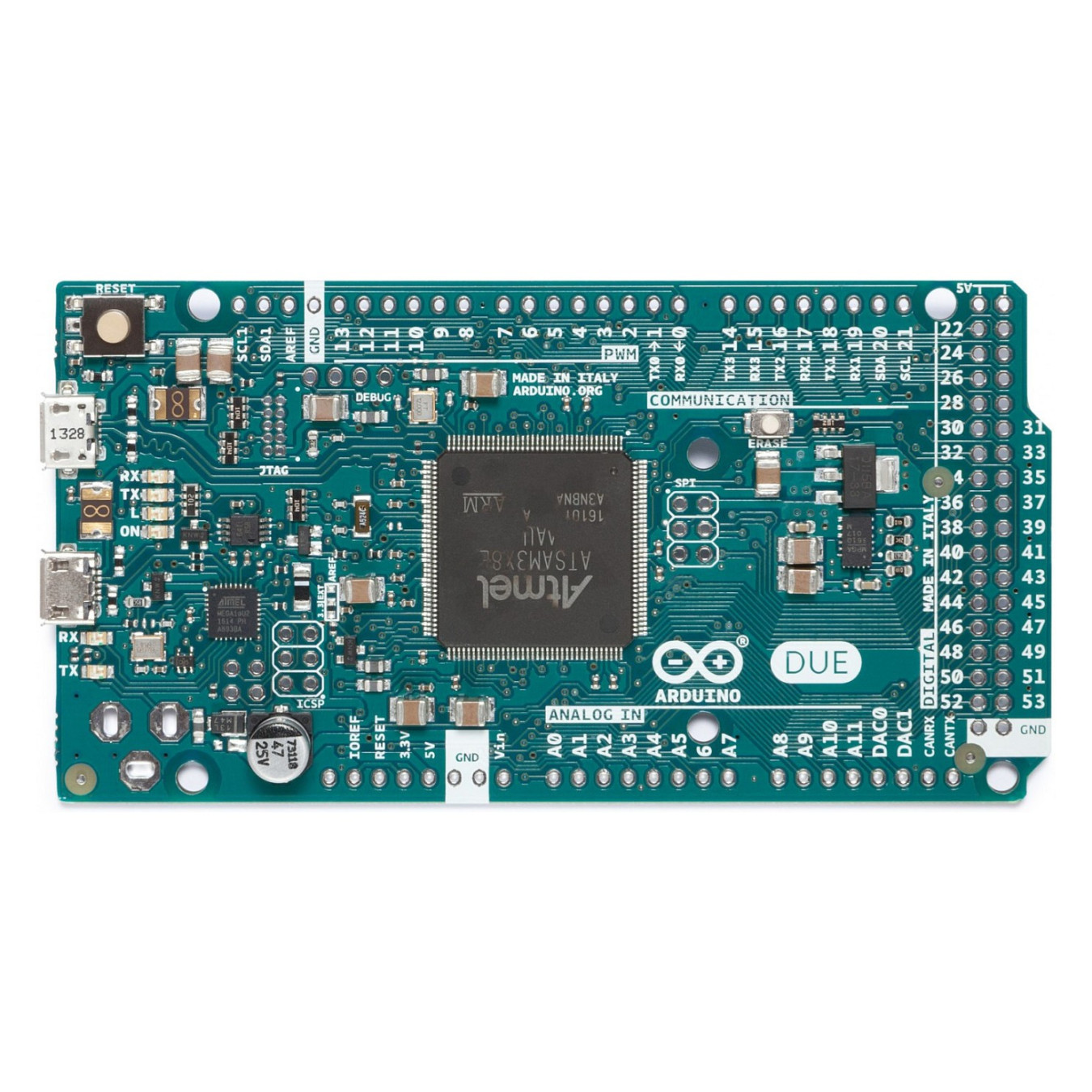

ARDUINO Board Due without headers
Arduino Due. 84 MHz. AT91SAM3X8E. 0.512 MB. 96 KB. Arduino. 3.3 V
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
Arduino Due. Prozessortaktfrequenz: 84 MHz. Mikrocontroller-Modell: AT91SAM3X8E. Flash-Speicher: 0.512 MB. SRAM (Statischer Random Access-Speicher): 96 KB. Formfaktor: Arduino. Arbeitsspannung: 3.3 V. Eingangsspannung (max.): 6 - 16 V. Dimensionen Tafel: 101.52 x 53.3 mm. Gewicht: 36 g
| Prozessortaktfrequenz | 84 MHz |
| Mikrocontroller-Modell | AT91SAM3X8E |
| Flash-Speicher | 0.512 MB |
| SRAM (Statischer Random Access-Speicher) | 96 KB |
| Anzahl der USB-Anschlüsse | 2 |
| Anzahl der digitalen E-/A-Kontakte | 42 |
| Anzahl der analogen E-/A-Kontakte | 12 |
| PWM digitale E-/A-Pins | 12 |
| Feature | UART |
| Formfaktor | Arduino |
| Arbeitsspannung | 3.3 V |
| Eingangsspannung (max.) | 6 - 16 V |
| Dimensionen Tafel | 101.52 x 53.3 mm |
| Gewicht | 36 g |
