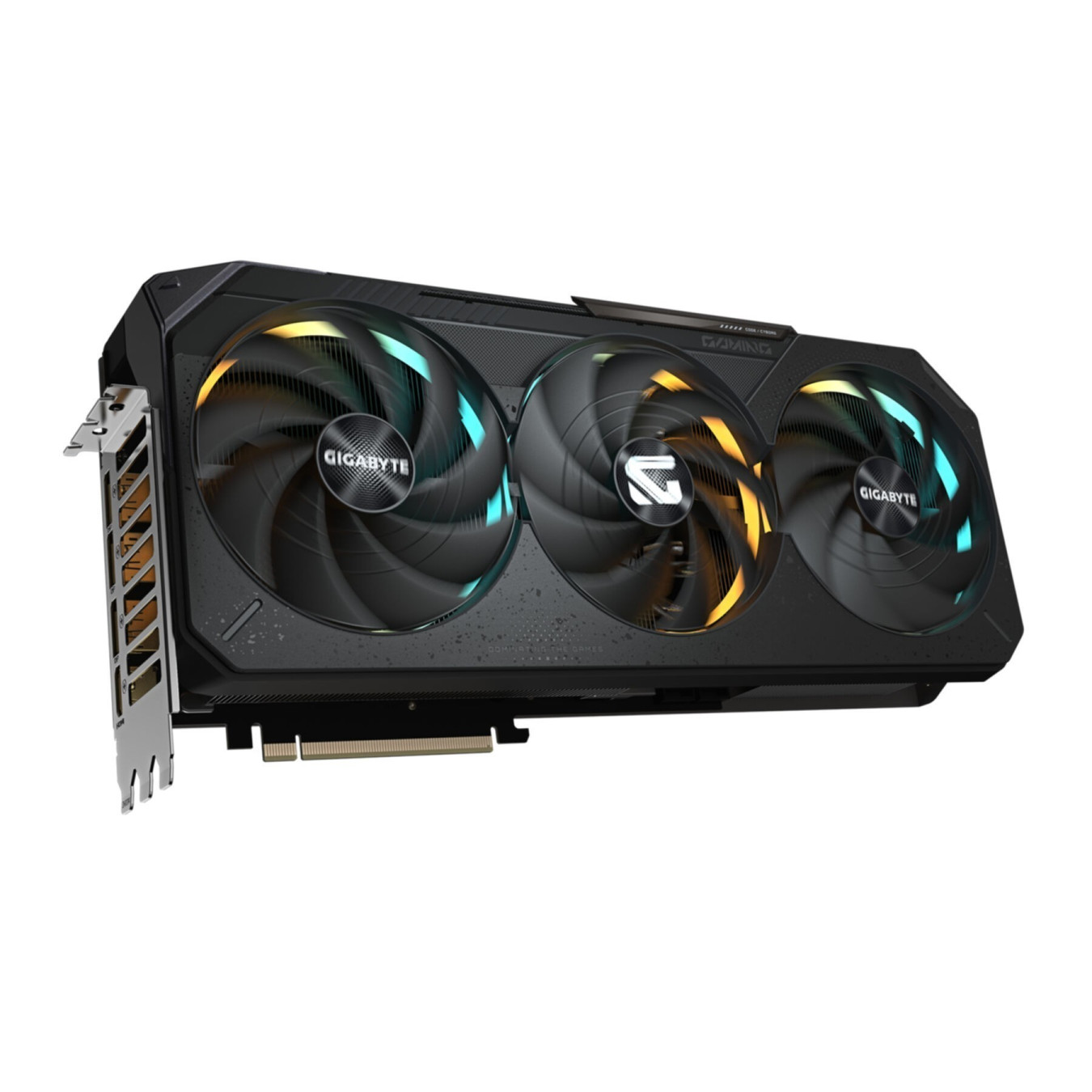

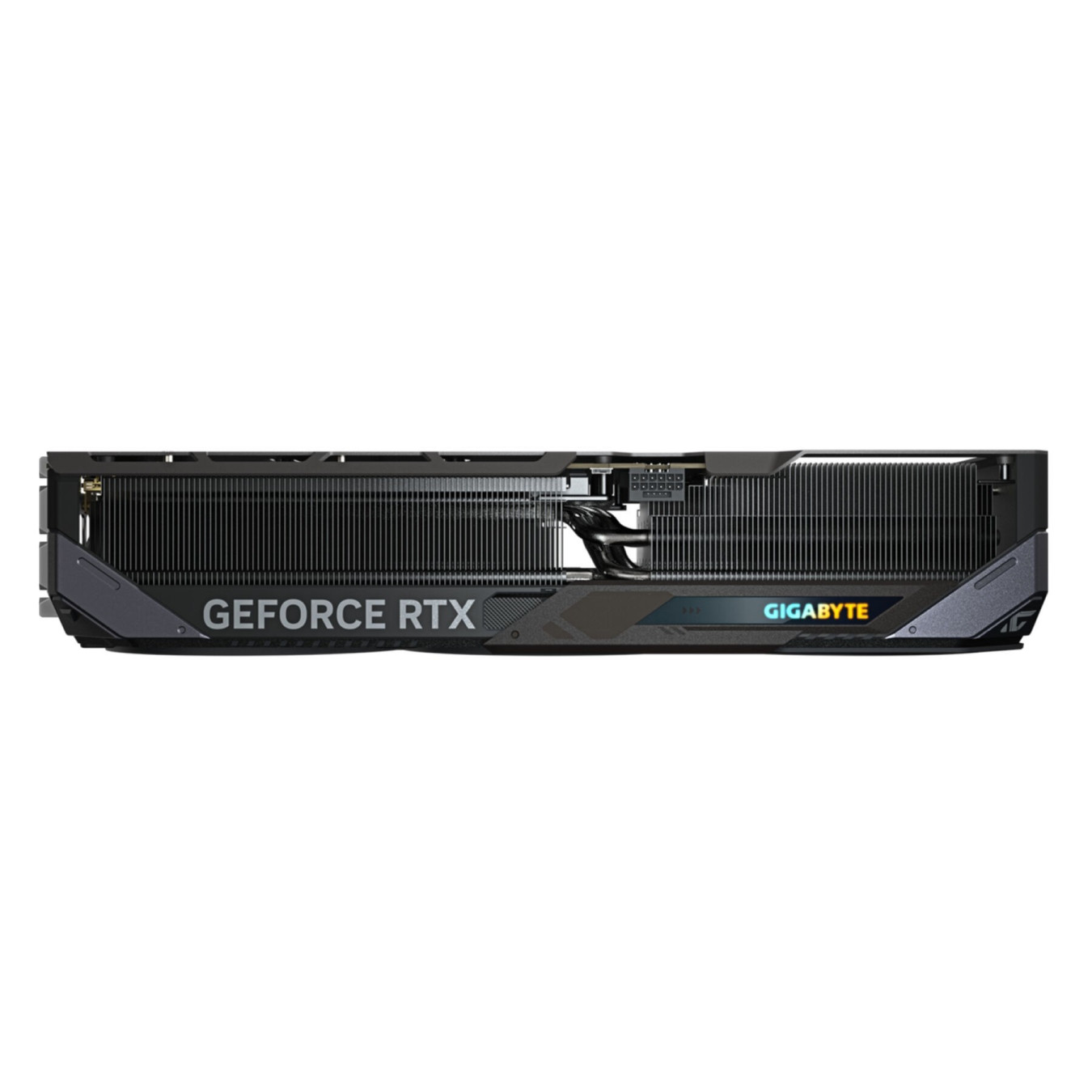

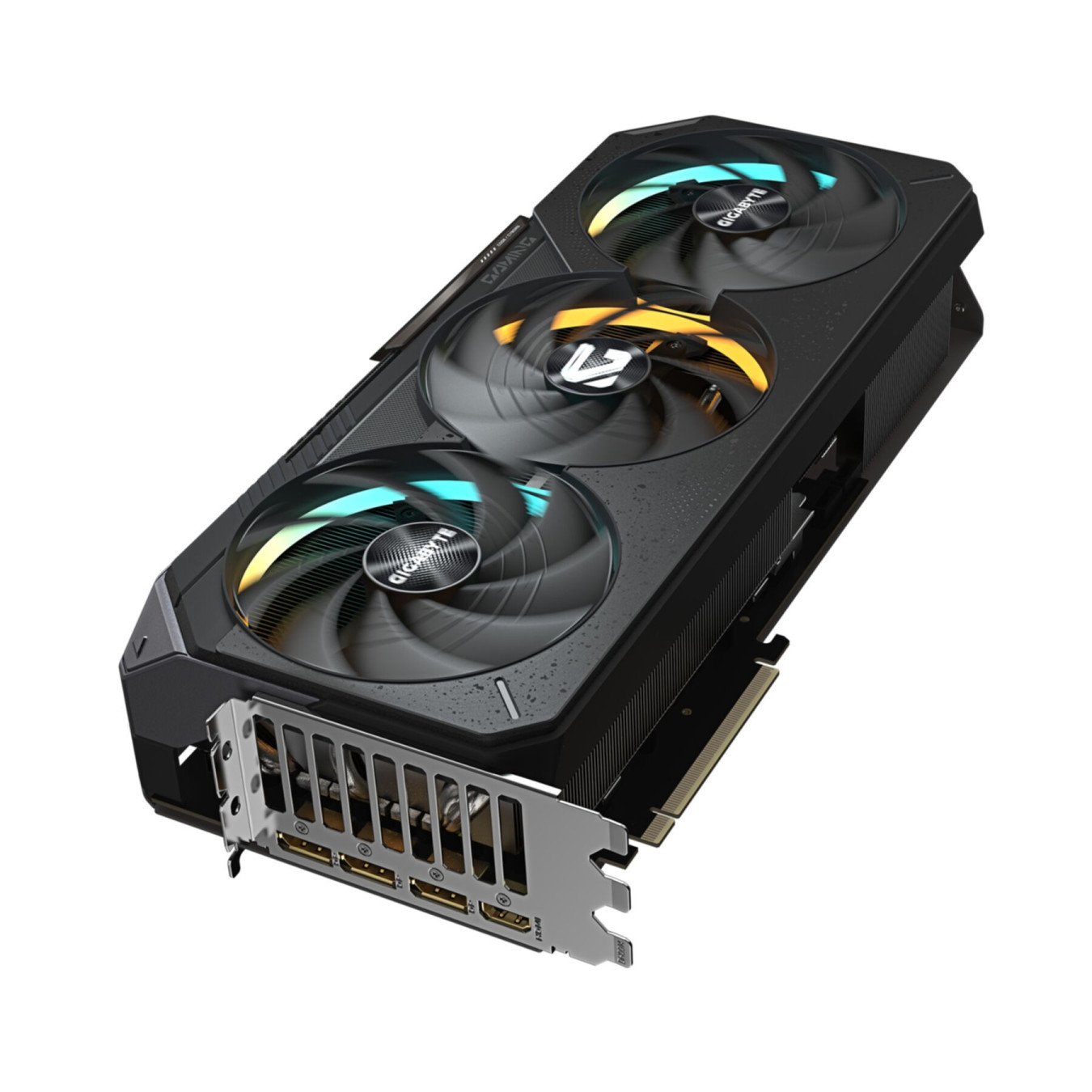

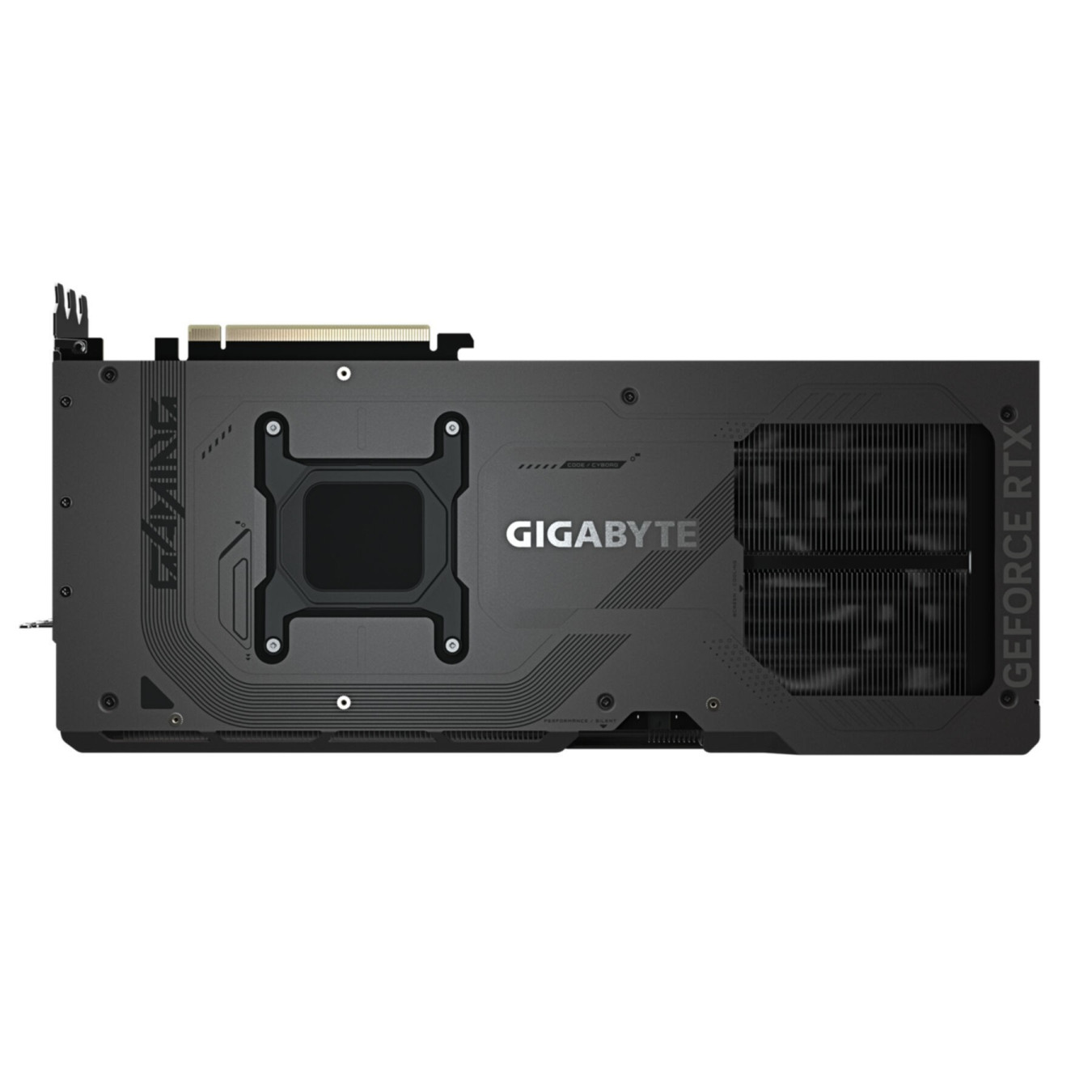

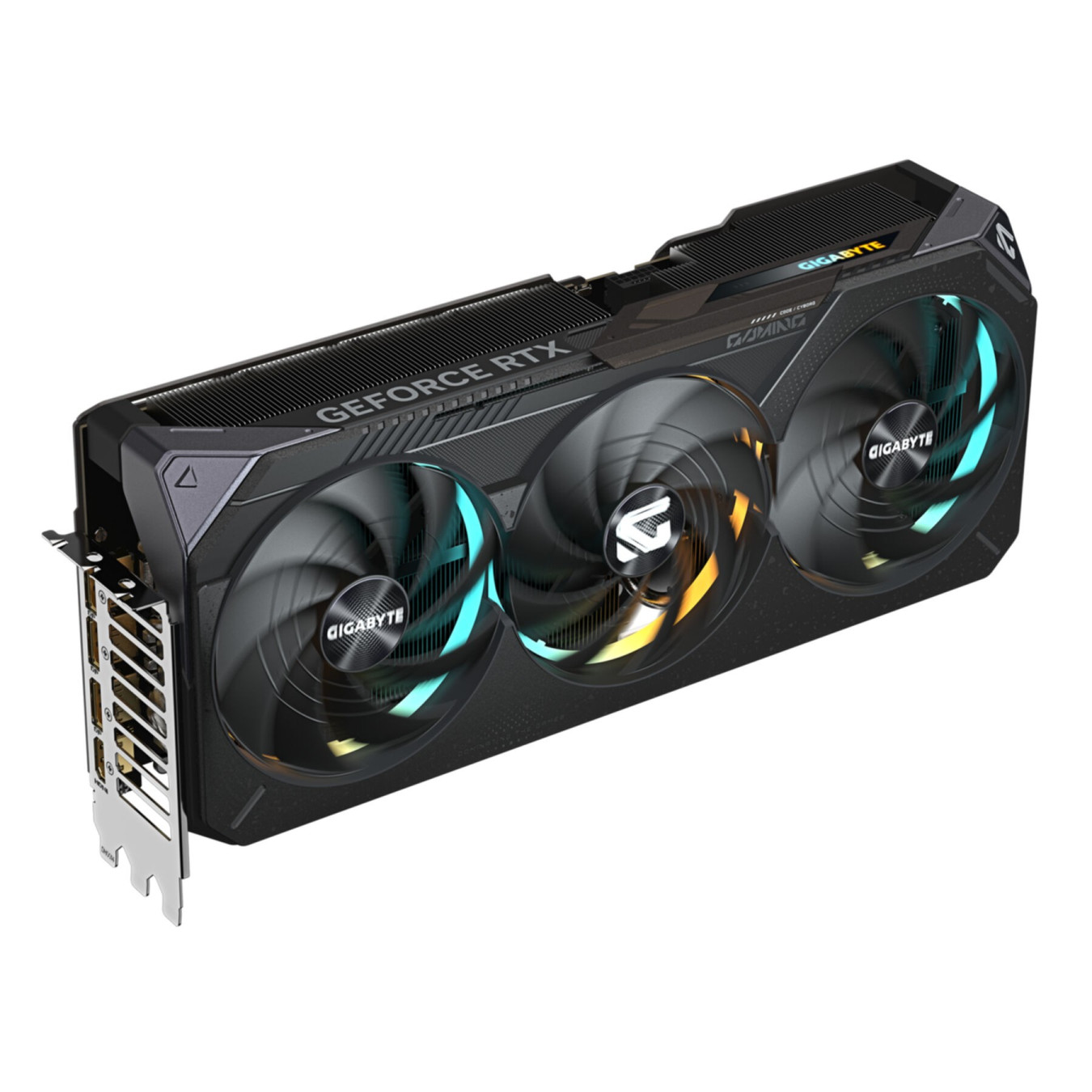

GIGABYTE GeForce RTX 5080 GAMING OC 16GB GDDR7 2730MHz PCIe 5.0 (Boxed)
GIGABYTE GeForce RTX 5080 GAMING OC: 16GB GDDR7, 10752 CUDA cores, 2730MHz boost, PCIe 5.0, WINDFORCE 3X cooling, 3xDP 2.1b + HDMI 2.1b. Blackwell arch with DLSS 4 for ultimate 4K gaming.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| GPU (Graphics Cards) - Series | NVIDIA GeForce RTX |
|---|---|
| GPU (Graphics Cards) - PCIe Interface | PCIe 5.0 x16 |
| GPU (Graphics Cards) - Cooler Type | Triple Fan |
| GPU (Graphics Cards) - Color | Black |
| GPU (Graphics Cards) - Backplate | Yes |
| GPU (Graphics Cards) - VRAM Capacity | 16 GB |
| GPU (Graphics Cards) - VRAM Type | GDDR7 |
| GPU (Graphics Cards) - Outputs | DisplayPort 2.1 HDMI 2.1 |
| GPU (Graphics Cards) - Power Connector | 12VHPWR 16-pin |
| GPU (Graphics Cards) - Card Length | Ultra (321-340 mm) |
The GIGABYTE GeForce RTX 5080 GAMING OC delivers cutting-edge performance powered by NVIDIA Blackwell architecture and 10,752 CUDA cores. Featuring 16GB GDDR7 memory on a 256-bit bus with 30Gbps data rate, it supports up to 7680x4320 resolution and excels in 4K gaming with full ray tracing, DLSS 4 Multi Frame Generation, and NVIDIA Reflex 2.
Equipped with the advanced WINDFORCE 3X cooling system including Hawk fans, server-grade thermal gel, and RGB Halo lighting, this triple-fan card maintains optimal temperatures under load. It uses a single 16-pin power connector (adapter included) and requires an 850W PSU. The 3.5-slot design measures 342x142x70mm with multi-color ARGB illumination.
- 10752 CUDA cores, 2730MHz boost clock (OC)
- 16GB GDDR7, 256-bit, 28Gbps effective
- 3x DisplayPort 2.1b, 1x HDMI 2.1b (4 displays)
- PCIe 5.0 x16 interface, Dual BIOS (Performance/Silent)
- 850W PSU recommended, 1x 16-pin power
| CUDA cores | 10752 |
| Graphics processor family | NVIDIA |
| Graphics processor | GeForce RTX 5080 |
| Architecture | Blackwell |
| Boost clock | 2730 MHz |
| Processor frequency | 2730 MHz |
| Maximum resolution | 7680 x 4320 pixels |
| Maximum displays per videocard | 4 |
| Discrete graphics card memory | 16 GB |
| Graphics card memory type | GDDR7 |
| Memory bus | 256 bit |
| Memory clock speed | 28000 MHz |
| Data transfer rate | 30 Gbit/s |
| Interface type | PCI Express 5.0 x16 |
| HDMI ports quantity | 1 |
| HDMI version | 2.1b |
| DisplayPorts quantity | 3 |
| DisplayPort version | 2.1b |
| DirectX version | 12 Ultimate |
| OpenGL version | 4.6 |
| Cooling type | Active |
| Cooling technology | GIGABYTE WINDFORCE 3X |
| Number of fans | 3 fan(s) |
| Form factor | Full-Height/Full-Length (FH/FL) |
| Number of slots | 3.5 |
| Illumination | RGB Halo Multi |
| Product colour | Black |
| Minimum system power supply | 850 W |
| Supplementary power connectors | 1x 16-pin |
| Length | 342 mm |
| Height | 142 mm |
| Depth | 70 mm |
| Weight | 2 kg |
| Package width | 264 mm |
| Package depth | 427 mm |
| Package height | 105 mm |
| Package weight | 3 kg |
| Warranty period | 4 year(s) |
