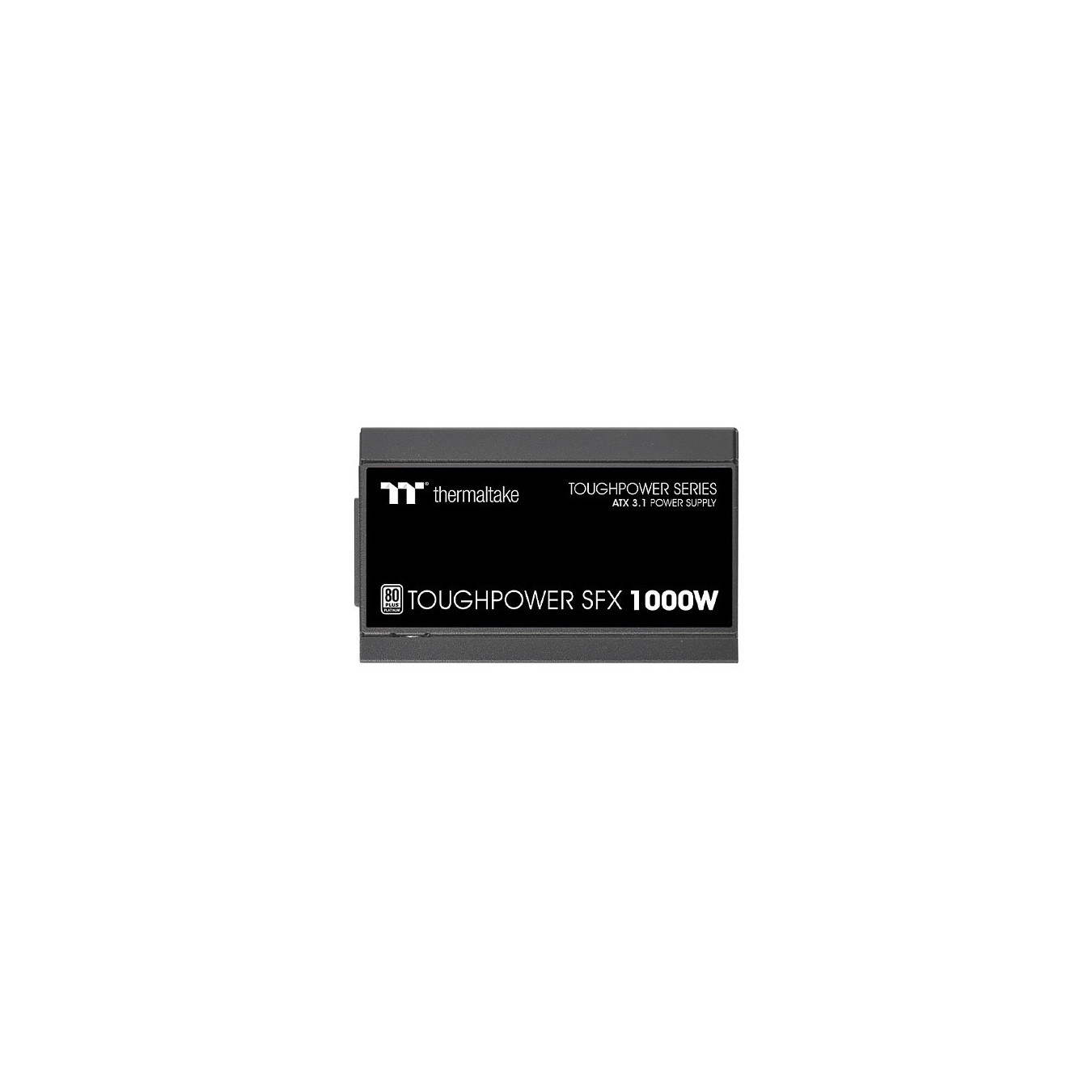

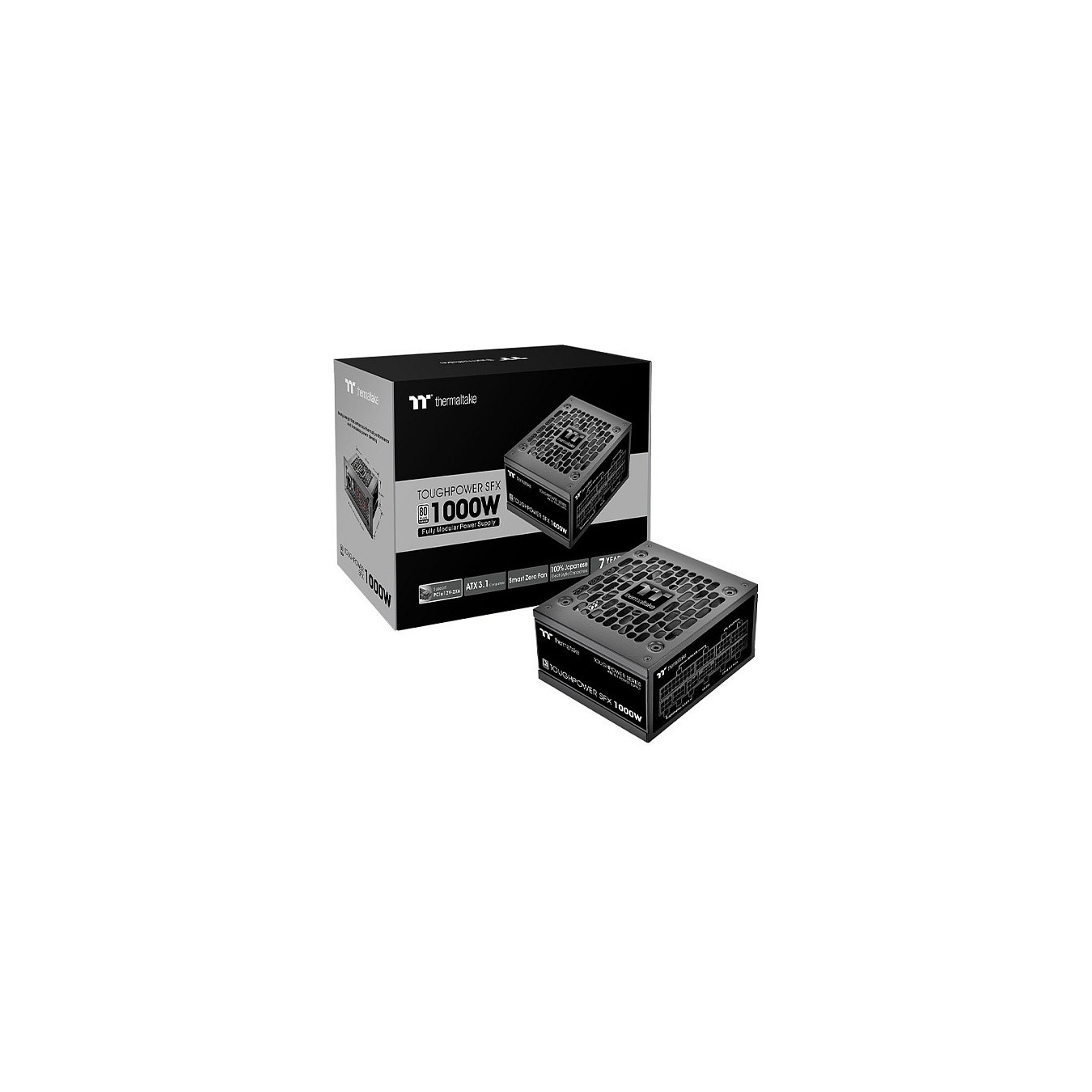

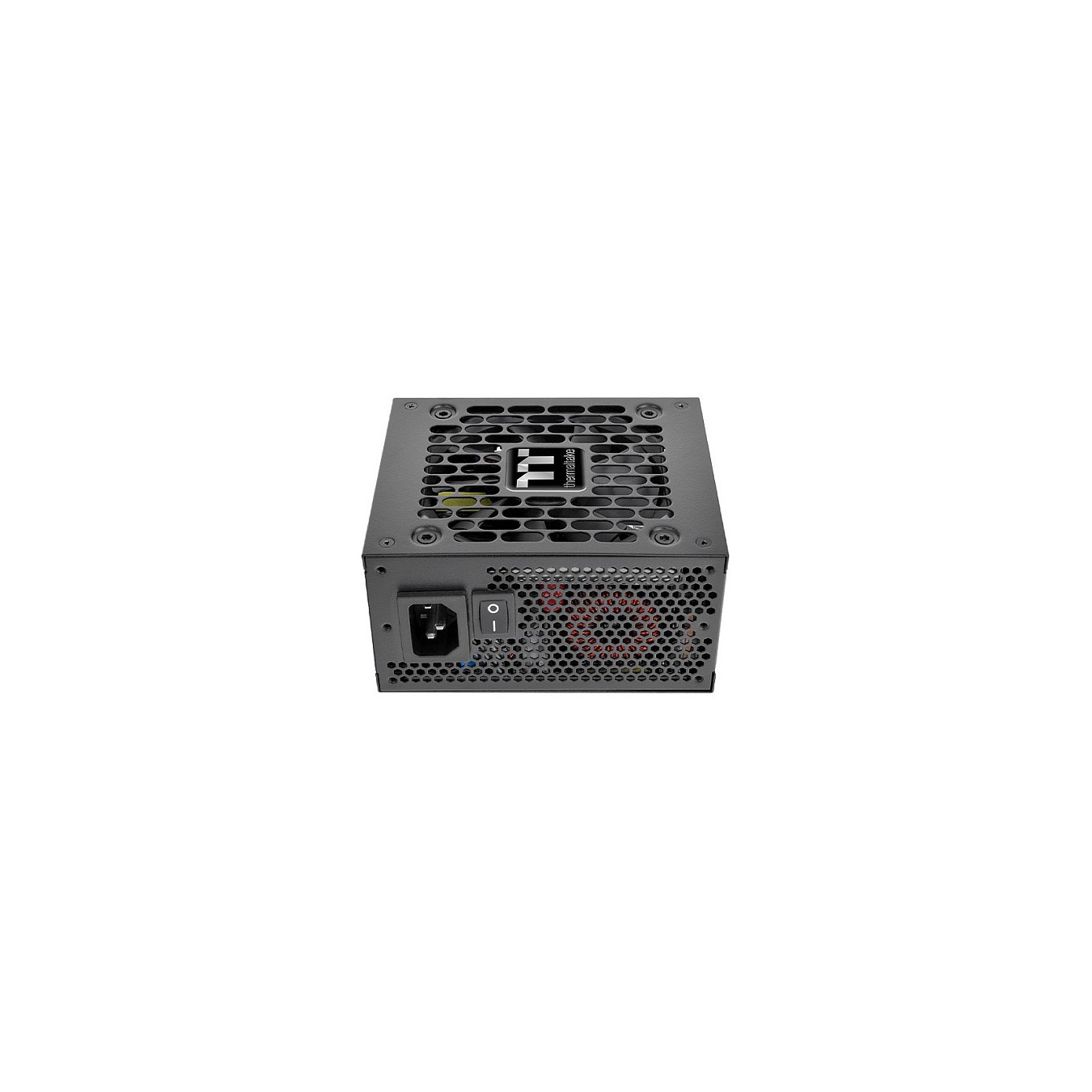

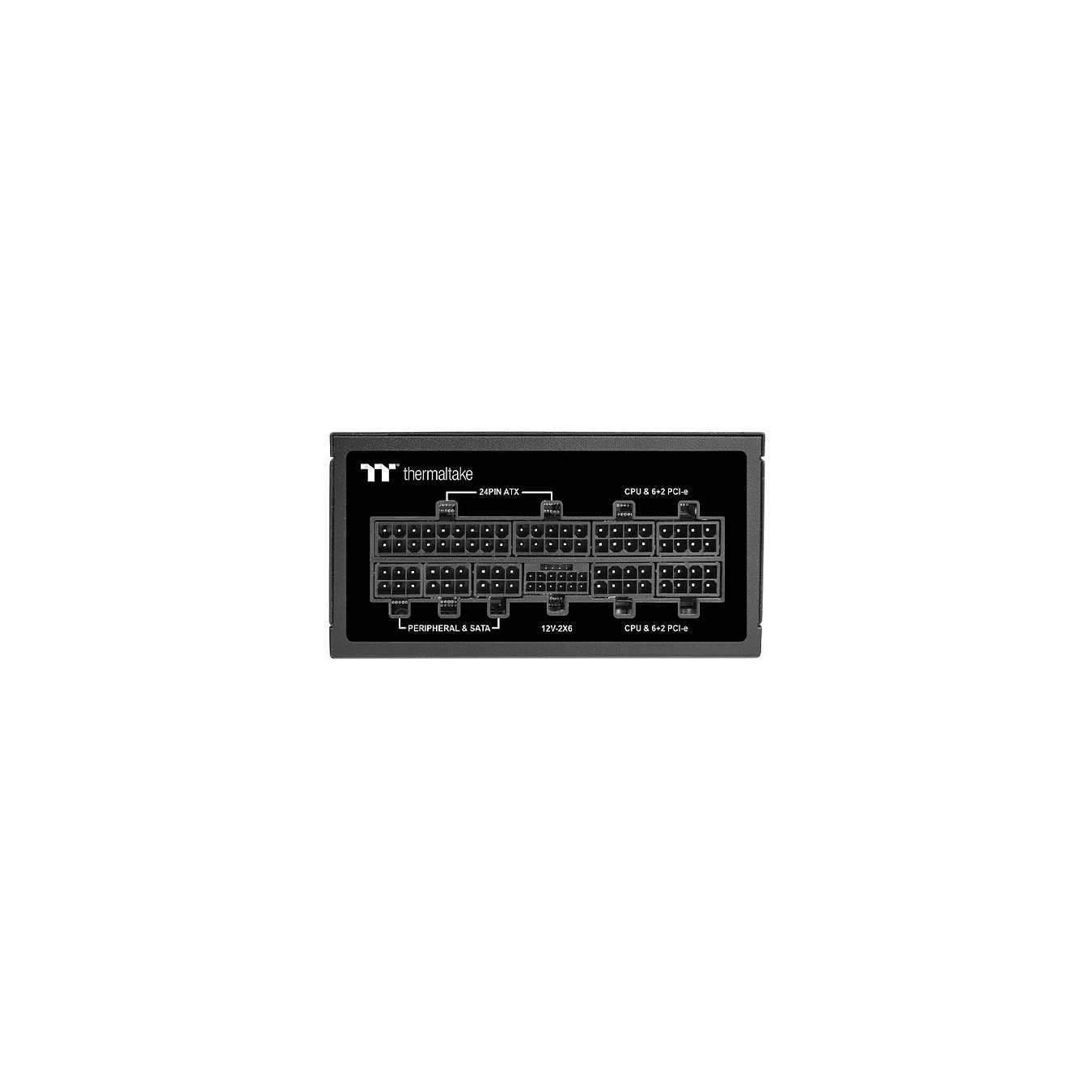

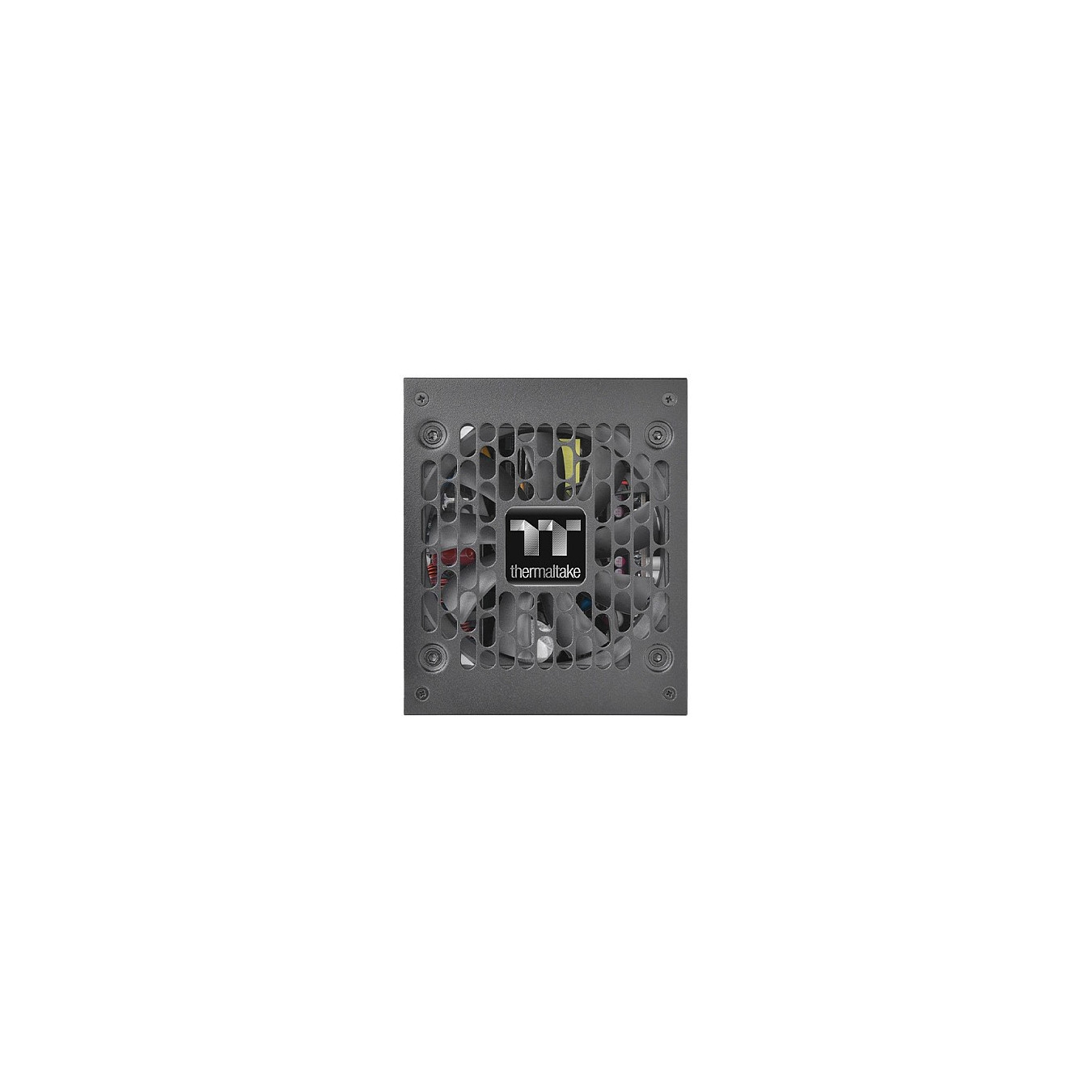

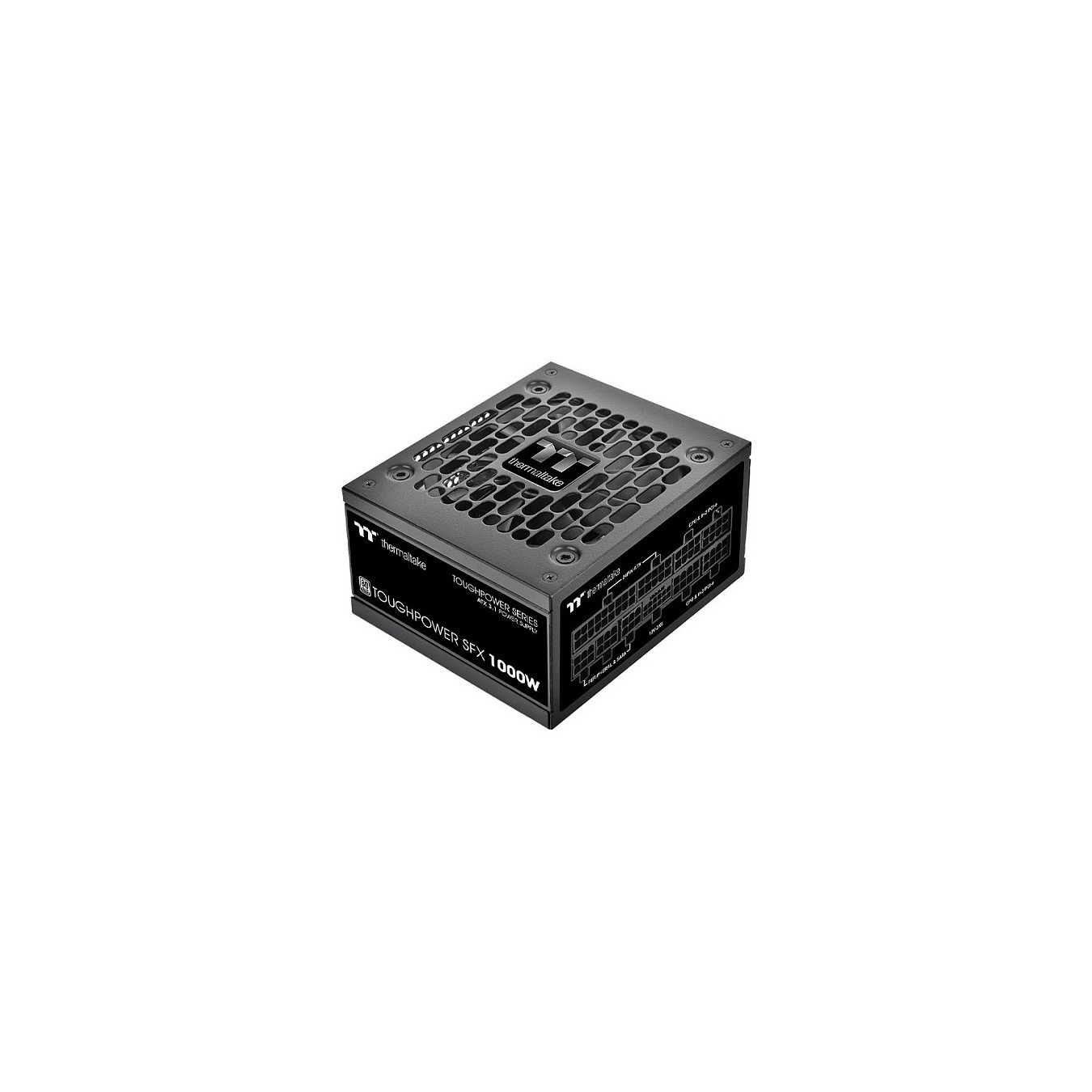

1000W Thermaltake Toughpower SFX 1000W Mod. ATX3.1 80+P
Thermaltake Toughpower SFX Platinum 1000W - TT Premium Edition. 1000 W. 100 - 240 V. 50/60 Hz. 15 - 8 A. Aktiv. 120 W
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
Thermaltake Toughpower SFX Platinum 1000W - TT Premium Edition. Gesamtleistung: 1000 W. AC Eingangsspannung: 100 - 240 V. AC Eingangsfrequenz: 50/60 Hz. Motherboard Anschlussstecker: 24-pin ATX. Stromkabellänge Motherboard: 30 cm. SATA-Netzkabellänge: 750.600.450.300 mm. Zweck: PC. Stromversorgungseinheit (PSU) Formfaktor: CFX. 80 Plus Zertifizierung: 80 PLUS Platinum. Produktfarbe: Schwarz. Kühlung: Aktiv. Lüfterdurchmesser: 9 cm. Sicherheit: CE/UKCA/FCC/ICES/CB/TUV/cTUVus/LVD/CCC/BSMI/ S-MARK/EAC/RCM
| Gesamtleistung | 1000 W |
| AC Eingangsspannung | 100 - 240 V |
| AC Eingangsfrequenz | 50/60 Hz |
| Eingangsstrom | 15 - 8 A |
| Leistungsfaktorkorrekturfilter (PFC) | Aktiv |
| Kombinierter Strom (+3.3V) | 120 W |
| Kombinierter Strom (+12V) | 1000 W |
| Kombinierter Strom (+5V) | 120 W |
| Kombinierter Strom (-12V) | 3.6 W |
| Kombinierter Strom (+5Vsb) | 12.5 W |
| Max. Ausgangsstrom (+3.3V) | 18 A |
| Max. Ausgangsstrom (+12V) | 83.3 A |
| Max Ausgangsstrom (+5V) | 18 A |
| Max. Ausgangsstrom (-12V) | 0.3 A |
| Max. Ausgangsstrom (+5Vsb) | 2.5 A |
| Haltezeit | 17 ms |
| Effizienz | 92% |
| Power Good Signal Verzögerungsbereich | 100 - 150 ms |
| Energieschutzeigenschaften | Überstrom. Überlastung. Überspannung. Kurzschluß. Unterspannung |
| Motherboard Anschlussstecker | 24-pin ATX |
| Stromkabellänge Motherboard | 30 cm |
| Anzahl SATA Stromstecker | 8 |
| SATA-Netzkabellänge | 750.600.450.300 mm |
| Anzahl Molex Anschlüsse 4pin | 4 |
| Periphere (Molex) Netzkabellänge | 750.600.450.300 mm |
| Anzahl PCI Express Stromstecker 6+2pin | 4 |
| PCI Express-Stromanschlüsse (12+4 Pol) | 1 |
| Feature | Ein-/Ausschalter |
| CPU-Leistung Kabellänge | 40 cm |
| Floppy-Laufwerk Stromverbindung | 1 |
| Kabeltyp | Vollständig modular |
| 80 Plus Zertifizierung | 80 PLUS Platinum |
| Zweck | PC |
| Stromversorgungseinheit (PSU) Formfaktor | CFX |
| ATX-Version | 3.1 |
| Lagertyp | FDB |
| Mittlere Betriebsdauer zwischen Ausfällen (MTBF) | 100000 h |
| Produktfarbe | Schwarz |
| Kühlung | Aktiv |
| Lüfterdurchmesser | 9 cm |
| Anzahl Lüfter | 1 Lüfter |
| Betriebstemperatur | 5 - 40 °C |
| Temperaturbereich bei Lagerung | -40 - 55 °C |
| Relative Luftfeuchtigkeit in Betrieb | 20 - 85% |
| Luftfeuchtigkeit bei Lagerung | 10 - 95% |
| Sicherheit | CE/UKCA/FCC/ICES/CB/TUV/cTUVus/LVD/CCC/BSMI/ S-MARK/EAC/RCM |
| Breite | 125 mm |
| Tiefe | 103.8 mm |
| Höhe | 63.5 mm |
| Verpackungsart | Box |
