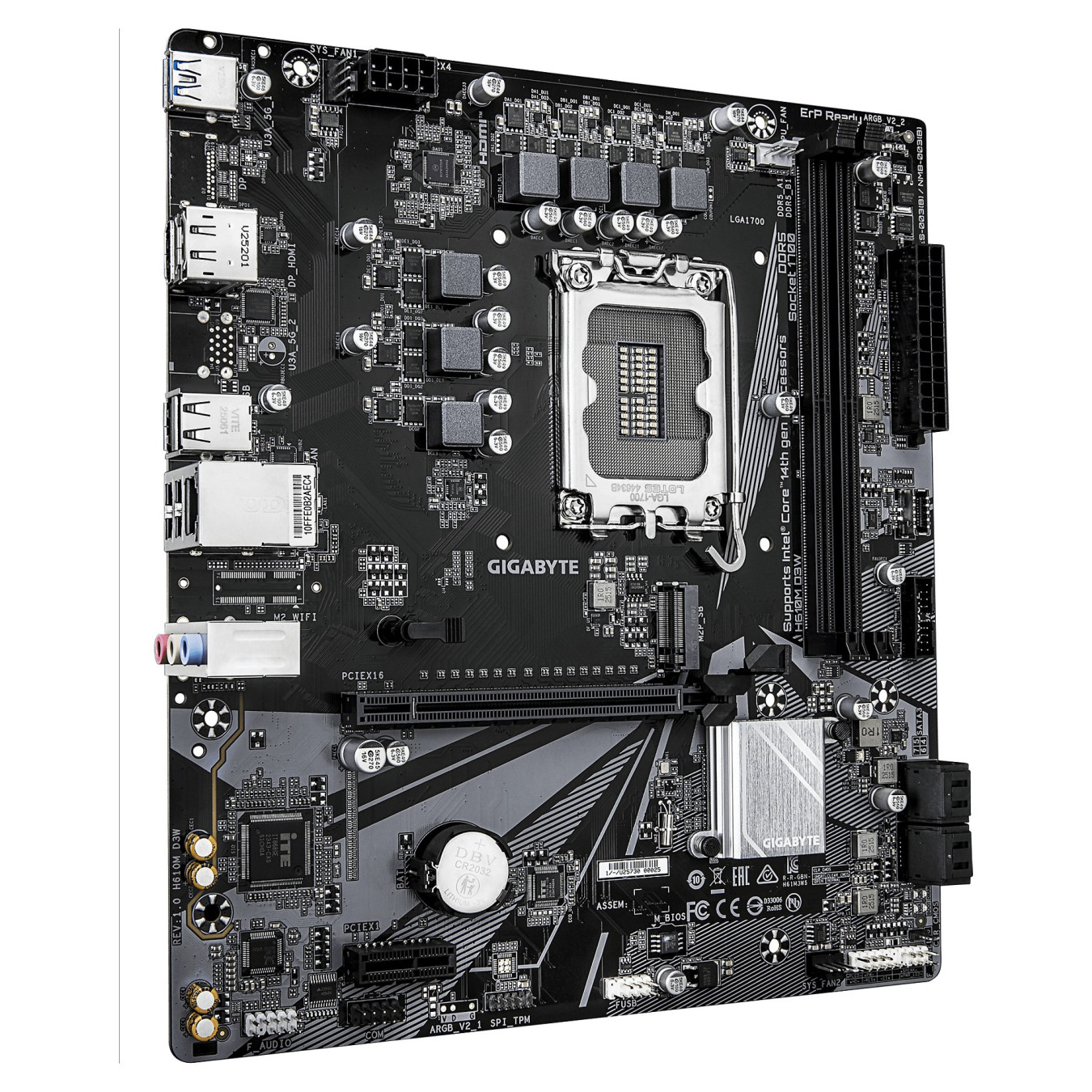

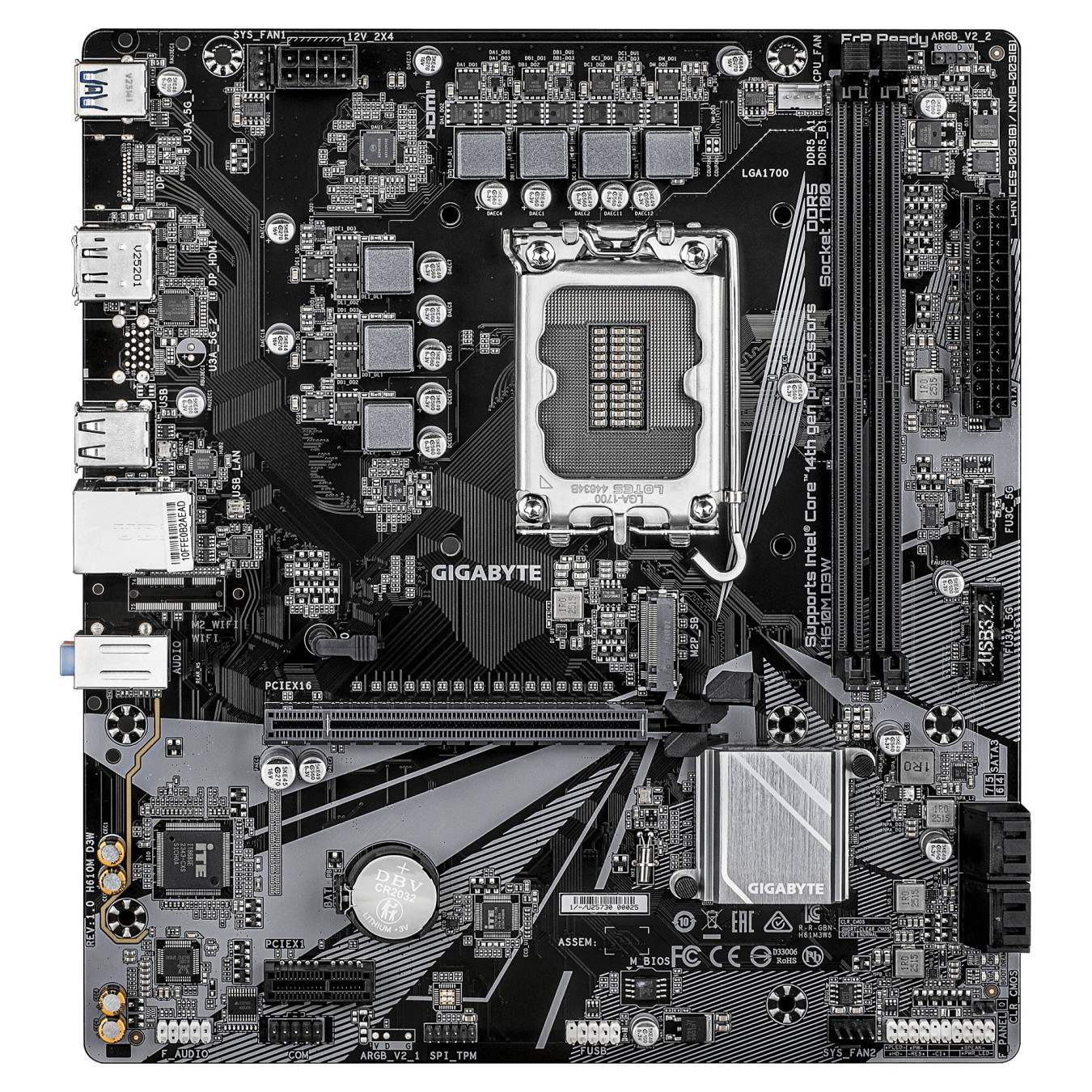

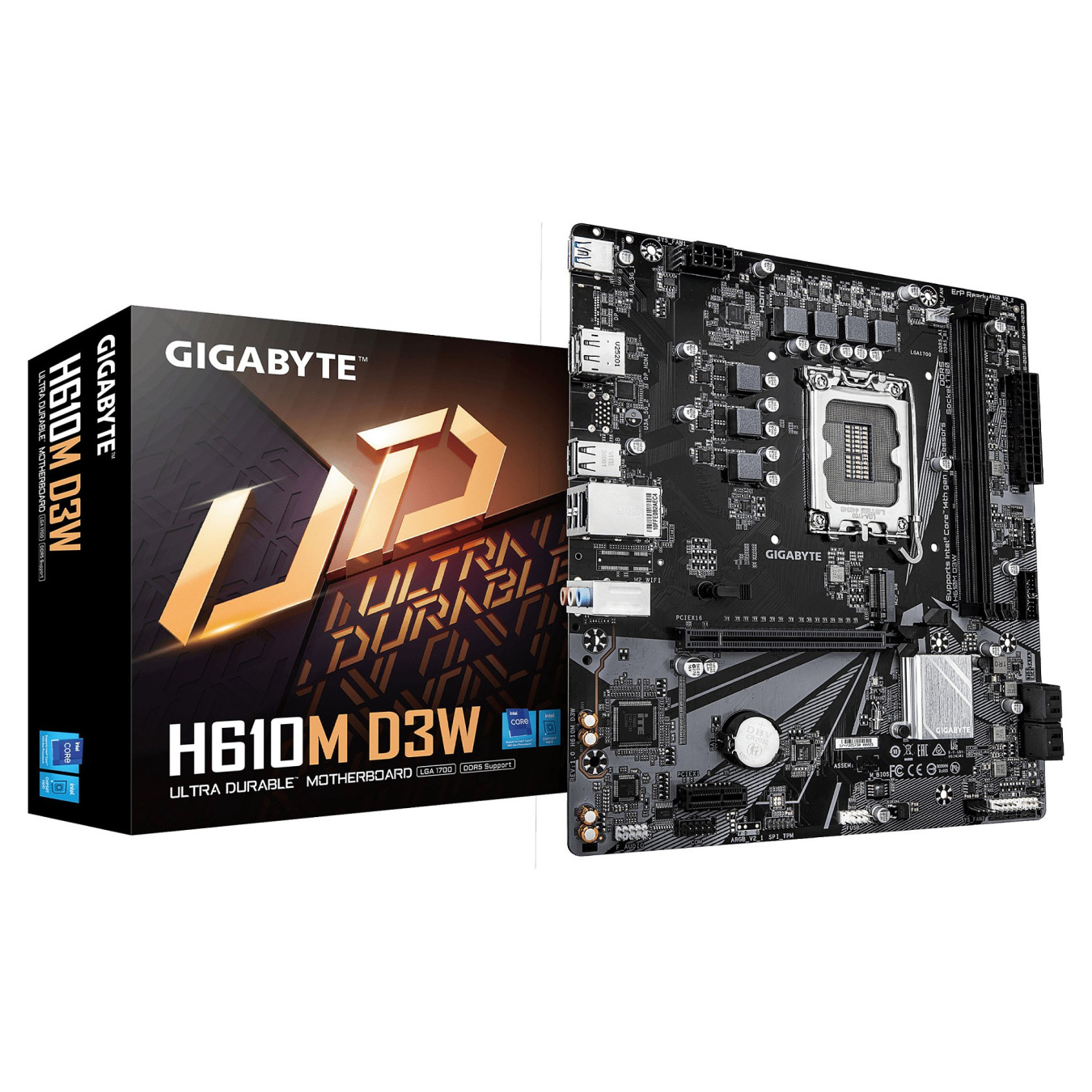

Gigabyte H610M D3W (H610.S1700.mATX.DDR5
GIGABYTE H610M D3W Mainboard - Unterstützt Intel Core Prozessoren der 14. Generation. 5+1+1 Phasen VRM. bis zu 5600MHz DDR5. 1xPCIe 3.0 M.2. 1GbE LAN. USB 3.2 Gen 1. Intel. LGA 1700. Intel® Celeron®. Intel Core i3 12th Gen. Intel Core i3 13th Gen. Intel Core i3 14th Gen. Intel.... LGA 1700. DDR5-SDRAM. 128 GB
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
GIGABYTE H610M D3W Mainboard - Unterstützt Intel Core Prozessoren der 14. Generation. 5+1+1 Phasen VRM. bis zu 5600MHz DDR5. 1xPCIe 3.0 M.2. 1GbE LAN. USB 3.2 Gen 1. Prozessorhersteller: Intel. Prozessorsockel: LGA 1700. Kompatible Prozessoren: Intel® Celeron®. Intel Core i3 12th Gen. Intel Core i3 13th Gen. Intel Core i3 14th Gen. Intel.... Unterstützte Arbeitsspeicher: DDR5-SDRAM. RAM-Speicher maximal: 128 GB. Arbeitsspeicher Typ: DIMM. Unterstützte Speicherlaufwerk-Schnittstellen: M.2. PCI Express 3.0. SATA III. Unterstützte Speicherlaufwerke: HDD & SSD. Maximale Auflösung: 4096 x 2160 Pixel. Ethernet Schnittstellen Typ: Gigabit Ethernet. LAN-Controller: Realtek RTL8111H
| Prozessorhersteller | Intel |
| Prozessorsockel | LGA 1700 |
| Unterstützte Prozessorsteckplätze | LGA 1700 |
| Unterstützte Arbeitsspeicher | DDR5-SDRAM |
| Anzahl der Speichersteckplätze | 2 |
| Arbeitsspeicher Typ | DIMM |
| Speicherkanäle | Zweikanalig |
| ECC-Kompatibilität | ECC & Nicht-ECC |
| Unterstützte Arbeitsspeichergeschwindigkeit | 4400.4800.5200.5600 MHz |
| Unterstützte Speichertaktrate (max.) | 5600 MHz |
| RAM-Speicher maximal | 128 GB |
| Feature | Schrauben enthalten |
| Maximaler interner Speicher pro Steckplatz | 64 GB |
| Unterstützte Speicherlaufwerke | HDD & SSD |
| Unterstützte Speicherlaufwerk-Schnittstellen | M.2. PCI Express 3.0. SATA III |
| Maximale unterstützte Anzahl der HDD | 4 |
| Anzahl der unterstützten Speicherlaufwerke | 5 |
| Parallele Verarbeitungstechnologie | Nicht unterstützt |
| Maximale Auflösung | 4096 x 2160 Pixel |
| HDCP-Version | 2.3 |
| DirectX-Version | 12.0 |
| Anzahl USB 2.0 Schnittstellen | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Anschlüsse | 2 |
| SATA III Anschlüsse | 4 |
| Anzahl der CPU-Lüfteranschlüsse | 1 |
| Zahl der Chassisventilatorstecker | 2 |
| Anzahl der EPS-Stromanschlüsse (4--polig) | 1 |
| Serielle Port-Headers | 1 |
| Anzahl USB 2.0 Anschlüsse | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Anzahl der Anschlüsse vom Typ A | 1 |
| Anzahl Ethernet-LAN-Anschlüsse (RJ-45) | 1 |
| Anzahl HDMI-Anschlüsse | 1 |
| HDMI-Version | 2.1 |
| Anzahl DisplayPort Anschlüsse | 1 |
| DisplayPorts-Version | 1.2 |
| Kopfhörerausgänge | 1 |
| Ethernet Schnittstellen Typ | Gigabit Ethernet |
| LAN-Controller | Realtek RTL8111H |
| Motherboard Chipsatz | Intel H610 |
| Audio-Chip | Realtek ALC897 |
| Audio Kanäle | 7.1 Kanäle |
| Produktfarbe | Dark brown |
| PC Gesundheitsüberwachung | Ventilator. Temperatur. Spannung. Water cooling |
| Komponente für | PC |
| Motherboardformfaktor | micro ATX |
| Motherboard Chipsatz Familie | Intel |
| Kühlung | Passiv |
| Energiequelle | ATX |
| Unterstützt Windows-Betriebssysteme | Windows 10 x64. Windows 11 x64 |
| PCI-Express x1 (Gen 3.x)-Anschlüsse | 1 |
| PCI Express x16-Steckplätze (Gen 4.x) | 1 |
| Anzahl der M.2 (M)-Steckplätze | 1 |
| 1. M.2 größte Schlüsselgröße | 2280 |
| 1. M.2 höchste PCI Express-Generation | 3.0 |
| BIOS-Typ | UEFI AMI |
| BIOS-Speichergröße | 128 Mbit |
| ACPI-Version | 5.0 |
| Desktop Management Interface (DMI) Version | 2.7 |
| Systemverwaltung BIOS (SMBIOS) Version | 2.7 |
| Ursprungsland | China |
| Menge pro Versandkarton | 1 Stück(e) |
| Batteriegewicht | 3 g |
| Lithiumgewicht pro Akku | 0.07 g |
| Anzahl Batteriezellen | 1 |
| Akku-/Batteriekapazität | 200 mAh |
| Akku-/Batterietechnologie | Lithium-Manganese Dioxide (LiMnO2) |
| Akku-/Batterietyp | CR2032 |
| Verpackungsbreite | 265 mm |
| Verpackungstiefe | 265 mm |
| Verpackungshöhe | 54 mm |
| Paketgewicht | 821 g |
| Breite | 244 mm |
| Tiefe | 220 mm |
| Höhe | 35 mm |
| Mitgelieferte Software | Norton® Internet Security (OEM version) |
| Gewicht | 742 g |
| Garantiezeit | 3 Jahr(e) |
