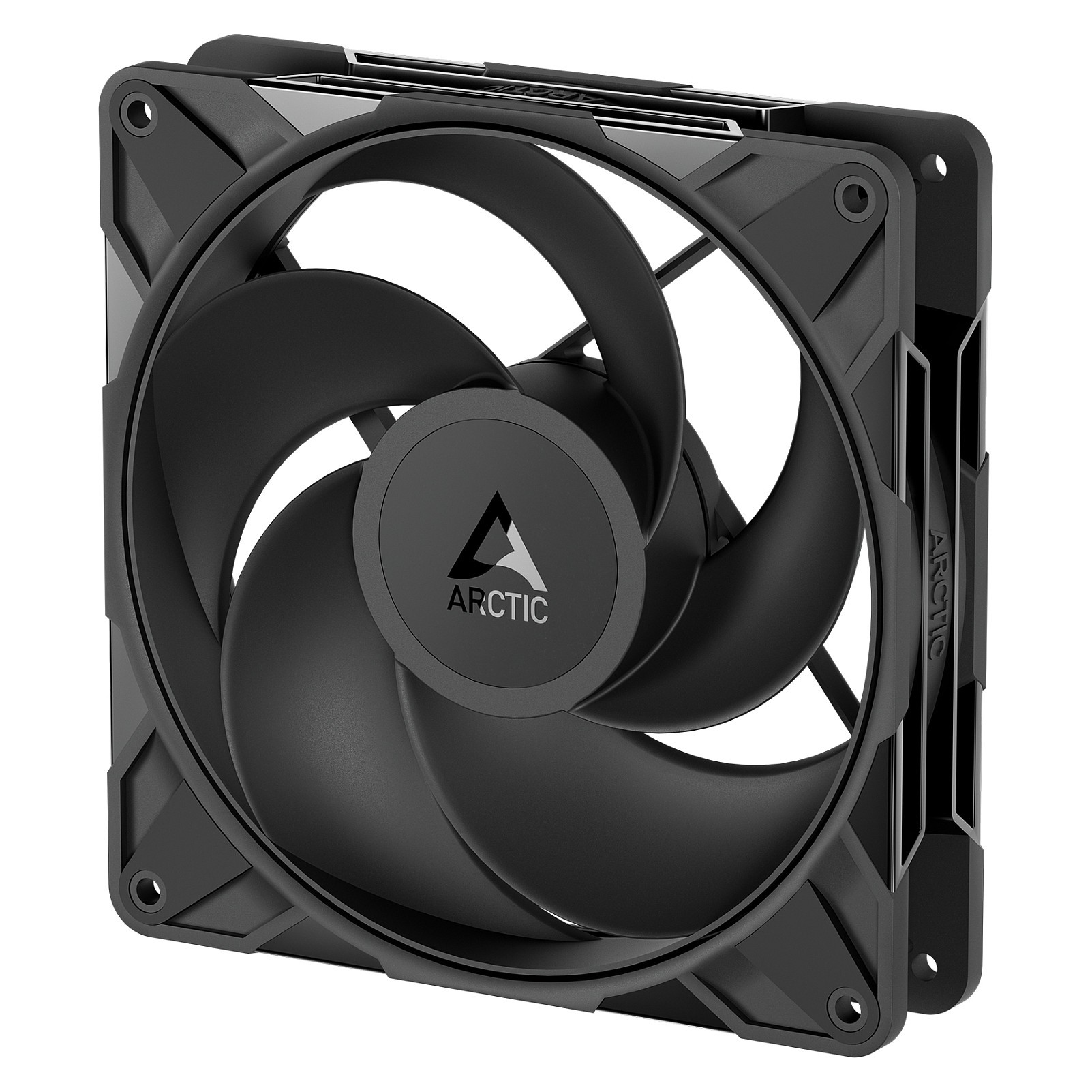

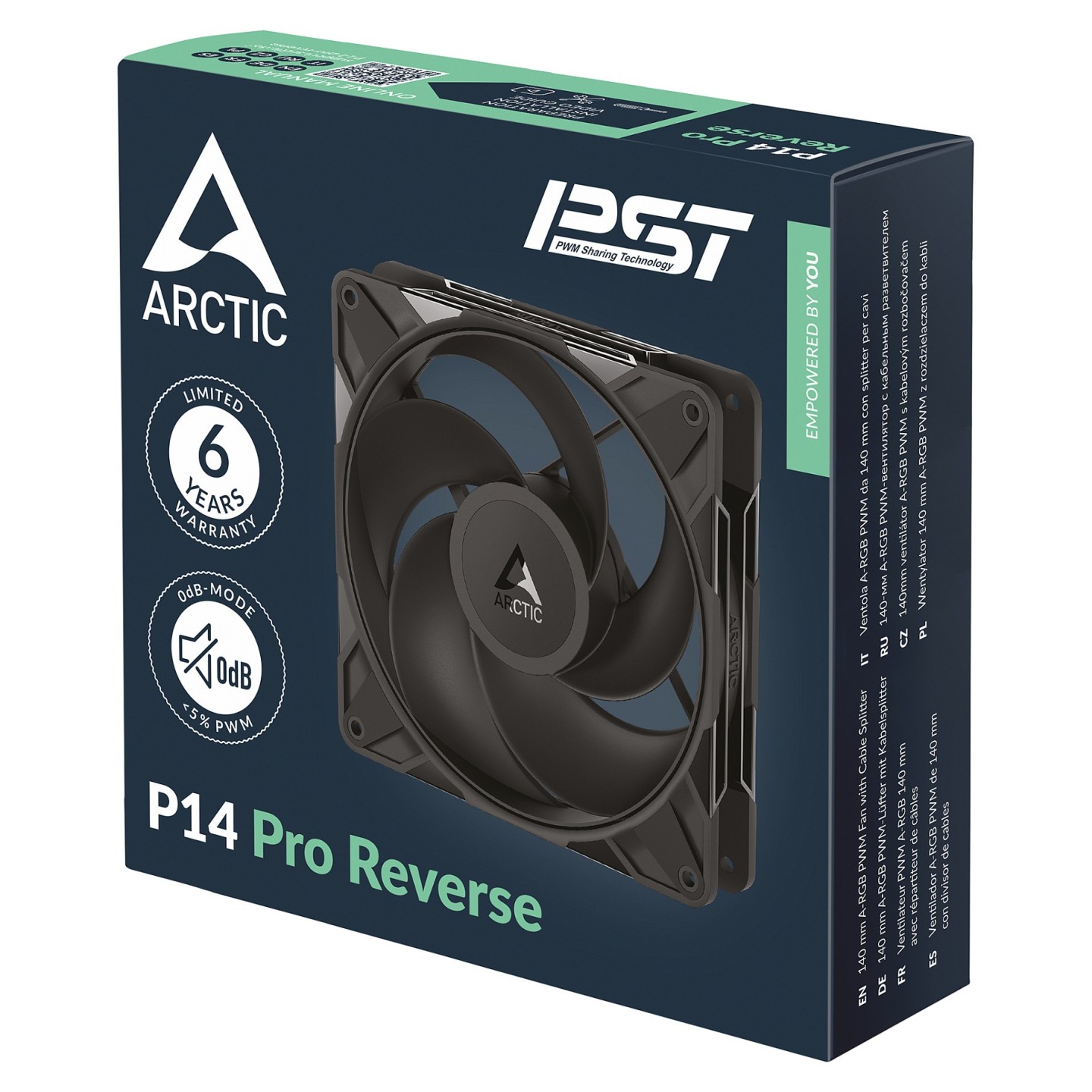

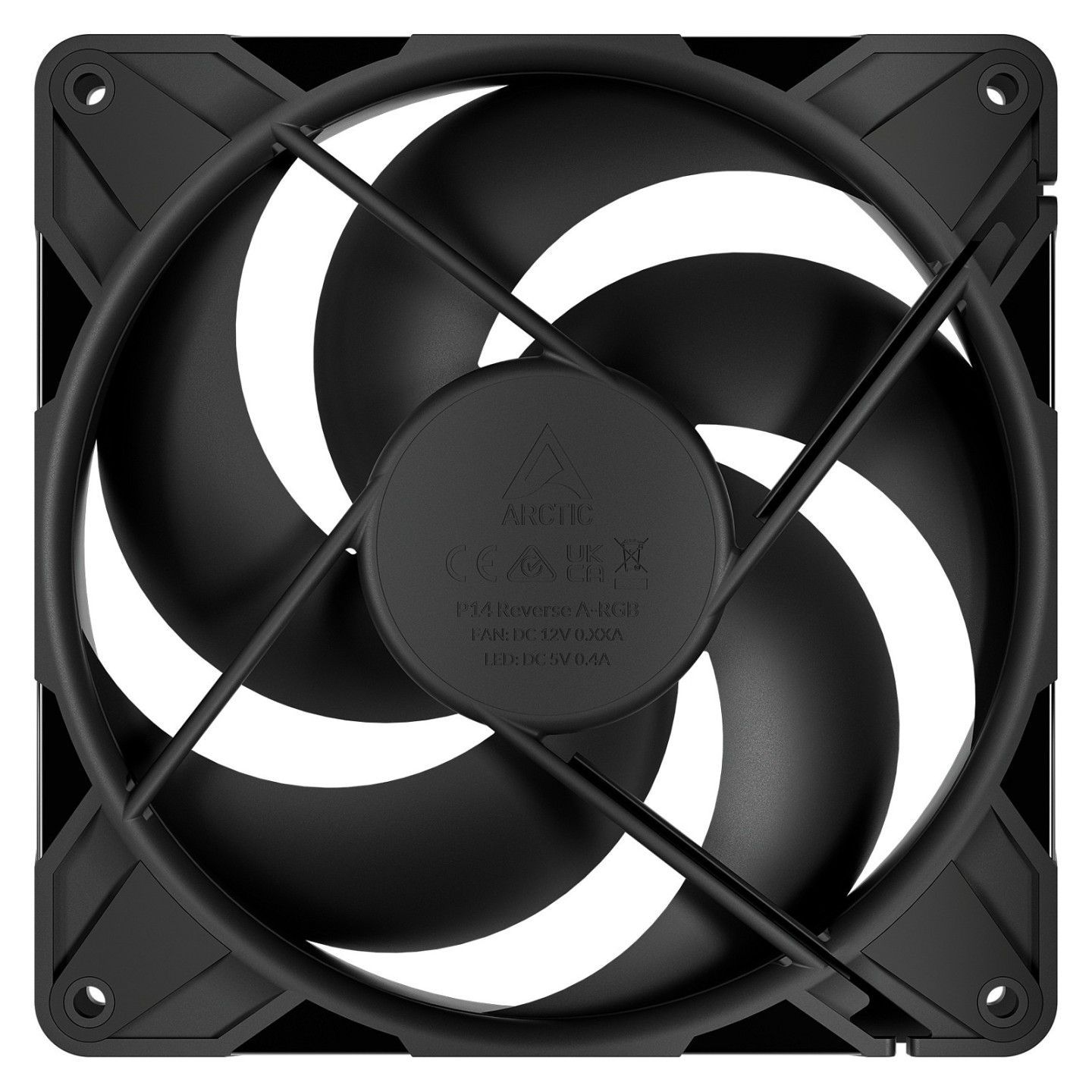

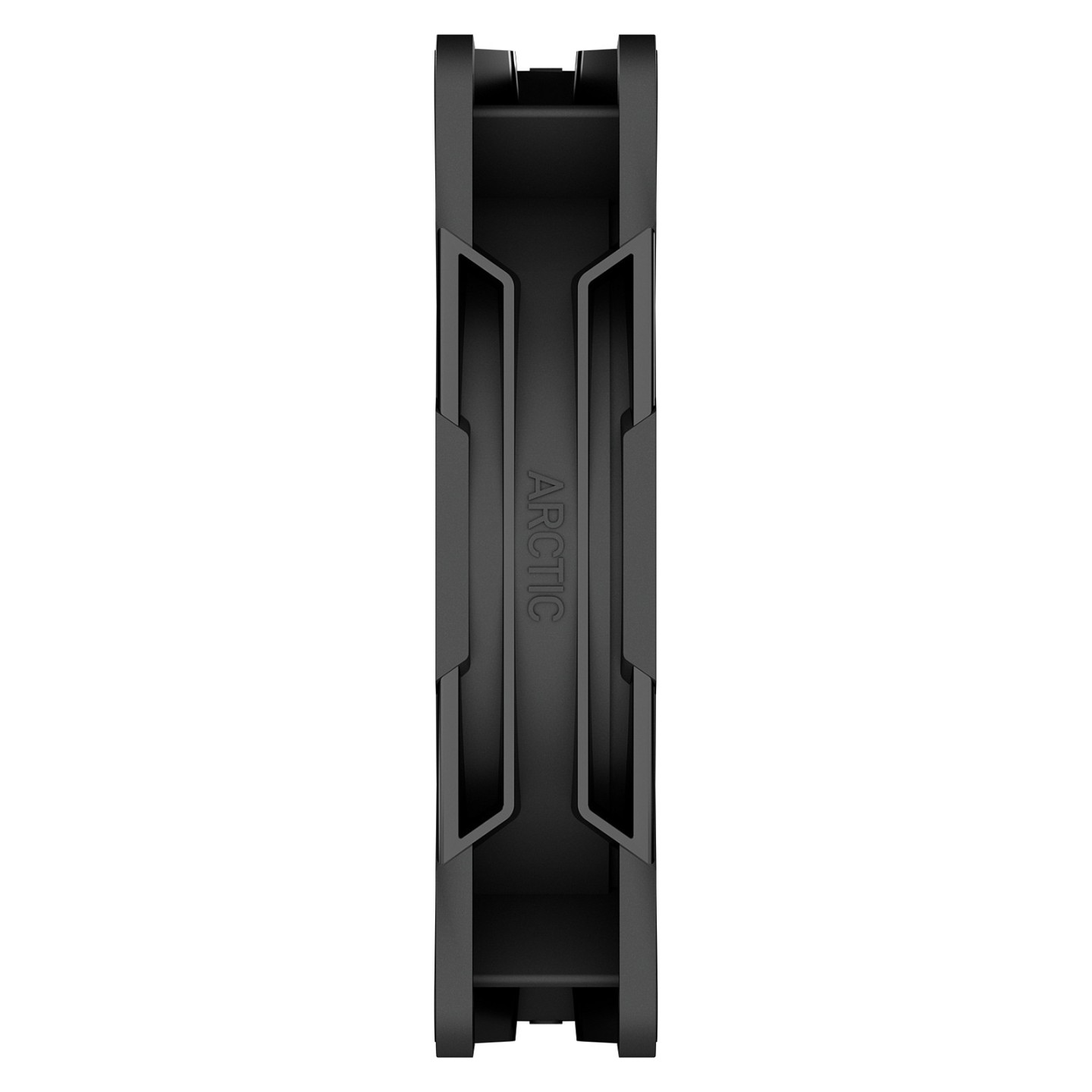

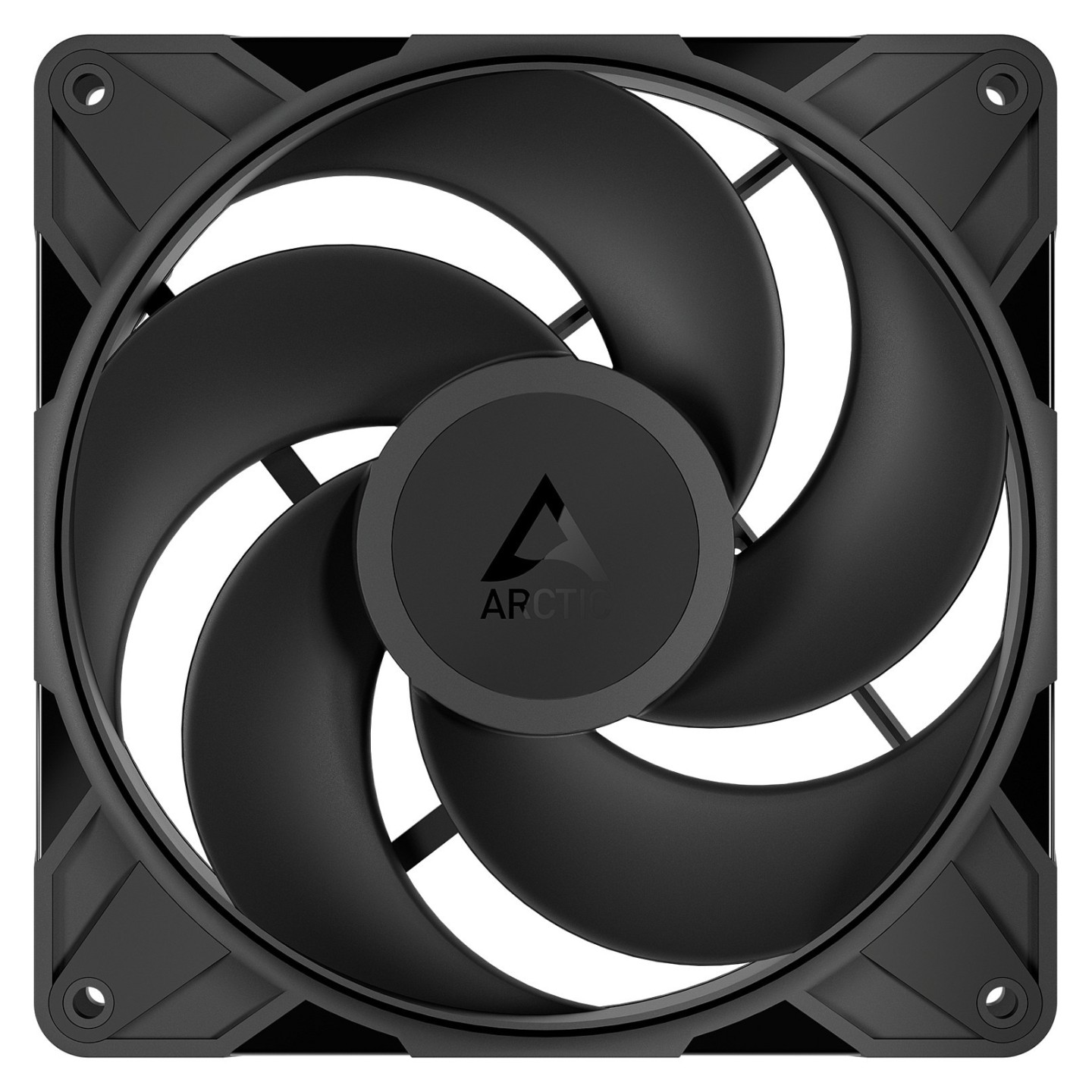

ARCTIC P14 Pro Reverse PWM Fan 140mm - 400-2650 RPM (Boxed)
ARCTIC P14 Pro Reverse 140mm PWM case fan with reverse blade design and cable splitter. 400-2650 RPM, 166.5 m³/h airflow, 5.1 mmH₂O pressure, FDB bearing. Ideal for intake on glass panels.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| Cooling (CPU & Case) - Device Type | Case Fan |
|---|---|
| Cooling (CPU & Case) - Fan Size | 140 mm |
| Cooling (CPU & Case) - Connector | 4-Pin PWM |
| Cooling (CPU & Case) - Color | Black |
| Cooling (CPU & Case) - Special Features | Daisy-Chain Low Noise Reverse Blade |
The ARCTIC P14 Pro Reverse is a premium 140 mm PWM case fan engineered with a reverse blade design for optimal aesthetics in modern PC builds with glass front panels. It draws air from the back side (visible face) while maintaining excellent cooling performance, making it perfect for intake fans where traditional forward-facing blades would be visually unappealing.
Featuring fluid dynamic bearing (FDB) for quiet, long-lasting operation (180,000 hours MTBF), PWM control from 400-2650 RPM (0 RPM below 5% PWM), it delivers 166.5 m³/h (98 CFM) airflow and 5.1 mmH₂O static pressure. The included daisy-chain cable splitter (400 mm + 80 mm) allows easy connection of multiple fans to a single header. Noise levels range from 17 dB low to 34 dB max.
- Reverse airflow for glass panel intake
- High static pressure for mesh/radiators
- 4-pin PWM + splitter for daisy-chaining
- 6-year Arctic warranty
- Dimensions: 140x140x30 mm, weight 248 g (net)
| Type | Fan |
| Recommended Placement | Computer case |
| Fan Diameter | 140 mm |
| Max Airflow | 98 CFM |
| Airflow | 166.5 m³/h |
| Max Air Pressure | 5.1 mmH2O |
| Bearing Type | Fluid Dynamic Bearing (FDB) |
| Fan Speed (min) | 400 RPM |
| Fan Speed (max) | 2650 RPM |
| Operating Temperature | 0 - 40 °C |
| Product Color | Black |
| Fan Connector | 4-pin PWM + 4-pin socket (daisy-chain) |
| Rated Voltage | 12 V DC |
| Start Voltage | 4 V DC |
| Current | 0.4 A |
| Fan Dimensions (WxDxH) | 140 x 140 x 30 mm |
| Fan Weight | 248 g |
| Cable Length | 400 mm + 80 mm daisy-chain |
| Noise Level (low) | 17 dB |
| Noise Level (high) | 34 dB |
| Screws Included | 4 screws |
| Warranty | 6 Years |
