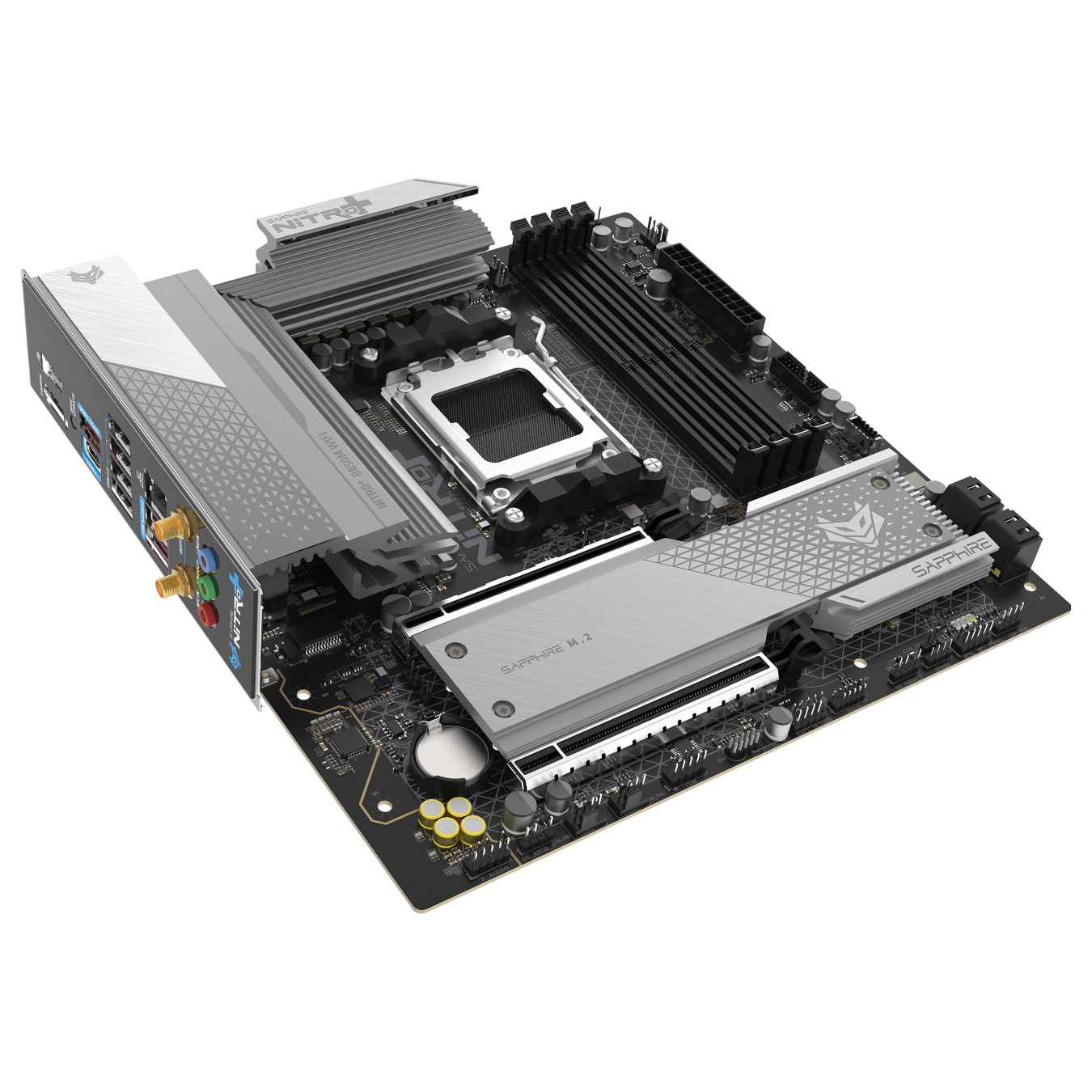

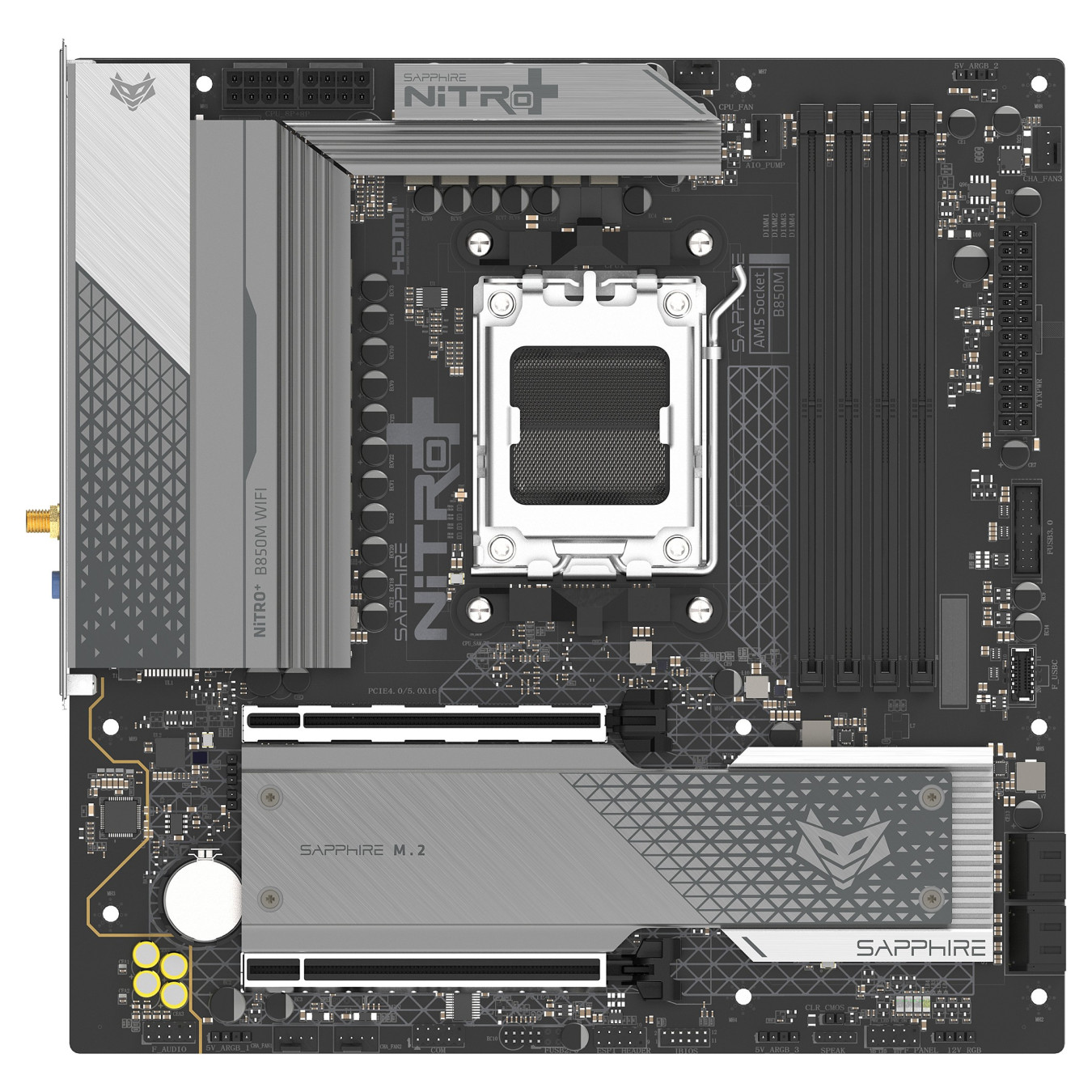

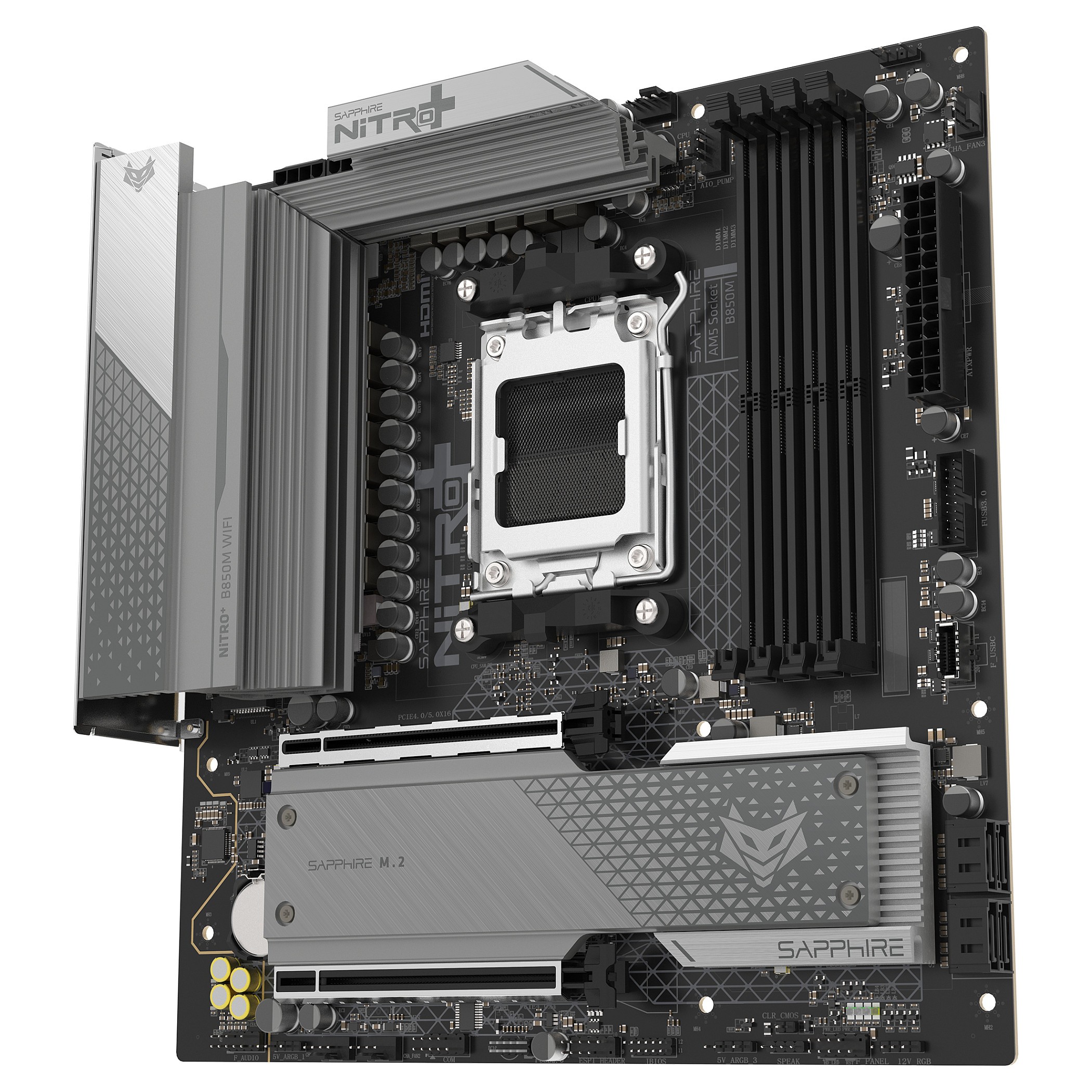

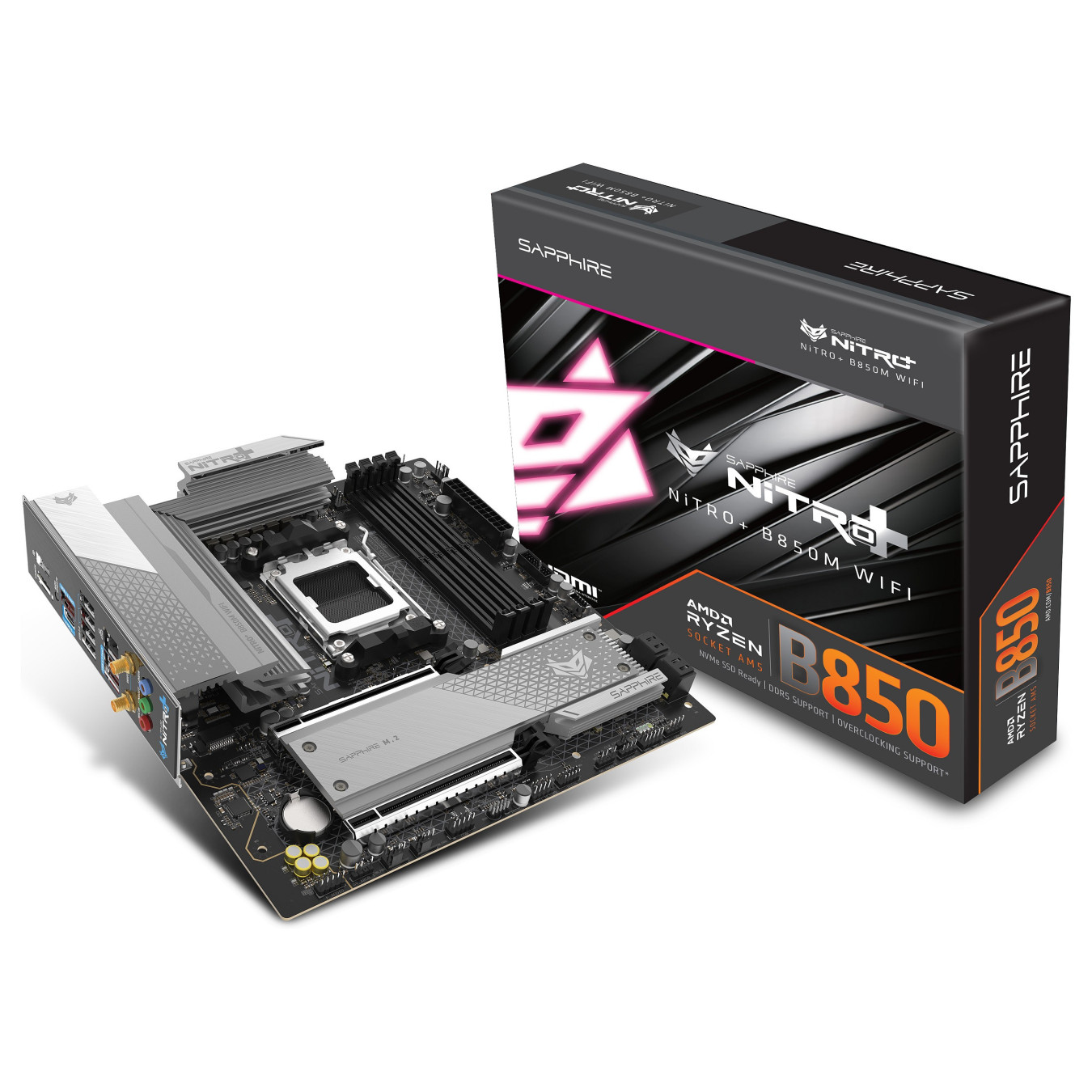

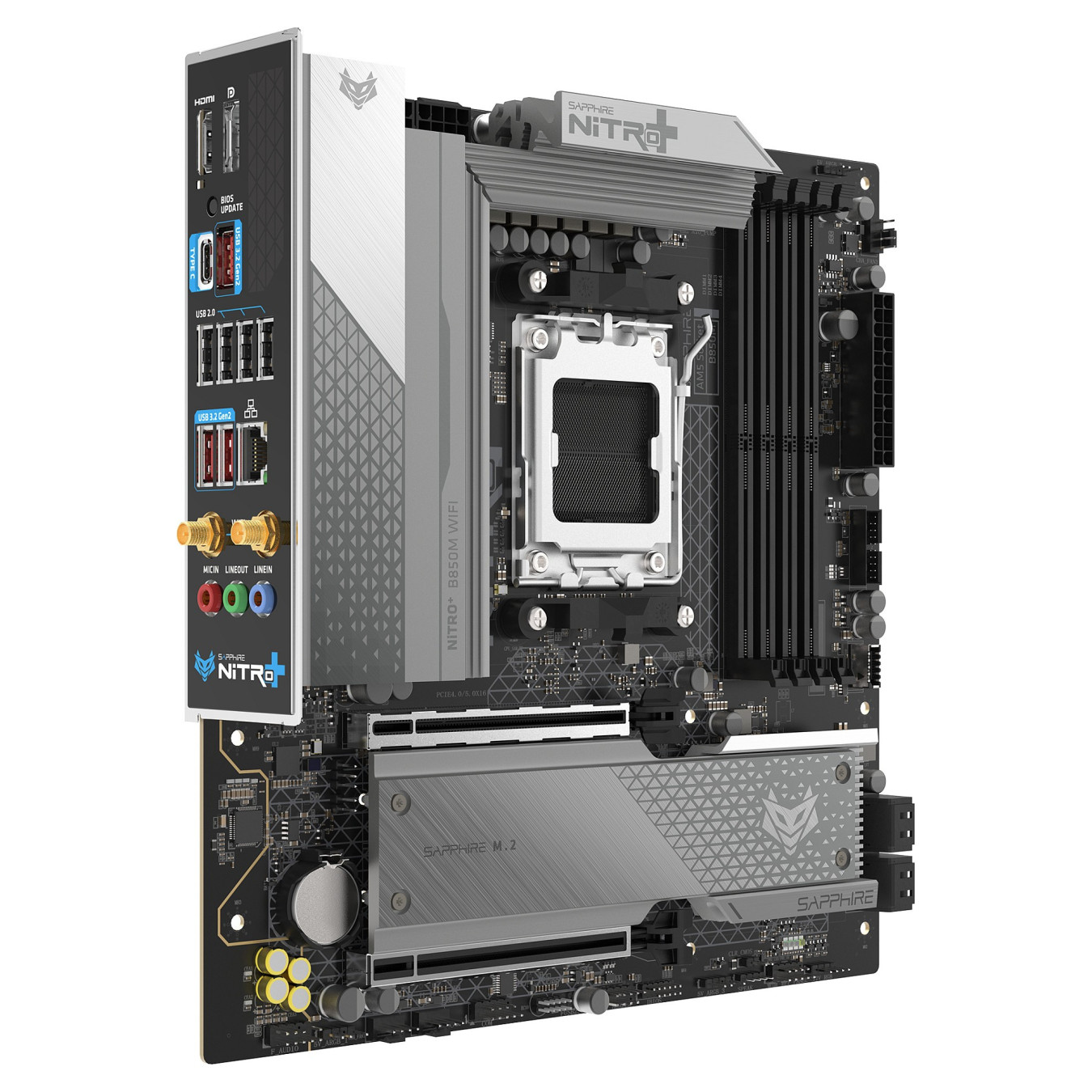

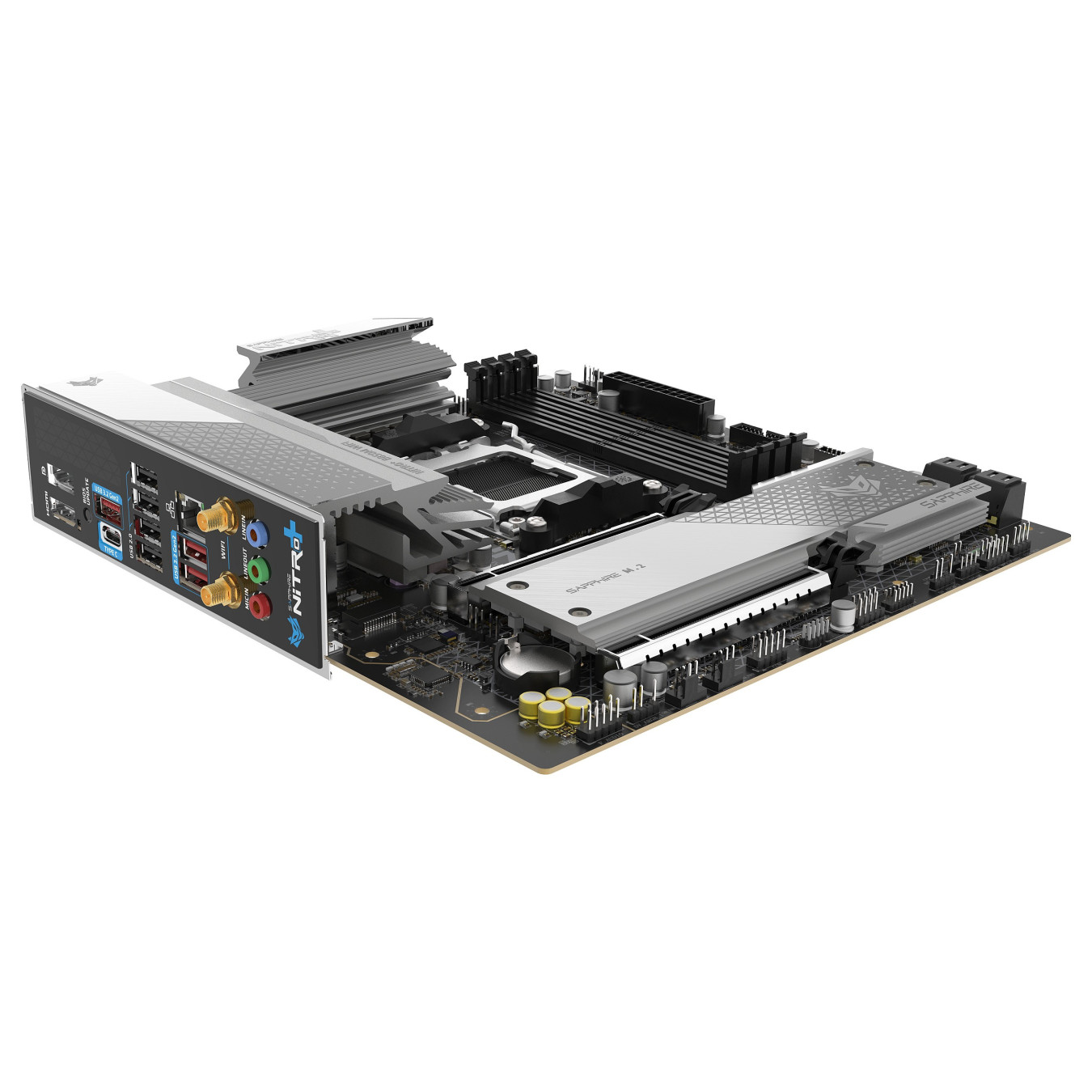

AM5 SAPPHIRE NITRO+ B850M WIFI
Sapphire NITRO+ B850M WIFI. AMD. Sockel AM5. AMD Ryzen 7000 Series. AMD Ryzen 8000 Series. AMD Ryzen 9000 Series. Sockel AM5. DDR5-SDRAM. 192 GB
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
Sapphire NITRO+ B850M WIFI. Prozessorhersteller: AMD. Prozessorsockel: Sockel AM5. Kompatible Prozessoren: AMD Ryzen 7000 Series. AMD Ryzen 8000 Series. AMD Ryzen 9000 Series. Unterstützte Arbeitsspeicher: DDR5-SDRAM. RAM-Speicher maximal: 192 GB. Arbeitsspeicher Typ: DIMM. Unterstützte Speicherlaufwerk-Schnittstellen: PCI Express 4.0. PCI Express 5.0. SATA III. Unterstützte Speicherlaufwerke: HDD & SSD. USB-Stecker: USB Typ-A. USB Typ-C. Ethernet Schnittstellen Typ: 2.5 Gigabit Ethernet. LAN-Controller: Dragon RTL8125BG. Top WLAN-Standard: Wi-Fi 6 (802.11ax)
| Prozessorhersteller | AMD |
| Prozessorsockel | Sockel AM5 |
| Kompatible Prozessoren | AMD Ryzen 7000 Series. AMD Ryzen 8000 Series. AMD Ryzen 9000 Series |
| Unterstützte Prozessorsteckplätze | Sockel AM5 |
| Unterstützte Arbeitsspeicher | DDR5-SDRAM |
| Anzahl der Speichersteckplätze | 4 |
| Arbeitsspeicher Typ | DIMM |
| Speicherkanäle | Zweikanalig |
| Unterstützte Speichertaktrate (max.) | 8000 MHz |
| RAM-Speicher maximal | 192 GB |
| Maximaler interner Speicher pro Steckplatz | 48 GB |
| Unterstützte Speicherlaufwerke | HDD & SSD |
| Unterstützte Speicherlaufwerk-Schnittstellen | PCI Express 4.0. PCI Express 5.0. SATA III |
| Anzahl der unterstützten Speicherlaufwerke | 6 |
| Parallele Verarbeitungstechnologie | Nicht unterstützt |
| Anzahl USB 2.0 Schnittstellen | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Anschlüsse | 2 |
| SATA III Anschlüsse | 4 |
| Feature | Clear CMOS-Jumper |
| Anzahl der CPU-Lüfteranschlüsse | 1 |
| Zahl der Chassisventilatorstecker | 3 |
| Serielle Port-Headers | 1 |
| Anzahl der Wasserpumpenanschlüsse | 1 |
| Anzahl der RGB-LED-Stiftleisten | 3 |
| Anzahl USB 2.0 Anschlüsse | 4 |
| USB 3.2 Gen 2 (3.1 Gen 2) Anzahl der Anschlüsse vom Typ A | 3 |
| USB 3.2 Gen 2 (3.1 Gen 2) Anzahl der Anschlüsse vom Typ C | 1 |
| Anzahl Ethernet-LAN-Anschlüsse (RJ-45) | 1 |
| Anzahl HDMI-Anschlüsse | 1 |
| Anzahl DisplayPort Anschlüsse | 1 |
| Kopfhörerausgänge | 3 |
| WiFi-AP-Antennenbuchse | 2 |
| USB-Stecker | USB Typ-A. USB Typ-C |
| Ethernet Schnittstellen Typ | 2.5 Gigabit Ethernet |
| LAN-Controller | Dragon RTL8125BG |
| Top WLAN-Standard | Wi-Fi 6 (802.11ax) |
| WLAN-Standards | 802.11a. 802.11b. 802.11g. Wi-Fi 4 (802.11n). Wi-Fi 5 (802.11ac). Wi-Fi 6 (802.11ax) |
| Bluetooth-Version | 5.3 |
| Motherboard Chipsatz | AMD B850 |
| Audio-Chip | Realtek ALC897 |
| Audio Kanäle | 5.1 Kanäle |
| Produktfarbe | Schwarz |
| Komponente für | PC |
| Motherboardformfaktor | micro ATX |
| Motherboard Chipsatz Familie | AMD |
| Unterstützt Windows-Betriebssysteme | Windows 10 x64. Windows 11 x64 |
| PCI Express x4-Steckplätze (Gen 4.x) | 1 |
| PCI Express x16-Steckplätze (Gen 5.x) | 1 |
| Anzahl der M.2 (M)-Steckplätze | 2 |
| 1. M.2 größte Schlüsselgröße | 2280 |
| 1. M.2 höchste PCI Express-Generation | 5.0 |
| 2. M.2 größte Schlüsselgröße | 2280 |
| 2. M.2 höchste PCI Express-Generation | 4.0 |
| Breite | 244 mm |
| Tiefe | 235 mm |
