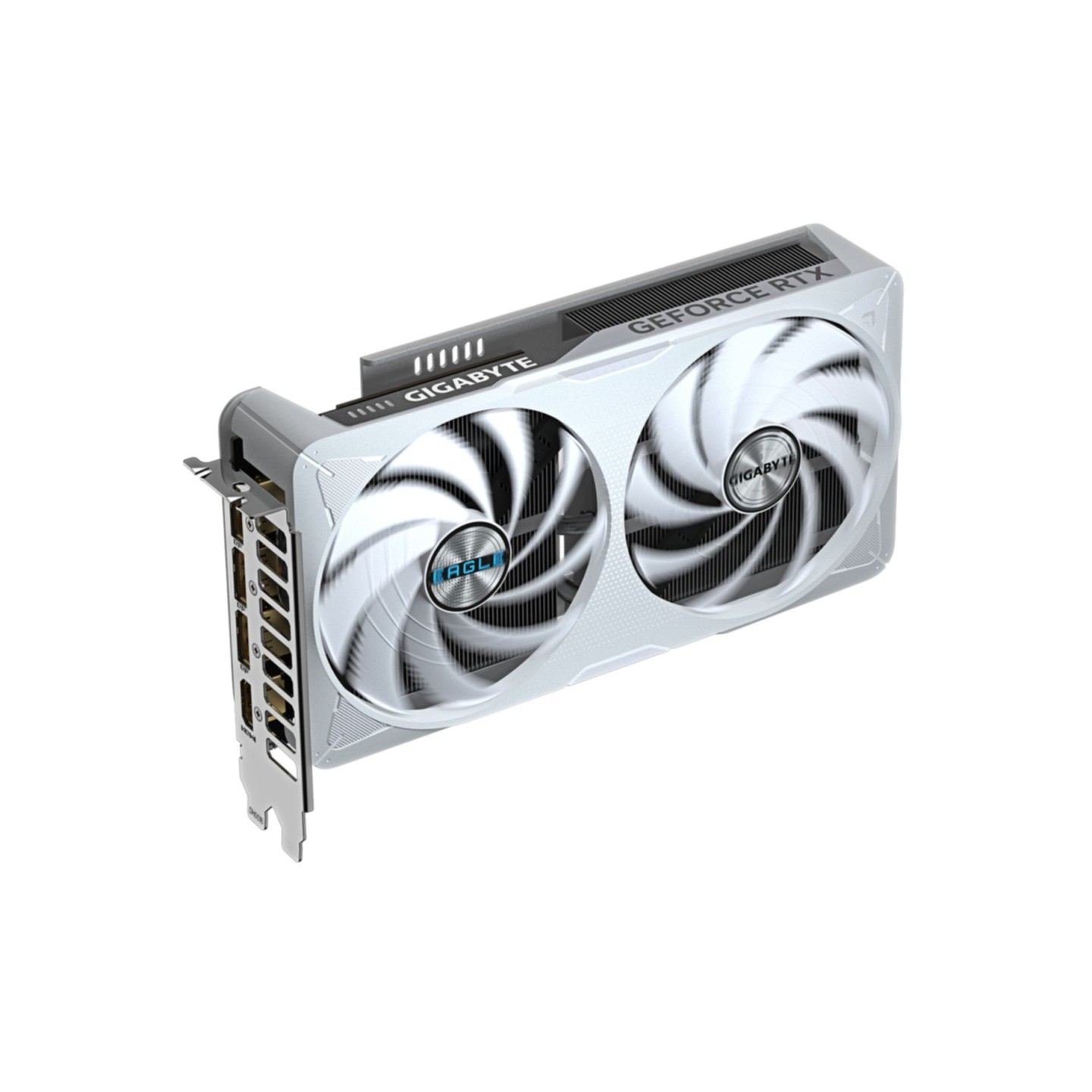

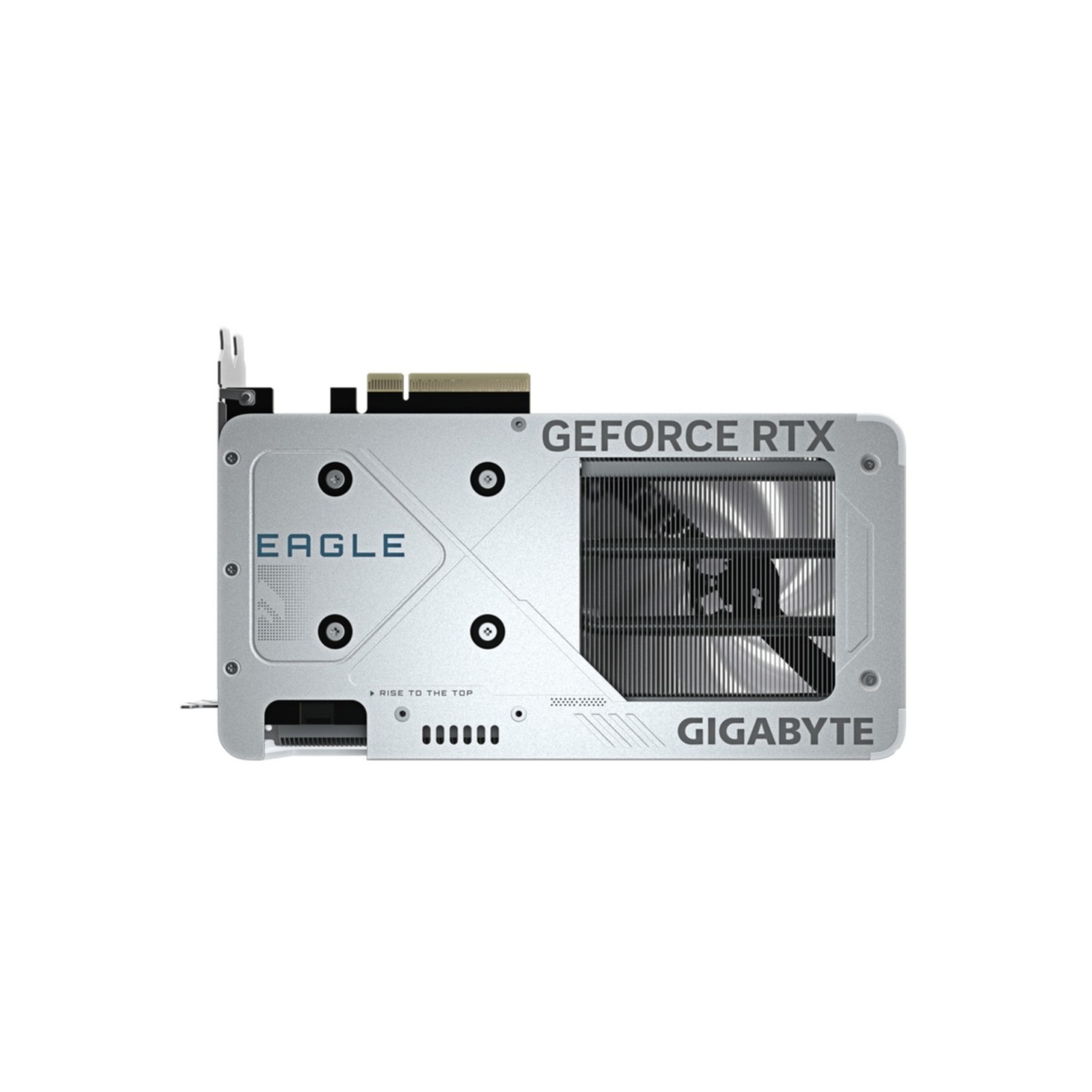

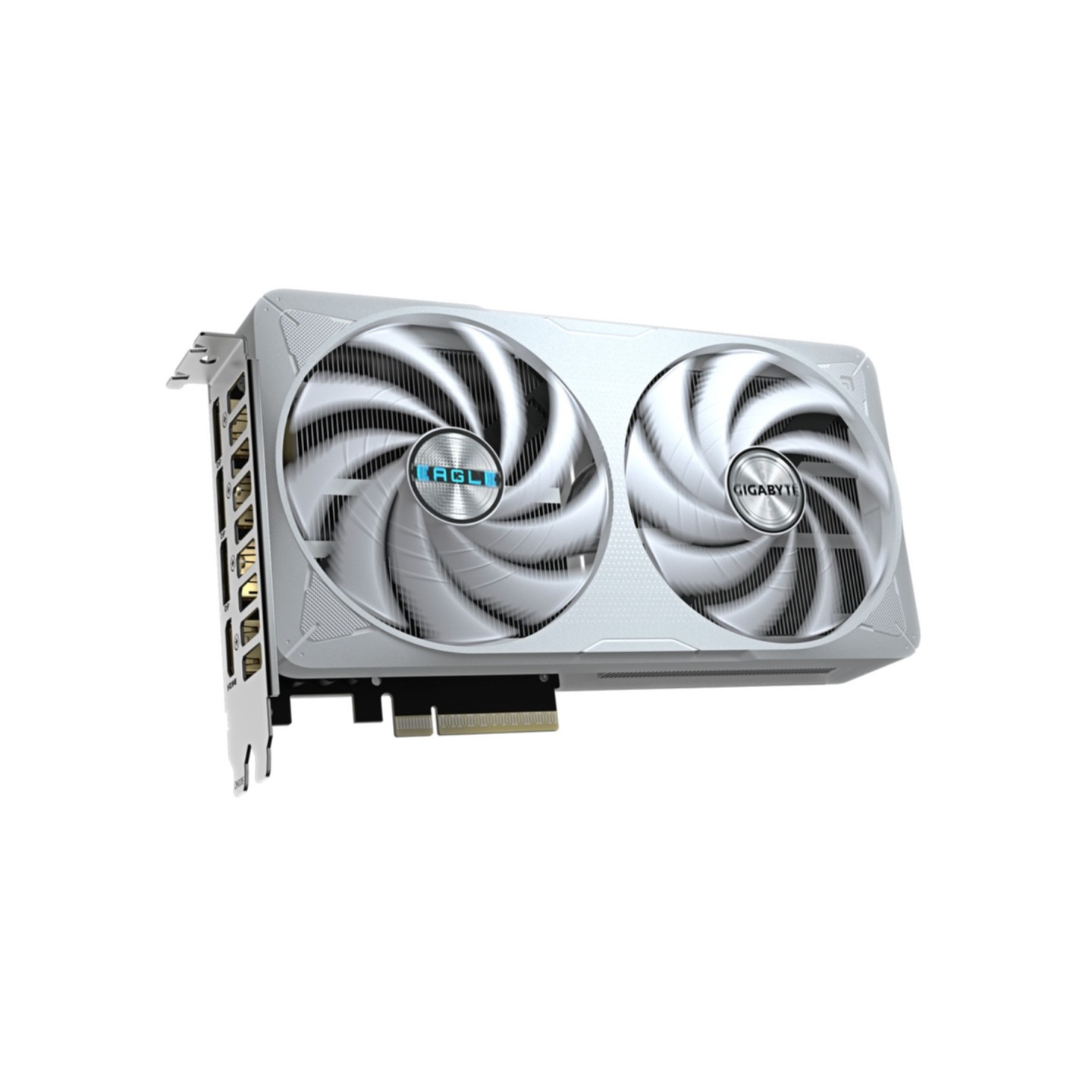

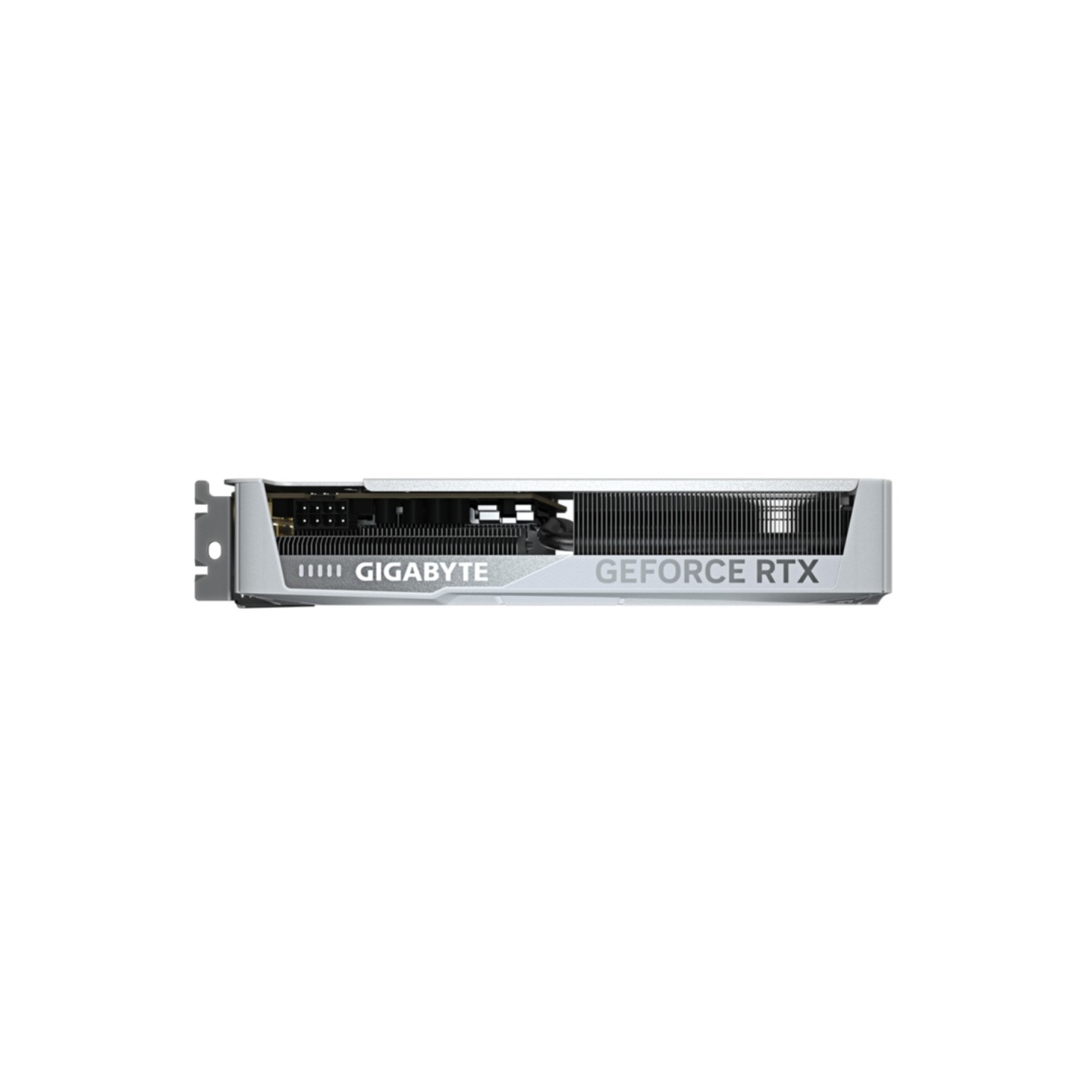

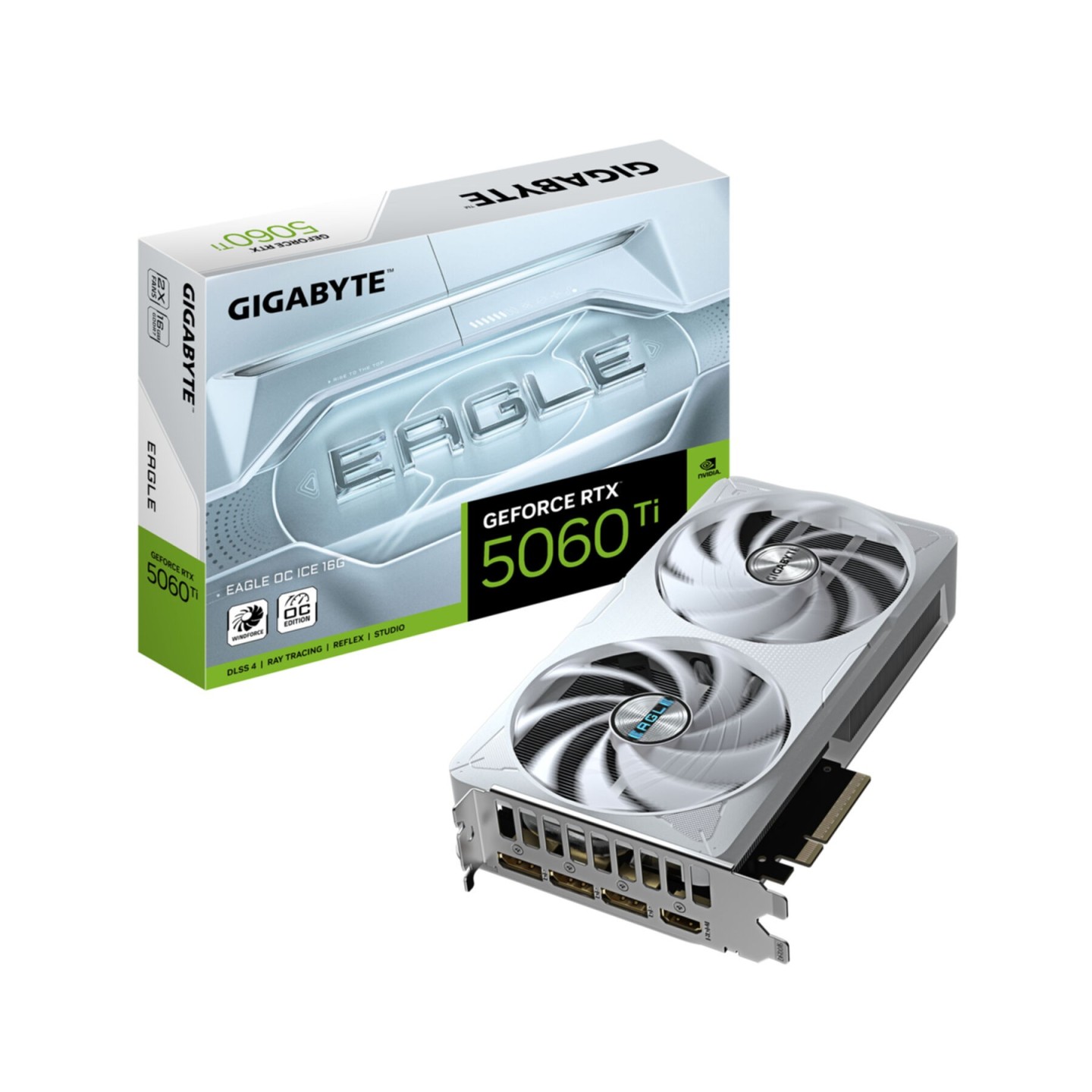

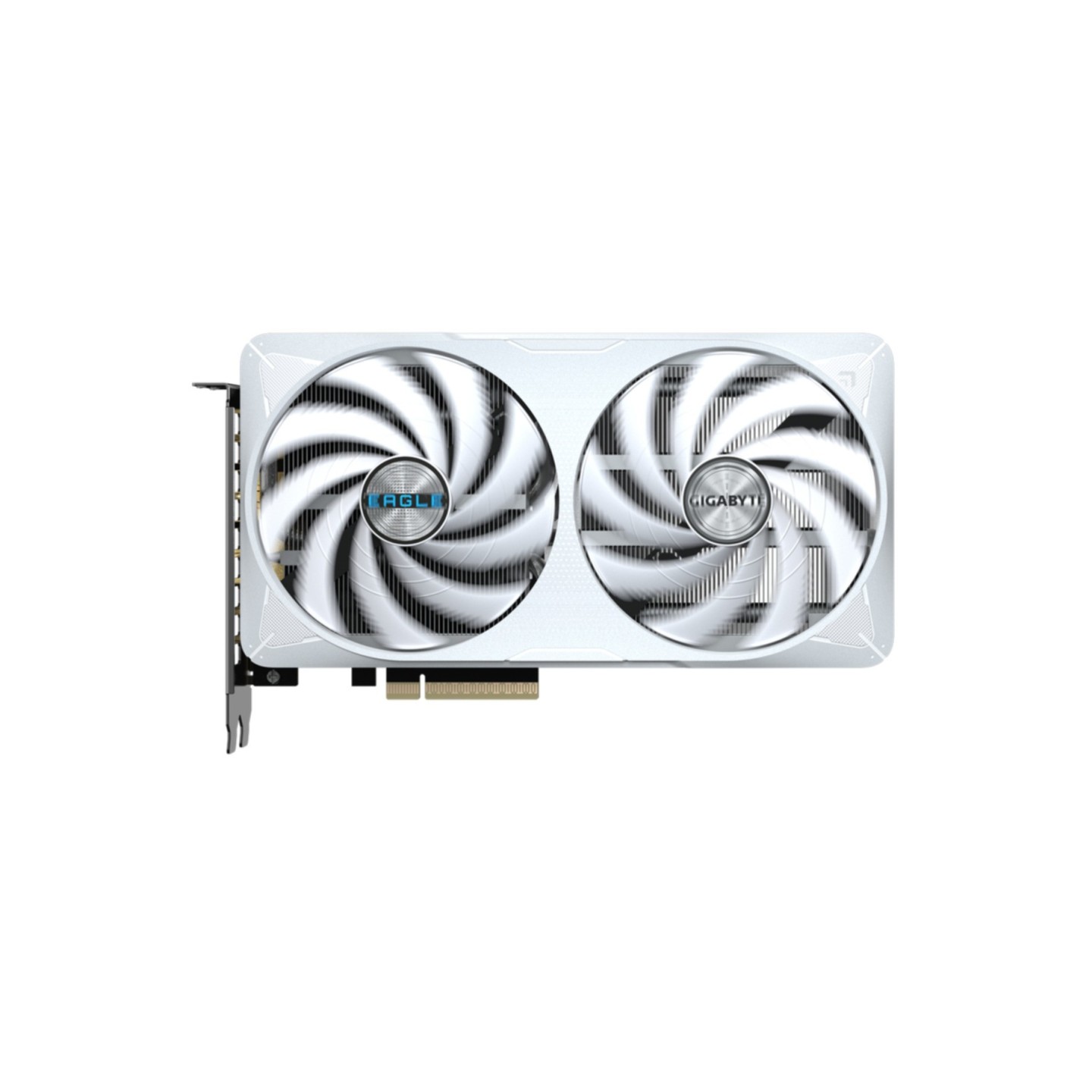

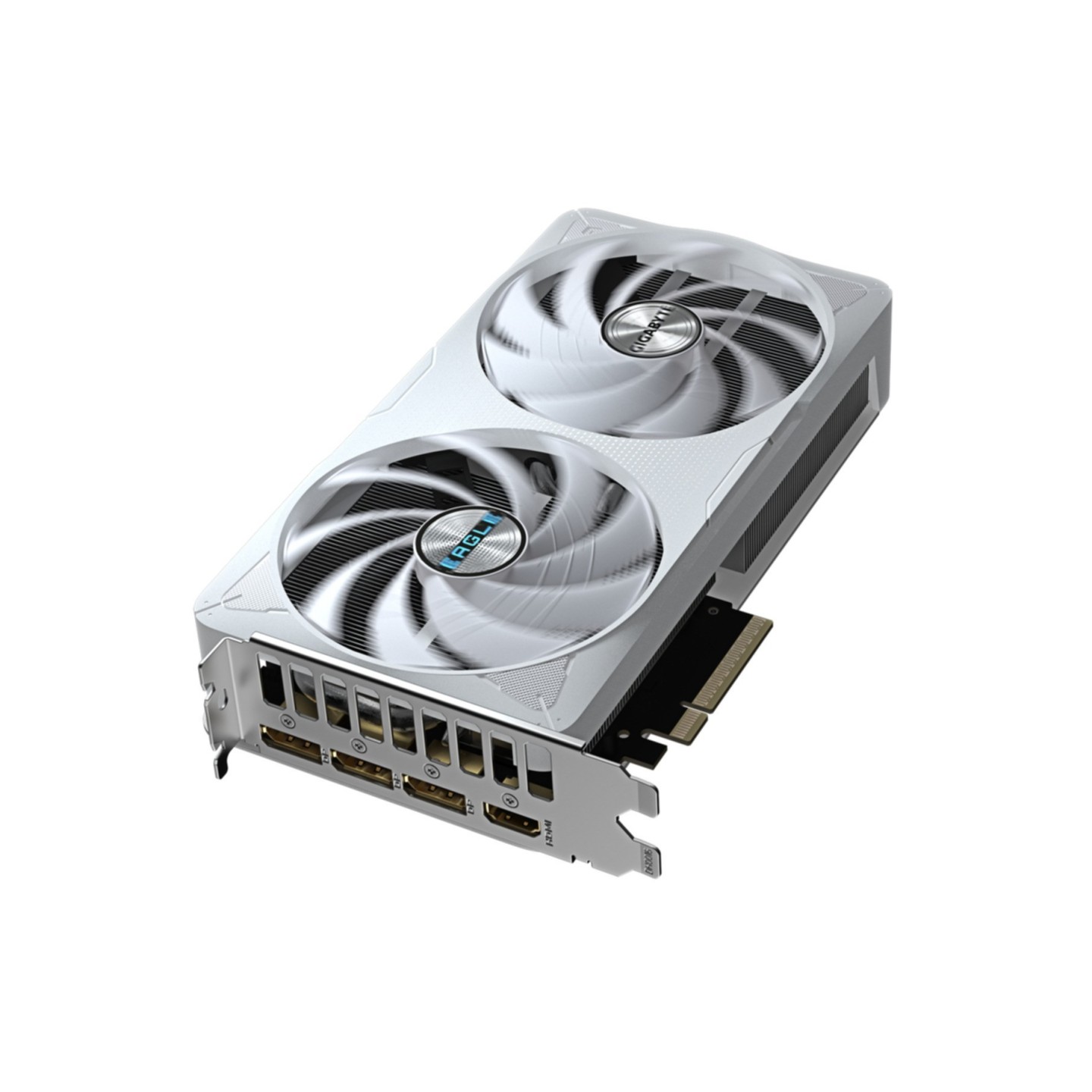

GIGABYTE GeForce RTX 5060 Ti EAGLE OC ICE 16GB - GV-N506TEAGLEOC ICE-16GD (Boxed)
GIGABYTE RTX 5060 Ti EAGLE OC ICE 16GB graphics card with NVIDIA Blackwell architecture, DLSS 4, 16GB GDDR7 memory, PCIe 5.0, WINDFORCE cooling, and 2617MHz boost clock.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| GPU (Graphics Cards) - Series | NVIDIA GeForce RTX |
|---|---|
| GPU (Graphics Cards) - PCIe Interface | PCIe 5.0 x16 |
| GPU (Graphics Cards) - Cooler Type | Dual Fan |
| GPU (Graphics Cards) - Color | White |
| GPU (Graphics Cards) - Backplate | Yes |
| GPU (Graphics Cards) - VRAM Capacity | 16 GB |
| GPU (Graphics Cards) - VRAM Type | GDDR7 |
| GPU (Graphics Cards) - Outputs | DisplayPort 2.1 HDMI 2.1 |
| GPU (Graphics Cards) - Power Connector | 1x8-pin |
| GPU (Graphics Cards) - Card Length | Short (200-220 mm) |
The GIGABYTE GeForce RTX 5060 Ti EAGLE OC ICE 16G is a high-performance graphics card powered by NVIDIA's Blackwell architecture, delivering exceptional gaming and creative performance. This overclocked variant features 16GB of GDDR7 memory on a 128-bit interface, 4608 CUDA cores, and 36 fourth-generation RT Cores for advanced ray tracing capabilities. The card supports NVIDIA DLSS 4 with Multi Frame Generation technology, enabling up to 2x performance improvements while maintaining superior image quality and low latency through NVIDIA Reflex 2 with Frame Warp.
Cooling is handled by the WINDFORCE 2X system featuring dual Hawk fans and server-grade thermal conductive gel, maintaining temperatures around 67°C under full load. The card measures 215mm in length with a compact 2-slot design, making it suitable for most desktop builds including small form factor systems. Connectivity includes 1x HDMI 2.1b and 3x DisplayPort 2.1b outputs supporting up to 7680x4320 resolution. The card operates on PCIe 5.0 x8 and requires a single 8-pin power connector with a 180W TDP, recommending a 650W power supply minimum. The white color variant with reinforced structure and GIGABYTE CONTROL CENTER software provides intuitive real-time clock, voltage, and fan adjustments.
- NVIDIA Blackwell architecture with DLSS 4 and Multi Frame Generation
- 16GB GDDR7 memory with 128-bit interface and 28 GHz effective clock
- 4608 CUDA cores and 36 fourth-generation RT Cores
- WINDFORCE 2X cooling with dual Hawk fans and thermal gel
- PCIe 5.0 x8 interface with 1x 8-pin power connector
- 1x HDMI 2.1b and 3x DisplayPort 2.1b outputs
- Compact 215mm length, 2-slot design for flexible installation
- 180W TDP with 650W recommended PSU
- GIGABYTE CONTROL CENTER software for real-time tuning
| GPU Architecture | NVIDIA Blackwell |
| GPU Model | GeForce RTX 5060 Ti |
| CUDA Cores | 4608 |
| Tensor Cores | 144 |
| RT Cores (Generation 4) | 36 |
| Texture Units | 144 |
| ROPs | 48 |
| Streaming Multiprocessors | 36 |
| Base Clock | 2407 MHz |
| Boost Clock | 2617 MHz |
| Memory Capacity | 16 GB |
| Memory Type | GDDR7 |
| Memory Bus Width | 128-bit |
| Memory Clock Speed | 28000 MHz |
| Memory Data Rate | 28 Gbit/s |
| L2 Cache | 32 MB |
| PCIe Interface | PCIe 5.0 x8 |
| HDMI Ports | 1x HDMI 2.1b |
| DisplayPort Outputs | 3x DisplayPort 2.1b |
| Maximum Resolution | 7680 x 4320 pixels |
| Maximum Displays | 4 |
| DirectX Support | 12.0 |
| OpenGL Support | 4.6 |
| Cooling System | WINDFORCE 2X with dual Hawk fans |
| Thermal Solution | Server-grade thermal conductive gel |
| Number of Fans | 2 |
| Card Length | 215 mm |
| Card Height | 122 mm |
| Card Depth | 40 mm |
| Slot Configuration | 2-slot |
| Form Factor | Full-Height/Half-Length (FH/HL) |
| Power Connectors | 1x 8-pin PCIe |
| TDP | 180 W |
| Recommended PSU | 650 W |
| Color | White |
| Backplate | Yes |
| Card Weight | 600 g |
| Package Dimensions | 330 x 235 x 57 mm |
| Package Weight | 960 g |
| DLSS Support | DLSS 4 with Multi Frame Generation |
| NVIDIA Reflex | Reflex 2 with Frame Warp |
| Software | GIGABYTE CONTROL CENTER |
| Warranty | 3 years |
