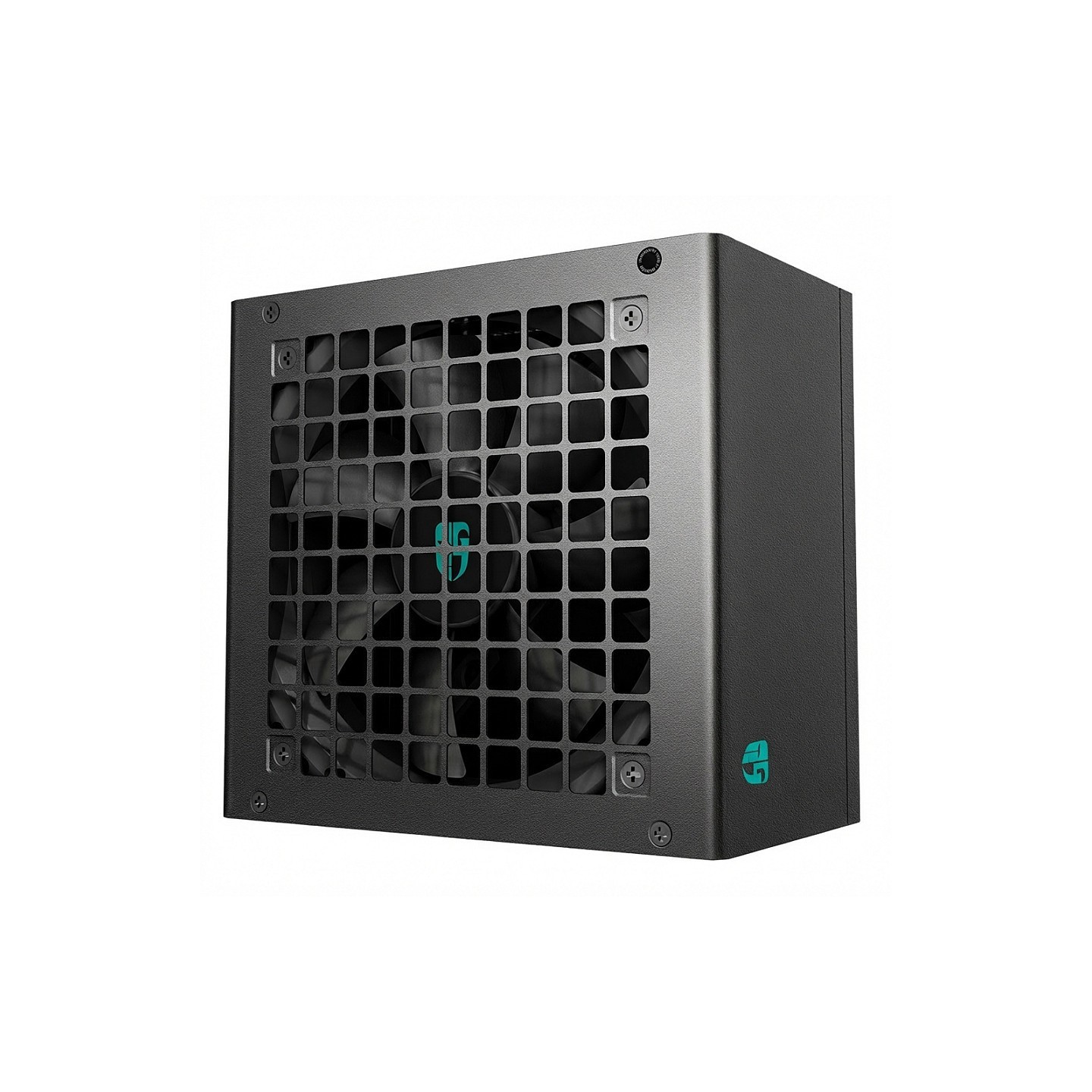

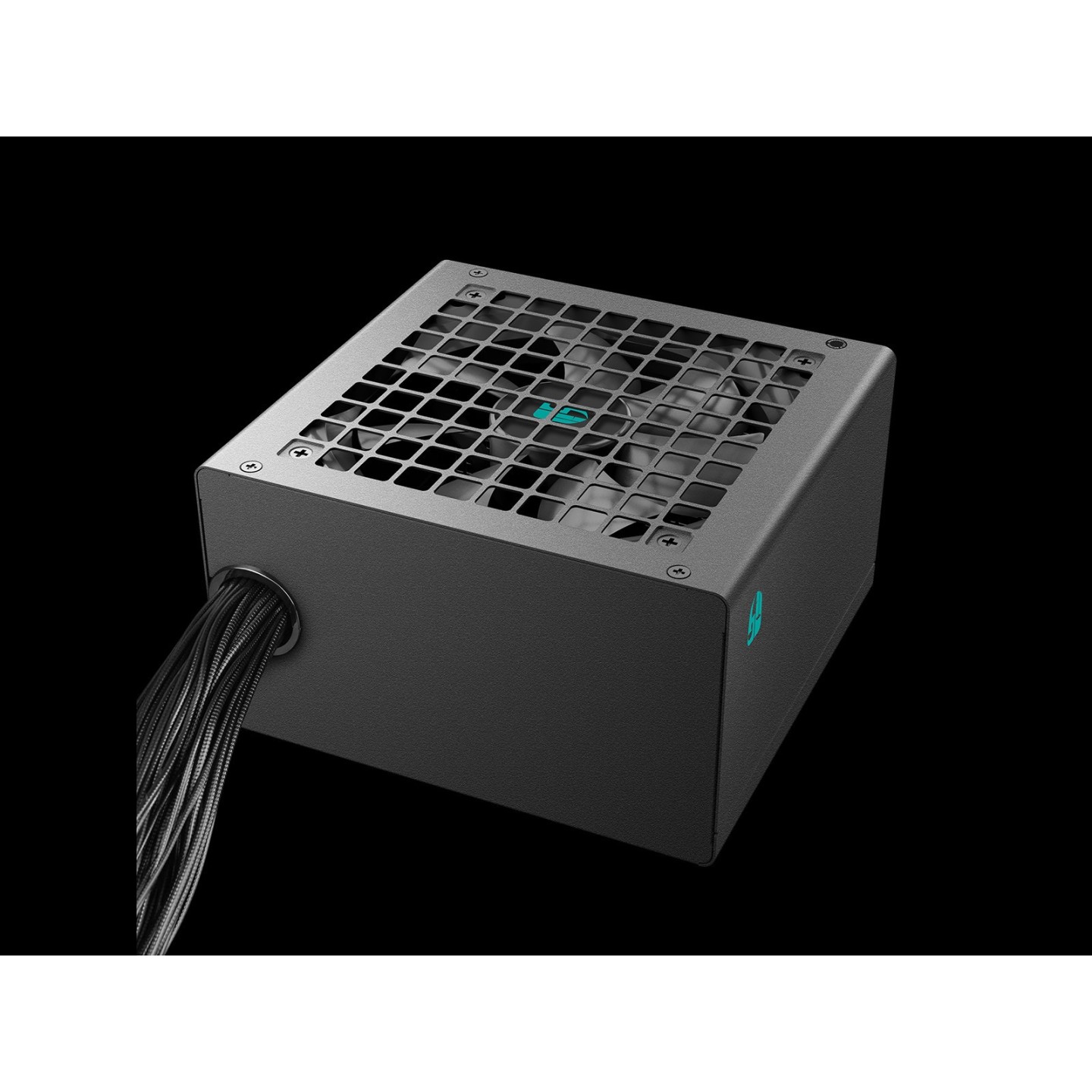

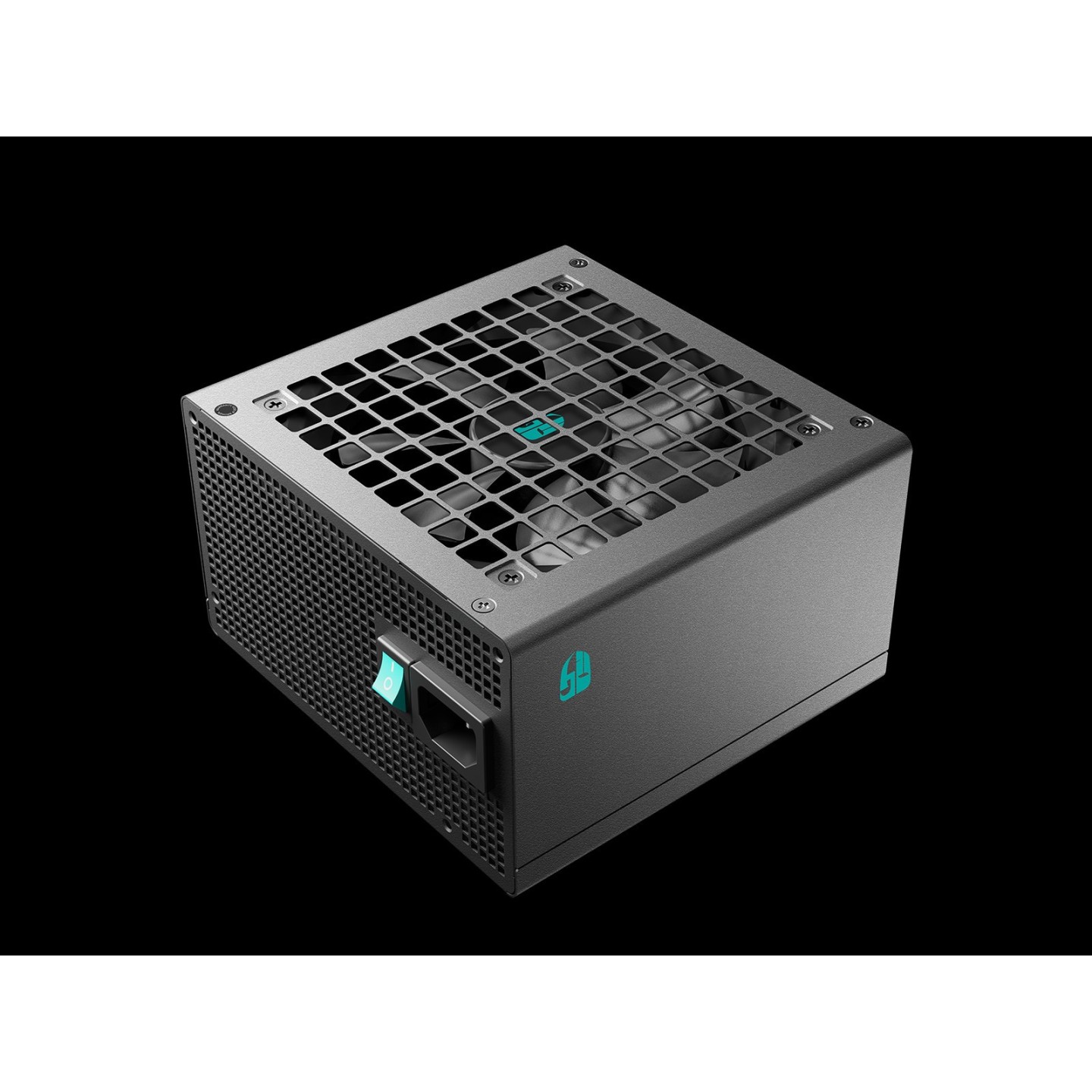

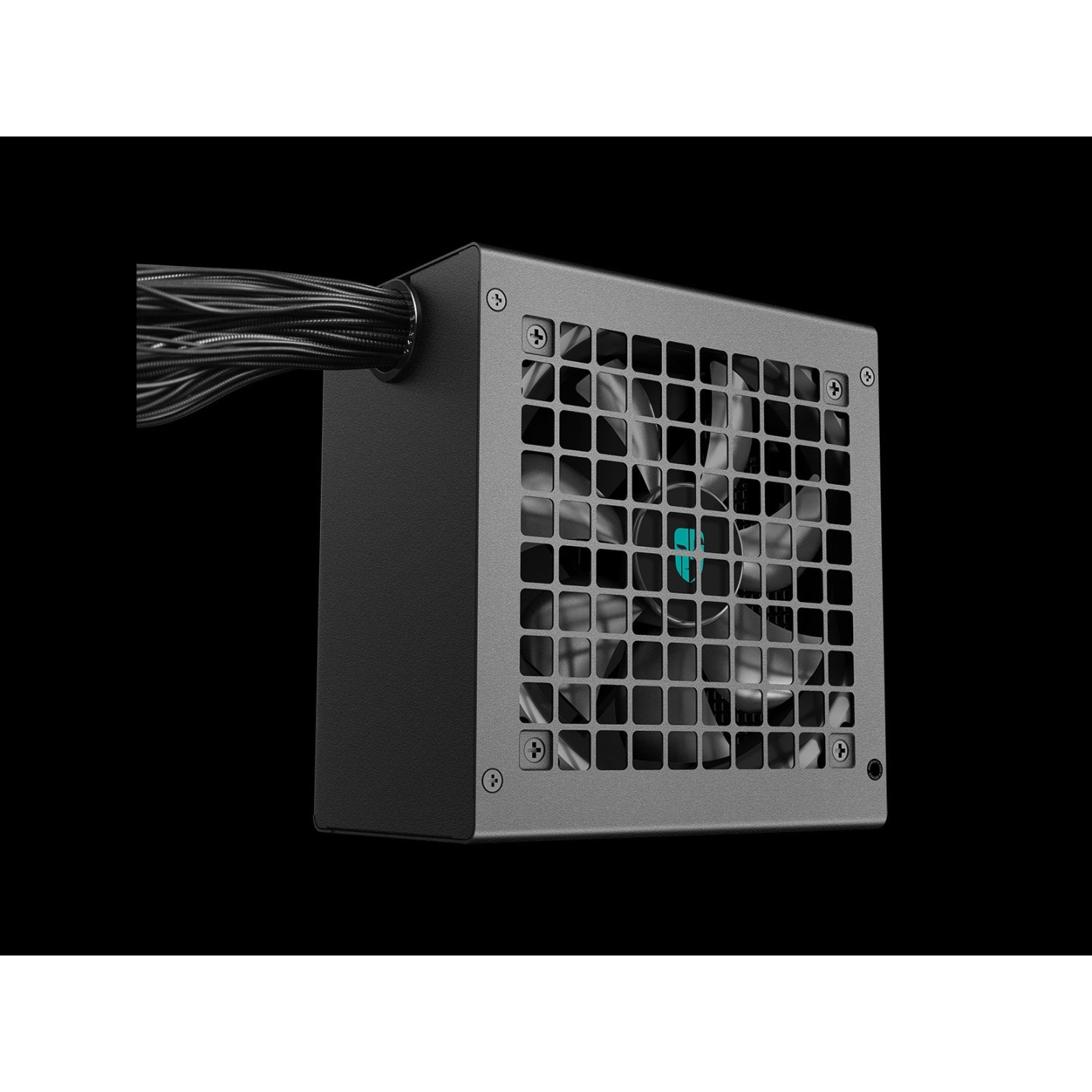

Deepcool Gamer Storm PF700X 700W 80 PLUS Bronze ATX Power Supply (Boxed)
Deepcool Gamer Storm PF700X delivers 700W of reliable power with 80 PLUS Bronze efficiency certification. Features Active PFC, DC-to-DC topology, 120mm long-life fan, and comprehensive protection circuits for stable PC operation.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| PSU (Power Supplies) - Wattage | 700 - 799 W |
|---|---|
| PSU (Power Supplies) - Efficiency Rating | 80 Plus Bronze Cybenetics Bronze |
| PSU (Power Supplies) - Color | Black |
| PSU (Power Supplies) - Modularity | Non-modular |
| PSU (Power Supplies) - PCIe GPU Connectors | 2x 8/6 pins |
| PSU (Power Supplies) - Length | Up to 140 mm |
| PSU (Power Supplies) - EPS CPU Connectors | 1x 4+4pin EPS/ATX12V |
The Deepcool Gamer Storm PF700X is a 700W ATX power supply designed for reliable and stable PC power delivery. With 80 PLUS Bronze certification, it achieves ≥88% efficiency under typical 50% load conditions, helping reduce energy consumption and heat generation. The unit features Active PFC (Power Factor Correction) and DC-to-DC topology for optimized power distribution across multiple voltage rails.

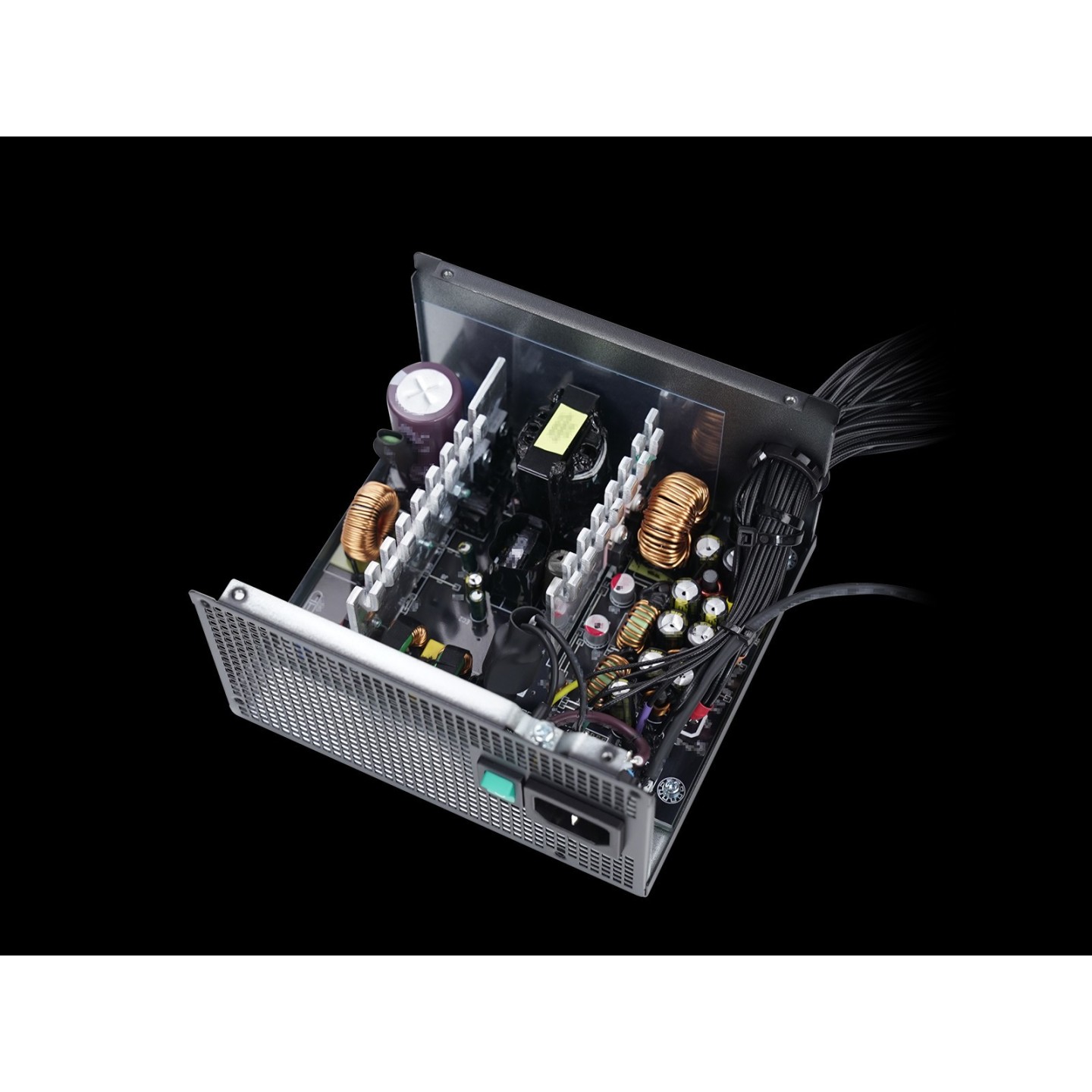

Built with high-quality components including Taiwanese and Japanese electrolytic capacitors, the PF700X incorporates a 120mm long-life HYB bearing fan that extends operational life by 30% compared to standard fans and supports continuous 24/7 operation in 40°C environments. The power supply includes comprehensive protection mechanisms: Over-Power Protection (OPP), Over-Voltage Protection (OVP), Over-Current Protection (OCP), Short-Circuit Protection (SCP), Over-Temperature Protection (OTP), Under-Voltage Protection (UVP), Surge & Inrush Protection (SIP), and No-Load Operation (NLO). With an MTBF rating of 40,000 hours and ATX12V V2.52 compliance, this non-modular PSU is ideal for budget-conscious builders seeking dependable power for mid-range gaming and productivity systems.
- 700W total output with 80 PLUS Bronze efficiency rating
- Active PFC and DC-to-DC converter topology
- 120mm long-life HYB bearing fan for extended durability
- Multiple protection circuits (OPP, OVP, OCP, SCP, OTP, UVP, SIP, NLO)
- Supports up to 58.3A on +12V rail for GPU and CPU power
- Non-modular cable design with standard ATX connectors
- 40,000 hours MTBF with 3-year warranty
| Type | ATX12V V2.52 |
| Total Output | 700W |
| AC Input Voltage | 200-240V |
| AC Input Frequency | 50-60Hz |
| AC Input Current | 5A |
| Efficiency Certification | 80 PLUS Bronze / CYBENETICS Bronze |
| Efficiency at 50% Load | ≥88% |
| Power Good Signal | 100-150ms |
| Hold Up Time | ≥16ms (75% Load) |
| +3.3V Output (Max) | 110W / 18A |
| +5V Output (Max) | 110W / 18A |
| +12V Output (Max) | 699.6W / 58.3A |
| -12V Output (Max) | 3.6W / 0.3A |
| +5VSB Output (Max) | 15W / 3A |
| Protection Features | OPP, OVP, OCP, SCP, OTP, UVP, SIP, NLO |

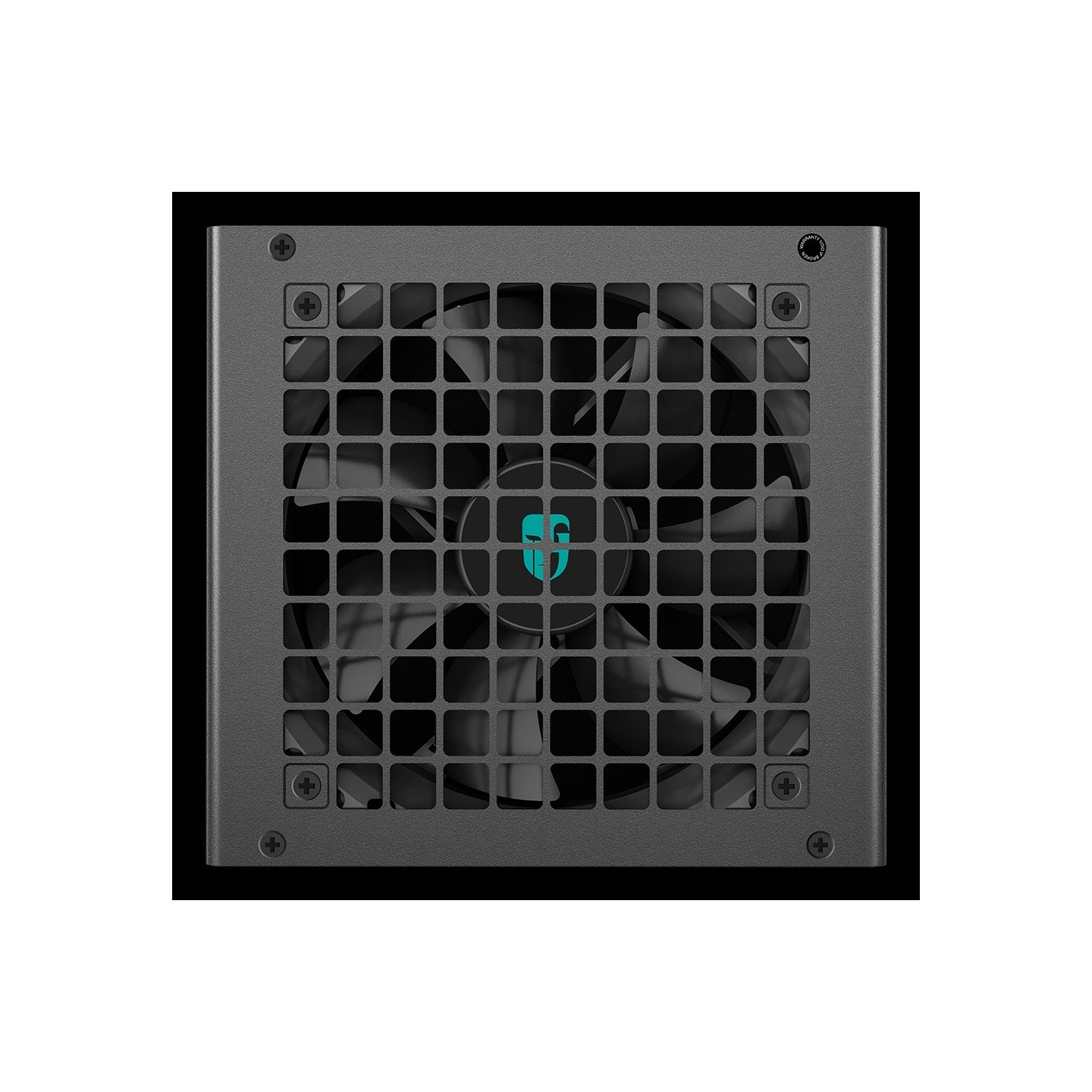

| Fan Size | 120mm |
| Fan Bearing Type | Longlife HYB |
| Fan Placement | Top |
| Topology | Active PFC + DC-to-DC |
| Capacitors | Taiwanese + Japanese Electrolytic |
| Cable Type | Non-modular |
| Motherboard Connector | 20+4 pin ATX |
| CPU Power Connector | 1x 4+4 pin EPS/ATX12V |
| PCIe GPU Connectors | 2x 6+2 pin |
| SATA Connectors | 3x SATA |
| Molex Connectors | 1x 4-pin |
| Motherboard Cable Length | 55cm |
| CPU Cable Length | 62cm |
| PCIe Cable Length | 55cm |
| SATA Cable Length | 450/600/750mm |
| Molex Cable Length | 900mm |
| Operating Temperature | 0-40°C |
| MTBF | 40,000 hours |
| Dimensions (Unit) | 150 × 140 × 86mm (W × L × H) |
| Color | Black |
| Cooling Type | Active |
| Regulatory Certifications | CE, TÜV-RH, CCC, RCM, KC |
| Environmental Standards | WEEE, RoHS, Triman, ErP 2014 |
| Warranty | 3 years |
