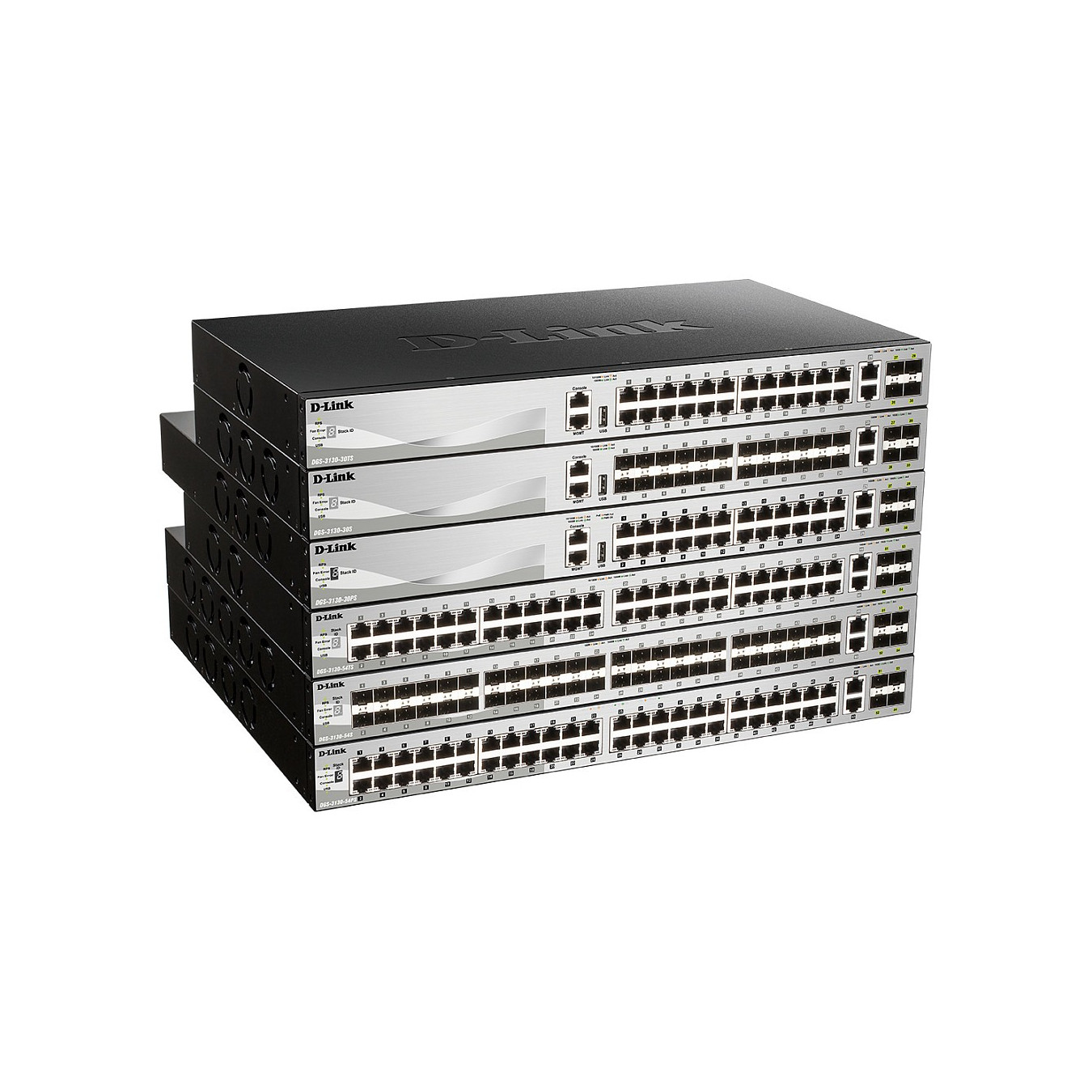

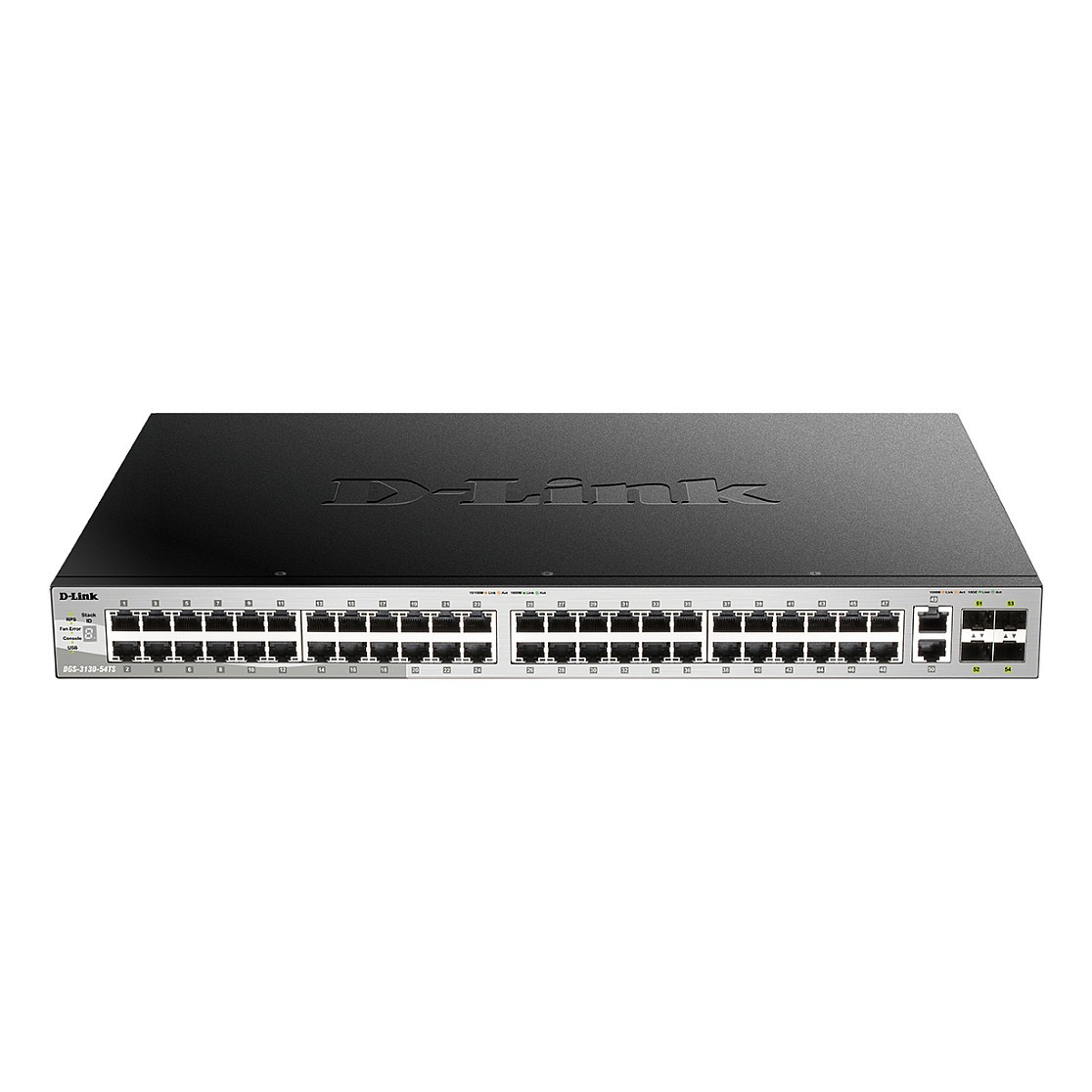

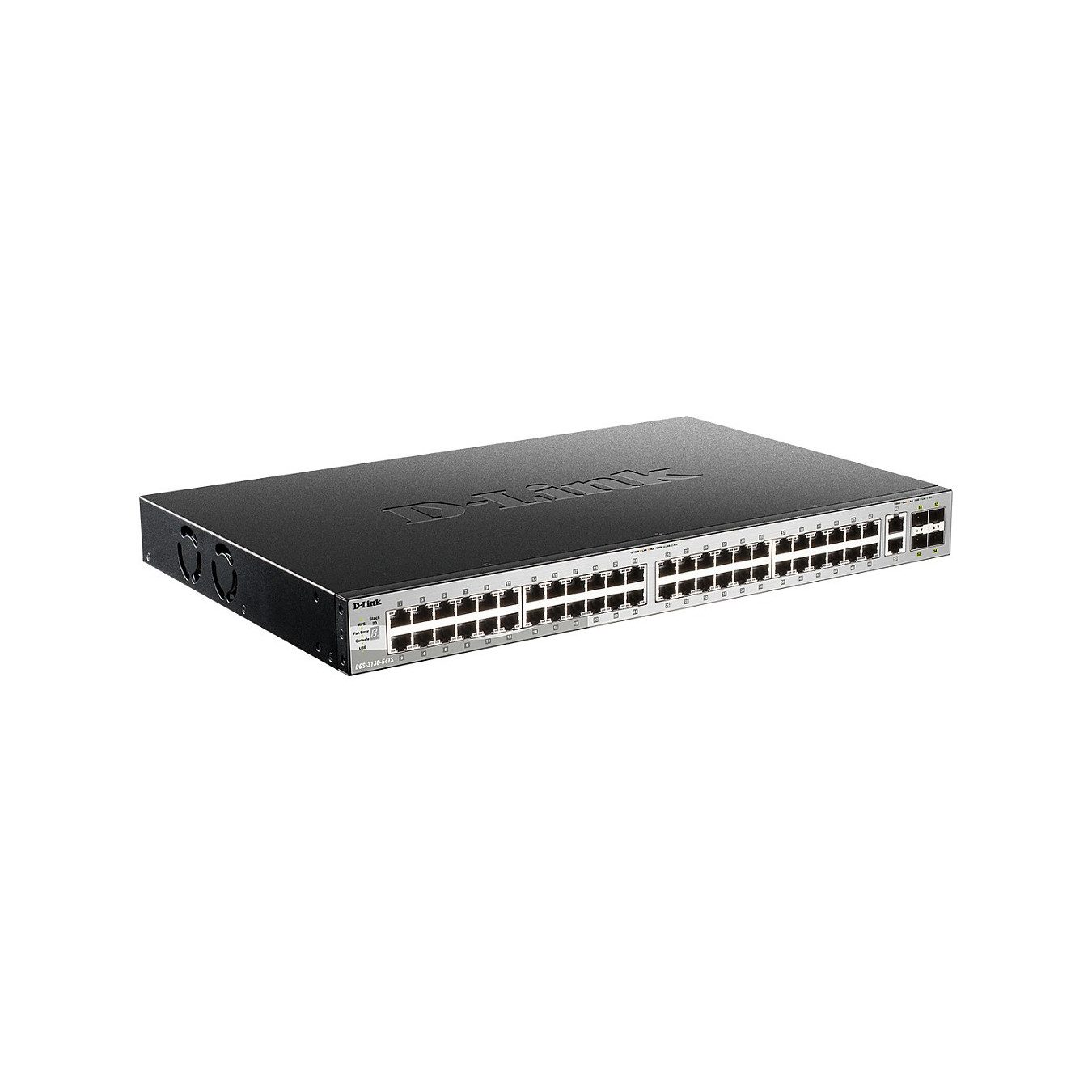

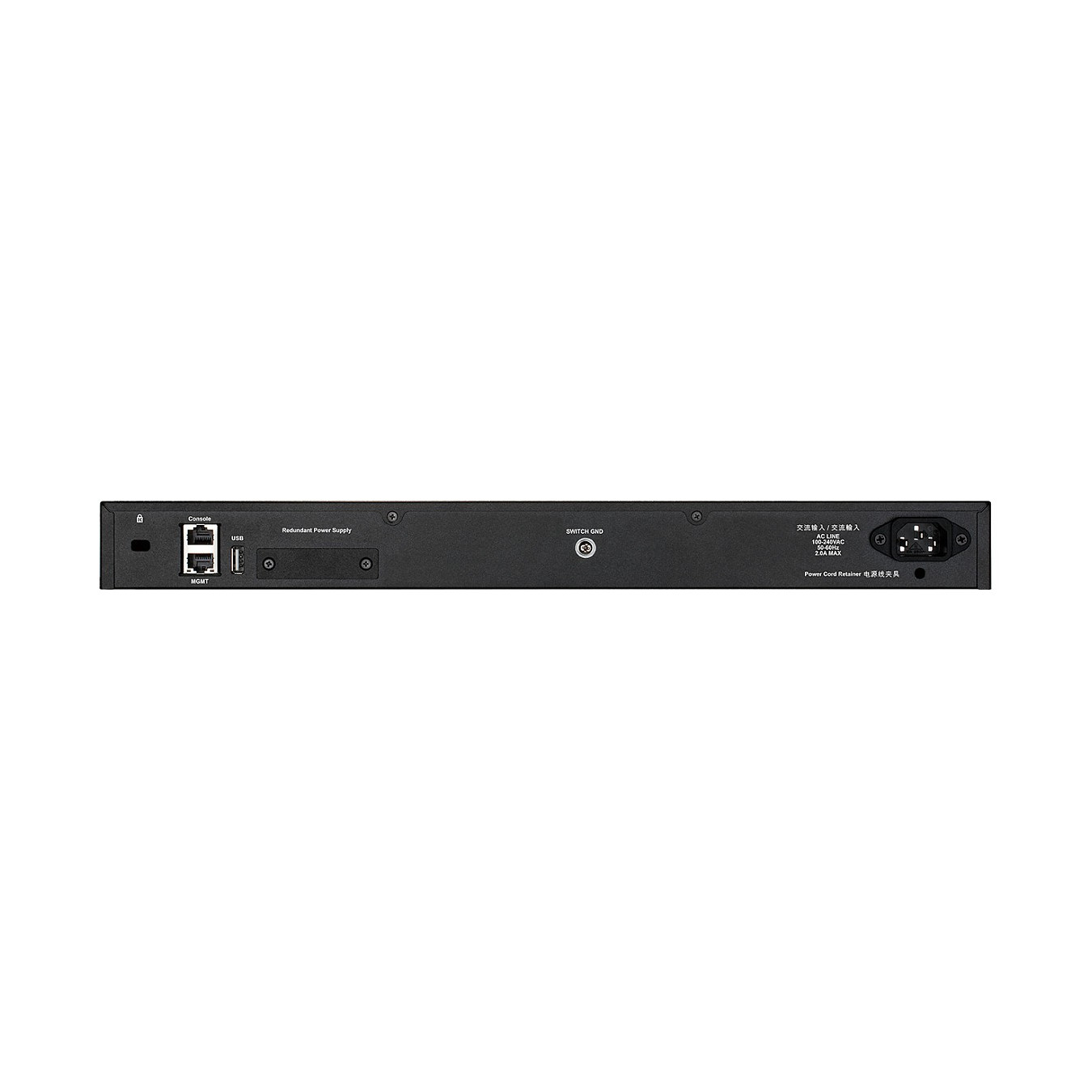

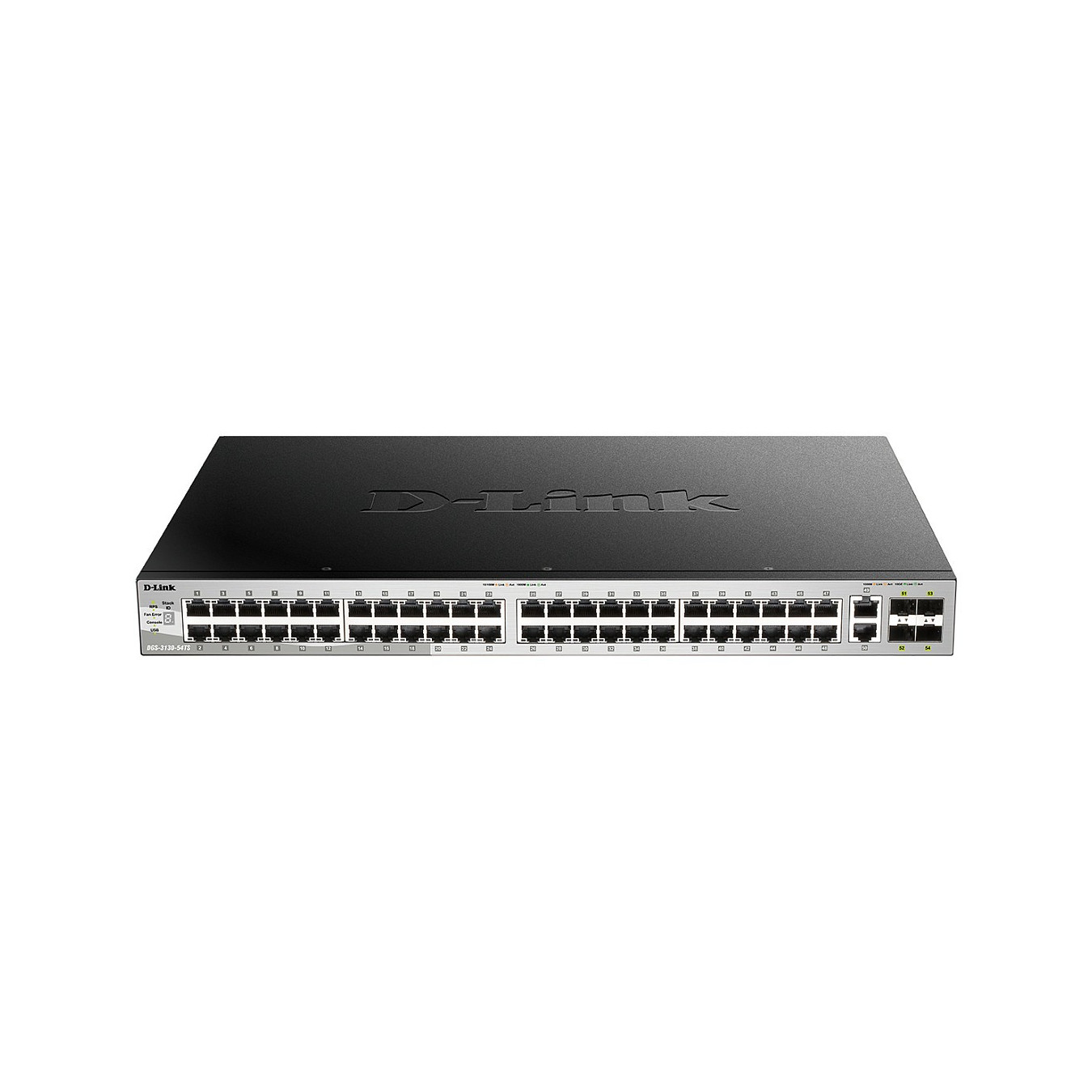

D-Link DGS-3130-54TS E 54-Port L2+ Gigabit Stack Switch
D-Link DGS-3130-54TS/E. Managed. L3. Gigabit Ethernet (10/100/1000). Rack-Einbau
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
D-Link DGS-3130-54TS/E. Switch-Typ: Managed. Switch-Ebene: L3. Basic Switching RJ-45 Ethernet Ports-Typ: Gigabit Ethernet (10/100/1000). Anzahl der basisschaltenden RJ-45 Ethernet Ports: 48. Anzahl USB 2.0 Anschlüsse: 1. MAC-Adressentabelle: 16384 Eintragungen. Routing-/Switching-Kapazität: 216 Gbit/s. Netzstandard: IEEE 802.1D. IEEE 802.1Q. IEEE 802.1p. IEEE 802.1s. IEEE 802.1v. IEEE 802.1w. IEEE 802.1x. IEEE.... Netzstecker: AC-Eingangsbuchse. Rack-Einbau
| Switch-Typ | Managed |
| Switch-Ebene | L3 |
| Feature | Unterstützung für redundantes Netzteil |
| Anzahl der basisschaltenden RJ-45 Ethernet Ports | 48 |
| Basic Switching RJ-45 Ethernet Ports-Typ | Gigabit Ethernet (10/100/1000) |
| Menge Modul-Steckplätze SFP+ | 4 |
| Optischer Kabelverbinder | SFP+ |
| Anzahl USB 2.0 Anschlüsse | 1 |
| Netzstecker | AC-Eingangsbuchse |
| Netzstandard | IEEE 802.1D. IEEE 802.1Q. IEEE 802.1p. IEEE 802.1s. IEEE 802.1v. IEEE 802.1w. IEEE 802.1x. IEEE 802.3ad. IEEE 802.3ah. IEEE 802.3az. IEEE 802.3x |
| Kupfer Ethernet Verkabelungstechnologie | 10BASE-T. 10GBASE-T. 100BASE-T. 1000BASE-T |
| Virtuelle LAN-Funktionen | MAC address-based VLAN. Port-based VLAN. Private VLAN. Tagged VLAN. Voice VLAN |
| Anzahl der VLANs | 4000 |
| Routing-/Switching-Kapazität | 216 Gbit/s |
| Transferrate | 161 Mpps |
| MAC-Adressentabelle | 16384 Eintragungen |
| Anzahl Queues | 8 |
| Datenpaket-Pufferspeicher | 4 MB |
| DHCP-Funktionen | DHCP client. DHCP relay. DHCP server. DHCP snooping |
| Zugriffskontrollliste (ACL) Ausgang | 512 |
| Zugriffskontrollliste (ACL) Eingang | 2048 |
| Unterstützte Sicherheitsalgorithmen | SNMP. SNMPv3. SSL/TLS |
| Authentifizierung | Gast VLAN. MAC-basierte Authentifizierung. Port-basierte Authentifizierung |
| Warteschleifenplanungs-Algorithmen | Deficit weighted round robin (DWRR). SP. WRR+SP. Weighted Round Robin (WRR) |
| Multicast-Funktionen | Steuerbarer Multicast |
| Router Protokoll | RIP |
| Produktfarbe | Grau |
| Anzahl Lüfter | 2 Lüfter |
| Physisches Stacking (Einheiten) | 9 |
| Virtuelles Stacking (Einheiten) | 32 |
| Geräuschpegel | 48.6 dB |
| Mittlere Betriebsdauer zwischen Ausfällen (MTBF) | 273037 h |
| Energiequelle | AC |
| AC Eingangsspannung | 100 - 240 V |
| AC Eingangsfrequenz | 50 - 60 Hz |
| Stromverbrauch (max.) | 46.19 W |
| Betriebstemperatur | 0 - 50 °C |
| Temperaturbereich bei Lagerung | -40 - 70 °C |
| Relative Luftfeuchtigkeit in Betrieb | 10 - 90% |
| Luftfeuchtigkeit bei Lagerung | 5 - 90% |
| Wärmeableitung | 157.6 BTU/h |
| Breite | 440 mm |
| Tiefe | 310 mm |
| Höhe | 44 mm |
| Gewicht | 4.2 kg |
| Zertifizierung | FCC A. CE A. VCCI A. IC. RCM. BSMI. CCC |
