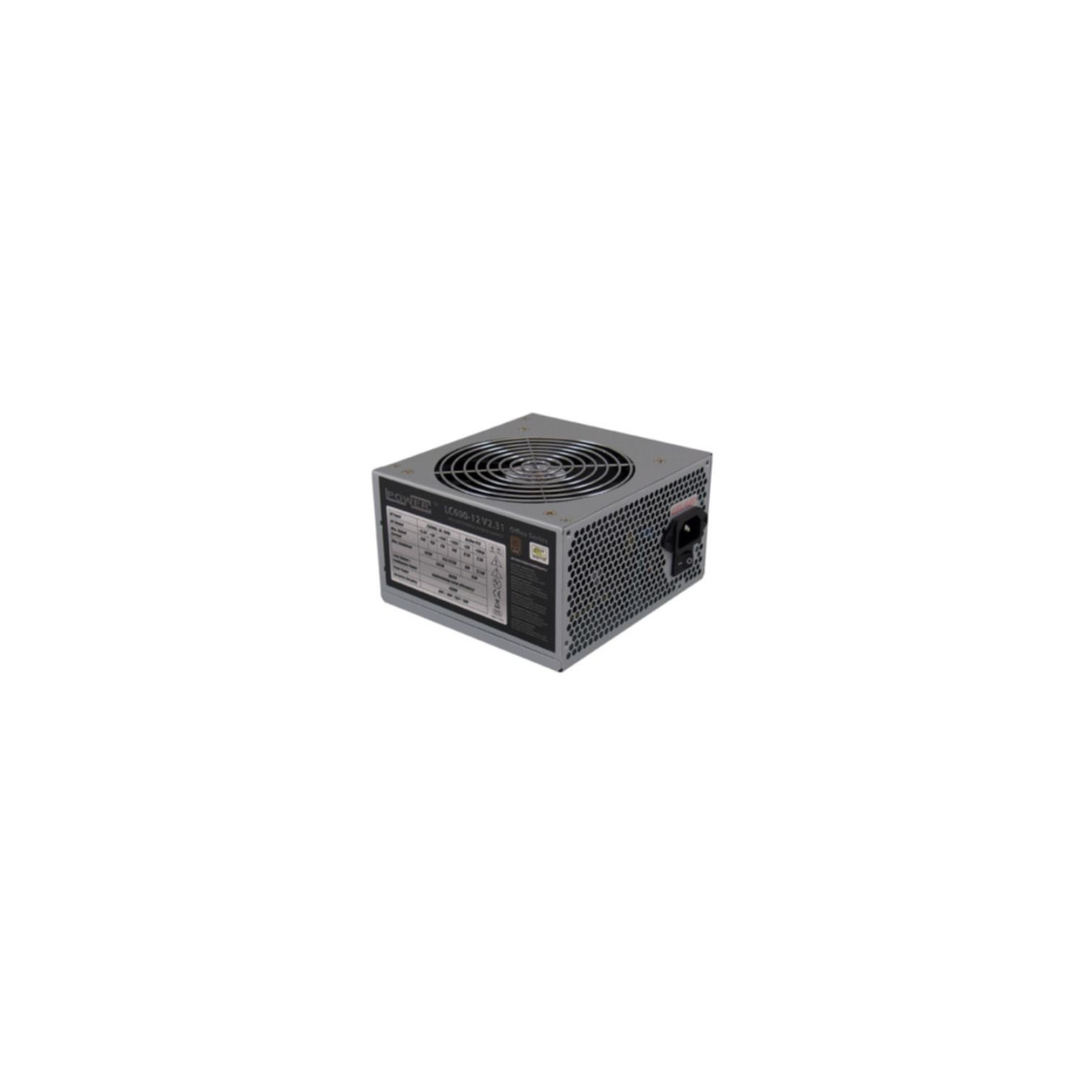

LC-Power Office Series LC600-12 V2.31 - 450W 80 PLUS Bronze ATX PSU, Non-Modular, Black
450W ATX PSU (LC600-12 V2.31) — 80 PLUS Bronze, non-modular, 120mm fan, ATX 20+4 & 4+4 CPU, 1x PCIe 6+2 + 1x PCIe 6, 6x SATA, Active PFC.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
| PSU (Power Supplies) - Wattage | 450 W |
|---|---|
| PSU (Power Supplies) - Efficiency Rating | 80+ Bronze |
| PSU (Power Supplies) - ATX Standard | ATX 2.x |
| PSU (Power Supplies) - Modularity | Non-modular |
| PSU (Power Supplies) - EPS CPU Connectors | 1x8-pin |
| PSU (Power Supplies) - Fan Size | 120 mm |
- 450W max. / peak
- 80 PLUS BRONZE 230V EU certified
- Efficiency up to 89,14%
- Standby consumption: 0,16W
- 120mm fan
- 1x PCI-Express 6 pin, 1x PCI-Express 6+2 pin
- Incl. Active PFC (power factor correction for an efficient use of the spent energy) and all relevant safety circuitry
| Total power | 450 W |
| AC input voltage | 230 V |
| Power Factor Correction (PFC) type | Active |
| Max output current (+3.3V) | 24 A |
| Max output current (+12V1) | 17 A |
| Max output current (+12V2) | 14 A |
| Max output current (+5V) | 15 A |
| Efficiency | 89.14% |
| Power protection features | Over power, Over voltage, Short circuit, Under voltage |
| Motherboard power connector | 20+4 pin ATX |
| Number of SATA power connectors | 6 |
| Number of PATA power connectors | 3 |
| PCI Express power connectors (6-pin) | 1 |
| PCI Express power connectors (6+2 pin) | 1 |
| CPU power connector (4+4 pin) | Yes |
| ATX power connector (20+4 pin) | Yes |
| Cabling type | Non-Modular |
| 80 PLUS certification | 80 PLUS Bronze |
| Purpose | PC |
| Power supply unit (PSU) form factor | ATX |
| ATX version | 2.31 |
| Product colour | Black, Grey |
| Cooling type | Active |
| Fan diameter | 12 cm |
| Number of fans | 1 fan(s) |
| Fan location | Side |
| On/off switch | Yes |
| Certification | TÜV, CE |
| Width | 150 mm |
| Depth | 140 mm |
| Height | 85 mm |
| Weight | 1.44 kg |
