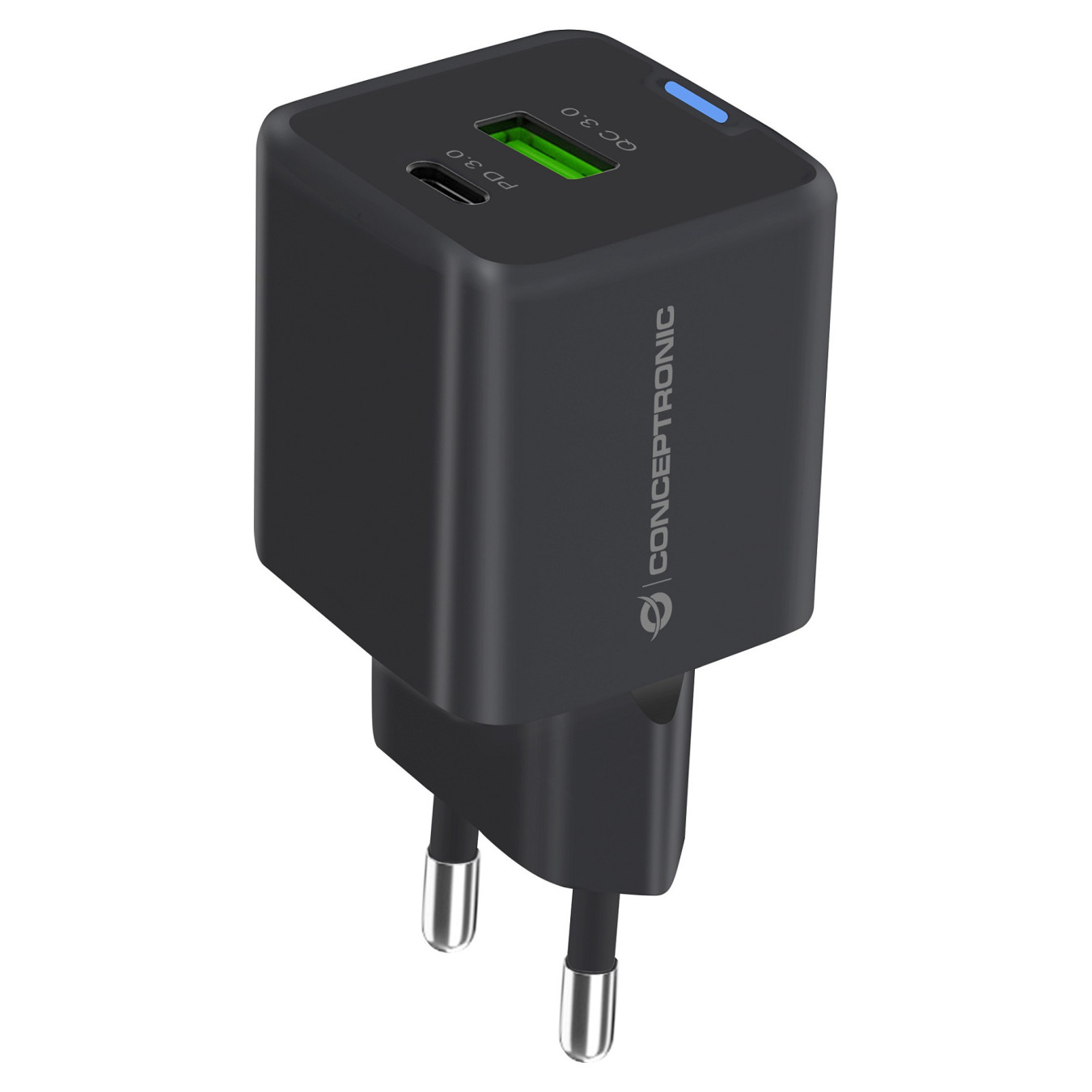

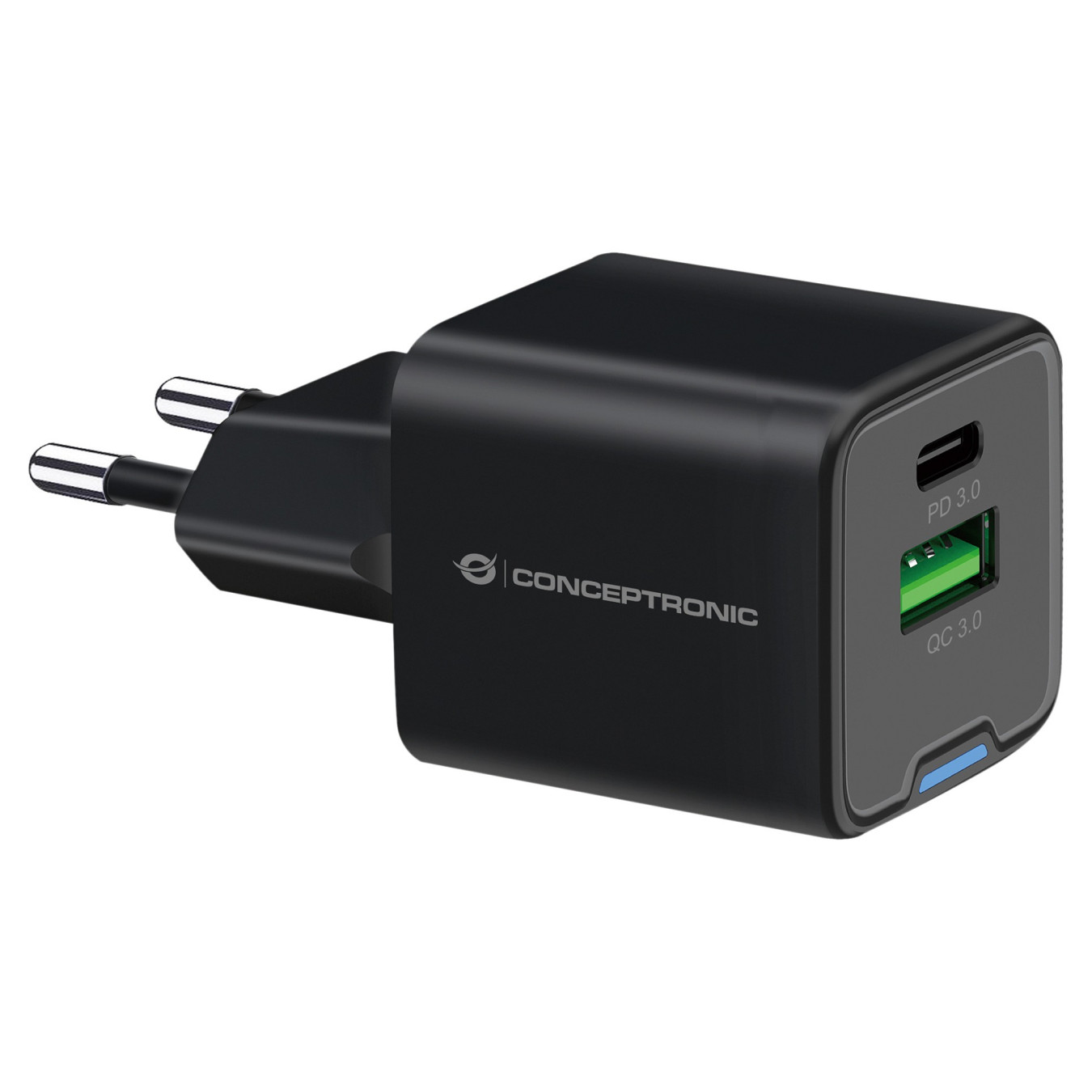

CONCEPTRONIC Ladegerät 2Port GaN USB-C -A 20WPD3.0 PPS sw
Conceptronic 2-Port 20W GaN USB-PD-Ladegerät. USB-C x 1. USB-A x 1. QC 3.0. PPS. Drinnen. AC. 12 V. Schwarz
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
Conceptronic 2-Port 20W GaN USB-PD-Ladegerät. USB-C x 1. USB-A x 1. QC 3.0. PPS. Aufladetyp: Drinnen. Energiequelle: AC. Aufladekompatibilität: Universal. Eingangsspannung: 100 - 240 V. Maximale Ausgangsspannung: 12 V. USB Typ-C Anzahl Anschlüsse: 1. Schnellladung. Energieschutzeigenschaften: Überhitzung. Überlastschutz. Kurzschluß. Produktfarbe: Schwarz
| Aufladekompatibilität | Universal |
| Energiequelle | AC |
| USB 3.2 Gen 1 (3.1 Gen 1) Anzahl der Anschlüsse vom Typ A | 1 |
| USB Typ-C Anzahl Anschlüsse | 1 |
| Feature | Nachhaltigkeitskonformität |
| Schnellladetechnik | Power Delivery. Quick Charge 3.0 |
| Aufladetyp | Drinnen |
| Anzahl simultan anschließbarer Geräte (max) | 2 |
| Energieschutzeigenschaften | Überhitzung. Überlastschutz. Kurzschluß |
| Produktfarbe | Schwarz |
| Eingangsspannung | 100 - 240 V |
| Eingangsfrequenz | 50 - 60 Hz |
| Eingangsstrom | 0.5 A |
| Max. Leistung | 20 W |
| Maximale Ausgangsspannung | 12 V |
| Minimale Ausgangsspannung | 3.3 V |
| Ausgangsstrom (5V) | 3 A |
| Ausgangsstrom (9V) | 2.22 A |
| Ausgangsstrom (12V) | 1.67 A |
| Breite | 35 mm |
| Tiefe | 72 mm |
| Höhe | 34 mm |
| Gewicht | 50 g |
| Verpackungsbreite | 54 mm |
| Verpackungstiefe | 172 mm |
| Verpackungshöhe | 37 mm |
| Paketgewicht | 37 g |
| Verpackungsart | Box |
| Betriebstemperatur | 0 - 40 °C |
| Temperaturbereich bei Lagerung | -20 - 80 °C |
| Relative Luftfeuchtigkeit in Betrieb | 5 - 95% |
| Konformitätsbescheinigungen | CE. REACH. RoHS |
| Nachhaltigkeitszertifikate | ErP |
| Warentarifnummer (HS) | 8504408390 |
| Palettenbreite (brutto) | 120 cm |
| Palettenlänge (brutto) | 80 cm |
| Palettenhöhe (brutto) | 180 cm |
| Breite des Versandkartons | 450 mm |
| Länge des Versandkartons | 450 mm |
| Höhe des Versandkartons | 380 mm |
| Gewicht Versandkarton | 6.8 kg |
| Anzahl Produkte pro Versandkarton | 100 Stück(e) |
| Ursprungsland | China |
