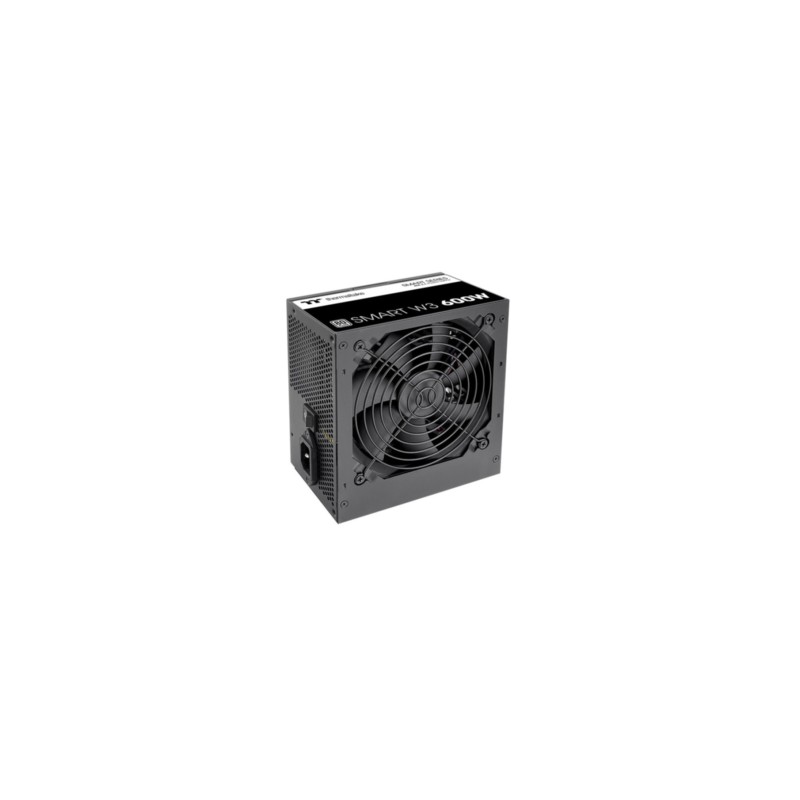

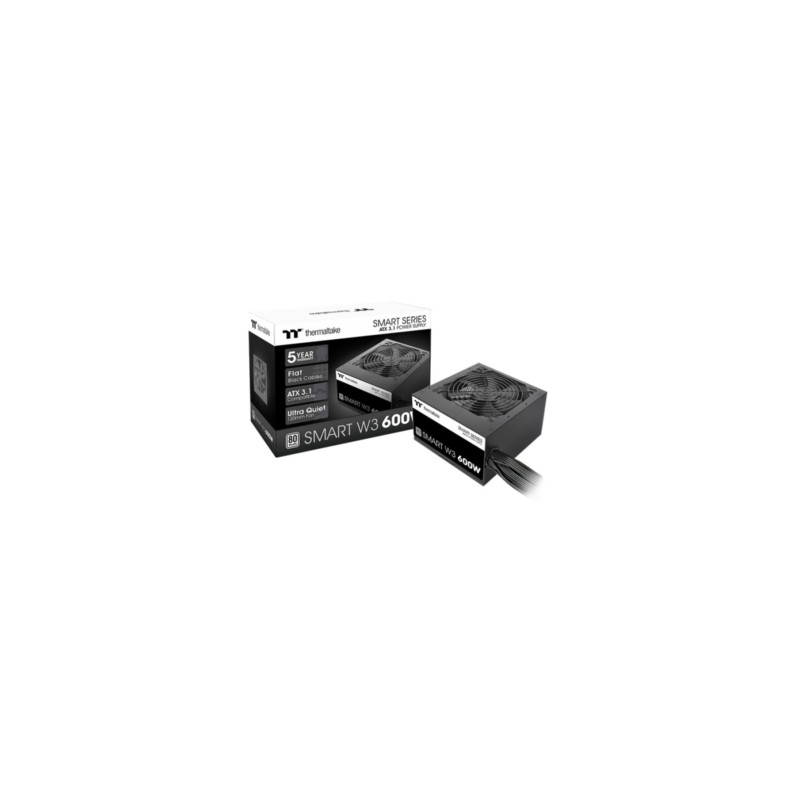

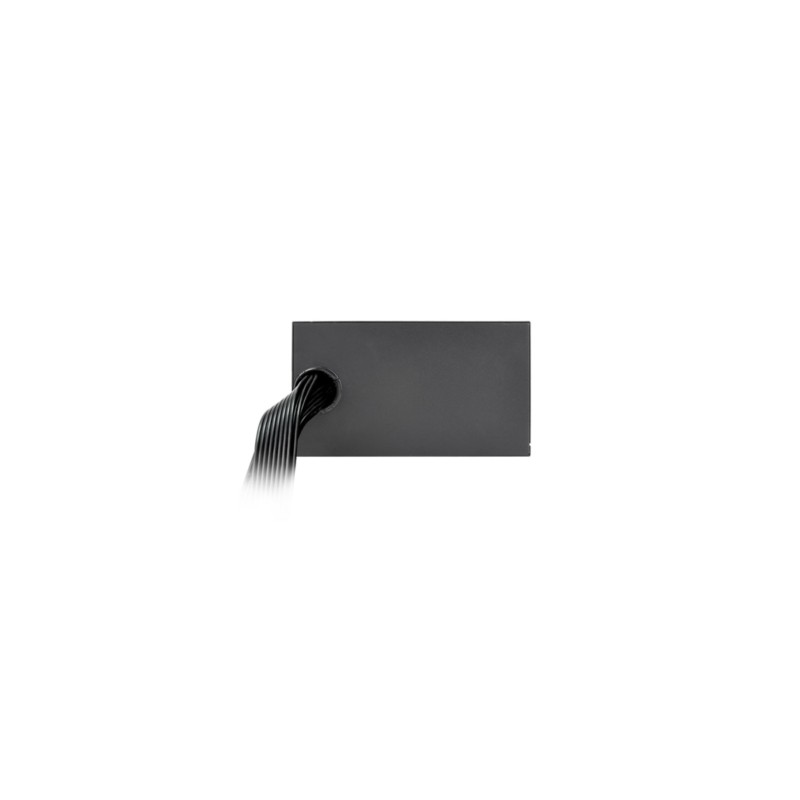

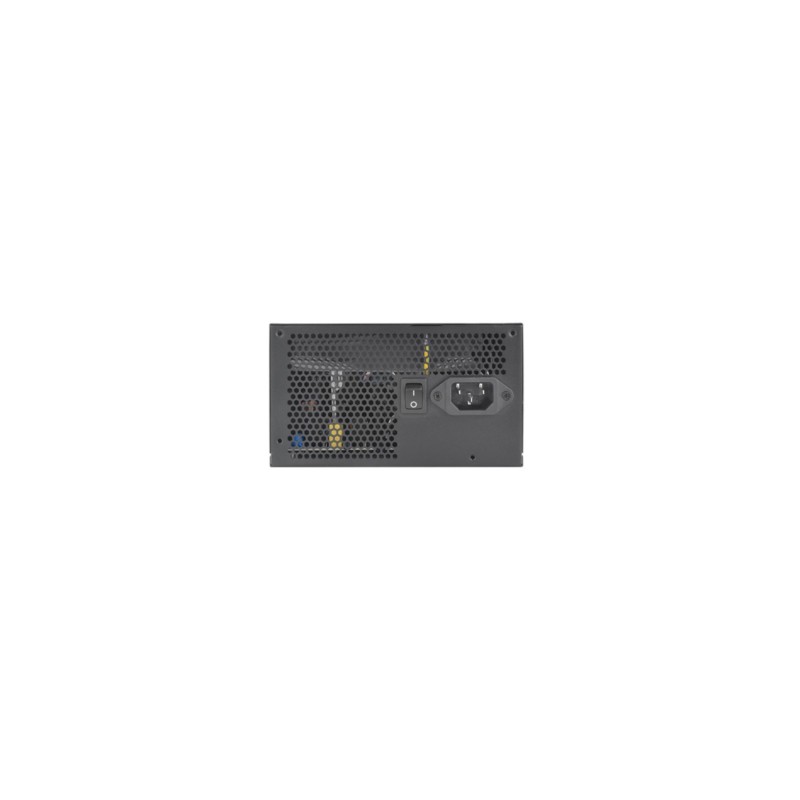

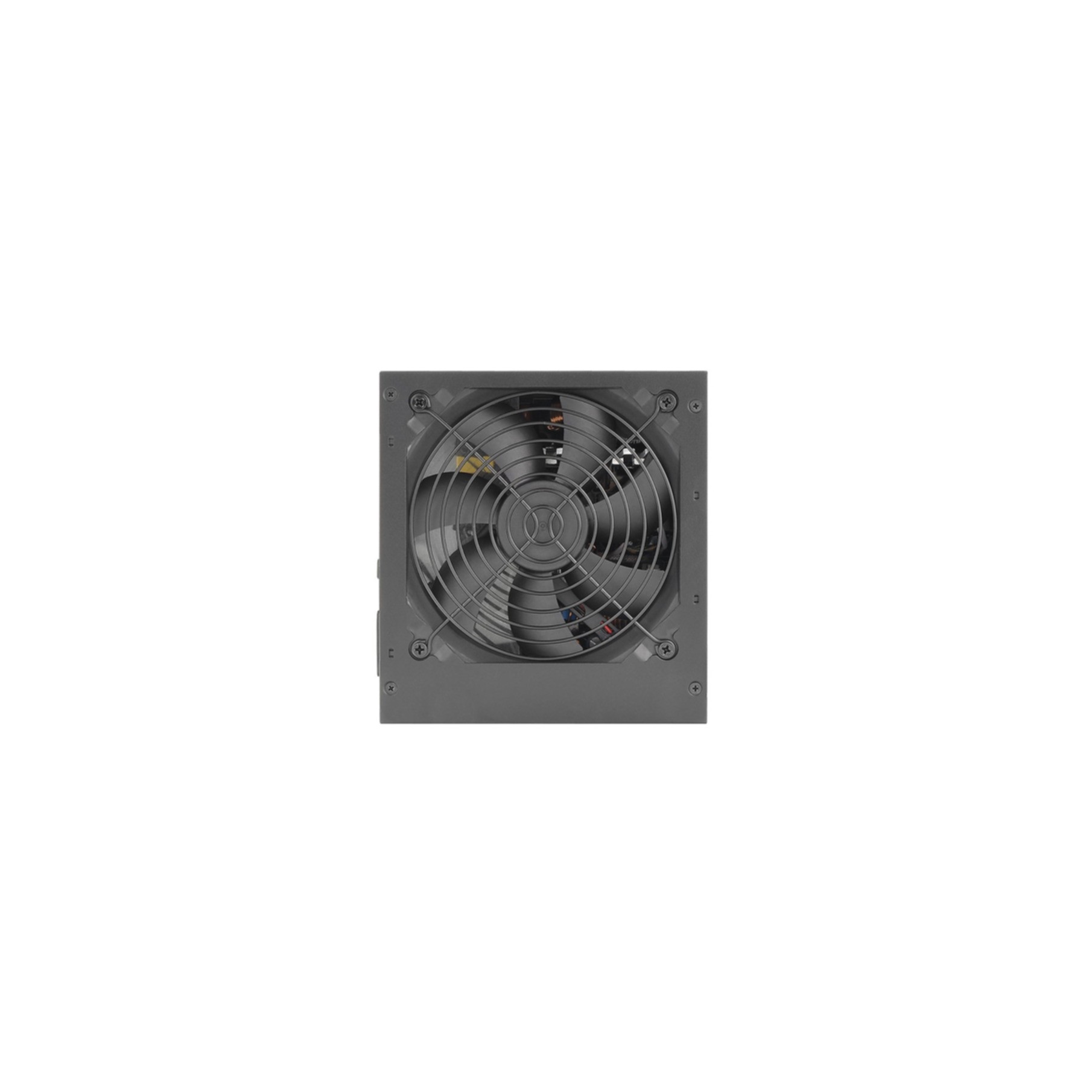

Thermaltake Smart W3 600W Power Supply - ATX 3.1, Non-Modular, Black
600W Thermaltake Smart W3 ATX 3.1 PSU — Non-modular, 80 PLUS certified, 2x 6+2 PCIe, EPS 4+4, 4x SATA, 4x Molex, 24-pin ATX, 120mm FDB fan, active PFC.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| PSU (Power Supplies) - ATX Standard | ATX 3.1 |
|---|---|
| PSU (Power Supplies) - Modularity | Non-modular |
| PSU (Power Supplies) - PCIe GPU Connectors | 2x8-pin |
| PSU (Power Supplies) - EPS CPU Connectors | 1x8-pin |
| PSU (Power Supplies) - Fan Size | 120 mm |
| PSU (Power Supplies) - Length | less than or equal to140 mm |
Thermaltake Smart W3. Total power: 600 W. AC input voltage: 100 - 240 V. AC input frequency: 50/60 Hz. Motherboard power connector: 24-pin ATX. Motherboard power cable length: 60 cm. SATA power cable length: 500.650.800.950 mm. Purpose: PC. Power supply unit (PSU) form factor: ATX. 80 PLUS certification: 80 PLUS. Product colour: Black. Fan diameter: 12 cm. Number of fans: 1 fan(s). Certification: CB/FCC/cTUVus/ICES
| Total power | 600 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Input current | 12 - 5 A |
| Power Factor Correction (PFC) type | Active |
| Combined power (+3.3V) | 105 W |
| Combined power (+12V) | 600 W |
| Combined power (+5V) | 105 W |
| Combined power (-12V) | 3.6 W |
| Combined power (+5Vsb) | 15 W |
| Max output current (+3.3V) | 16 A |
| Max output current (+12V) | 50 A |
| Max output current (+5V) | 16 A |
| Max output current (-12V) | 0.3 A |
| Max output current (+5Vsb) | 3 A |
| Hold time | 17 ms |
| Power protection features | Over current. Over power. Over voltage. Overheating. Short circuit. Under voltage |
| Motherboard power connector | 24-pin ATX |
| Motherboard power cable length | 60 cm |
| Number of SATA power connectors | 4 |
| SATA power cable length | 500.650.800.950 mm |
| Peripheral (Molex) power connectors (4-pin) | 4 |
| Peripheral (Molex) power cable length | 500.650.800.950 mm |
| Feature | On/off switch |
| PCI Express power connectors (6+2 pin) | 2 |
| PCI Express power cable length | 65 cm |
| Cabling type | Non-Modular |
| 80 PLUS certification | 80 PLUS |
| Purpose | PC |
| Power supply unit (PSU) form factor | ATX |
| ATX version | 3.1 |
| Bearing technology | FDB |
| Mean time between failures (MTBF) | 100000 h |
| Product colour | Black |
| Fan diameter | 12 cm |
| Number of fans | 1 fan(s) |
| Operating temperature (T-T) | 5 - 40 °C |
| Storage temperature (T-T) | -40 - 55 °C |
| Operating relative humidity (H-H) | 20 - 85% |
| Storage relative humidity (H-H) | 10 - 95% |
| Certification | CB/FCC/cTUVus/ICES |
| Width | 150 mm |
| Depth | 140 mm |
| Height | 86 mm |
| Package type | Box |
