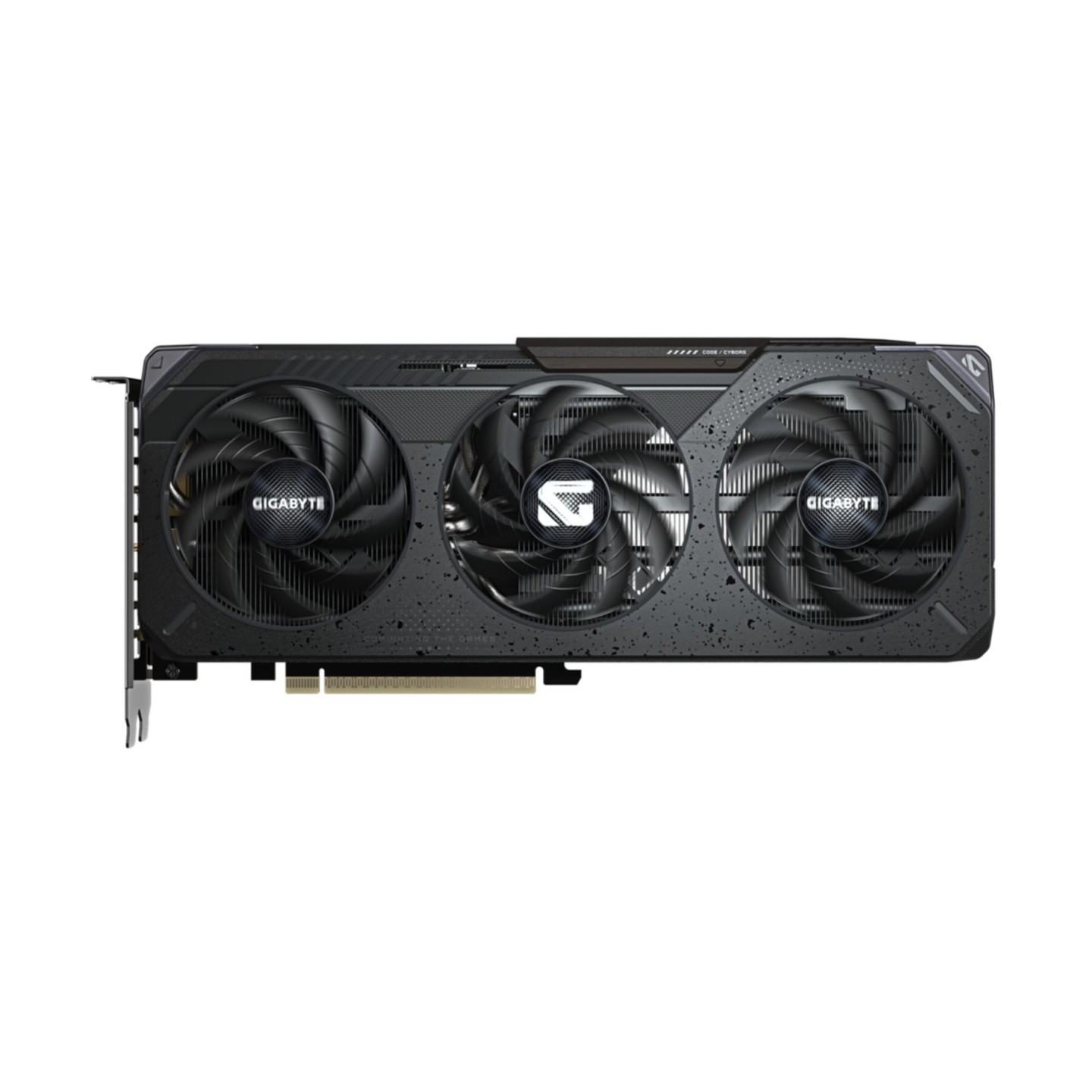

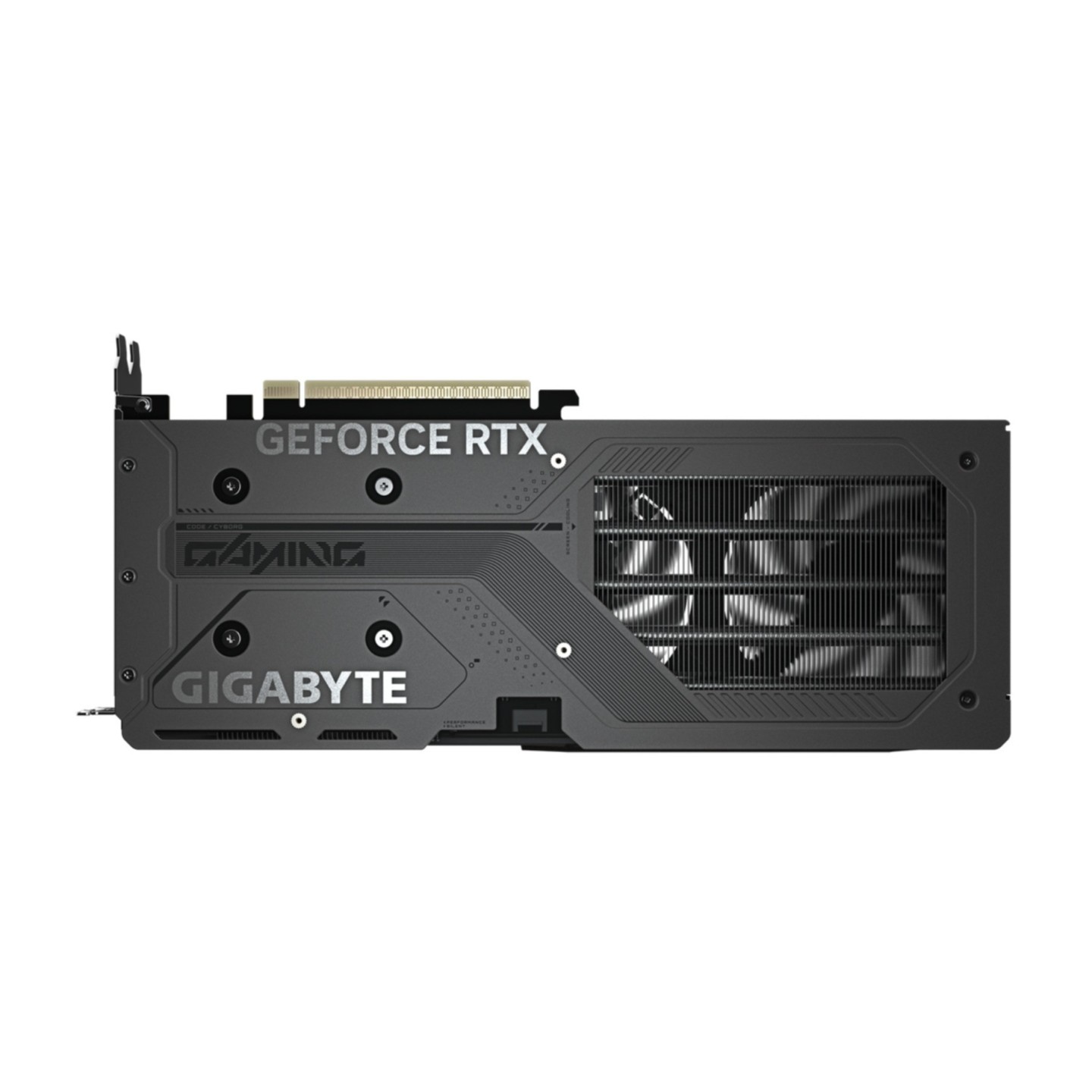

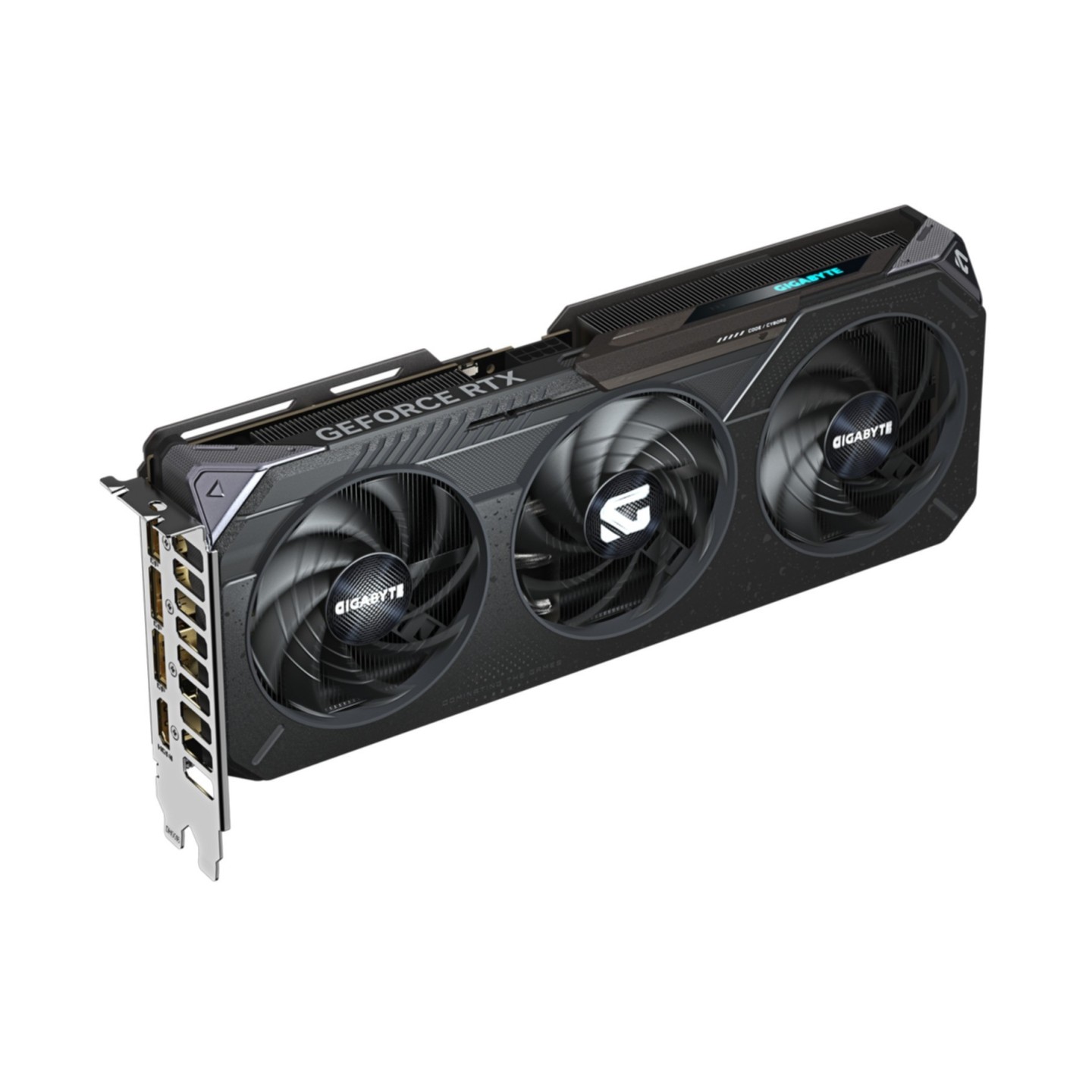

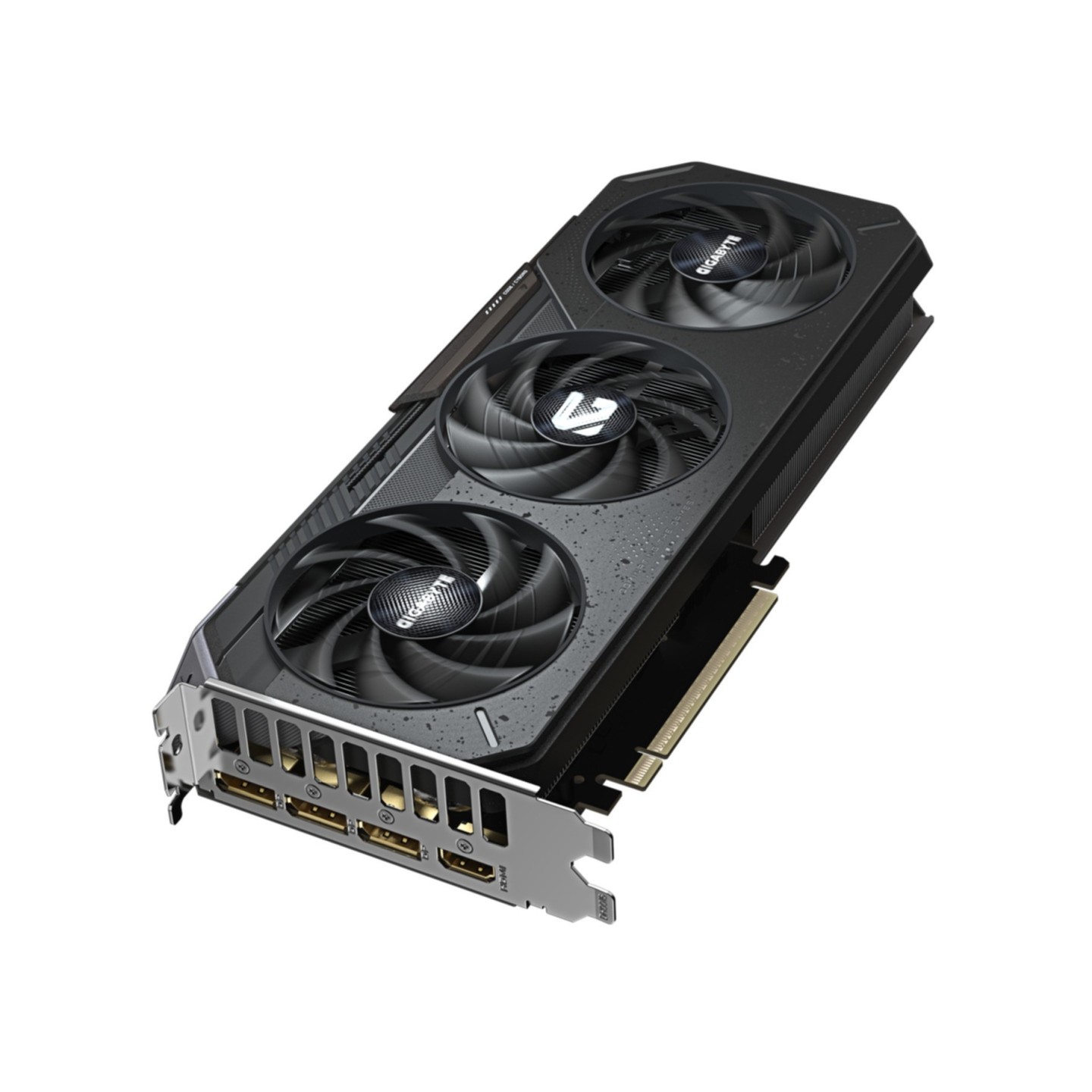

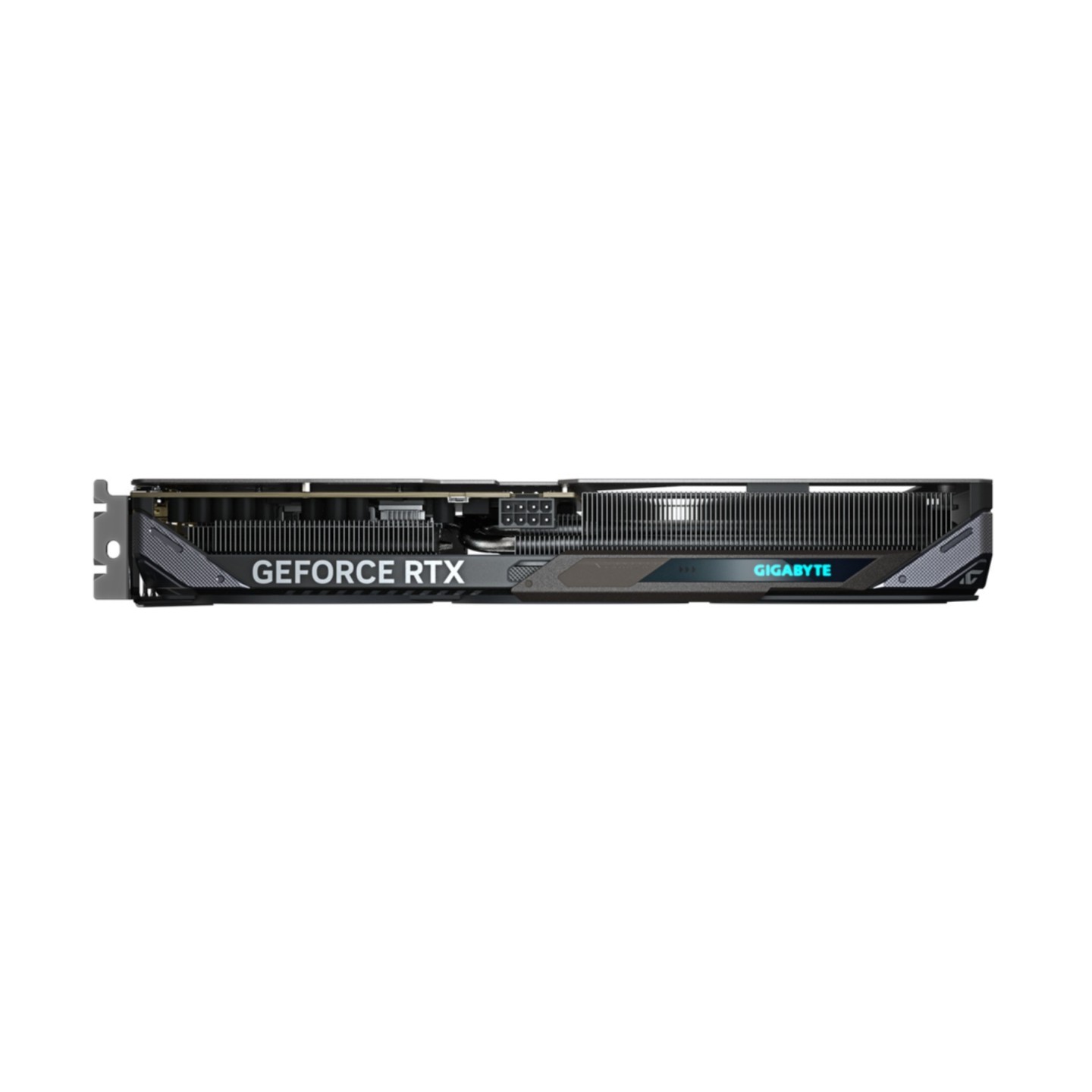

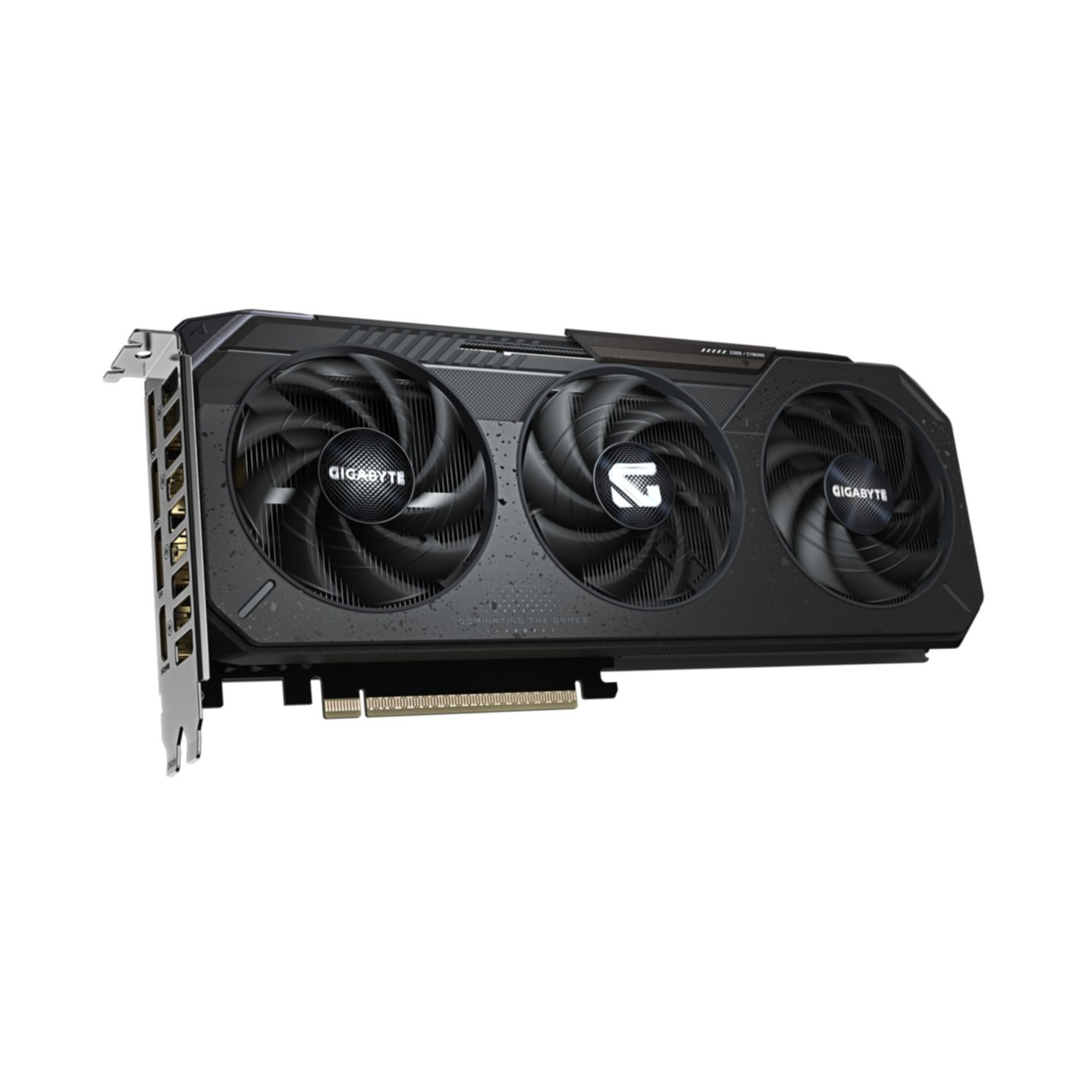

Gigabyte GeForce RTX 5060 Ti Gaming OC 16GB GDDR7 - 2647 MHz PCIe 5.0 (Boxed)
GeForce RTX 5060 Ti Gaming OC: 16GB GDDR7, 4608 CUDA cores, 2647 MHz boost clock, WINDFORCE 3X cooling, PCIe 5.0. Supports DLSS 4, 3xDP 2.1b + HDMI 2.1b, 7680x4320 max res.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| GPU (Graphics Cards) - Series | NVIDIA GeForce RTX |
|---|---|
| GPU (Graphics Cards) - PCIe Interface | PCIe 5.0 x16 |
| GPU (Graphics Cards) - Cooler Type | Triple Fan |
| GPU (Graphics Cards) - Color | Black |
| GPU (Graphics Cards) - VRAM Capacity | 16 GB |
| GPU (Graphics Cards) - VRAM Type | GDDR7 |
| GPU (Graphics Cards) - Outputs | DisplayPort 2.1 HDMI 2.1 |
| GPU (Graphics Cards) - Power Connector | 1x8-pin |
| GPU (Graphics Cards) - Card Length | Large (281-300 mm) |
The Gigabyte GeForce RTX 5060 Ti Gaming OC 16GB GDDR7 is a high-performance graphics card powered by NVIDIA's Blackwell architecture, delivering excellent 1080p and 1440p gaming with DLSS 4 and AI enhancements. Featuring 4608 CUDA cores, a factory-overclocked boost clock of 2647 MHz, and 16GB of fast GDDR7 memory at 28 Gbps on a 128-bit bus, it provides 448 GB/s bandwidth for smooth gameplay in modern titles.
Equipped with the advanced WINDFORCE 3X cooling system including triple fans, server-grade thermal gel, and reinforced structure, it maintains low temperatures under load while keeping noise minimal. Connectivity includes 3x DisplayPort 2.1b and 1x HDMI 2.1b, supporting up to 4 displays at 7680x4320 resolution. Requires 650W PSU with 1x 8-pin connector; dimensions 281x119x40 mm, 2-slot design.
- Key Technologies: DLSS 4 Multi-Frame Gen, 5th Gen Tensor Cores, 4th Gen RT Cores, Mega Geometry
- Power & Efficiency: ~180W TDP, PCIe 5.0 x16 interface
- Ideal For: 1080p/1440p gaming, content creation with ample VRAM
| Manufacturer Part Number | GV-N506TGAMING OC-16GD |
| Overclocked (OC) edition | Yes |
| CUDA cores | 4608 |
| RT Cores | 36 (4th Gen) |
| Tensor Cores | 144 (5th Gen) |
| TMUs | 144 |
| ROPs | 48 |
| Graphics processor family | NVIDIA |
| Graphics processor | GeForce RTX 5060 Ti |
| Boost frequency | 2647 MHz |
| Base frequency | 2572 MHz (reference; OC model) |
| Maximum resolution | 7680 x 4320 pixels |
| Maximum displays per videocard | 4 |
| Discrete graphics card memory | 16 GB |
| Graphics card memory type | GDDR7 |
| Memory bus | 128 bit |
| Memory clock speed | 28000 MHz |
| Data transfer rate | 28 Gbit/s |
| Memory bandwidth | 448 GB/s |
| Interface type | PCI Express x16 5.0 |
| HDMI ports quantity | 1 |
| HDMI version | 2.1b |
| DisplayPorts quantity | 3 |
| DisplayPort version | 2.1b |
| DirectX version | 12.0 |
| OpenGL version | 4.6 |
| Warranty period | 3 year(s) |
| Cooling type | Active |
| Cooling technology | GIGABYTE WINDFORCE 3X |
| Number of fans | 3 fan(s) |
| Form factor | Full-Height/Full-Length (FH/FL) |
| Number of slots | 2 |
| Product colour | Black |
| Minimum system power supply | 650 W |
| Supplementary power connectors | 1x 8-pin |
| Weight | 800 g |
| Length | 281 mm |
| Depth | 40 mm |
| Height | 119 mm |
| Package width | 182.5 mm |
| Package depth | 354 mm |
| Package height | 75 mm |
| Package weight | 1.29 kg |
| Package type | Box |
