Lian Li RS1200G White 1200W 80+ Gold ATX 3.1 Fully Modular PSU (Retail)
Lian Li RS1200G White: 1200W 80+ Gold ATX 3.1 PSU with 90° rotatable AC inlet, dual-sided 24-pin, 135mm FDB zero-RPM fan, 12V-2x6 cable, RS USB hub. Cybenetics Platinum efficiency, German EPCOS caps, 10yr warranty.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| PSU (Power Supplies) - Wattage | 1200 - 1499 W |
|---|---|
| PSU (Power Supplies) - Efficiency Rating | 80 Plus Gold Cybenetics Platinum |
| PSU (Power Supplies) - Color | White |
| PSU (Power Supplies) - Modularity | Fully modular |
| PSU (Power Supplies) - PCIe GPU Connectors | 1x 12V-2x6 |
| PSU (Power Supplies) - Length | 141-160 mm |
| PSU (Power Supplies) - EPS CPU Connectors | 2x 4+4pin EPS/ATX12V |

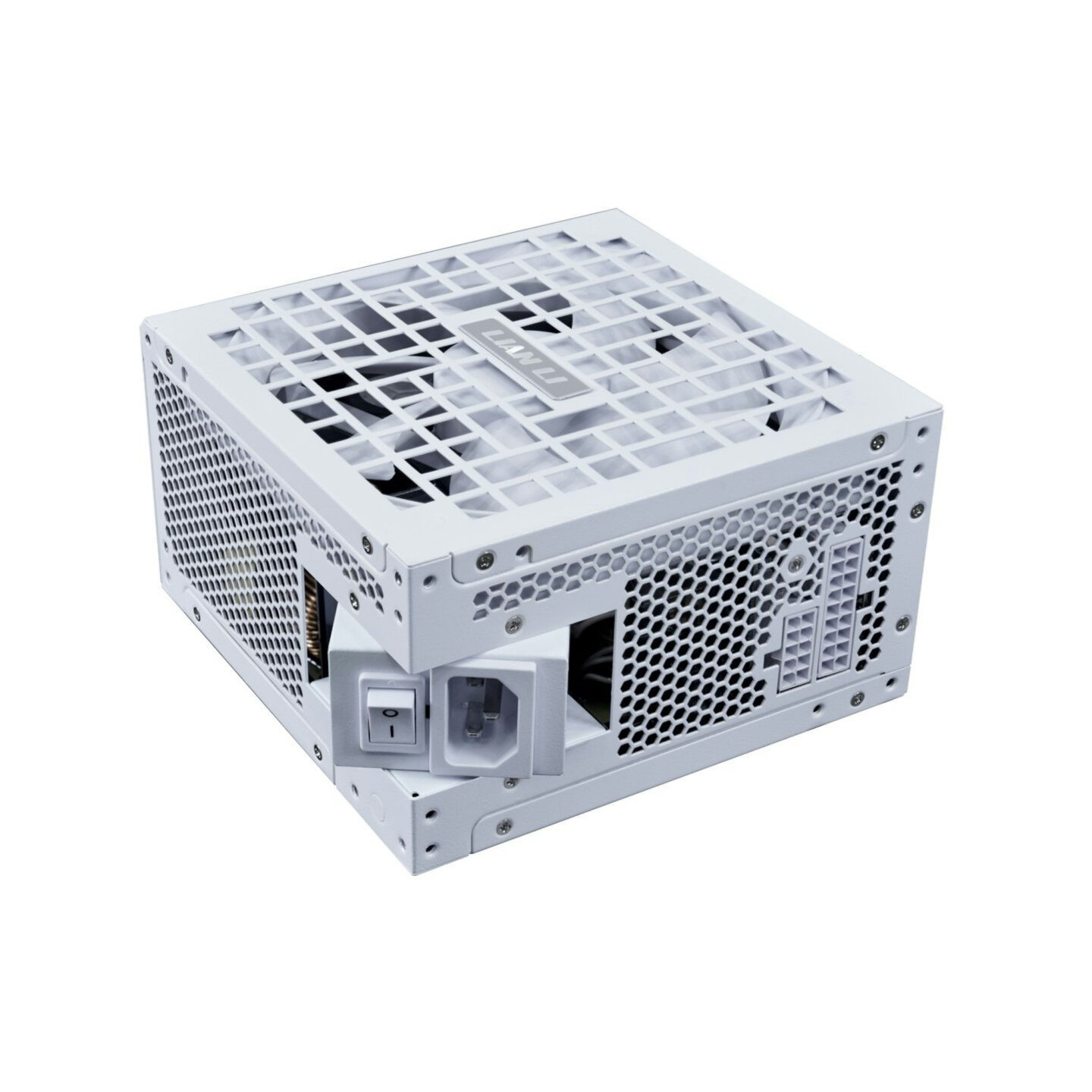

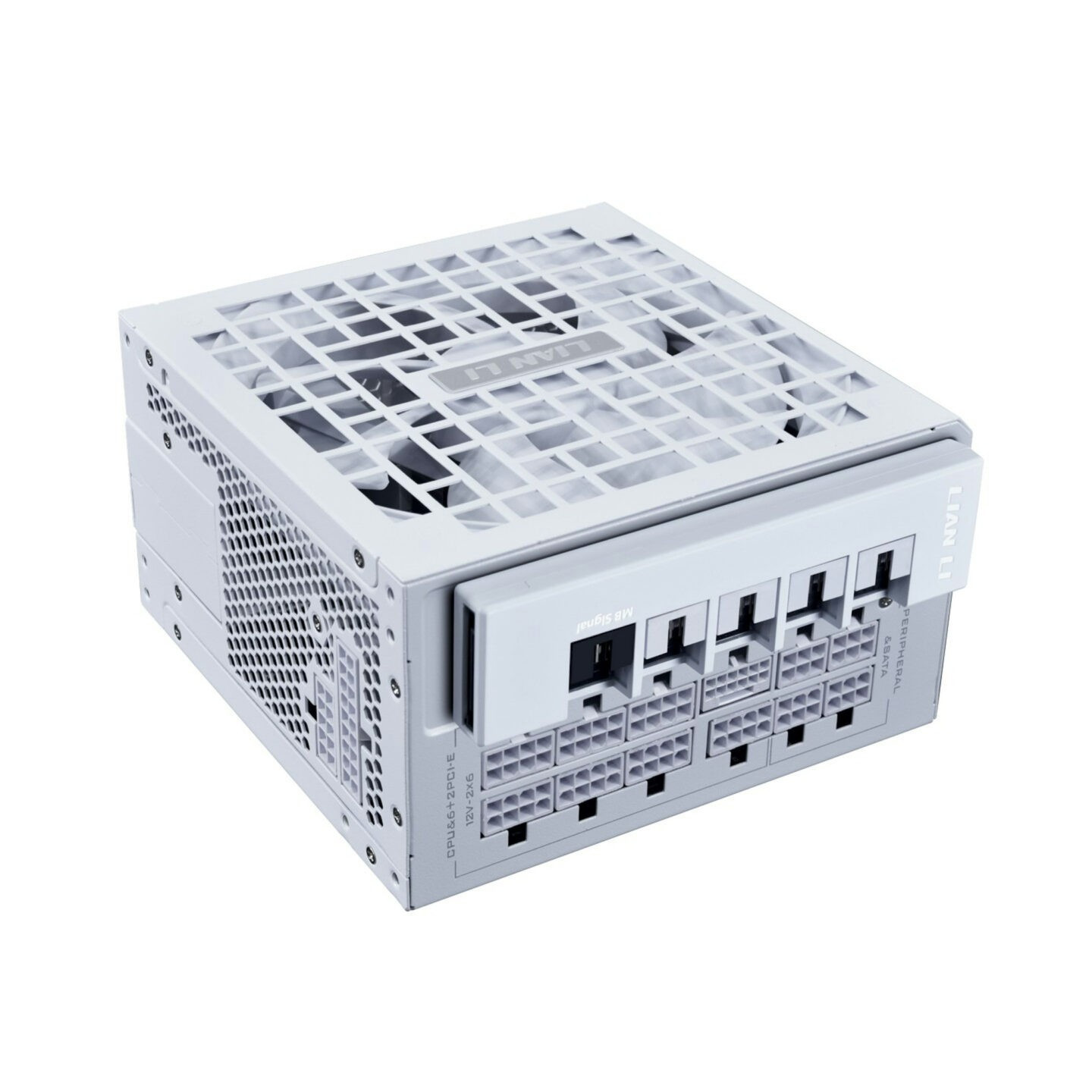

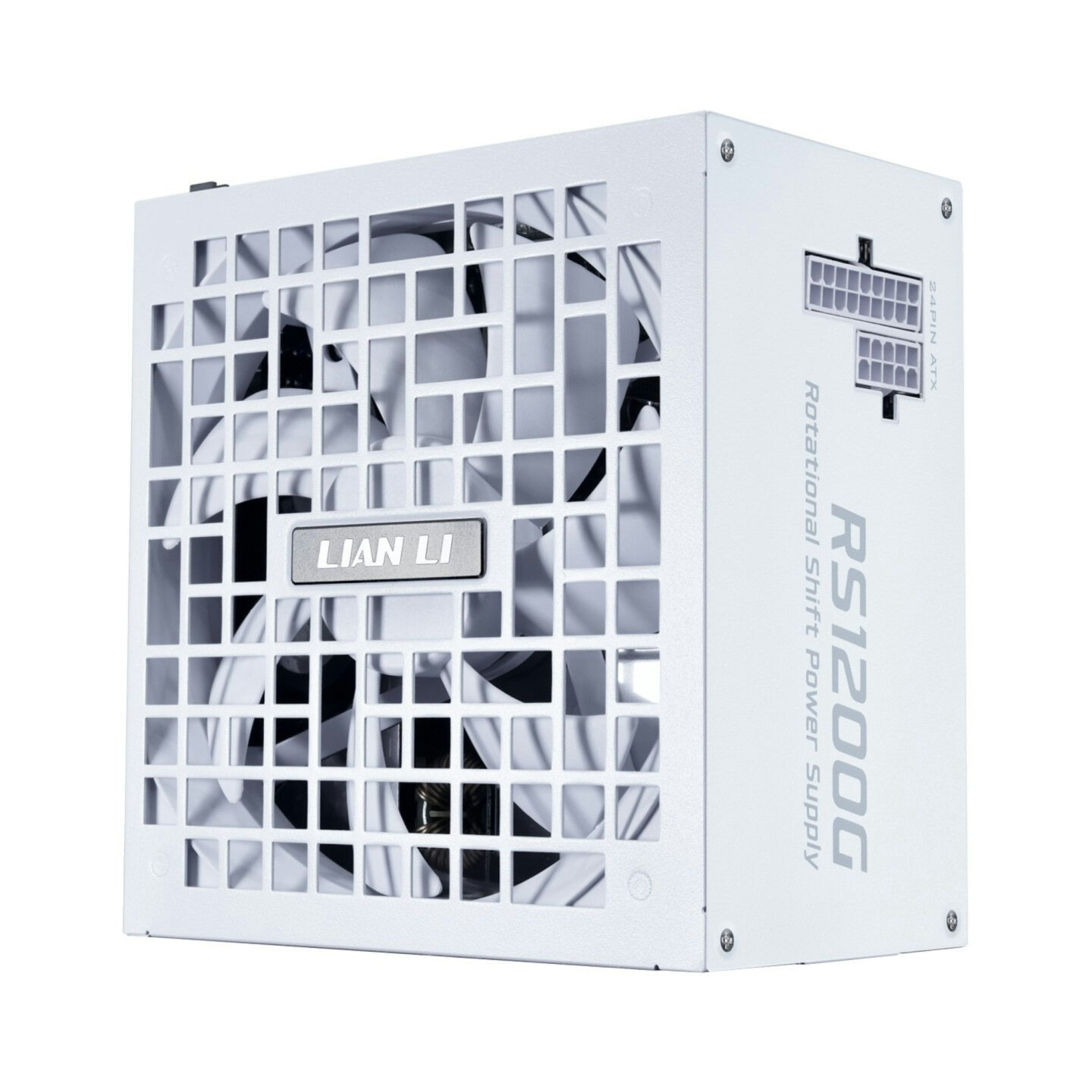

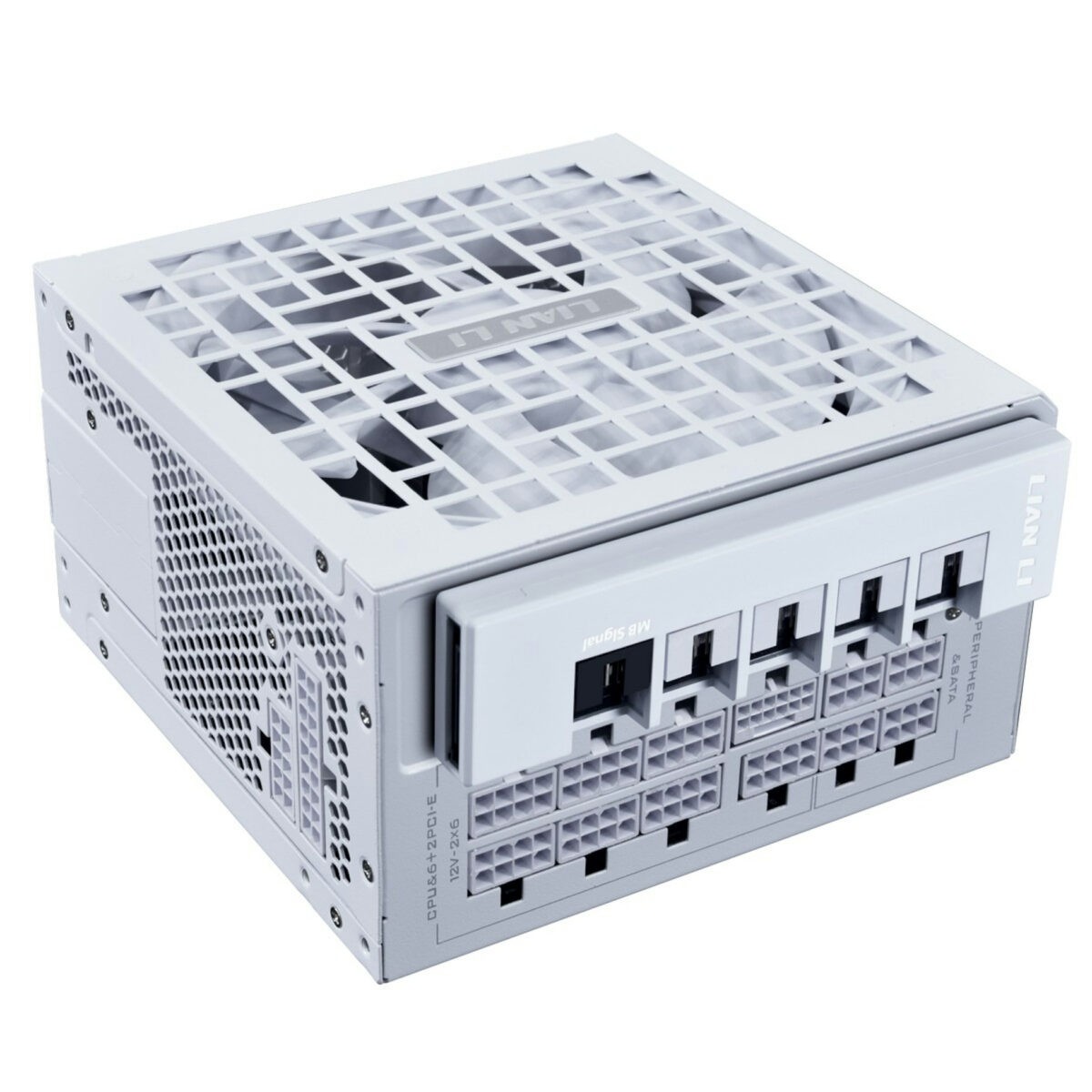

Lian Li RS1200G White is a premium 1200W fully modular ATX 3.1 power supply featuring revolutionary 90° rotatable AC inlet for horizontal/vertical mounting in tight cases. Dual-sided 24-pin ATX outputs simplify cable routing and improve airflow.
Certified 80 PLUS Gold, Cybenetics Platinum, and PPLP Gold with >90% efficiency. Equipped with 135mm Fluid Dynamic Bearing fan supporting Zero RPM mode for silent operation at low loads. Includes native 12V-2x6 high-current GPU cable with copper terminals, RS magnetic USB 2.0 hub (4 ports for RGB/fans), and premium German EPCOS/Japanese capacitors for reliability. 10-year warranty.
- ATX 3.1 / PCIe 5.1 compliant with Power Excursion support
- Active PFC, full protections: OCP/OVP/OTP/OPP/SCP/UVP
- Compact 150x150x86mm dimensions, white SECC chassis
- Fanless mode below typical loads, max 2400 RPM

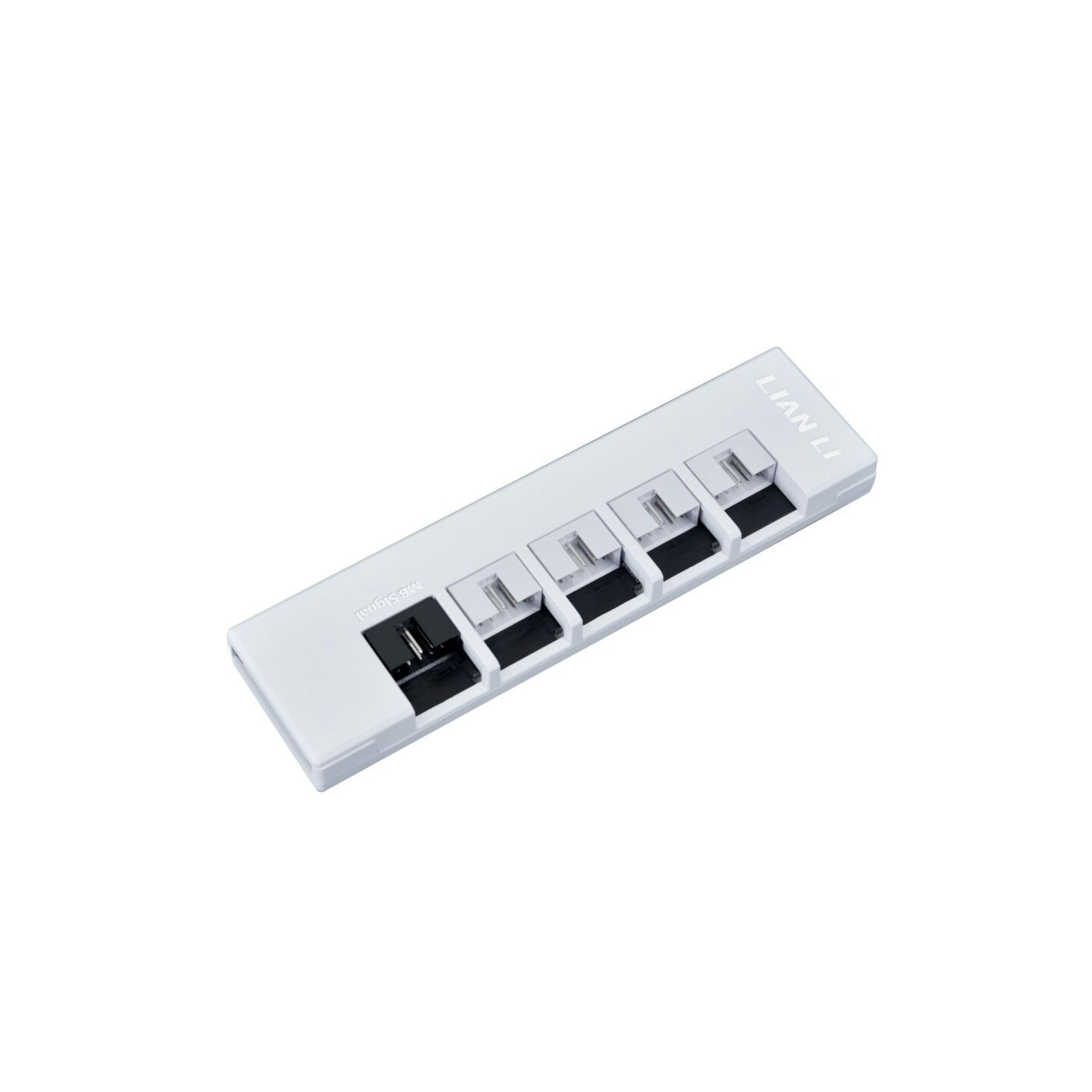

- RS Hub: Detachable magnetic USB hub powered by SATA
| ATX12V VERSION | ATX 3.1 |
| EFFICIENCY | 80 PLUS Gold / Cybenetics Platinum / PPLP Gold |
| DC OUTPUT CABLE | Full-Modular |
| DIMENSIONS | (D)150 mm x (W)86 mm x (H)150 mm |
| COLOR | White |
| MATERIAL | SECC |
| PFC | Active PFC, PF > 0.90 under full load @ 115Vac, 60Hz |
| INPUT RATING | 100-240Vac 15-8A, 50-60Hz |
| MAX. DC OUTPUT | 1200W |
| COMBINED +12V | 1200W |
| COMBINED +3.3V & +5V | 100W |
| FAN SPEC | 135mm FDB Fan |
| FAN RPM | 2400rpm |
| FANLESS MODE | YES |
| NOISE LEVEL | 36.27dBA @ 30℃, 100cm |
| MTBF | 100,000 hrs minimum 25℃/75% Load |
| PROTECTION | OCP, OVP, OTP, OPP, SCP, UVP, NLP, SIP |
| WORKING TEMPERATURE | 0-40℃ |
| WARRANTY | 10 Years |
| RAIL OUTPUTS | +3.3V: 20A, +5V: 20A, +12V: 100A, +5Vsb: 3A |
| CAPACITORS | German EPCOS industrial-grade |
