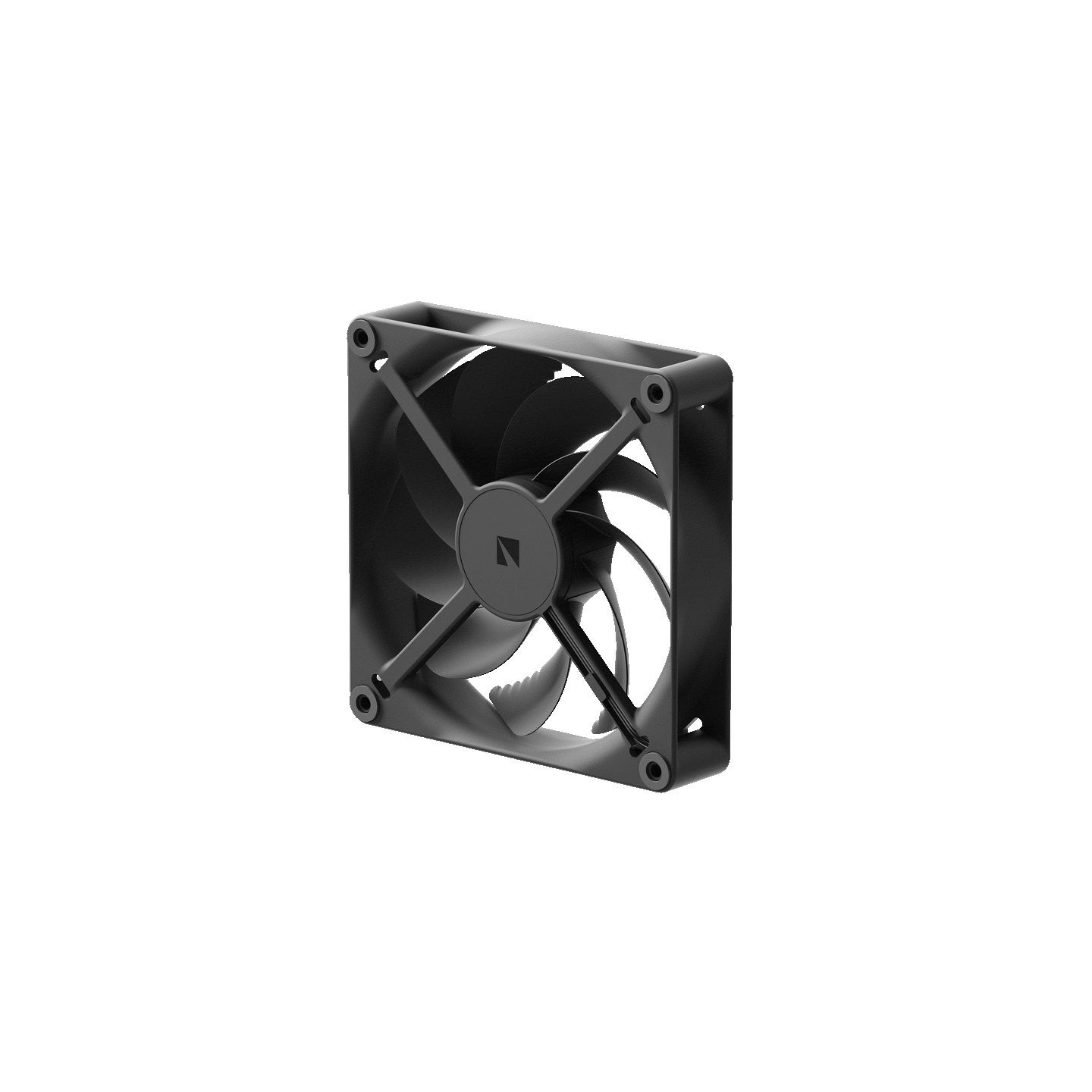

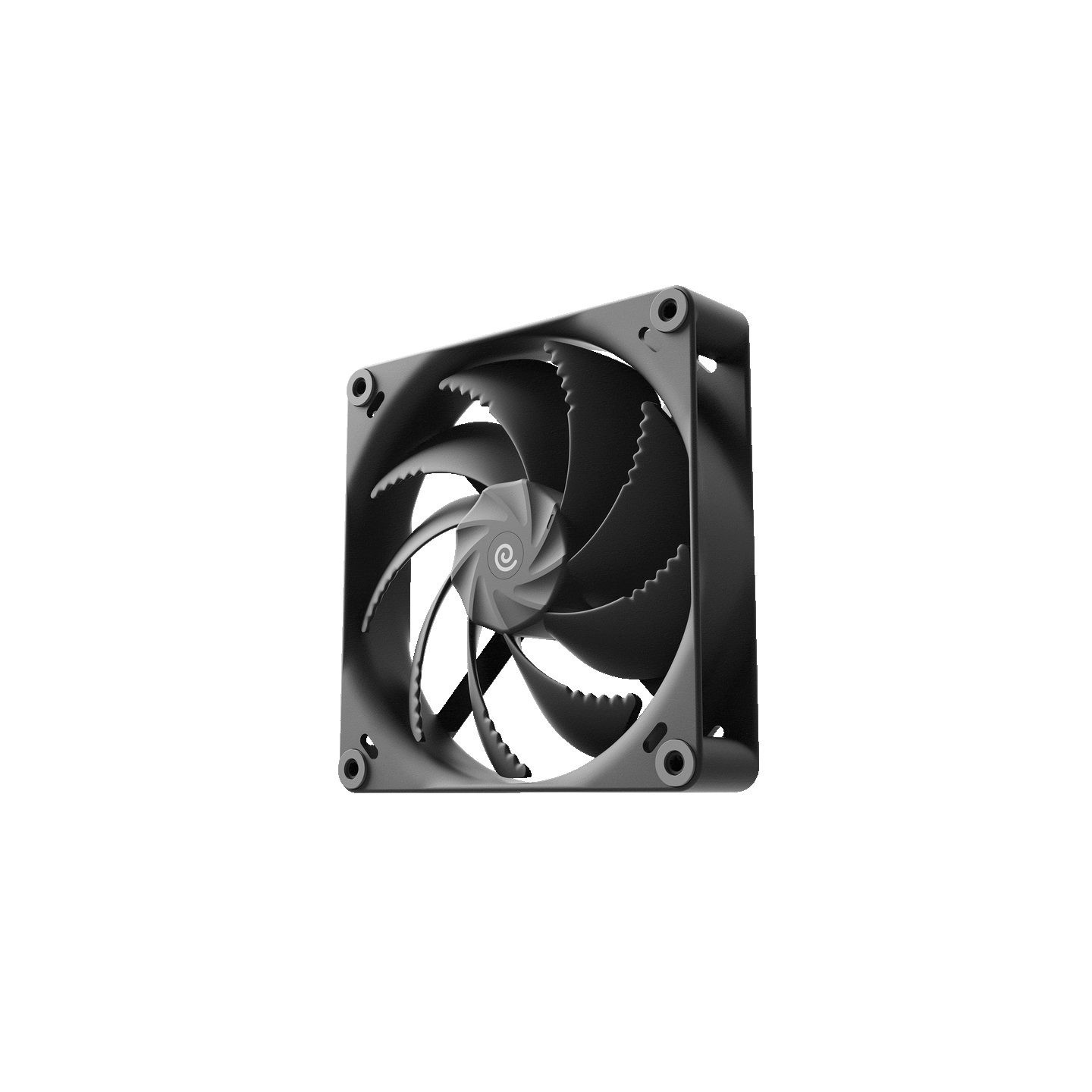

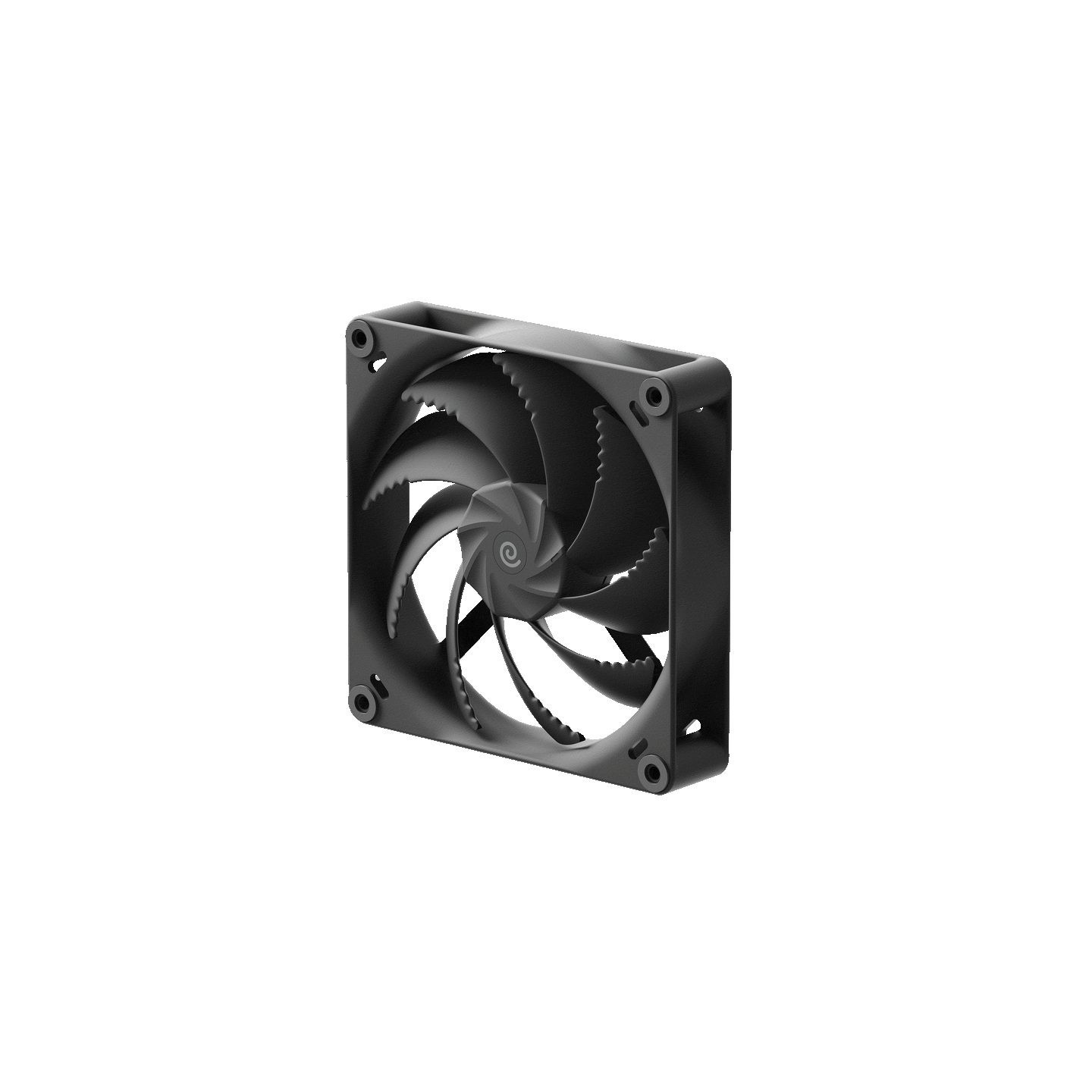

HAVN H12 Single Pack Black 120mm PWM Case Fan - FDB Bearing, Daisy-Chain - HVN-FS-H1230-02 (Boxed)
HAVN H12 120mm PWM case fan delivers 72.44 CFM airflow at 2100 RPM with just 32.2 dBA noise. Features FDB bearing, Loopin daisy-chain cabling, PBT+30% glass fiber build for quiet, durable cooling.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| Cooling (CPU & Case) - Device Type | Case Fan |
|---|---|
| Cooling (CPU & Case) - Fan Size | 120 mm |
| Cooling (CPU & Case) - Lightning | None |
| Cooling (CPU & Case) - Connector | 4-Pin PWM |
| Cooling (CPU & Case) - Color | Black |
| Cooling (CPU & Case) - Special Features | Daisy-Chain Low Noise Magnetic Bearing |
More Airflow, Less Noise: HAVN H12

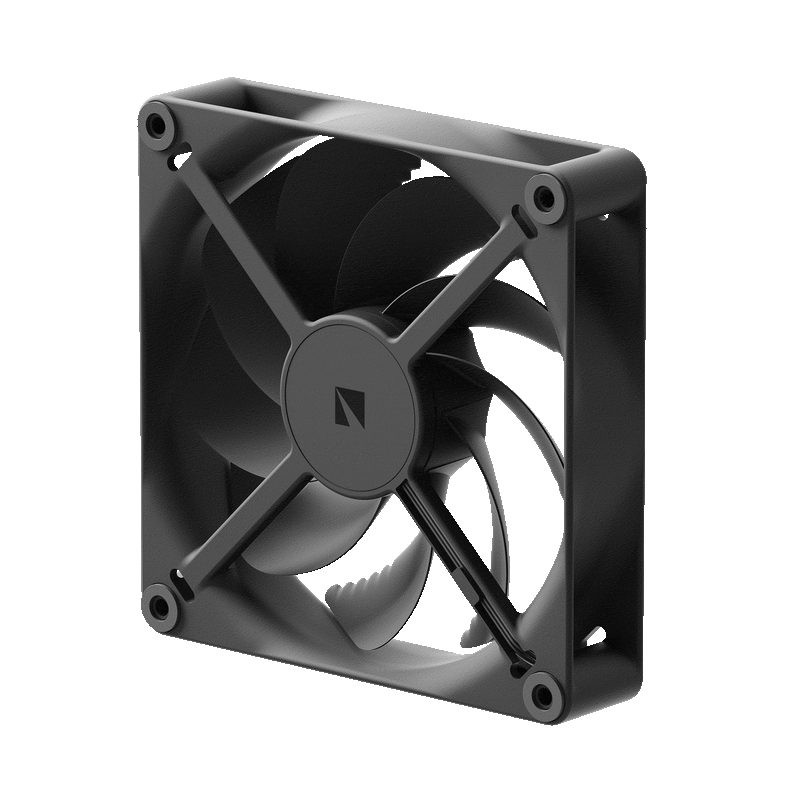

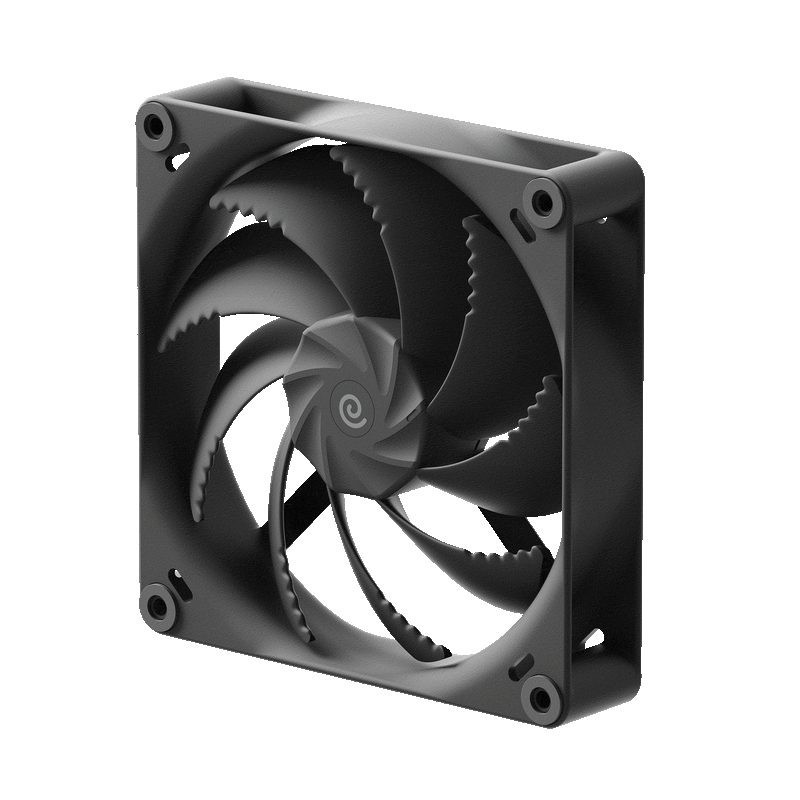

The HAVN H12 is a 120mm PWM fan combining powerful cooling performance with whisper-quiet operation. Up to 2,100 RPM delivers 72.44 CFM (123.07 m³/h) airflow and 3.01 mmH₂O static pressure at only 32.2 dB(A). Wave-shaped blades ensure uniform airflow, reduce turbulence and noise – ideal for radiators or mesh front panels. The sturdy 30mm frame and triple-groove FDB bearing guarantee smooth operation and long lifespan, even under continuous use (>150,000 hours).
Loopin Cable System – Smart Fan Chaining
The innovative Loopin system routes cables internally through the fan frame, exposing only compact connectors. This enables daisy-chain connection of multiple H12 fans seamlessly, saving cables and keeping builds clean and tidy. PWM control allows flexible speed adjustment to balance performance and noise. Perfect for systems like HAVN BF 360 requiring clean aesthetics and optimized airflow. Built from PBT + 30% glass fiber for vibration resistance with rubber corner pads minimizing case resonance.
- ✅ 120 x 120 x 30 mm dimensions, 200g weight
- ✅ 0-2100 RPM, 72.44 CFM, 3.01 mmH₂O, 32.2 dB(A)
- ✅ 4-pin PWM, 12V DC, 0.35A, FDB bearing
- ✅ Daisy-chain Loopin cabling, no RGB lighting
- ✅ 3-year warranty, black frame/blades
| Dimensions | 120 x 120 x 30 mm |
| Fan Size | 120 mm |
| Bearing Type | Fluid Dynamic Bearing (FDB Triple Groove) |
| Min RPM | 0 RPM |
| Max RPM | 2100 RPM |
| Max Airflow | 72.44 CFM / 123.07 m³/h |
| Max Static Pressure | 3.01 mmH₂O |
| Max Noise Level | 32.2 dB(A) |
| Rated Voltage | 12 V DC |
| Rated Current | 0.35 A |
| Fan Connector | 4-pin PWM |
| Material | PBT + 30% Glass Fiber |
| Weight (Fan) | 200 g |
| Lifespan | >150,000 hours |
| Warranty | 3 years |
| Color | Black Frame/Black Blades |
| Lighting | None |
| Special Features | Loopin Daisy-Chain, Low Noise, FDB Bearing |
| MPN | HVN-FS-H1230-02 |
| EAN | 4251442513689 |
