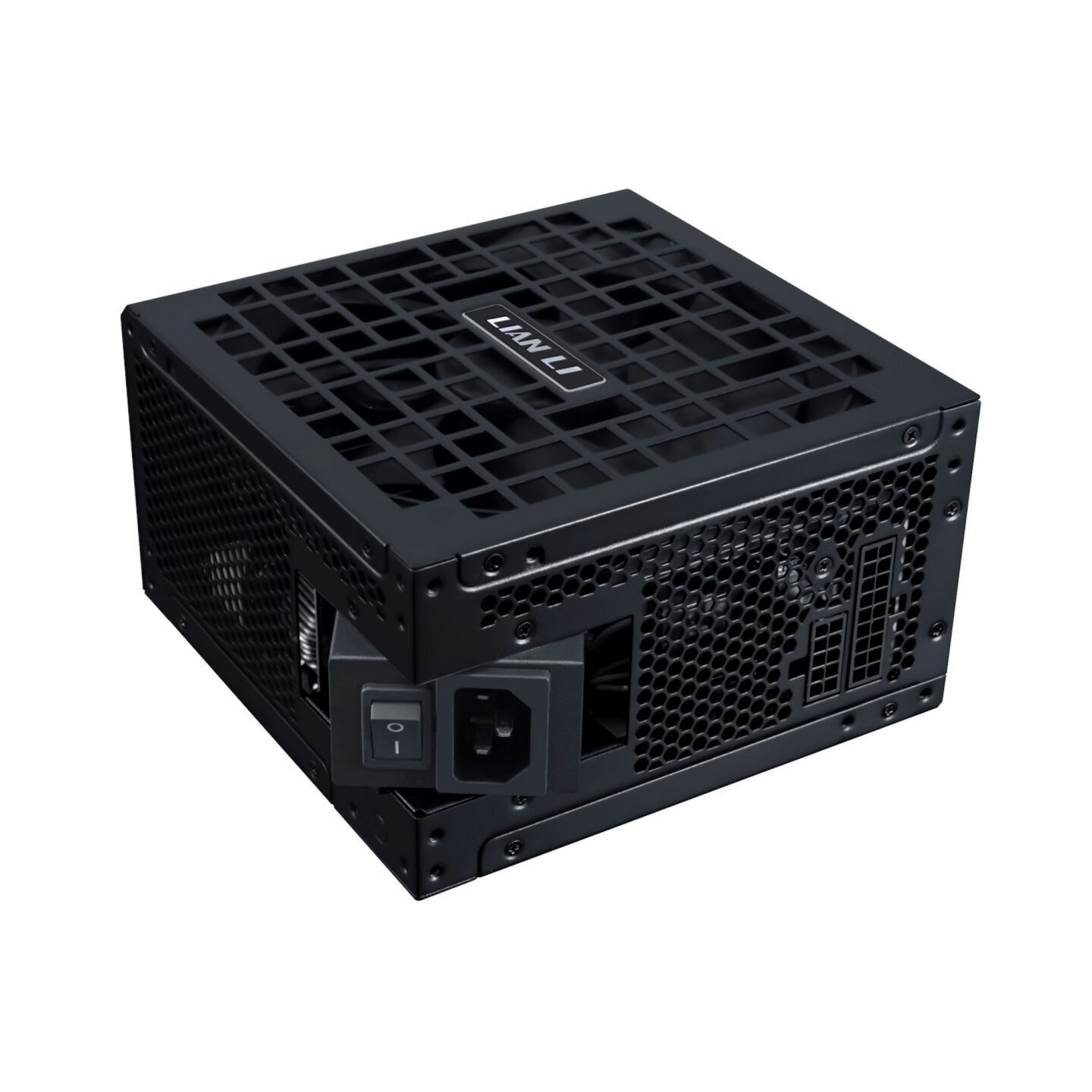

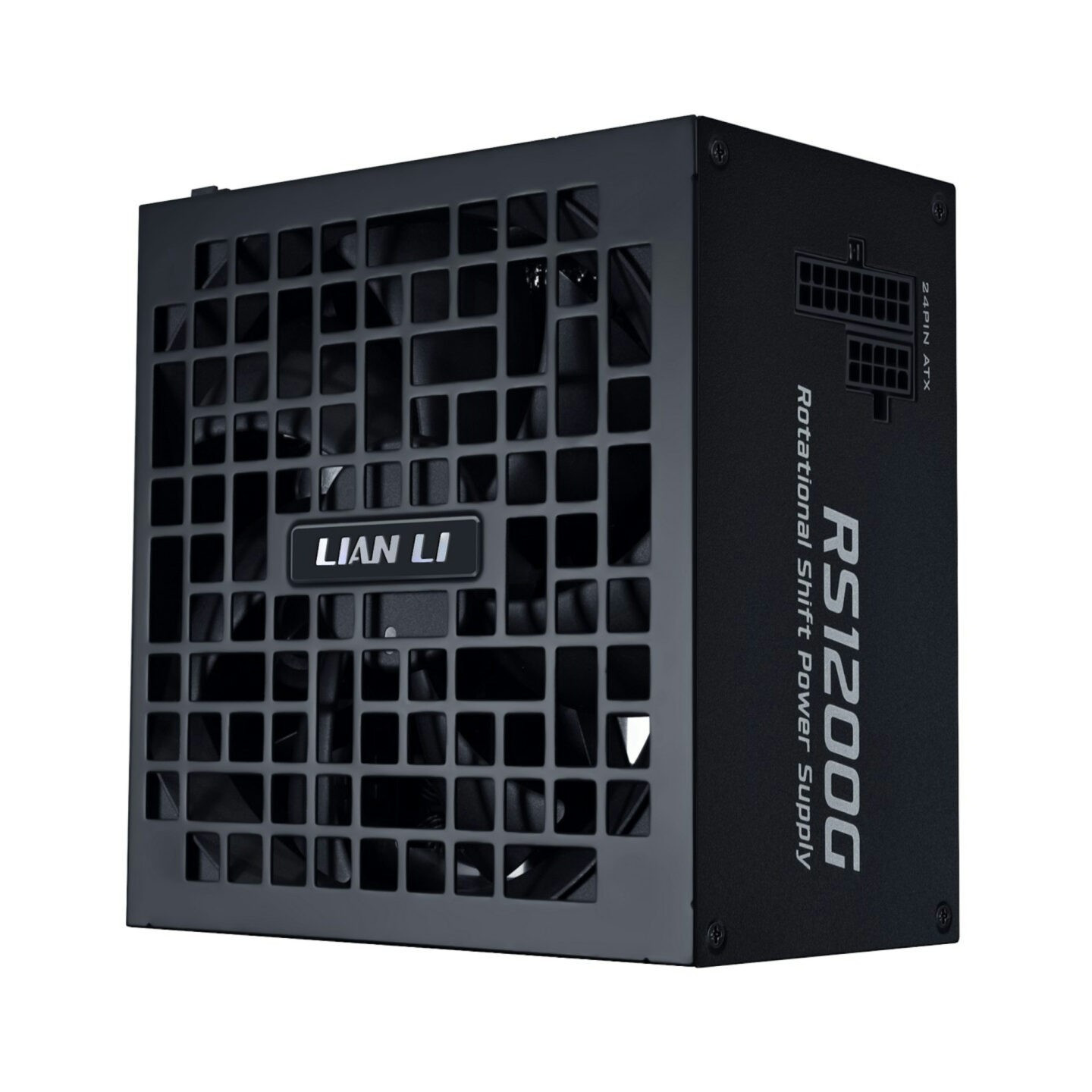

Lian Li RS1200G Black - 1200W 80+ Gold ATX 3.1 PSU - 12V-2x6 - RS Hub (Boxed)
Lian Li RS1200G: 1200W 80+ Gold ATX 3.1 PSU with 90° rotatable AC inlet, dual-sided 24-pin, 135mm FDB zero-RPM fan, 12V-2x6 cable, RS USB hub. Cybenetics Platinum efficiency, 10-year warranty.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| PSU (Power Supplies) - Wattage | 1200 - 1499 W |
|---|---|
| PSU (Power Supplies) - Efficiency Rating | 80 Plus Gold Cybenetics Platinum |
| PSU (Power Supplies) - Color | Black |
| PSU (Power Supplies) - Modularity | Fully modular |
| PSU (Power Supplies) - PCIe GPU Connectors | 1x 12V-2x6 |
| PSU (Power Supplies) - Length | 141-160 mm |
| PSU (Power Supplies) - EPS CPU Connectors | 2x 4+4pin EPS/ATX12V |

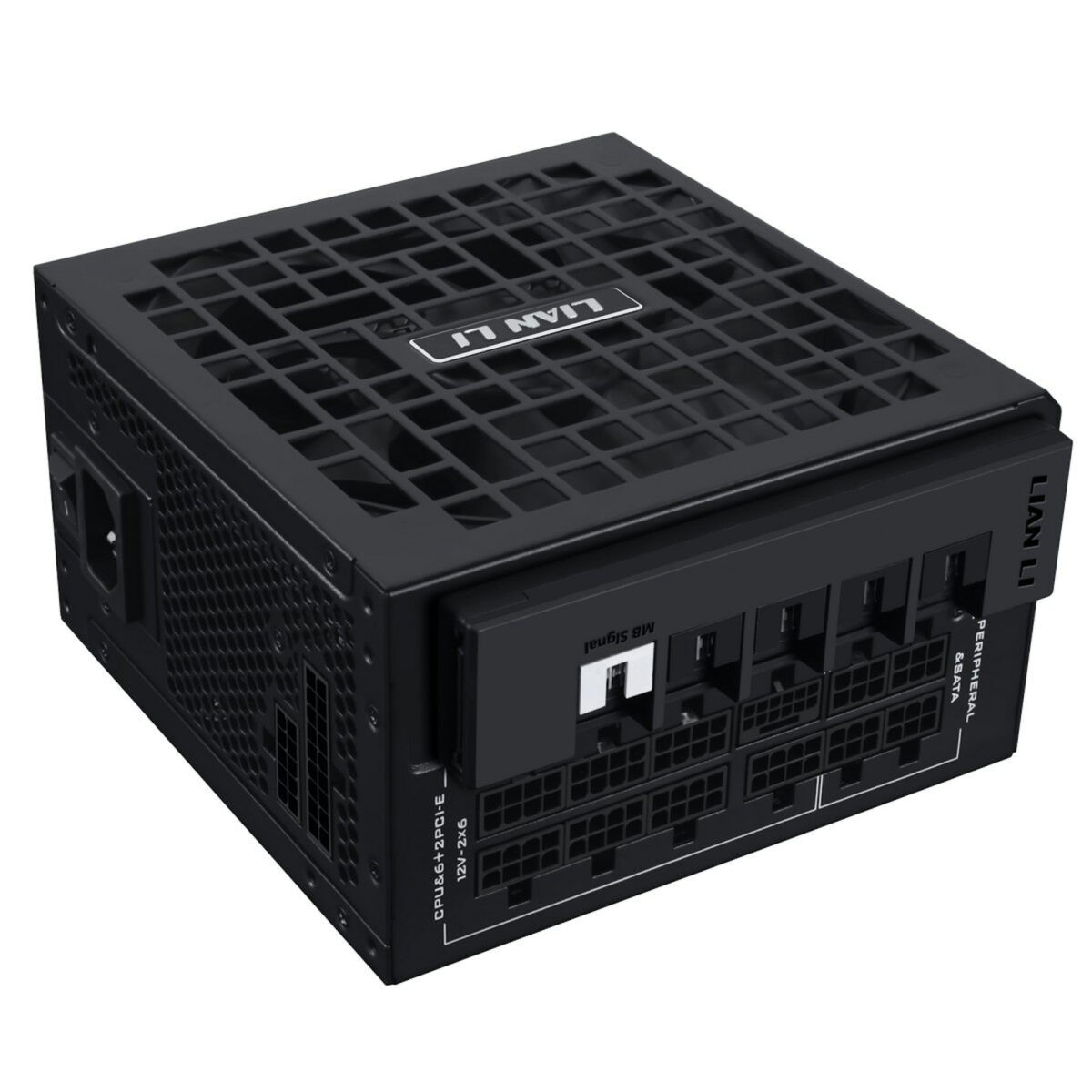

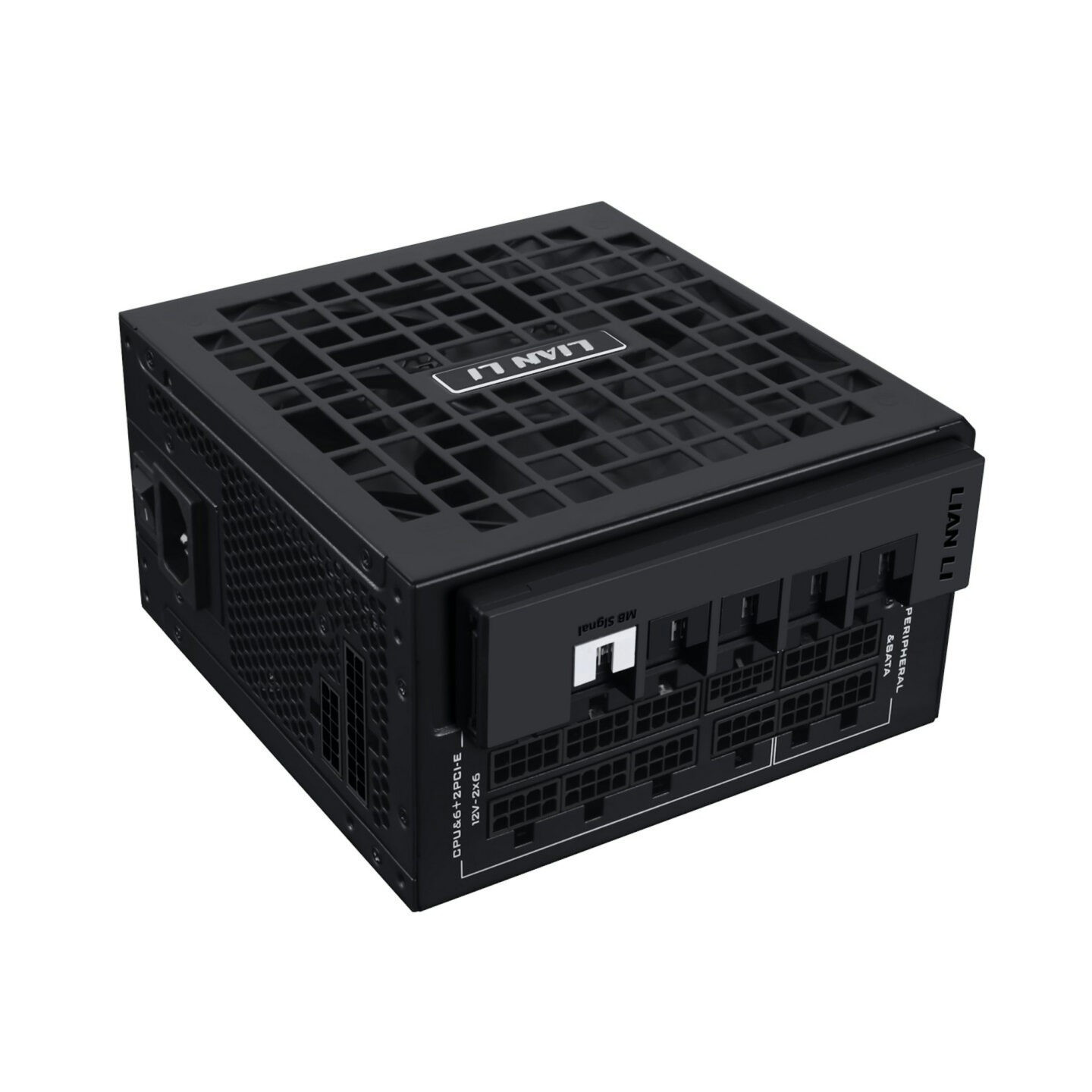

Lian Li RS1200G is a premium 1200W fully modular ATX 3.1 power supply featuring innovative 90° rotatable AC inlet for horizontal/vertical mounting in tight cases. It includes dual-sided 24-pin outputs for optimal cable routing and reduces clutter while improving airflow.

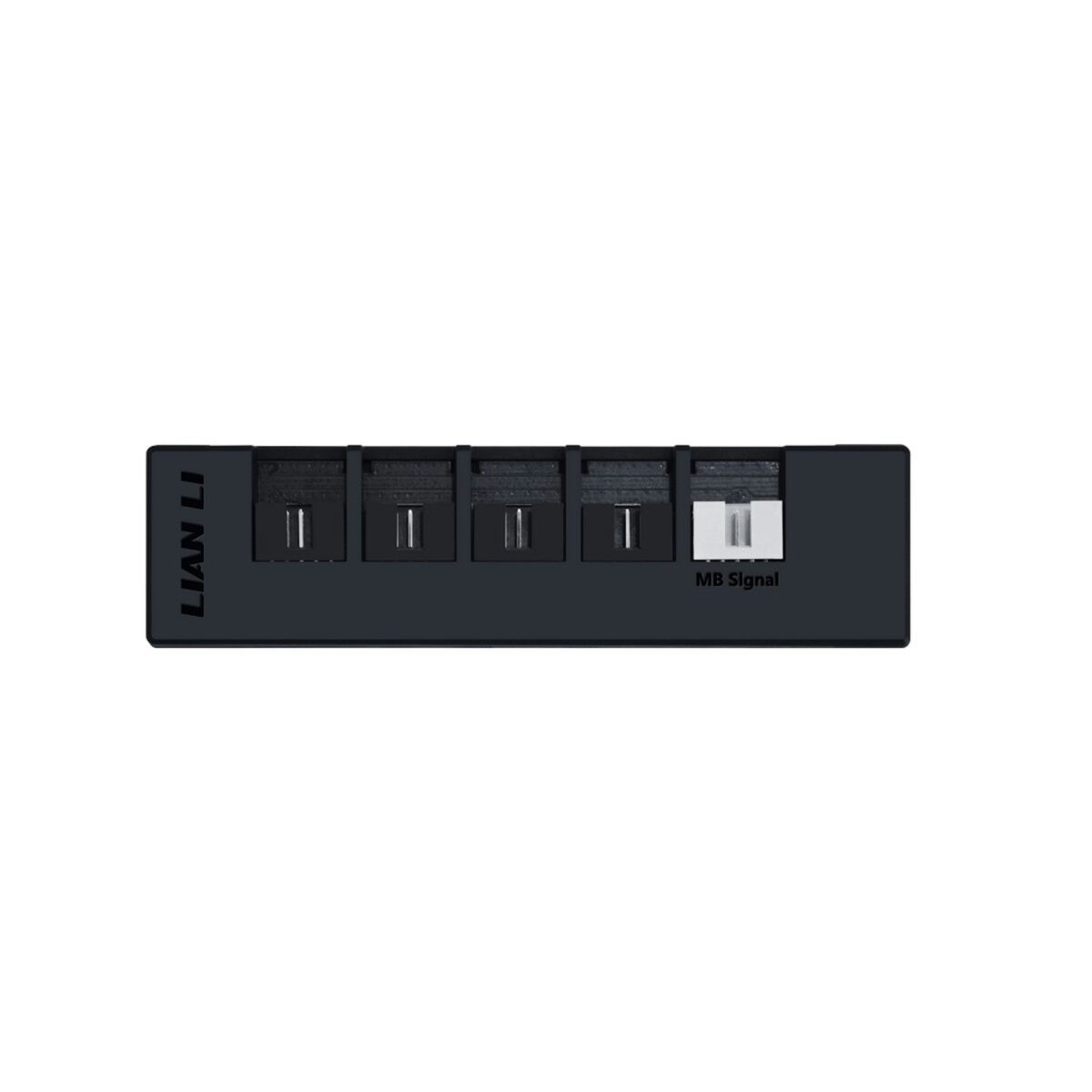

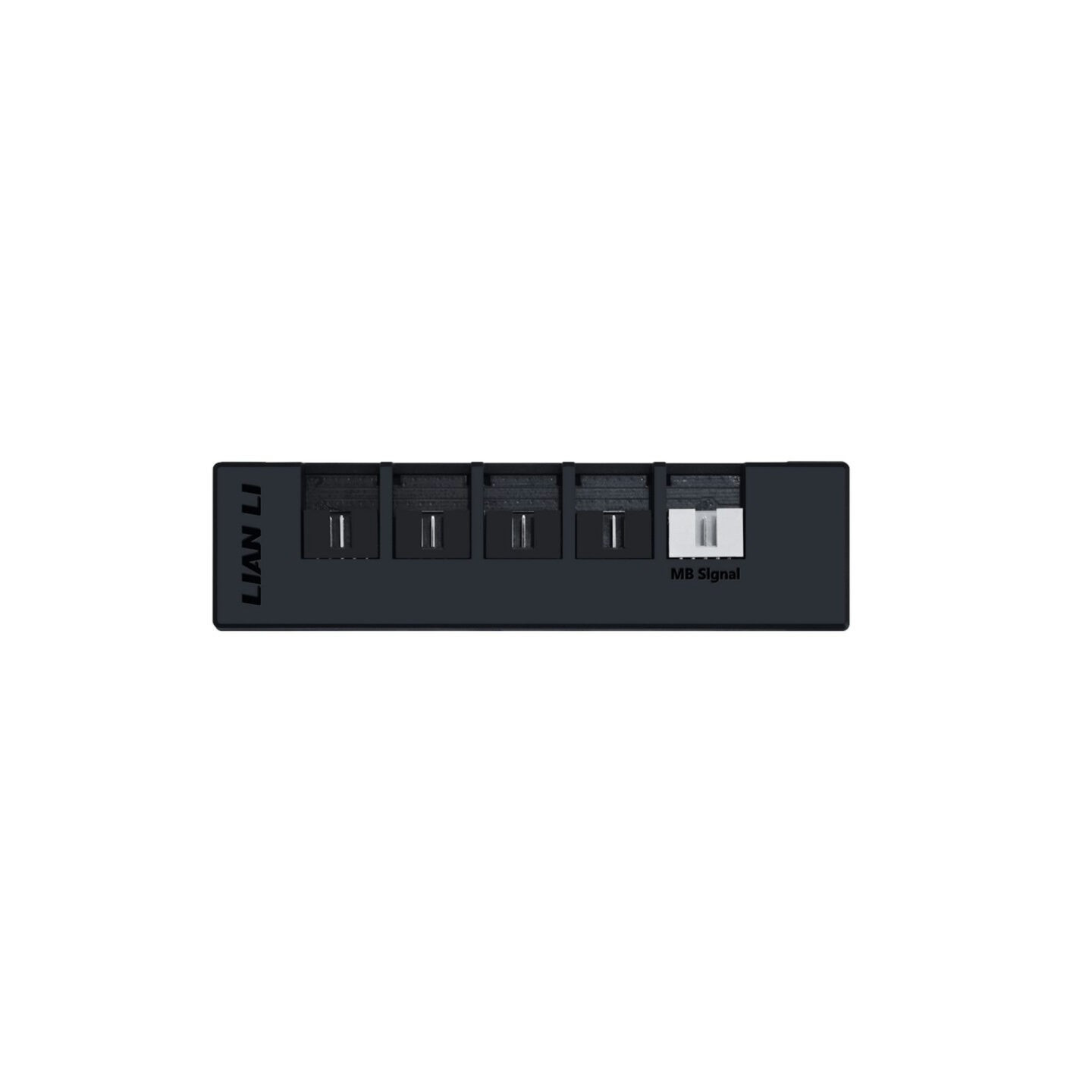

Certified 80 PLUS Gold, Cybenetics Platinum and PPLP Gold with >90% efficiency. Equipped with 135mm FDB fan (Zero RPM mode), German EPCOS capacitors, and native 12V-2x6 high-current GPU cable. Includes detachable magnetic RS USB Hub with 4x USB 2.0 ports for RGB/fans. 10-year warranty.
- ATX 3.1 compliant with OCP/OVP/OTP/OPP/SCP/UVP protections
- Compact 150x150x86mm design, Active PFC >0.90
- Ultra-low ripple: 26mV max on 12V rail
- MTBF 100,000 hours
| ATX12V VERSION | ATX 3.1 |
| EFFICIENCY | 80 PLUS Gold / Cybenetics Platinum / PPLP Gold |
| DC OUTPUT CABLE | Full-Modular |
| DIMENSIONS | (D)150 mm x (W)86 mm x (H)150 mm |
| COLOR | Black |
| MATERIAL | SECC |
| PFC | Active PFC, PF > 0.90 under full load @ 115Vac, 60Hz |
| INPUT RATING | 100-240Vac 15-8A, 50-60Hz |
| MAX. DC OUTPUT | 1200W |
| COMBINED +12V | 1200W |
| COMBINED +3.3V & +5V | 100W |
| FAN SPEC | 135mm FDB Fan |
| FAN RPM | 2400rpm |
| FANLESS MODE | YES (Zero RPM) |
| NOISE LEVEL | 36.27dBA @ 30℃, 100cm |
| MTBF | 100,000 hrs minimum 25℃/75% Load |
| PROTECTION | OCP, OVP, OTP, OPP, SCP, UVP, NLP, SIP |
| WORKING TEMPERATURE | 0-40℃ |
| WARRANTY | 10 Years |
| RAIL OUTPUT | +3.3V:20A, +5V:20A, +12V:100A, +5Vsb:3A |
| CAPACITORS | German EPCOS + Japanese |
