Lian Li RS1000G White 1000W 80+ Gold ATX 3.1 Fully Modular PSU - 12V-2x6 (Boxed)
Lian Li RS1000G White is a 1000W 80+ Gold fully modular ATX 3.1 PSU with innovative 90° rotatable AC inlet, dual-sided 24-pin, optional RS USB Hub, Cybenetics Platinum efficiency, and 135mm FDB fan with Zero RPM mode. 10-year warranty.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| PSU (Power Supplies) - Wattage | 1000 - 1199 W |
|---|---|
| PSU (Power Supplies) - Efficiency Rating | 80 Plus Gold Cybenetics Platinum |
| PSU (Power Supplies) - Color | White |
| PSU (Power Supplies) - Modularity | Fully modular |
| PSU (Power Supplies) - PCIe GPU Connectors | 1x 12V-2x6 |
| PSU (Power Supplies) - Length | 141-160 mm |
| PSU (Power Supplies) - EPS CPU Connectors | 2x 4+4pin EPS/ATX12V |

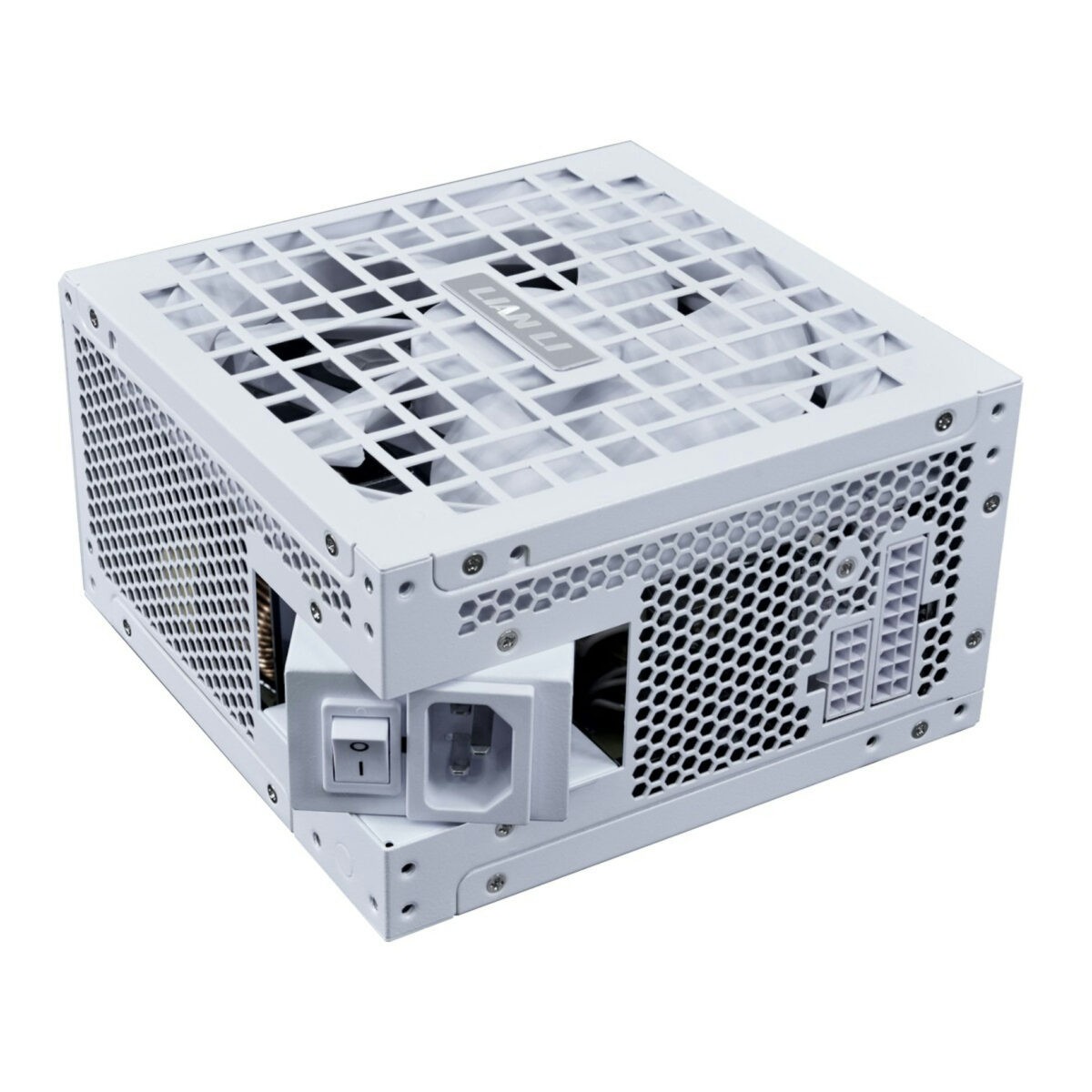

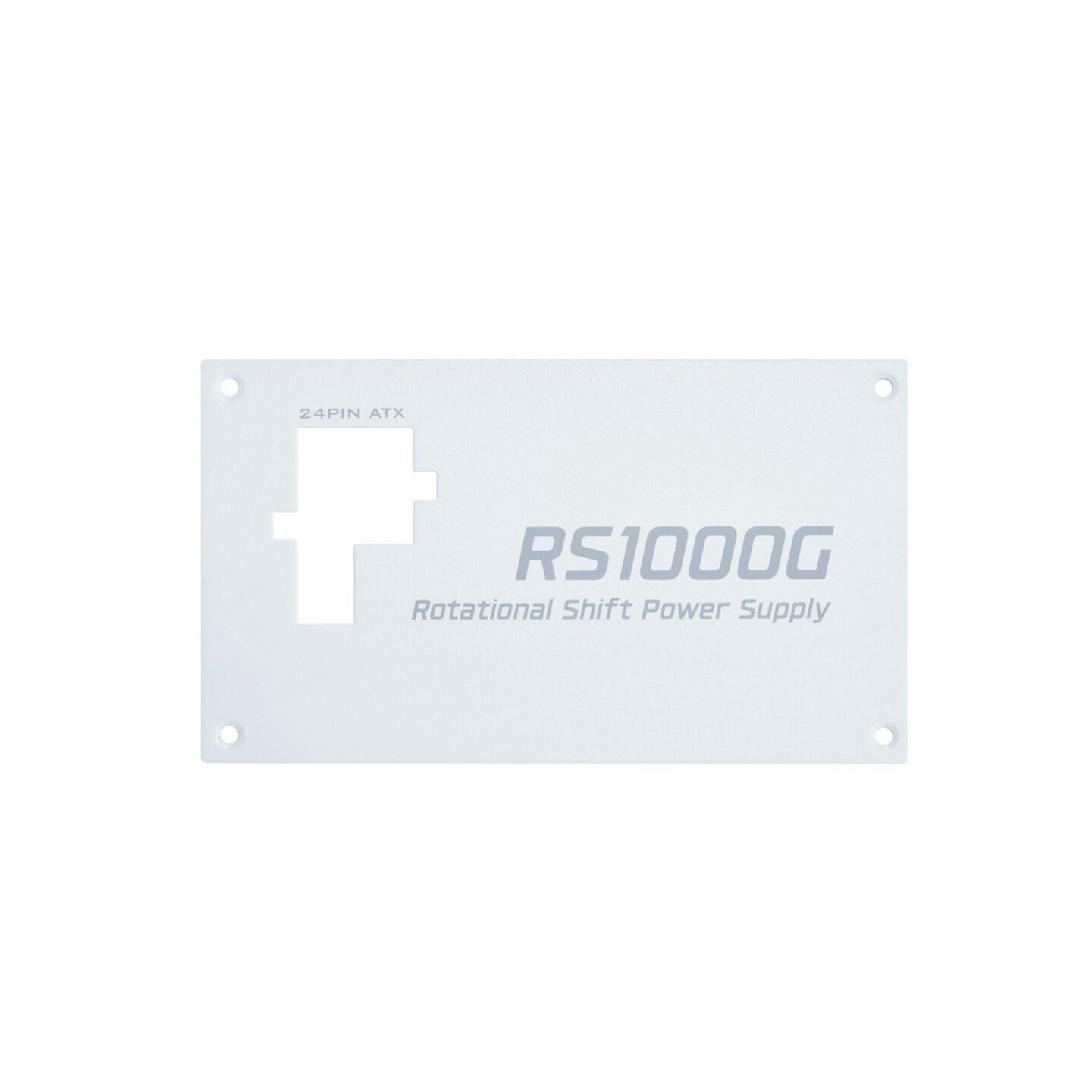

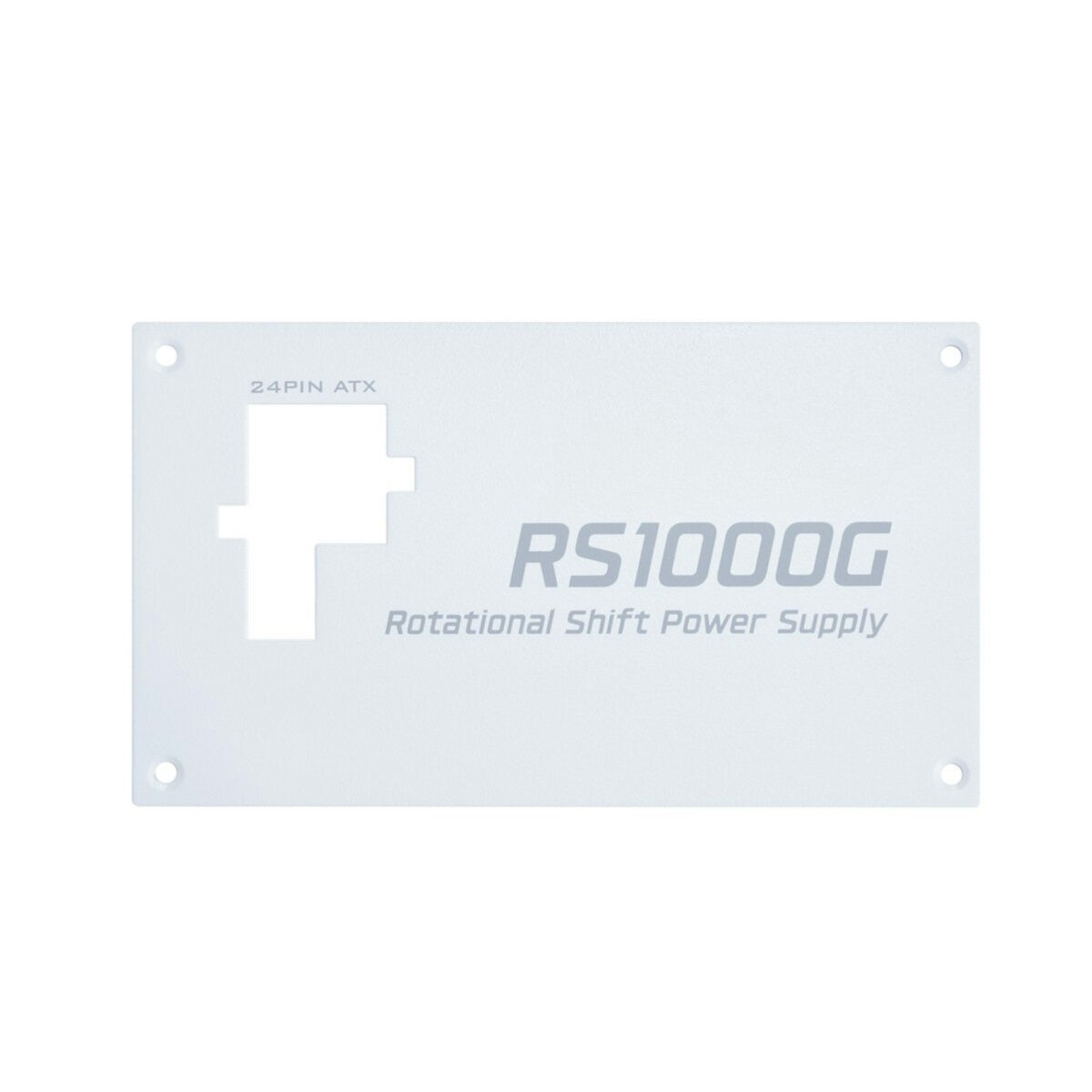

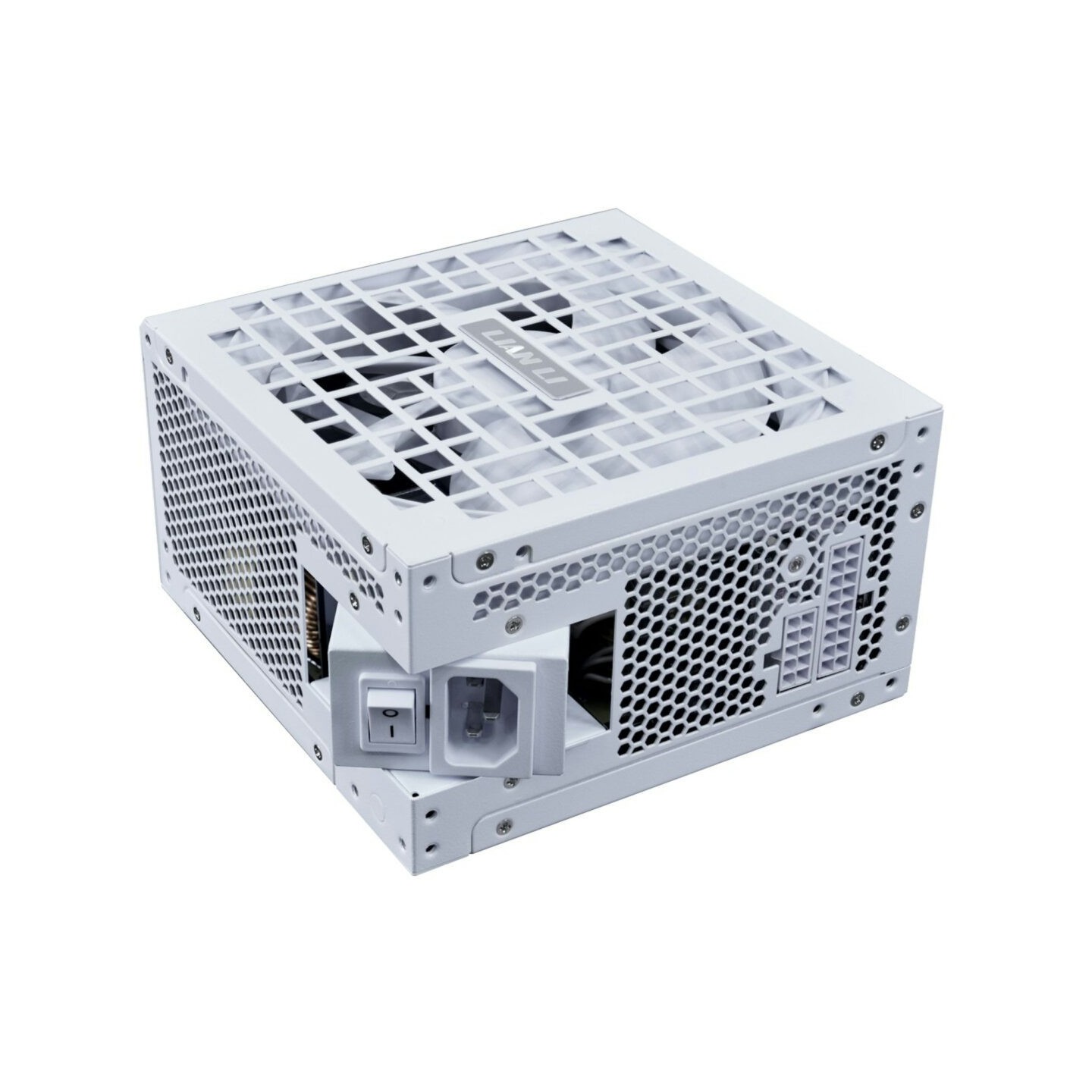

The Lian Li RS1000G White revolutionizes PSU installation with its industry-first 90° rotatable AC inlet, enabling horizontal or vertical mounting in tight cases. It features dual-sided 24-pin ATX outputs for optimal cable routing, reducing clutter and improving airflow. Certified 80 PLUS Gold, Cybenetics Platinum, and PPLP Gold, it delivers over 90% efficiency, minimizing heat and energy use.

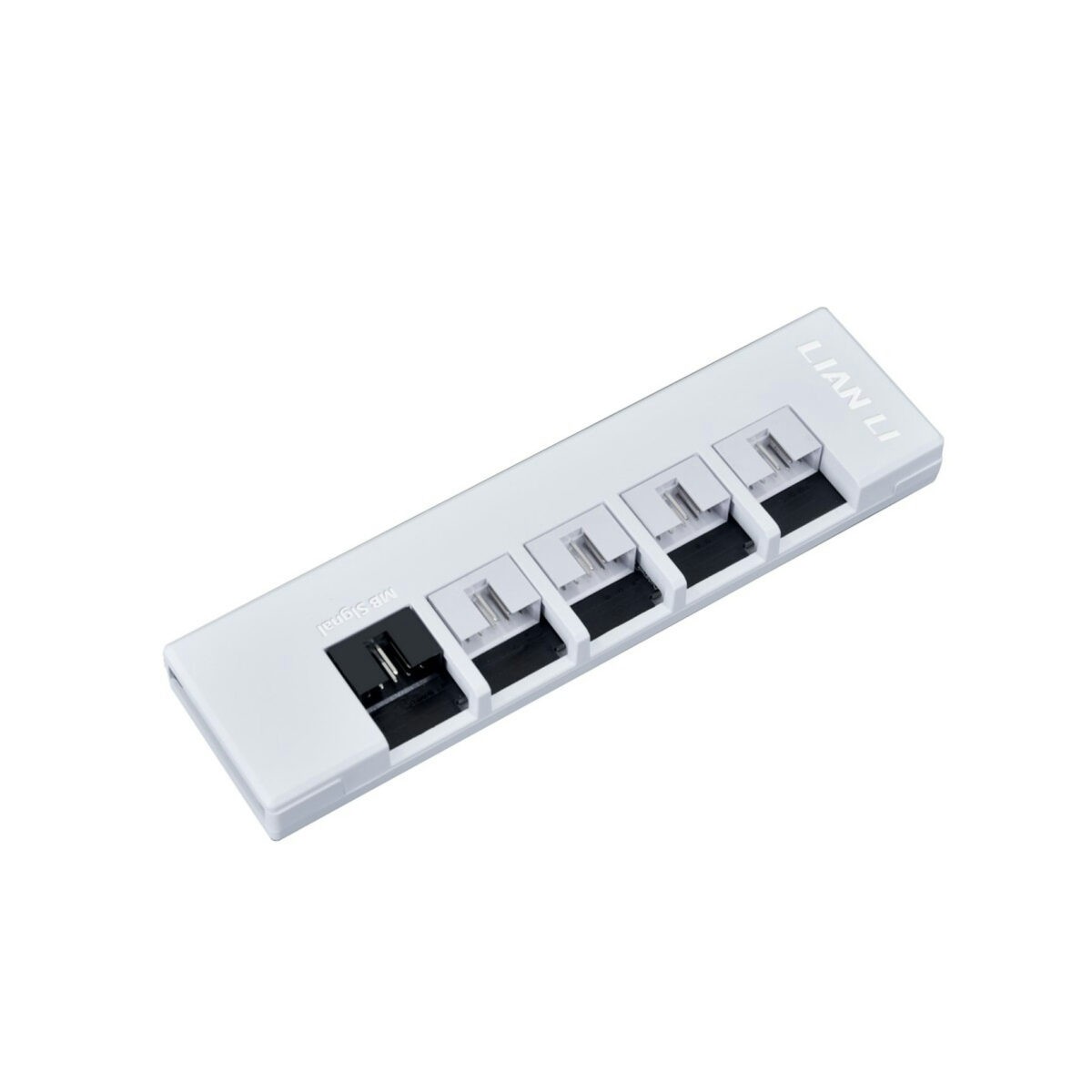

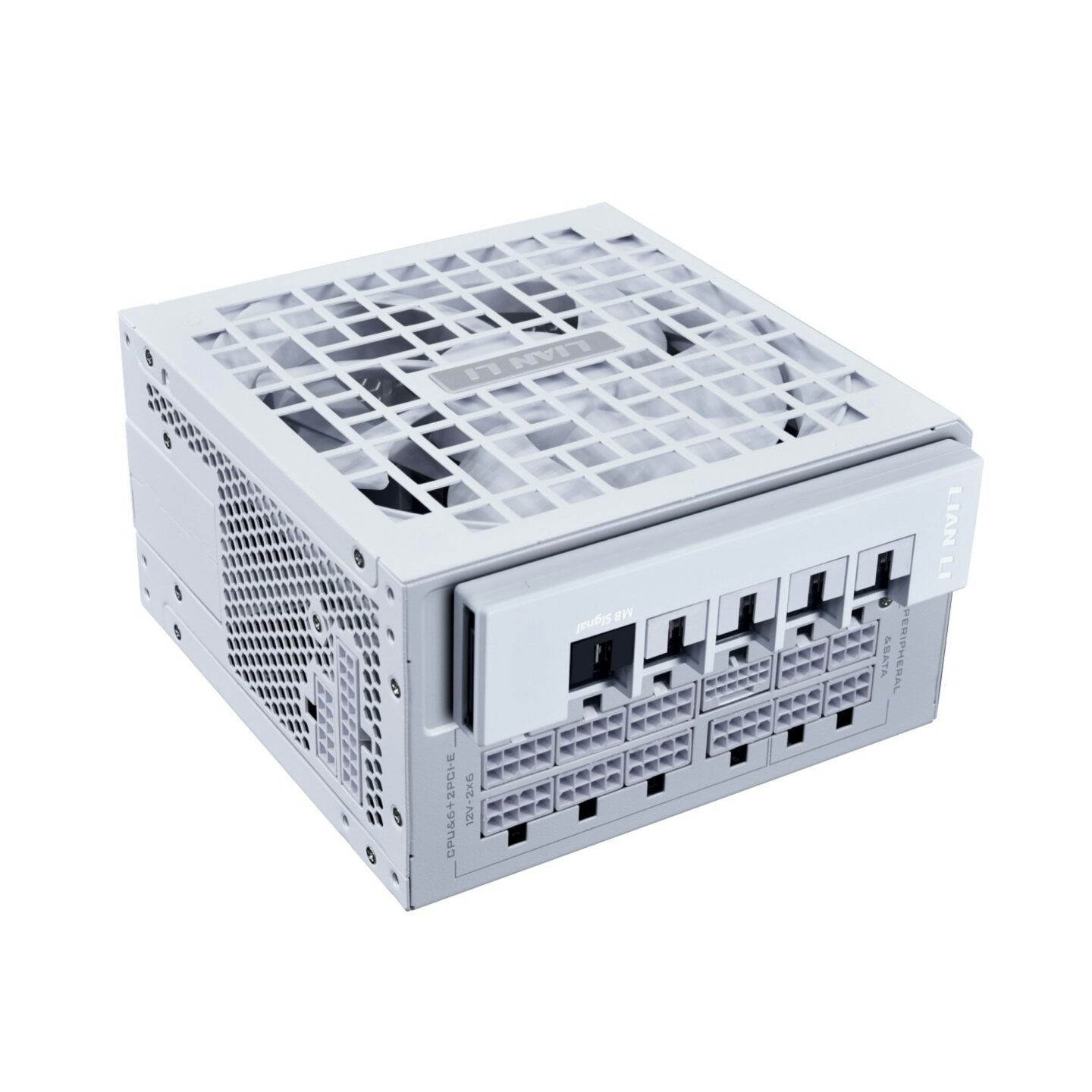

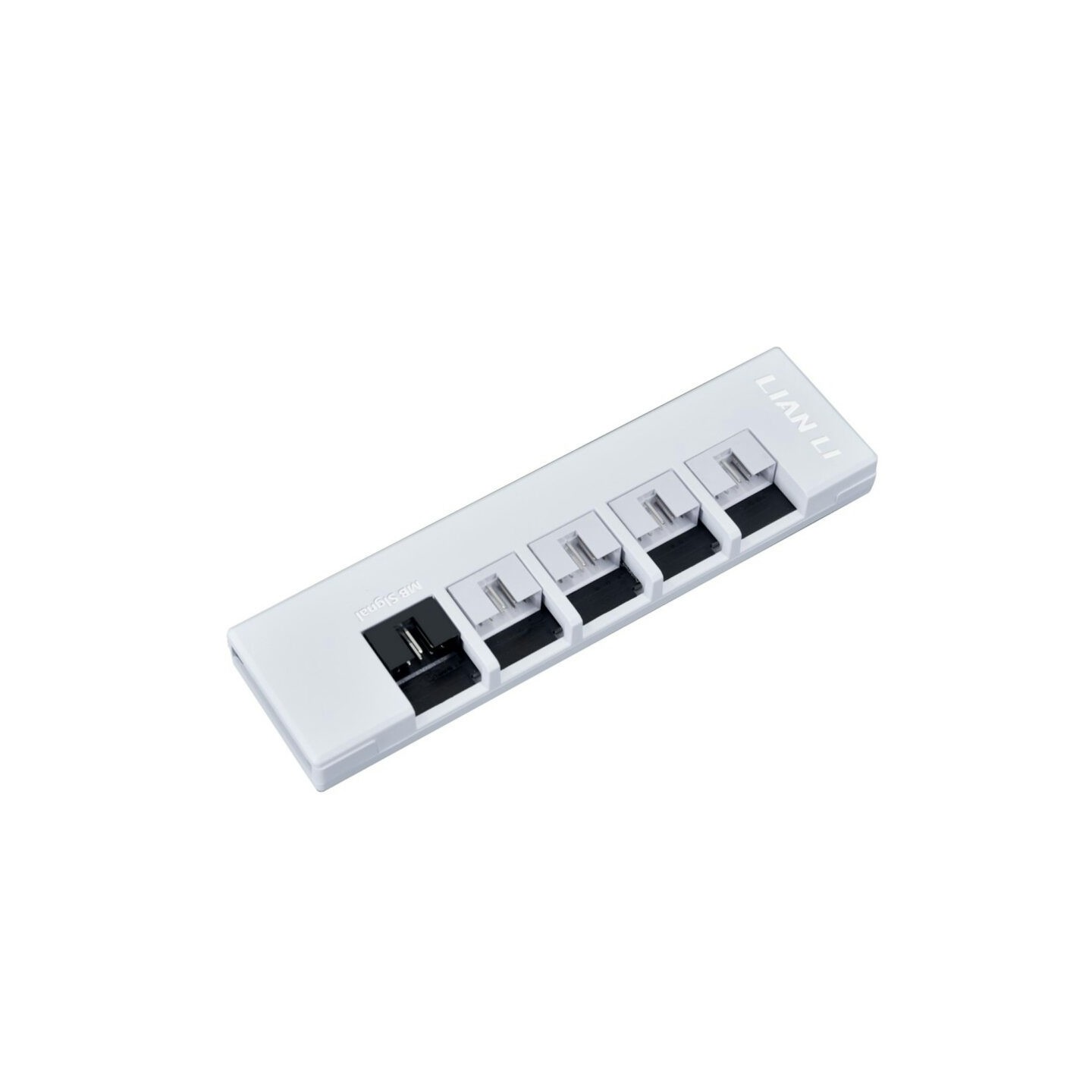

ATX 3.1 compliant with native 12V-2x6 cable (copper alloy terminals) for next-gen GPUs. Equipped with a quiet 135mm FDB fan supporting Zero RPM mode for silent operation at low loads. Includes optional magnetic RS USB Hub adding 4x USB 2.0 ports for RGB/fans. Premium German EPCOS and Japanese capacitors ensure reliability. Fully modular with soft flat cables.
- 1000W max DC output, combined +12V 1000W
- Compact: 150 x 86 x 150 mm
- 10-year warranty
- Full protections: OCP, OVP, OTP, OPP, SCP, UVP, etc.
- Active PFC >0.90
| ATX12V VERSION | ATX 3.1 |
| EFFICIENCY | 80 PLUS Gold / Cybenetics Platinum / PPLP Gold |
| DC OUTPUT CABLE | Full-Modular |
| DIMENSIONS | (D)150 mm x (W)86 mm x (H)150 mm |
| COLOR | White |
| MATERIAL | SECC |
| PFC | Active PFC, PF > 0.90 under full load @ 115Vac, 60Hz |
| INPUT RATING | 100-240Vac 15-8A, 50-60Hz |
| MAX. DC OUTPUT | 1000W |
| COMBINED +12V | 1000W |
| COMBINED +3.3V & +5V | 100W |
| FAN SPEC | 135mm FDB Fan |
| FAN RPM | 1600rpm |
| FANLESS MODE | YES (Zero RPM) |
| NOISE LEVEL | 36.21dBA @ 30℃, 100cm |
| MTBF | 100,000 hrs minimum 25℃/75% Load |
| PROTECTION | OCP, OVP, OTP, OPP, SCP, UVP, NLP, SIP |
| WORKING TEMPERATURE | 0-40℃ |
| WARRANTY | 10 Years |
| ROTATABLE AC INLET | 90° |
| MAIN FEATURES | Dual-Sided 24-Pin, RS USB Hub (optional), 12V-2x6 cable |
