Lian Li RS1000G Black - 1000W 80+ Gold ATX 3.1 Fully Modular PSU - 12V-2x6 (Boxed)
Lian Li RS1000G: 1000W 80+ Gold PSU with industry-first 90° rotatable AC inlet for horizontal/vertical mounting. ATX 3.1 compliant, 135mm FDB fan with Zero RPM, Cybenetics Platinum efficiency, 12V-2x6 cable. 10-year warranty.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| PSU (Power Supplies) - Wattage | 1000 - 1199 W |
|---|---|
| PSU (Power Supplies) - Efficiency Rating | 80 Plus Gold Cybenetics Platinum |
| PSU (Power Supplies) - Color | Black |
| PSU (Power Supplies) - Modularity | Fully modular |
| PSU (Power Supplies) - PCIe GPU Connectors | 1x 12V-2x6 4x 8/6 pins |
| PSU (Power Supplies) - Length | 141-160 mm |
| PSU (Power Supplies) - EPS CPU Connectors | 2x 4+4pin EPS/ATX12V |

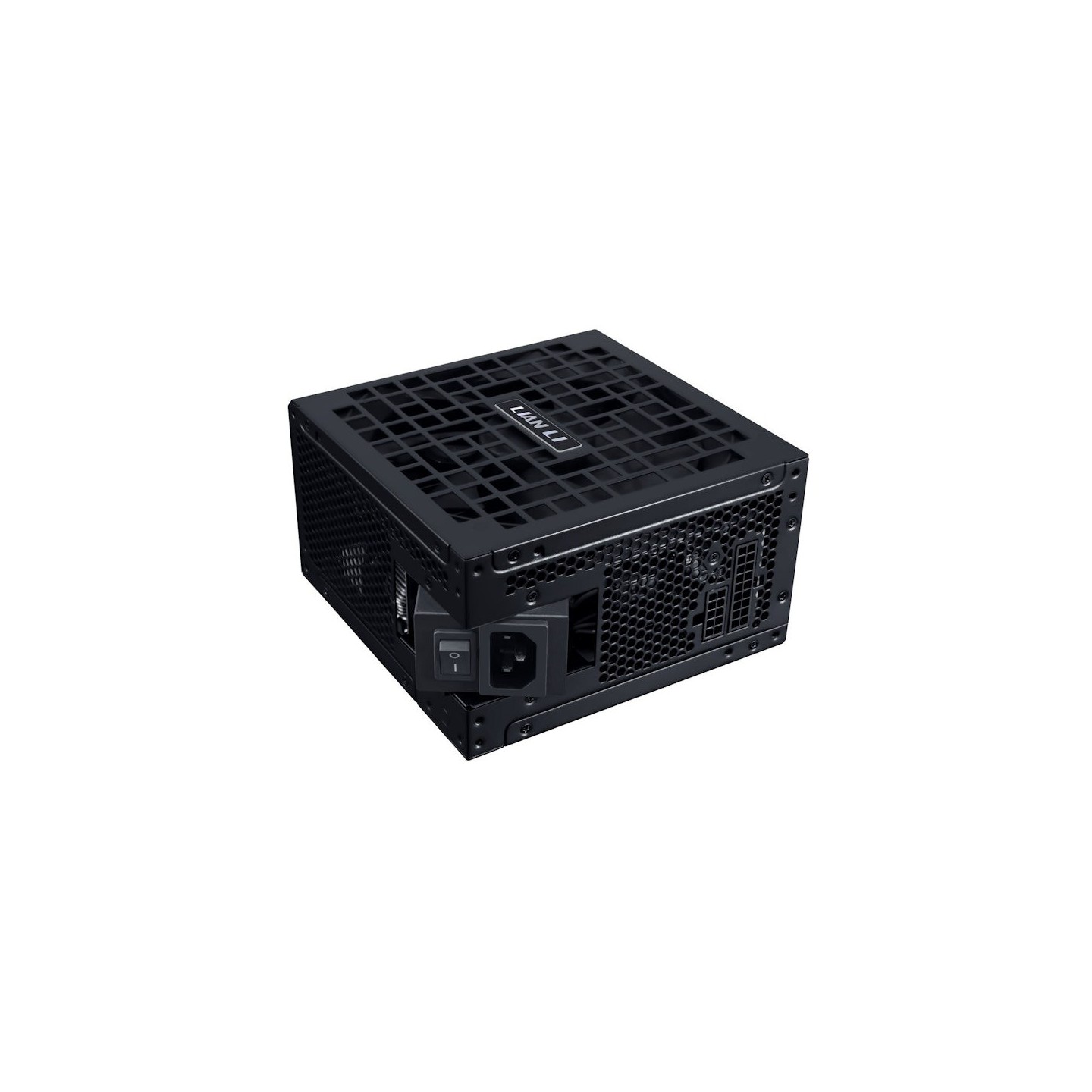

Revolutionary Rotatable AC Inlet (90°)
Lian Li's world-first innovation allows the power inlet to rotate 90 degrees, enabling installation in both horizontal and vertical orientations for tight PC cases.

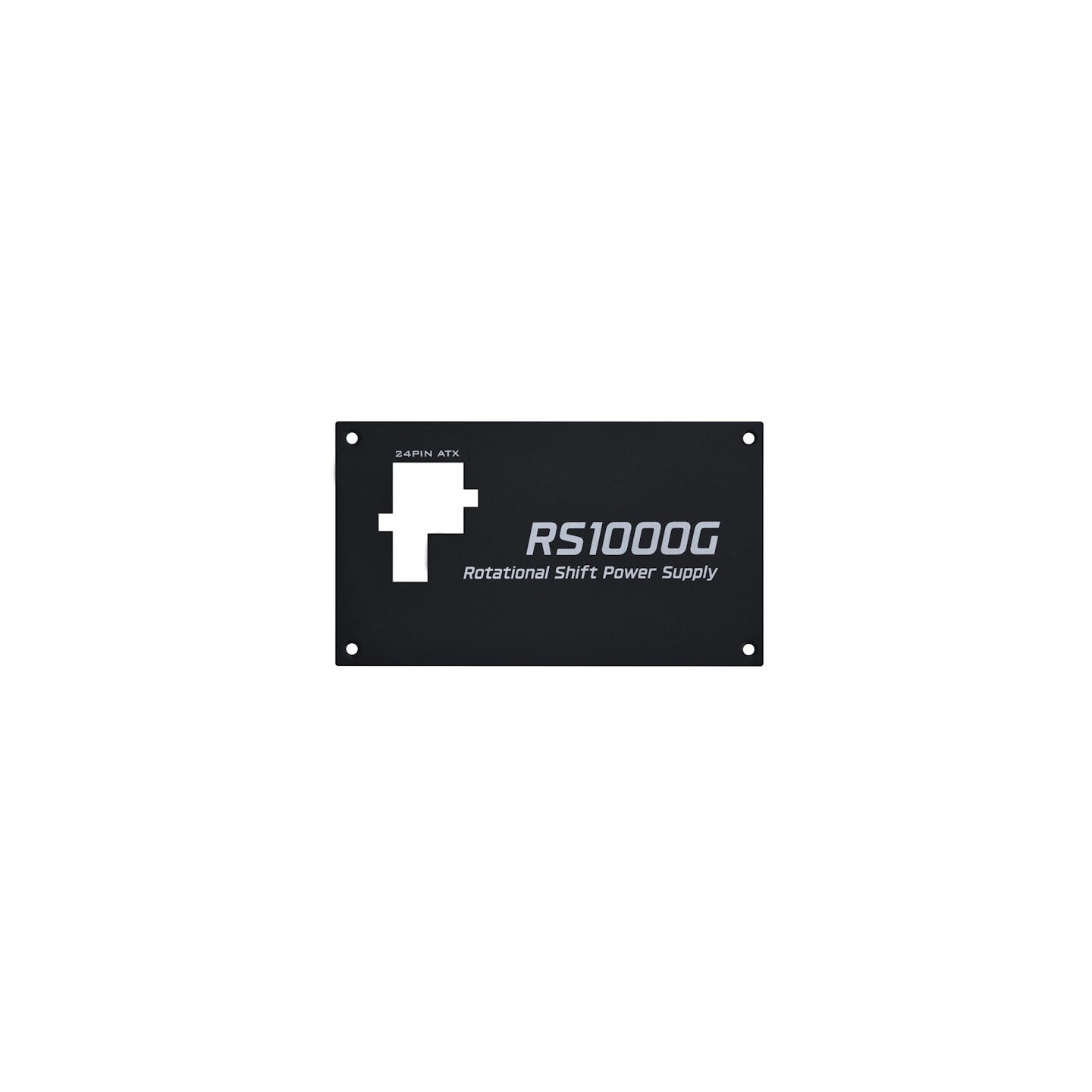

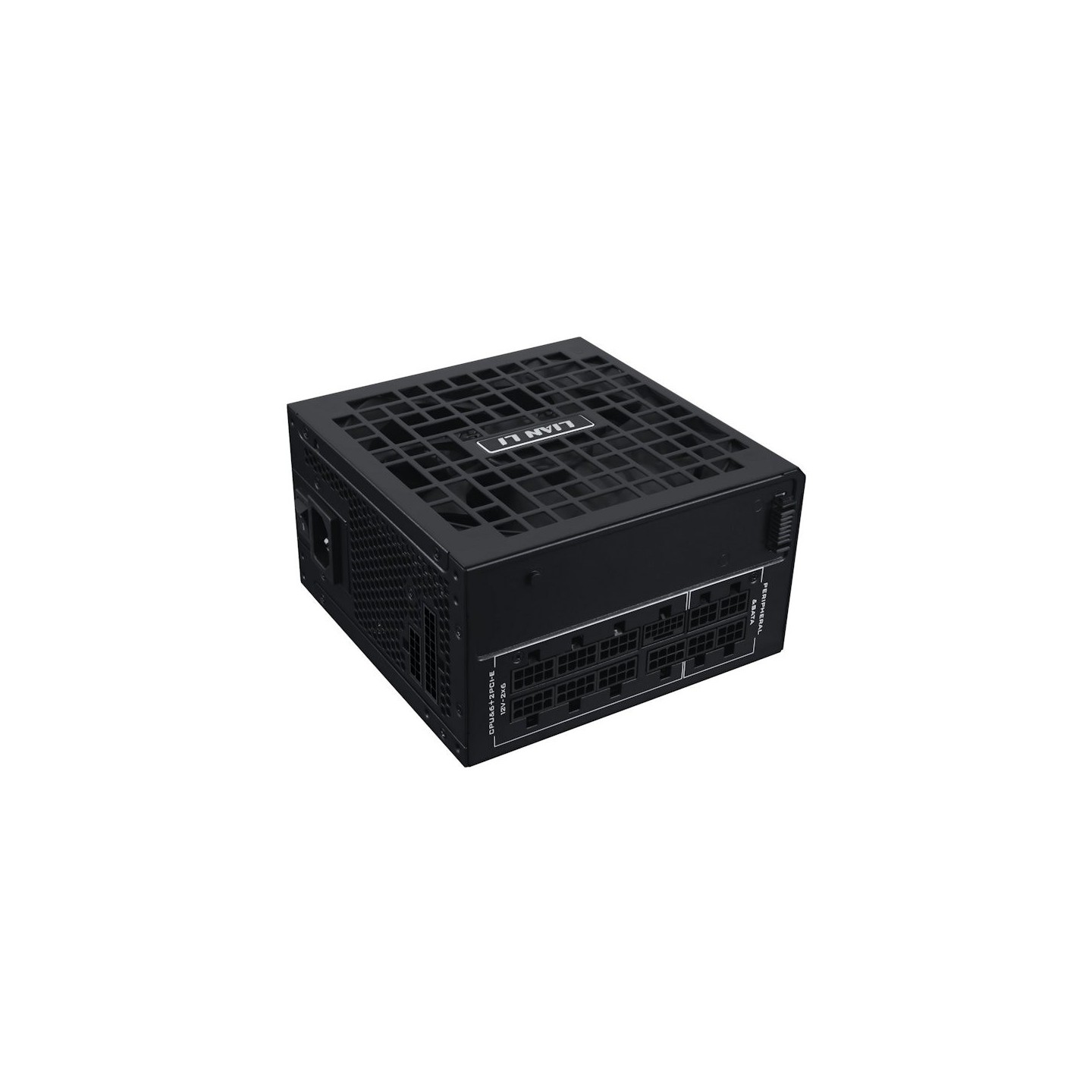

Dual-Sided 24-Pin Design
Features two 20+4-pin ATX outputs on opposite sides for optimal cable routing, reducing clutter and improving airflow. Fully modular with soft flat cables and magnetic ties for easy management.
Equipped with 135mm FDB fan featuring Zero RPM mode for silent operation at low loads. Uses premium German EPCOS and Japanese capacitors for reliability. ATX 3.1 ready with native 12V-2x6 high-power GPU cable (copper terminals), plus multiple PCIe 6+2-pin connectors.
- 80 PLUS Gold, Cybenetics Platinum, PPLP Gold certified (>90% efficiency)
- Compact: 150 x 86 x 150 mm
- Full protections: OCP, OVP, OTP, OPP, SCP, UVP, NLP, SIP
- 10-year warranty
- Noise: 36.21 dBA max
| ATX12V VERSION | ATX 3.1 |
| EFFICIENCY | 80 PLUS Gold / Cybenetics Platinum / PPLP Gold |
| DC OUTPUT CABLE | Full-Modular |
| DIMENSIONS | (D)150 mm x (W)86 mm x (H)150 mm |
| COLOR | Black |
| MATERIAL | SECC |
| PFC | Active PFC, PF > 0.90 under full load @ 115Vac, 60Hz |
| INPUT RATING | 100-240Vac 15-8A, 50-60Hz |
| MAX. DC OUTPUT | 1000W |
| COMBINED +12V | 1000W |
| COMBINED +3.3V & +5V | 100W |
| FAN SPEC | 135mm FDB Fan |
| FAN RPM | 1600rpm |
| FANLESS MODE | YES (Zero RPM) |
| NOISE LEVEL | 36.21dBA @ 30℃, 100cm |
| MTBF | 100,000 hrs minimum 25℃/75% Load |
| PROTECTION | OCP, OVP, OTP, OPP, SCP, UVP, NLP, SIP |
| WORKING TEMPERATURE | 0-40℃ |
| WARRANTY | 10 Years |
| PCIe CONNECTORS | 1x 12V-2x6 (16-pin), 4x 6+2-pin PCIe (estimated) |
| EPS CONNECTORS | 2x 4+4pin EPS/ATX12V |
| CAPACITORS | German EPCOS + Japanese |
