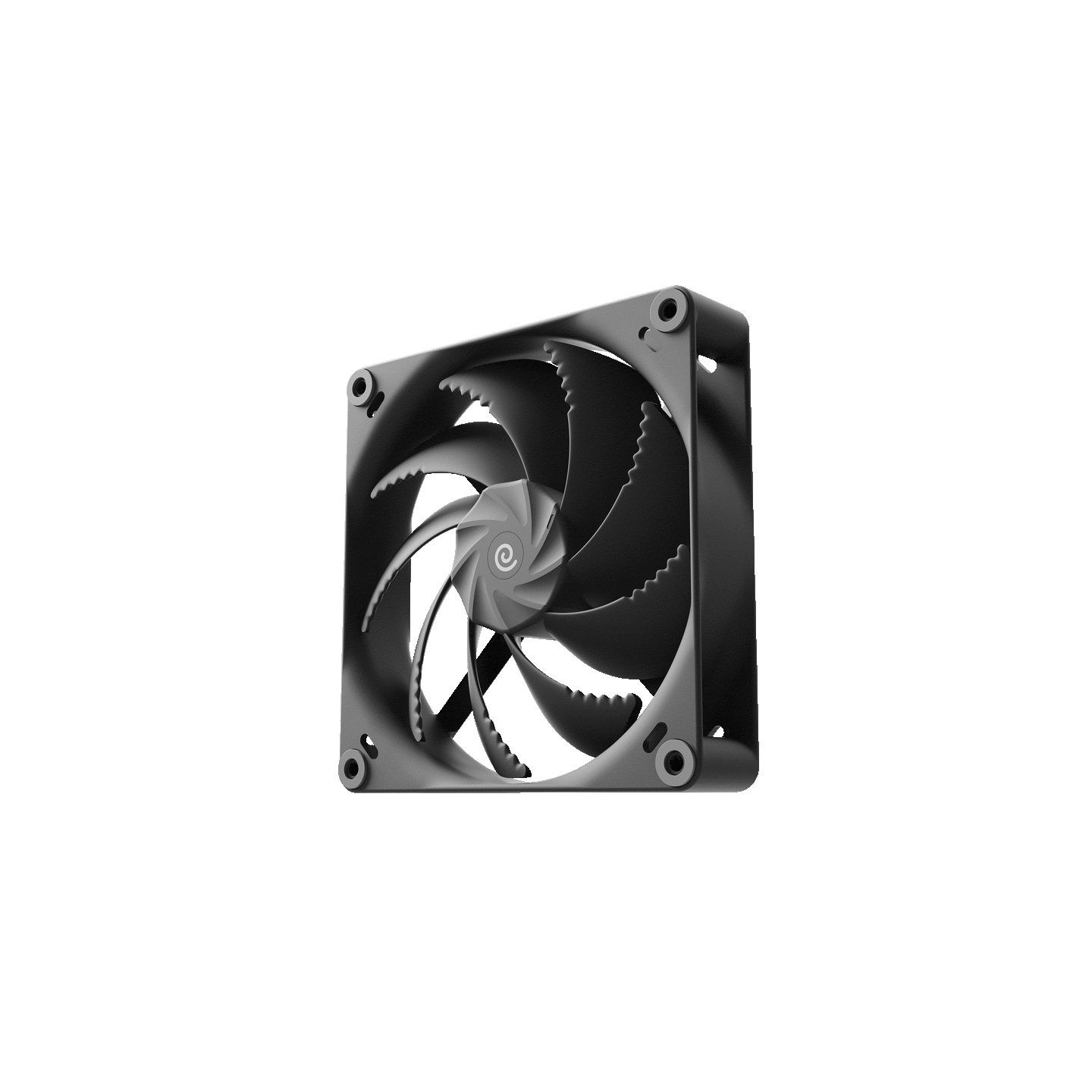

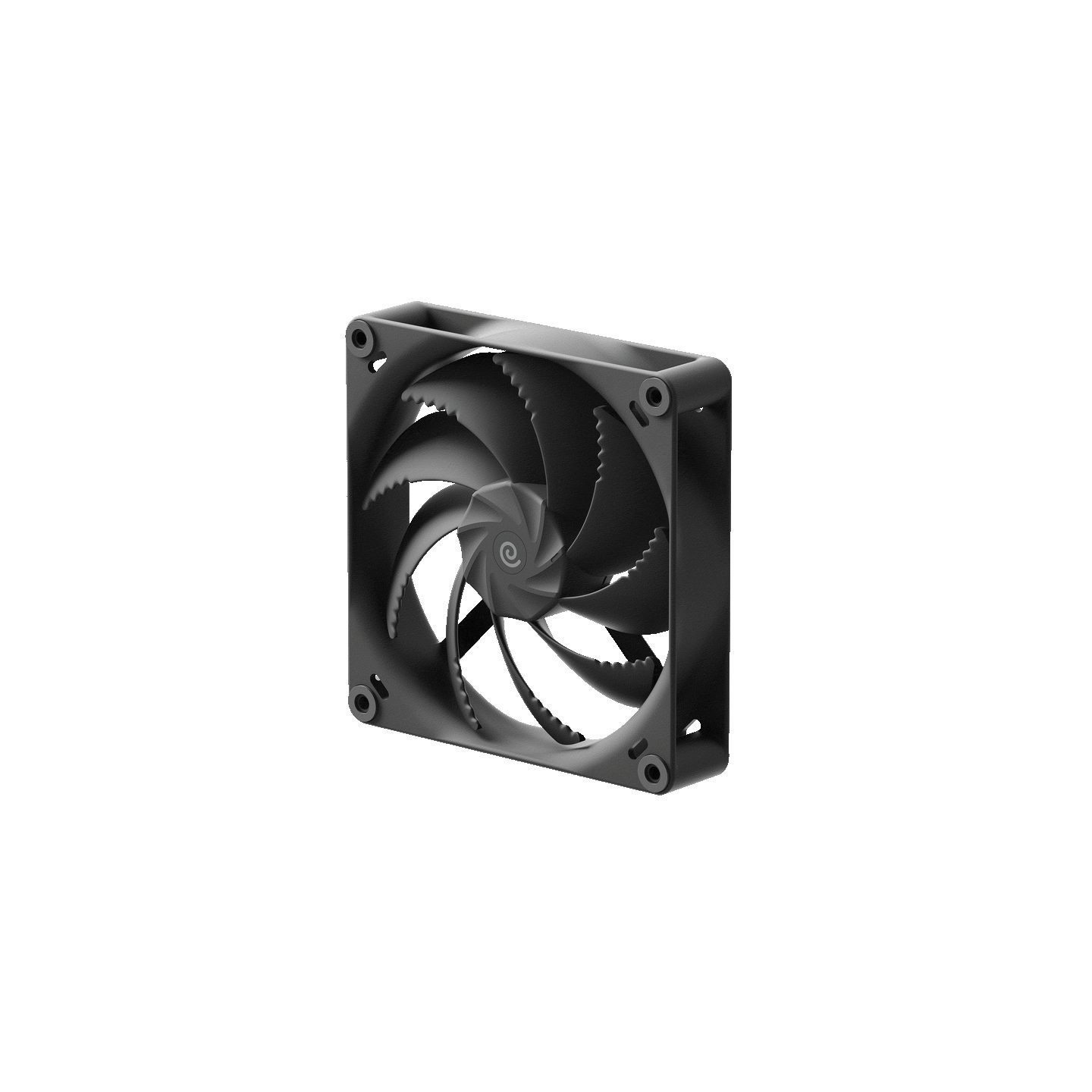

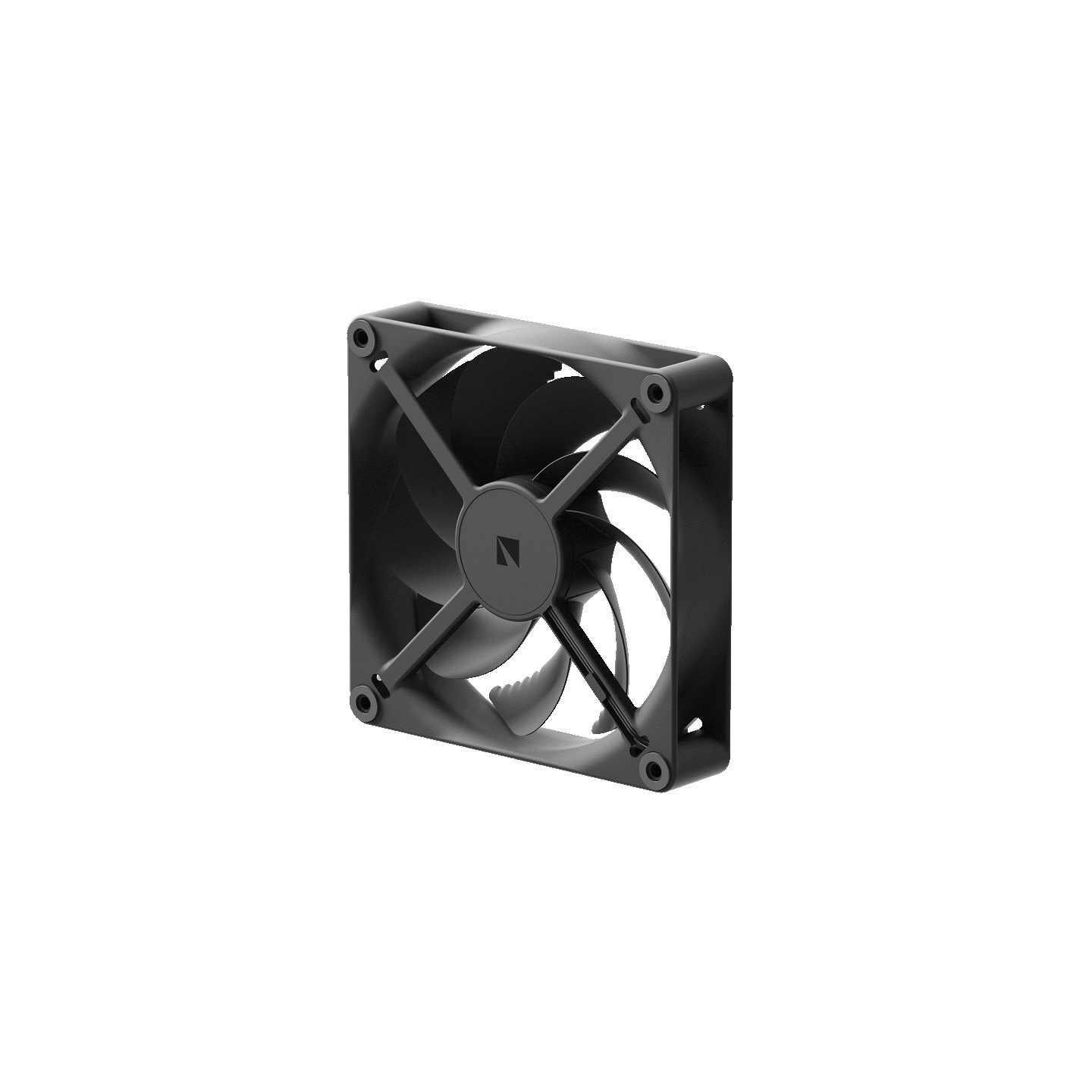

HAVN H14 140mm PWM Case Fan Black (Boxed)
HAVN H14 140mm PWM case fan delivers 85.18 CFM airflow with whisper-quiet 30.8 dB(A) operation. Features FDB bearing, Loopin cable system, and vibration-dampening pads for clean builds.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| Cooling (CPU & Case) - Device Type | Case Fan |
|---|---|
| Cooling (CPU & Case) - Fan Size | 140 mm |
| Cooling (CPU & Case) - Lightning | None |
| Cooling (CPU & Case) - Connector | 4-Pin PWM |
| Cooling (CPU & Case) - Color | Black |
| Cooling (CPU & Case) - Special Features | Daisy-Chain Low Noise |
Superior Cooling Performance with Whisper-Quiet Operation
The HAVN H14 is a 140mm PWM case fan engineered for high-performance cooling without excessive noise. Delivering 85.18 CFM airflow with 2.19 mmH2O static pressure, it reaches up to 1,600 RPM while maintaining an impressively quiet 30.8 dB(A). The wavy blade design ensures smooth airflow and reduces turbulence, making it ideal for radiators and mesh panels. Built with a reinforced 30mm frame using 30% glass fiber composite PBT material, the H14 is exceptionally durable and resistant to vibration. The advanced triple-groove fluid dynamic bearing (FDB) guarantees long-lasting, reliable operation even during 24/7 use.
Smart Cable Management with Loopin System
The innovative Loopin cable system routes wires internally through the fan housing, leaving only compact connectors visible externally. This allows you to daisy-chain multiple H14 fans together, significantly reducing cable clutter and maintaining a clean, organized build. With PWM control, fan speed adjusts dynamically to balance cooling performance and noise based on your system's needs. Rubber vibration-dampening pads at the corners absorb vibrations and minimize resonance, ensuring silent operation under load.
- Airflow: 85.18 CFM with 2.19 mmH2O static pressure
- Speed: 0–1,600 RPM (PWM controlled)
- Noise Level: 30.8 dB(A) maximum
- Bearing: Triple-groove fluid dynamic bearing (FDB)
- Connector: 4-pin PWM
- Frame Material: 30% glass fiber composite PBT
- Loopin cable system for daisy-chaining
- Vibration-dampening rubber pads included
| Fan Size | 140 mm |
| Fan Type | Case Fan |
| Color | Black |
| Dimensions (Fan) | 140 × 140 × 30 mm |
| Airflow | 85.18 CFM (144.72 m³/h) |
| Static Pressure | 2.19 mmH2O |
| Maximum RPM | 1,600 RPM |
| Minimum RPM | 0 RPM |
| Noise Level | 30.8 dB(A) |
| Bearing Type | Fluid Dynamic Bearing (FDB) - Triple-groove |
| Connector | 4-pin PWM |
| Rated Voltage | 12 V |
| Power Consumption | 3 W |
| Blade Design | Wavy leading edges |
| Frame Material | 30% glass fiber composite PBT |
| Special Features | Loopin cable system, vibration-dampening rubber pads, CFD-optimized hub |
| Lighting | None |
