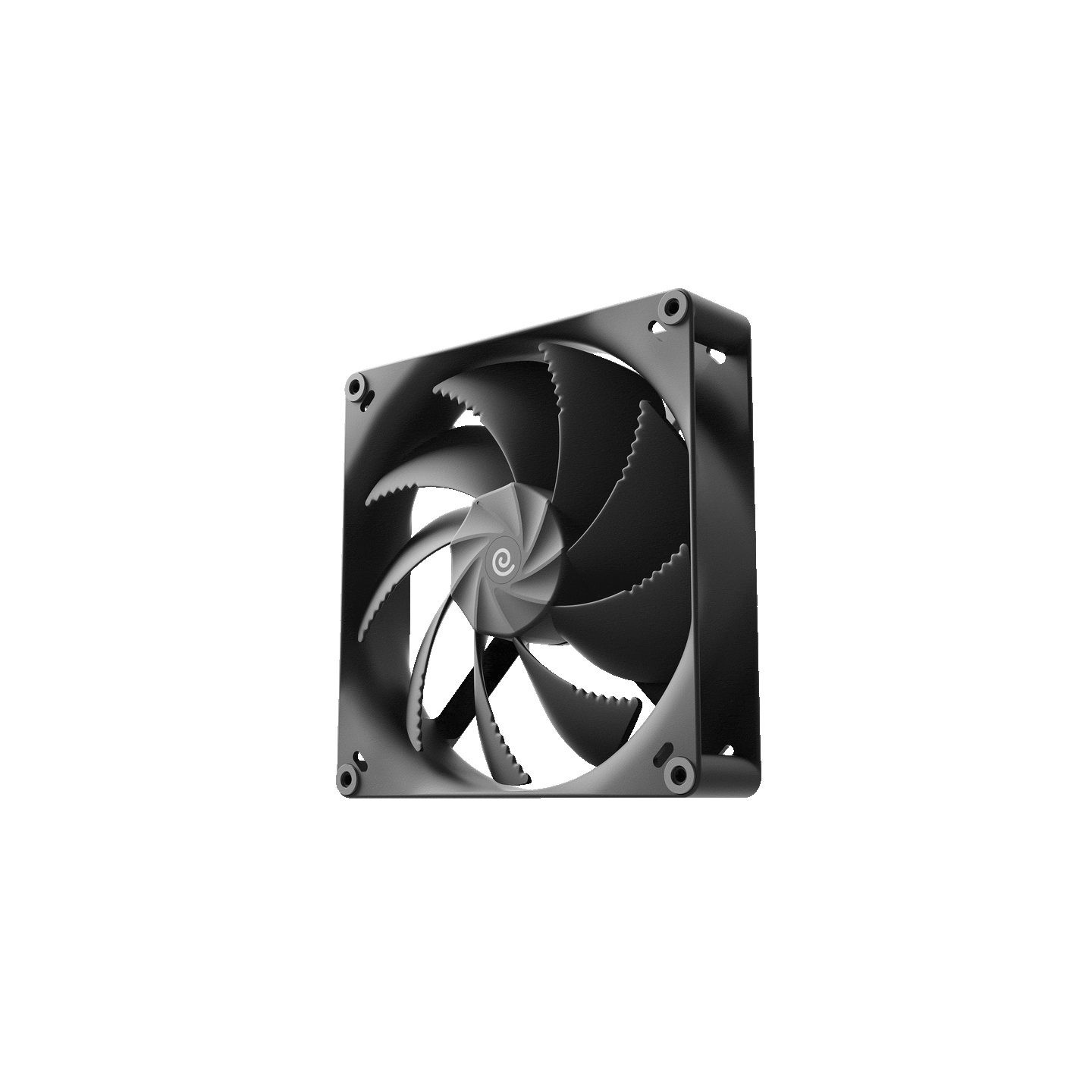

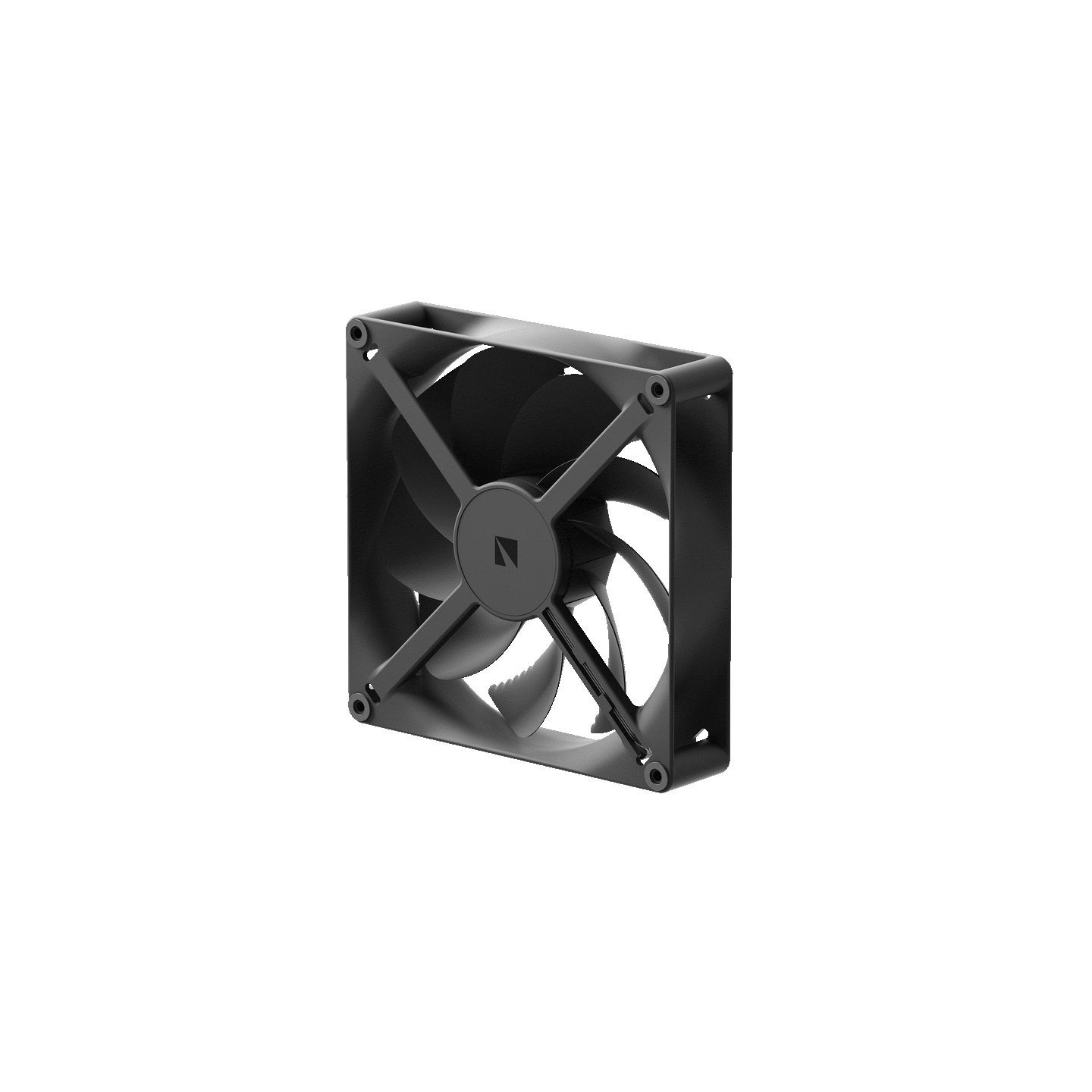

HAVN H18 Single Pack Black 180mm PWM Case Fan - 1300 RPM 164.63 CFM
HAVN H18 180mm PWM fan delivers 164.63 CFM airflow at 1300 RPM with just 35 dBA noise. Features Fluid Dynamic Bearing, Loopin daisy-chain cabling, and glass fiber frame for silent, durable cooling in PC cases and radiators.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| Cooling (CPU & Case) - Device Type | Case Fan |
|---|---|
| Cooling (CPU & Case) - Fan Size | 180 mm |
| Cooling (CPU & Case) - Lightning | None |
| Cooling (CPU & Case) - Connector | 4-Pin PWM |
| Cooling (CPU & Case) - Color | Black |
| Cooling (CPU & Case) - Special Features | Daisy-Chain Low Noise |
More Airflow, Less Noise: HAVN H18 Performance Fan
The HAVN H18 is a premium 180mm PWM case fan combining powerful cooling with whisper-quiet operation. Reaching up to 1300 RPM, it delivers 164.63 CFM (279.71 m³/h) airflow and 2.19 mmH₂O static pressure while maintaining a low 35 dB(A) noise level. Its harmonized flow hub and whale-fin inspired wavy blade edges ensure consistent airflow with minimal turbulence, making it ideal for radiators, mesh front panels, and high-airflow PC builds.
Built with a robust PBT + 30% glass fiber frame and triple-groove Fluid Dynamic Bearing (FDB), the H18 offers exceptional durability and smooth operation even under continuous use. The innovative Loopin System allows daisy-chaining multiple fans with internal cable routing for clean, cable-free aesthetics. Vibration-dampening corner pads further reduce resonance and noise.
- 180 x 180 x 40 mm dimensions with 4-pin PWM connector
- 0-1300 RPM speed range (PWM 0-20% stops fan)
- 12V DC operation at 0.48A rated current
- Net weight 470g per fan
- Designed for case intake/exhaust or radiator cooling
| Dimensions | 180 x 180 x 40 mm |
| Fan Size | 180 mm |
| Bearing Type | Fluid Dynamic Bearing (FDB) Triple Groove |
| Speed Range | 0 (0–20%) – 1300 (100%) RPM |
| Max Airflow | 164.63 CFM (279.71 m³/h) |
| Max Static Pressure | 2.19 mmH₂O |
| Max Noise Level | 35 dB(A) |
| Rated Voltage | DC 12 V |
| Rated Current | 0.48 A |
| Fan Connector | 4-Pin PWM |
| Frame Material | PBT + 30% Glass Fiber |
| Net Weight | 470 g (fan only) |
| Lighting | None |
| Special Features | Loopin Daisy-Chain, Low Noise, Vibration Dampening |
