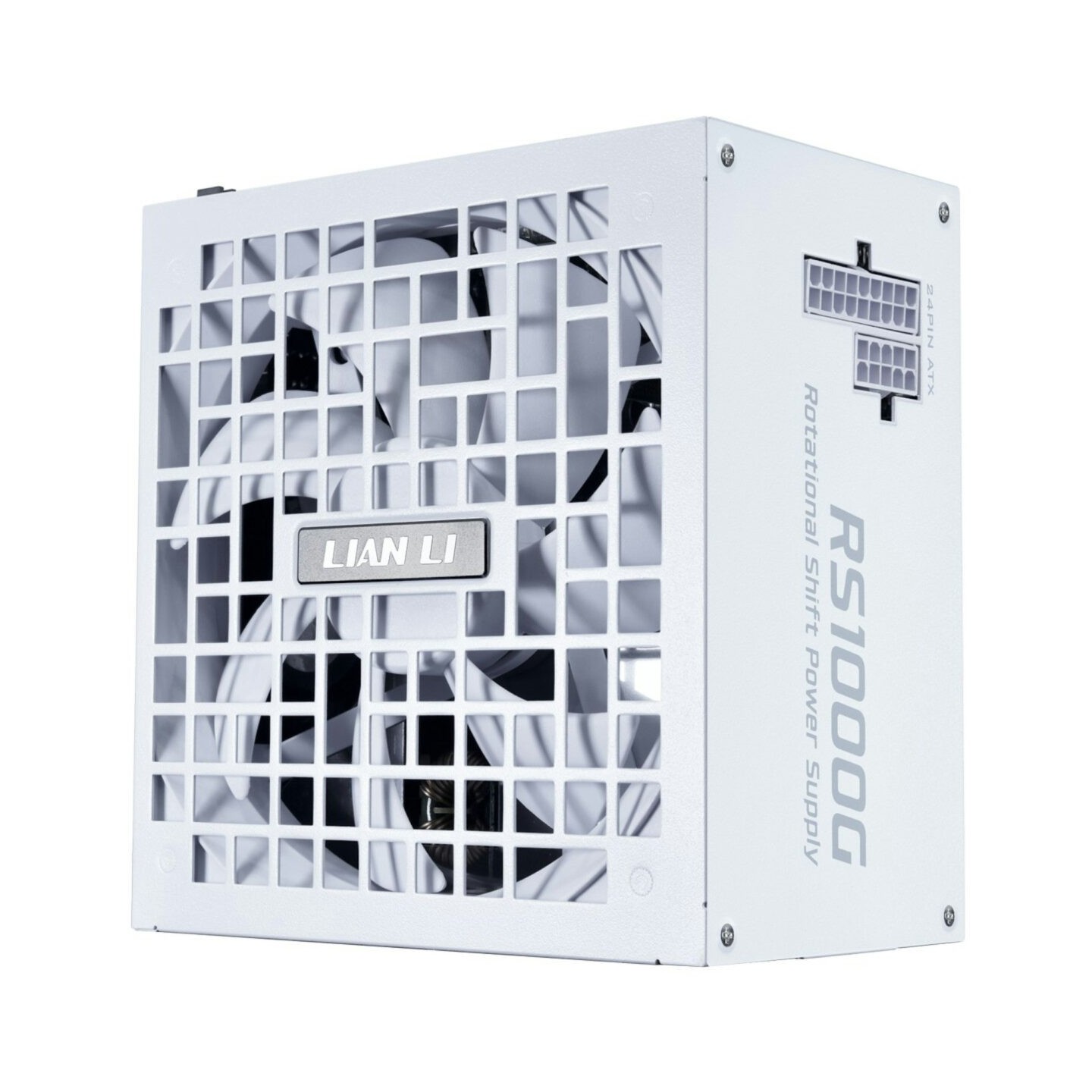

Lian Li RS1000G White 1000W 80+ Gold Fully Modular ATX 3.1 PSU (Boxed)
Lian Li RS1000G White is a 1000W 80+ Gold fully modular ATX 3.1 PSU with 90° rotatable AC inlet, dual-sided 24-pin outputs, 135mm FDB fan with Zero RPM mode, Cybenetics Platinum efficiency, and 12V-2x6 cable for next-gen GPUs.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| PSU (Power Supplies) - Wattage | 1000 - 1199 W |
|---|---|
| PSU (Power Supplies) - Efficiency Rating | 80 Plus Gold Cybenetics Platinum |
| PSU (Power Supplies) - Color | White |
| PSU (Power Supplies) - Modularity | Fully modular |
| PSU (Power Supplies) - PCIe GPU Connectors | 1x 12V-2x6 4x 8/6 pins |
| PSU (Power Supplies) - Length | 141-160 mm |
| PSU (Power Supplies) - EPS CPU Connectors | 2x 4+4pin EPS/ATX12V |

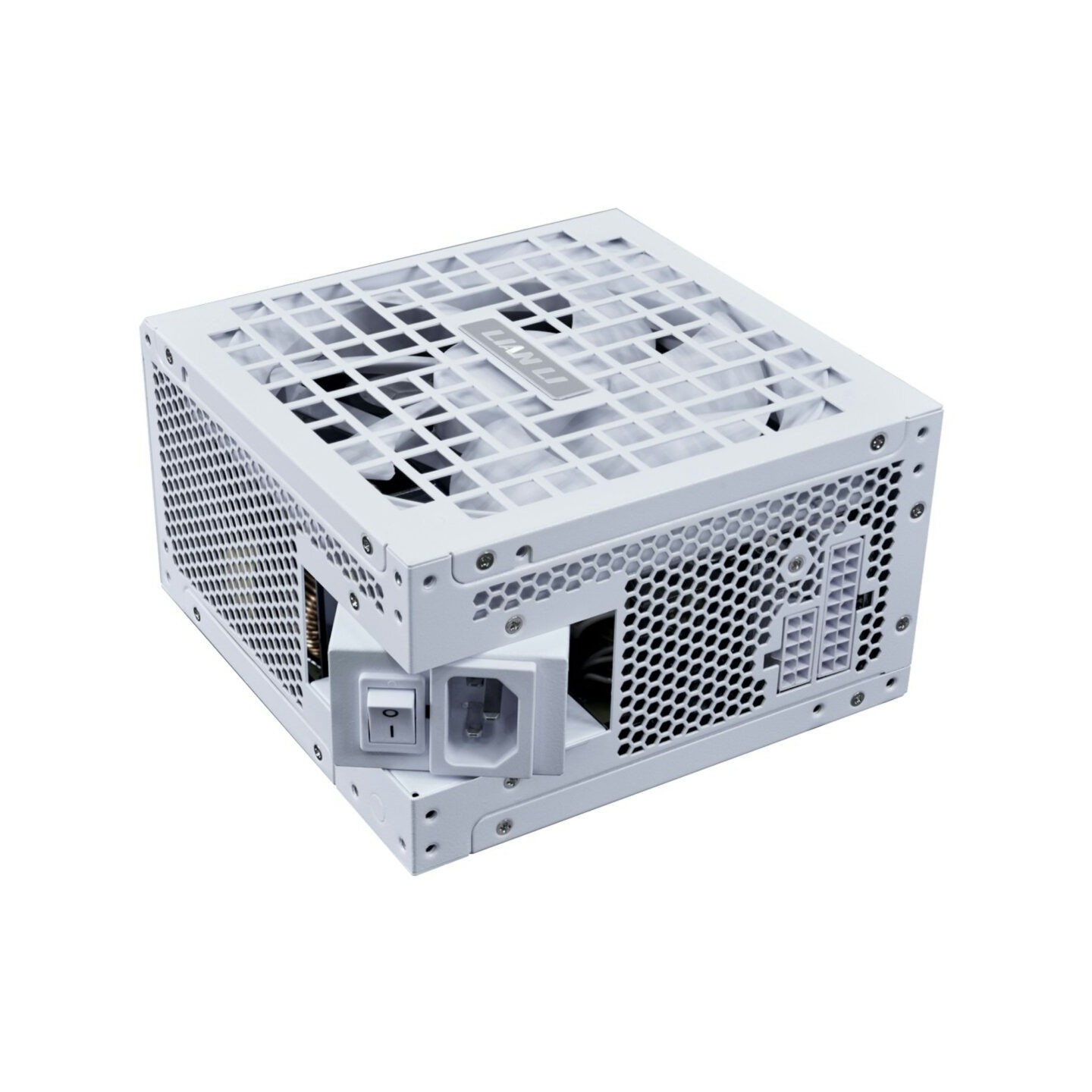

Lian Li RS1000G White revolutionizes PSU installation with its industry-first 90° rotatable AC inlet, allowing horizontal or vertical mounting for tight cases and optimal cable routing.
Featuring dual-sided 24-pin ATX outputs, it simplifies motherboard connections while reducing clutter and improving airflow. Certified 80 PLUS Gold, Cybenetics Platinum, and PPLP Gold, it delivers over 90% efficiency. Equipped with a 135mm FDB fan supporting Zero RPM mode for silent operation at low loads, Japanese/German capacitors ensure longevity, and ATX 3.1 compliance includes a durable 12V-2x6 cable with copper terminals for high-power GPUs.
- ✅ Fully modular flat cables with color-coding
- ✅ 5x PCIe 6+2-pin + 1x 12V-2x6 connectors
- ✅ Compact 150x150x86mm dimensions
- ✅ 10-year warranty & full protections (OCP/OVP/OTP/etc.)
- ✅ Active PFC, 100-240V universal input
| ATX Version | ATX 3.1 |
| Efficiency Certifications | 80 PLUS Gold / Cybenetics Platinum / PPLP Gold |
| Modularity | Fully Modular |
| Dimensions (LxWxH) | 150 x 86 x 150 mm |
| Color | White |
| Material | SECC |
| PFC | Active PFC, PF > 0.90 @ 115Vac full load |
| Input Rating | 100-240Vac 15-8A, 50-60Hz |
| Max DC Output | 1000W |
| Combined +12V | 1000W |
| Combined +3.3V & +5V | 100W |
| Fan Spec | 135mm FDB Fan |
| Fan RPM | 1600rpm |
| Fanless Mode | Yes (Zero RPM) |
| Noise Level | 36.21dBA @ 30℃, 100cm |
| MTBF | 100,000 hrs @ 25℃/75% Load |
| Protections | OCP, OVP, OTP, OPP, SCP, UVP, NLP, SIP |
| Working Temperature | 0-40℃ |
| Warranty | 10 Years |
| PCIe Connectors | 1x 12V-2x6 + 5x 6+2-pin |
| EPS Connectors | 2x 4+4-pin |
| Capacitors | German EPCOS + Japanese |
