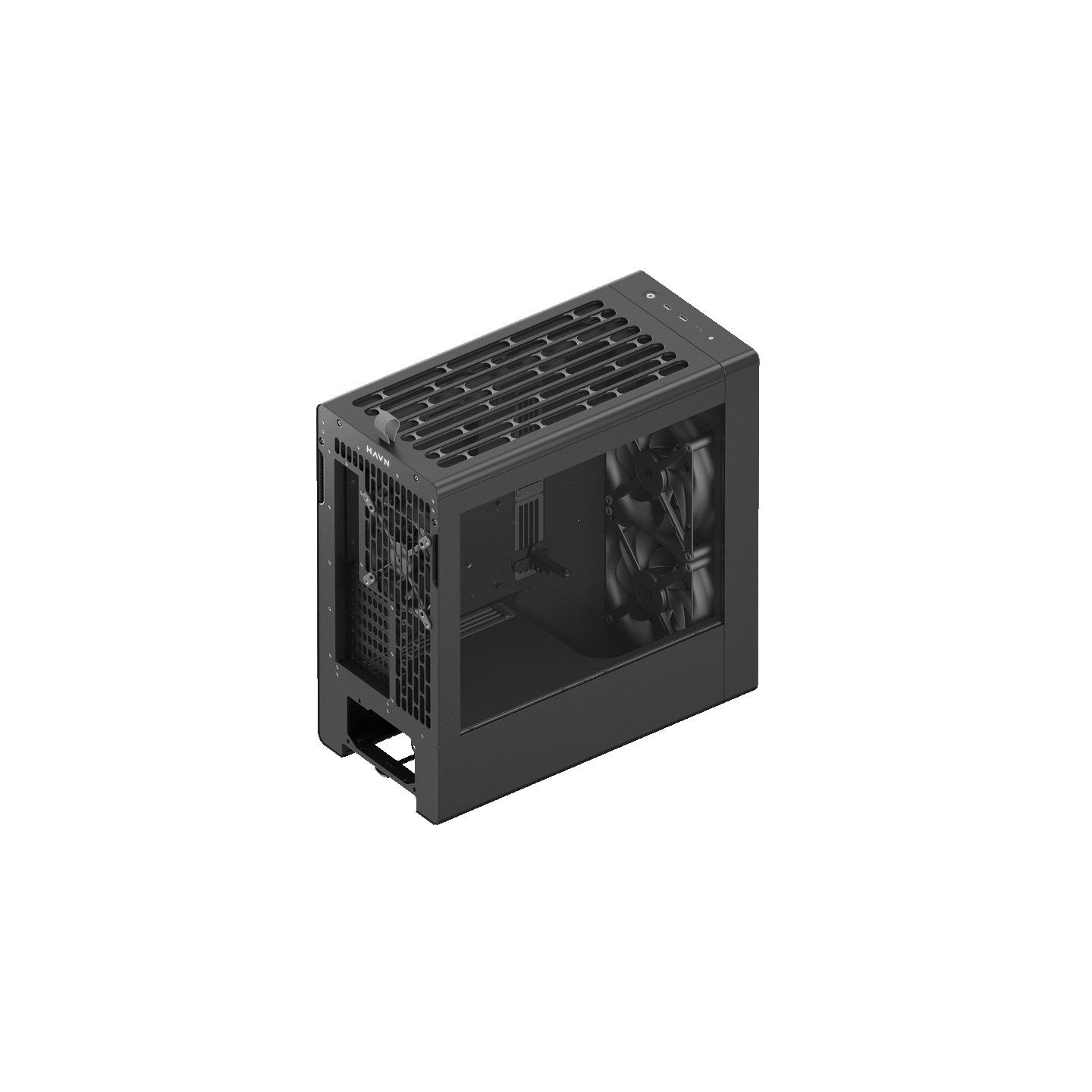

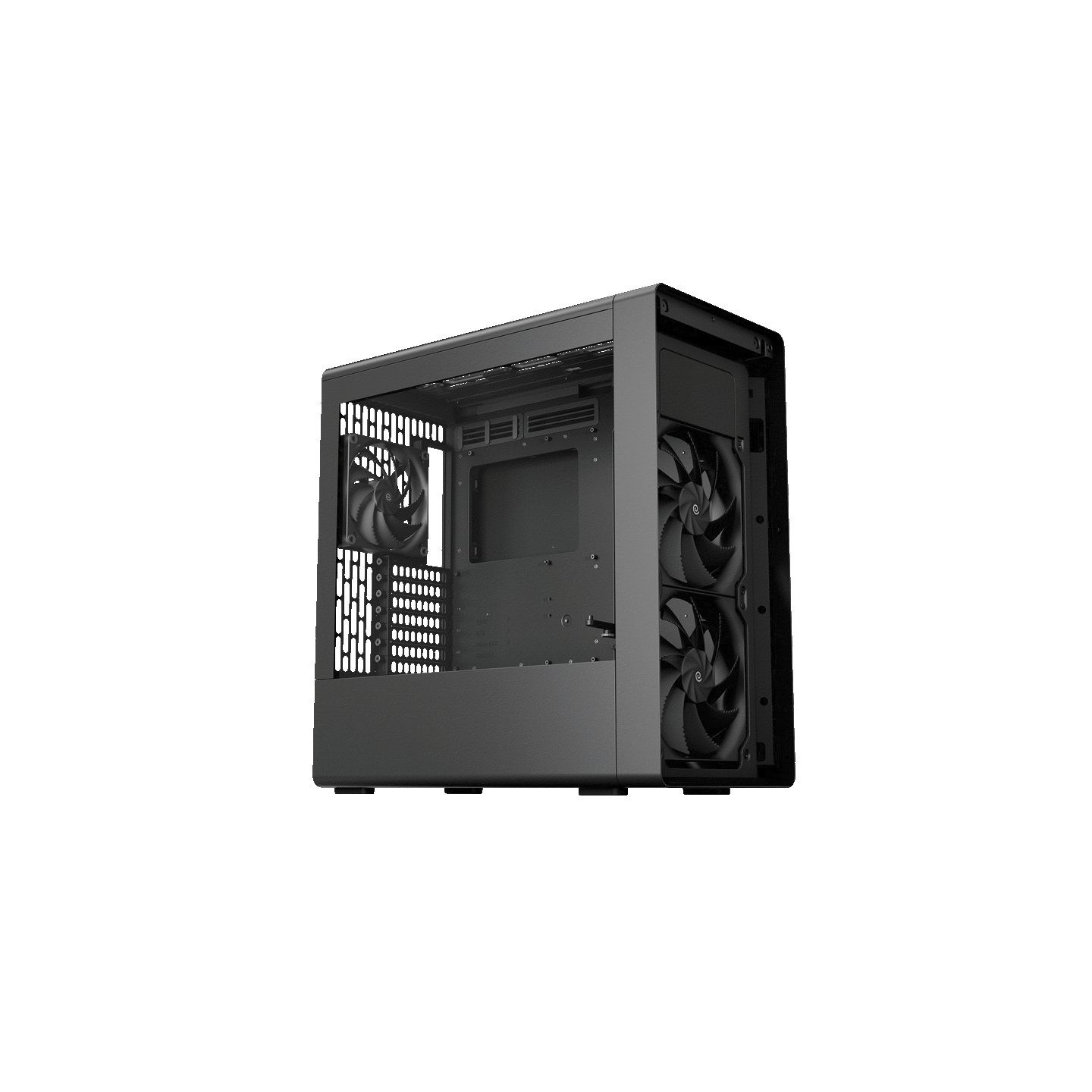

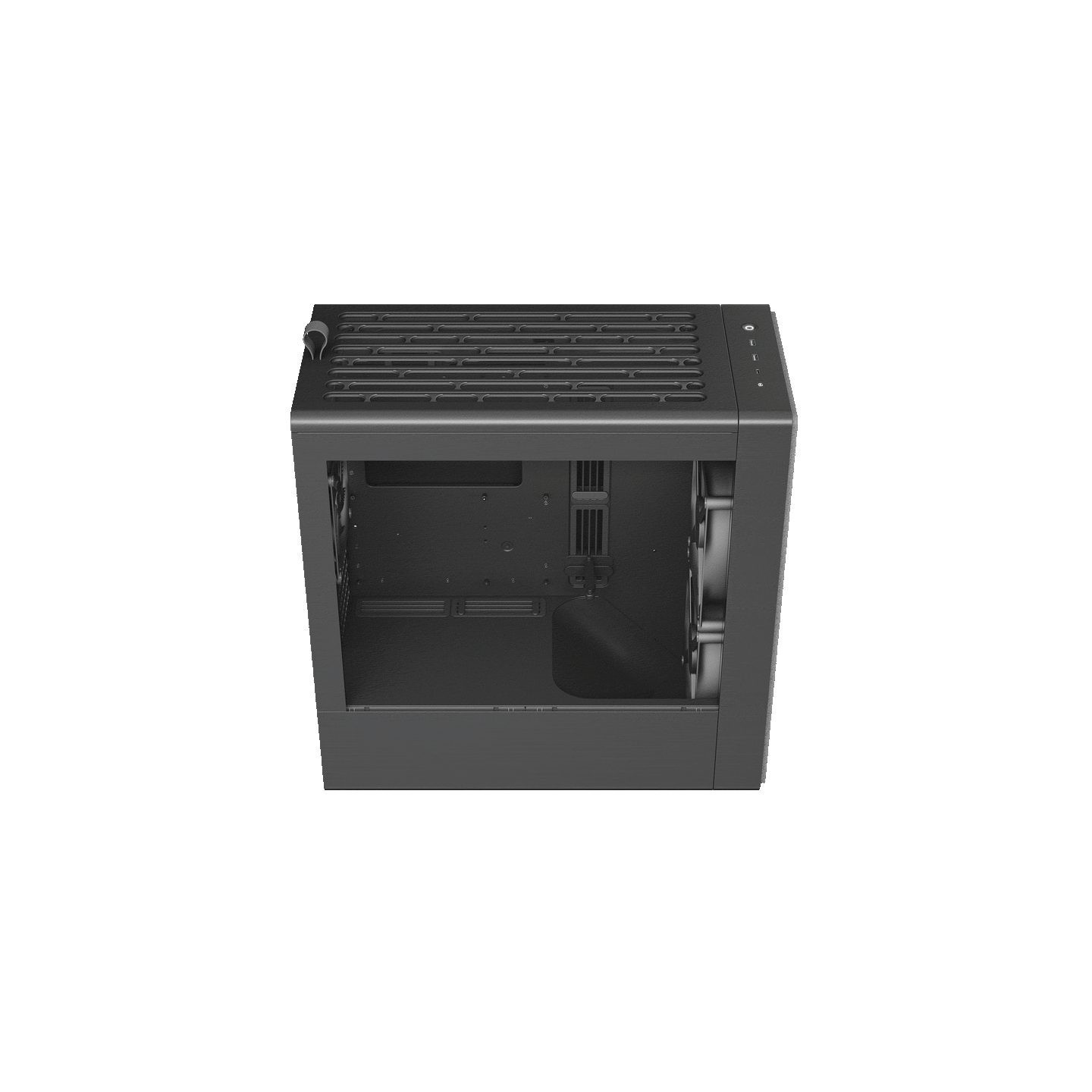

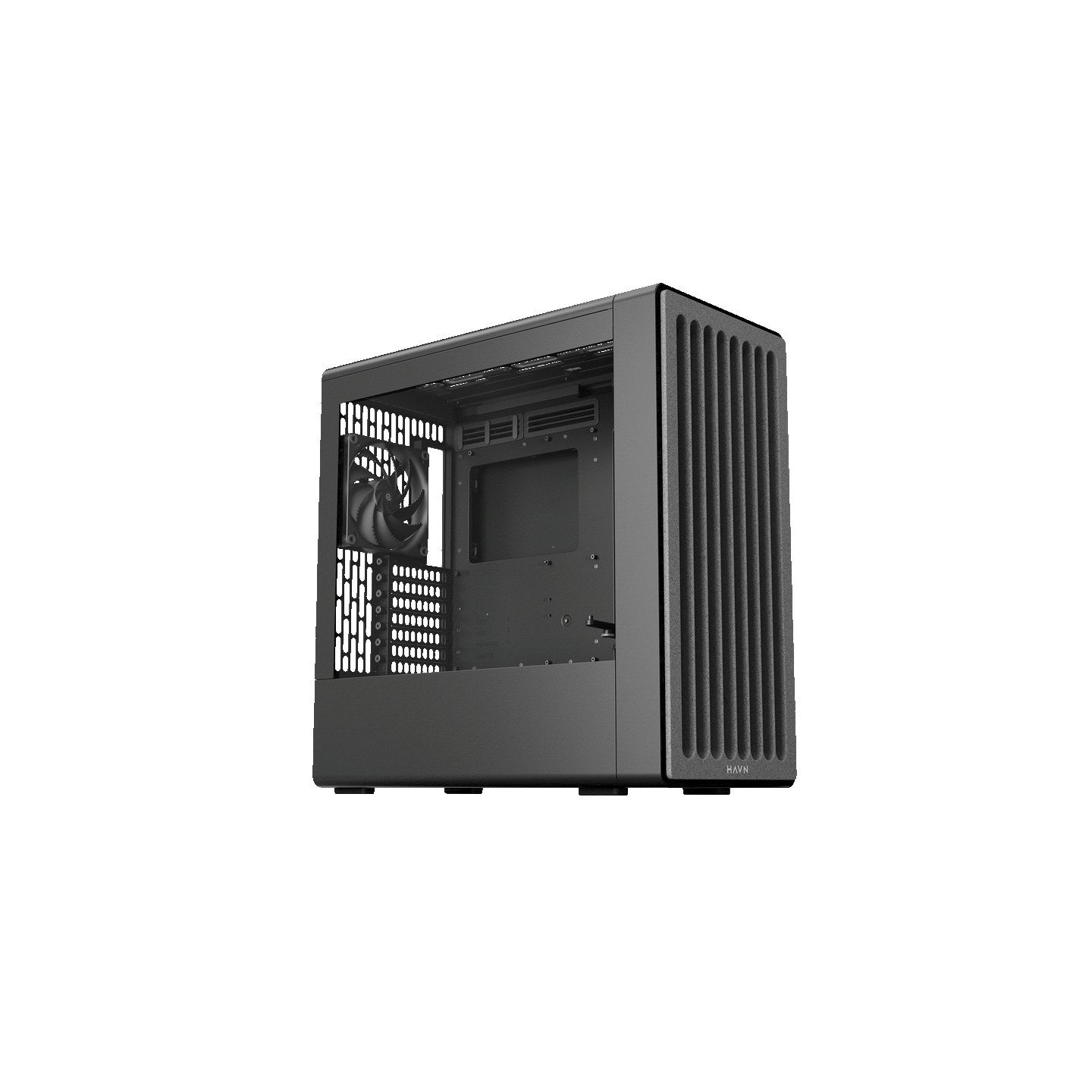

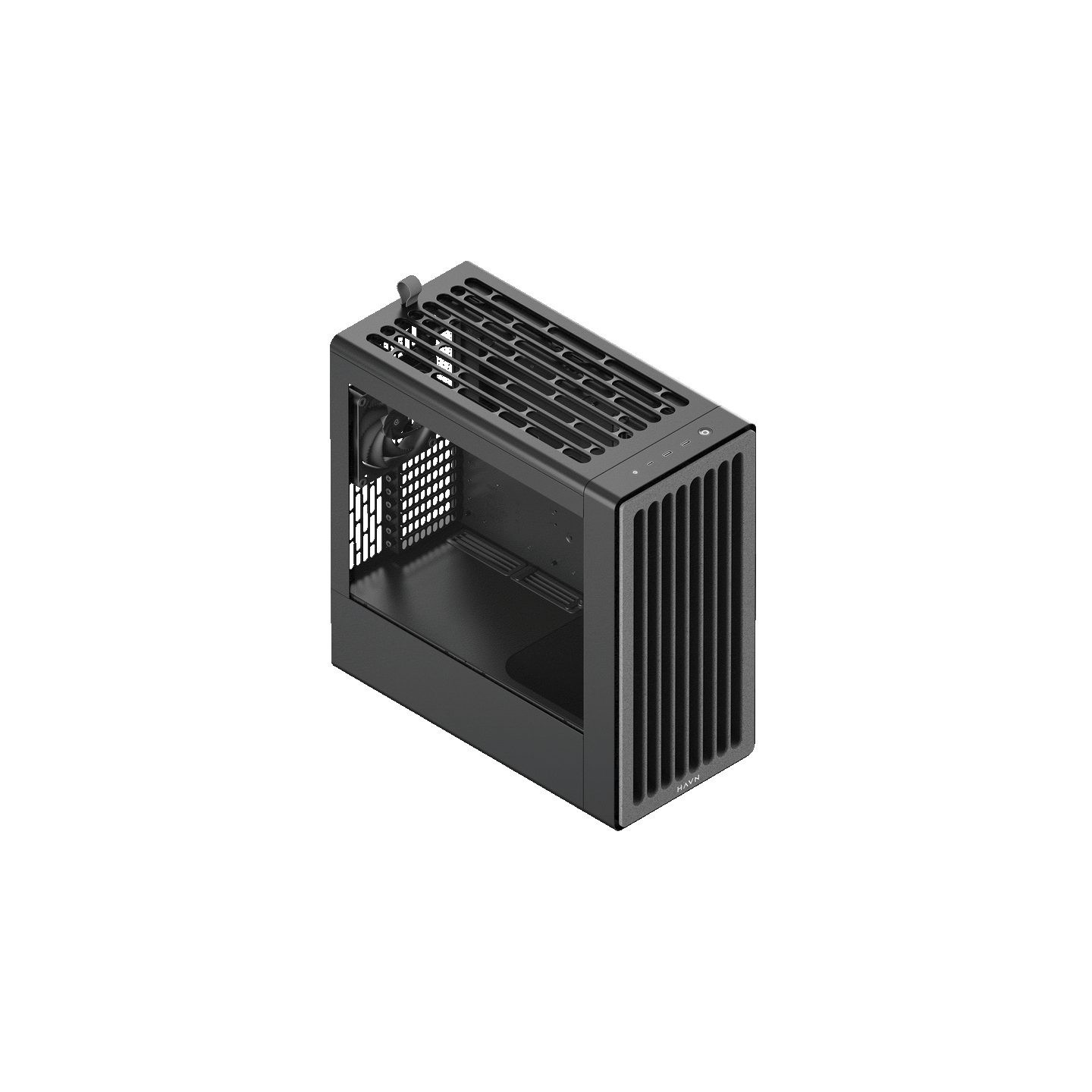

HAVN BF 360 Flow Black with 180mm fans - Premium ATX Mid-Tower (Boxed)
Designed for high airflow with 2x 180mm front fans and 1x 140mm rear fan delivering 160 CFM at low RPM for quiet, optimal CPU/GPU cooling under load. Supports up to 4x 180mm fans and dual 360/420mm radiators. Aerodynamic scoop directs air to hot zones.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| PC Cases - Motherboard Support | ATX EATX Micro ATX Mini ITX |
|---|---|
| PC Cases - Radiator Support | 240 mm 280 mm 360 mm 420 mm |
| PC Cases - Included Fans | 3 |
| PC Cases - Front I/O | Audio Jacks USB A USB C Gen2 |
| PC Cases - GPU Orientation | Horizontal |
| PC Cases - Form Factor | Mid Tower |
| PC Cases - Max GPU Length | 450+ mm |
| PC Cases - Color | Black |
| PC Cases - CPU Cooler Clearance | 170+ mm |
DESIGNED FOR HIGH AIRFLOW
Includes two 180mm H18 fans and one 140mm H14 fan, providing 160 CFM airflow at low RPM with reduced noise for optimal CPU and GPU cooling under heavy loads. Supports up to four 180mm fans and dual 360mm/420mm radiators.
AERODYNAMIC THERMAL DESIGN
Integrated 135° angled duct directs airflow to GPU hot zones, improving heat dissipation and ensuring stable performance. Optimized airflow layout keeps VRM, chipset, and GPU cool during intense gaming sessions.
PREMIUM SEMI-OPEN FRAME

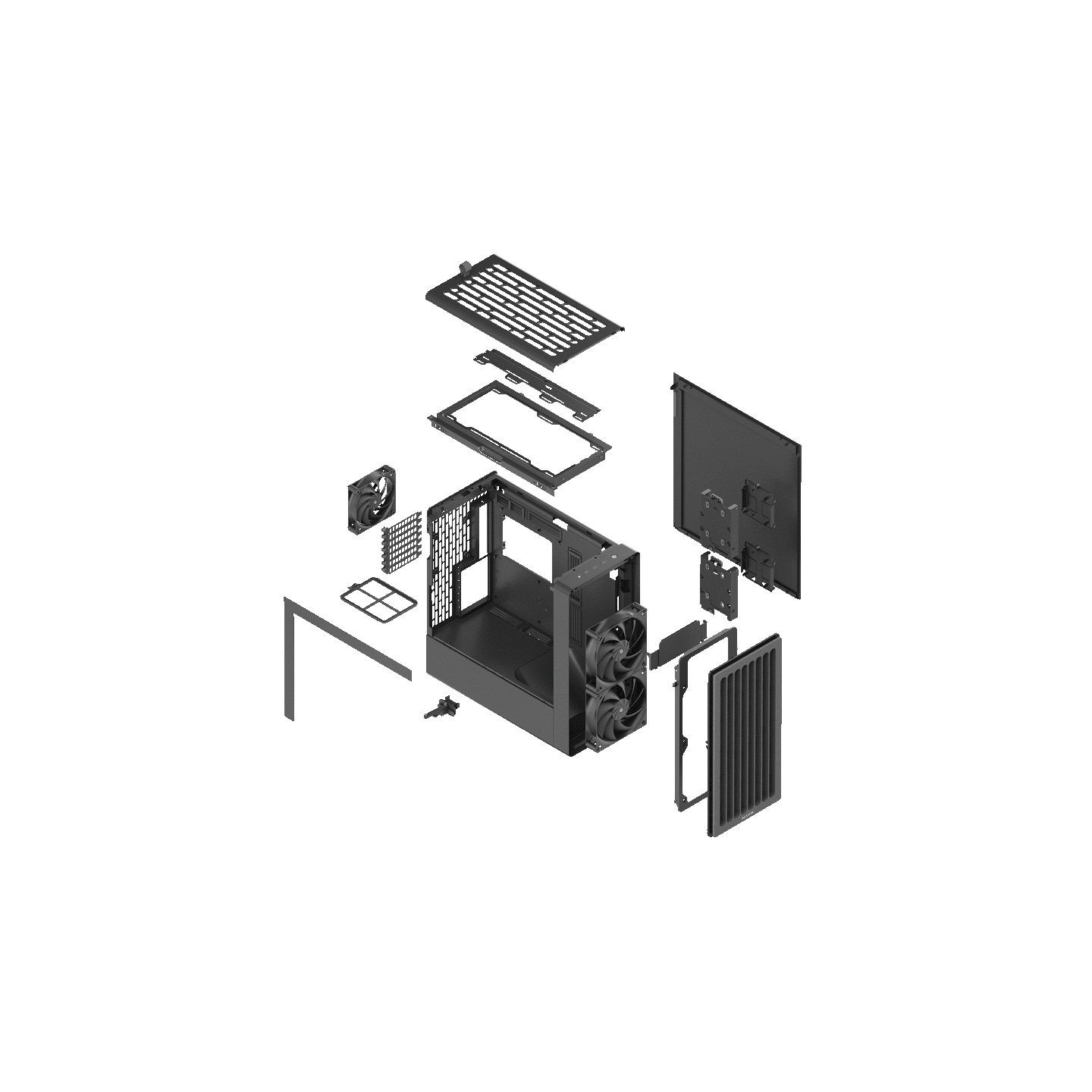

- Built from durable SGCC steel with removable U-shaped fan bracket for rigidity and easy assembly
- 33mm cable management space with Velcro straps and channels

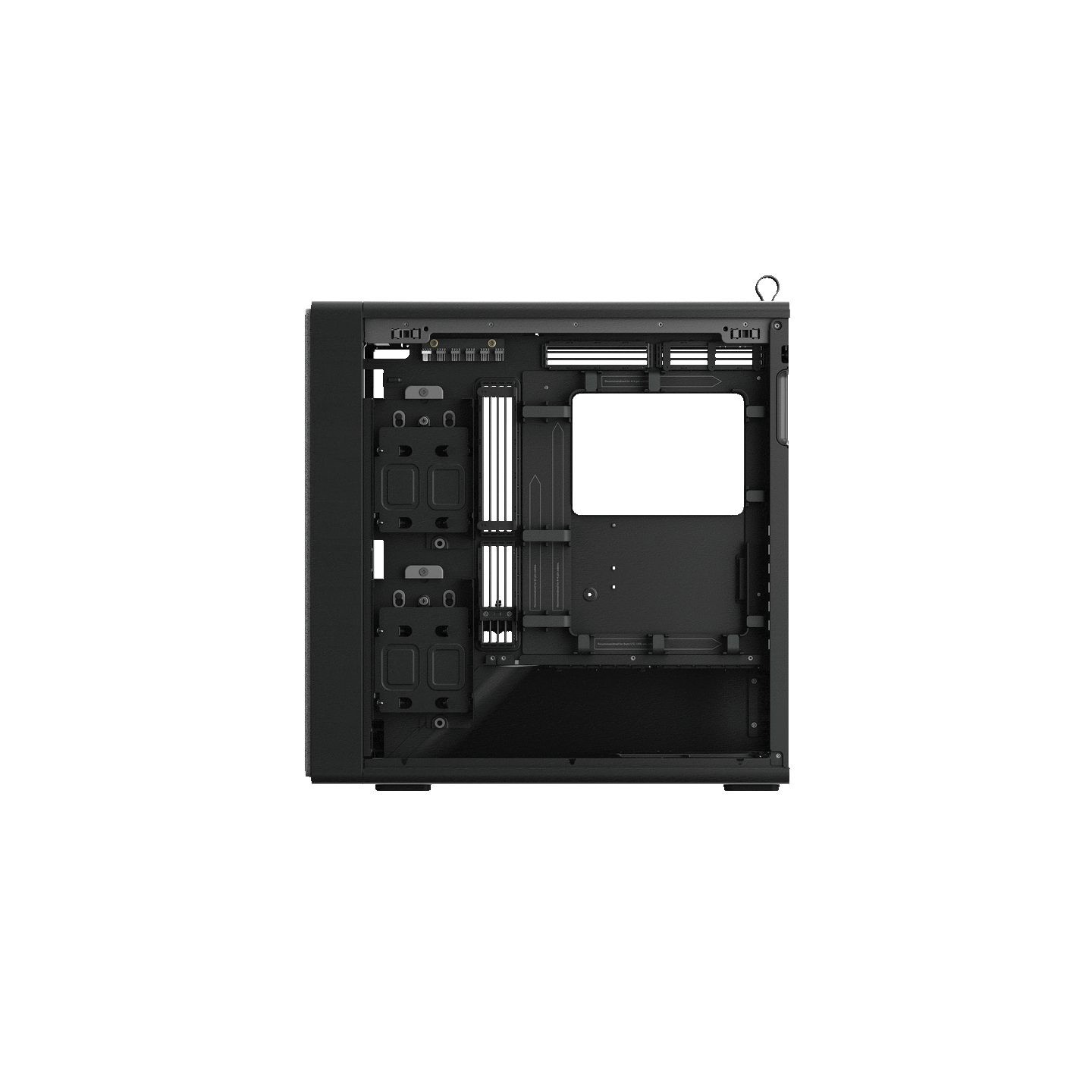

- Storage: 2x shock-absorbing bays supporting 2x 3.5" or 4x 2.5" SSDs each
- Dust filters: Built-in front/top, removable rear/bottom
- Fan PWM repeater: 6x 4-pin ports, 12V, up to 2.6A via SATA power
| Model | BF 360 Flow |
| Form Factor | Mid Tower |
| PC Case Dimensions (L x W x H) | 515 x 254 x 522.6 mm |
| Net Weight | 14.79 kg |
| Material | SGCC sheet metal, tempered glass, ABS, Nylon, Silicon, Zinc alloy, NdFeB magnets |
| Warranty | 1 year (US-only) |

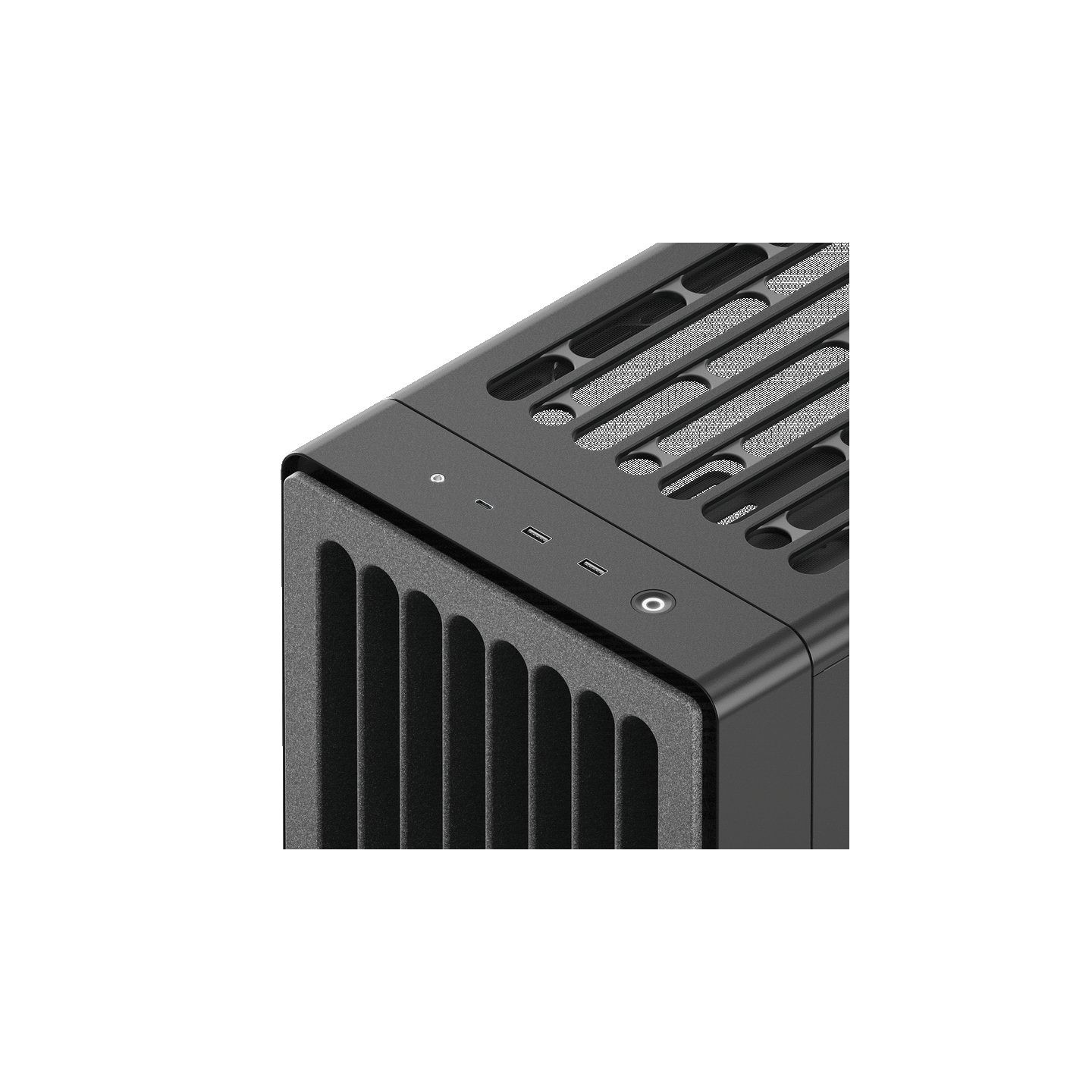

| Front I/O | USB 3.2 Gen 2 Type-C x1, USB 3.2 Gen 1 Type-A x2, Audio Jack x1, Power & Reset Button x1 |
| Motherboard Support | E-ATX (Max Width 277 mm) / ATX / M-ATX / Mini-ITX |
| Expansion Slots | 7 |
| CPU Tower Cooler Clearance (Height) | Up to 195 mm |
| Graphics Card Clearance (Length) | Up to 410 mm |
| Graphics Card Clearance (Width) | Up to 195 mm |
| GPU Support | 1 - 4.5 Slots |
| Power Supply Support | ATX |
| Power Supply Length | Up to 200 mm |
| Maximum Fan Amount | 6 |
| Top Fan Support | 2 x 180 mm / 2 x 140 mm / 3 x 120 mm |
| Front Fan Support | 2 x 180 mm |
| Rear Fan Support | 1 x 140 / 1 x 120 mm |
| Pre-installed Fans | 2x H18 Fan (Front), 1x H14 Fan (Rear) |
| Liquid Cooling Support (Top) | 240 / 280 / 360 / 420 mm |
| Fan PWM Repeater Ports | 1 repeater, 6 ports total (4-pin PWM) |
| Fan Rated Voltage | 12V |
| Fan Safety Current | Up to 2.6A across 6 ports |
| Storage Bays | 2x (2 x 3.5'' / 4 x 2.5'') |
