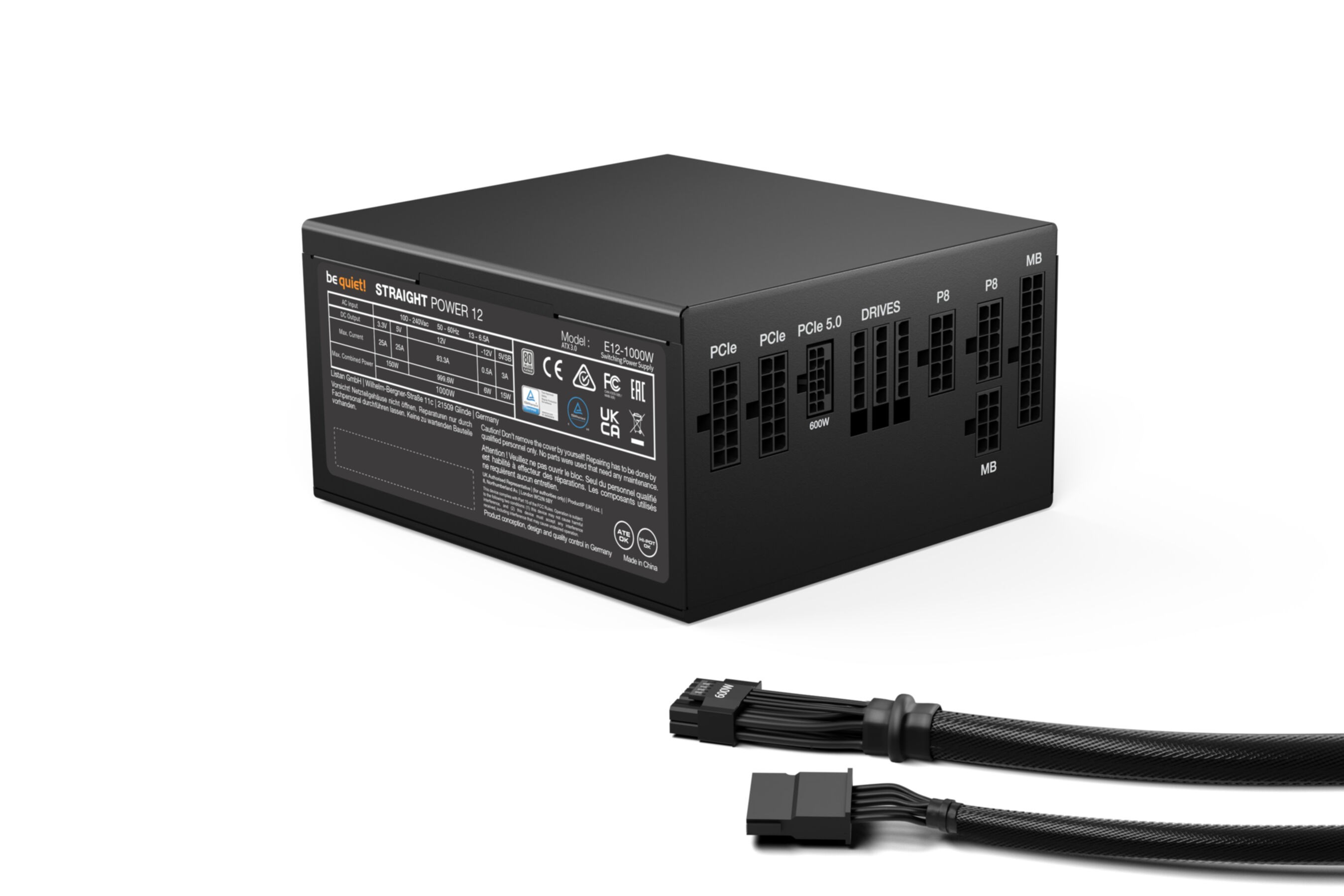

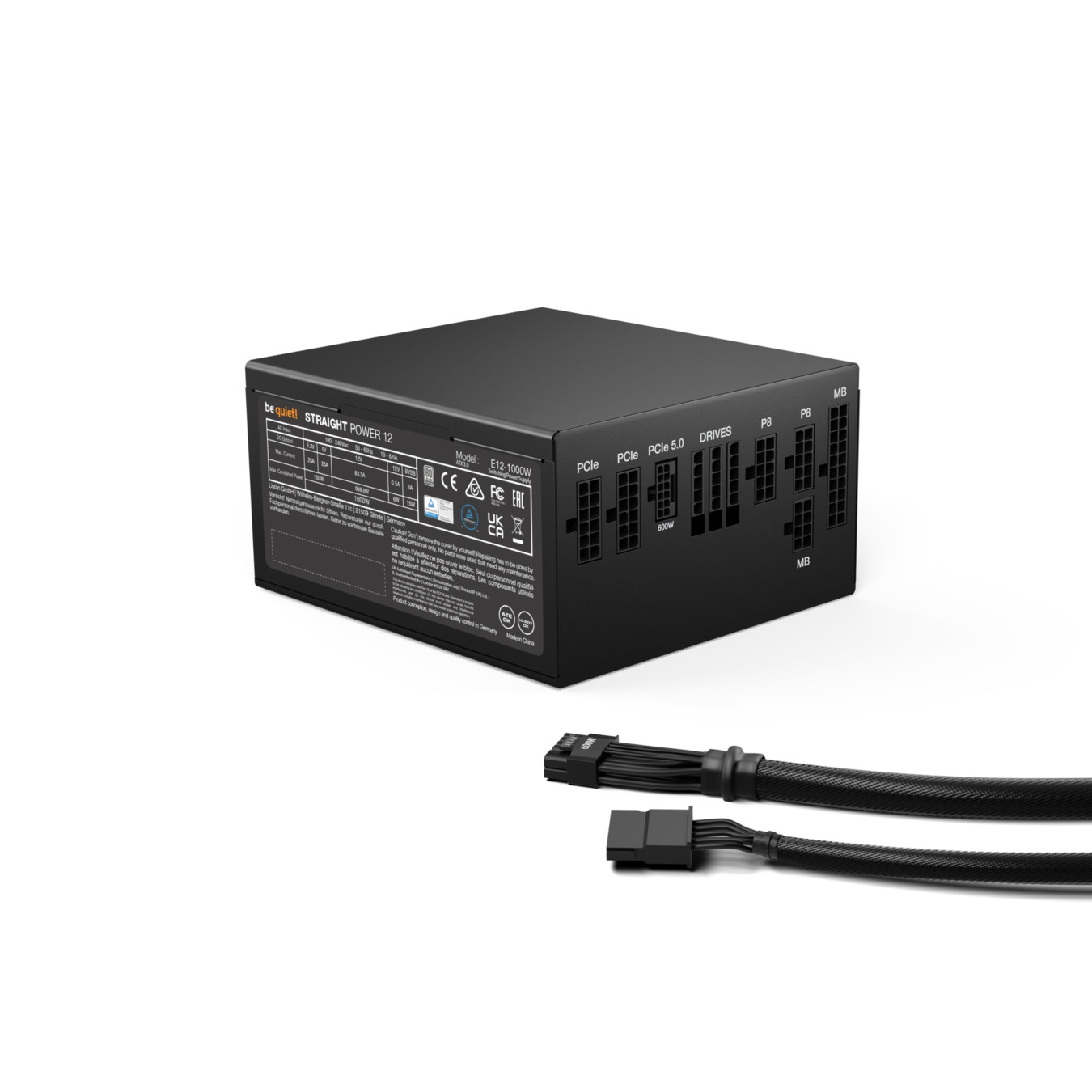

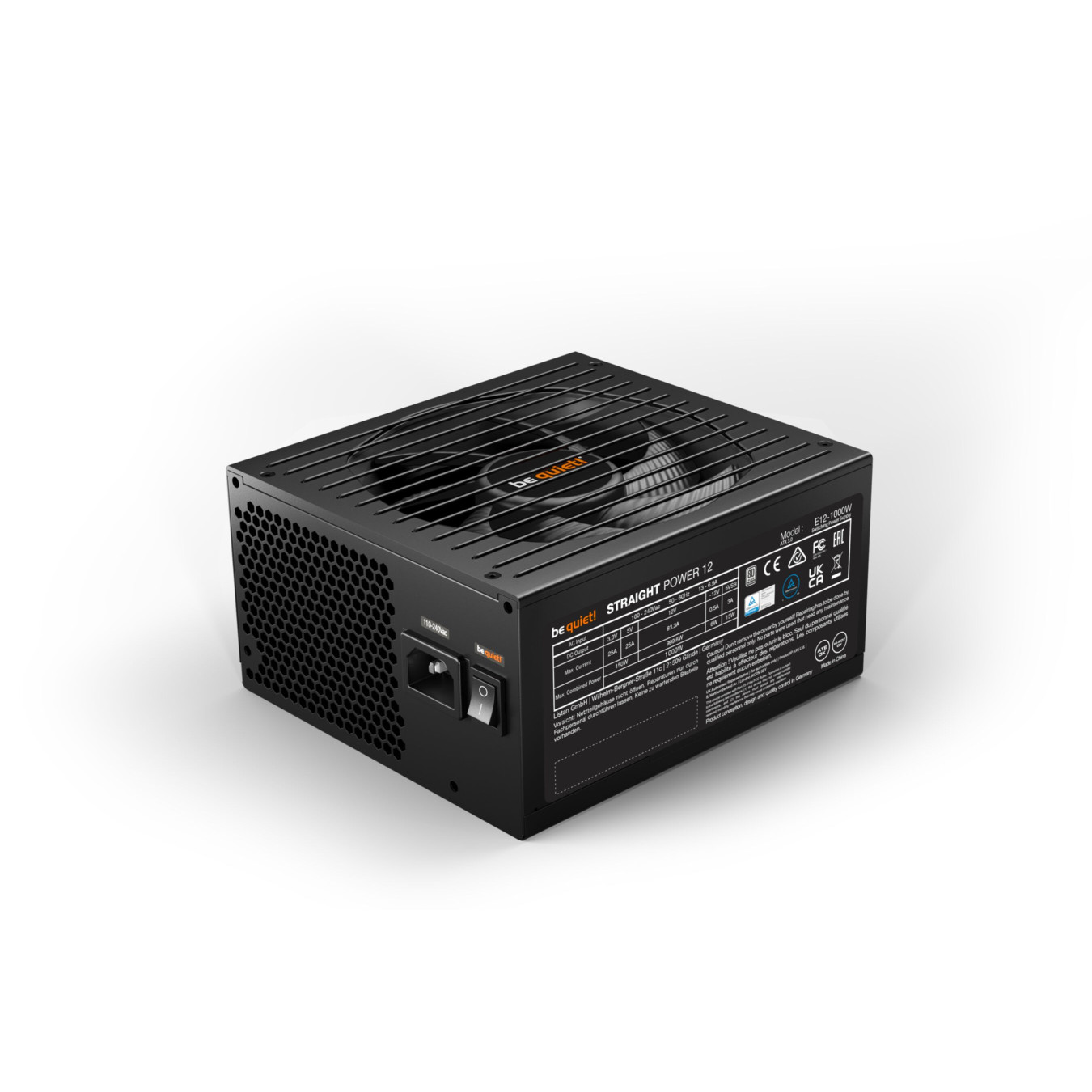

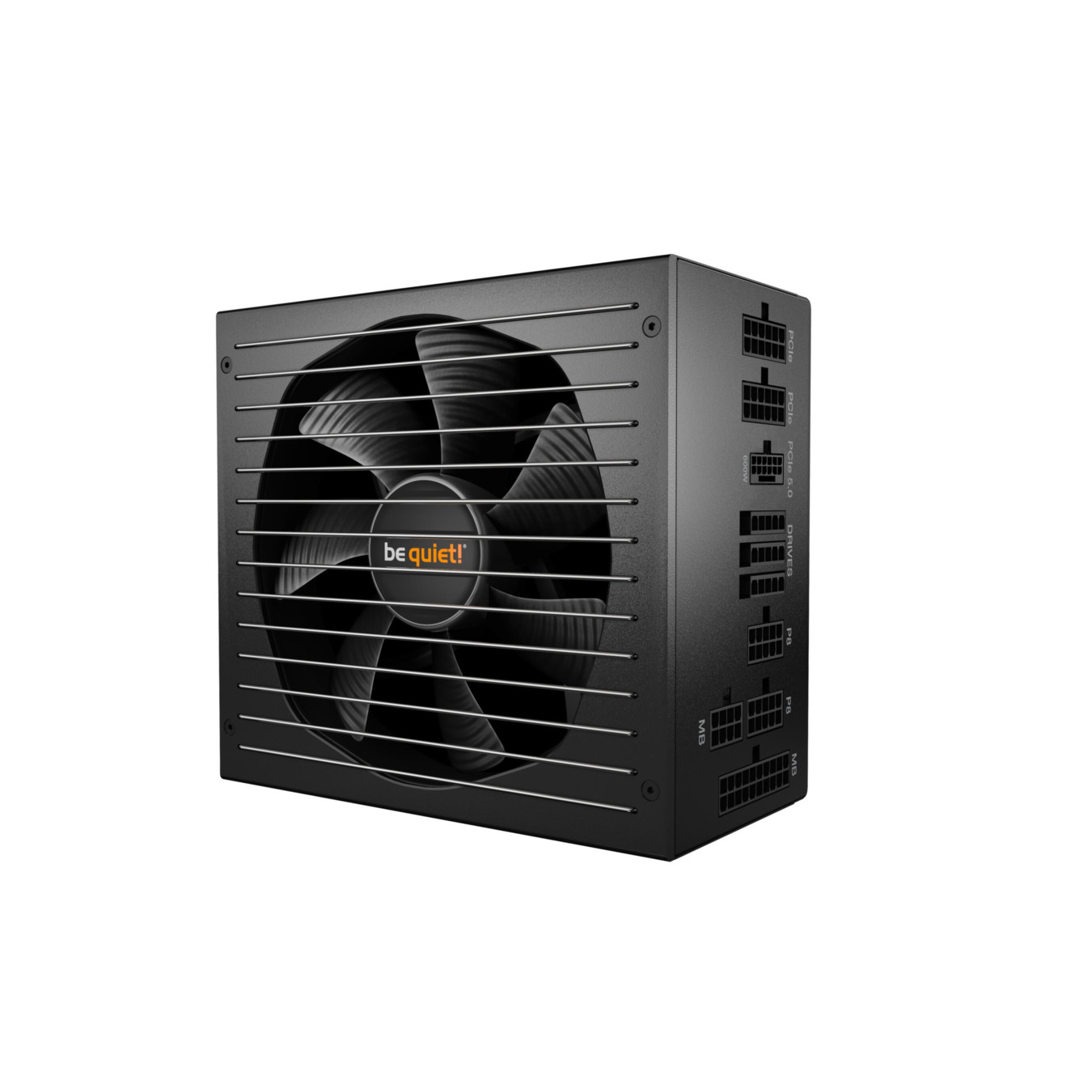

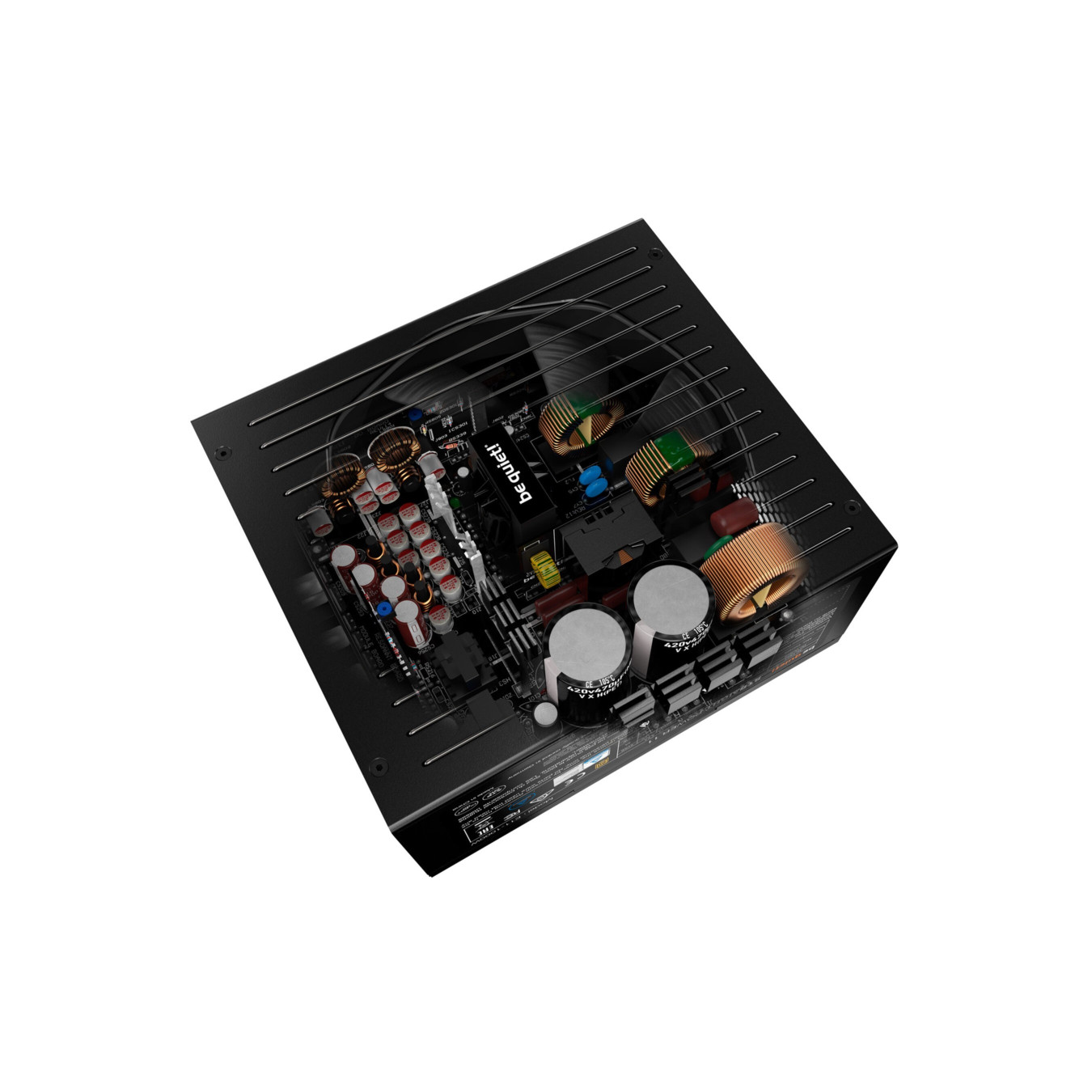

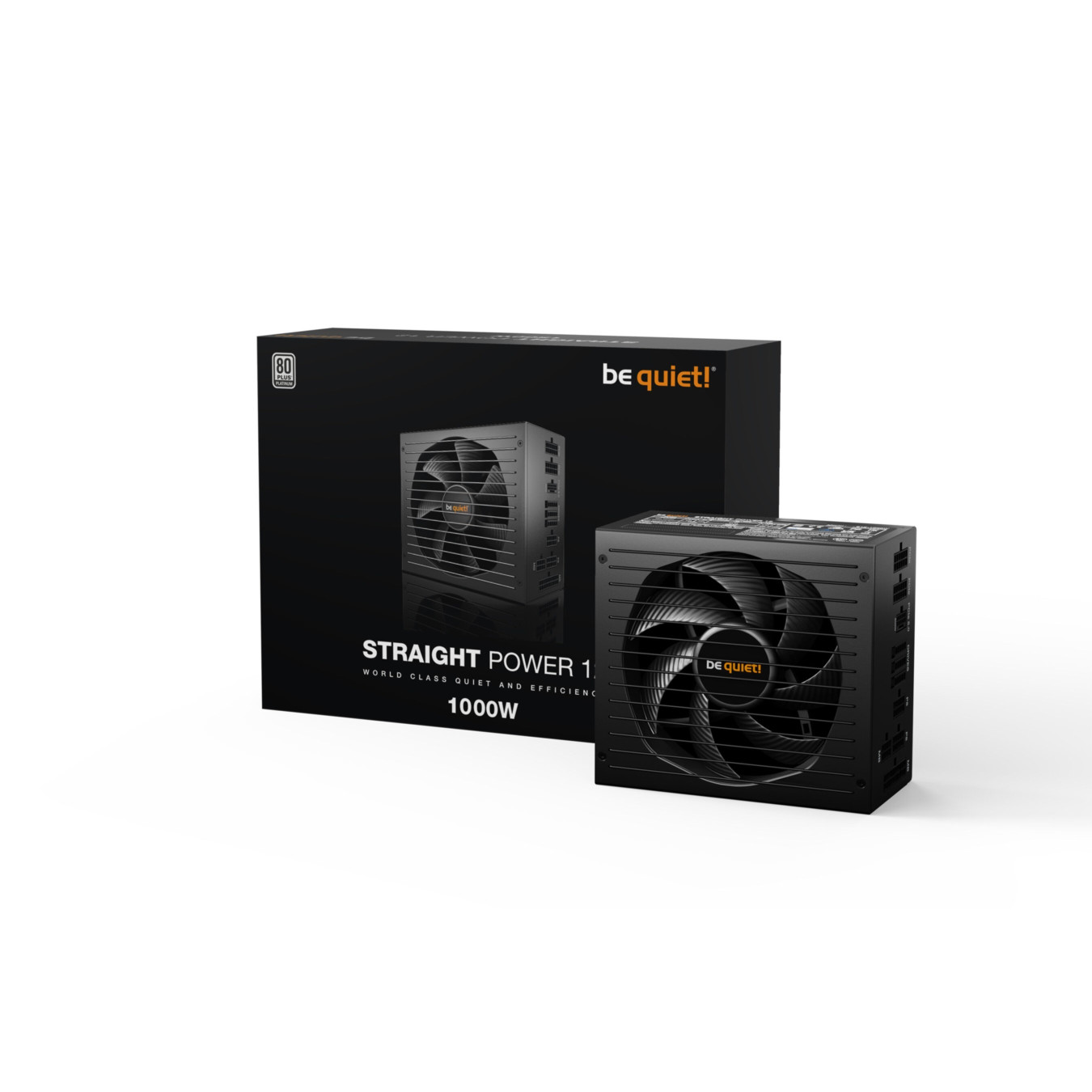

Be Quiet! Straight Power 12 1000W - BN338 - 80 PLUS Platinum, Fully-Modular, ATX 3.1, Black
1000W ATX PSU with 80 PLUS Platinum efficiency, fully-modular cables, ATX 3.1, 1x 16-pin 12VHPWR + 4x 6+2 PCIe, 135mm FDB fan, 10-year warranty.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
| PSU (Power Supplies) - Wattage | 1000 W |
|---|---|
| PSU (Power Supplies) - Efficiency Rating | 80+ Platinum |
| PSU (Power Supplies) - ATX Standard | ATX 3.1 |
| PSU (Power Supplies) - Modularity | Fully modular |
| PSU (Power Supplies) - PCIe GPU Connectors | 12VHPWR (16-pin) |
| PSU (Power Supplies) - EPS CPU Connectors | 8+4-pin |
| PSU (Power Supplies) - Fan Size | 135 mm |
| PSU (Power Supplies) - Length | 141-160 mm |
be quiet! BN338. Total power: 1000 W. AC input voltage: 100 - 240 V. Peak power: 1070 W. Motherboard power connector: 20+4 pin ATX. Motherboard power cable length: 60 cm. SATA power cable length: 550.700.850.1000 mm. Purpose: PC. Power supply unit (PSU) form factor: ATX. 80 PLUS certification: 80 PLUS Platinum. Product colour: Black. Cooling type: Active. Fan diameter: 13.5 cm. Cables included: CPU. SATA
| Total power | 1000 W |
| Peak power | 1070 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Input current | 13/6.5 A |
| Power factor | 0.99 |
| Combined power (+3.3V) | 150 W |
| Combined power (+12V) | 999.6 W |
| Combined power (+5V) | 150 W |
| Max output current (+3.3V) | 25 A |
| Max output current (+12V) | 83.3 A |
| Max output current (+5V) | 25 A |
| Max output current (-12V) | 0.5 A |
| Max output current (+5Vsb) | 3 A |
| Hold time | 25.3 ms |
| Efficiency | 91.8% |
| Power protection features | Over current. Over power. Over voltage. Overheating. Under voltage |
| Motherboard power connector | 20+4 pin ATX |
| Motherboard power cable length | 60 cm |
| Number of SATA power connectors | 9 |
| Number of PATA power connectors | 2 |
| SATA power cable length | 550.700.850.1000 mm |
| Peripheral (Molex) power cable length | 1000.850 mm |
| Feature | Sustainability compliance |
| PCI Express power connectors (6+2 pin) | 4 |
| PCI Express power connectors (16-pin) | 1 |
| PCI Express power cable length | 60 cm |
| CPU power cable length | 70 cm |

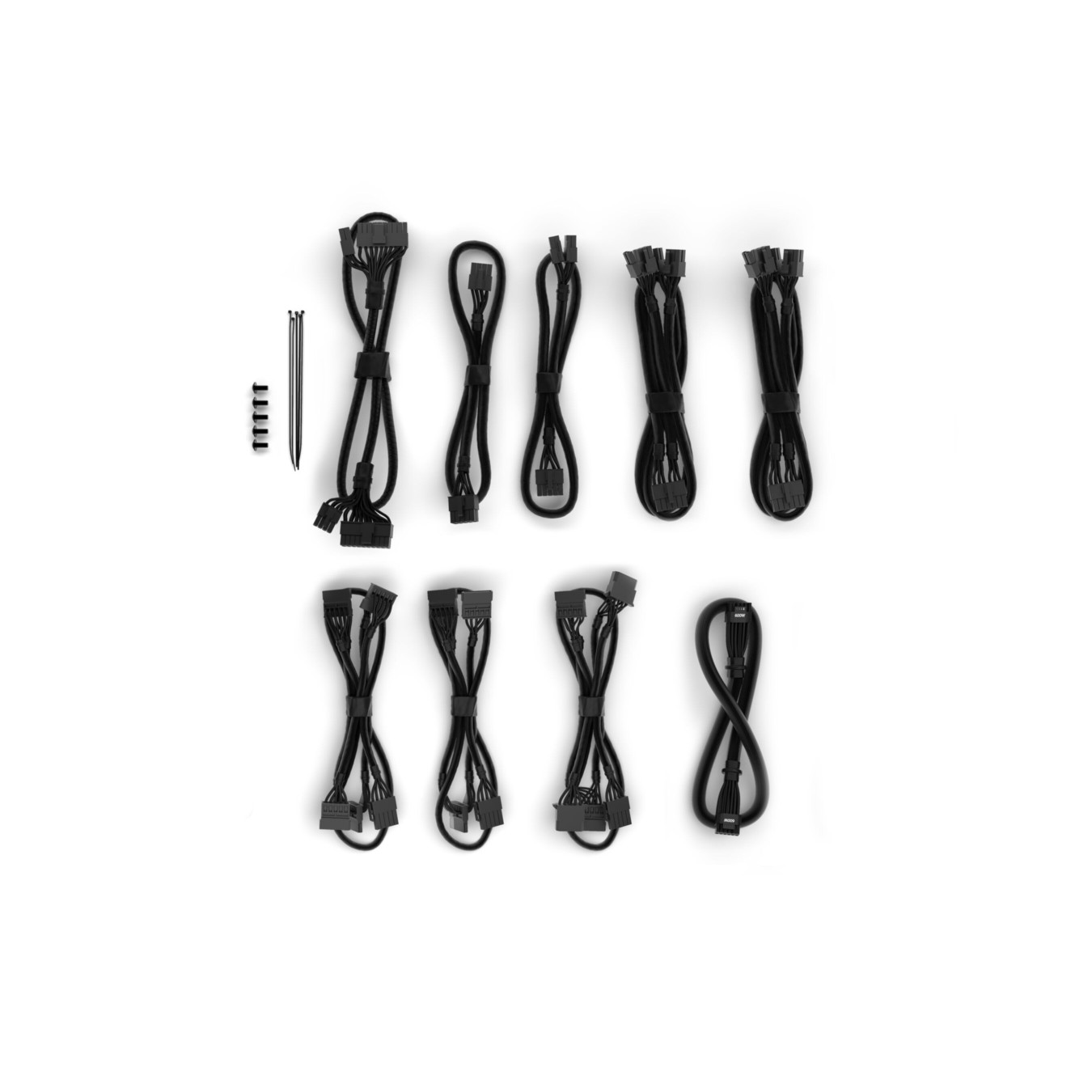

| Cabling type | Fully-Modular |
| 80 PLUS certification | 80 PLUS Platinum |
| Supported motherboard form factors | ATX. micro ATX. Mini-ATX |
| Purpose | PC |
| Power supply unit (PSU) form factor | ATX |
| ATX version | 3.1 |
| EPS version | 2.92 |
| Noise level | 28.9 dB |
| Bearing technology | FDB |
| Mean time between failures (MTBF) | 100000 h |
| Product colour | Black |
| Cooling type | Active |

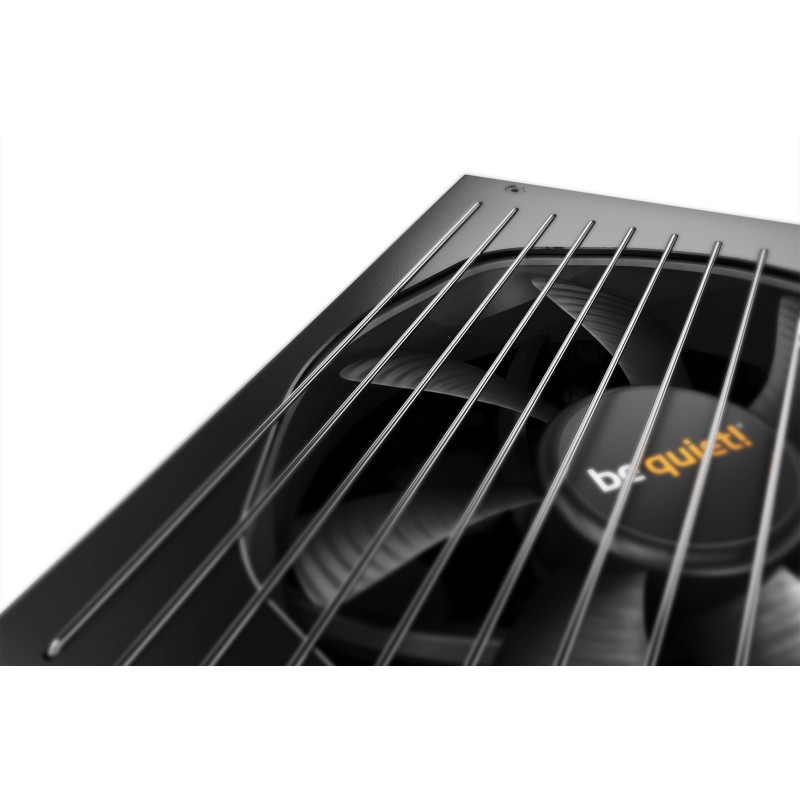

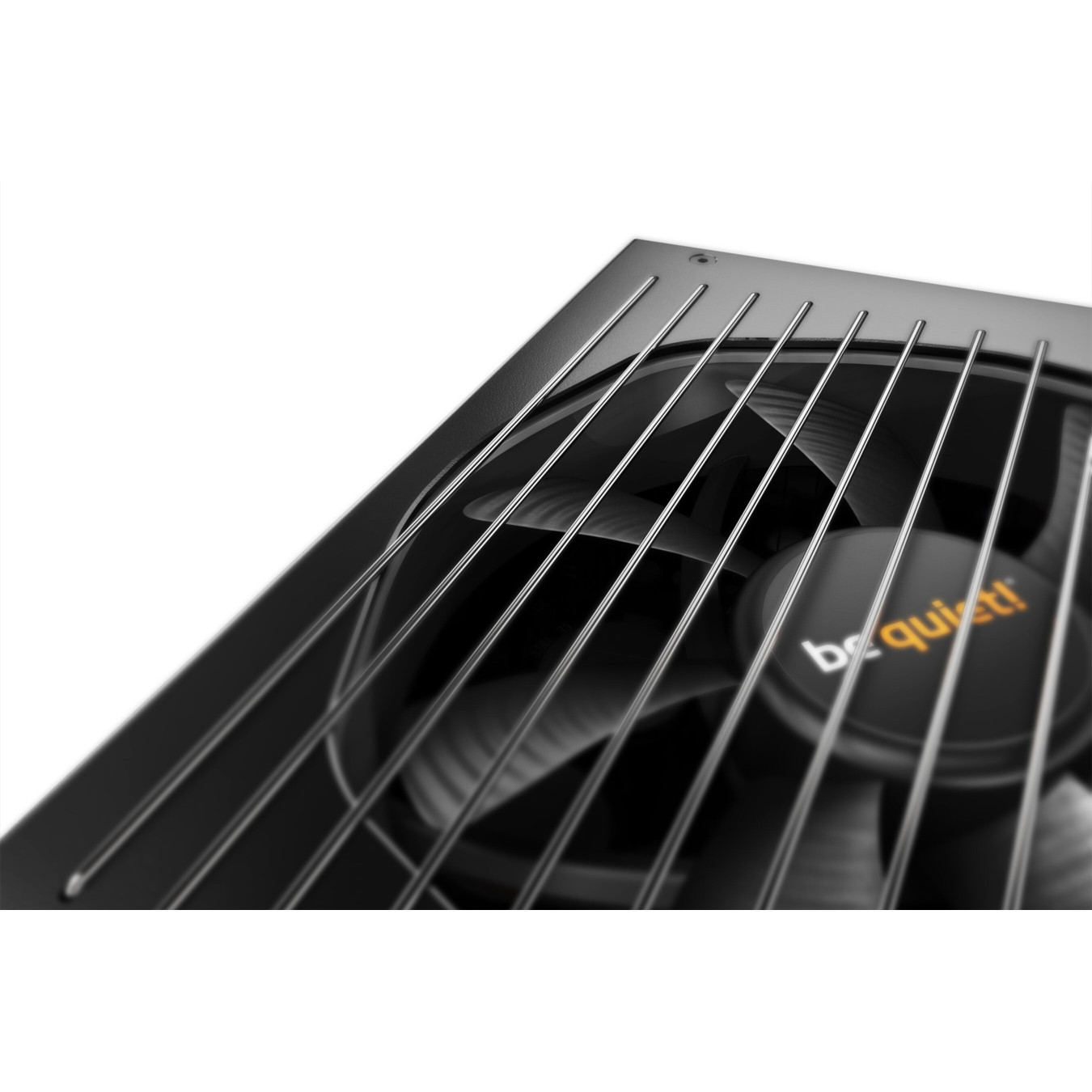

| Fan diameter | 13.5 cm |
| Number of fans | 1 fan(s) |
| Fan speed | 0 - 2100 RPM |
| Operating temperature (T-T) | 0 - 40 °C |

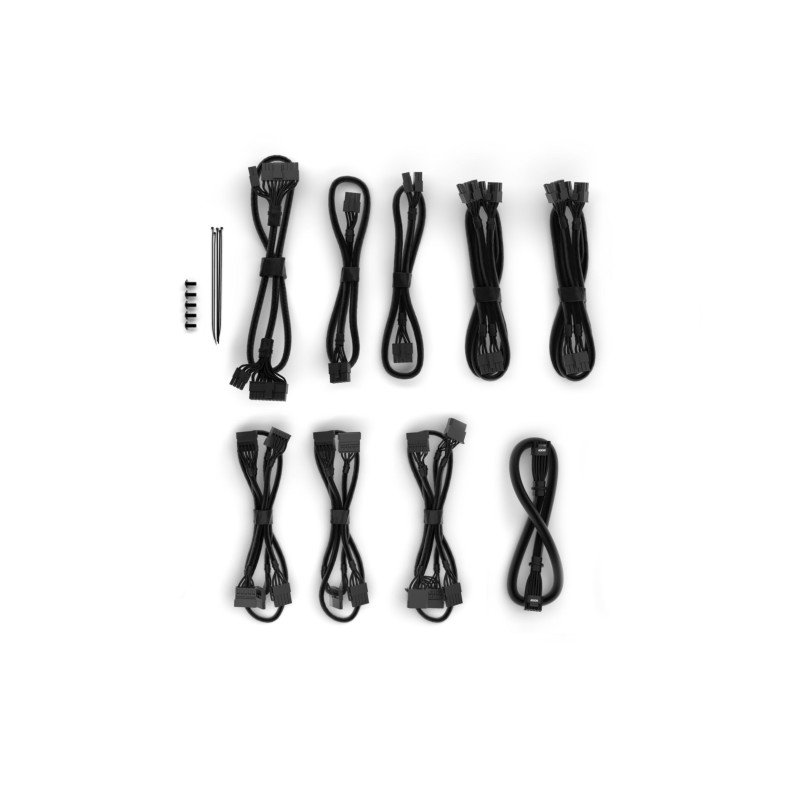

| Cables included | CPU. SATA |
| Compliance certificates | RoHS. Federal Communications Commission (FCC). UKCA. WEEE. CE |
| Width | 150 mm |
| Depth | 160 mm |
| Height | 86 mm |
| Weight | 1.85 kg |
| Package width | 248 mm |
| Package depth | 328 mm |
| Package height | 102 mm |
| Package weight | 3.56 kg |

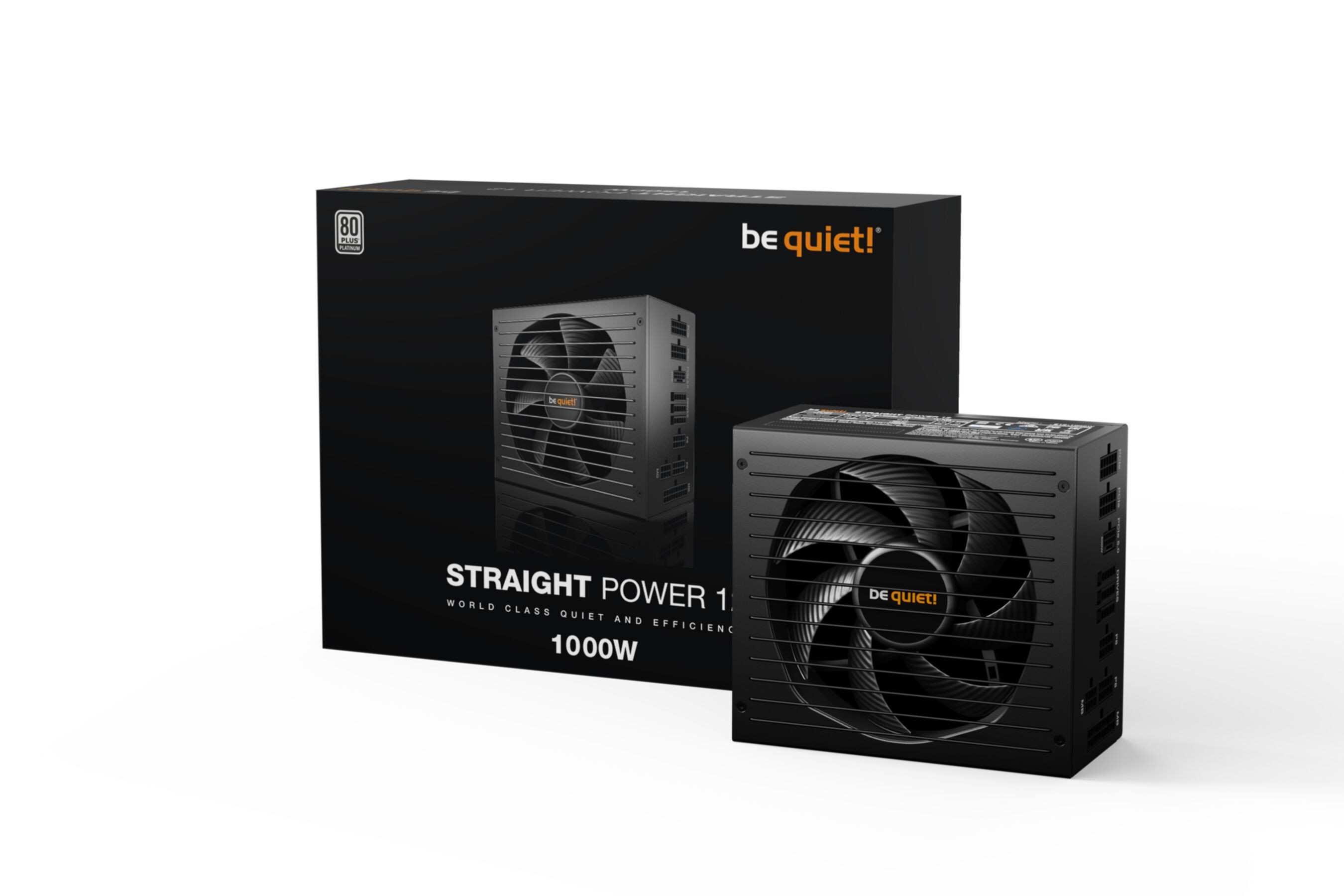

| Package type | Box |
| Sustainability certificates | Triman. ENERGY STAR. ErP |
| Shipping (inner) case length | 65.1 cm |
| Shipping (inner) case width | 28.2 cm |
| Shipping (inner) case height | 34.6 cm |
| Shipping (inner) case net weight | 22.9 kg |
| Products per shipping (inner) case | 6 pc(s) |
| Warranty period | 10 year(s) |
