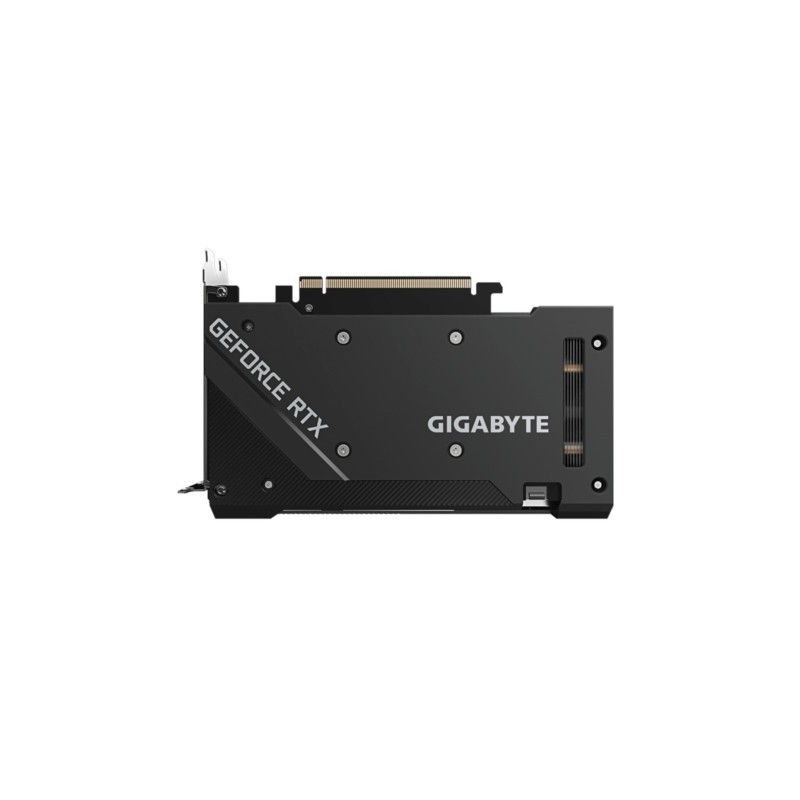

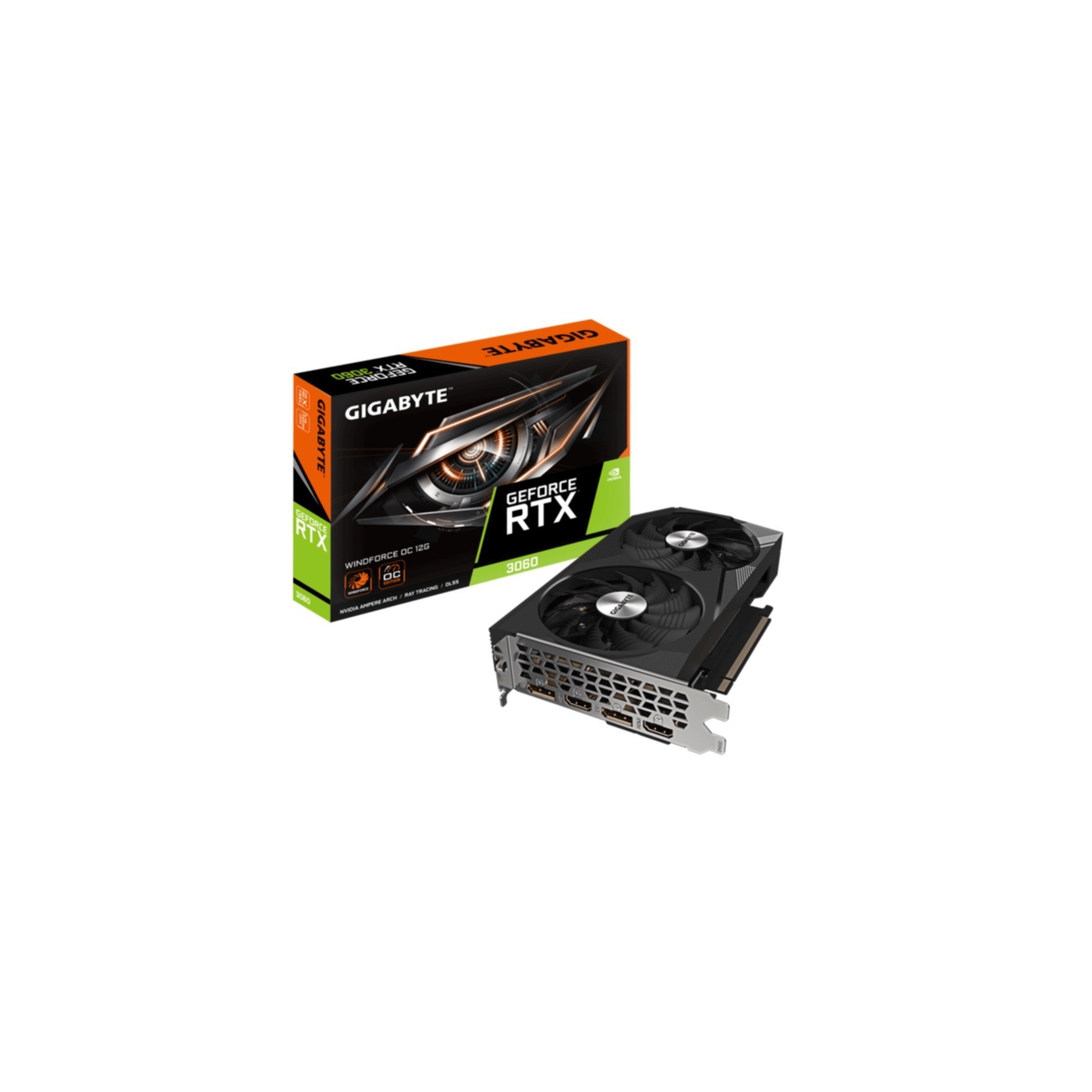

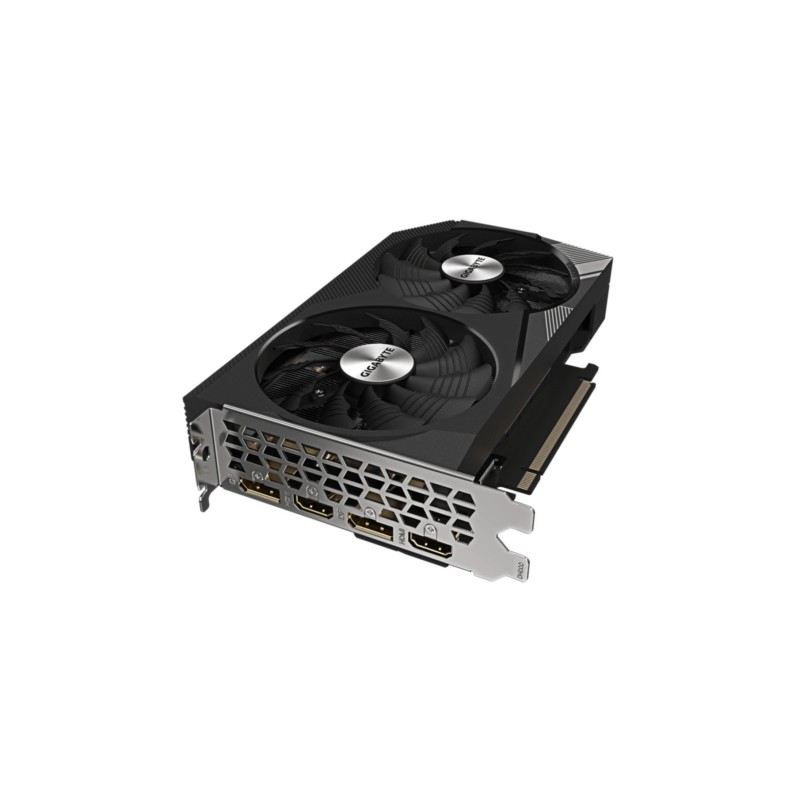

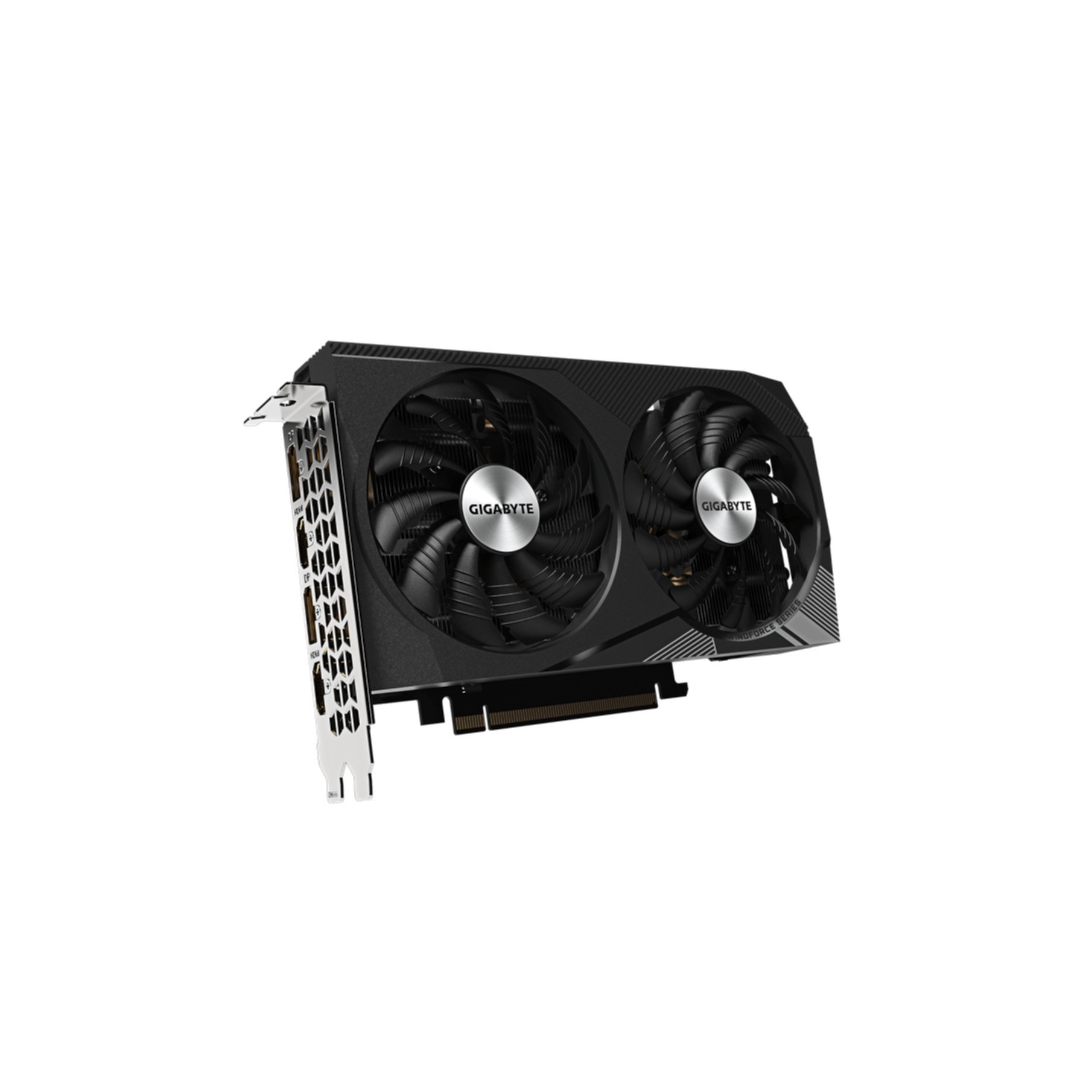

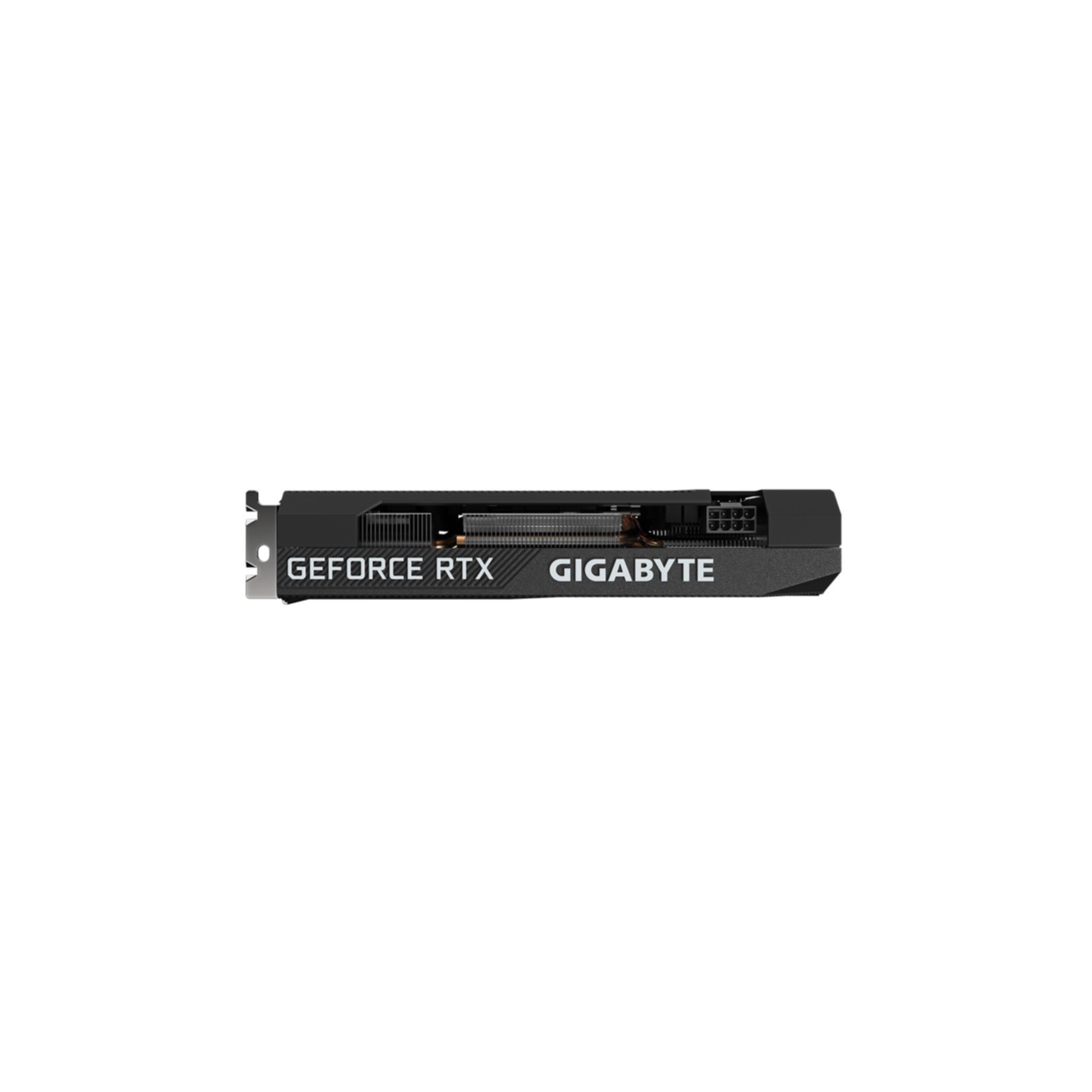

GIGABYTE GeForce RTX 3060 WINDFORCE OC 2.0 (LHR) - 12GB GDDR6, 1792MHz, Black
GeForce RTX 3060 with 12GB GDDR6, 3584 CUDA cores, 1792 MHz boost, 2x HDMI 2.1 + 2x DisplayPort 1.4a, WINDFORCE 2X dual-fan cooling, LHR, PCIe 4.0
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
| GPU (Graphics Cards) - Series | GeForce RTX 30 |
|---|---|
| GPU (Graphics Cards) - VRAM Capacity | 12 GB |
| GPU (Graphics Cards) - VRAM Type | GDDR6 |
| GPU (Graphics Cards) - Power Connector | 1x8-pin |
| GPU (Graphics Cards) - Card Length | less than or equal to220 mm |
| GPU (Graphics Cards) - Slot Thickness | 2-slot |
| GPU (Graphics Cards) - Cooler Type | Open-air (axial) |
GIGABYTE GeForce RTX 3060 WINDFORCE OC 12G (rev. 2.0). Graphics processor family: NVIDIA. Graphics processor: GeForce RTX 3060. Processor frequency: 1792 MHz. Discrete graphics card memory: 12 GB. Graphics card memory type: GDDR6. Memory bus: 192 bit. Memory clock speed: 15000 MHz. Maximum resolution: 7680 x 4320 pixels. DirectX version: 12 Ultimate. OpenGL version: 4.6. Interface type: PCI Express x16 4.0. Cooling type: Active. Number of fans: 2 fan(s)
| Feature | User guide |
| CUDA cores | 3584 |
| Graphics processor family | NVIDIA |
| Graphics processor | GeForce RTX 3060 |
| Processor frequency | 1792 MHz |
| Maximum resolution | 7680 x 4320 pixels |
| Parallel processing technology support | Not supported |
| Maximum displays per videocard | 4 |
| Discrete graphics card memory | 12 GB |
| Graphics card memory type | GDDR6 |
| Memory bus | 192 bit |
| Memory clock speed | 15000 MHz |
| Number of pipelines | 3 |
| Memory bandwidth (max) | 360 GB/s |
| Interface type | PCI Express x16 4.0 |

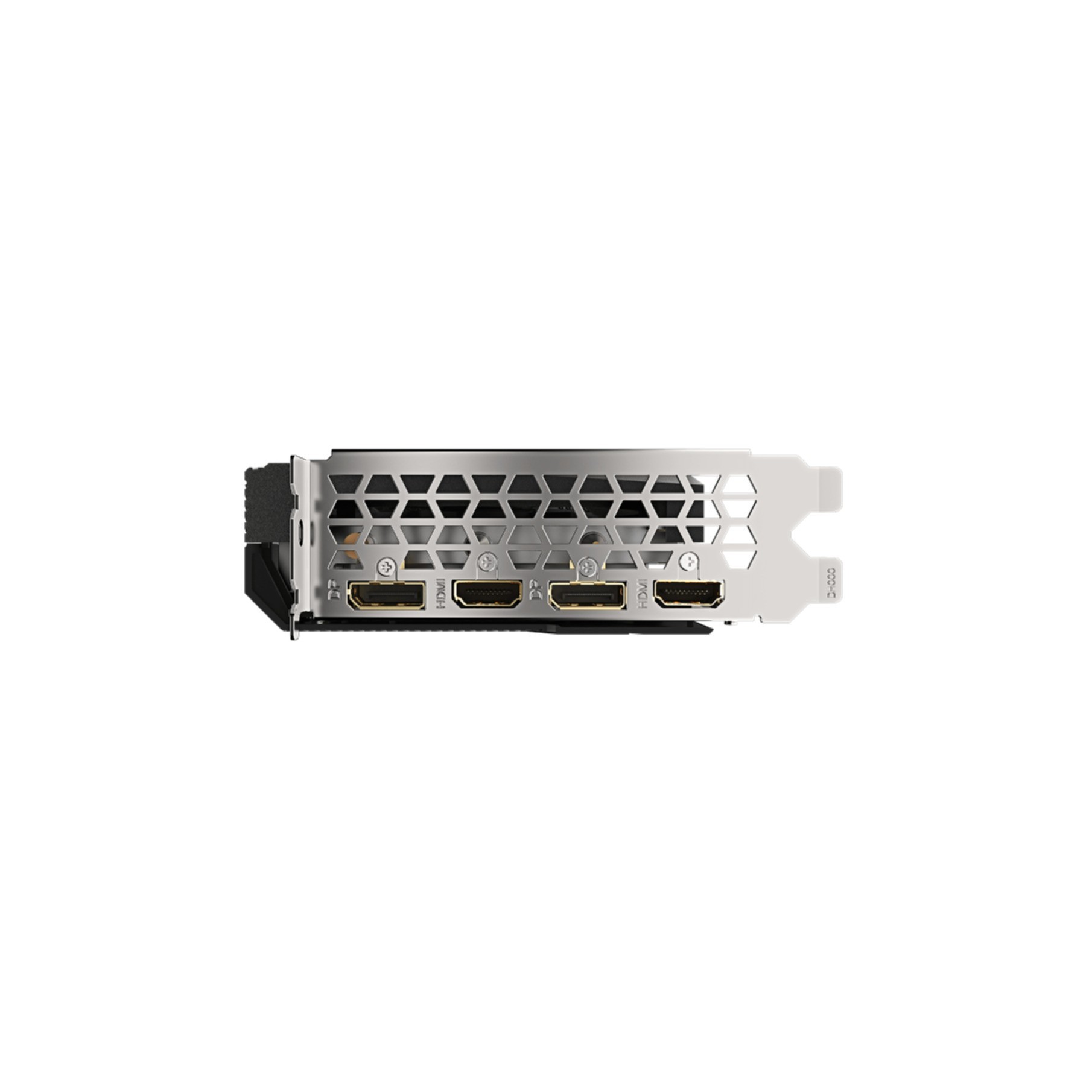

| HDMI ports quantity | 2 |
| HDMI version | 2.1 |
| DisplayPorts quantity | 2 |
| DisplayPort version | 1.4a |
| DirectX version | 12 Ultimate |
| OpenGL version | 4.6 |
| Cooling type | Active |
| Cooling technology | GIGABYTE WINDFORCE 2X |
| Number of fans | 2 fan(s) |
| Fan diameter | 9 cm |
| Product colour | Black |
| Minimum system power supply | 550 W |
| Supplementary power connectors | 1x 8-pin |
| Windows operating systems supported | Windows 10 x64. Windows 11 x64. Windows 7 x64 |
| Length | 198 mm |
| Depth | 39 mm |
| Height | 121 mm |
| Package type | Box |
