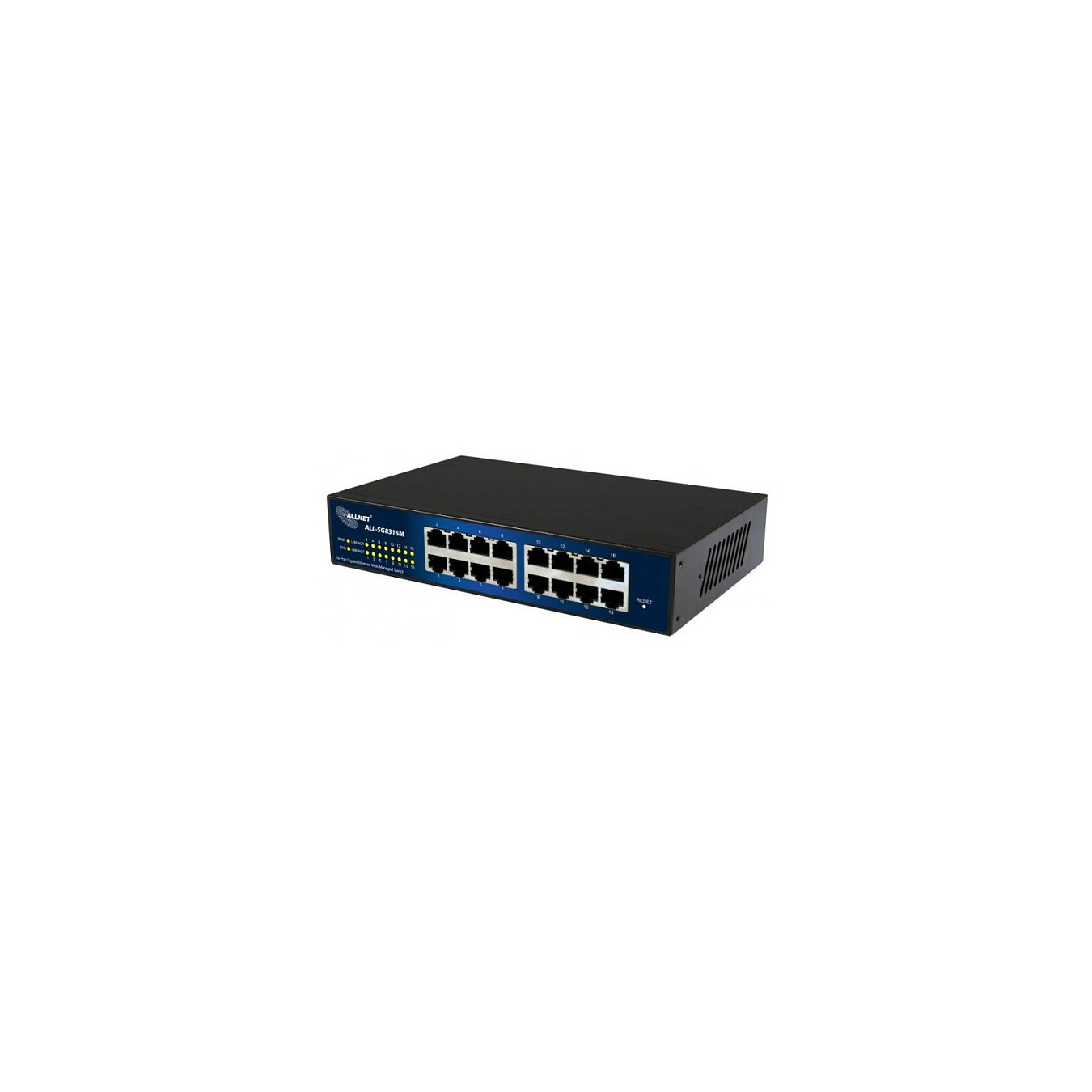

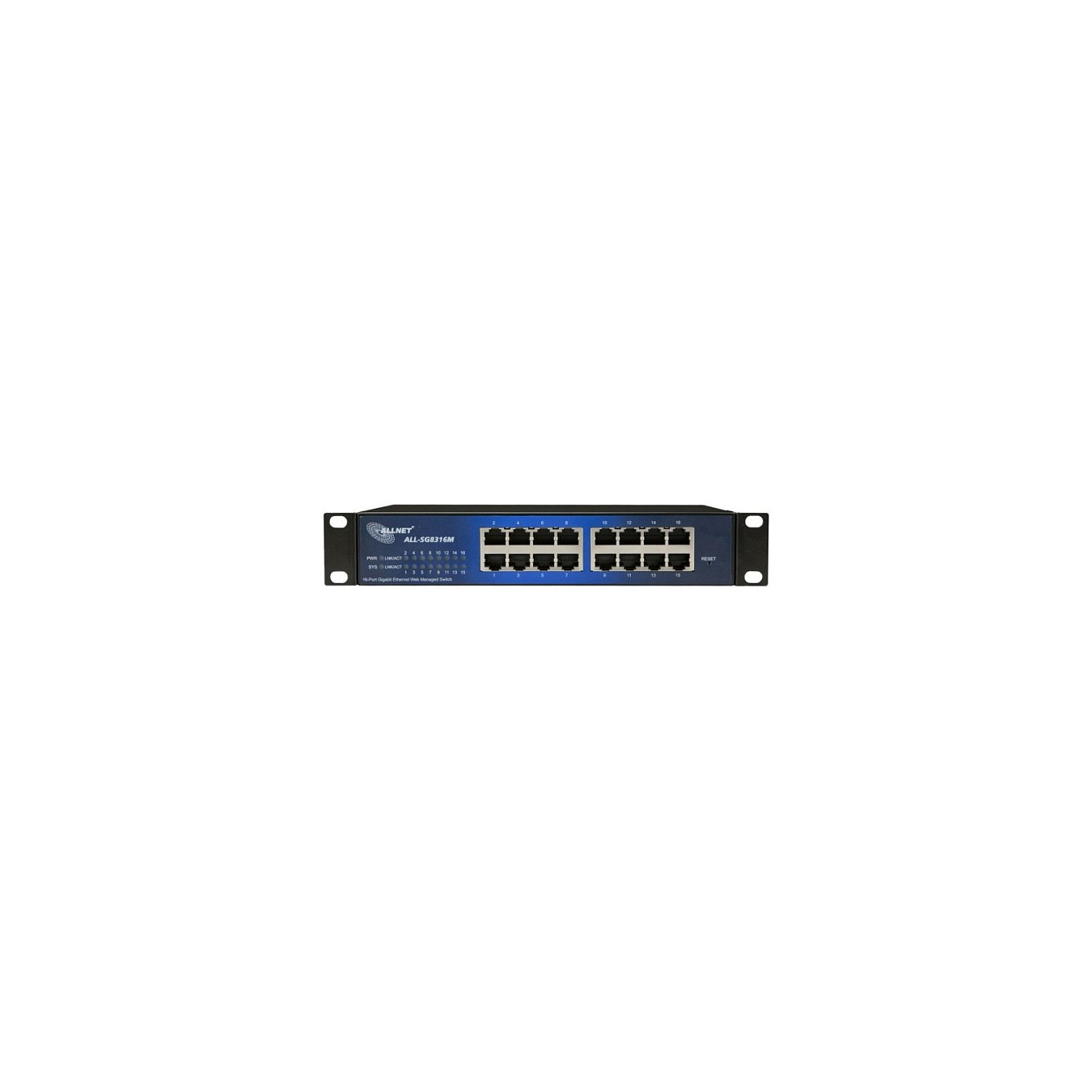

16P Allnet ALL-SG8316M M
ALLNET 112534. Managed. L2. Gigabit Ethernet (10/100/1000). Rack-Einbau. 19U. Wandmontage
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
ALLNET 112534. Switch-Typ: Managed. Switch-Ebene: L2. Basic Switching RJ-45 Ethernet Ports-Typ: Gigabit Ethernet (10/100/1000). Anzahl der basisschaltenden RJ-45 Ethernet Ports: 16. Vollduplex. MAC-Adressentabelle: 8000 Eintragungen. Routing-/Switching-Kapazität: 32 Gbit/s. Netzstandard: IEEE 802.1D. IEEE 802.1Q. IEEE 802.1ab. IEEE 802.1w. IEEE 802.3. IEEE 802.3ab. IEEE 802.3ad. IEEE.... Wandmontage. Rack-Einbau. Formfaktor: 19U
| Switch-Typ | Managed |
| Switch-Ebene | L2 |

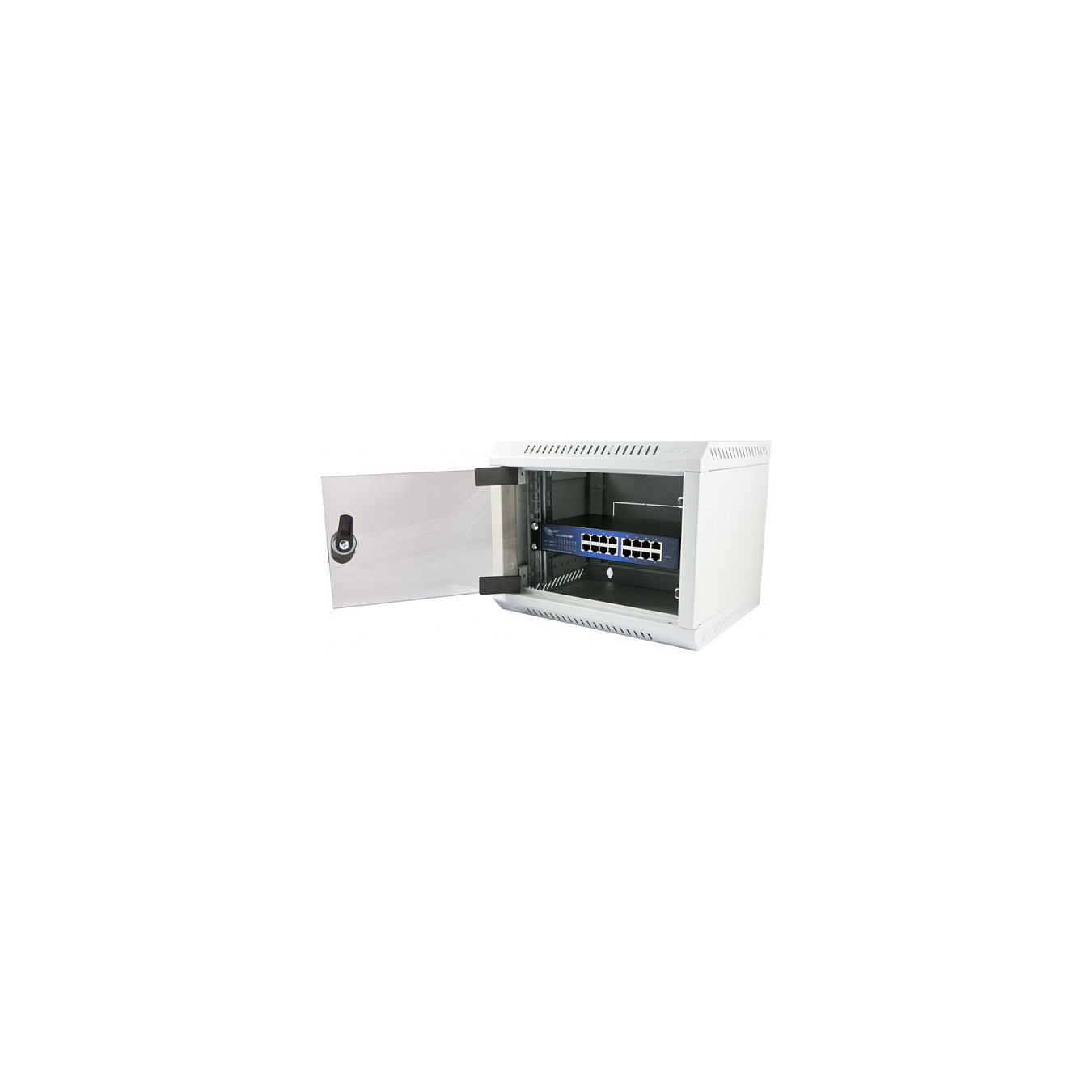

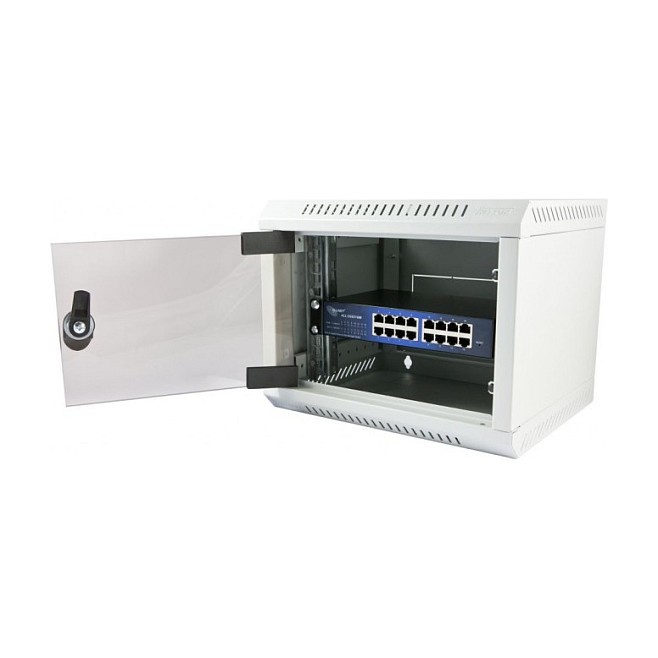

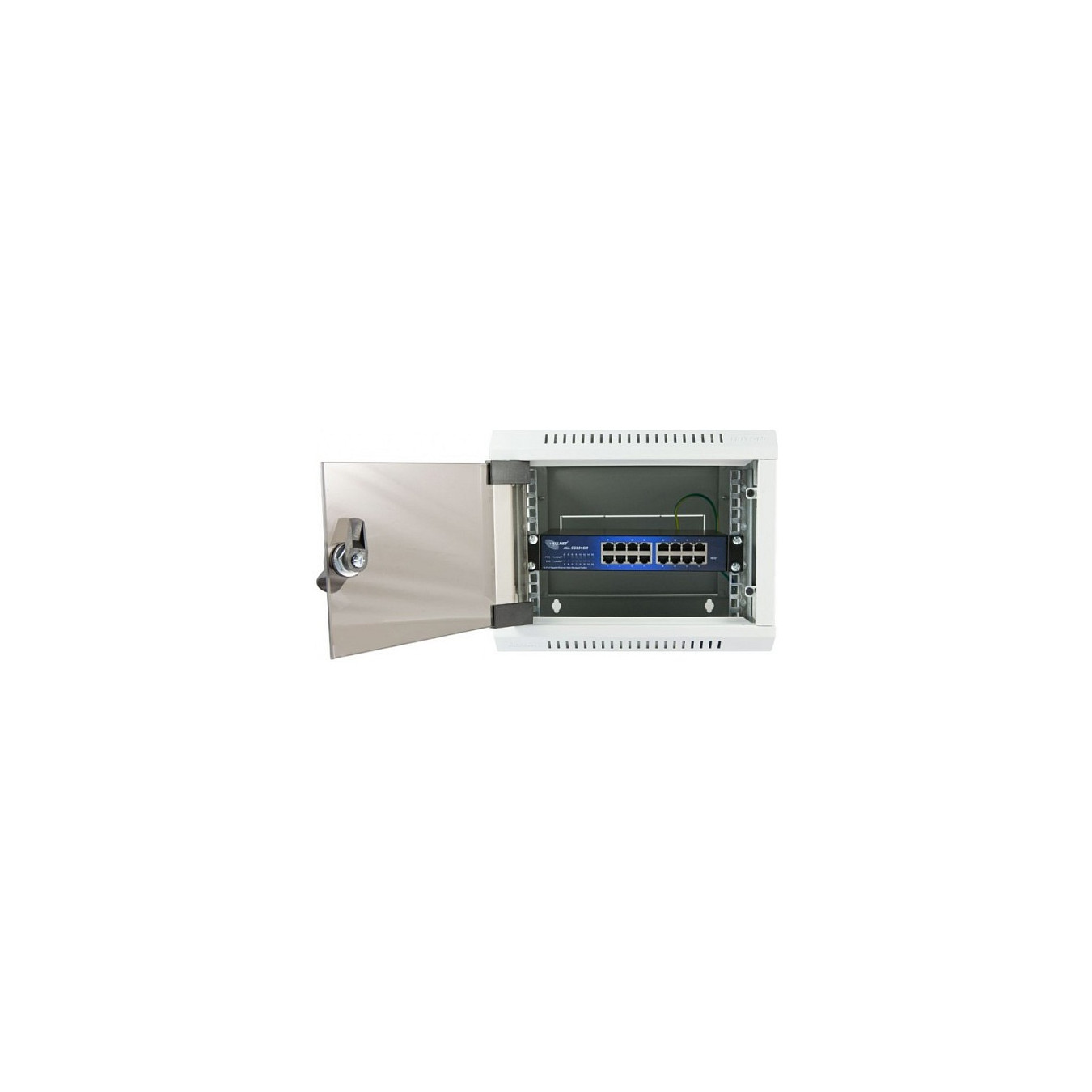

| Feature | Wandmontage |
| Anzahl der basisschaltenden RJ-45 Ethernet Ports | 16 |
| Basic Switching RJ-45 Ethernet Ports-Typ | Gigabit Ethernet (10/100/1000) |
| Netzstandard | IEEE 802.1D. IEEE 802.1Q. IEEE 802.1ab. IEEE 802.1w. IEEE 802.3. IEEE 802.3ab. IEEE 802.3ad. IEEE 802.3az. IEEE 802.3u. IEEE 802.3x |
| Kupfer Ethernet Verkabelungstechnologie | 10BASE-T. 100BASE-TX. 1000BASE-T |
| Virtuelle LAN-Funktionen | Tagged VLAN. Port-based VLAN |
| Routing-/Switching-Kapazität | 32 Gbit/s |
| MAC-Adressentabelle | 8000 Eintragungen |
| Anzahl Queues | 8 |
| Jumbo-Frames | 10000 |
| Paketweiterleitungsrate (1 Gbit/s) | 1488095 pps |
| Paketweiterleitungsrate (100 Mbit/s) | 148810 pps |
| Paketweiterleitungsrate (10 Mbit/s) | 14880 pps |
| DHCP-Funktionen | DHCP client |
| Unterstützte Sicherheitsalgorithmen | HTTPS. SNMP. SSL/TLS |
| Anzahl der gefilterten Multicast-Gruppen | 256 |
| Formfaktor | 19U |
| Produktfarbe | Schwarz |
| Sicherheit | EN60950-1 |
| Flash-Speicher | 16 MB |
| Puffergröße | 524.8 KB |
| AC Eingangsspannung | 100 - 240 V |
| AC Eingangsfrequenz | 47/63 Hz |
| Betriebstemperatur | 0 - 55 °C |
| Temperaturbereich bei Lagerung | -40 - 70 °C |
| Relative Luftfeuchtigkeit in Betrieb | 10 - 90% |
| Breite | 216 mm |
| Tiefe | 133 mm |
| Höhe | 42 mm |
| Zertifizierung | EMC/FCC. CE Class B |
