Gigabyte Power Supply - GP-P850GM - 850W 80 PLUS Gold, Fully-Modular ATX PSU, Black
Gigabyte GP-P850GM 850W fully-modular ATX PSU, 80 PLUS Gold efficiency, 120mm fan, single +12V rail (70.5A), universal 100–240V input, 4×6+2 PCIe, 8×SATA connectors.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
| PSU (Power Supplies) - Wattage | 850 W |
|---|---|
| PSU (Power Supplies) - Efficiency Rating | 80+ Gold |
| PSU (Power Supplies) - ATX Standard | ATX 2.x |
| PSU (Power Supplies) - Modularity | Fully modular |
| PSU (Power Supplies) - EPS CPU Connectors | 1x8-pin |
| PSU (Power Supplies) - Fan Size | 120 mm |
| PSU (Power Supplies) - Length | less than or equal to140 mm |
GIGABYTE P850GM. Total power: 850 W. AC input voltage: 100 - 240 V. AC input frequency: 50 - 60 Hz. Motherboard power connector: 20+4 pin ATX. Motherboard power cable length: 61 cm. SATA power cable length: 600.750.900 mm. Purpose: PC. Power supply unit (PSU) form factor: ATX. 80 PLUS certification: 80 PLUS Gold. Product colour: Black. Cooling type: Active. Fan diameter: 12 cm. Width: 150 mm. Depth: 140 mm. Height: 86 mm
| Total power | 850 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Maximum input current (@110V) | 12 A |
| Maximum input current (@220V) | 6 A |
| Power factor | 0.9 |
| Power Factor Correction (PFC) type | Active |
| Combined power (+3.3V) | 120 W |
| Combined power (+12V) | 846 W |
| Combined power (+5V) | 120 W |
| Combined power (-12V) | 3.6 W |
| Combined power (+5Vsb) | 15 W |
| Max output current (+3.3V) | 20 A |
| Max output current (+12V) | 70.5 A |
| Max output current (+5V) | 20 A |
| Max output current (-12V) | 0.3 A |
| Max output current (+5Vsb) | 3 A |
| Hold time | 16 ms |
| Efficiency | 90% |
| Power protection features | Over current. Over power. Over voltage. Overheating. Short circuit. Under voltage |

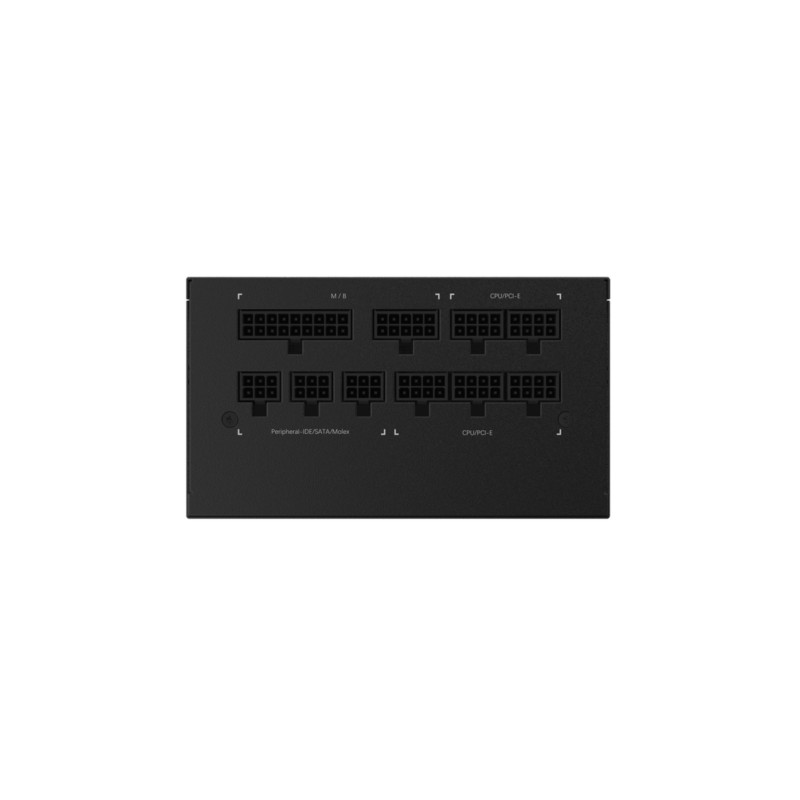

| Motherboard power connector | 20+4 pin ATX |
| Motherboard power cable length | 61 cm |
| Number of SATA power connectors | 8 |
| SATA power cable length | 600.750.900 mm |
| Peripheral (Molex) power connectors (4-pin) | 3 |
| PCI Express power connectors (6+2 pin) | 4 |
| PCI Express power cable length | 75 cm |
| Feature | On/off switch |
| CPU power cable length | 60 cm |
| Floppy drive power connector | 2 |
| Floppy disk drive cable length | 89 cm |
| Cabling type | Fully-Modular |
| 80 PLUS certification | 80 PLUS Gold |
| Purpose | PC |
| Power supply unit (PSU) form factor | ATX |
| ATX version | 2.31 |
| Mean time between failures (MTBF) | 100000 h |
| Product colour | Black |
| Cooling type | Active |
| Fan diameter | 12 cm |
| Number of fans | 1 fan(s) |
| Fan location | Top |
| Width | 150 mm |
| Depth | 140 mm |
| Height | 86 mm |
| Package type | Box |
| Harmonized System (HS) code | 84733020 |
