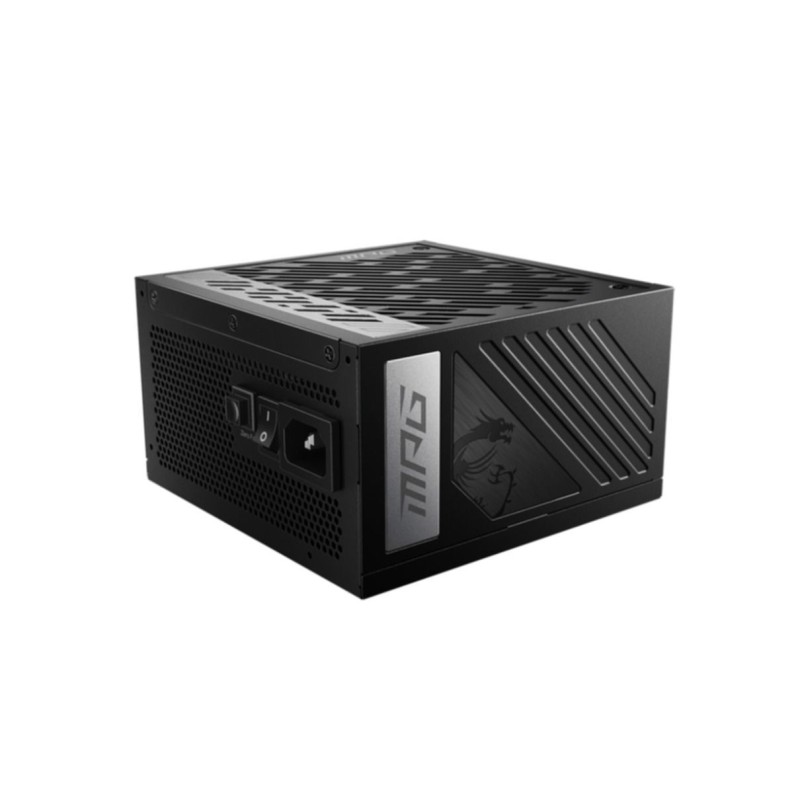

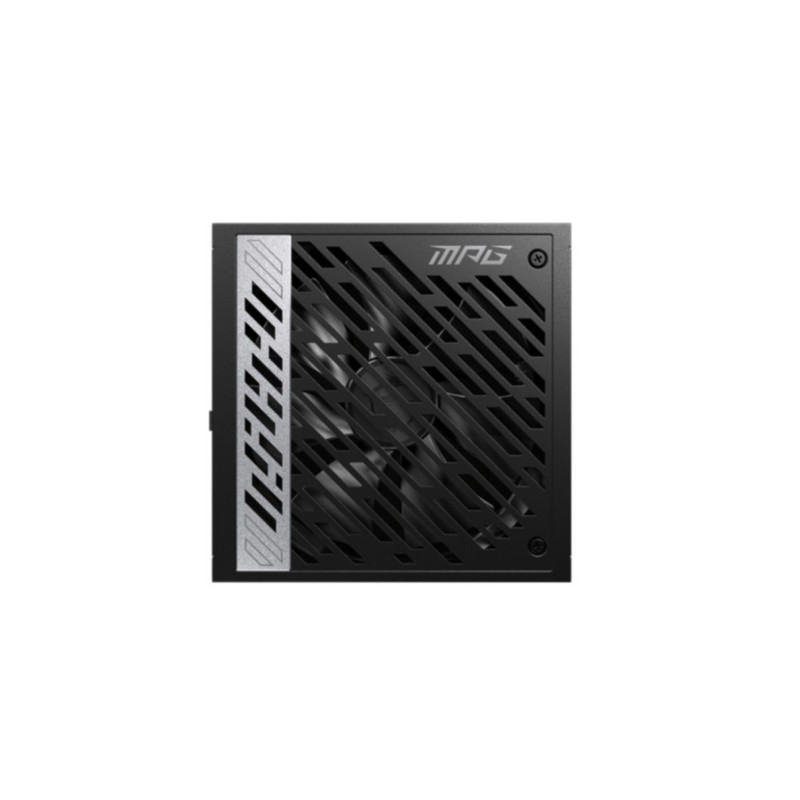

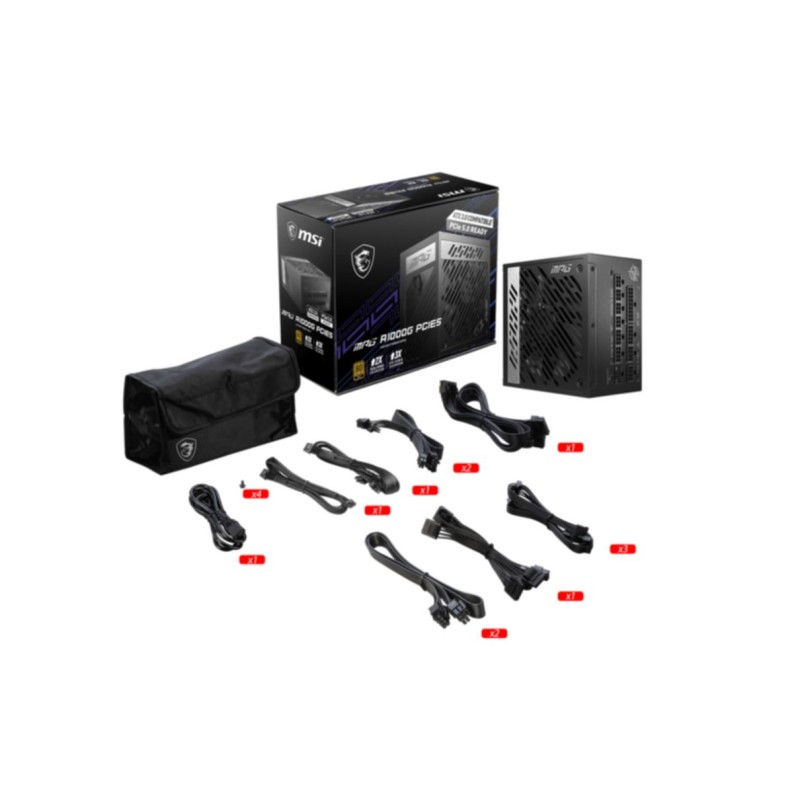

MSI MPG A1000G - 1000W ATX 3.0 PSU, 80 PLUS Gold, Fully-Modular, PCIe 5.0 (16-pin), Black
MSI MPG A1000G 1000W ATX 3.0 power supply — 80 PLUS Gold, fully-modular, 135mm FDB fan, PCIe 5.0 16-pin + six 6+2-pin connectors, comprehensive protection suite.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| PSU (Power Supplies) - Wattage | 1000 W |
|---|---|
| PSU (Power Supplies) - Efficiency Rating | 80+ Gold |
| PSU (Power Supplies) - ATX Standard | ATX 3.0 |
| PSU (Power Supplies) - Modularity | Fully modular |
| PSU (Power Supplies) - PCIe GPU Connectors | 12VHPWR (16-pin) |
| PSU (Power Supplies) - EPS CPU Connectors | 1x8-pin |
| PSU (Power Supplies) - Fan Size | 135 mm |
| PSU (Power Supplies) - Length | 141-160 mm |
MSI MPG A1000G PCIE5. Total power: 1000 W. AC input voltage: 100 - 240 V. AC input frequency: 50 - 60 Hz. Motherboard power connector: 20+4 pin ATX. Motherboard power cable length: 60 cm. SATA power cable length: 500.650.700.850 mm. Purpose: PC/Server. Power supply unit (PSU) form factor: ATX. 80 PLUS certification: 80 PLUS Gold. Product colour: Black. Cooling type: Active. Fan diameter: 13.5 cm. Width: 150 mm. Depth: 150 mm. Height: 86 mm
| Total power | 1000 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Power Factor Correction (PFC) type | Active |
| Combined power (+3.3V) | 120 W |
| Combined power (+12V) | 1000 W |
| Combined power (+5V) | 120 W |
| Combined power (-12V) | 3.6 W |
| Combined power (+5Vsb) | 15 W |
| Max output current (+3.3V) | 22 A |
| Max output current (+12V) | 83.5 A |
| Max output current (+5V) | 22 A |
| Max output current (-12V) | 0.3 A |
| Max output current (+5Vsb) | 3 A |
| Efficiency | 90% |
| Power protection features | Over current. Over power. Over voltage. Overheating. Short circuit. Under voltage |
| Motherboard power connector | 20+4 pin ATX |
| Motherboard power cable length | 60 cm |
| Number of SATA power connectors | 12 |
| SATA power cable length | 500.650.700.850 mm |
| Peripheral (Molex) power connectors (4-pin) | 4 |
| Peripheral (Molex) power cable length | 1100.500.650.700.850 mm |
| Feature | Floppy disk drive connector |
| PCI Express power connectors (6+2 pin) | 6 |
| PCI Express power connectors (16-pin) | 1 |
| PCI Express power cable length | 75 cm |
| Cabling type | Fully-Modular |
| 80 PLUS certification | 80 PLUS Gold |
| Purpose | PC/Server |
| Power supply unit (PSU) form factor | ATX |
| ATX version | 3.0 |
| Bearing technology | FDB |
| Product colour | Black |
| Cooling type | Active |
| Fan diameter | 13.5 cm |
| Number of fans | 1 fan(s) |
| Width | 150 mm |
| Depth | 150 mm |
| Height | 86 mm |
| EPS cable length | 70 cm |
