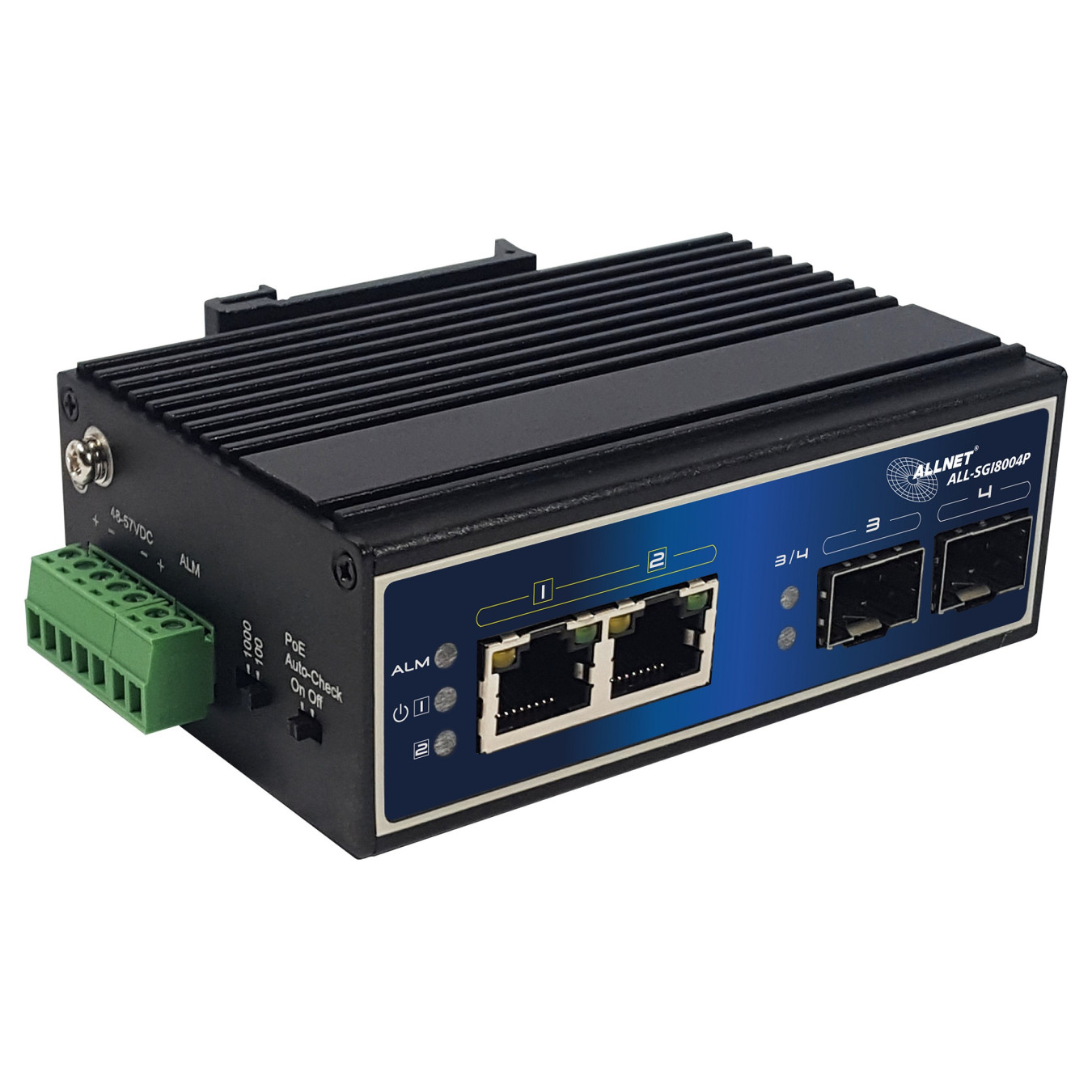

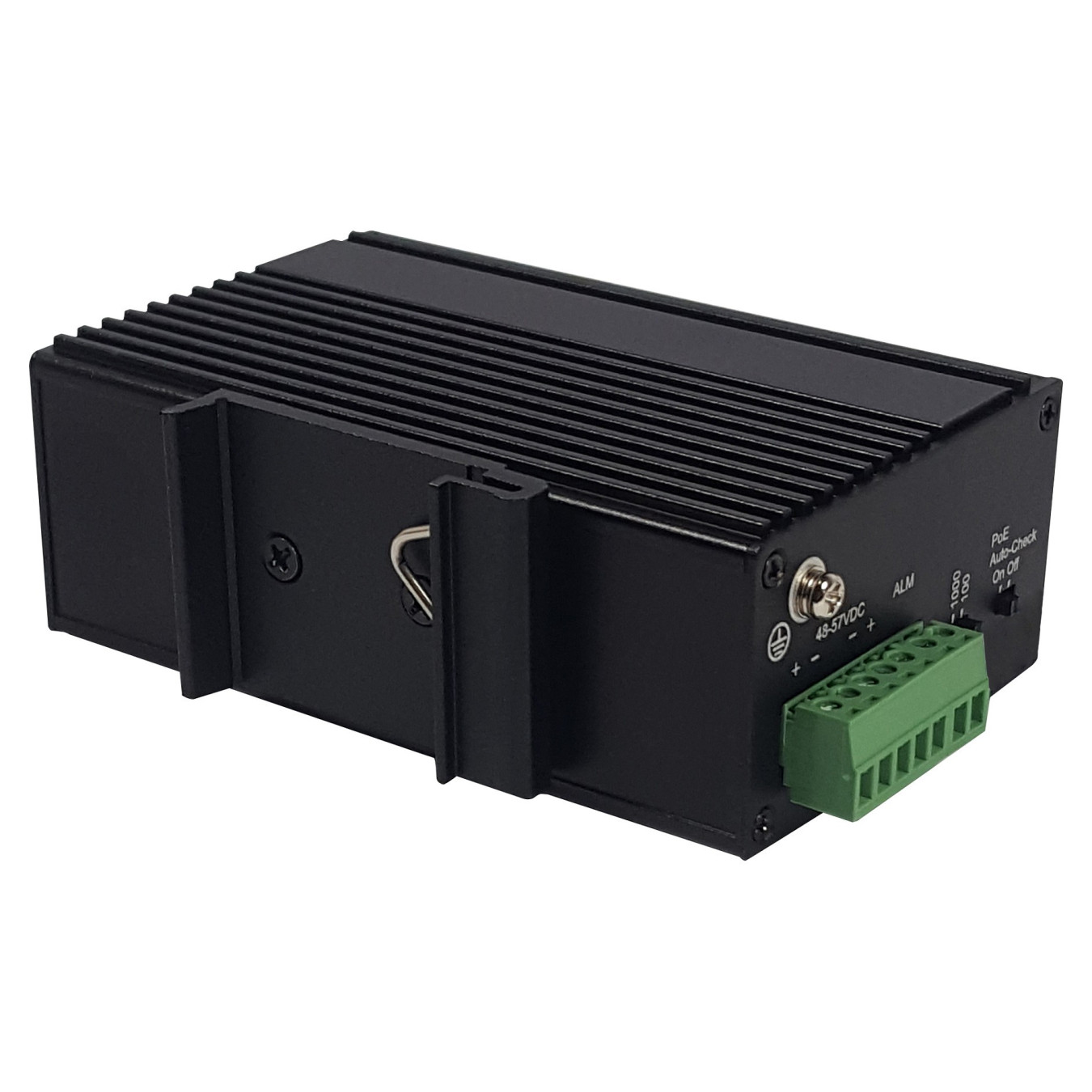

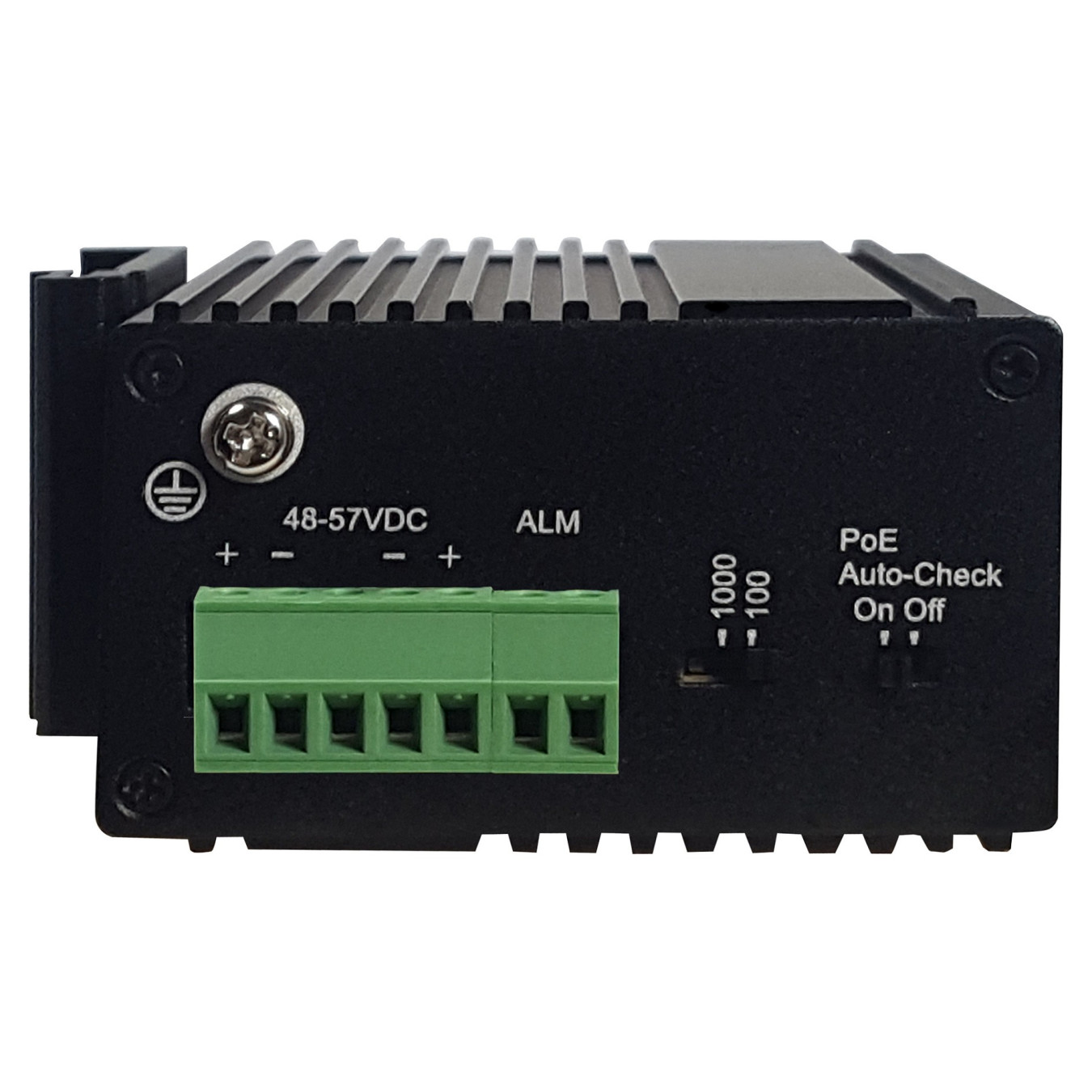

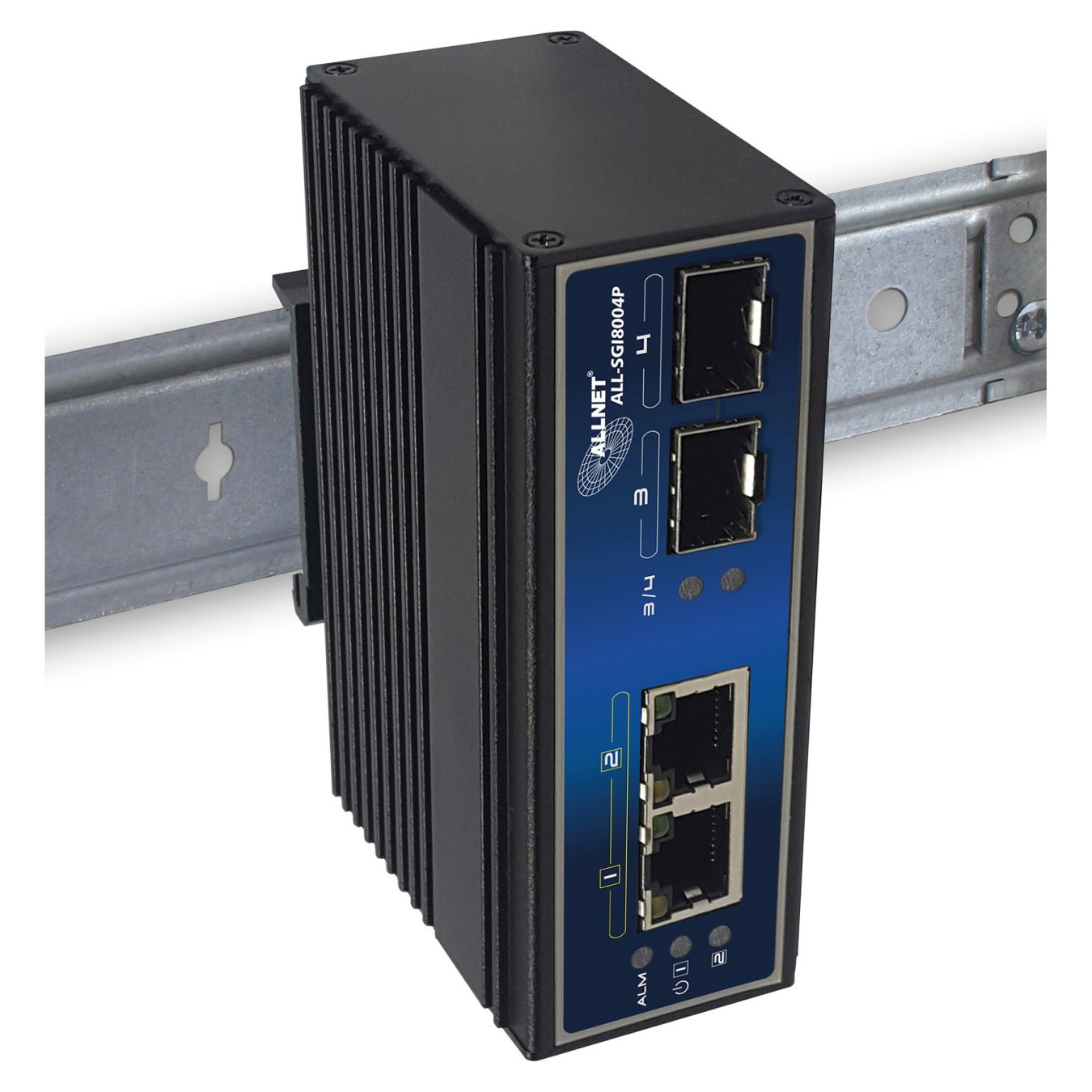

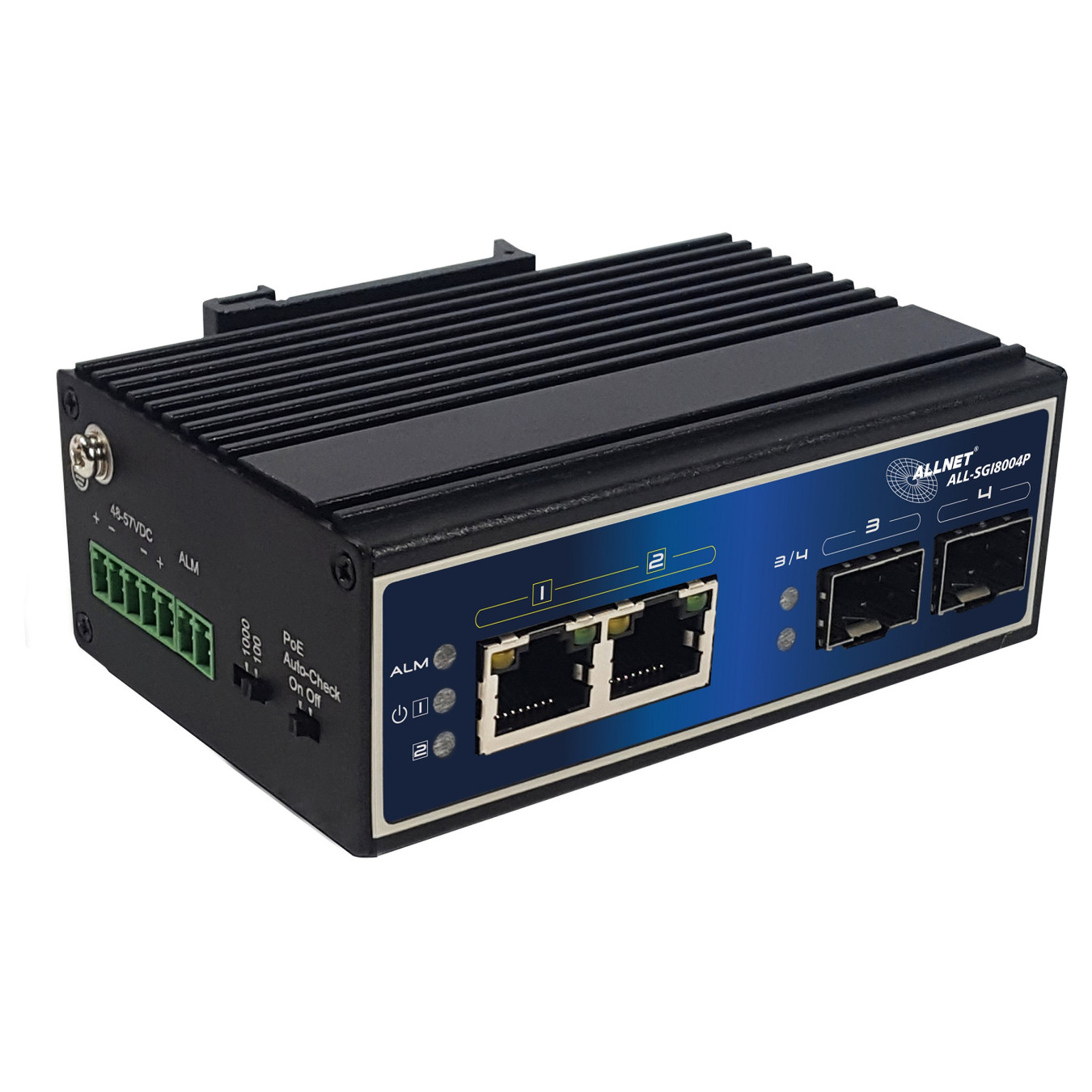

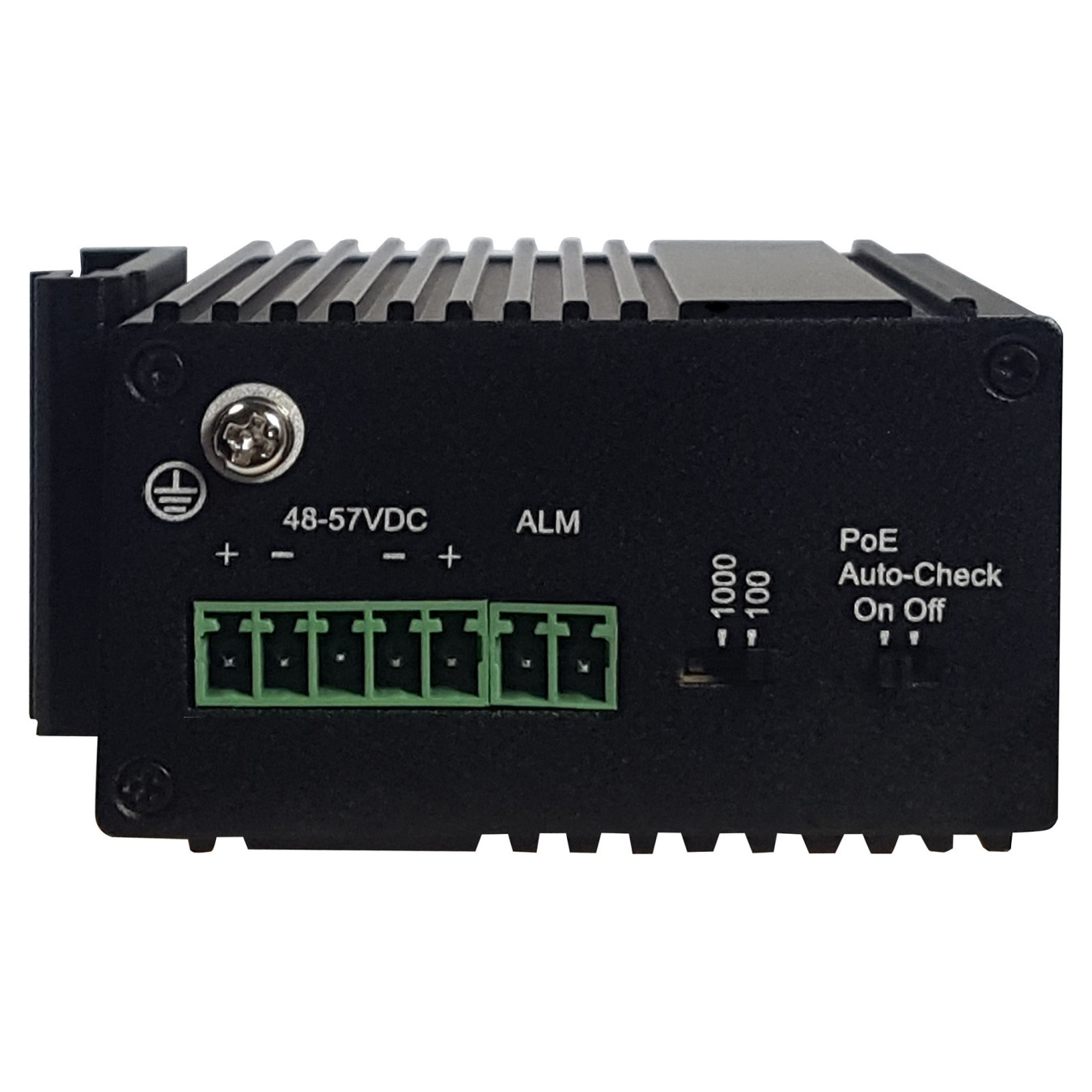

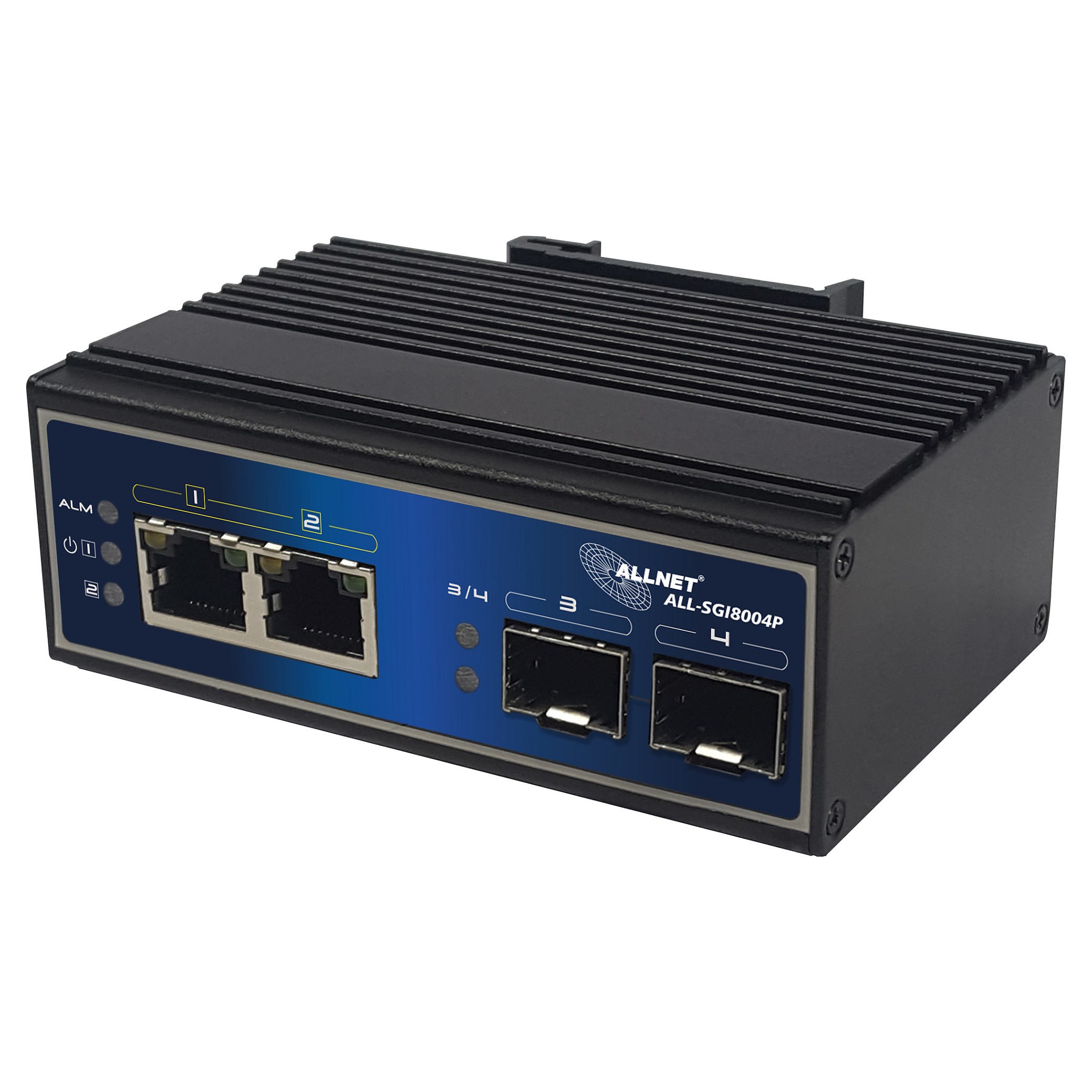

4+2P ALLNET ALL-SGI8004P POE industrial
ALLNET ALL-SGI8004P. Unmanaged. Gigabit Ethernet (10/100/1000). Gigabit Ethernet. Power over Ethernet (PoE)
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
ALLNET ALL-SGI8004P. Switch-Typ: Unmanaged. Basic Switching RJ-45 Ethernet Ports-Typ: Gigabit Ethernet (10/100/1000). Anzahl der basisschaltenden RJ-45 Ethernet Ports: 2. Schalttyp optisches Modul: Gigabit Ethernet. MAC-Adressentabelle: 8000 Eintragungen. Routing-/Switching-Kapazität: 8 Gbit/s. Netzstandard: IEEE 802.3. IEEE 802.3u. IEEE 802.3z. DC input Spannung: 48 - 57 V. Power over Ethernet (PoE)
| Switch-Typ | Unmanaged |
| Anzahl der basisschaltenden RJ-45 Ethernet Ports | 2 |
| Basic Switching RJ-45 Ethernet Ports-Typ | Gigabit Ethernet (10/100/1000) |
| Anzahl Gigabit Ethernet (Kupfer) Anschlüsse | 2 |
| Anzahl Faseranschlüsse | 2 |
| Optischer Kabelverbinder | SFP |
| Netzstandard | IEEE 802.3. IEEE 802.3u. IEEE 802.3z |
| Kupfer Ethernet Verkabelungstechnologie | 10BASE-T. 100BASE-T. 1000BASE-T |
| unterstütze Kabeltypen | Cat5e. Cat6 |
| Ethernet LAN Datentransferraten | 10.100.1000 Mbit/s |
| Ethernet-Kabel Verkablungstechnologie | 100BASE-FX. 1000BASE-X |
| Schalttyp optisches Modul | Gigabit Ethernet |
| Routing-/Switching-Kapazität | 8 Gbit/s |
| Durchgang | 5.95 Mpps |
| MAC-Adressentabelle | 8000 Eintragungen |
| Datenpaket-Pufferspeicher | 1 MB |
| Produktfarbe | Schwarz |
| Gehäusematerial | Aluminium |
| LED-Anzeigen | Aktivität. Link. Leistung |
| Internationale Schutzart (IP-Code) | IP40 |
| DC input Spannung | 48 - 57 V |
| Stromverbrauch (Standardbetrieb) | 5 W |
| Feature | Ablageschienen |
| Anzahl Power over Ethernet (PoE) Anschlüsse | 2 |
| Gesamtleistung Power over Ethernet (PoE) | 30 W |
| Betriebstemperatur | -40 - 75 °C |
| Temperaturbereich bei Lagerung | -40 - 85 °C |
| Relative Luftfeuchtigkeit in Betrieb | 0 - 95% |
| Breite | 101 mm |
| Tiefe | 36 mm |
| Höhe | 65 mm |
| Gewicht | 300 g |
| Konformitätsbescheinigungen | CE |
