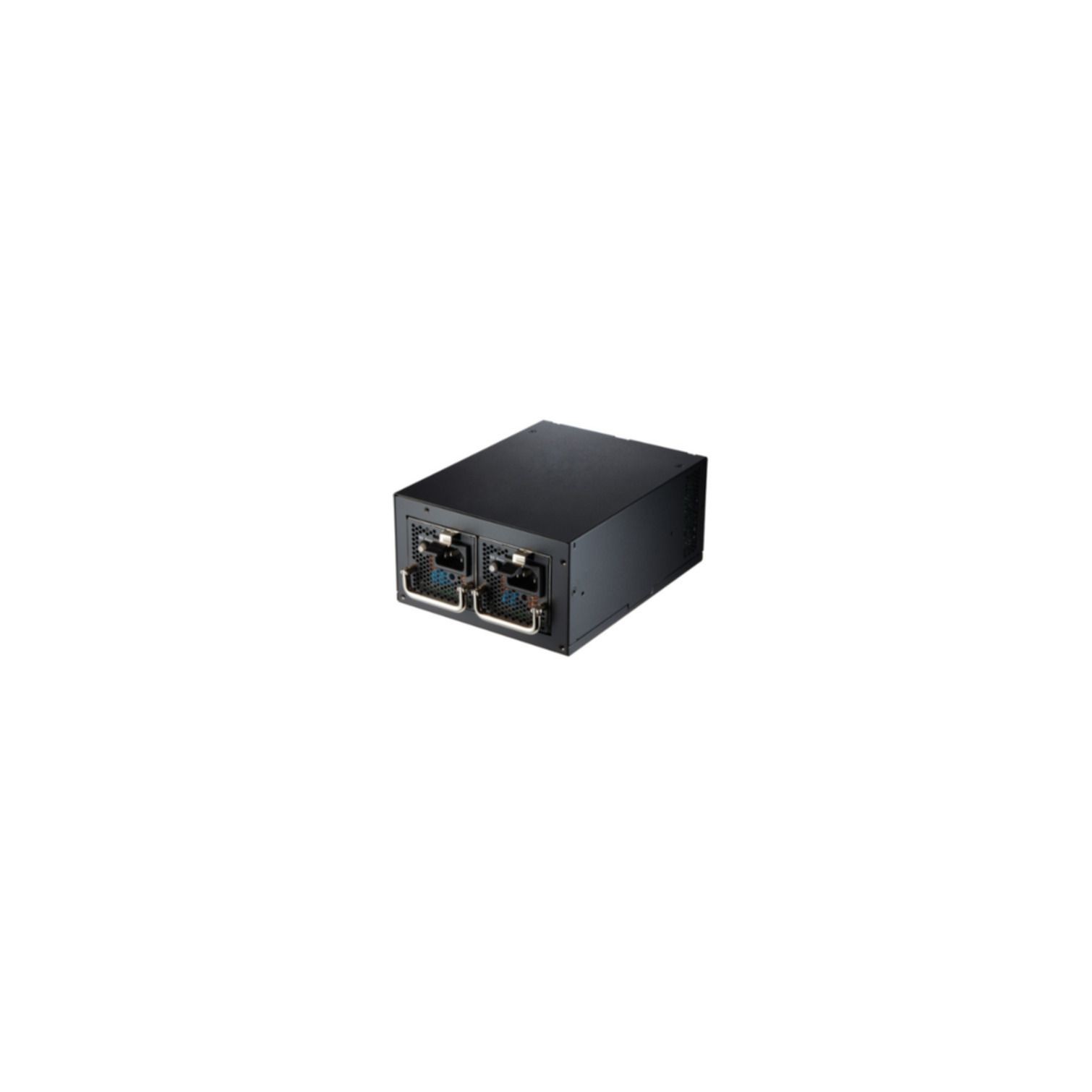

Fortron Twins PRO 700 - 700W Redundant Hot-Swappable Dual PSU - 80+ Gold, Non-Modular, Black
700W redundant dual power supply with hot-swappable modules, 80 PLUS Gold efficiency, non-modular cabling; fits standard ATX/PS2 server chassis for continuous operation.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| PSU (Power Supplies) - Efficiency Rating | 80+ Gold |
|---|---|
| PSU (Power Supplies) - Modularity | Non-modular |
Twins PRO series, a redundant power supply, is designed for standard ATX or PS2 chassis, no front end braket needed, ideal for mail, web or home server. Hot swappable modules design provides stable power supply; when one fails, the other can take over the load immediately. Thus users do not need to worry about any server/PC power off situation.
Redundant system design and built-in hot swappable modules
With redundancy in mind, the Twin Pro modular system design is more efficient and operates quieter by distributing the power load between two hot swappable PSU modules. If one unit fails, the second unit takes control of the power load until a replacement is swapped in. Each unit can be hot swapped and replaced without any system down-time offering a seamless and uninterrupted operation.

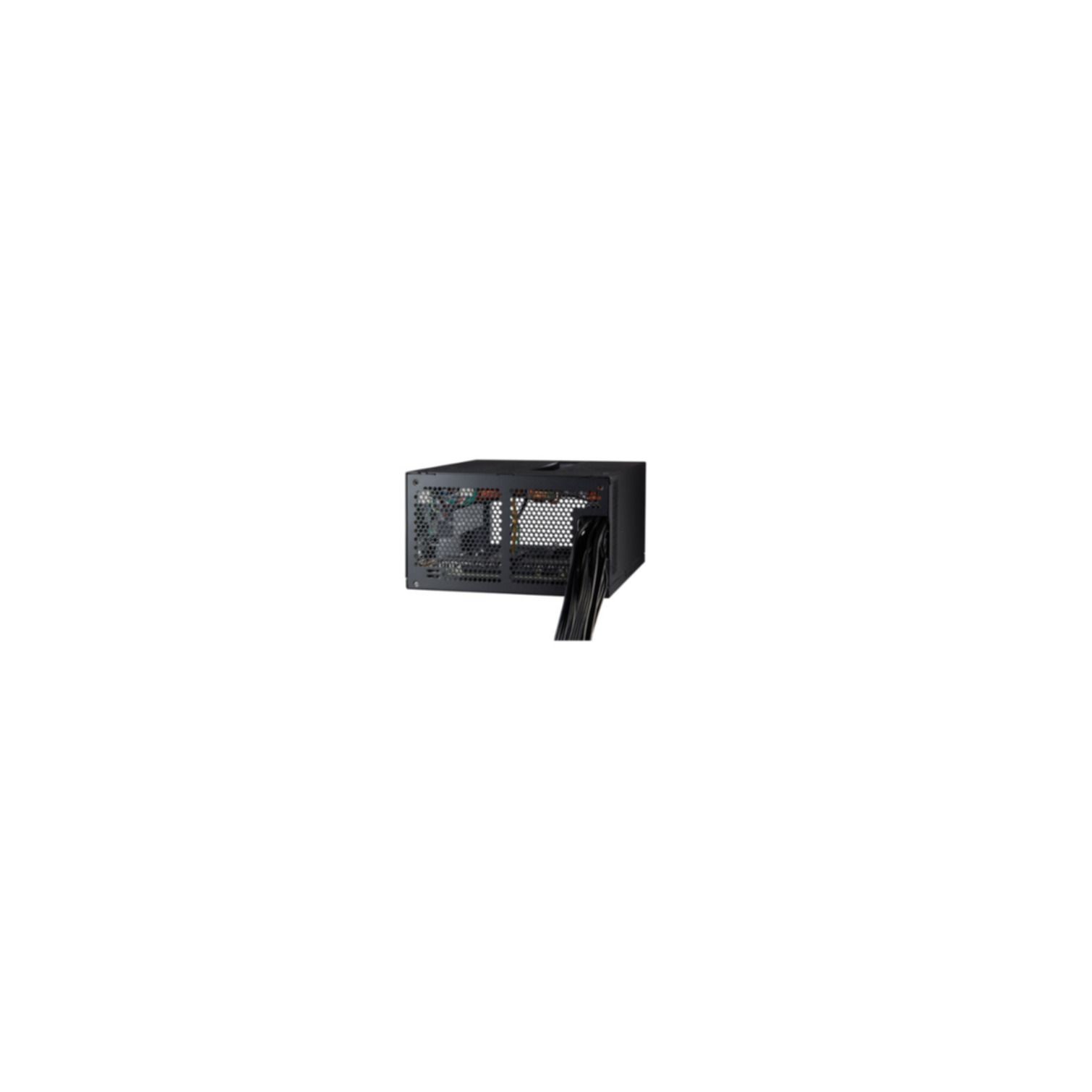

Black ribbon cable design
The round black ribbon cable design helps with heat emission effect and extends the life span of the components. The ribbon cable design also offers a cleaner aesthetic and allows for better cable management in custom build systems.
Power cord locking device
The Twins Pro series features a power cord locking device that secures the power cord from acciedntal disconnect helping to ensure stable poeration without any system interruptions.
The Twins PRO series can be connected to a USB header and synced with the FSP Guardian software to monitor power input, power output, efficiency, and other internal records in real-time. The FSP Guardian software can warn users when temperatures reaches certain levels by alerting them immediately with warning messages that will update the user with all of the latest information in real-time.
Ideal for home, mail or web server systems
The Twins series is an ATX PS2 size redundant power supply. The Twins Pro does not have front-end brackets, which makes it an deal power solution for a home cloud server, mail server, or a small to medium-sized enterprise (SME) web server.
| Total power | 700 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Input current | 10-5 A |
| Power Factor Correction (PFC) type | Active |
| Combined power (+3.3V) | 130 W |
| Combined power (+5V) | 130 W |
| Max output current (+3.3V) | 20 A |
| Max output current (+12V) | 58.3 A |
| Max output current (+5V) | 20 A |
| Max output current (-12V) | 0.5 A |
| Max output current (+5Vsb) | 3 A |
| Efficiency | 90% |
| Power protection features | Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage |
| Motherboard power connector | 20+4 pin ATX |
| Number of SATA power connectors | 6 |
| Peripheral (Molex) power connectors (4-pin) | 2 |
| PCI Express power connectors (6+2 pin) | 4 |
| CPU power connector (4+4 pin) | Yes |
| Cabling type | Non-Modular |
| 80 PLUS certification | 80 PLUS Gold |
| Purpose | Server |
| Power supply unit (PSU) form factor | PS/2 |
| Bearing technology | Ball bearing |
| Product colour | Black |
| Fan diameter | 4 cm |
| Number of fans | 2 fan(s) |
| Cables included | CPU, PCIe, SATA |
| Width | 150 mm |
| Depth | 190 mm |
| Height | 86 mm |
| Harmonized System (HS) code | 84733020 |
