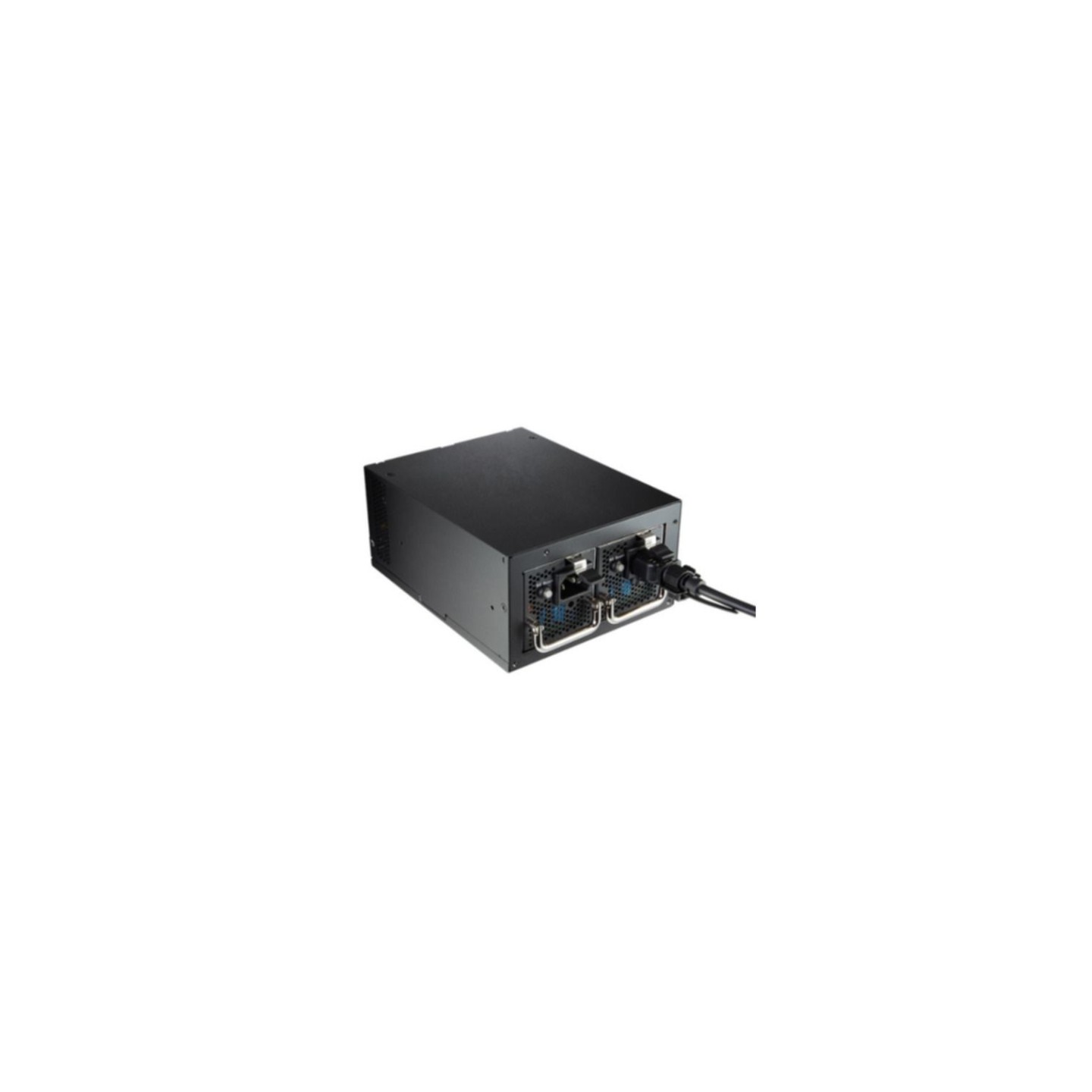

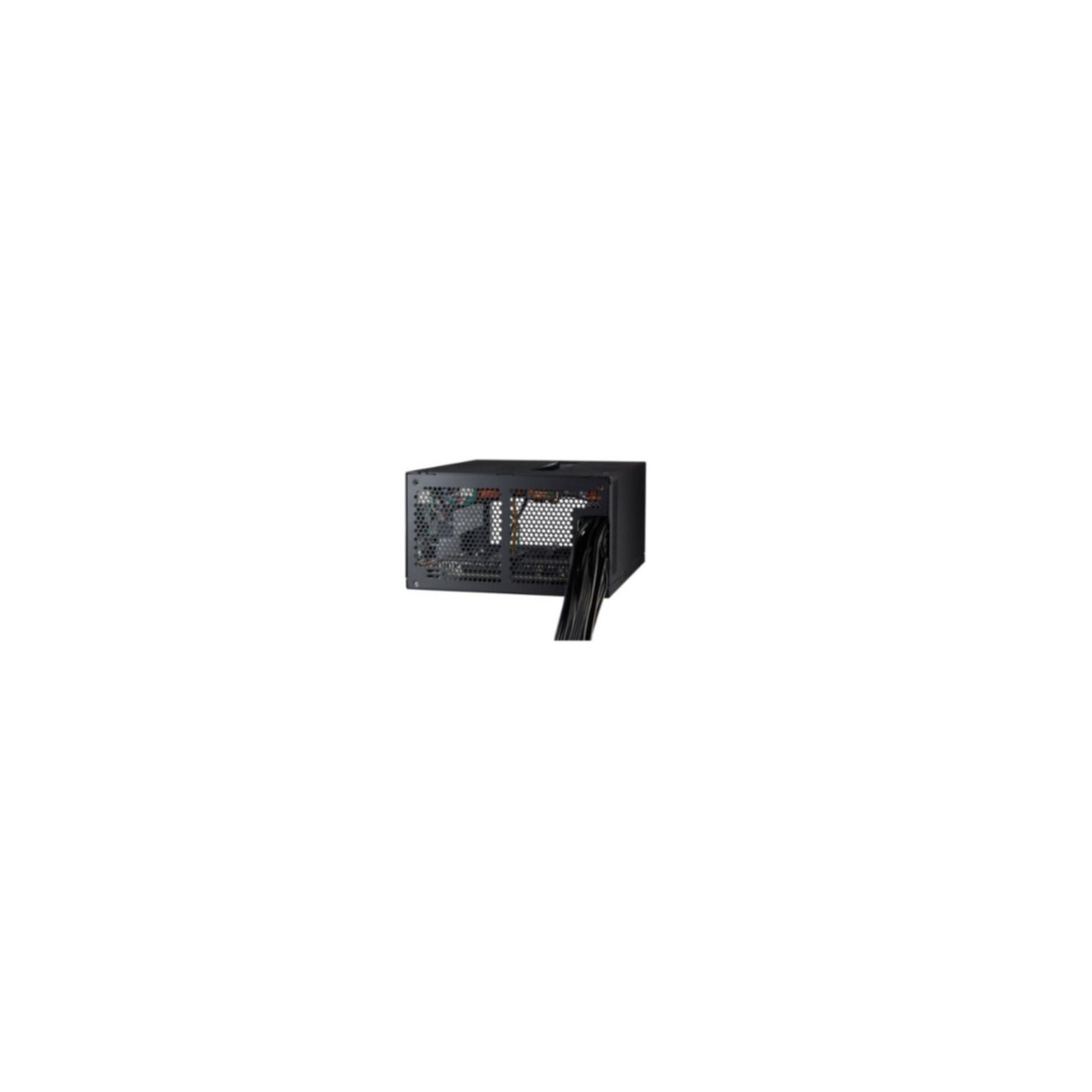

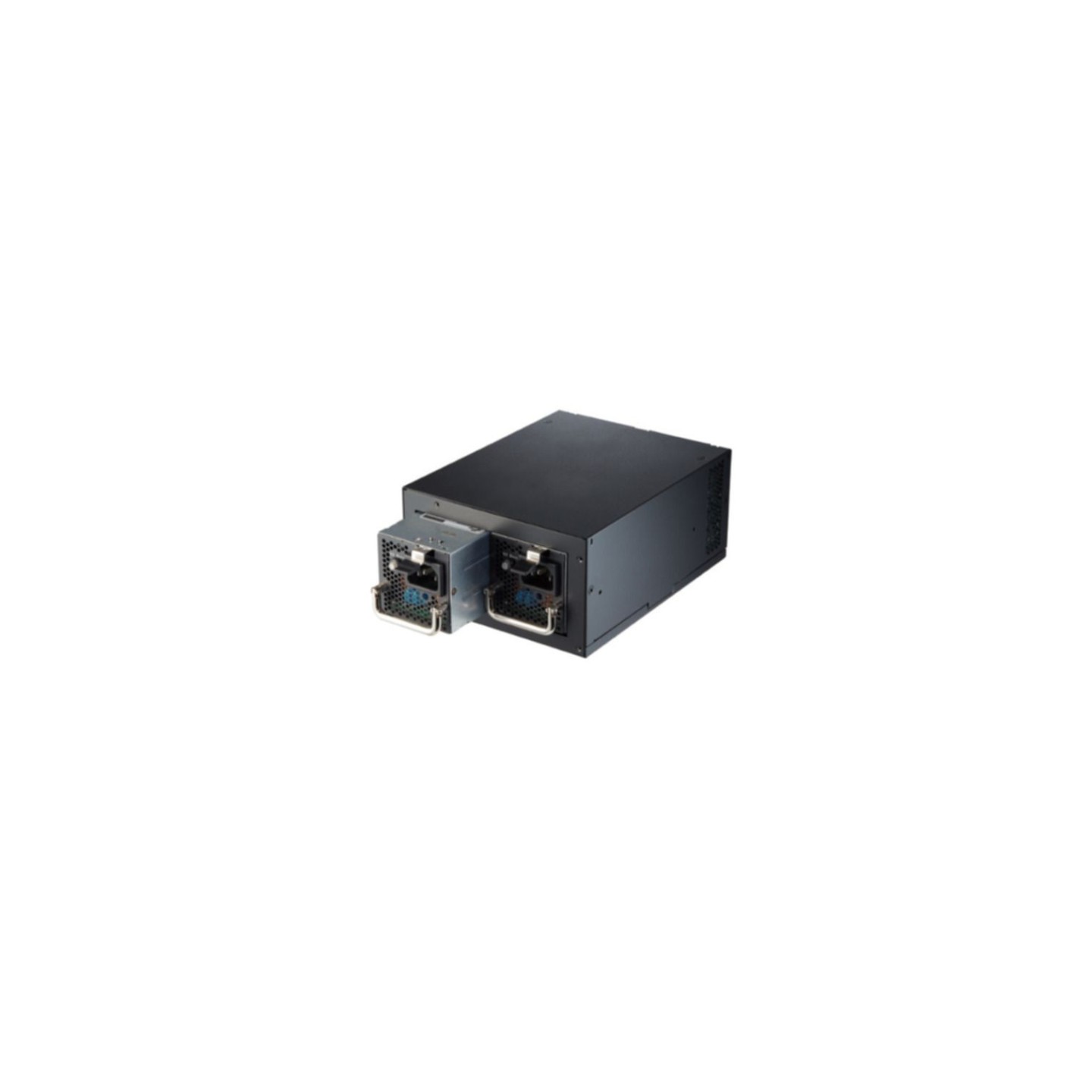

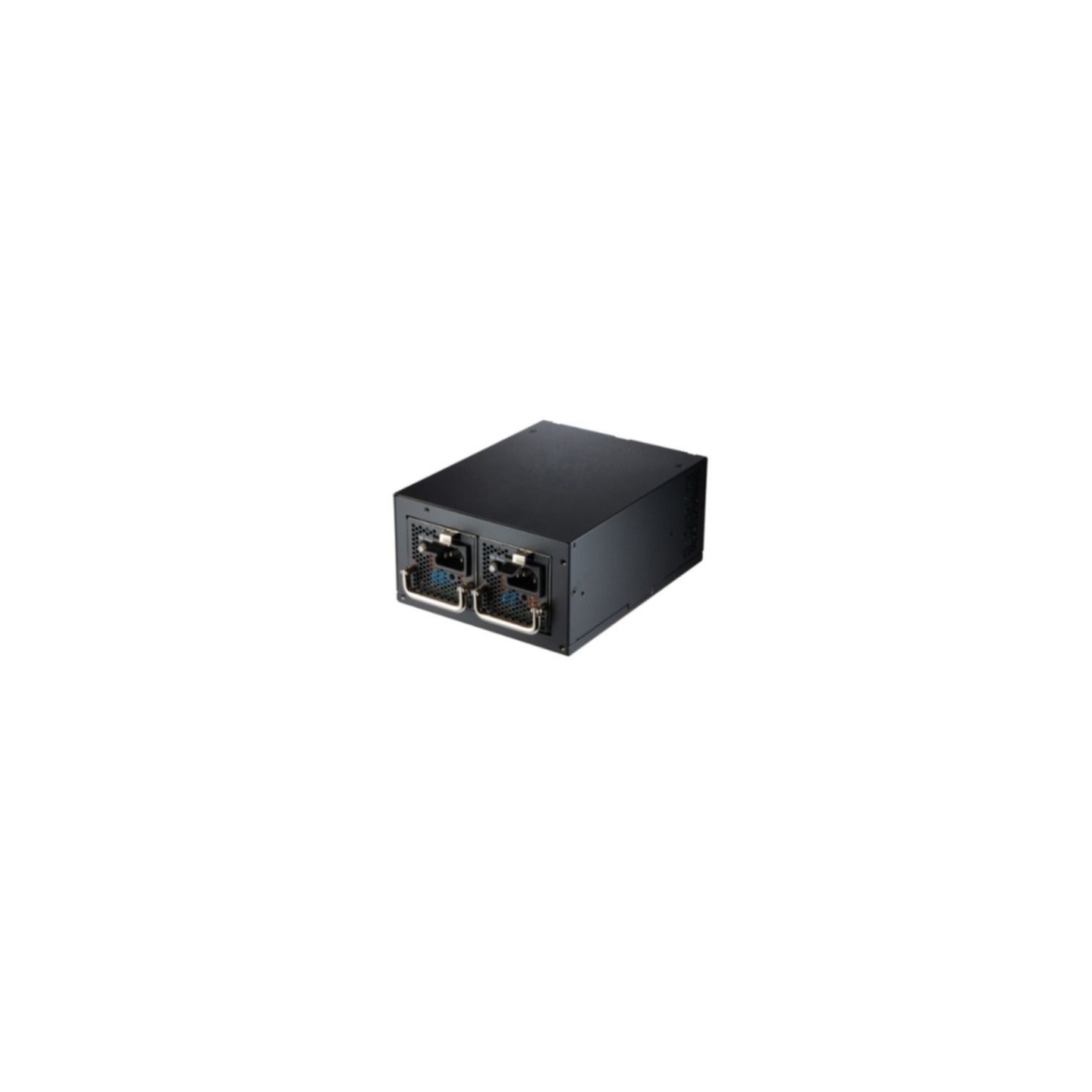

Fortron Twins PRO 700 FSP700-50RAB 700W Redundant Hot-Swap Dual PSU 80+ Gold (Boxed)
700W redundant hot-swappable dual PSU with 80+ Gold efficiency. Fits ATX/PS2 chassis for servers. Black ribbon cables, power cord lock, FSP Guardian USB monitoring for real-time stats and alerts.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| PSU (Power Supplies) - Wattage | 700 - 799 W |
|---|---|
| PSU (Power Supplies) - Efficiency Rating | 80 Plus Gold |
| PSU (Power Supplies) - Color | Black |
| PSU (Power Supplies) - Modularity | Non-modular |
| PSU (Power Supplies) - PCIe GPU Connectors | 4x 8/6 pins |
| PSU (Power Supplies) - Length | 141-160 mm |
| PSU (Power Supplies) - EPS CPU Connectors | 1x 4+4pin EPS/ATX12V |
The Fortron Twins PRO 700 (FSP700-50RAB) is a 700W redundant power supply designed for standard ATX or PS2 chassis without needing front brackets. Ideal for home, mail, or web servers, it features hot-swappable modules for zero downtime: if one fails, the other instantly takes the full load.
Redundant design distributes load for efficiency and quiet operation with dual 40mm ball bearing fans. Includes black ribbon cables for better airflow and management, power cord locking to prevent accidental disconnects, and USB connectivity for FSP Guardian software monitoring power, efficiency, temps with real-time alerts.
- Key Features:
- 80 PLUS Gold certified, 90% efficiency
- Hot-swappable redundant modules
- Protections: OCP, OPP, OVP, OTP, SCP, UVP
- Connectors: 20+4 ATX, 4+4 CPU, 4x PCIe 6+2, 6x SATA, 2x Molex
- Dimensions: 150x86x190mm; MTBF 100,000 hours
| Total power | 700 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Input current | 10-5 A |
| Power Factor Correction (PFC) type | Active |
| Combined power (+3.3V) | 130 W |
| Combined power (+5V) | 130 W |
| Max output current (+3.3V) | 20 A |
| Max output current (+12V) | 58.3 A |
| Max output current (+5V) | 20 A |
| Max output current (-12V) | 0.5 A |
| Max output current (+5Vsb) | 3 A |
| Efficiency | 90% |
| Power protection features | Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage |
| Motherboard power connector | 20+4 pin ATX |
| Number of SATA power connectors | 6 |
| Peripheral (Molex) power connectors (4-pin) | 2 |
| PCI Express power connectors (6+2 pin) | 4 |
| CPU power connector (4+4 pin) | Yes |
| Cabling type | Non-Modular |
| 80 PLUS certification | 80 PLUS Gold |
| Purpose | Server |
| Power supply unit (PSU) form factor | PS/2 |
| Bearing technology | Ball bearing |
| Product colour | Black |
| Fan diameter | 4 cm |
| Number of fans | 2 fan(s) |
| Cables included | CPU, PCIe, SATA |
| Width | 150 mm |
| Depth | 190 mm |
| Height | 86 mm |
| Harmonized System (HS) code | 84733020 |
| MTBF | 100,000 Hours |
| Model Number | FSP700-50RAB |
| Input Connector | C14 each module |
