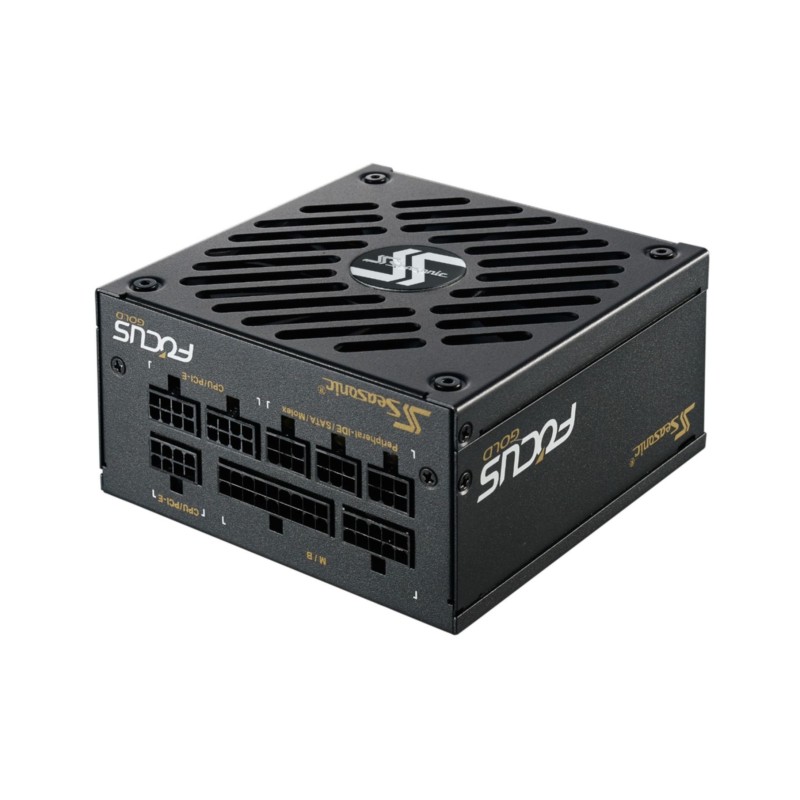

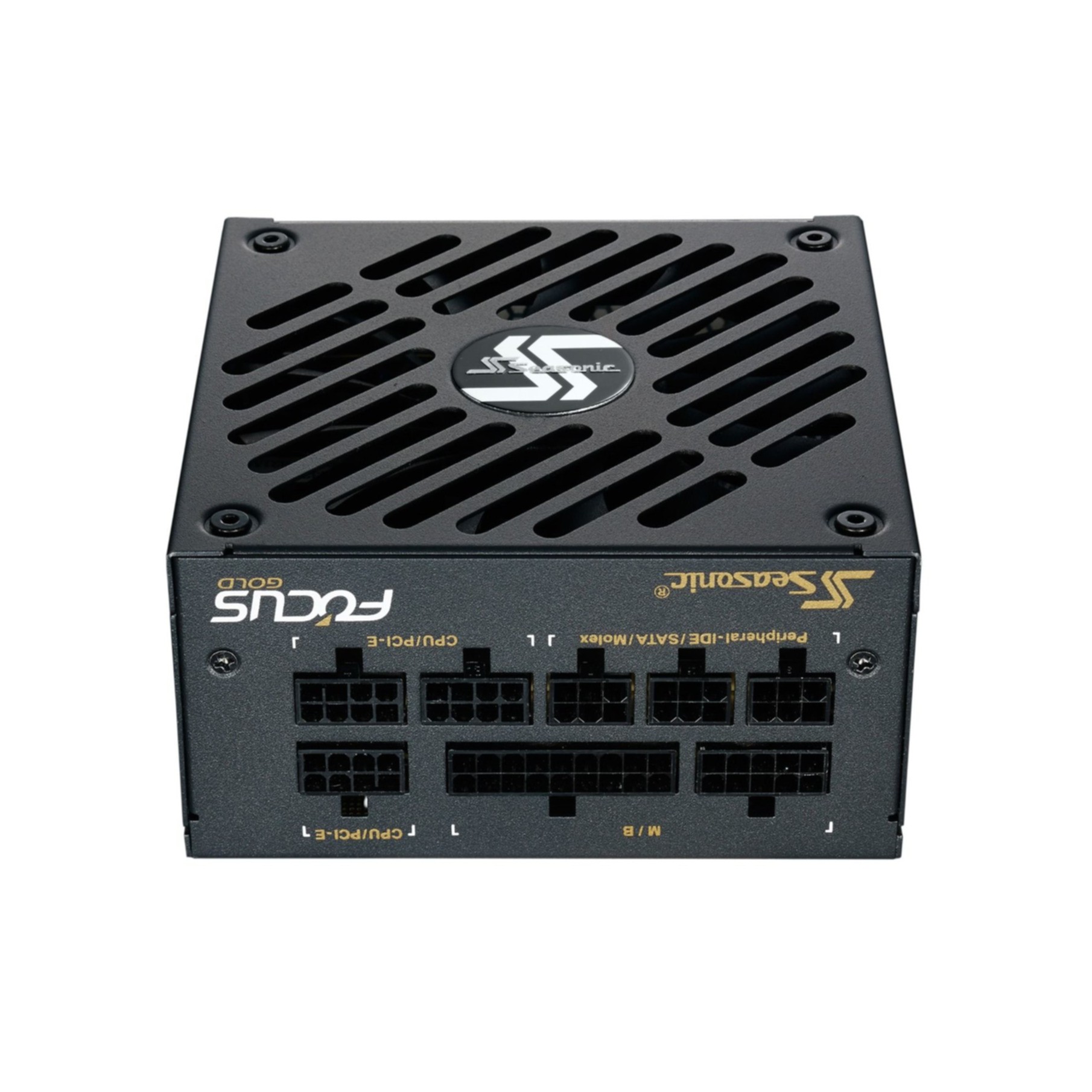

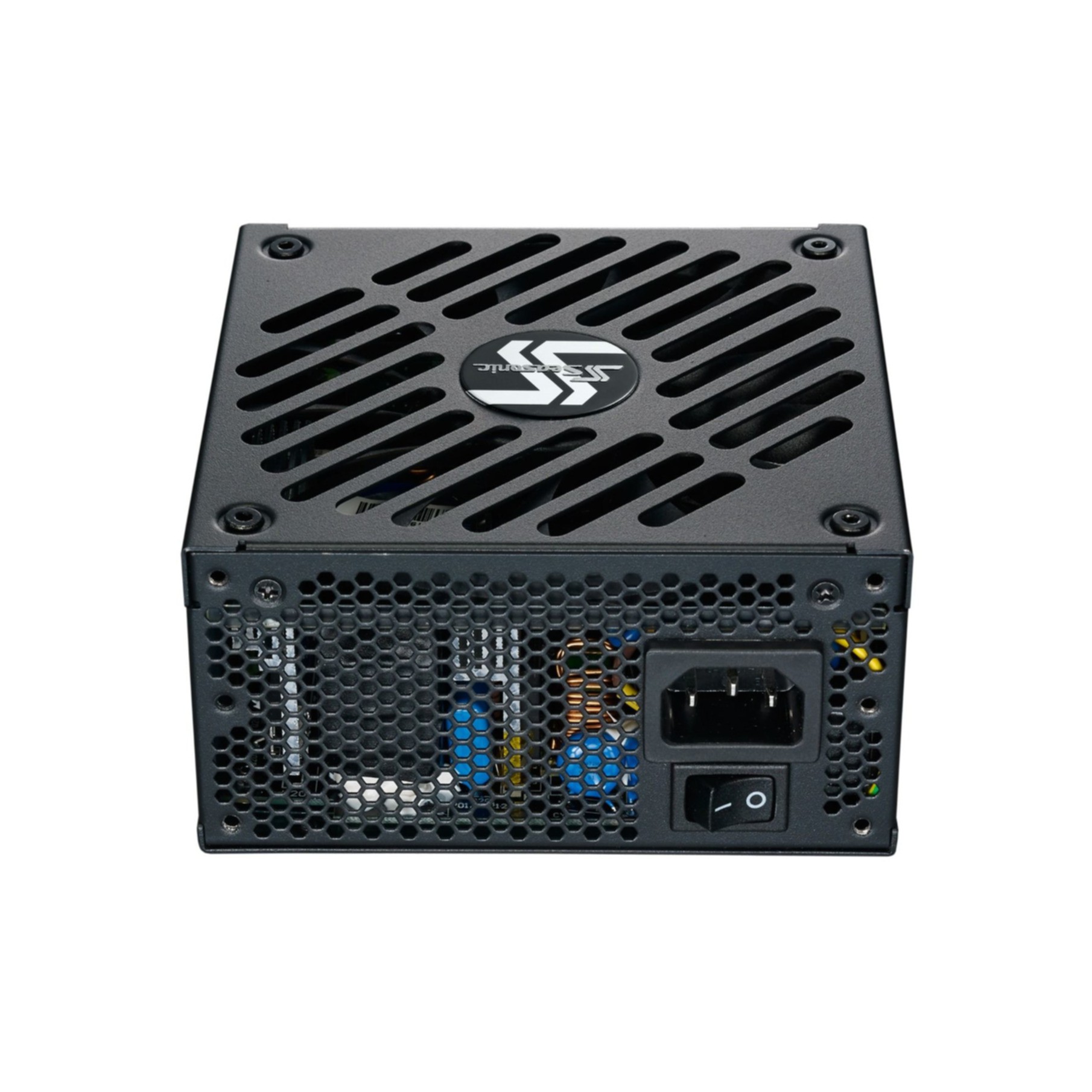

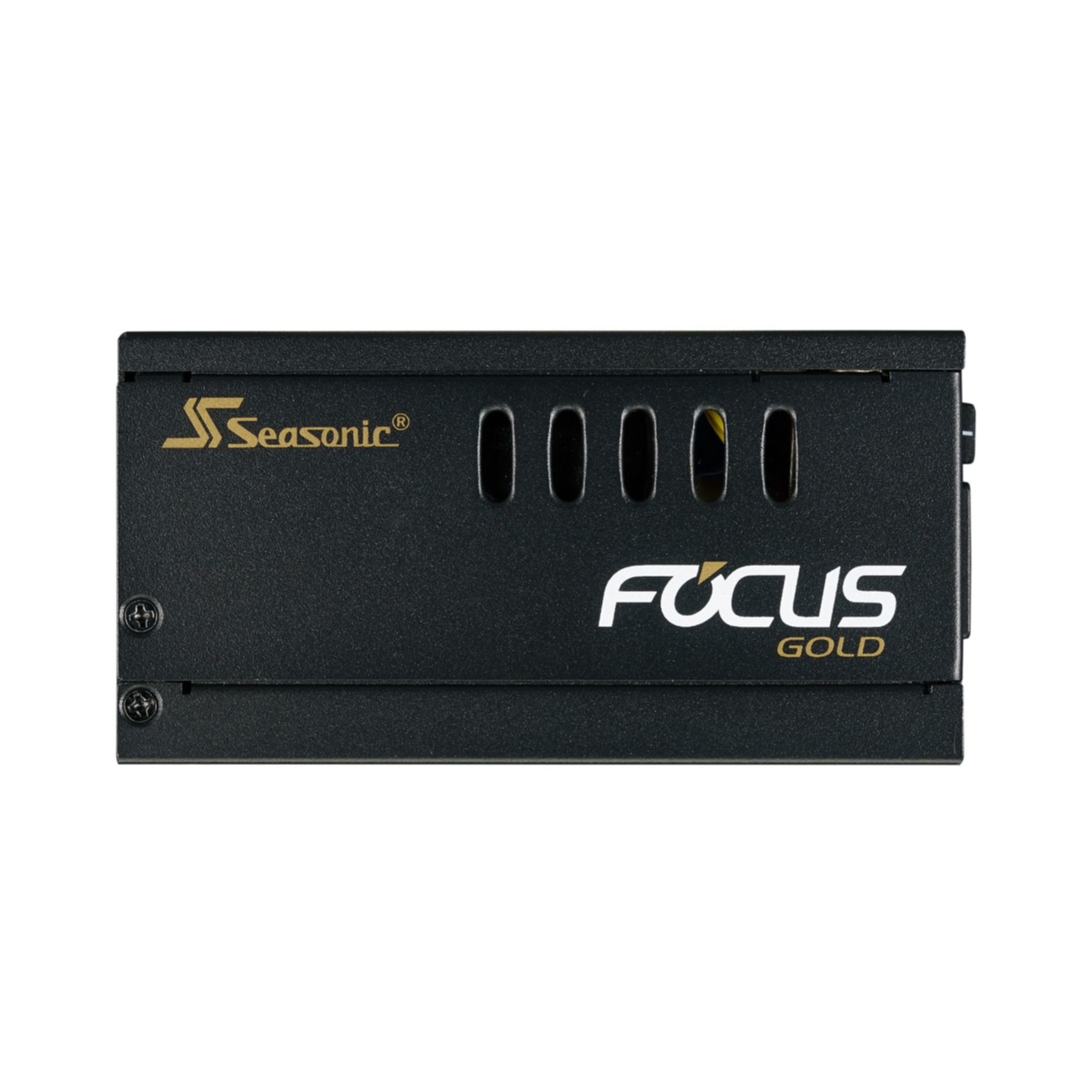

Seasonic FOCUS-SGX-650 - 650W Fully-Modular SFX-L/ATX PSU, 80 PLUS Gold, Hybrid Fan Control
650W fully-modular SFX-L/ATX power supply, 80 PLUS Gold (≈90% efficiency at 50% load), hybrid silent fan control, compact 125mm footprint, includes SFX-to-ATX adapter.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| PSU (Power Supplies) - Wattage | 650 W |
|---|---|
| PSU (Power Supplies) - Efficiency Rating | 80+ Gold |
| PSU (Power Supplies) - ATX Standard | ATX 2.x |
| PSU (Power Supplies) - Modularity | Fully modular |
| PSU (Power Supplies) - Length | less than or equal to140 mm |
The long-awaited new line of Seasonic's FOCUS SGX is versatile in its application, and powerful with a small footprint. The FOCUS SGX is shipped with an SFX to ATX adapter bracket in the box, which allows the power supply to be mounted not only in the SFX form factor chassis, but also a standard ATX chassis should the user prefers to reserve more space for airflow inside the PC case. The Seasonic hybrid fan control is always enabled to optimize the cooling according to necessity.
80 PLUS GOLD
The FOCUS PLUS Gold Series achieves 80 PLUS Gold certification with its 90 % efficiency at 50 % system load.
COMPACT SFX-L SIZE
The versatile FOCUS SGX measures at only 125 mm in both length and width. This super-compact size allows it to fit into various sized computer cases.

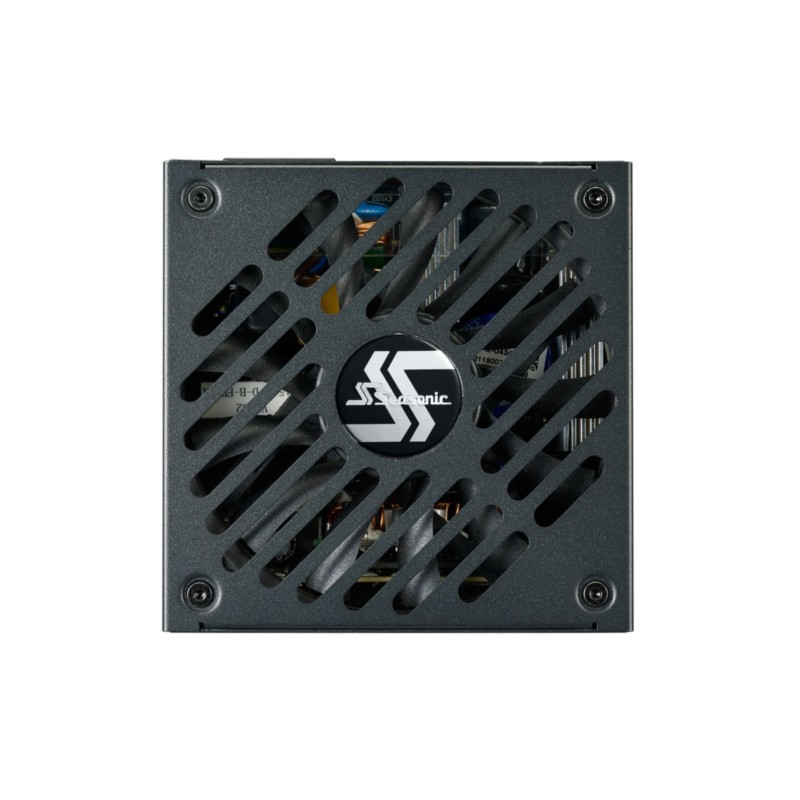

HYBRID SILENT FAN CONTROL
The industry’s first, Seasonic patented, advanced three-phased thermal control achieves optimal between silence and cooling. This Hybrid Silent Fan Control functions in three operational stages: Fanless Mode, Silent Mode, and Cooling Mode.
FLUID DYNAMIC FAN BEARING
High performance Fluid Dynamic Bearing (FDB) fans are designed to take advantage of the impact absorbance effects of oil. They are extremely reliable and generate considerably less operating noise and heat than ball bearing fans. The lubrication of the bearing surface reduces friction and vibration and therefore lowers overall power consumption. Due to the effortless, quieter rotations and its robust construction, this reliable fan technology also greatly increases the lifespan of the fan.
HOW IT WORKS
When the fan shaft rotates, high pressure oil drifts along the grooves of the bearing sleeve to generate a thin layer of lubrication between the bearing faces. As the speed increases, so does dynamic oil pressure and the shaft is lifted from the bearing to create smooth, effortless rotations. The herringbone shape of the groves helps to efficiently channel the lubricant and avert leakage.
| Total power | 650 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Input current | 9 A |
| Combined power (+3.3V) | 100 W |
| Combined power (+12V) | 648 W |
| Combined power (+5V) | 100 W |
| Combined power (-12V) | 3.6 W |
| Combined power (+5Vsb) | 15 W |
| Max output current (+3.3V) | 20 A |
| Max output current (+12V) | 54 A |
| Max output current (+5V) | 20 A |
| Max output current (-12V) | 0.3 A |
| Max output current (+5Vsb) | 3 A |
| Power protection features | Over current, Over power, Over voltage, Short circuit, Under voltage, Overheating |

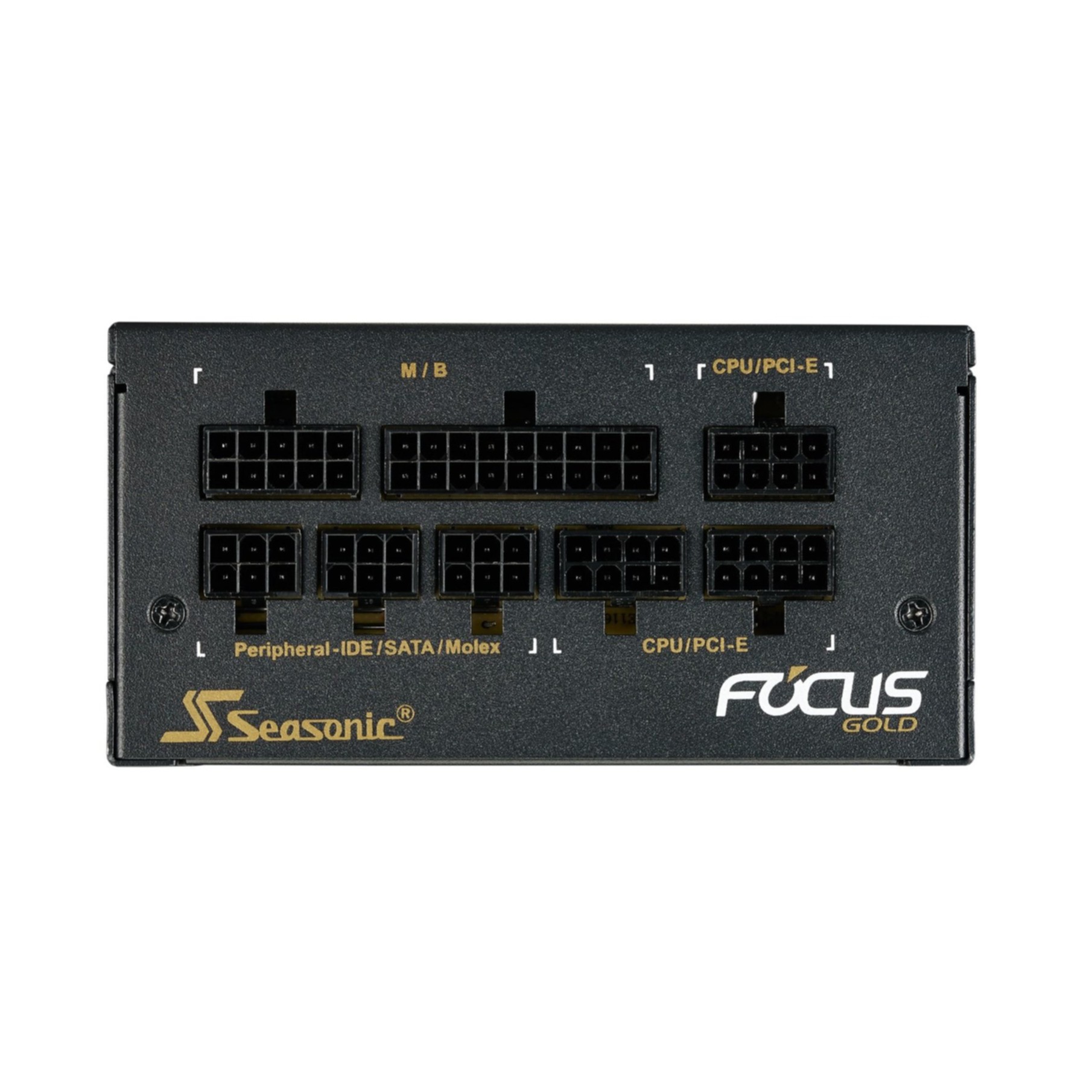

| Motherboard power connector | 20+4 pin ATX |
| Motherboard power cable length | 35 cm |
| Number of SATA power connectors | 6 |
| SATA power cable length | 600 mm |
| Peripheral (Molex) power connectors (4-pin) | 3 |
| Peripheral (Molex) power cable length | 700 mm |
| PCI Express power connectors (6+2 pin) | 4 |
| CPU power connector (4+4 pin) | Yes |
| CPU power cable length | 40 cm |
| Cabling type | Fully-Modular |
| 80 PLUS certification | 80 PLUS Gold |
| Purpose | PC |
| Power supply unit (PSU) form factor | SFX |
| Mean time between failures (MTBF) | 100000 h |
| Product colour | Black |
| Cooling type | Active |
| Fan diameter | 12 cm |
| Number of fans | 1 fan(s) |
| Fan location | Top |
| Illumination | No |
| Operating temperature (T-T) | 0 - 50 °C |
| Compliance certificates | RoHS |
| Certification | cTUVus, TUV, CB, CCC, BSMI, EAC, CE, WEEE, ErP Lot 6, REACH |
| Width | 125 mm |
| Depth | 125 mm |
| Height | 63.5 mm |
| Sustainability certificates | ENERGY STAR |
