be quiet! Pure Power 13 M 650W BP025EU - Fully-Modular ATX 3.1 80+ Gold PSU (Boxed)
650W fully modular ATX 3.1 PSU with 80 PLUS Gold efficiency. Features 1x PCIe 5.1 12V-2x6 & 2x 6+2-pin connectors for modern GPUs. Semi-passive 120mm fan ensures silent operation up to 50°C.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| PSU (Power Supplies) - Wattage | 600 - 699 W |
|---|---|
| PSU (Power Supplies) - Efficiency Rating | 80 Plus Gold |
| PSU (Power Supplies) - Color | Black |
| PSU (Power Supplies) - Modularity | Fully modular |
| PSU (Power Supplies) - PCIe GPU Connectors | 1x 12V-2x6 2x 8/6 pins |
| PSU (Power Supplies) - Length | 141-160 mm |
| PSU (Power Supplies) - EPS CPU Connectors | 1x 4+4pin EPS/ATX12V |
The be quiet! Pure Power 13 M 650W (BP025EU) is a high-performance, fully modular ATX 3.1 power supply designed for modern gaming PCs and workstations. Certified 80 PLUS Gold, it delivers exceptional efficiency (up to 93.3% at 230V) while supporting power excursions up to double its rating, perfect for PCIe 5.1 GPUs like NVIDIA RTX 40-series.

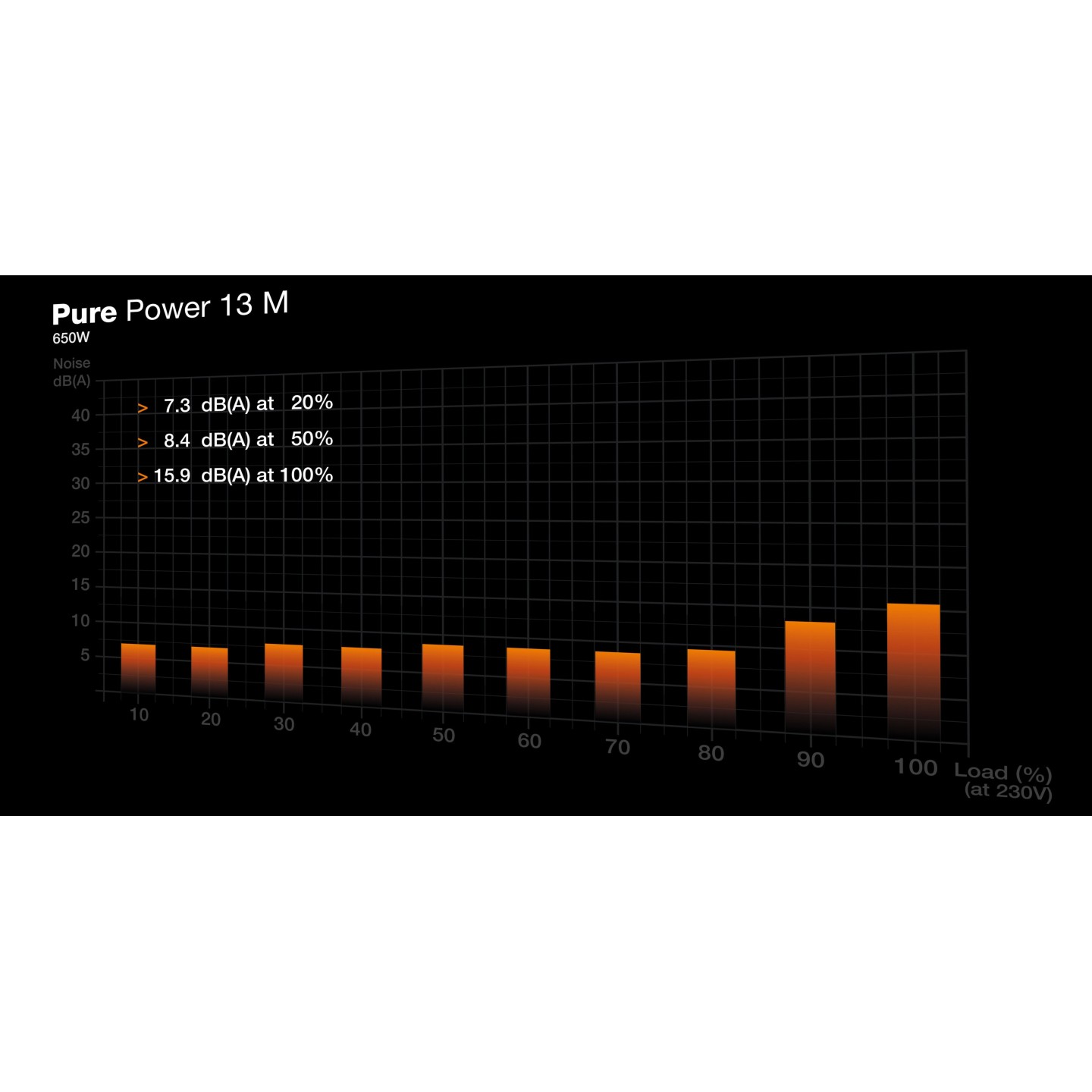

Key highlights include a native 12V-2x6 (PCIe 5.1) connector for next-gen graphics cards, plus 2x PCIe 6+2-pin cables for legacy GPUs. The semi-passive 120mm Rifle Bearing fan (be quiet! optimized) remains silent at low loads and activates only when needed, earning Cybenetics LAMBDA A++ noise rating. Built on a reliable FSP platform with LLC topology, it offers 1x 4+4-pin EPS for CPUs and operates from 0-50°C.

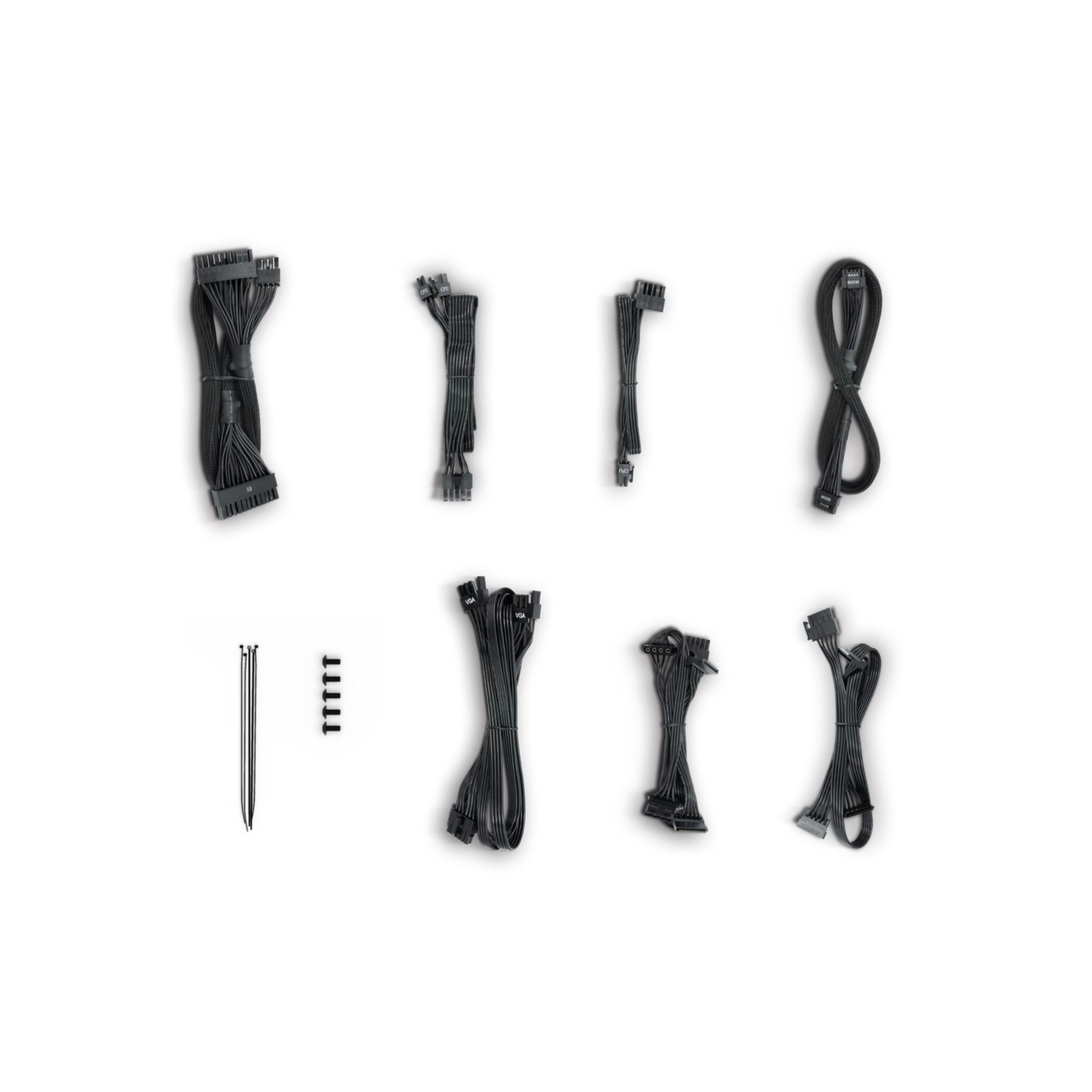

- ✅ Fully modular cables for clean builds
- ✅ 10-year warranty for peace of mind
- ✅ Single +12V rail (54.1A / 650W)
- ✅ ATX 24-pin, 4+4-pin EPS, multiple SATA/Molex
- ✅ Black color, compact 160mm depth
| Model | BP025EU |
| Power Output | 650 W |
| Form Factor | ATX |
| ATX Version | ATX 3.1 / EPS 2.92 |
| Efficiency | 80 PLUS Gold / Cybenetics Platinum |
| Fan | 120mm Rifle Bearing, semi-passive |
| Modularity | Fully modular |
| Main Connectors | 1x 20+4-pin ATX, 1x 4+4-pin EPS12V |
| PCIe Connectors | 1x 12V-2x6 (PCIe 5.1), 2x 6+2-pin PCIe |
| +12V Rail | 54.1 A / 650 W (single rail) |
| +3.3V | 20 A / 120 W combined (+5V) |
| +5V | 20 A |
| +5VSB | 3 A / 15 W |
| -12V | 0.3 A / 3.6 W |
| Dimensions (W x H x D) | 150 x 85 x 160 mm |
| Weight (unit) | 1.70 kg |
| Warranty | 10 years |
| Operating Temperature | 0-50 °C |
| AC Input | 100-240 V, 50-60 Hz |
