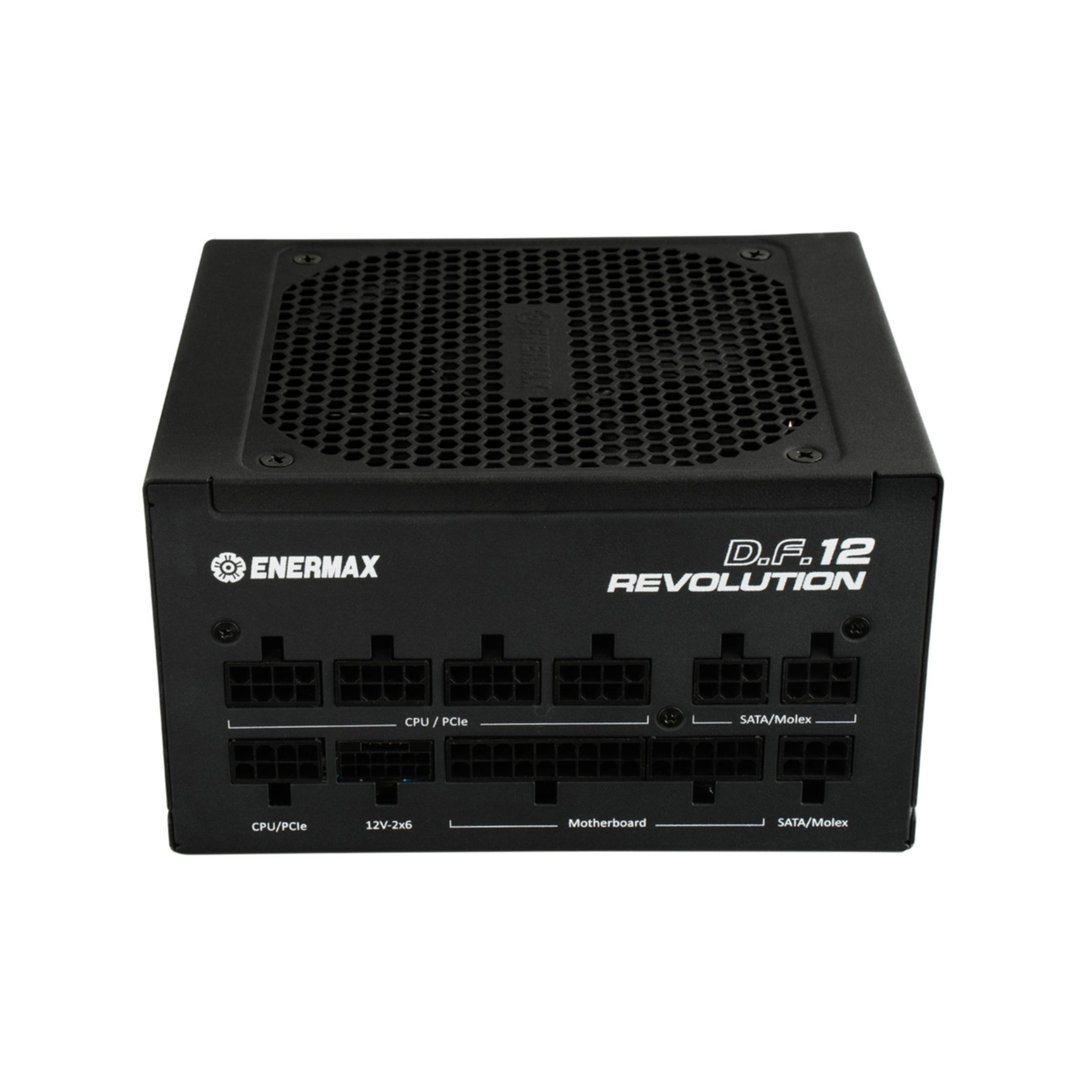

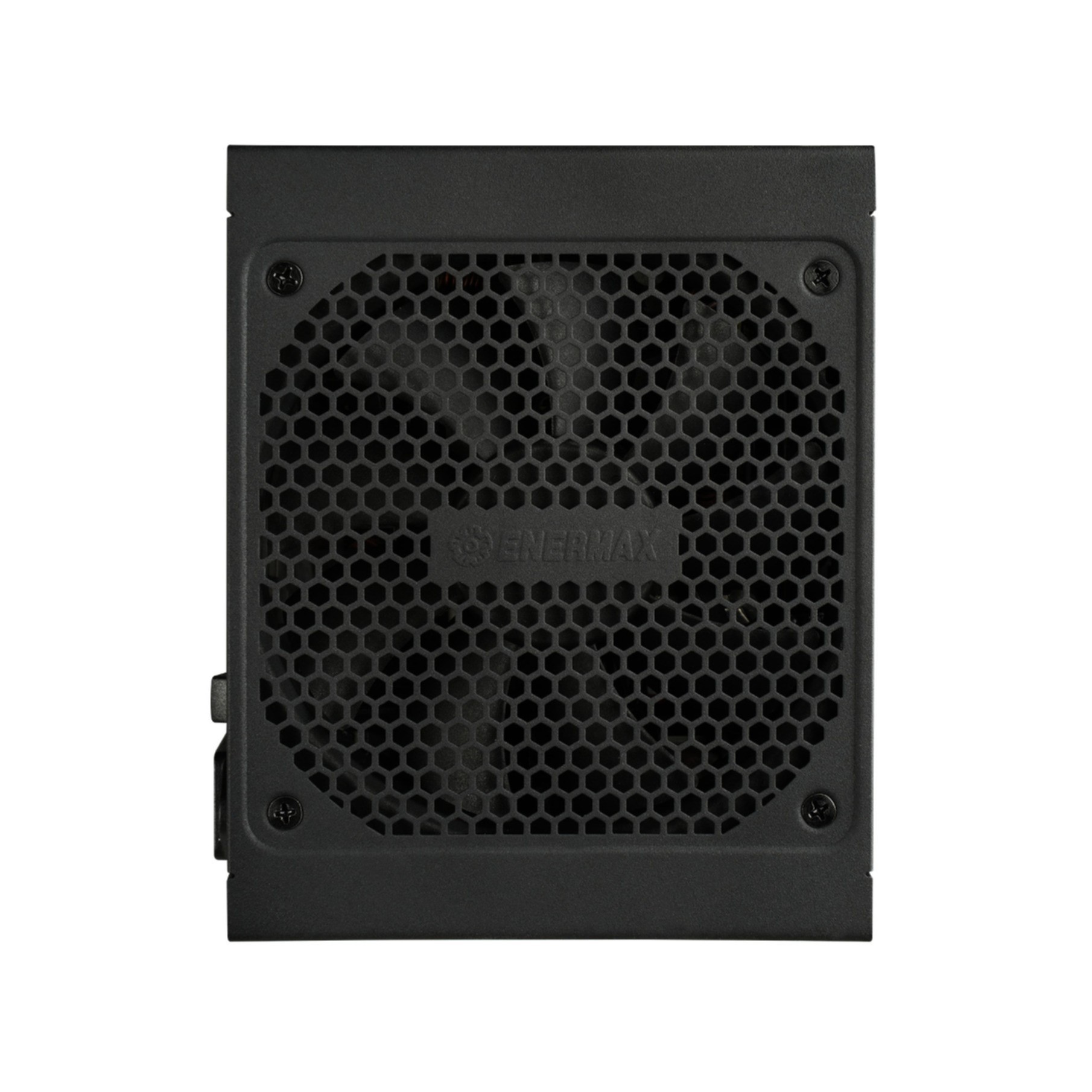

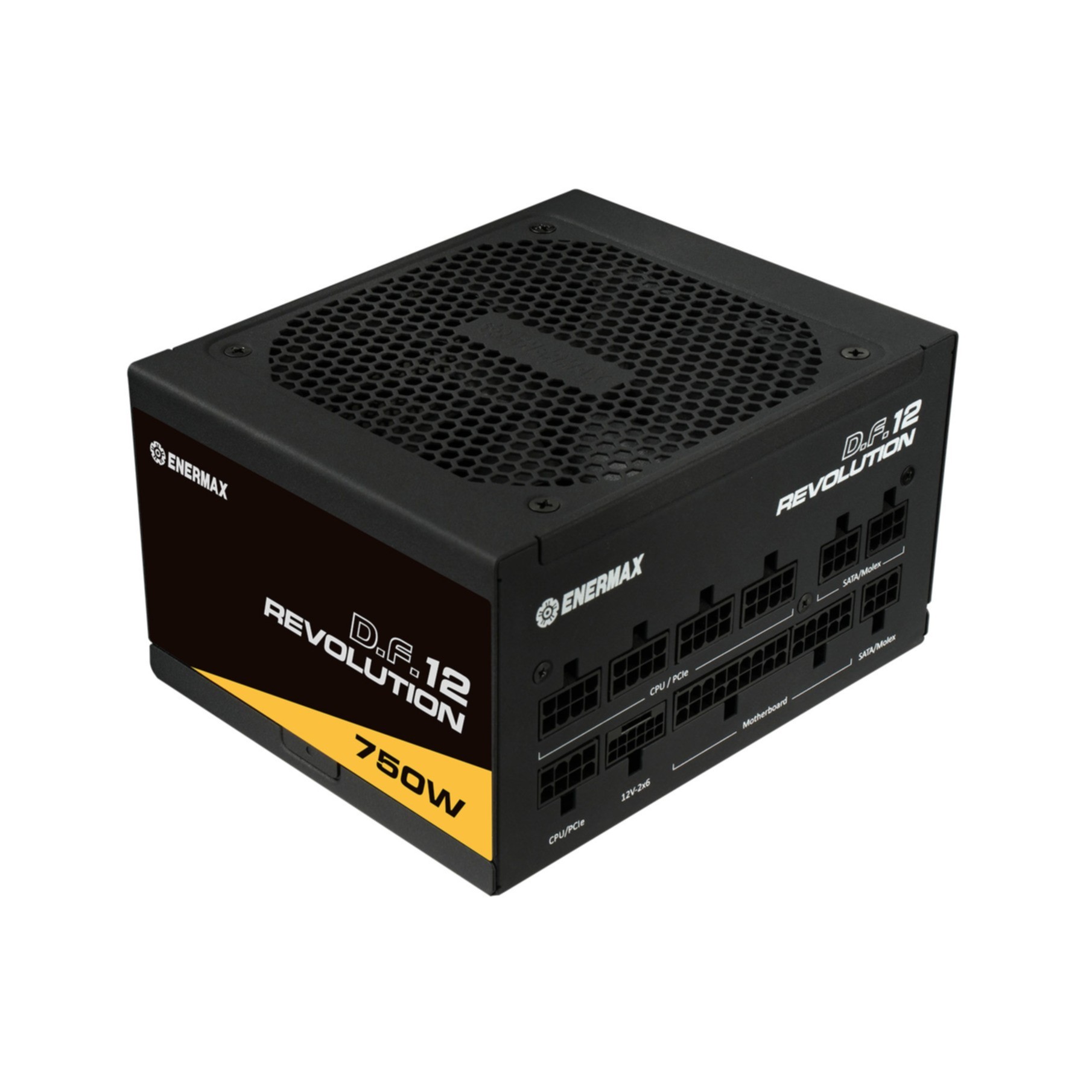

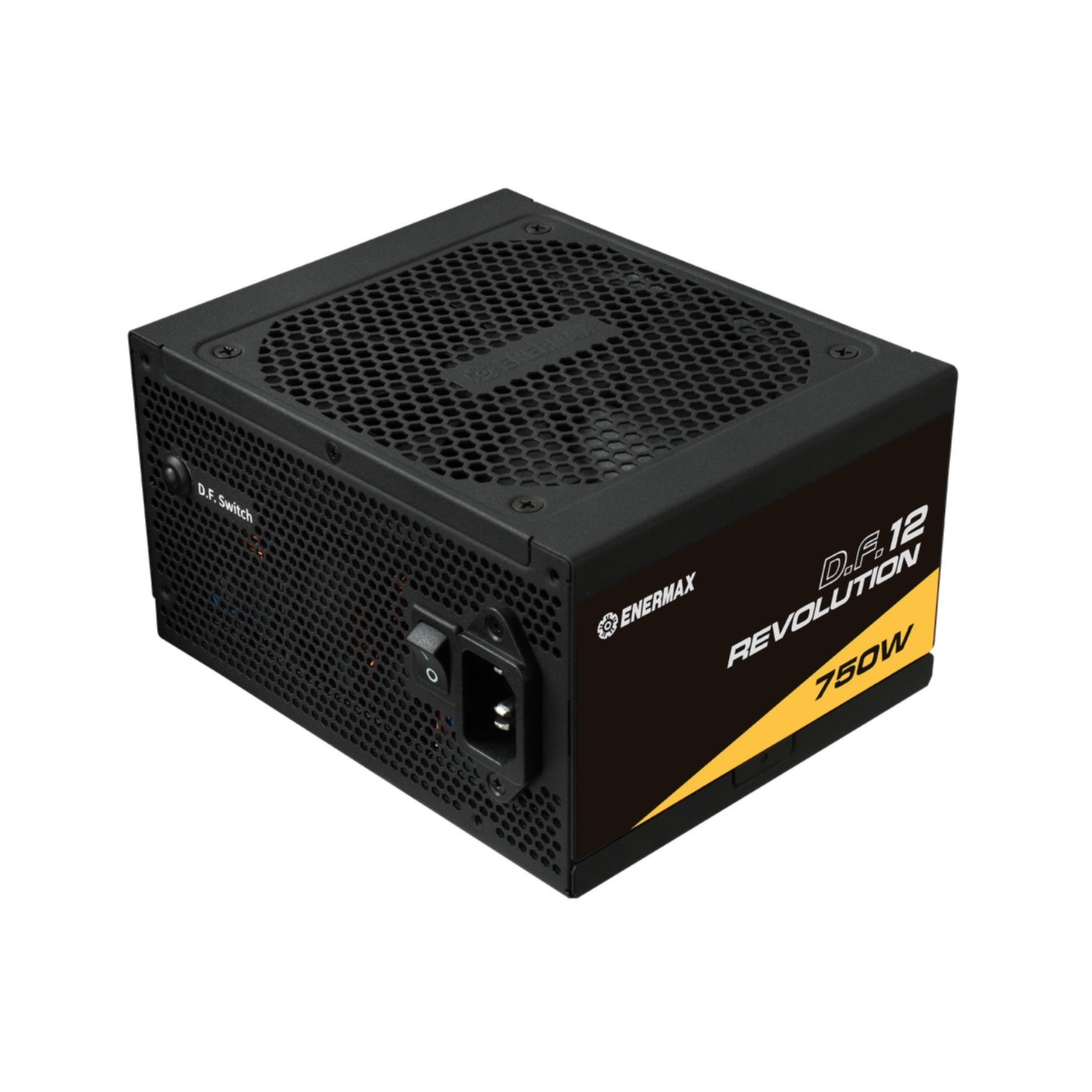

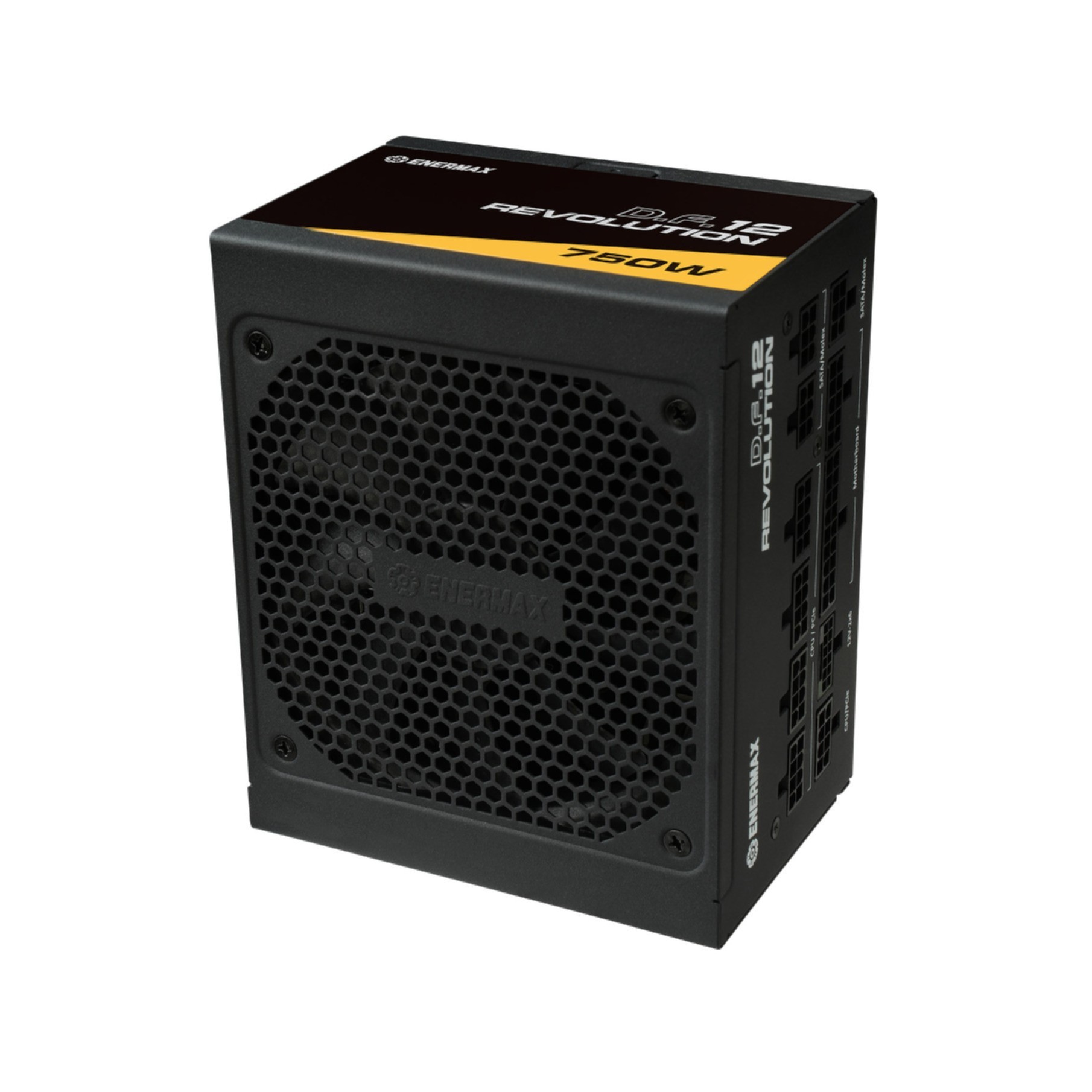

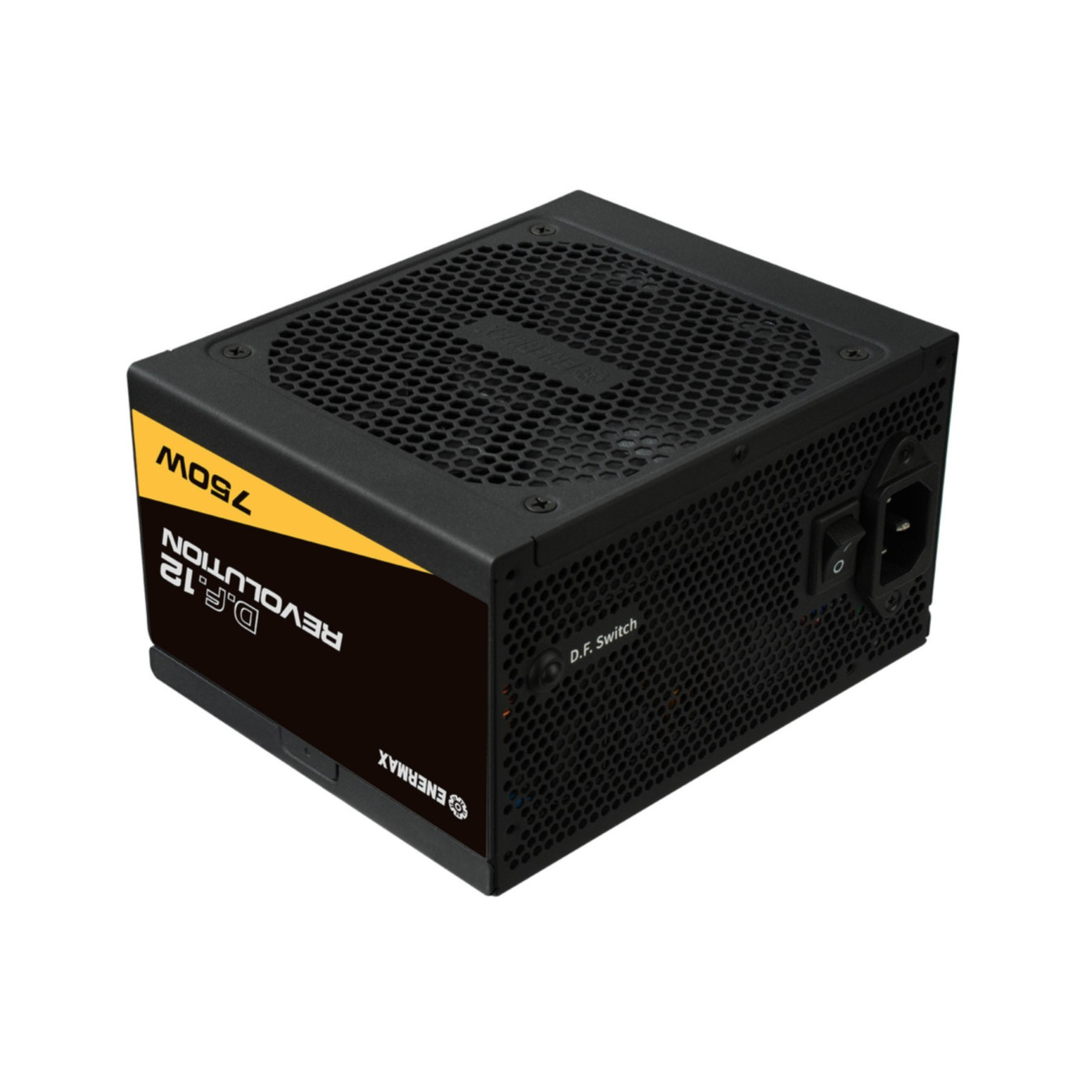

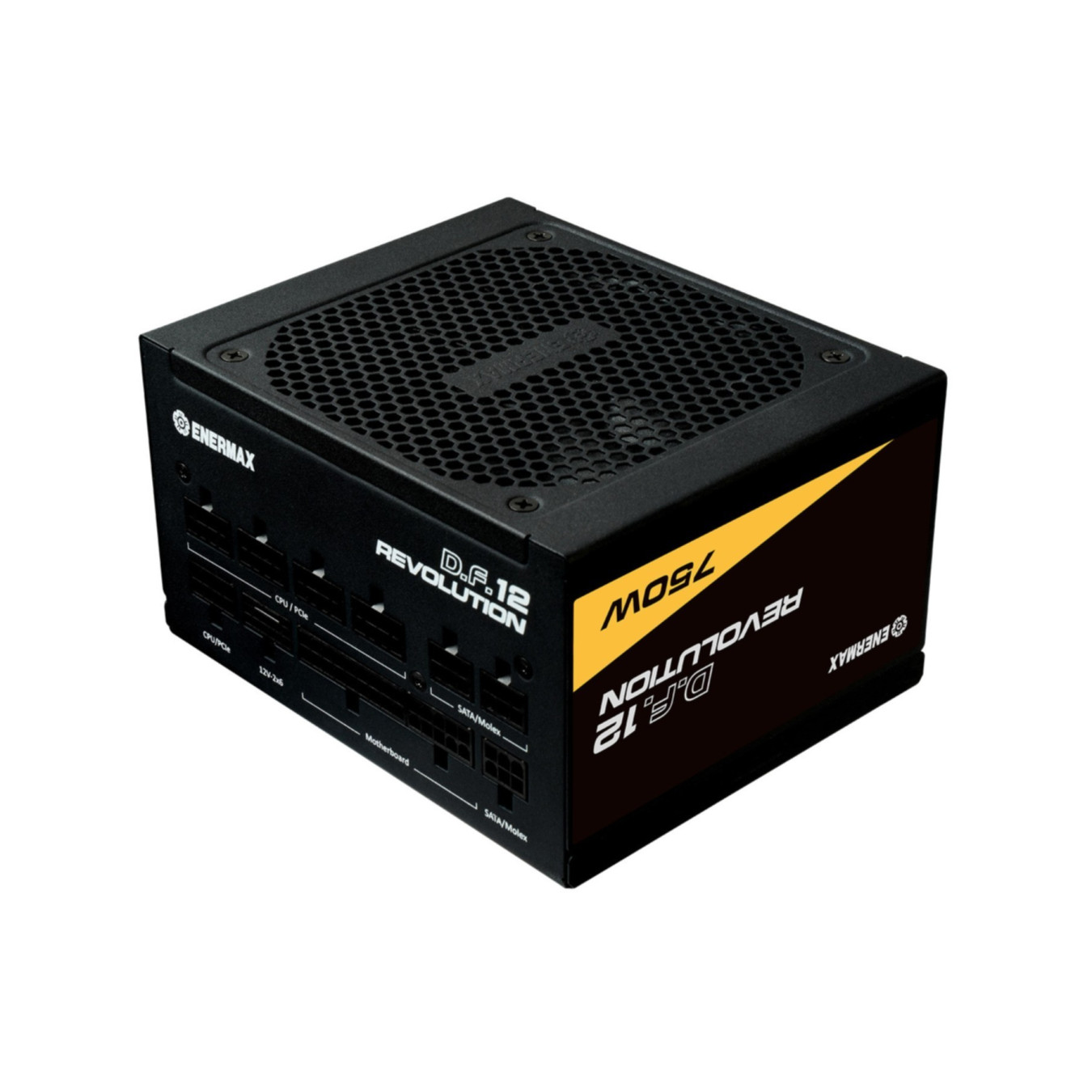

Enermax Revolution D.F.12 ETV750G - 750W ATX 3.1 PSU - Fully-Modular, 80 PLUS Gold, Black
750W fully-modular ATX 3.1 power supply, 80 PLUS Gold efficiency, 3x 6+2 PCIe, 1x 12+4 (12VHPWR), 8x SATA connectors, black finish.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| PSU (Power Supplies) - Wattage | 750 W |
|---|---|
| PSU (Power Supplies) - Efficiency Rating | 80+ Gold |
| PSU (Power Supplies) - ATX Standard | ATX 3.1 |
| PSU (Power Supplies) - Modularity | Fully modular |
| PSU (Power Supplies) - PCIe GPU Connectors | 3x8-pin |
| PSU (Power Supplies) - EPS CPU Connectors | 1x8-pin |
| PSU (Power Supplies) - Length | 141-160 mm |
Enermax Revolution D.F.12. Total power: 750 W. AC input voltage: 100 - 240 V. AC input frequency: 50/60 Hz. Motherboard power connector: 20+4 pin ATX. SATA power cable length: 115.450 mm. Peripheral (Molex) power cable length: 150.450 mm. Purpose: PC. Power supply unit (PSU) form factor: ATX. 80 PLUS certification: 80 PLUS Gold. Product colour: Black. Cooling type: Active. Number of fans: 1 fan(s). Width: 122 mm. Depth: 150 mm. Height: 86 mm
| Total power | 750 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Input current | 10 A |
| Combined power (+3.3V) | 100 W |
| Combined power (+12V) | 849.6 W |
| Combined power (+5V) | 100 W |
| Max output current (+3.3V) | 20 A |
| Max output current (+12V1) | 70.8 A |
| Max output current (+5V) | 20 A |
| Max output current (+5Vsb) | 3 A |
| Power protection features | Over current. Over power. Over voltage. Overheating. Short circuit. Under voltage |
| Motherboard power connector | 20+4 pin ATX |
| Number of SATA power connectors | 8 |
| SATA power cable length | 115.450 mm |
| Peripheral (Molex) power connectors (4-pin) | 4 |
| Peripheral (Molex) power cable length | 150.450 mm |
| PCI Express power connectors (6+2 pin) | 3 |
| PCI Express power connectors (12+4 pin) | 1 |
| PCI Express power connectors (12+4 pin) cable length | 600 mm |
| Feature | On/off switch |
| CPU power cable length | 70 cm |
| Cabling type | Fully-Modular |
| 80 PLUS certification | 80 PLUS Gold |
| Purpose | PC |
| Power supply unit (PSU) form factor | ATX |
| ATX version | 3.1 |
| Mean time between failures (MTBF) | 100000 h |
| Product colour | Black |
| Cooling type | Active |
| Number of fans | 1 fan(s) |
| Fan location | Top |
| Width | 122 mm |
| Depth | 150 mm |
| Height | 86 mm |
