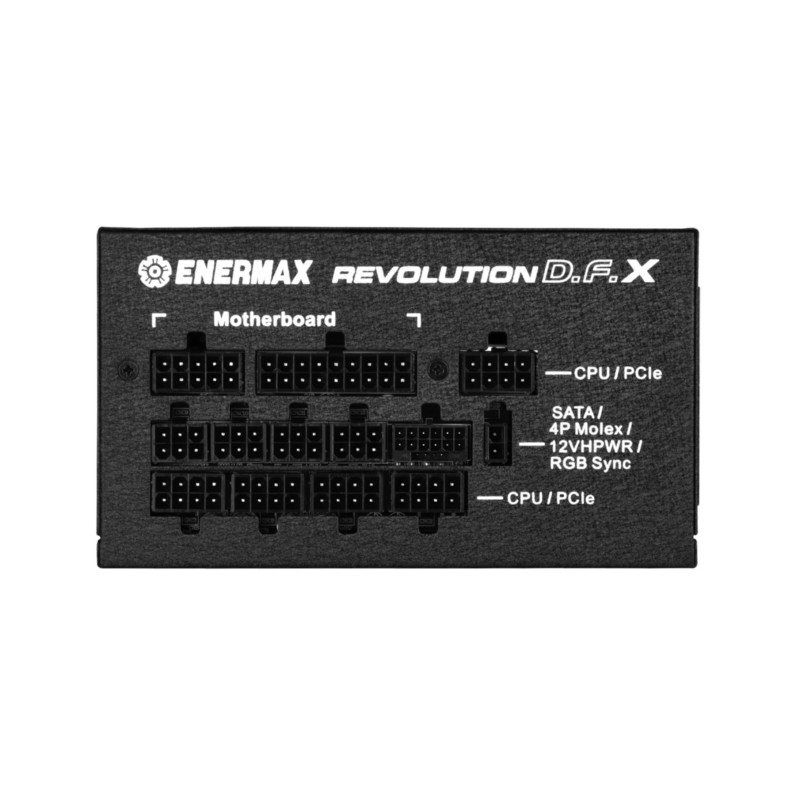

Enermax Revolution D.F.X 850W - ERT850EWT - Fully-Modular ATX 3.0, 80 PLUS Gold, Black
850W fully-modular ATX 3.0 PSU with 80 PLUS Gold (≈92% efficiency), 120mm FDB fan, extensive protections, 4x PCIe (6+2), 12x SATA connectors — compact ATX form factor.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| PSU (Power Supplies) - Wattage | 850 W |
|---|---|
| PSU (Power Supplies) - Efficiency Rating | 80+ Gold |
| PSU (Power Supplies) - ATX Standard | ATX 3.0 |
| PSU (Power Supplies) - Modularity | Fully modular |
| PSU (Power Supplies) - EPS CPU Connectors | 1x8-pin |
| PSU (Power Supplies) - Fan Size | 120 mm |
| PSU (Power Supplies) - Length | less than or equal to140 mm |
Enermax Revolution DFX. Total power: 850 W. AC input voltage: 100 - 240 V. AC input frequency: 47 - 63 Hz. Motherboard power connector: 20+4 pin ATX. Motherboard power cable length: 65 cm. SATA power cable length: 150.450 mm. Purpose: PC. Power supply unit (PSU) form factor: ATX. 80 PLUS certification: 80 PLUS Gold. Product colour: Black. Cooling type: Active. Fan diameter: 12 cm. Compliance certificates: BSMI. CE. EAC. RoHS. cTUVus
| Total power | 850 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 47 - 63 Hz |
| Input current | 11-5.5 A |
| Power factor | 0.98 |
| Combined power (+3.3V) | 130 W |
| Combined power (+12V) | 846 W |
| Combined power (+5V) | 130 W |
| Combined power (-12V) | 3.6 W |
| Combined power (+5Vsb) | 15 W |
| Max output current (+3.3V) | 20 A |
| Max output current (+12V) | 70.5 A |
| Max output current (+5V) | 20 A |
| Max output current (-12V) | 70.5 A |
| Max output current (+5Vsb) | 3 A |
| Efficiency | 92% |
| Power protection features | Over power. Over voltage. Short circuit. Under voltage |
| Motherboard power connector | 20+4 pin ATX |
| Motherboard power cable length | 65 cm |
| Number of SATA power connectors | 12 |
| SATA power cable length | 150.450 mm |
| Peripheral (Molex) power connectors (4-pin) | 6 |
| Peripheral (Molex) power cable length | 150.500 mm |
| PCI Express power connectors (6+2 pin) | 4 |
| Feature | Sustainability compliance |
| Floppy drive power connector | 1 |
| Floppy disk drive cable length | 10 cm |
| Cabling type | Fully-Modular |
| 80 PLUS certification | 80 PLUS Gold |
| Purpose | PC |
| Power supply unit (PSU) form factor | ATX |
| ATX version | 3.0 |
| Bearing technology | FDB |
| Mean time between failures (MTBF) | 100000 h |
| Product colour | Black |
| Cooling type | Active |
| Fan diameter | 12 cm |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 70 °C |
| Operating relative humidity (H-H) | 20 - 90% |
| Storage relative humidity (H-H) | 5 - 95% |
| Compliance certificates | BSMI. CE. EAC. RoHS. cTUVus |
| Width | 150 mm |
| Depth | 140 mm |
| Height | 86 mm |
| Package width | 320 mm |
| Package depth | 115 mm |
| Package height | 210 mm |
| Package weight | 2.77 kg |
| Package type | Box |
