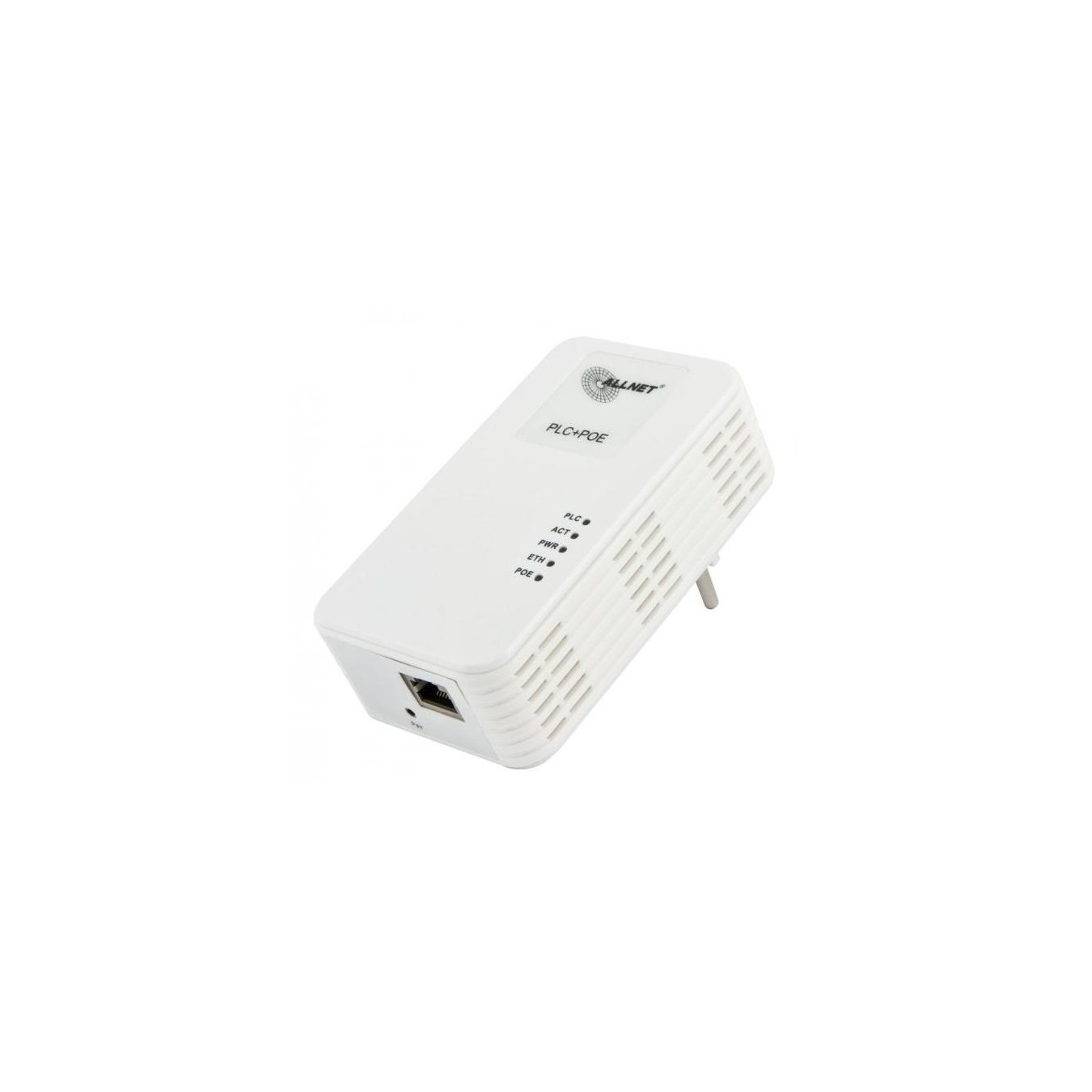

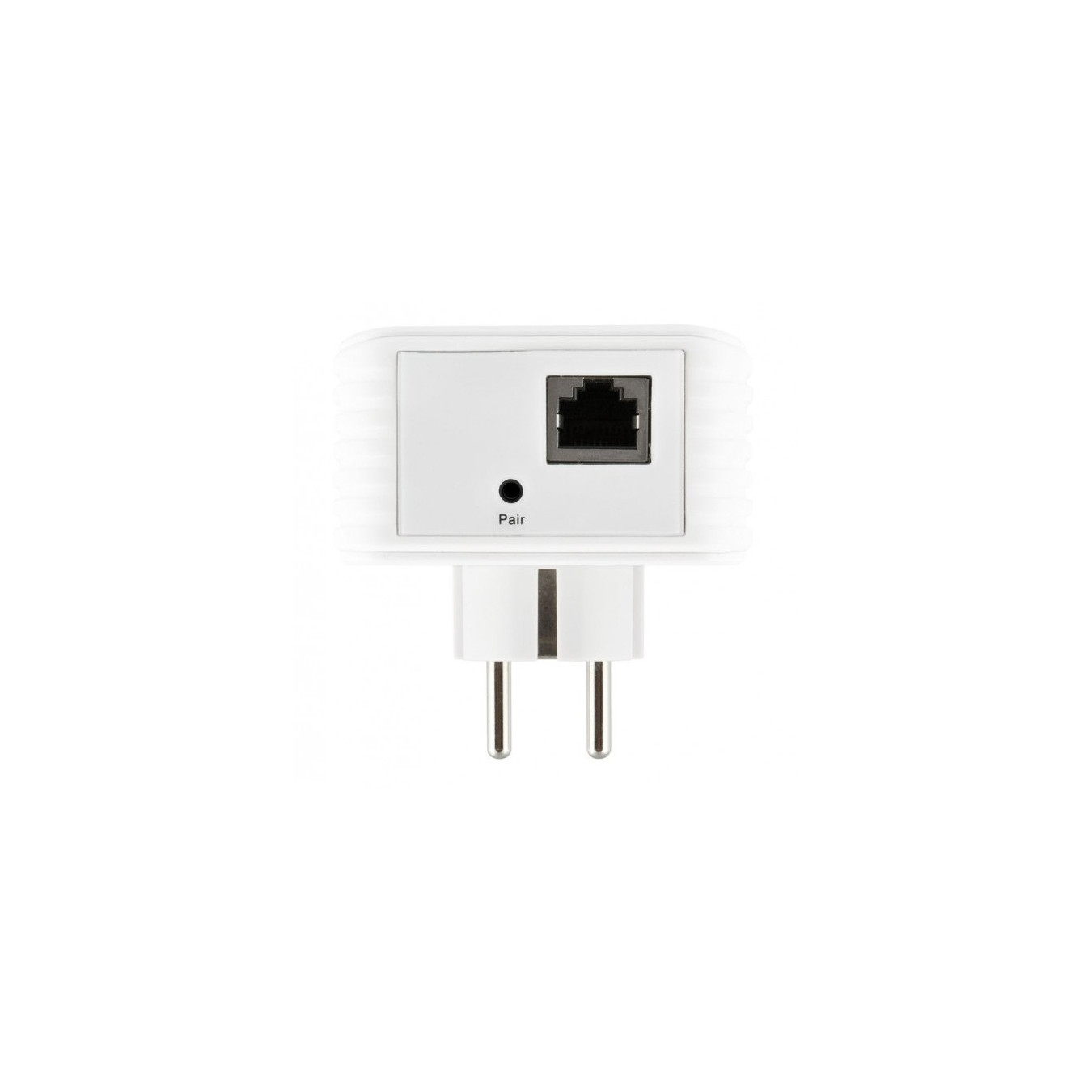

INTD ALLNET Powerline 1200Mbit Bridge RJ45 HomePlugV2 SmartLink mit PoE AT ALL1681203
ALLNET ALL1681203. 1200 Mbit/s. IEEE 802.3. IEEE 802.3ab. IEEE 802.3at. Gigabit Ethernet. 10.100.1000 Mbit/s. 10BASE-T. 100BASE-TX. 1000BASE-T. HomePlug AV2
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
ALLNET ALL1681203. Maximale Datenübertragungsrate: 1200 Mbit/s. Netzstandard: IEEE 802.3. IEEE 802.3ab. IEEE 802.3at. Schnittstellentyp Ethernet-LAN: Gigabit Ethernet. Stromverbrauch (Standardbetrieb): 32 W. Stromverbrauch (Standby): 3 W. AC Eingangsspannung: 85-265 V. Produktfarbe: Weiß. Gehäusematerial: Kunststoff. Zertifizierung: CE. Breite: 65 mm. Tiefe: 30 mm. Höhe: 115 mm. Konformitätsbescheinigungen: RoHS
| Maximale Datenübertragungsrate | 1200 Mbit/s |
| Feature | Betriebsanleitung |
| Schnittstellentyp Ethernet-LAN | Gigabit Ethernet |
| Ethernet LAN Datentransferraten | 10.100.1000 Mbit/s |
| Kupfer Ethernet Verkabelungstechnologie | 10BASE-T. 100BASE-TX. 1000BASE-T |
| Anzahl Ethernet-LAN-Anschlüsse (RJ-45) | 1 |
| Anzahl Power over Ethernet (PoE) Anschlüsse | 1 |
| Netzstandard | IEEE 802.3. IEEE 802.3ab. IEEE 802.3at |
| PowerLine-Standard | HomePlug AV2 |
| Modulation | 8-QAM. 16-QAM. 64-QAM. 256-QAM. 4096-QAM. BPSK. OFDM. QPSK. ROBO |
| Unterstützte Sicherheitsalgorithmen | 128-bit AES |
| Chipsatz | Qualcomm QCA7500 + QCA8334 |
| Frequenzbereich | 2 - 68 MHz |
| Stromverbrauch (Standardbetrieb) | 32 W |
| Stromverbrauch (Standby) | 3 W |
| AC Eingangsspannung | 85-265 V |
| Power over Ethernet (PoE) Leistung pro Anschluss | 30 W |
| Produktfarbe | Weiß |
| Gehäusematerial | Kunststoff |
| Zertifizierung | CE |
| Betriebstemperatur | 0 - 70 °C |
| Temperaturbereich bei Lagerung | -10 - 70 °C |
| Relative Luftfeuchtigkeit in Betrieb | 10 - 90% |
| Luftfeuchtigkeit bei Lagerung | 10 - 95% |
| Breite | 65 mm |
| Tiefe | 30 mm |
| Höhe | 115 mm |
| Gewicht | 300 g |
| Konformitätsbescheinigungen | RoHS |
| Menge pro Packung | 1 Stück(e) |
| Mitgelieferte Kabel | LAN (RJ-45) |
