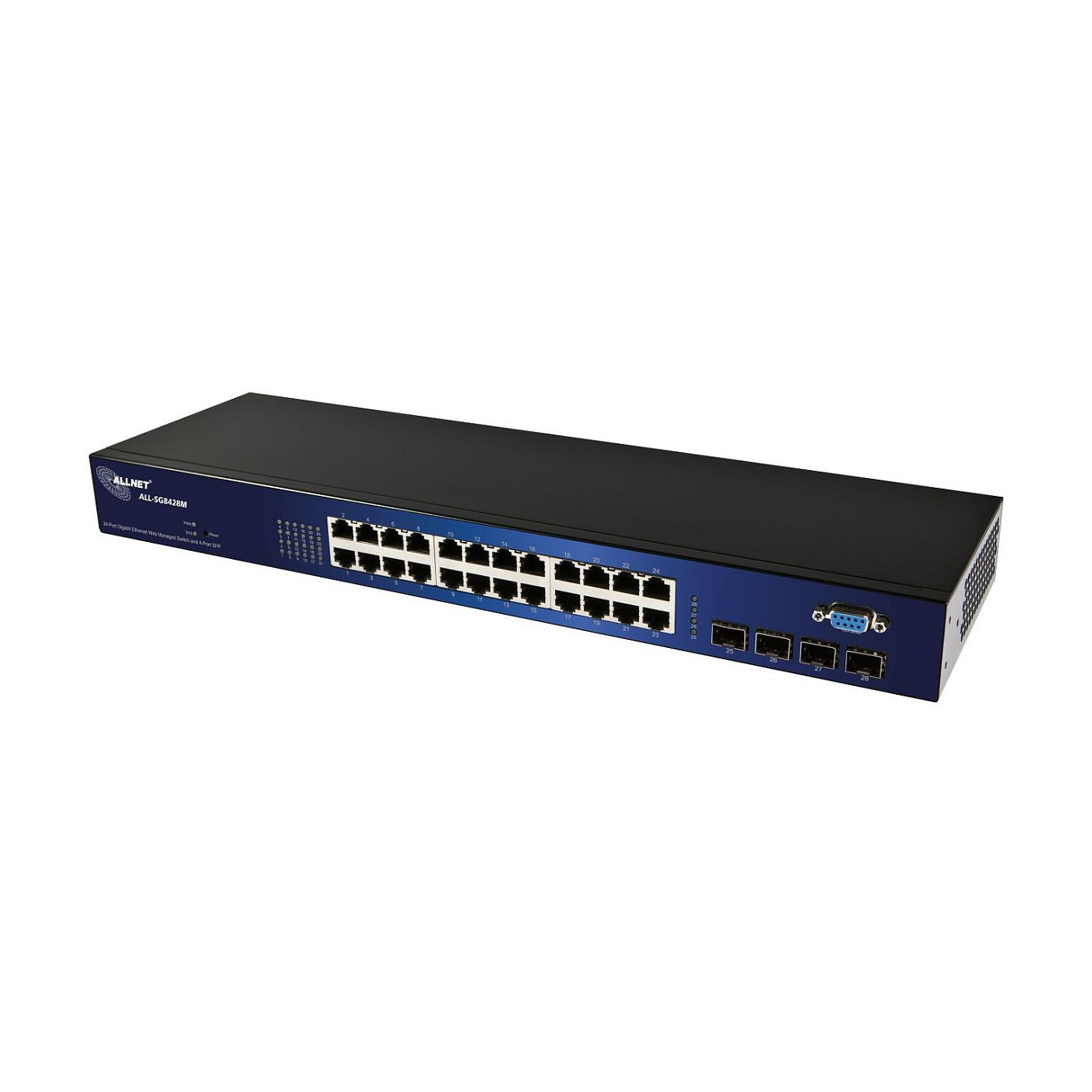

24+4P Allnet ALL-SG8428M M
ALLNET 127211. Managed. L2. Gigabit Ethernet (10/100/1000). Rack-Einbau. 19U. Wandmontage
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
ALLNET 127211. Switch-Typ: Managed. Switch-Ebene: L2. Basic Switching RJ-45 Ethernet Ports-Typ: Gigabit Ethernet (10/100/1000). Anzahl der basisschaltenden RJ-45 Ethernet Ports: 24. Vollduplex. MAC-Adressentabelle: 8000 Eintragungen. Netzstandard: IEEE 802.1D. IEEE 802.1Q. IEEE 802.1ab. IEEE 802.1w. IEEE 802.3. IEEE 802.3ab. IEEE 802.3az. IEEE.... Wandmontage. Rack-Einbau. Formfaktor: 19U
| Switch-Typ | Managed |
| Switch-Ebene | L2 |
| Feature | Upgradefähige Firmware |
| Anzahl der basisschaltenden RJ-45 Ethernet Ports | 24 |
| Basic Switching RJ-45 Ethernet Ports-Typ | Gigabit Ethernet (10/100/1000) |
| Menge SFP-Modul-Steckplätze | 4 |
| Netzstandard | IEEE 802.1D. IEEE 802.1Q. IEEE 802.1ab. IEEE 802.1w. IEEE 802.3. IEEE 802.3ab. IEEE 802.3az. IEEE 802.3u. IEEE 802.3x |
| unterstütze Kabeltypen | Cat3. Cat4. Cat5. Cat5e |
| Virtuelle LAN-Funktionen | Tagged VLAN |
| Anzahl der VLANs | 64 |
| MAC-Adressentabelle | 8000 Eintragungen |
| Anzahl Queues | 8 |
| Jumbo-Frames | 10000 |
| Paketweiterleitungsrate (100 Mbit/s) | 148800 pps |
| Paketweiterleitungsrate (10 Mbit/s) | 14880 pps |
| DHCP-Funktionen | DHCP client |
| Unterstützte Sicherheitsalgorithmen | HTTPS. SNMP. SSL/TLS |
| Anzahl der gefilterten Multicast-Gruppen | 256 |
| Formfaktor | 19U |
| Produktfarbe | Schwarz |
| Sicherheit | EN60950-1 |
| Puffergröße | 524.8 KB |
| AC Eingangsspannung | 100 - 240 V |
| AC Eingangsfrequenz | 50 - 60 Hz |
| Stromverbrauch (max.) | 15 W |
| Betriebstemperatur | 0 - 55 °C |
| Temperaturbereich bei Lagerung | -20 - 90 °C |
| Relative Luftfeuchtigkeit in Betrieb | 10 - 90% |
| Breite | 216 mm |
| Tiefe | 133 mm |
| Höhe | 42 mm |
| Gewicht | 4.7 kg |
| Zertifizierung | EMC/FCC. CE Class B |
